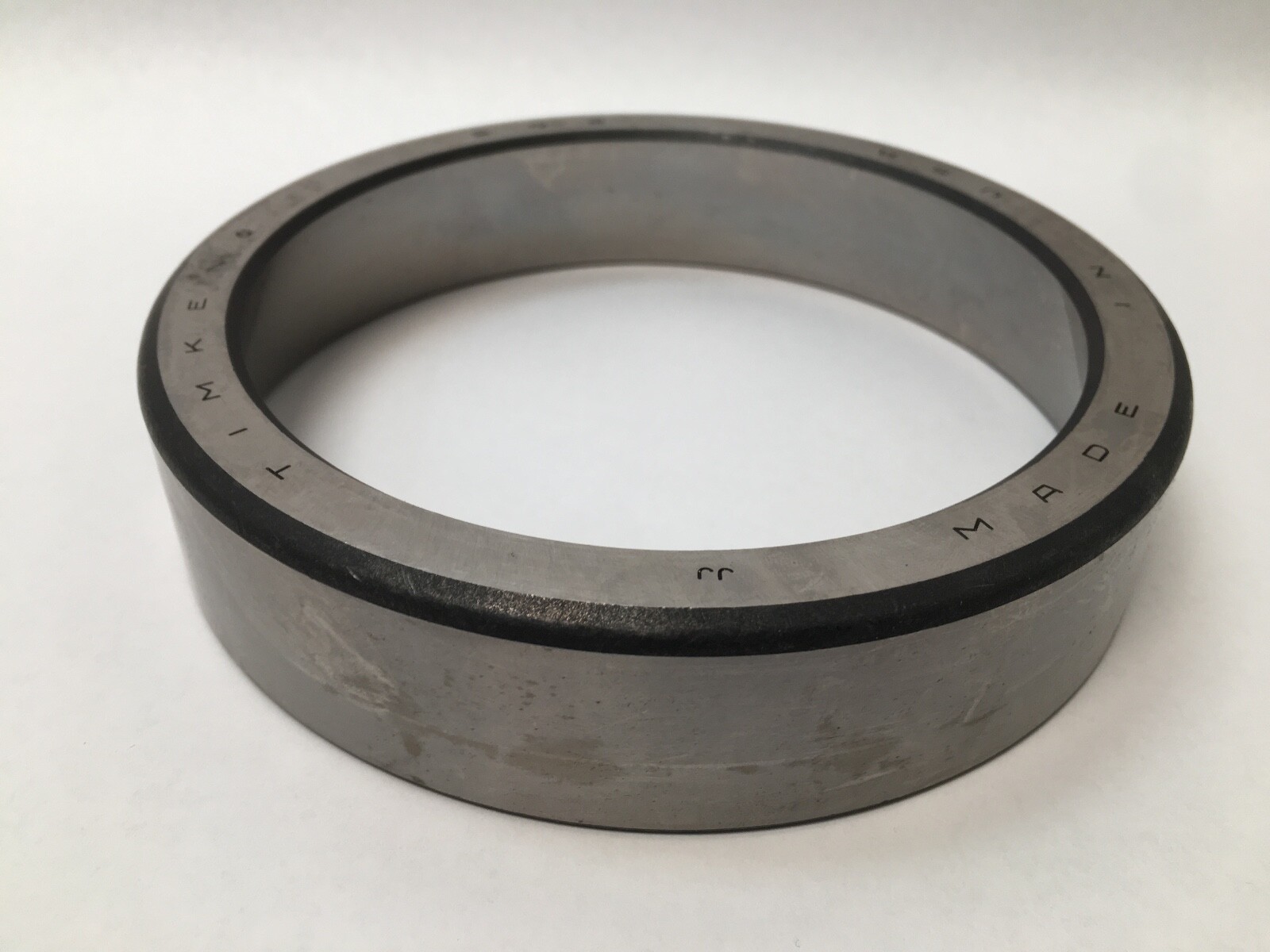

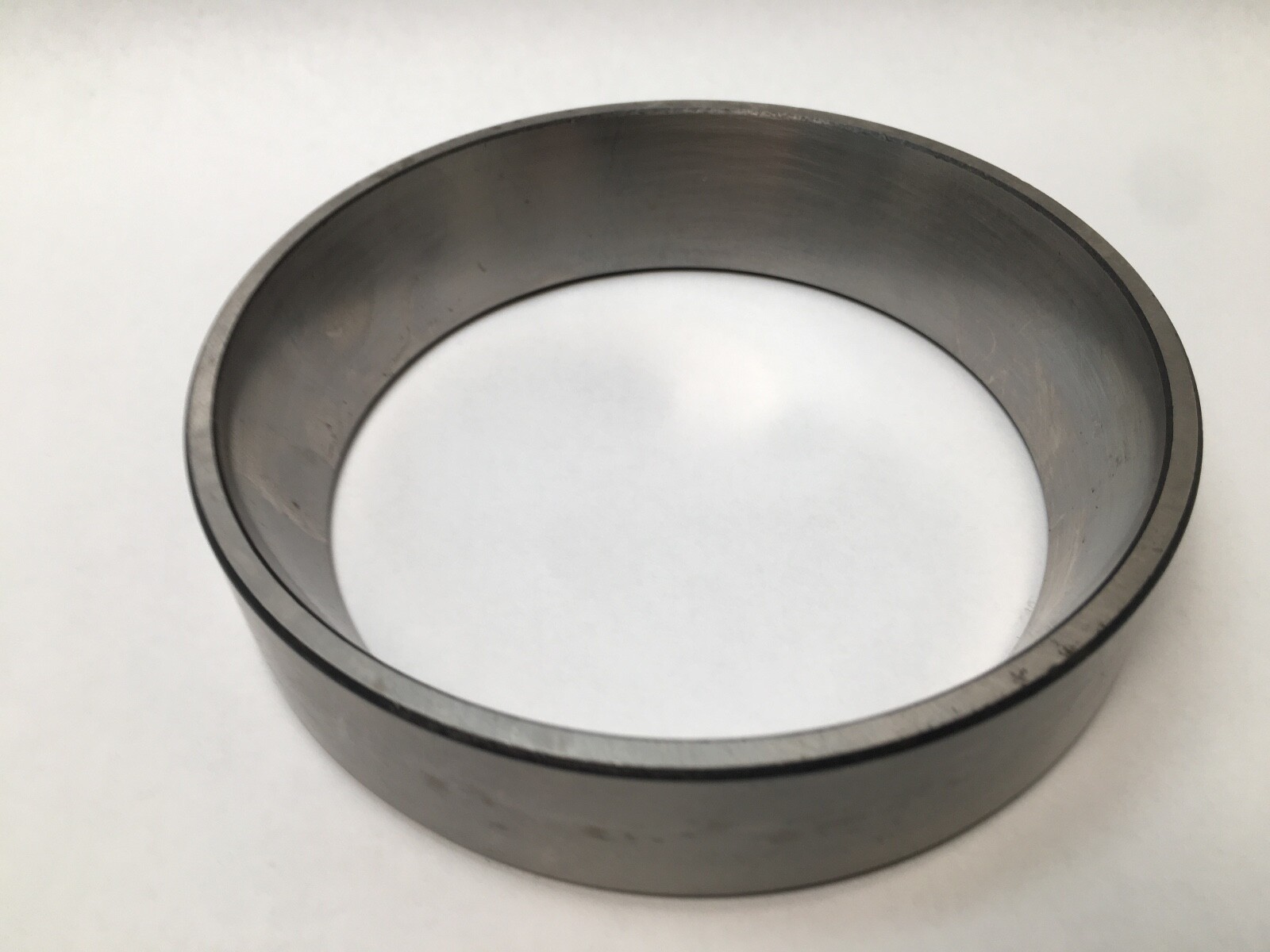

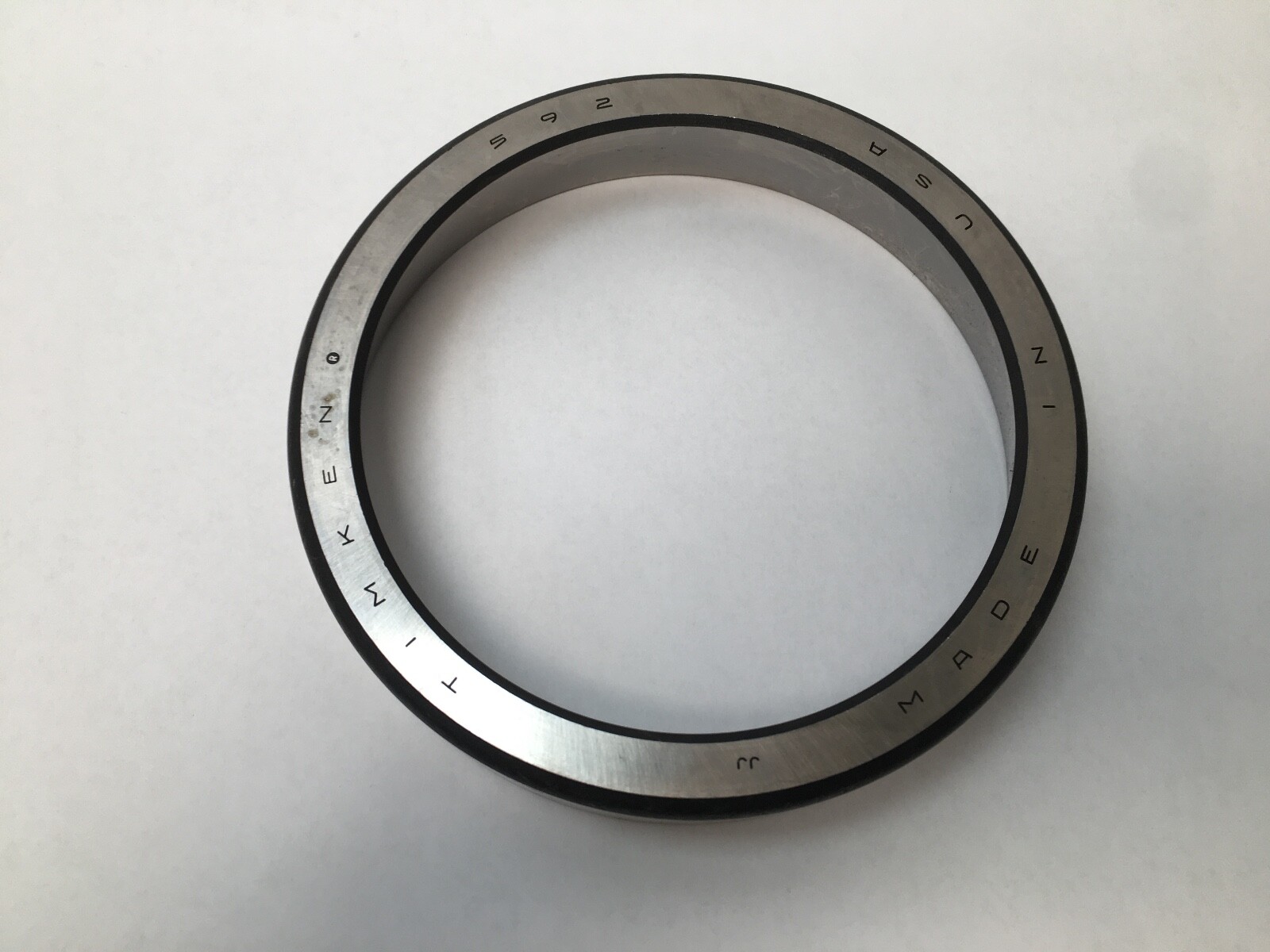

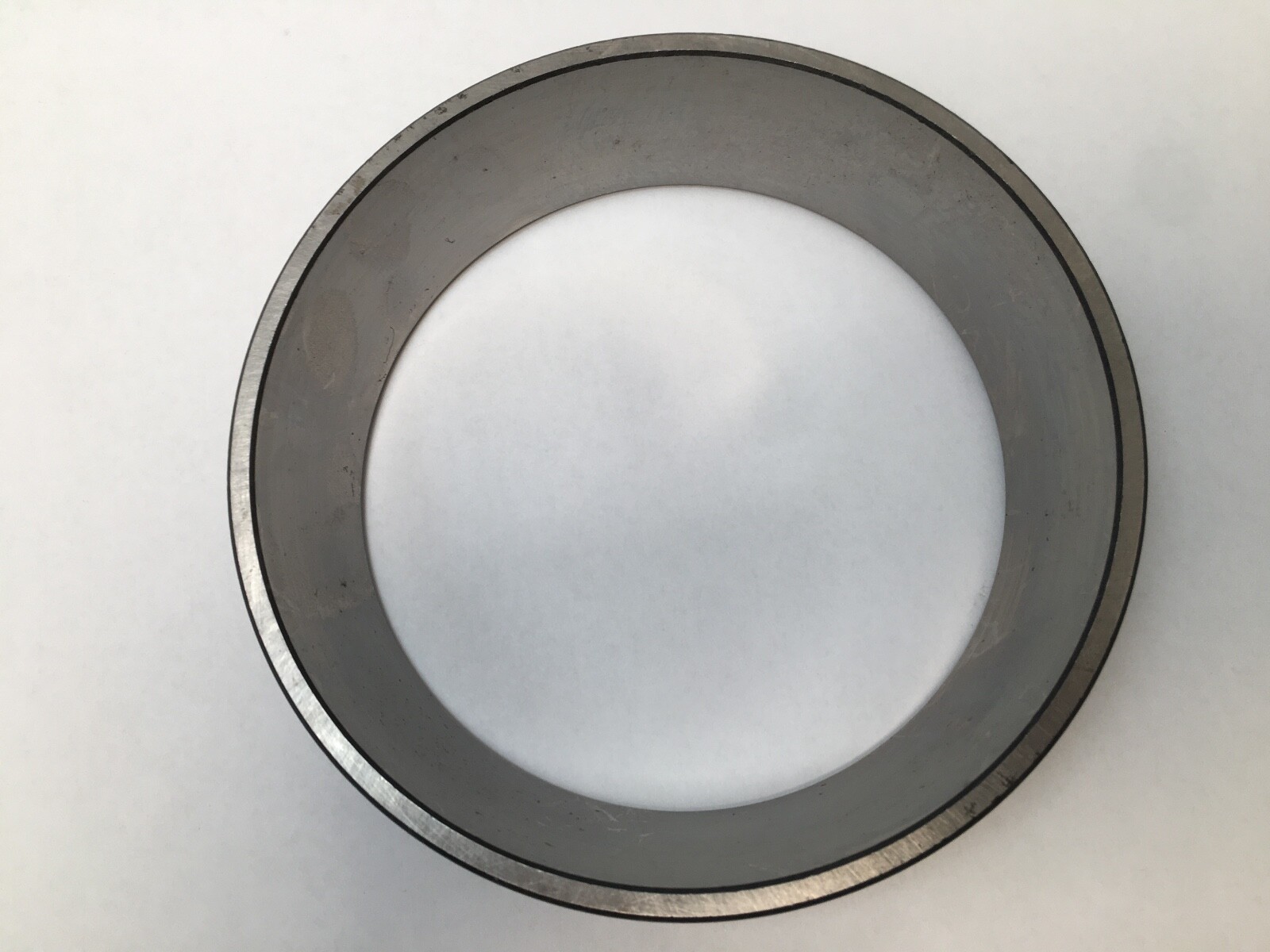

Timken592Tapered Roller Bearing Cup, 6 in. Outside Diameter, 1.3125 in. Width, Imperial Inch Series

Product Description

What this part is

A single-row imperial tapered roller bearing cup — the outer race of a two-piece TS single-row tapered bearing, holding the ground tapered raceway that the rollers run against. Cup only. The matching cone is the Timken 593, with the 590A as the second published pairing.

Decoding the designation

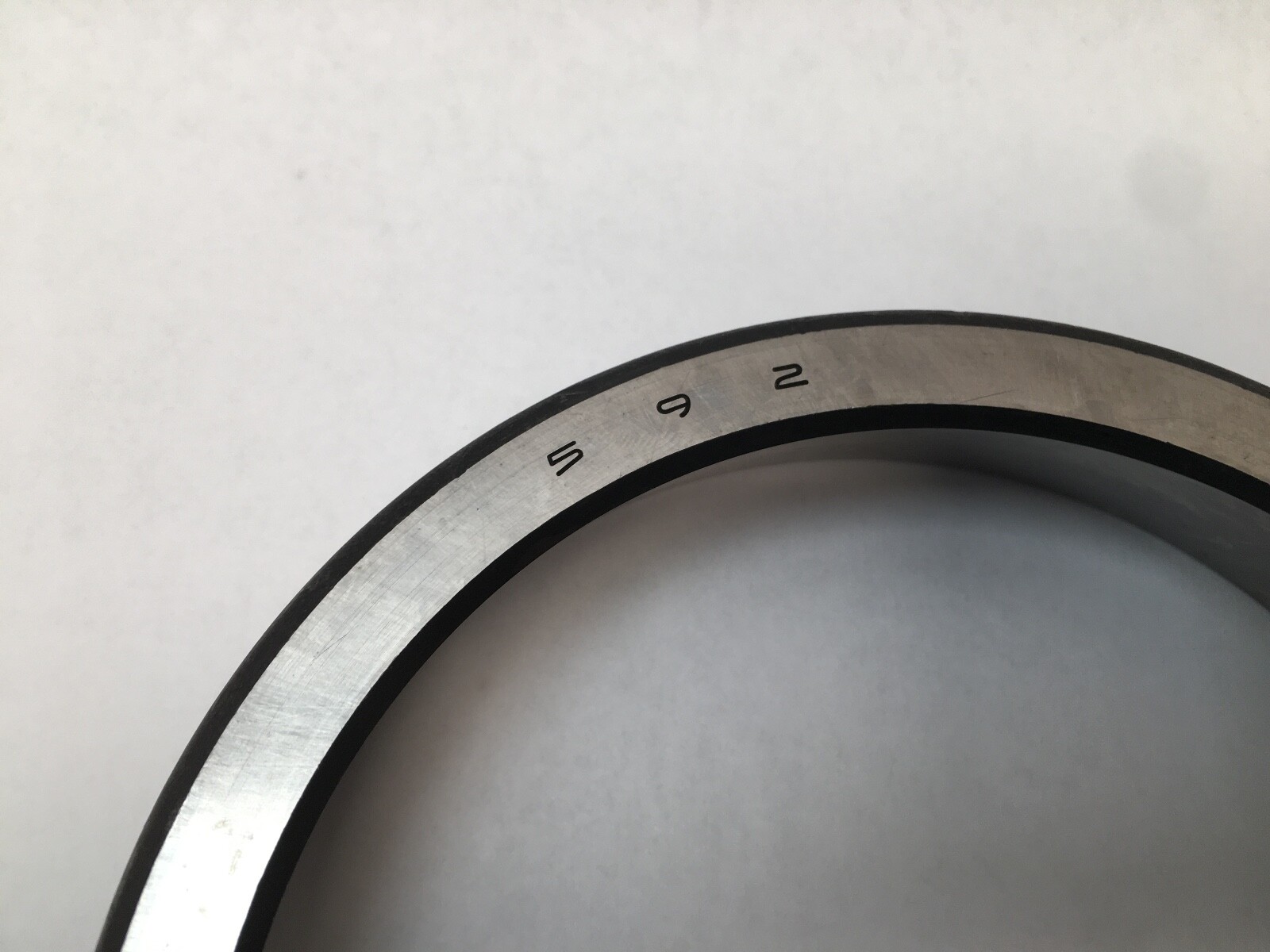

592 is an inch-series number in the ANSI/ABMA interchange scheme rather than a metric ISO designation, so the digits define the cup geometry independently of brand. Within the 59x block the even number is the cup and the odd numbers are the cones, which is why a 592 cup pairs with a 593 or 590A cone. A cup carries no clearance or cage suffix; both belong to the cone or to the mounted setting.

What these specs mean in practice

The e factor of 0.44 and the Y factor of 1.36 are the ISO equivalent-load constants for this cup’s raceway angle. In use they say that once the ratio of axial to radial load exceeds 0.44, the axial component starts to dominate the equivalent load and is weighted by 1.36 — the practical marker of a medium-angle cup with balanced radial and thrust capability. Outer ring width of 1.3125 in. is the cup on its own; the mounted assembly is wider once the cone is set into it. The housing backing shoulder diameters of 5.71 in. at the frontface and 5.31 in. at the backface set how much shoulder the housing must present for the cup to be fully supported without the shoulder fouling the raceway corner.

Published dimensions and mounting data

Outside diameter (D): 6.000 in. (152.4 mm)
Outer ring width (C): 1.3125 in. (33.338 mm)
e factor: 0.44
Y factor: 1.36
Maximum housing fillet radius: 0.130 in. (3.30 mm)
Housing backing shoulder diameter: 5.71 in. frontface, 5.31 in. backface
Geometry factor Cg: 0.142
Cup weight: 5.6 lb (2.5 kg)

Quantity and configuration

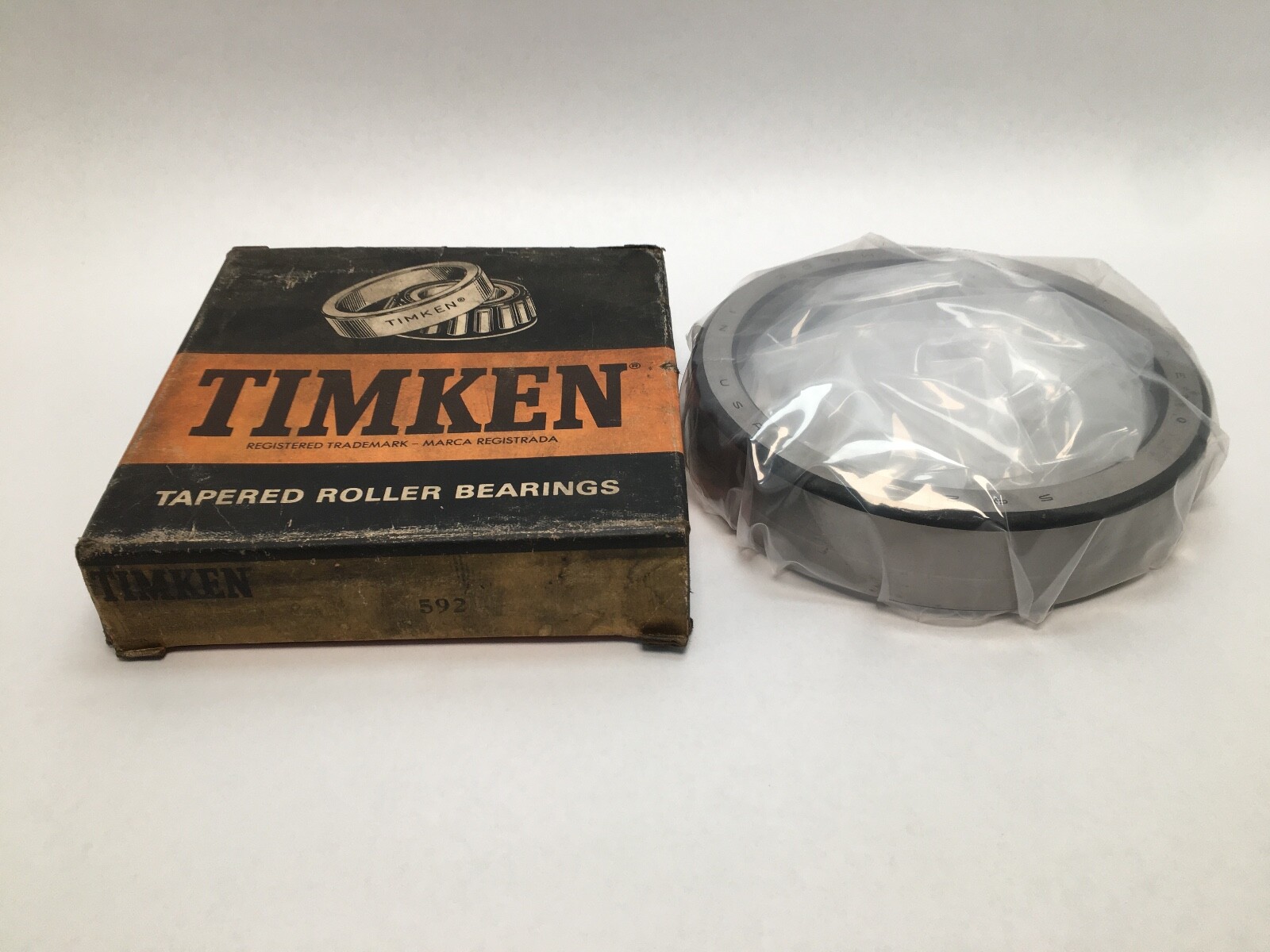

One cup, sold individually. Single row, straight outside diameter, no flange, no snap ring.

Fitting notes

The cup presses into the housing bore and seats against the shoulder, driven on the backface with a flat tool contacting the whole ring so the raceway keeps its roundness. Endplay or preload is set once the cone is in place. Oil or grease lubrication both suit the geometry.

Interchange guidance

592 interchanges directly across Timken, SKF, FAG, NTN and Koyo because the inch-series number defines the geometry. The 592A is a related size in the same block with different raceway dimensions and is a separate part.
