Availability:
4 in stock
Flanged cup for through-bored housings, 5.0625 in flange outside diameter, 0.25 in flange width, 1.4375 in ring width, e factor 0.36, K factor 1.63.
List Price
$72.61
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| GTIN | 053893142890 |
| Model | 5535 B |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 4.8125 in |
| Series | 5500 |
|---|---|
| Base Number | 5535 |
| Overall Width | 1.4375 in |
| Flange Outer Diameter | 4.9650 in |
| Cup Flange Width | 0.2188 in |
| Mpn Variants | 5535B; 5535-B; 5535 B |
| Precision Class | Not specified |
| Material | Case-Carburized Steel |
| Rolling Elements | Tapered Roller |
| Item Weight | 2.30 kg (5.00 lb) |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 5535-B |
| Design Units | Imperial |
| Bearing Material | Case-Carburized Steel |
| Cup Width | 1.4375 in |
| Cup Backface To Clear Radius | 0.130 in |
| Cup Frontface Backing Diameter | 4.67 in |
| Cross Reference 1 | SKF 5535B |
|---|---|
| Cross Reference 2 | NTN 4T-5535B |
| Cross Reference 3 | Koyo 5535B |
| Cross Reference 4 | BCA/Bower 5535B |
| Cross Reference 5 | Timken 5535 – no flange |

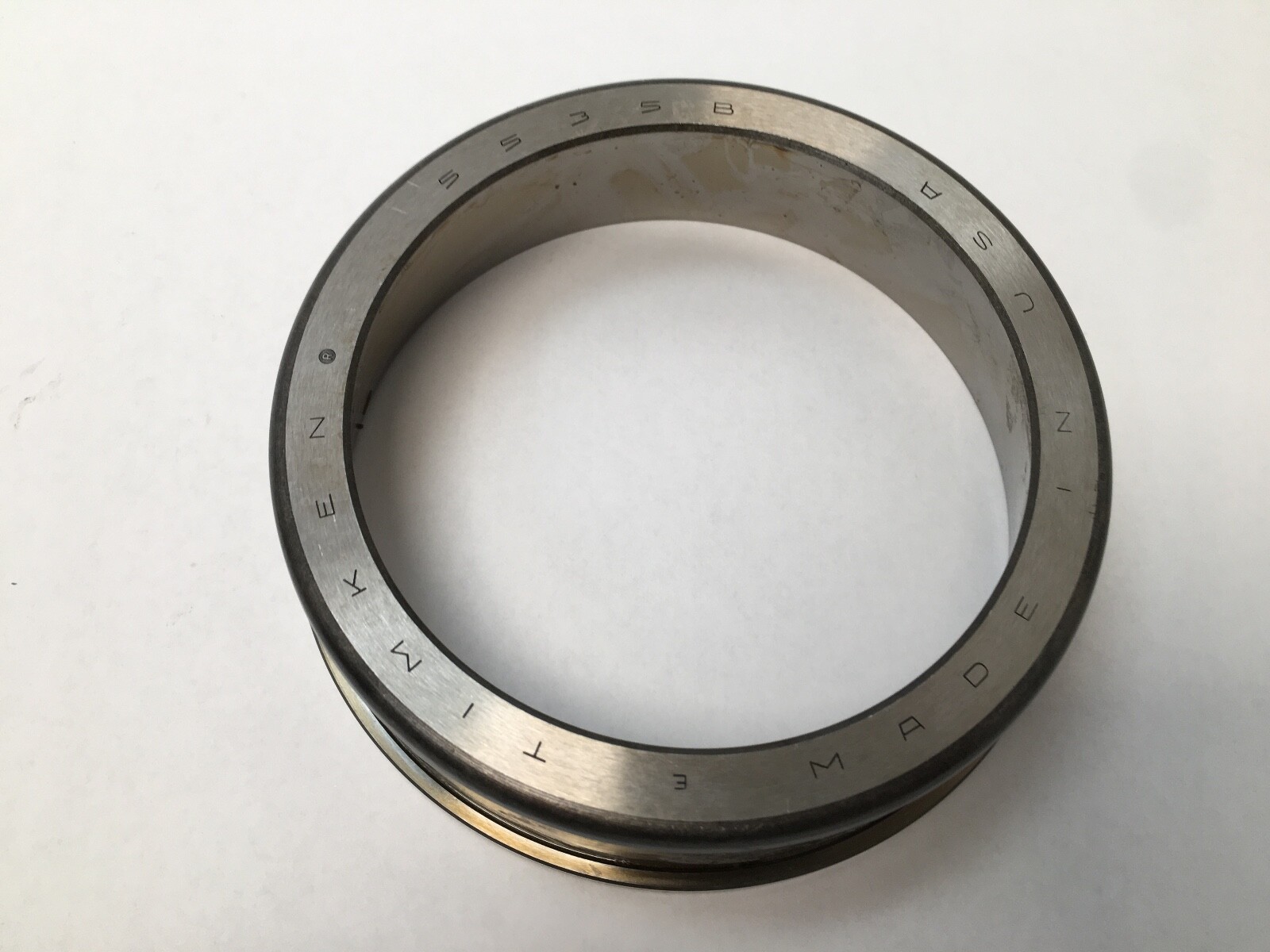

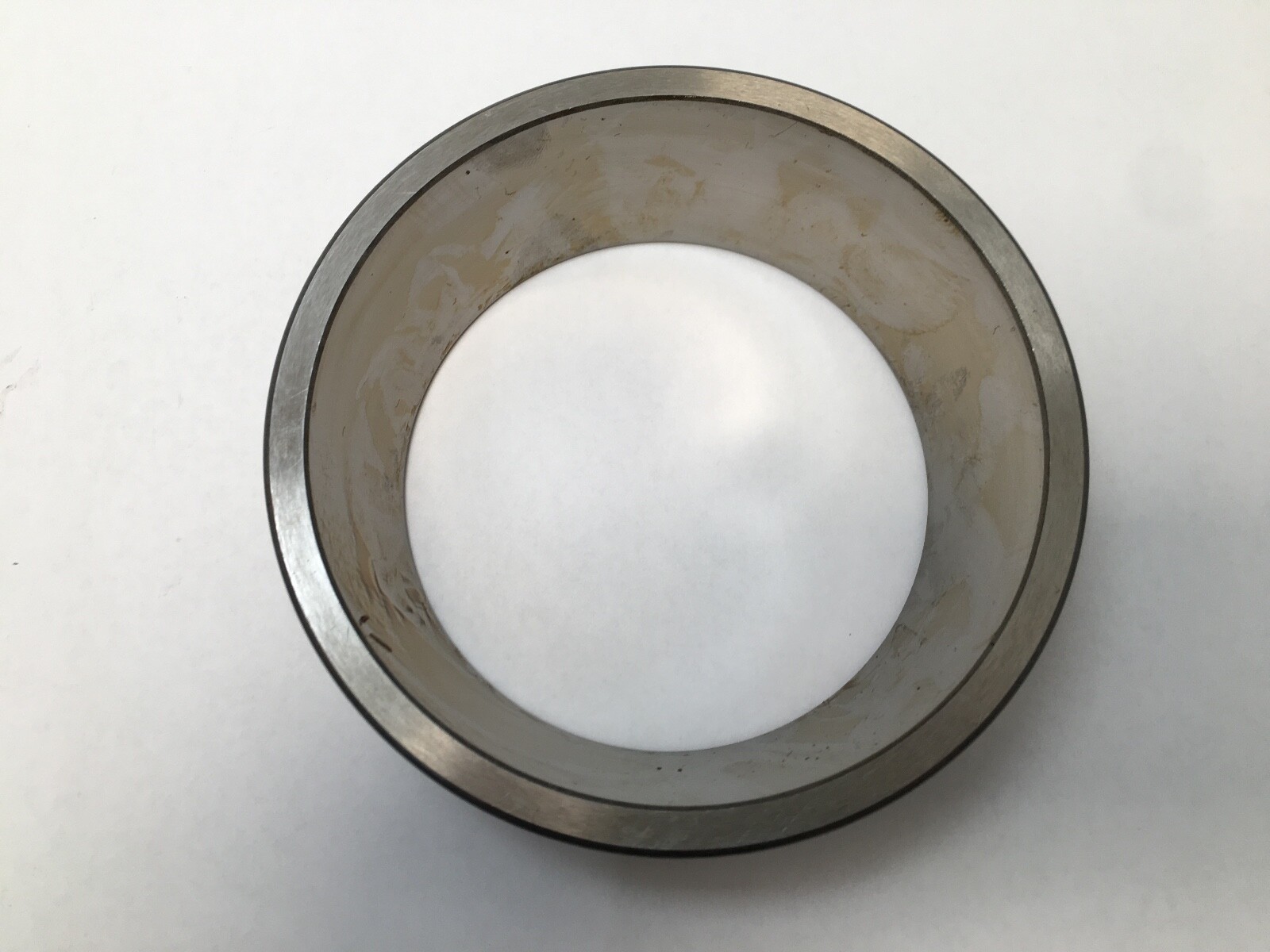

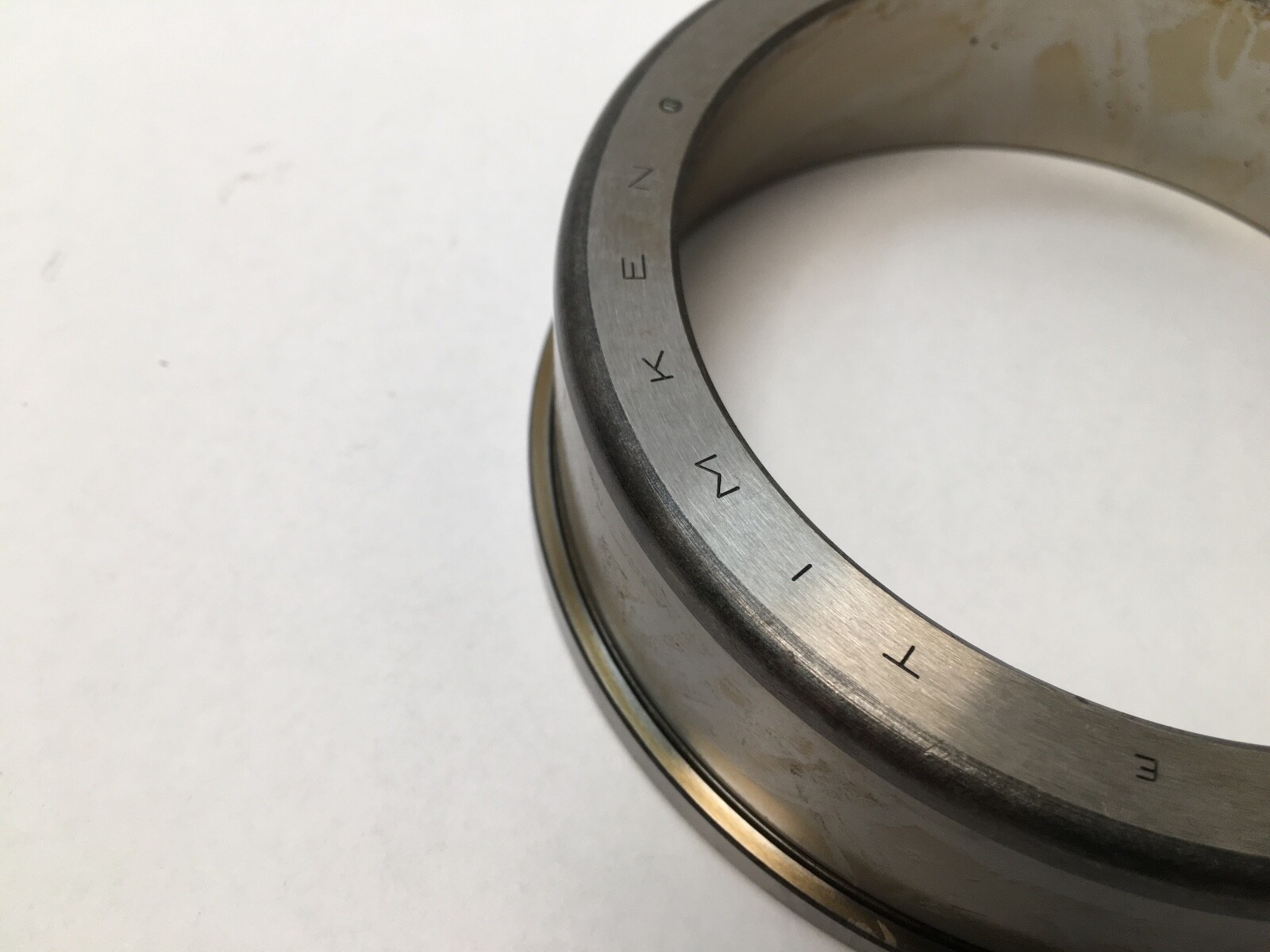

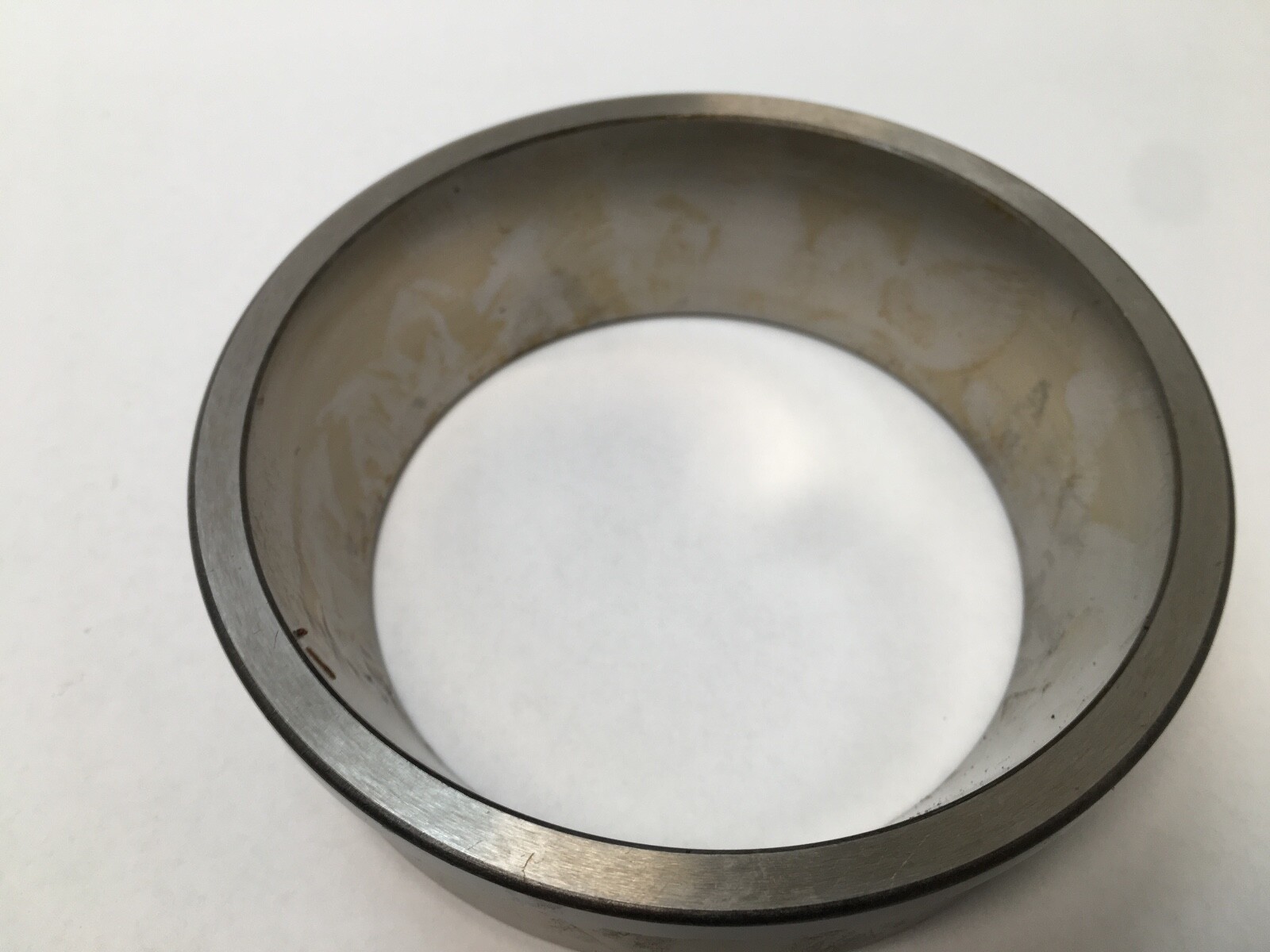

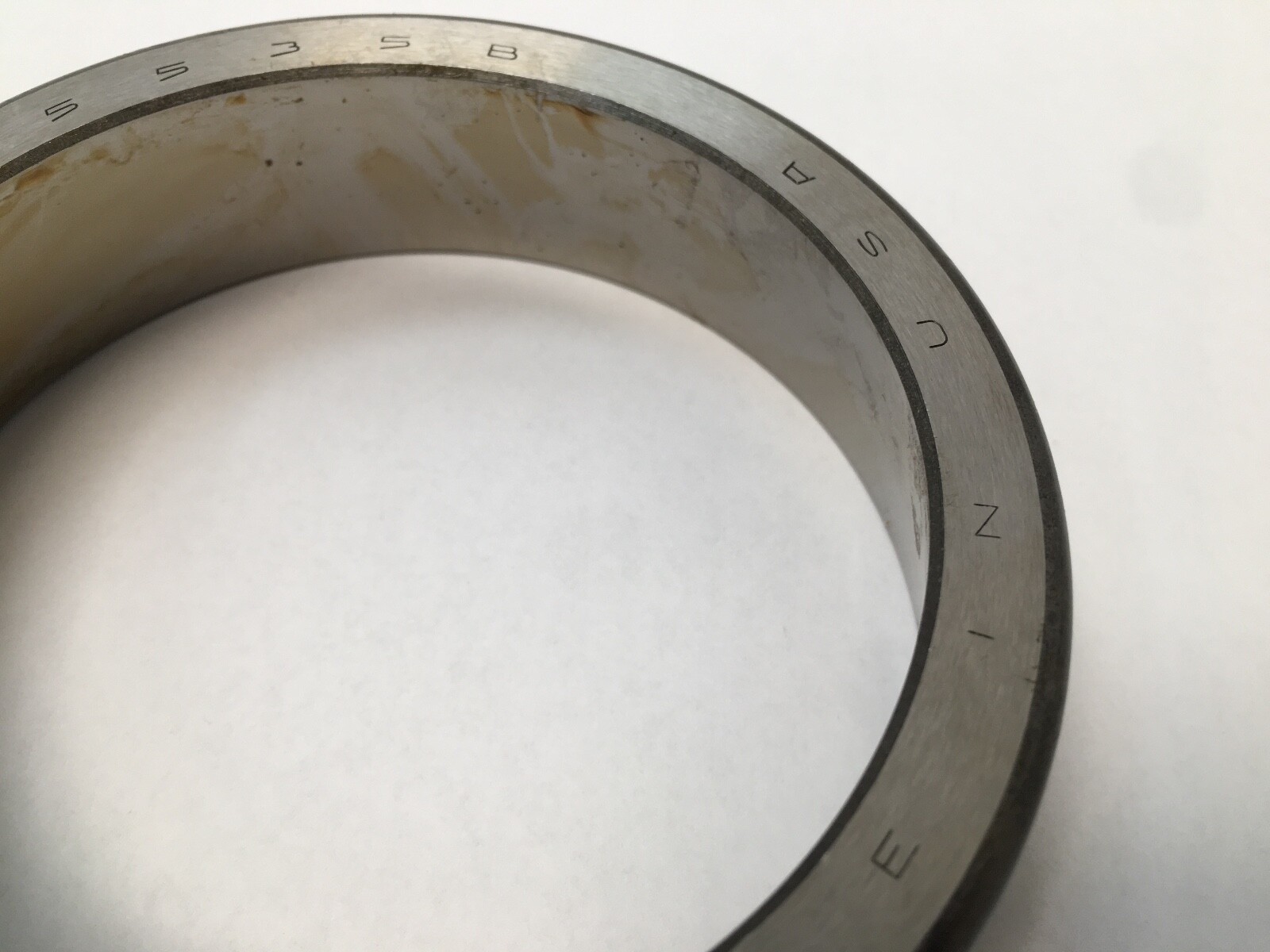

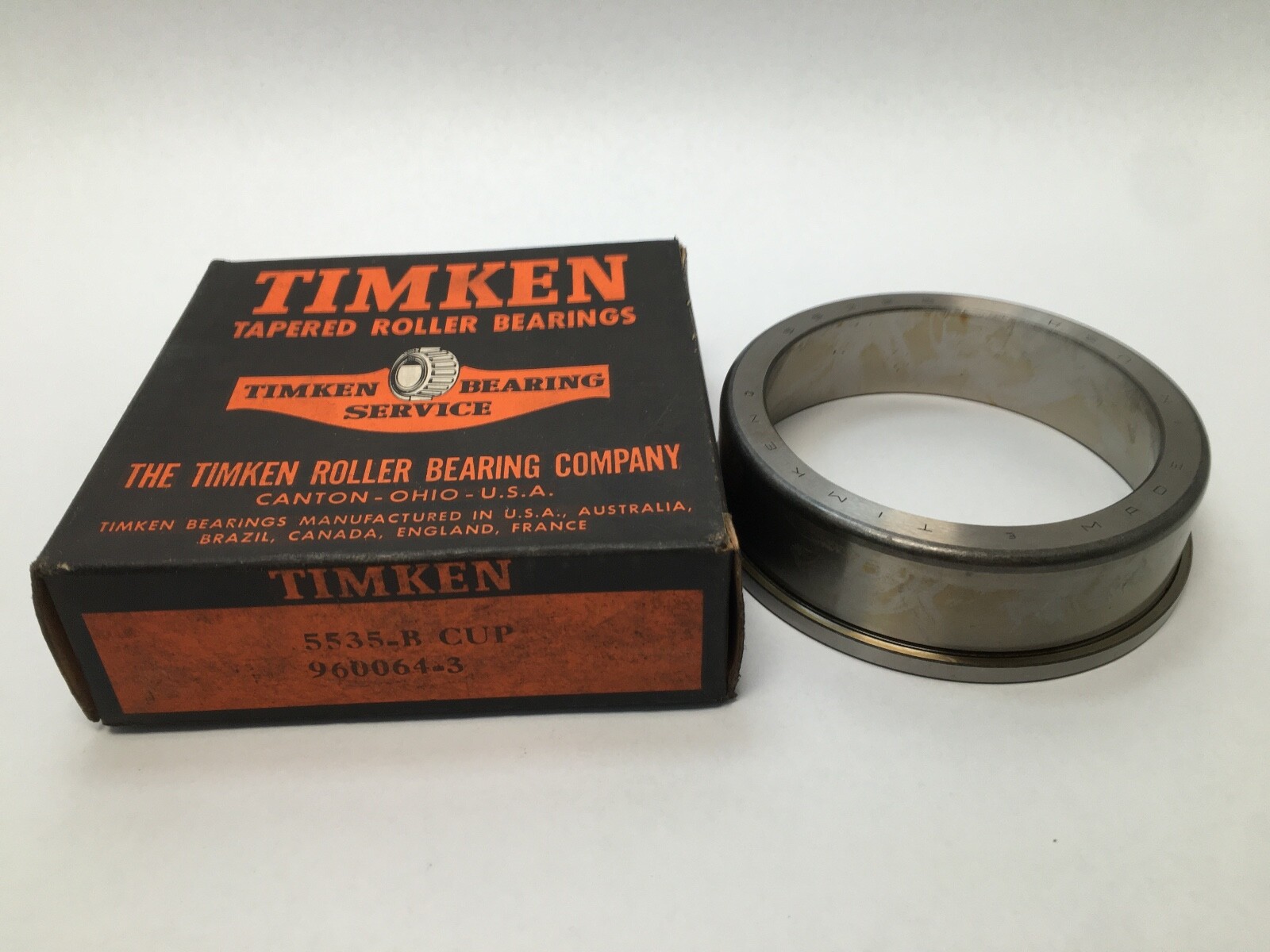

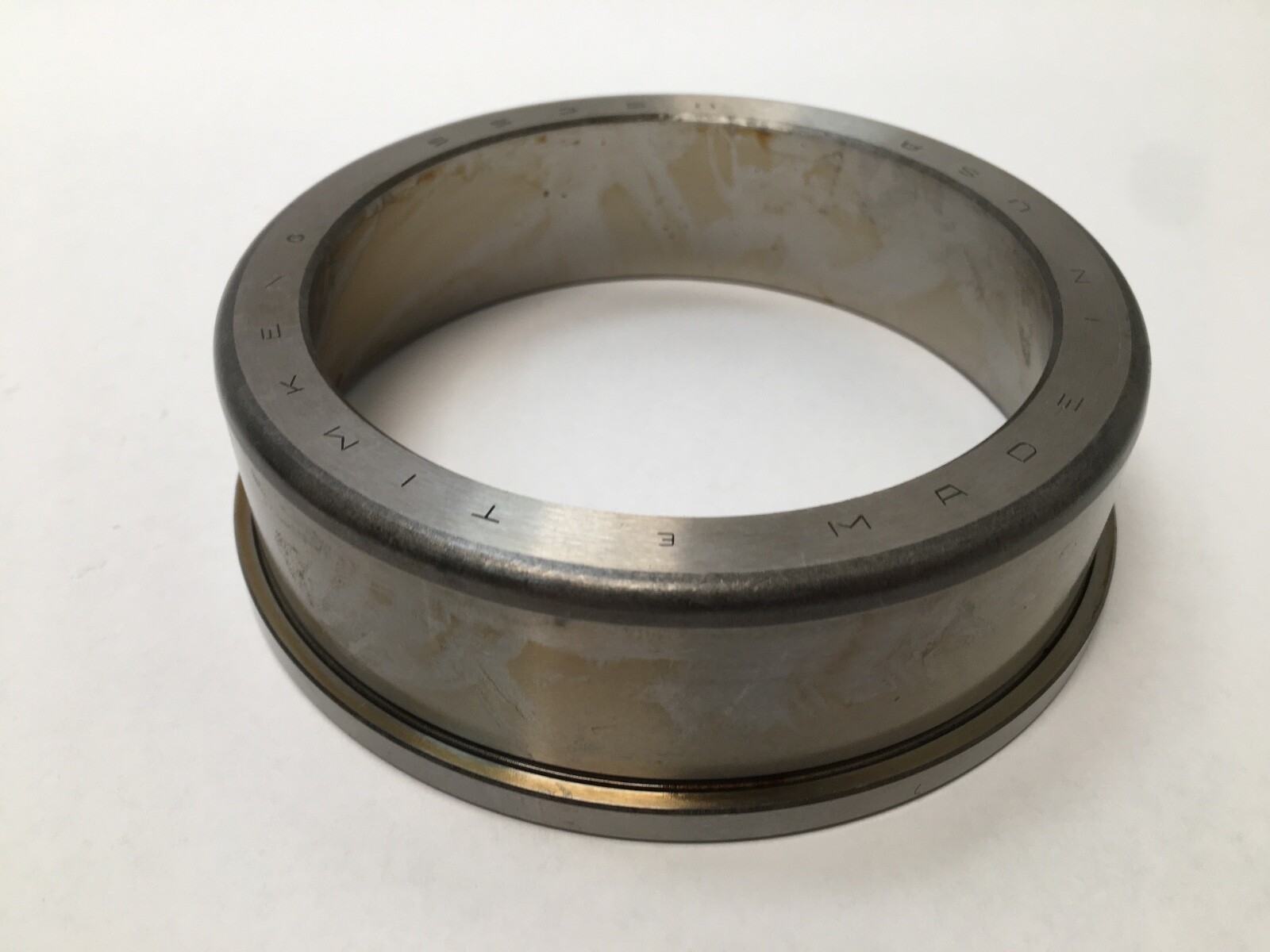

Timken 5535-B inch tapered roller bearing single flanged cup, the outer race of a TSF single-row tapered set. Cup Part Number: 5535-B. Base Number: 5535. Series: 5500. Design Units: Imperial. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bearing Material: Case-Carburized Steel. GTIN: 053893142890.

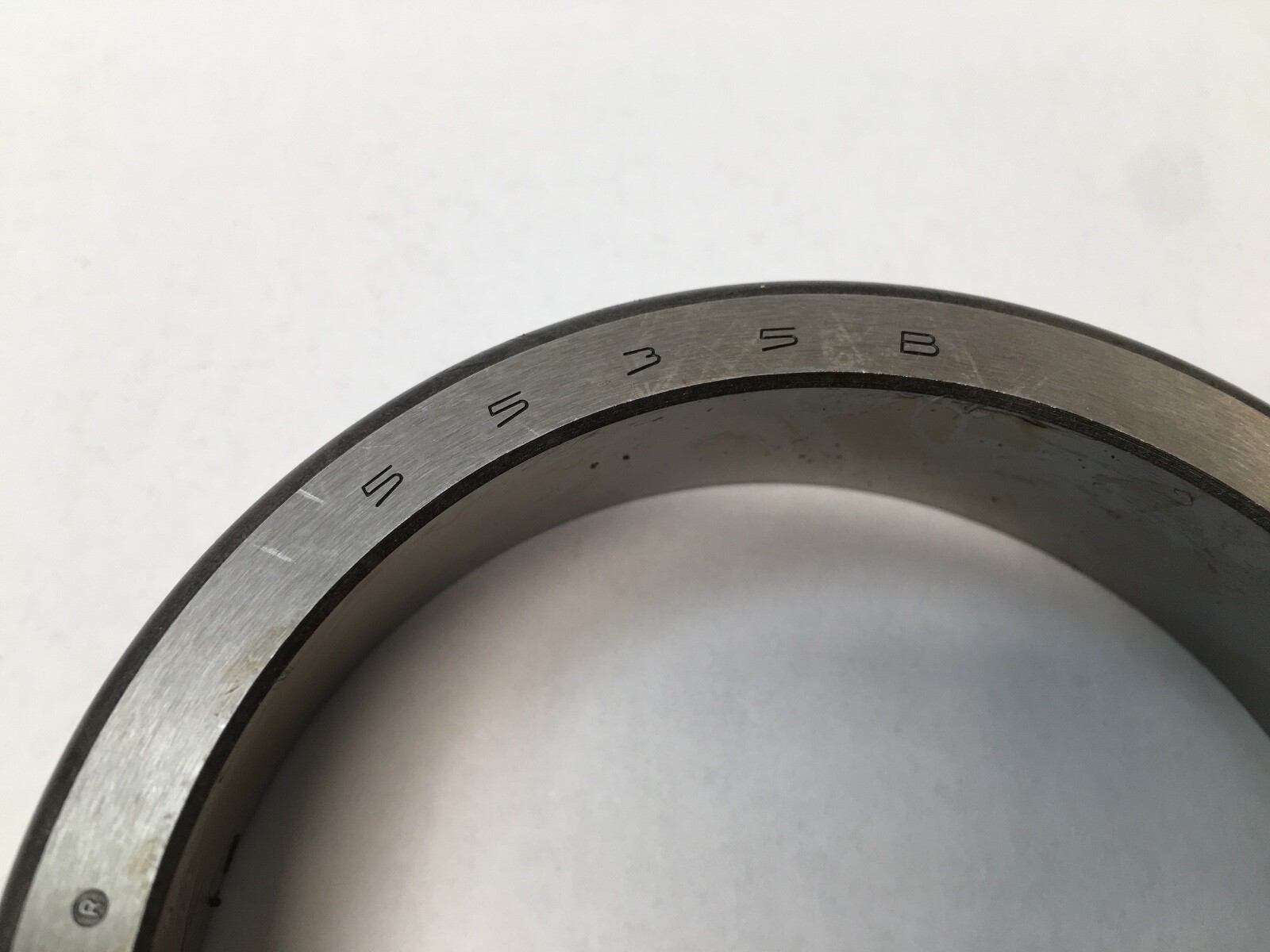

5535 — the cup number, fixing a 4.8125 in outside diameter and a 1.4375 in outer ring width.

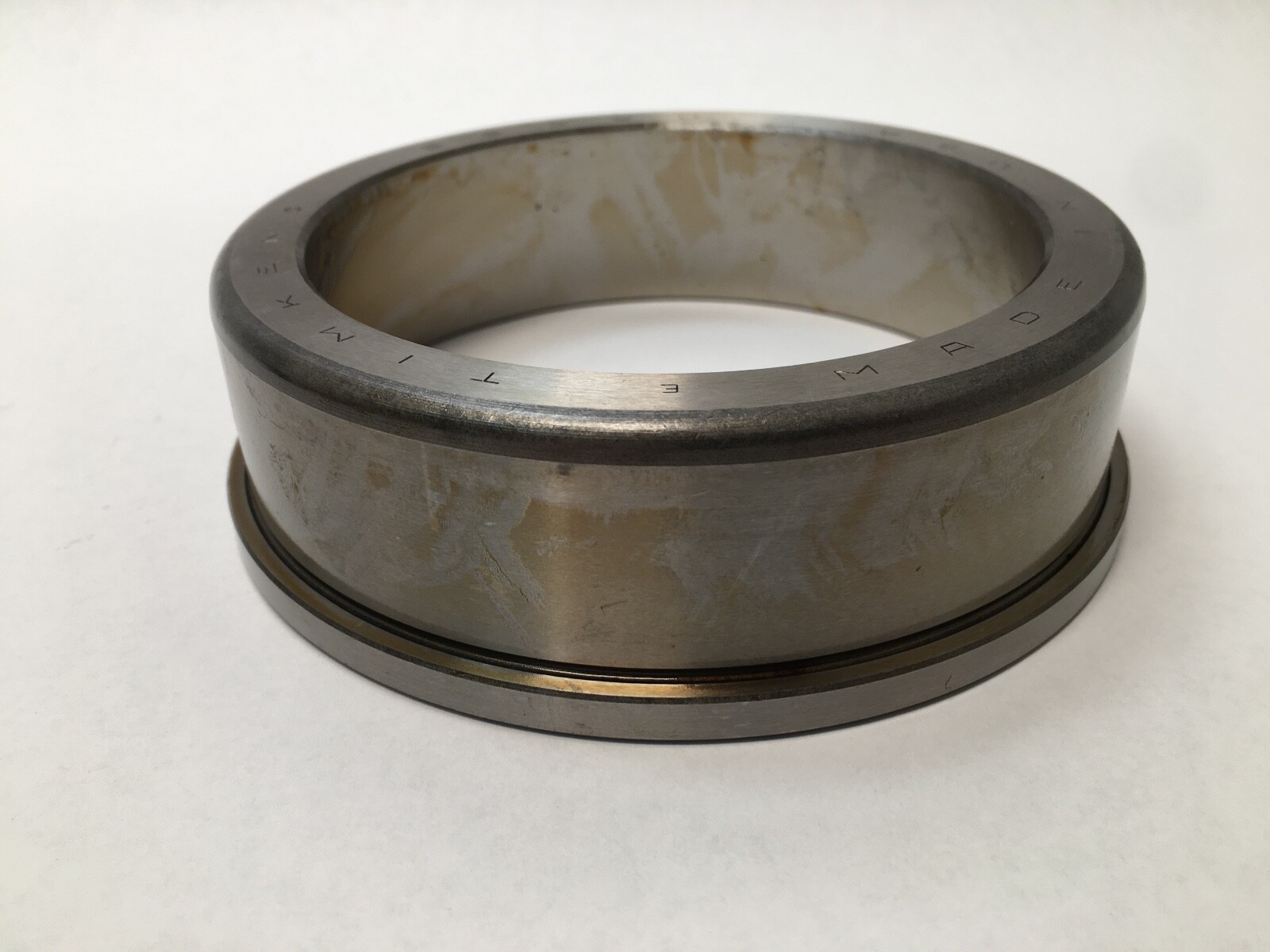

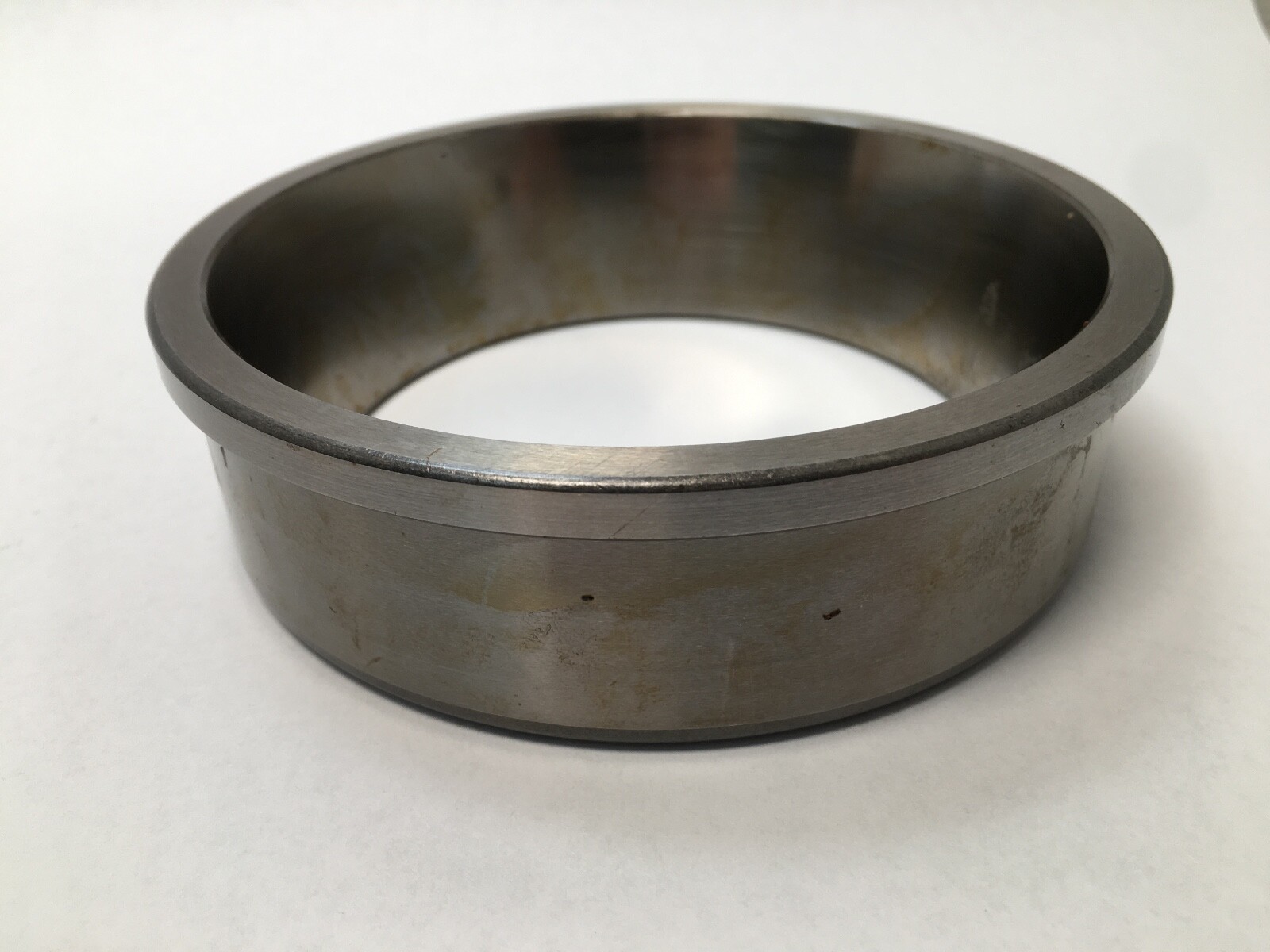

B — the flanged execution. An integral flange on the outer ring locates the cup axially against the housing face and squares a seal to the bore.
Precision Class: Not specified. The designation carries no precision suffix.
Outside Diameter: 4.8125 in (122.238 mm). Overall Width: 1.4375 in (36.513 mm). Outer Ring Flange Outside Diameter: 5.0625 in (128.588 mm). Outer Ring Flange Width: 0.25 in (6.35 mm). Item Weight: 2.30 kg (5.00 lb). Bearing Material: Case-Carburized Steel.
e Factor: 0.36. K Factor: 1.63. Y Factor: 1.67. Geometry Factor (Cg): 0.0825. A K factor of 1.63 puts this cup in the general-purpose range of the inch taper line, taking radial load with useful single-direction thrust capacity through the roller taper.
The 1.4375 in outer ring width gives a long raceway for the size, which spreads contact stress along the roller path. The TSF flange carries axial load into the housing face, so a plain through-bored housing locates the cup and gives a machined datum for a seal.
Maximum Housing Fillet Radius cleared by the bearing corner: 0.130 in (3.30 mm). Housing Backing Shoulder Diameter, frontface: 4.67 in (118.11 mm).
Unit Quantity: 1 Pc. Flanged cup.
5535B is an industry-standard inch flanged cup number, so the same designation carries across makers. SKF 5535B. NTN 4T-5535B. Koyo 5535B. BCA/Bower 5535B. The plain Timken 5535 shares the raceway and the 4.8125 in outside diameter while locating without a flange, so it is a related size rather than an interchange.
Searchable designation variants: 5535B, 5535-B, 5535 B, flanged cup, TSF cup.
