Availability:
1 in stock

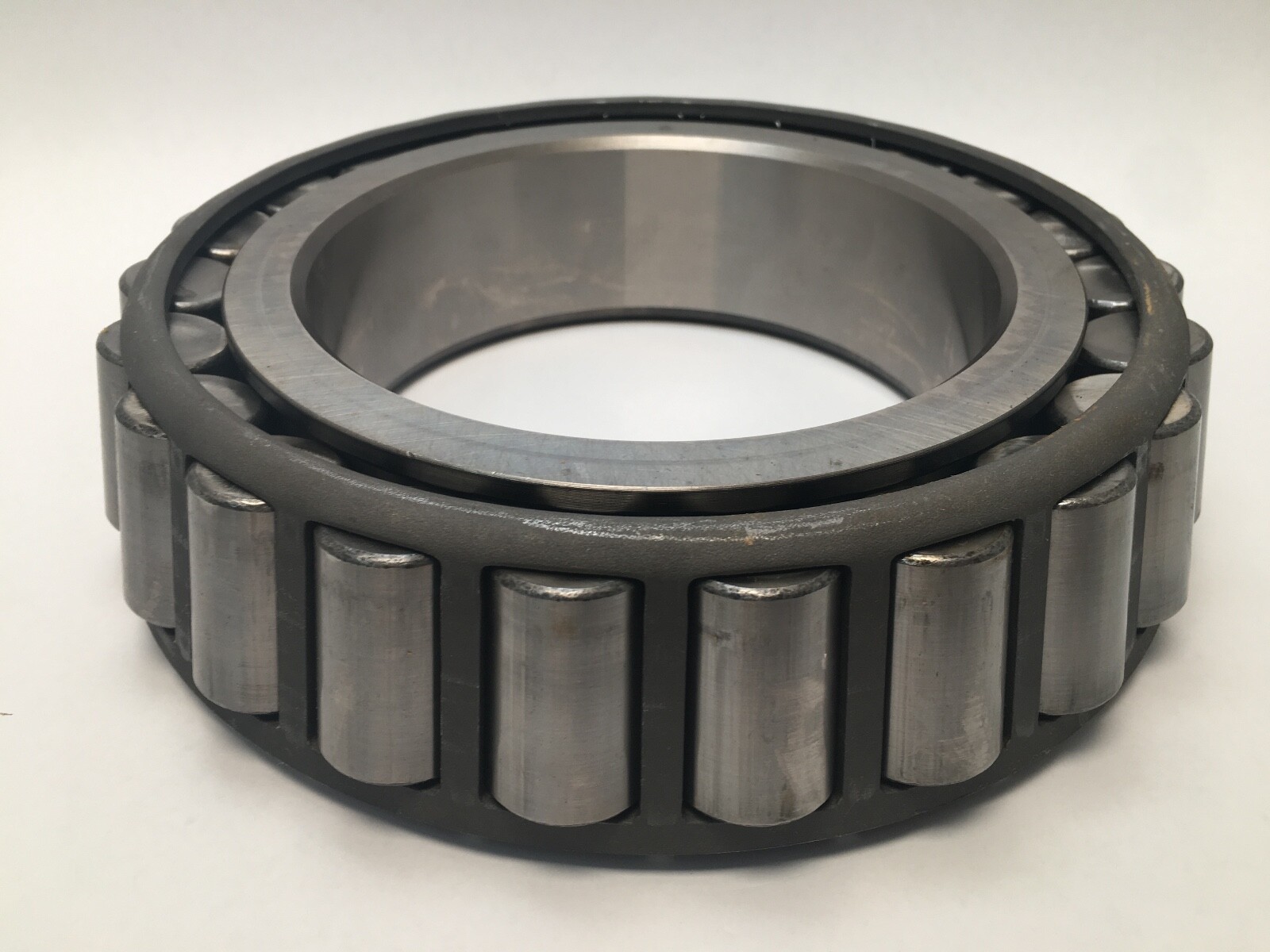

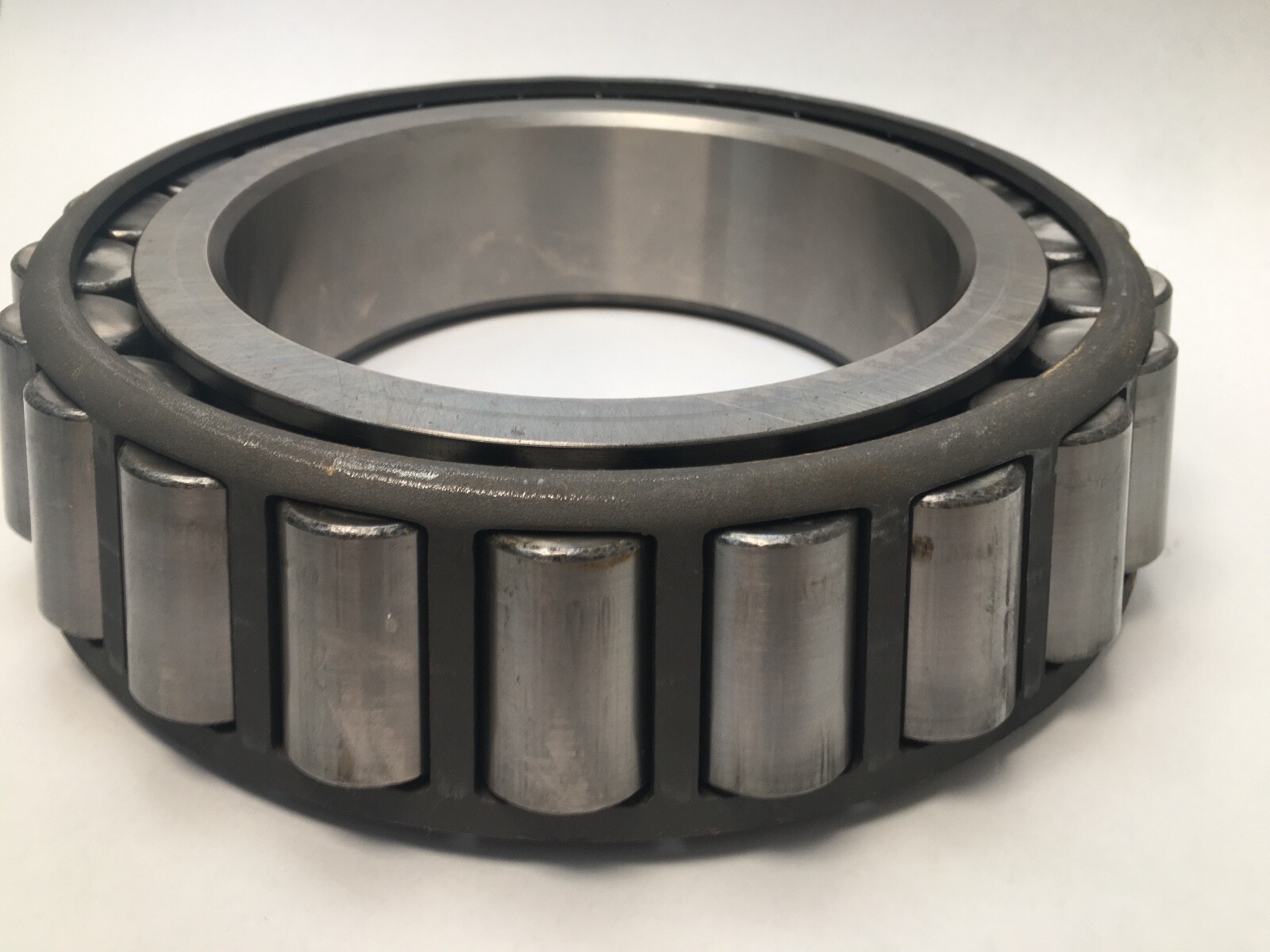

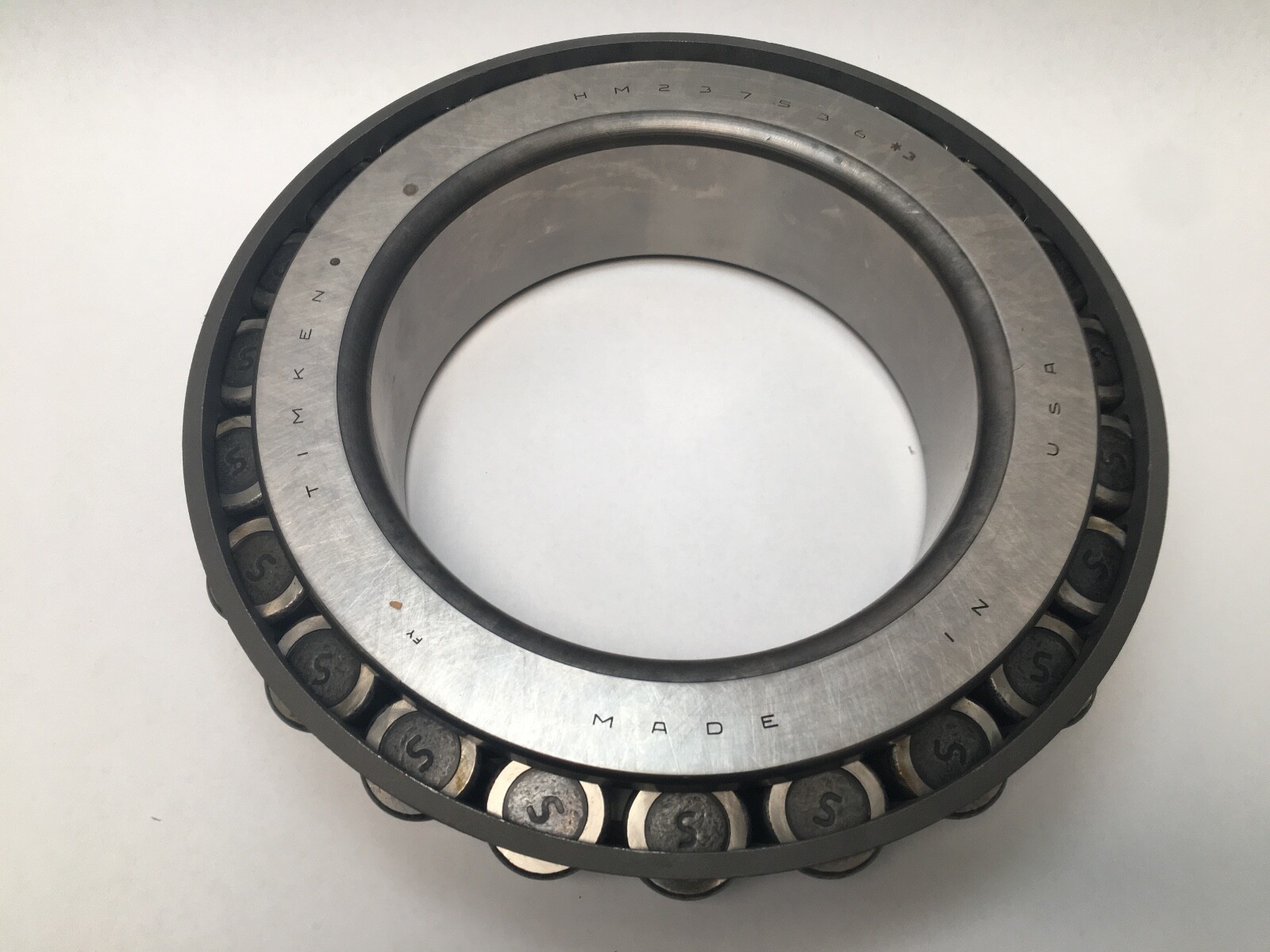

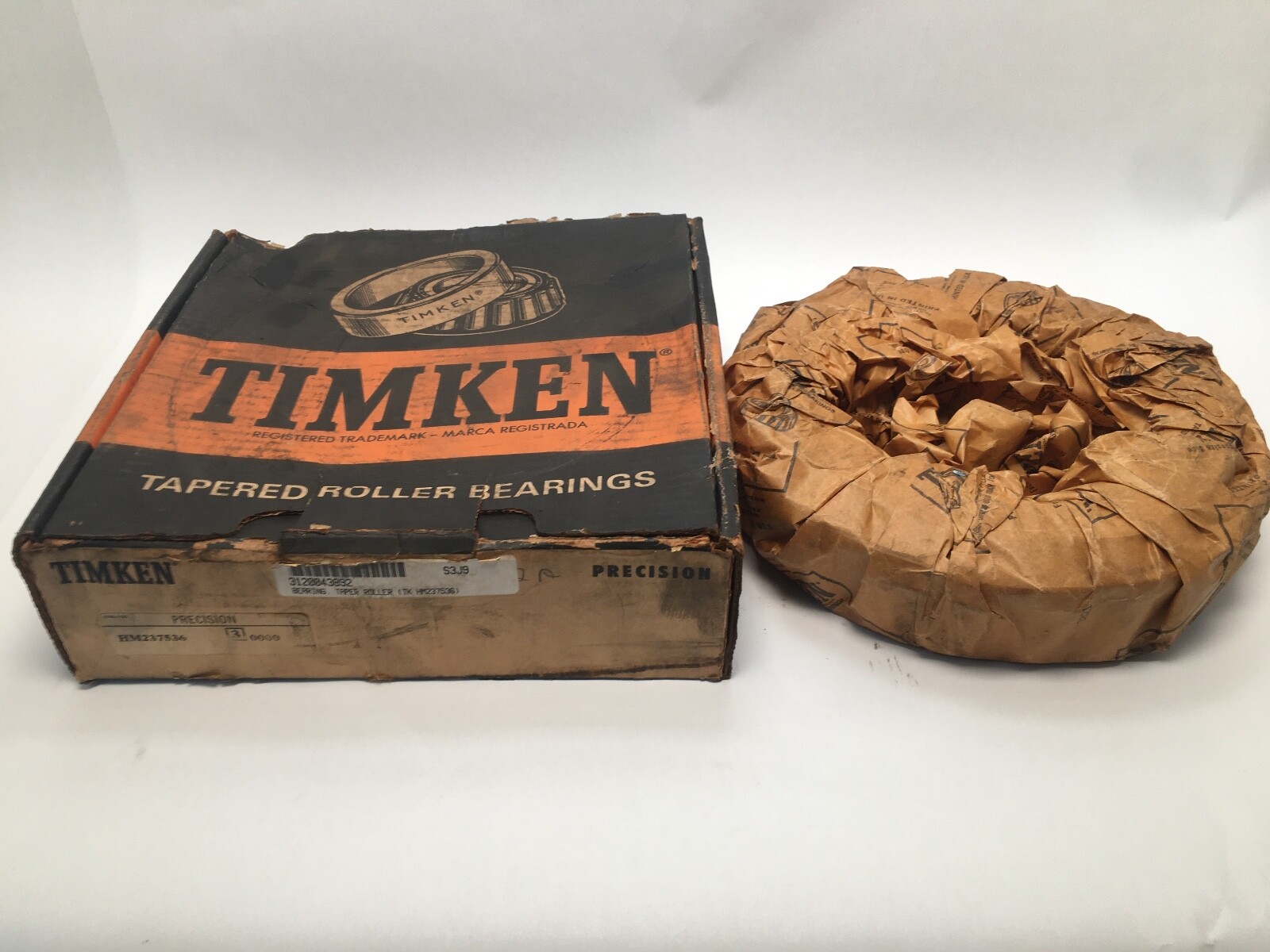

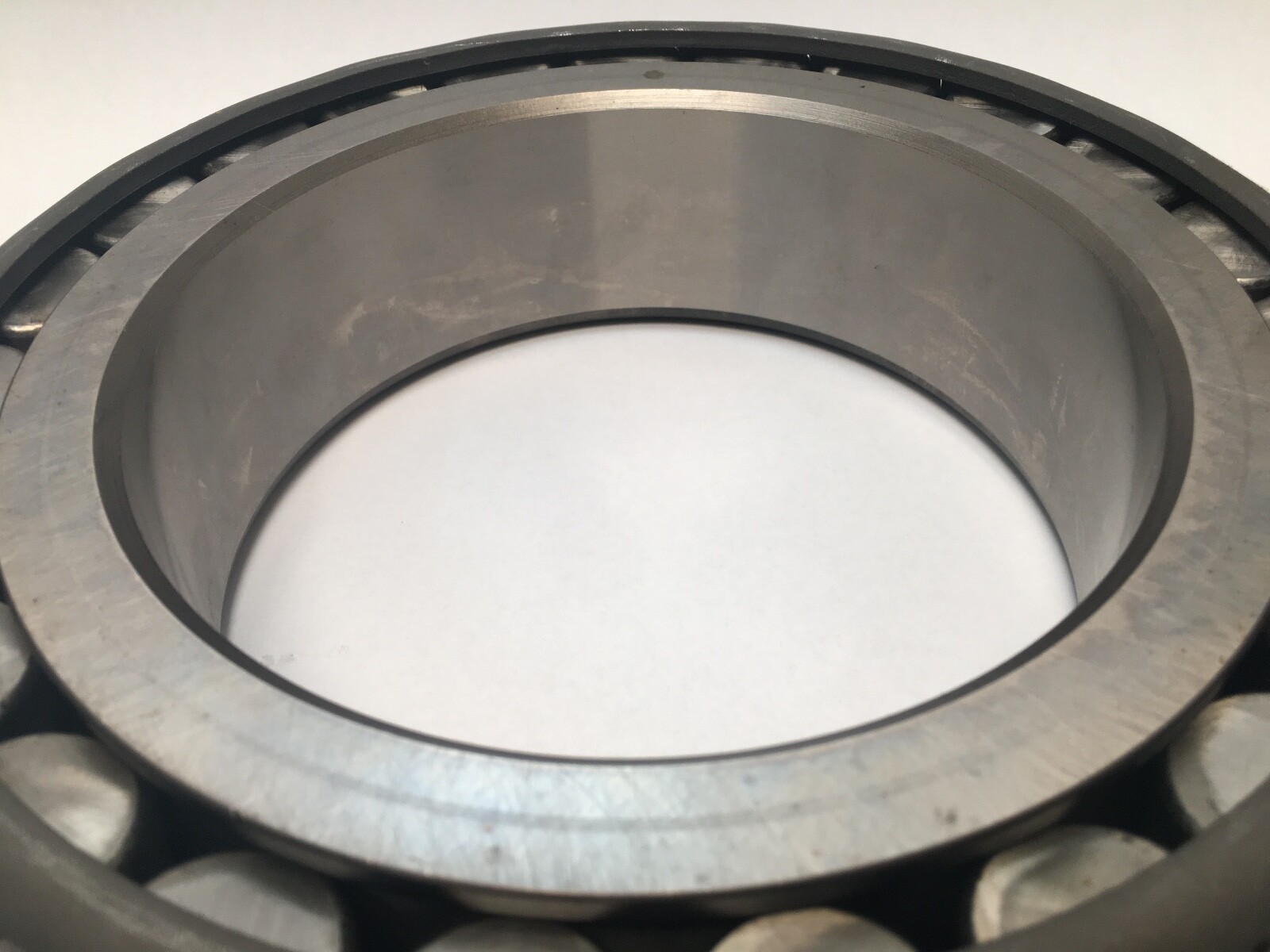

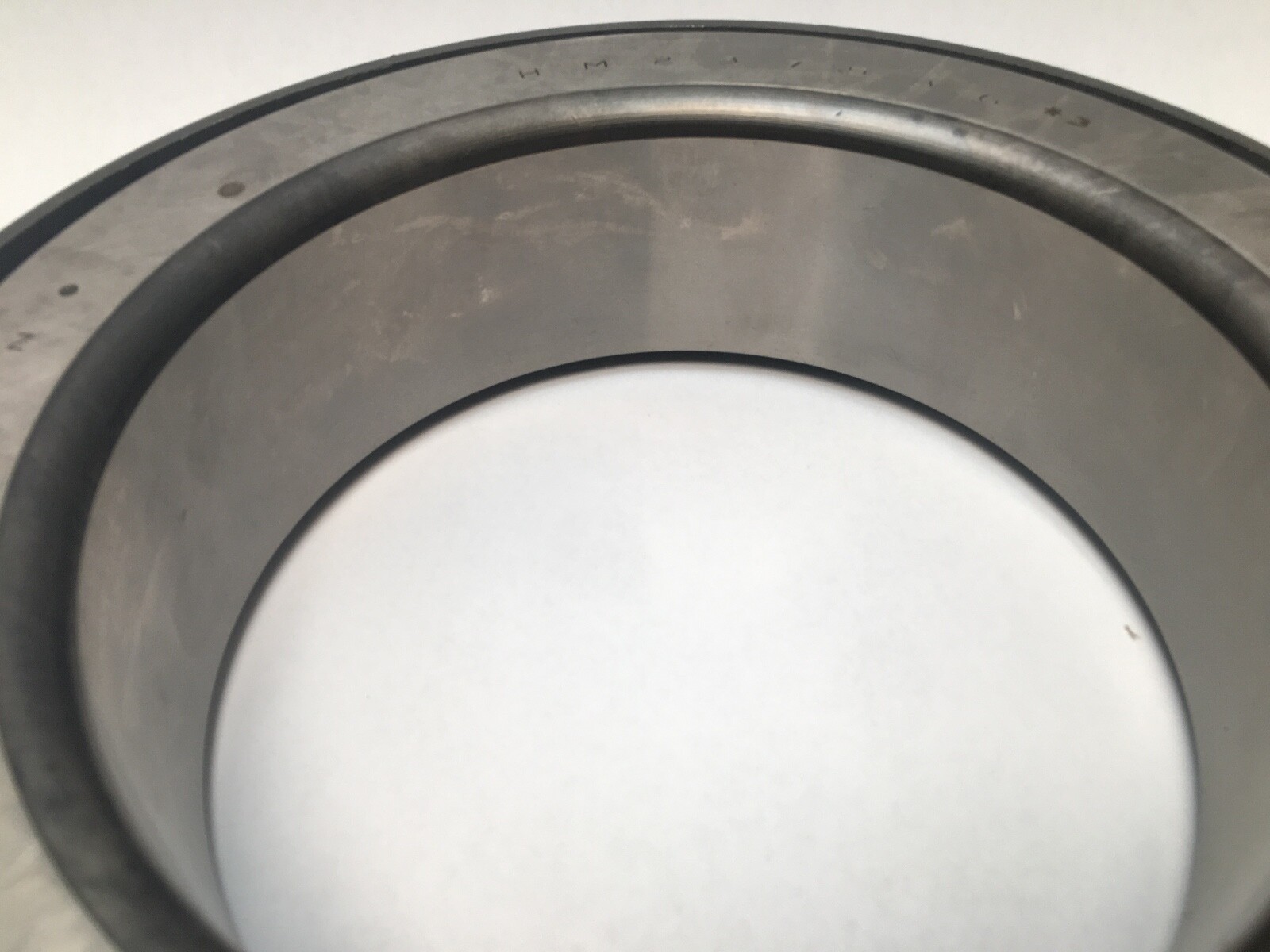

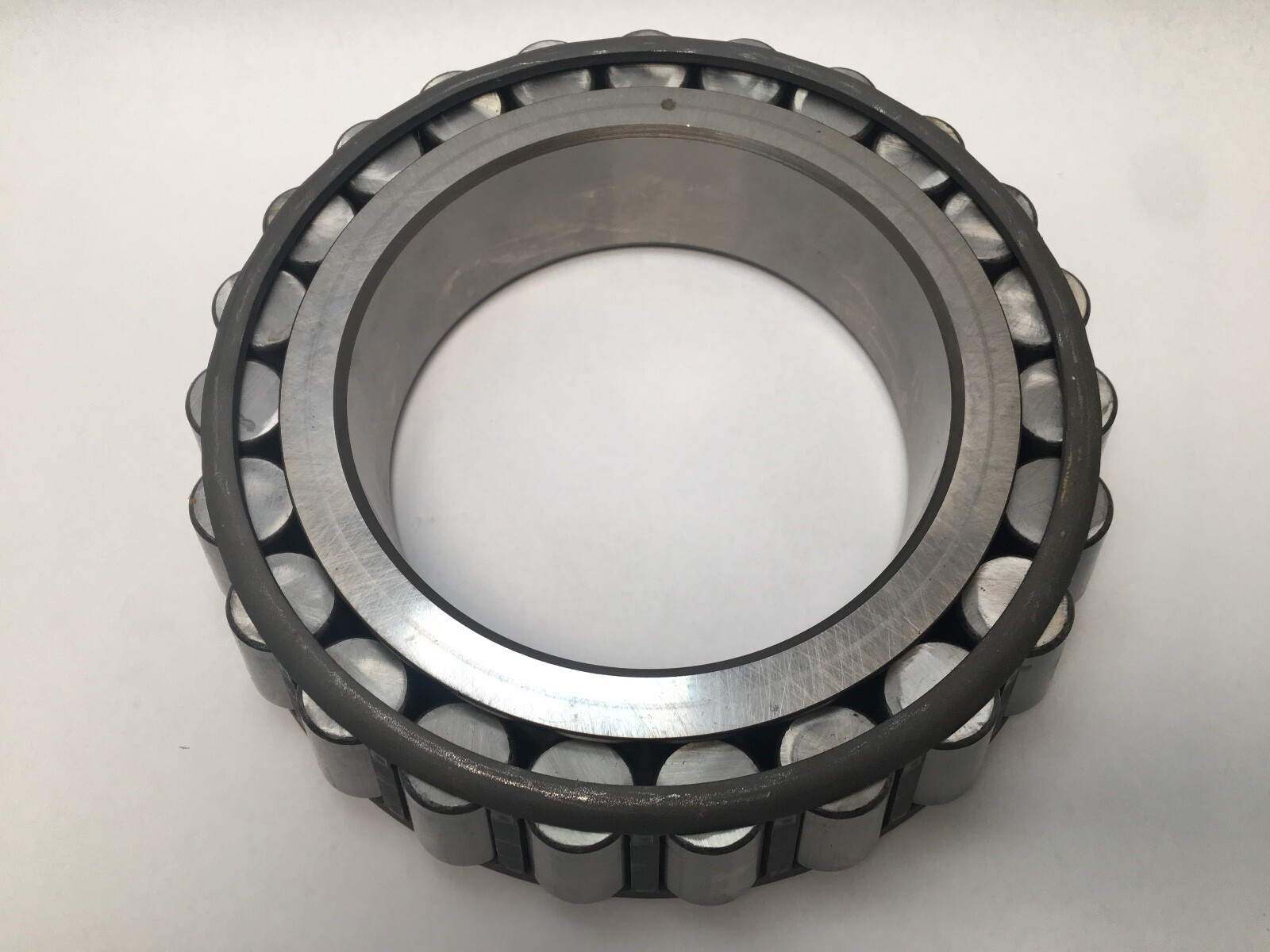

Tapered roller bearing cone, 6.5000 in (165.1 mm) bore, 2.5000 in (63.5 mm) width, Class 3 precision. Timken HM237536-3, mates with HM237510 series cups.
List Price
$845.87
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | HM237536-3 |
| Model | HM-237536 3 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 6.5000 in (165.100 mm) |
| Series | HM237500 |
|---|---|
| Material | Case Carburized Steel |

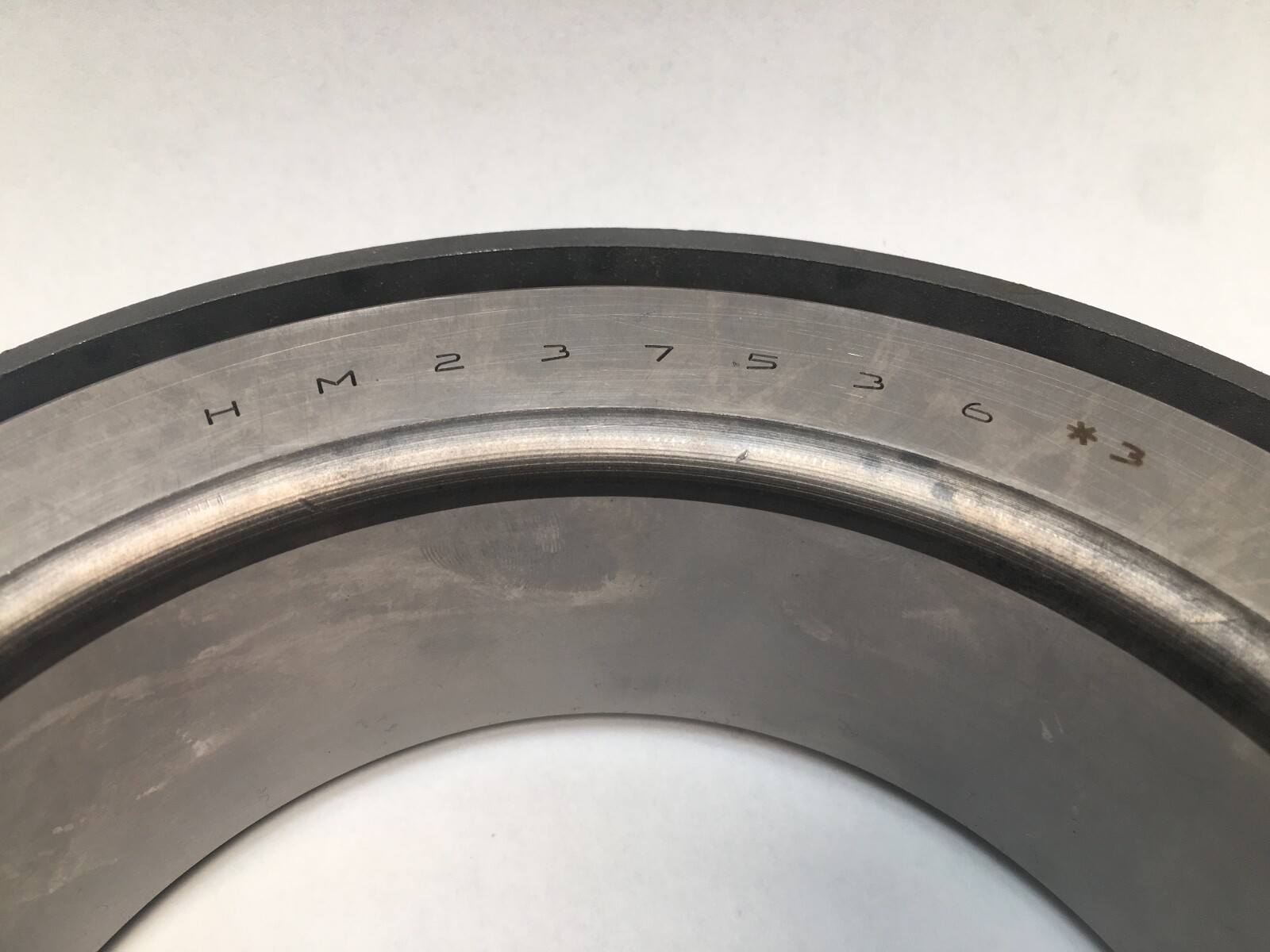

| Mpn Variants | HM237536-3, HM 237536 *3, HM-237536 3, HM237536#3 |
| Compatible With Replaces | Mates with Timken HM237510, HM237511, HM237513 cups; HM237510CD, HM237511XD double cups |
| Precision Class | Class 3 |
| Precision Rating | Class 3 |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.20.00 |
| Cross Reference 1 | SKF HM 237536 |
|---|---|
| Cross Reference 2 | NTN 4T-HM237536 |
| Cross Reference 3 | Bower HM237536 |
| Cross Reference 4 | Koyo HM237536 |

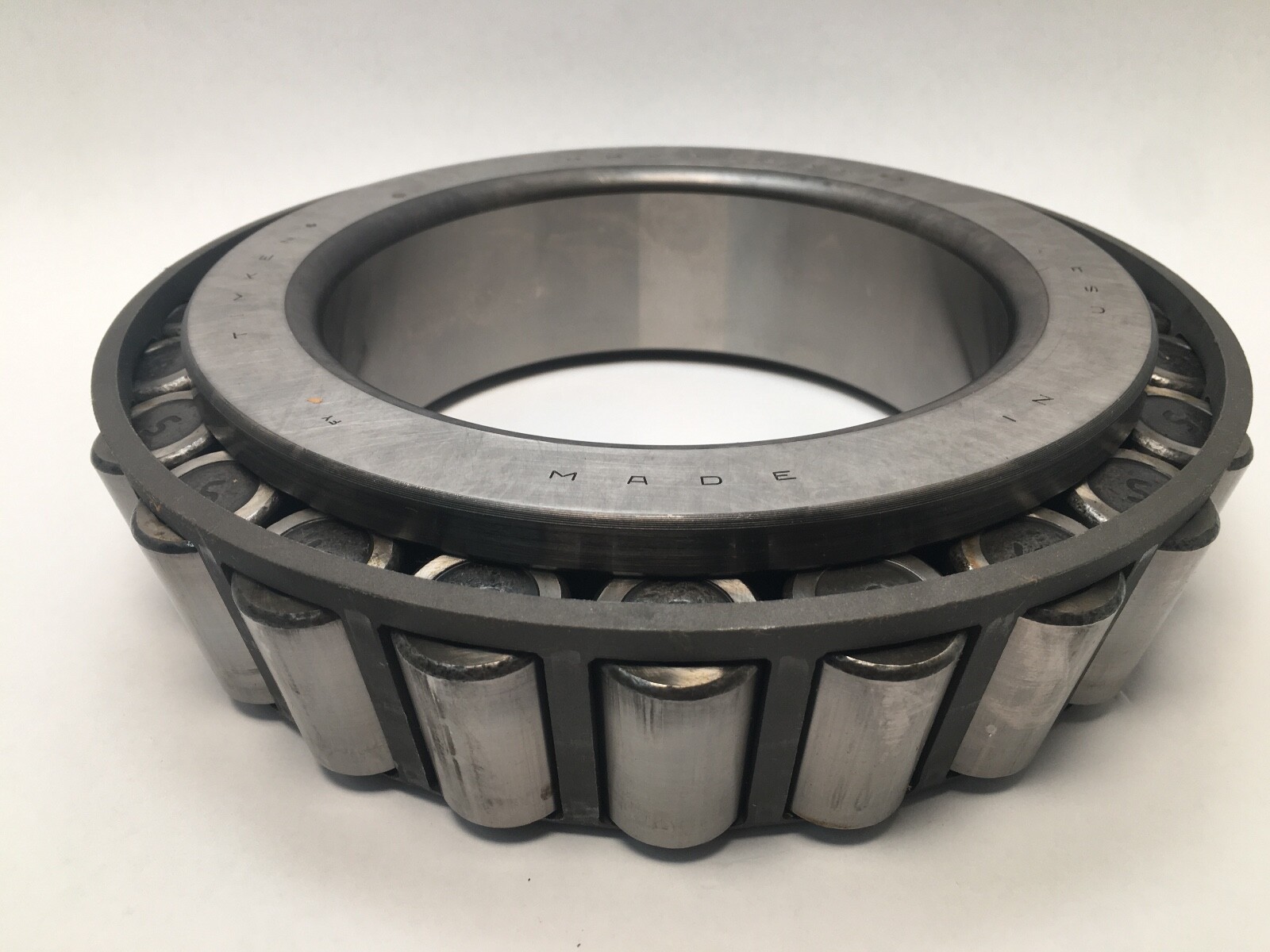

Timken HM237536-3 is a single tapered roller bearing cone: the inner ring with its roller and cage assembly. Bore Diameter: 6.5000 in (165.100 mm). Inner Ring Width: 2.5000 in (63.500 mm). Precision Class: Class 3. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Tapered Roller.
HM237536 — Timken inch-series cone number in the HM237500 series. HM marks the heavy-medium section.
-3 — Class 3 precision: tighter bore, width and runout tolerances than standard Class 2 for smoother, lower-vibration running.
Max Shaft Fillet Radius: 0.280 in (7.100 mm). Shaft Backing Shoulder Diameter, Frontface (da): 7.36 in (187 mm). Shaft Backing Shoulder Diameter, Backface (db): 7.68 in (195 mm). Effective Center Location: -0.46 in (-11.7 mm).
Unit Quantity: 1 Pc. Cone only. Matching cups: Timken HM237510, HM237511 or HM237513 for single-row service; double cups HM237510CD and HM237511XD for two-row TDO service.
The HM237536 cone number is an ABMA standard inch size produced by several makers: SKF HM 237536, NTN 4T-HM237536, Koyo HM237536 and Bower HM237536 share the envelope. Class 3 is a Timken precision grade; the standard-class equivalents carry the same dimensions.
