Availability:
1 in stock

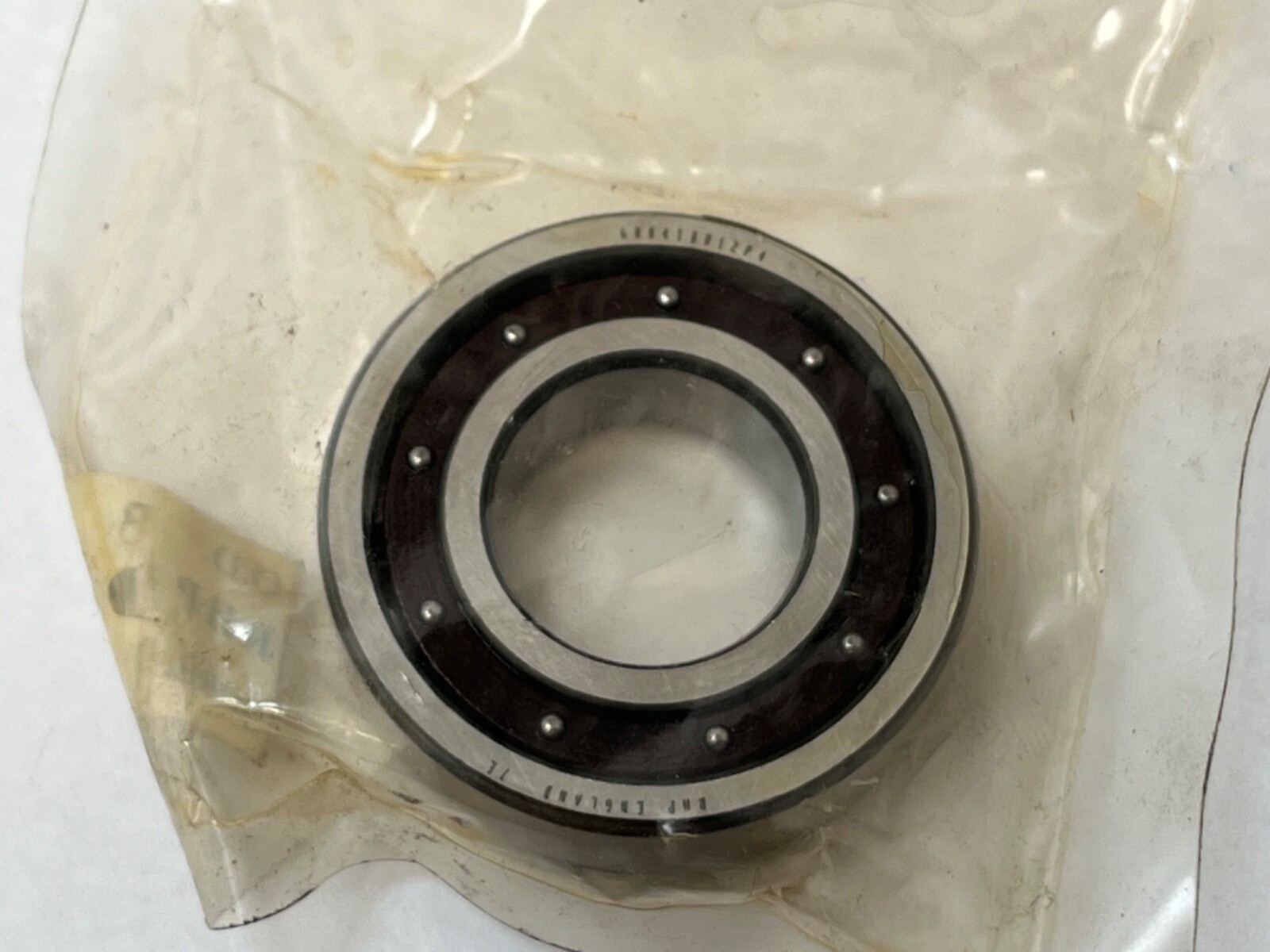

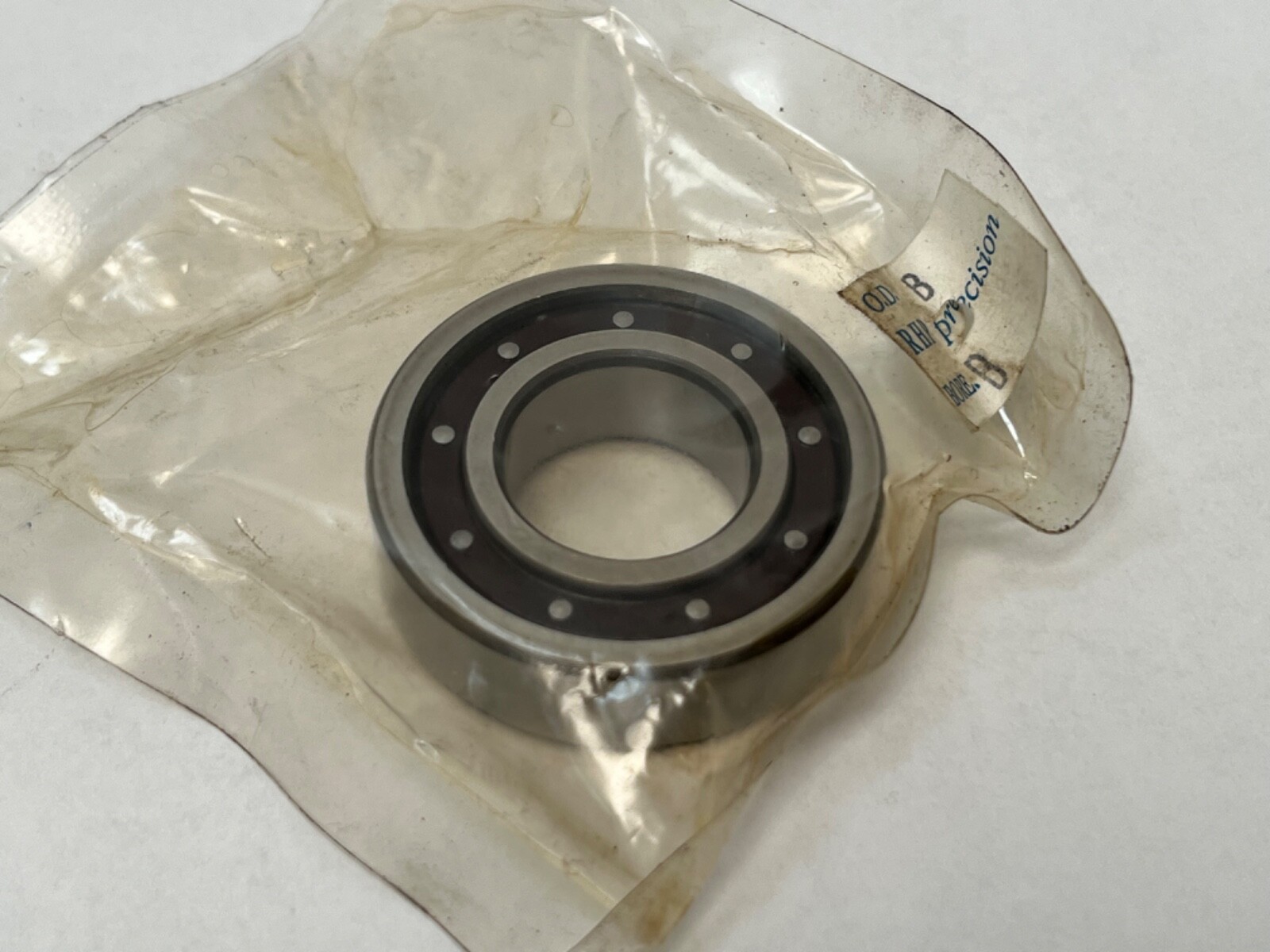

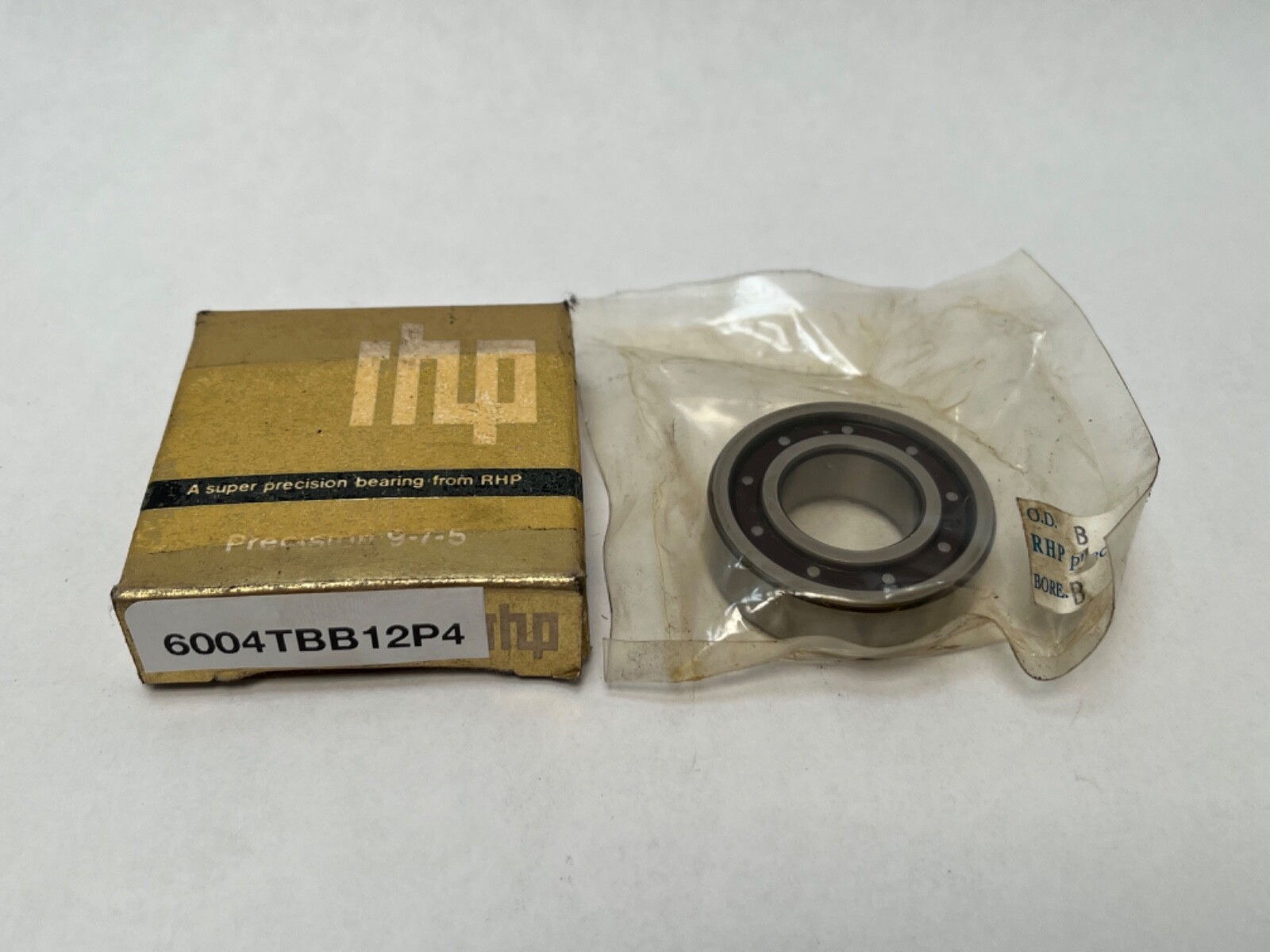

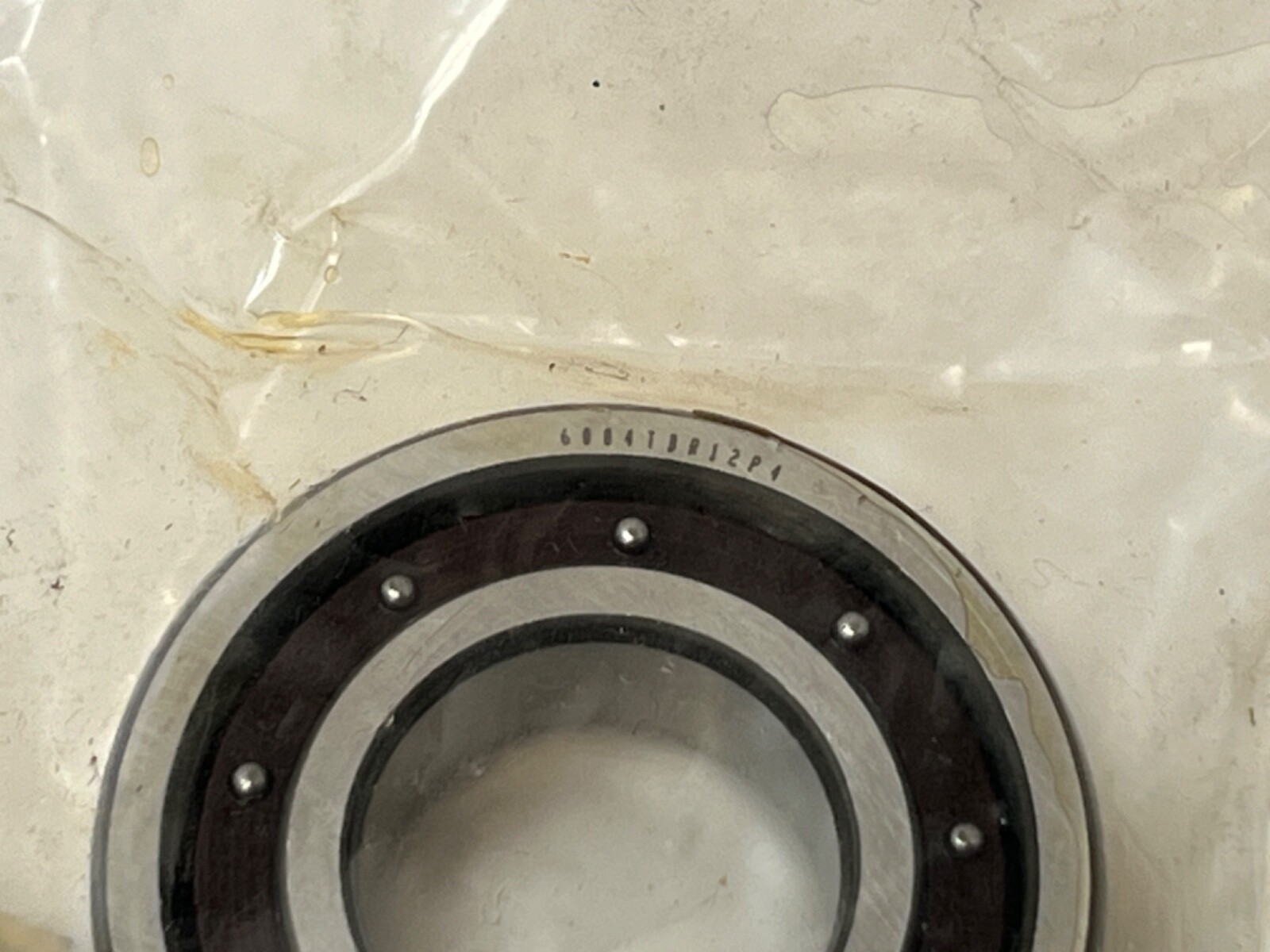

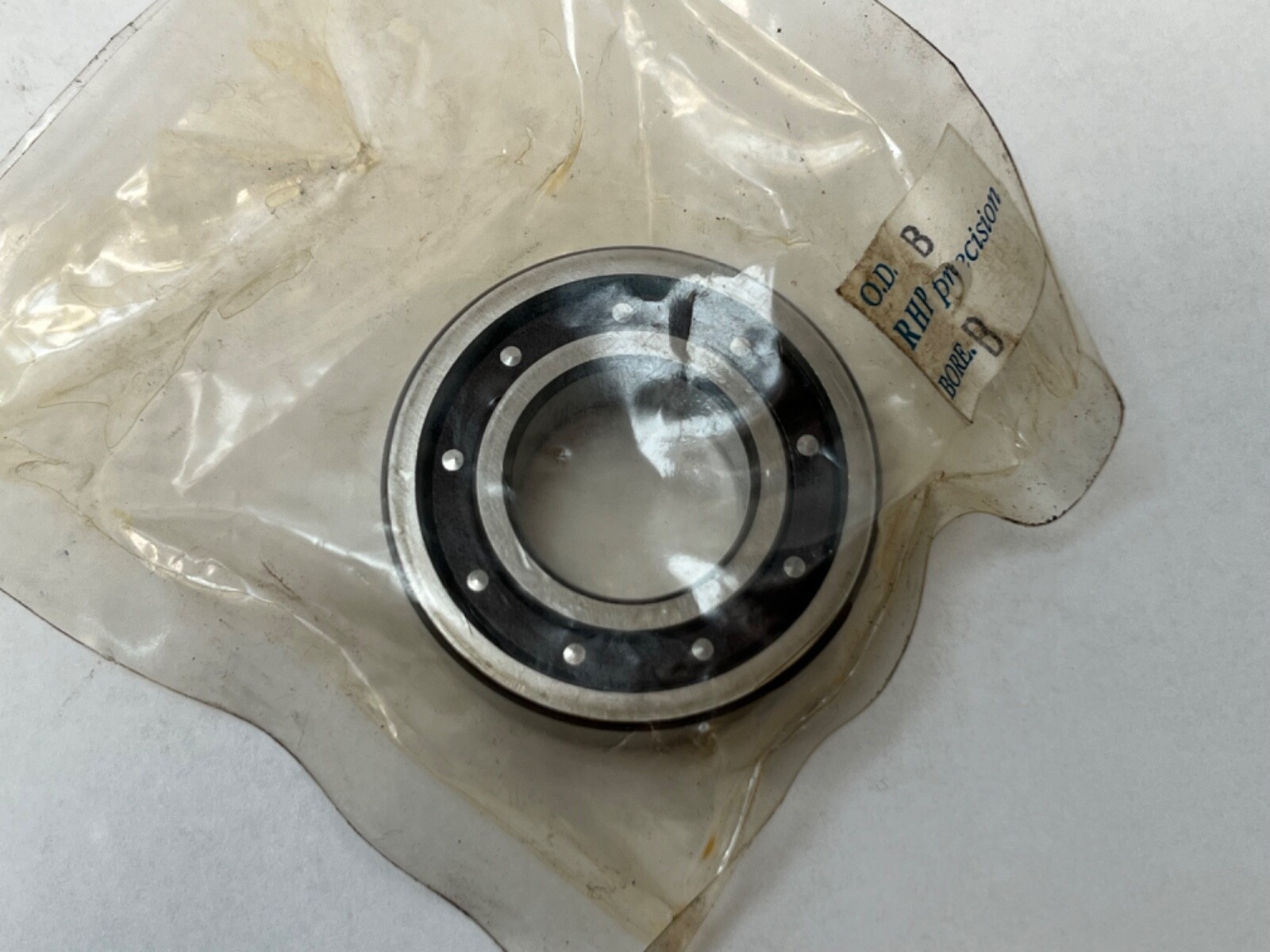

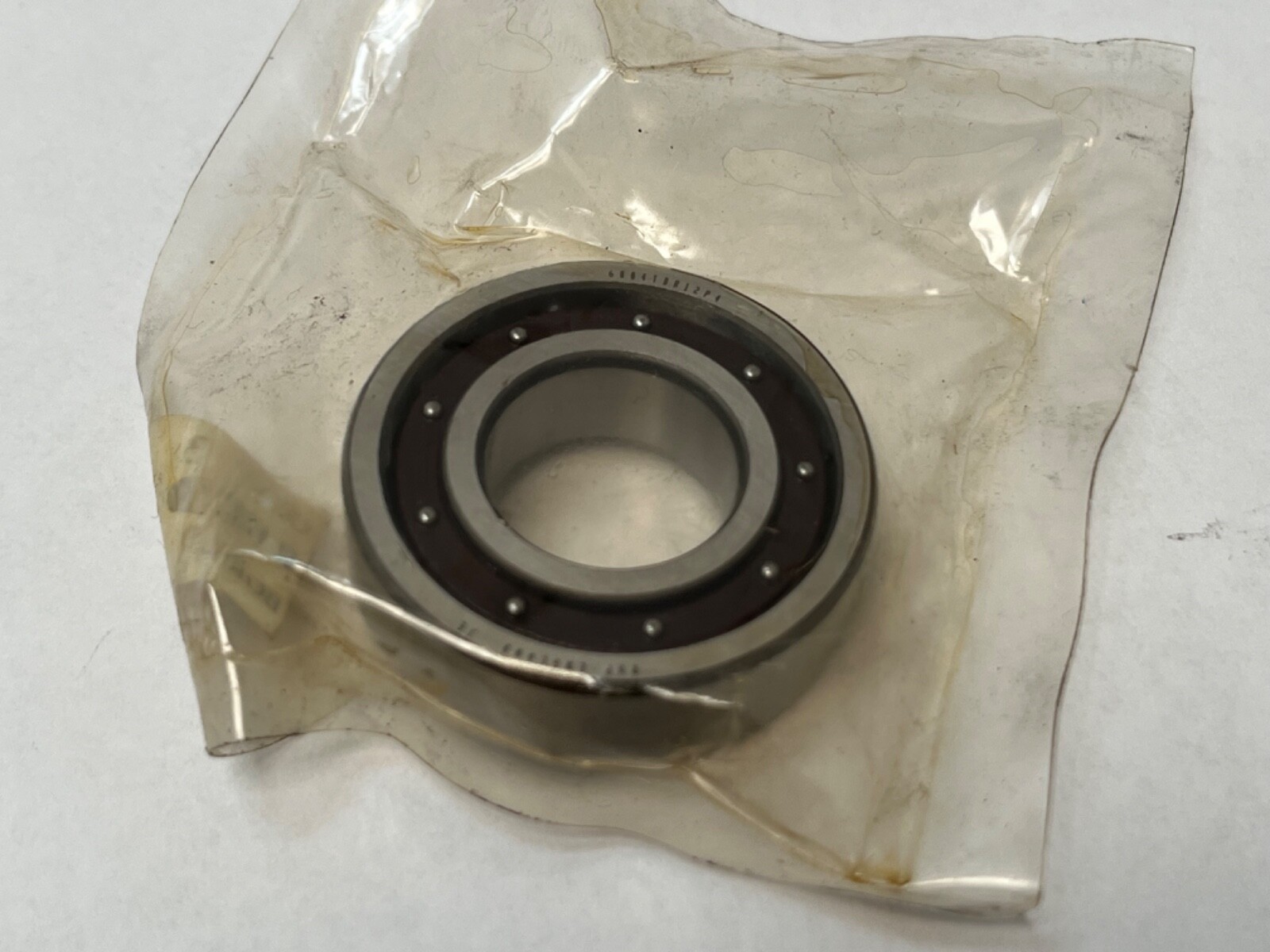

RHP 6004TBR12P4 deep-groove ball bearing, 20 mm bore, 42 mm OD, 12 mm width, ABEC 7 / P4 precision, phenolic cage. Cross-references Timken MM-9104-K.
List Price
$51.32
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 6004TBR12P4 |
| Model | MM 9104 K CR / 6004 TB R12 P4 6004P4 |
| Bearing Type | Ball Bearing, Open |
| ID | 20 mm |
| OD | 42 mm |
| Width | 12 mm |
| Series | 6000 |
|---|---|
| Material | Bearing Steel |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined, inner-ring centred |
| Rolling Elements | Balls |
| Item Weight | 0.064 kg (0.14 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Industry Terms | precision deep groove bearing; super precision spindle bearing; P4 deep groove ball bearing; inner ring guided phenolic cage bearing |
| Common Misspellings | RHP 6004 TBR12P4; RPH 6004TBR12P4; RHP 6004TB12P4; RHP6004TBR12P4 |
| Application Types | High-speed spindles; precision machine tool spindles; precision instrument shafts |
| Mpn Variants | 6004TBR12P4; 6004 TB R12 P4; 6004TB R12P4; 6004 TBR12 P4; MM-9104-K |
| Cross Reference 1 | Timken/Fafnir MM-9104-K |
|---|---|
| Cross Reference 2 | FAG 6004-P4 |
| Cross Reference 3 | NTN 6004P4 |
| Cross Reference 4 | GMN 6004 P4 |
RHP 6004TBR12P4 is a super-precision deep-groove ball bearing in the RHP TB spindle range, 20 x 42 x 12 mm, single row and open. Unit Quantity: 1 Pc.
6004 — ISO 60-series deep-groove envelope, 20 mm bore, 42 mm outside diameter, 12 mm width.
TB — machined laminated phenolic cage, inner-ring centred.
R12 — special radial internal clearance.
P4 — RHP precision class, equivalent to ABEC 7.
Bore Diameter: 20 mm. Outside Diameter: 42 mm. Overall Width: 12 mm. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined, inner-ring centred. Closure Type: Open. Number Of Rows: 1. Bore Type: Straight. Series: 6000. Item Weight: 0.064 kg (0.14 lb).
Max Shaft Fillet Radius: 0.6 mm. Shaft Backing Shoulder Diameter: 24.8 mm. Housing Backing Shoulder Diameter: 37.7 mm.
Crosses: Timken/Fafnir MM-9104-K, FAG 6004-P4, NTN 6004P4, GMN 6004 P4.
20 mm bore, 42 mm outside diameter and 12 mm width.
A machined laminated phenolic cage, inner-ring centred.
P4, equivalent to ABEC 7.
