SKF6302C3Deep Groove Ball Bearing – Straight Bore, 15 mm ID, 42 mm OD, 13 mm Width, Open, C3 Internal Clearance, 18 Pcs

Product Description

What this part is

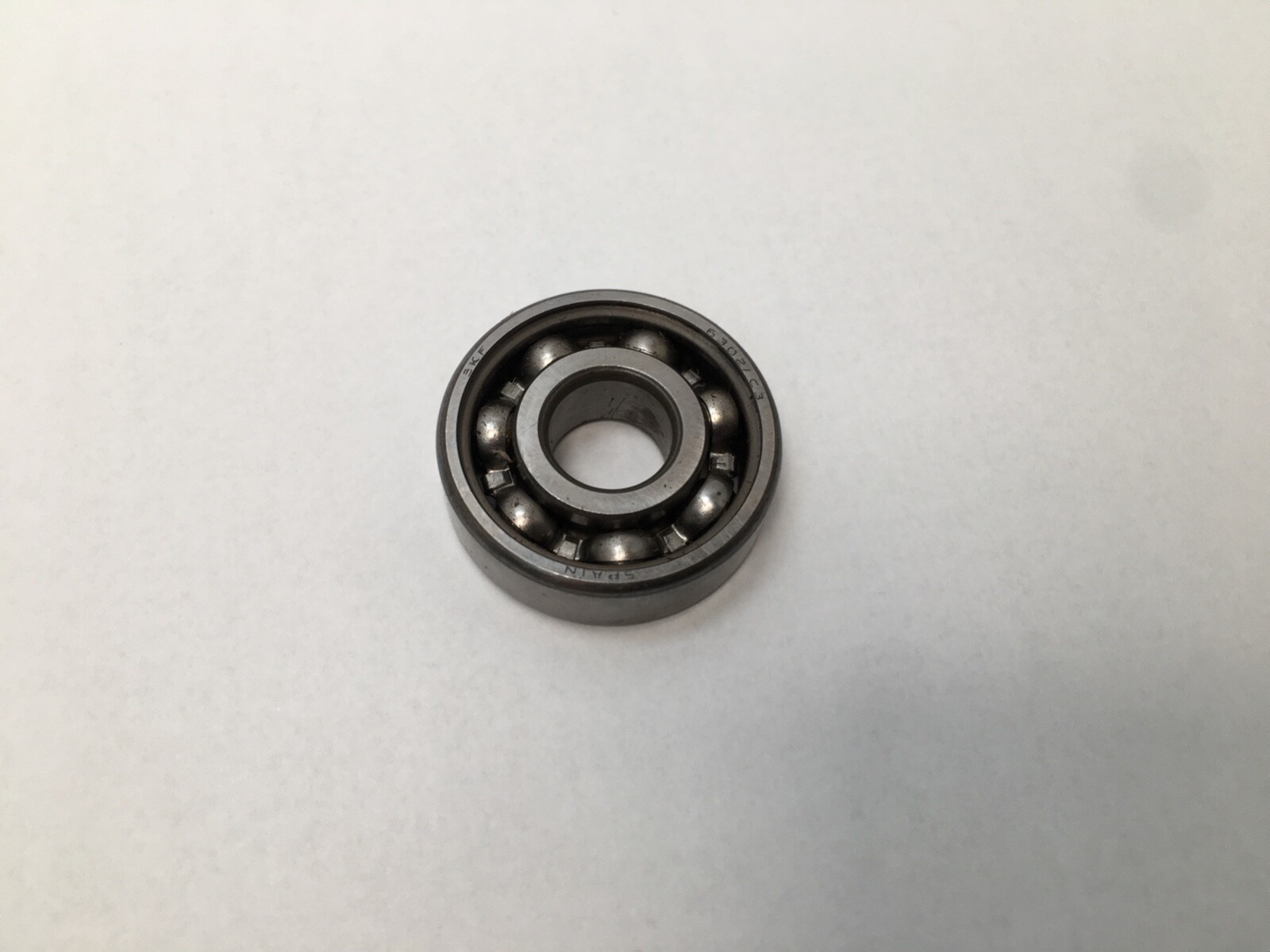

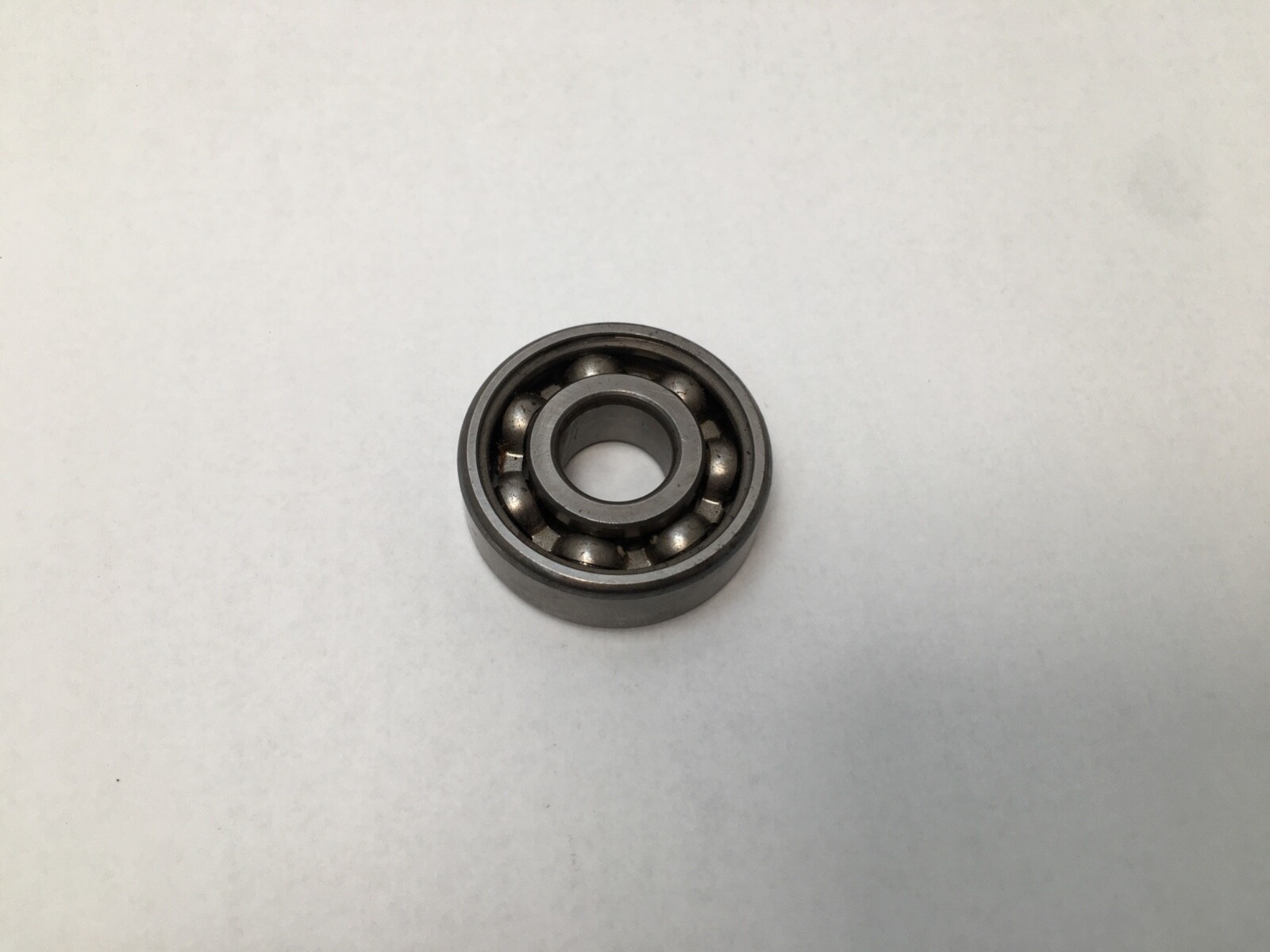

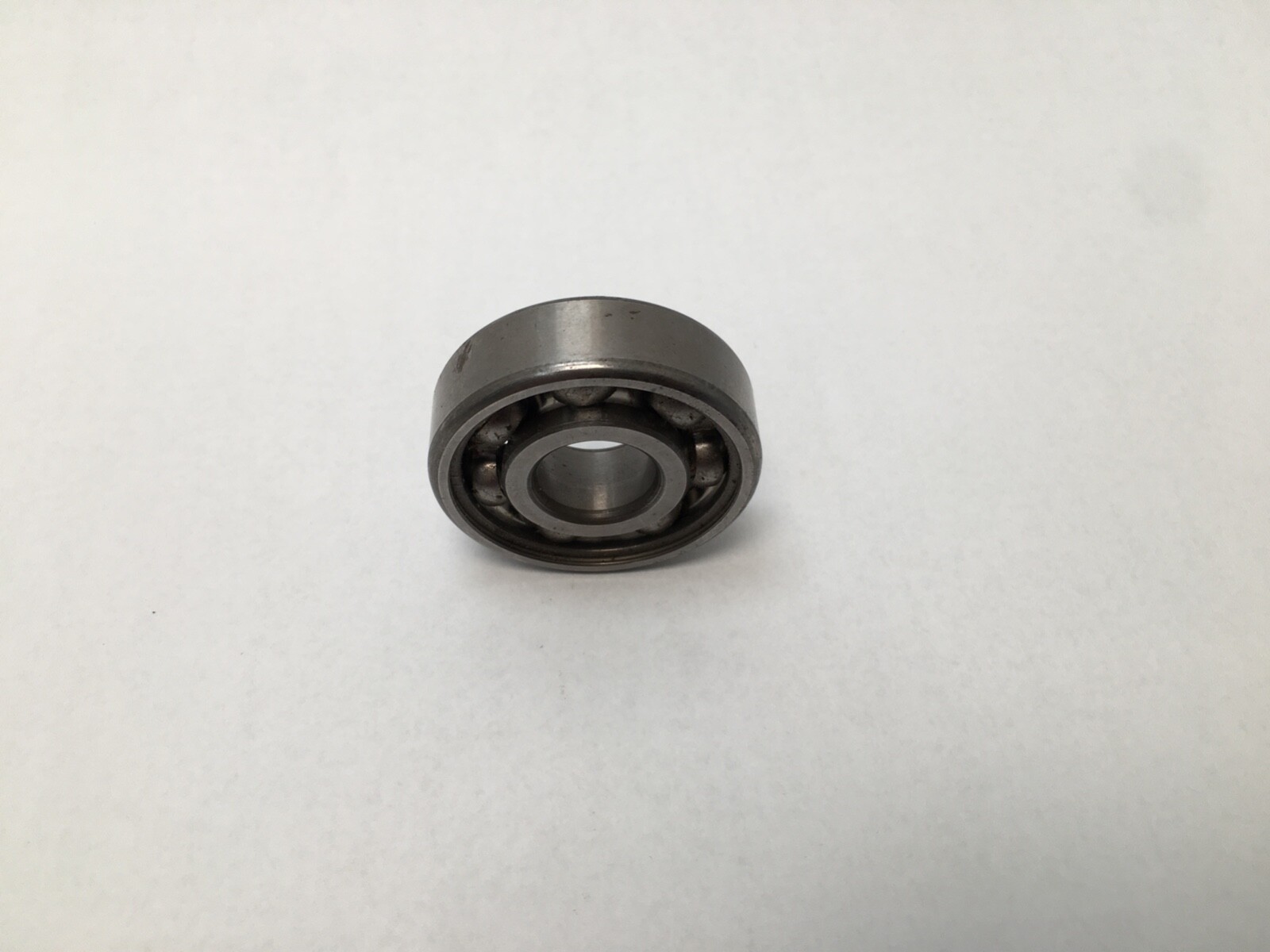

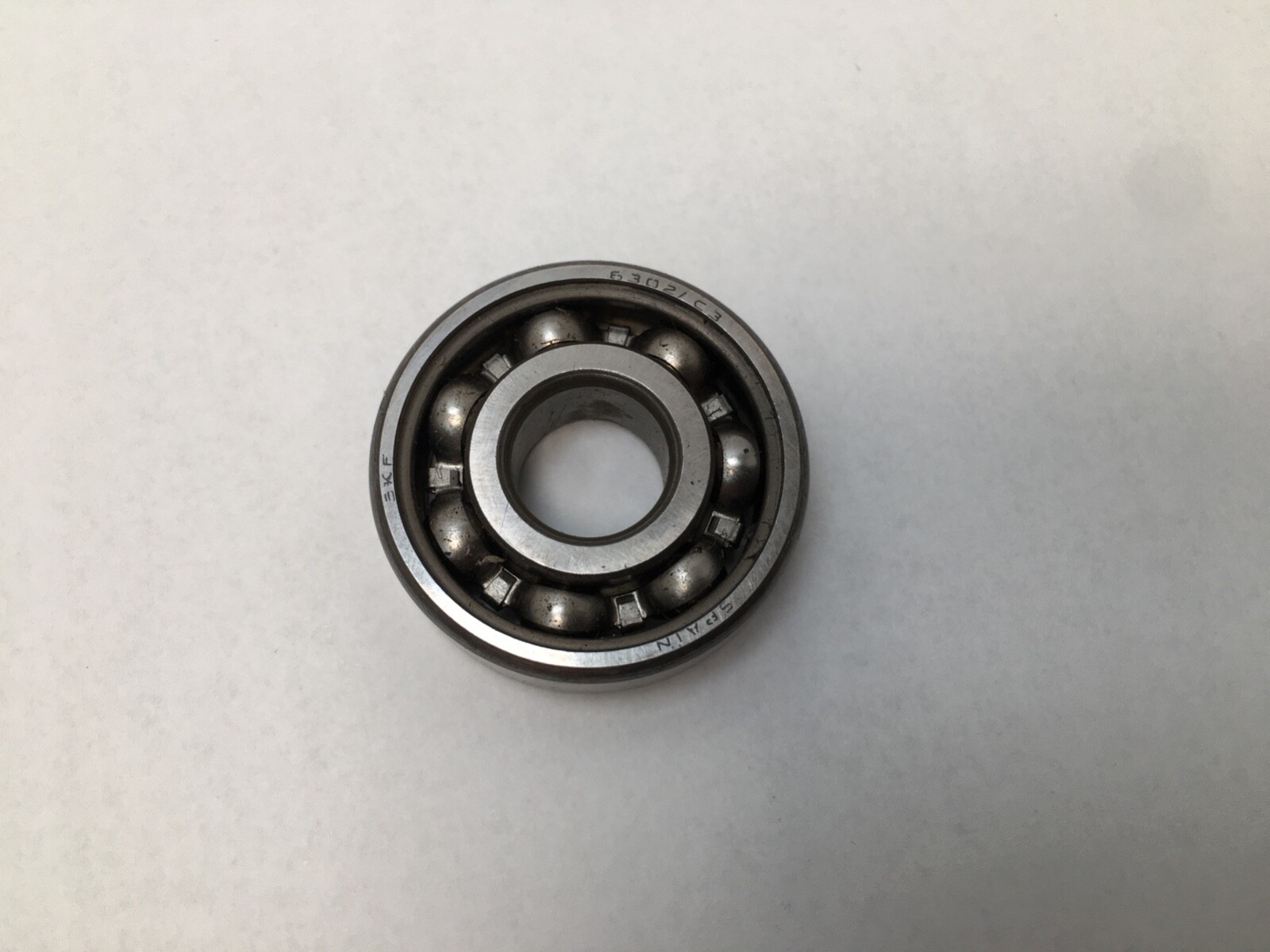

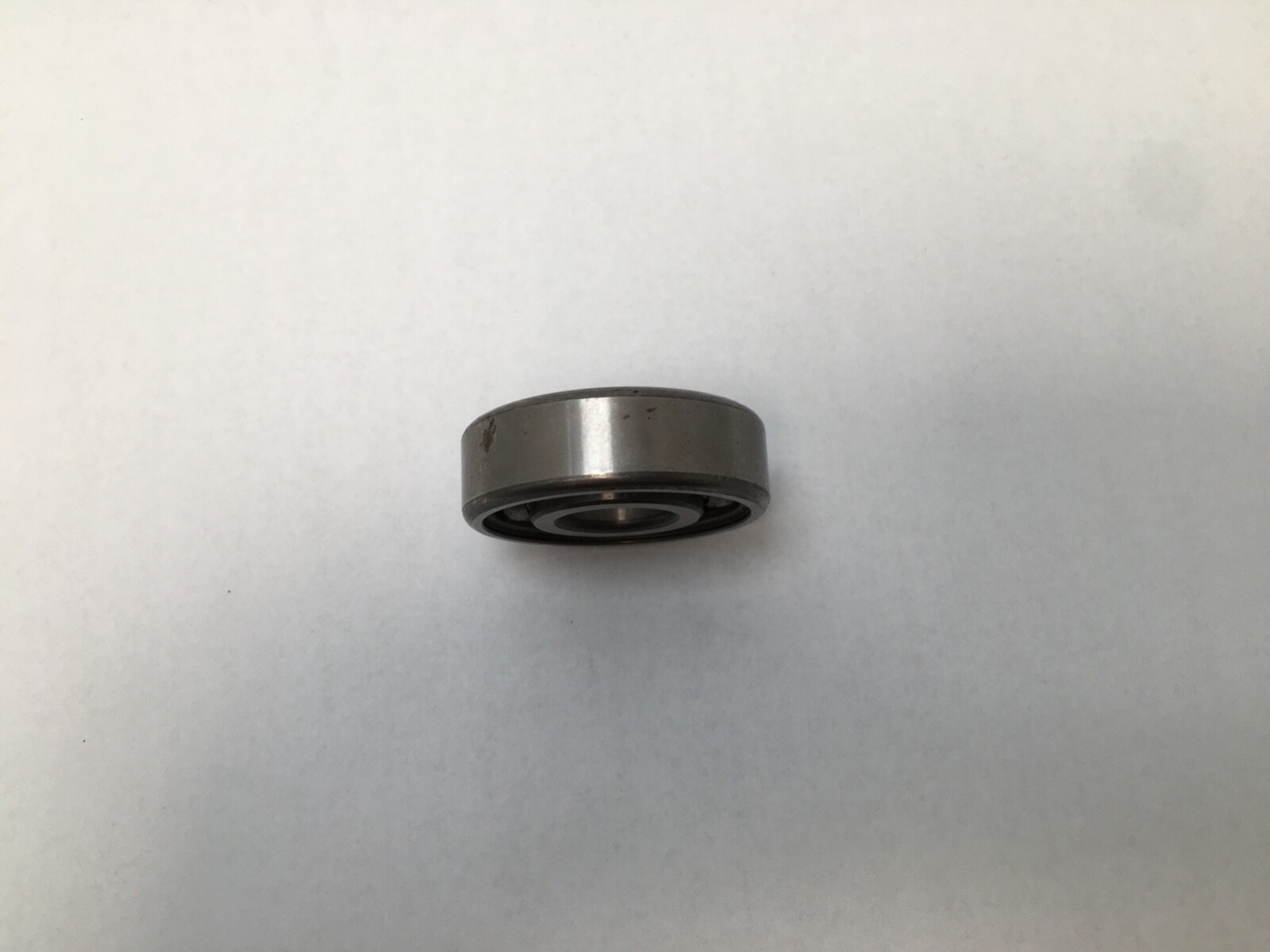

SKF 6302 C3 deep groove ball bearing. Bore 15 mm, outside diameter 42 mm, width 13 mm. Series: 63. Straight bore, open on both faces, pressed steel cage. Carton marking: JEM. Country of origin: Spain.

Decoding the designation

6302: deep groove ball bearing, 15 mm bore, 63 dimension series. C3: radial internal clearance greater than normal. JEM is a carton marking recorded here as a searchable part-number form.

Published ratings

Dynamic load rating: 11.9 kN. Static load rating: 5.4 kN. Limiting speed: 24,000 rpm. Operating range: −30 °C to 120 °C. Mass: 0.18 lb each.

What these specs mean in practice

C3 clearance leaves more room in the ball path than a CN bearing, which suits a tight interference fit on the shaft, a hot running inner ring, or an electric motor position where the shaft grows in service. Open faces allow either grease packing or an oil-lubricated housing. The 63 series is the wider, heavier section at this bore, so the 6302 carries more load than a 6002 on the same 15 mm shaft.

Quantity and configuration

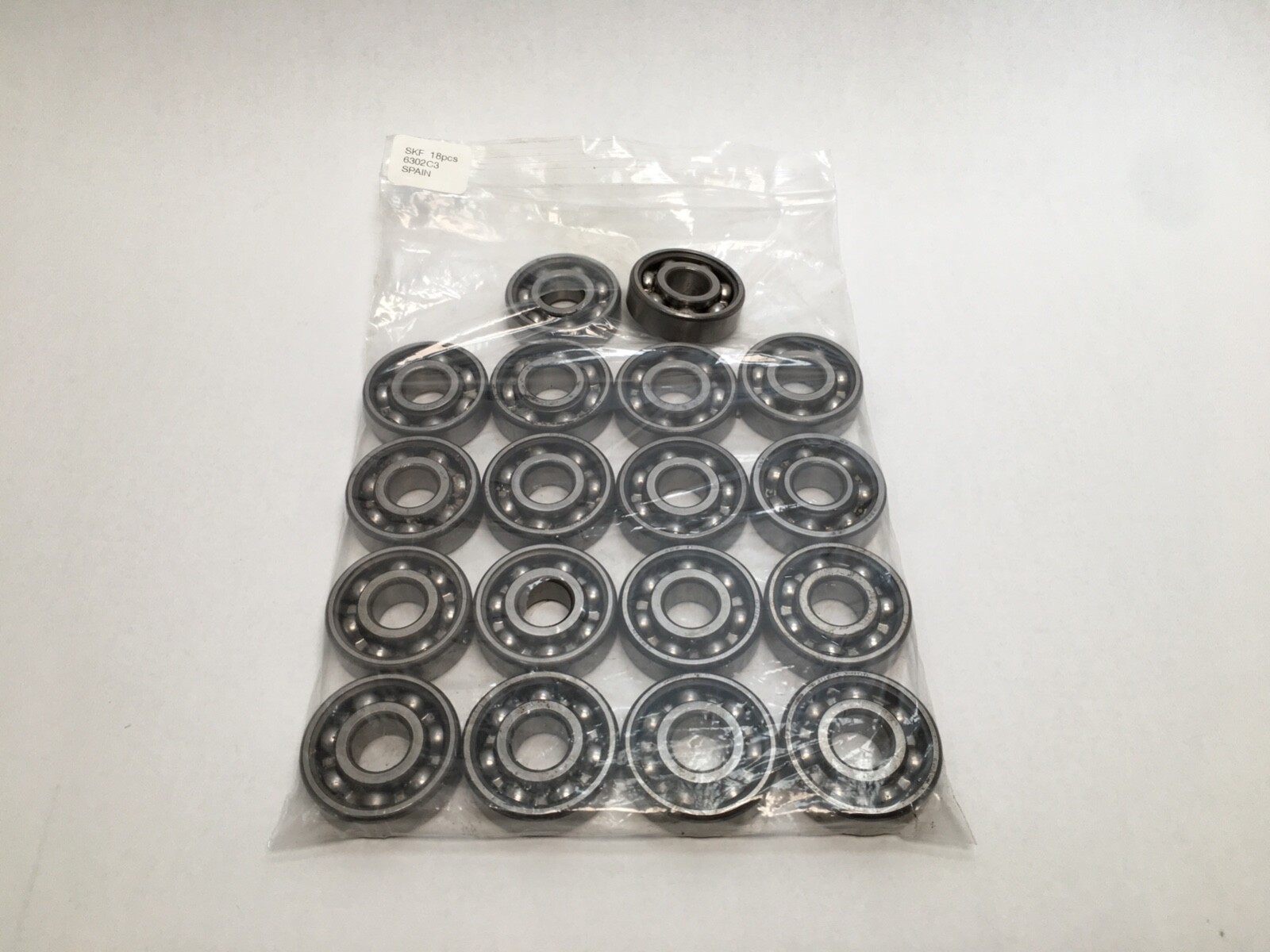

Eighteen bearings ship together as one lot. Unit quantity: 18 Pcs.

Fitting notes

Straight 15 mm bore on a cylindrical shaft seat. Mounting force is applied to the ring being fitted so the load never passes through the ball complement.

Interchange guidance

Same-specification equivalents: FAG 6302-C3 and NTN 6302C3. Searchable forms of the number: 6302C3, 6302 C3, 6302-C3, 6302JEM, 6302.
