Availability:
1 in stock
Inch tapered roller bearing cone, 3.7500 in bore, 1.4219 in width, 223,000 N dynamic and 343,000 N static rating. Mates with a 52618 cup.
List Price
$53.09
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 52375 |
| GTIN | 053893320731 |
| Model | 52375 #3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 3.7500 in (95.250 mm) |
| Base Number | 52375 |
|---|---|
| Overall Width | 1.4219 in (36.116 mm) |
| Mpn Variants | 52375; 52375-20026; 52375 20026; 52-375 |
| Compatible With Replaces | Mating cups: Timken 52618, Timken 52618P |
| Precision Class | Not specified |
| Additional Attributes | K Factor 1.23; C90 57,900 N; Ca90 47,100 N; Effective Load Centre -0.5 mm; Max shaft fillet radius 3.600 mm; da 105 mm; db 112 mm; Aa 4.1 mm; Ab 3 mm; G1 175.4; G2 41.7; Cg 0.152 |
| Dynamic Load Rating | 223,000 N |
| Static Load Rating | 343,000 N |
| Series | 523 |
| Rolling Elements | Tapered Roller |
| Item Weight | 7.587 kg (16.73 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Part Number | 52375 |
| Cross Reference 1 | Koyo 52375 |
|---|---|
| Cross Reference 2 | NTN 4T-52375 |
| Cross Reference 3 | NSK 52375 |
| Cross Reference 4 | SKF 52375 |
| Cross Reference 5 | BCA / Bower 52375 |

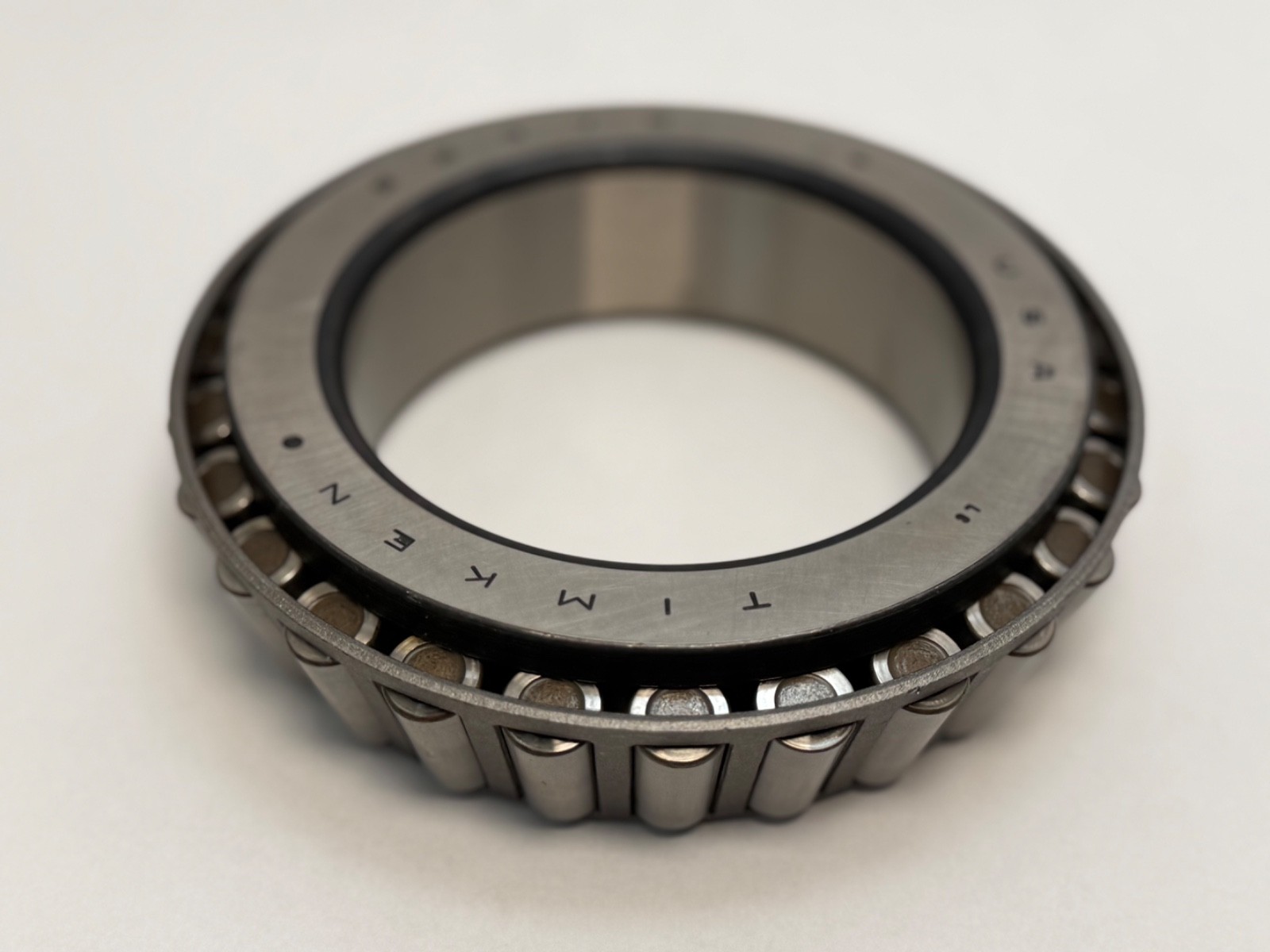

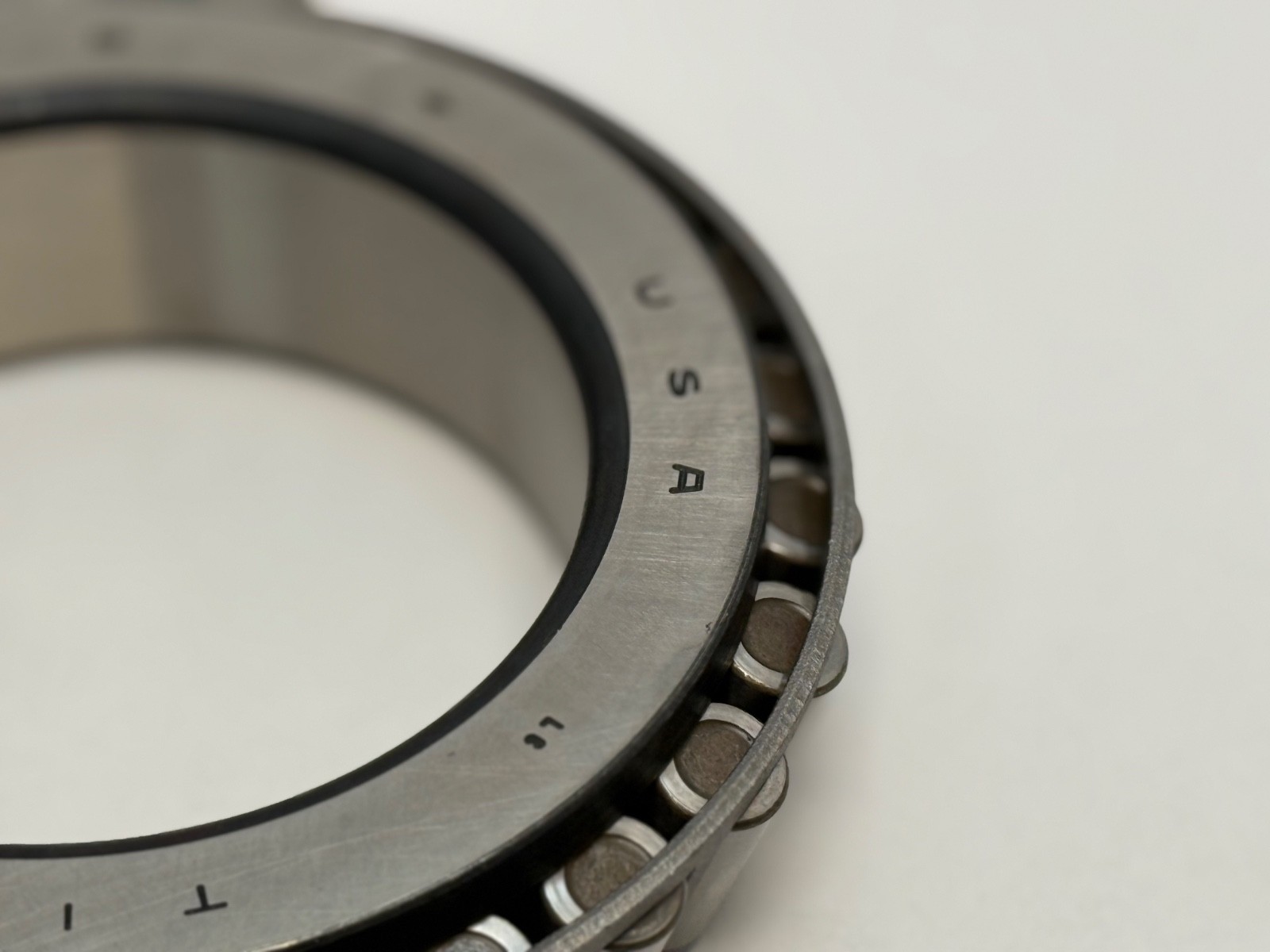

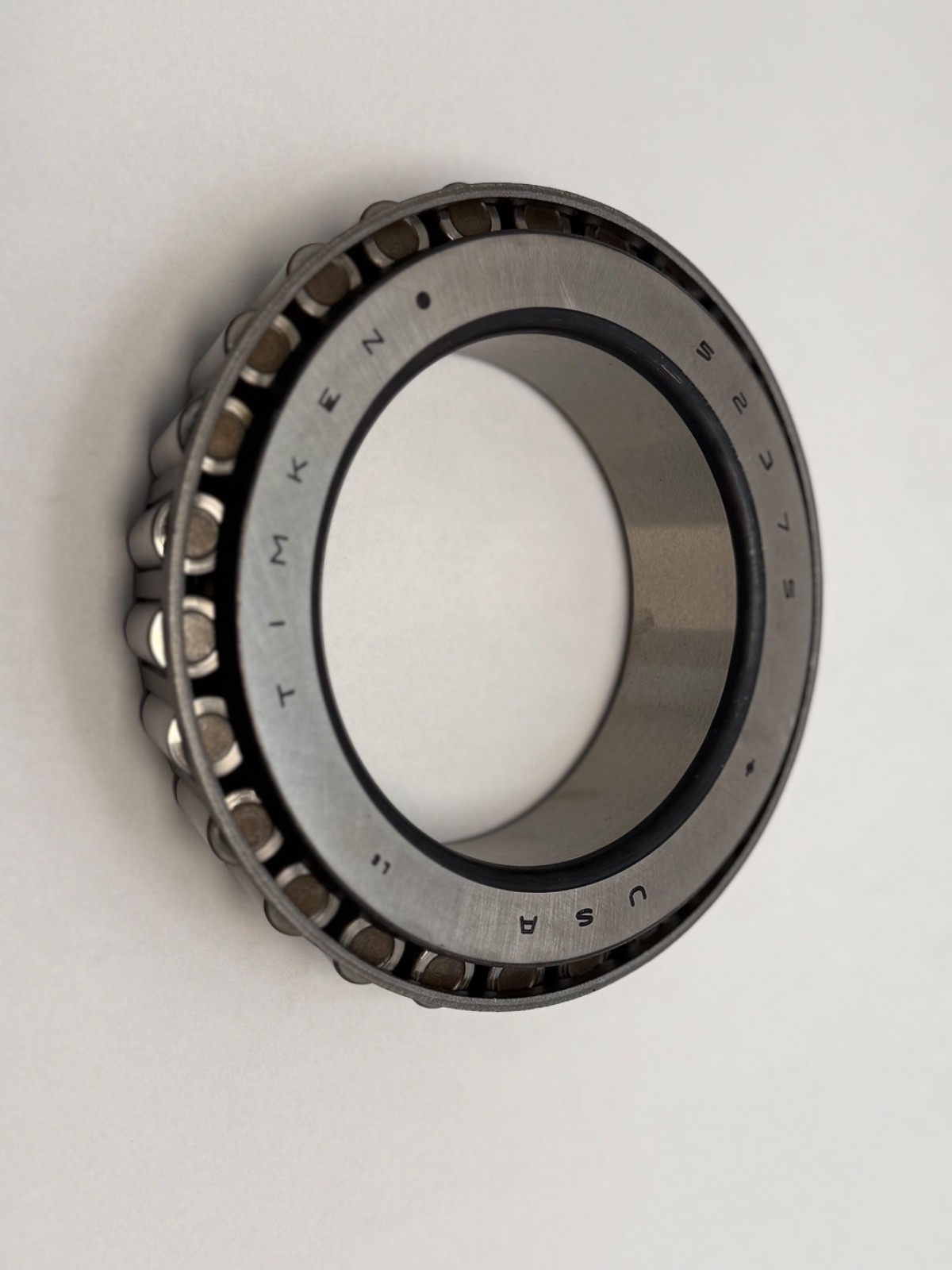

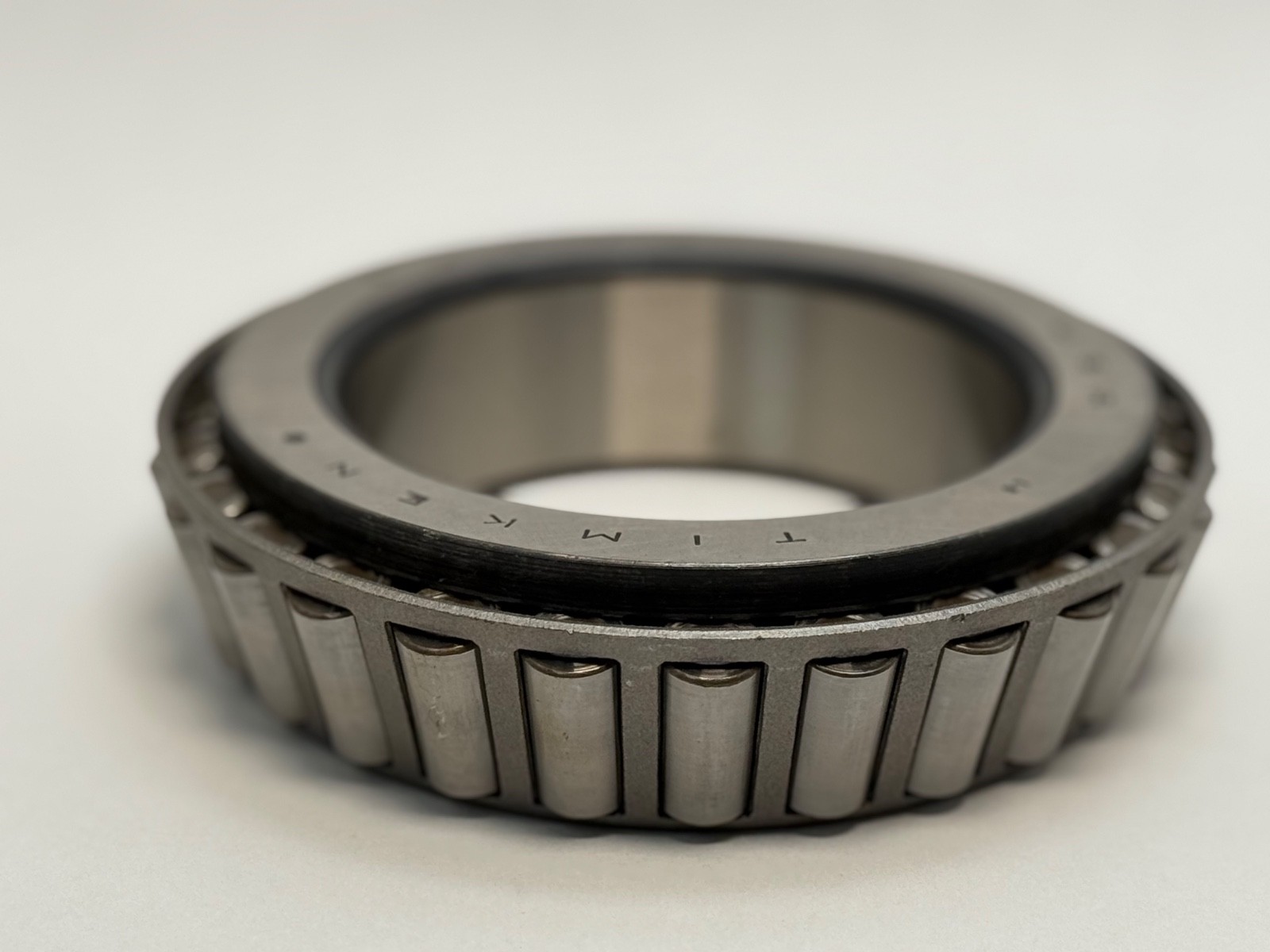

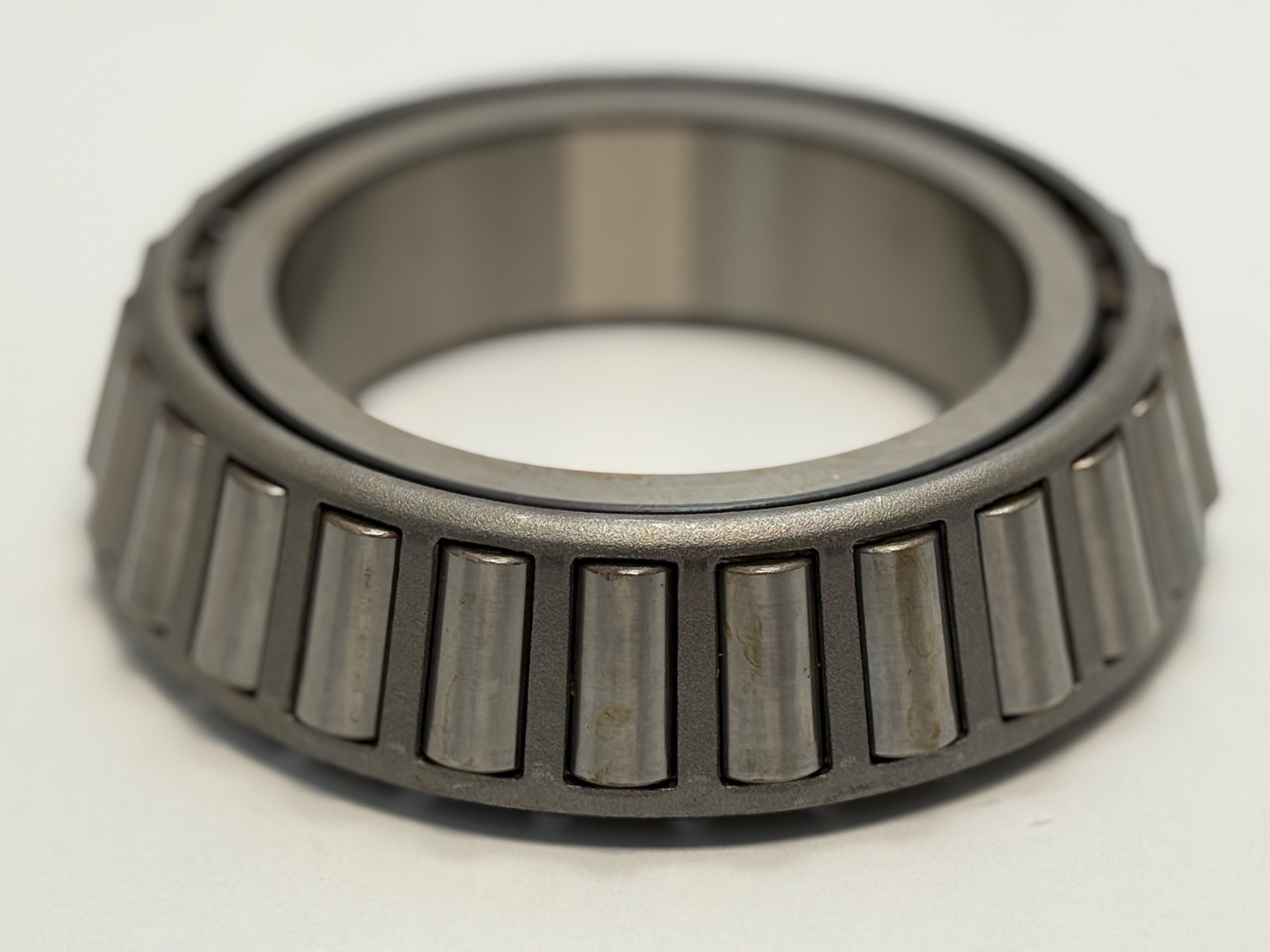

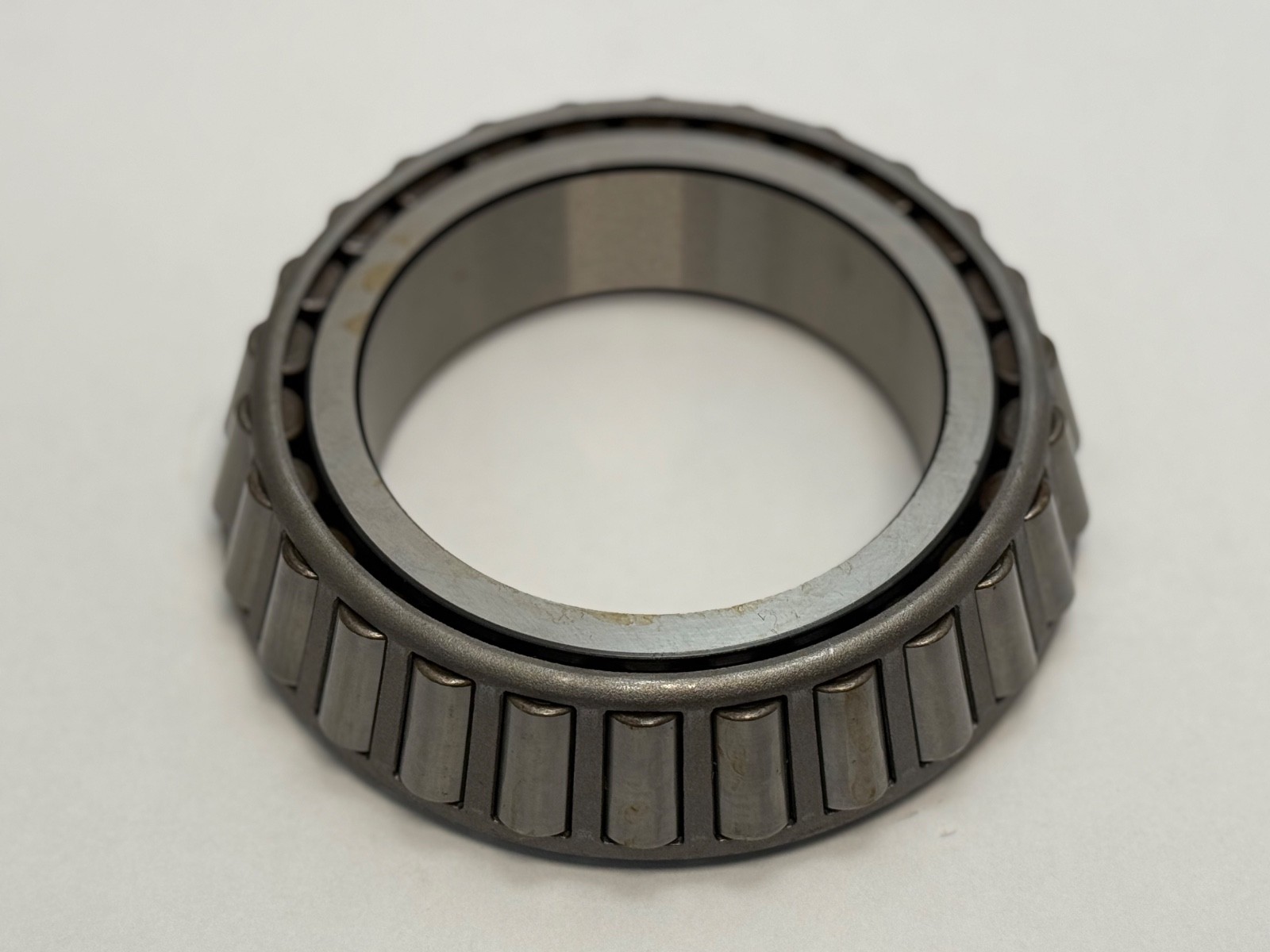

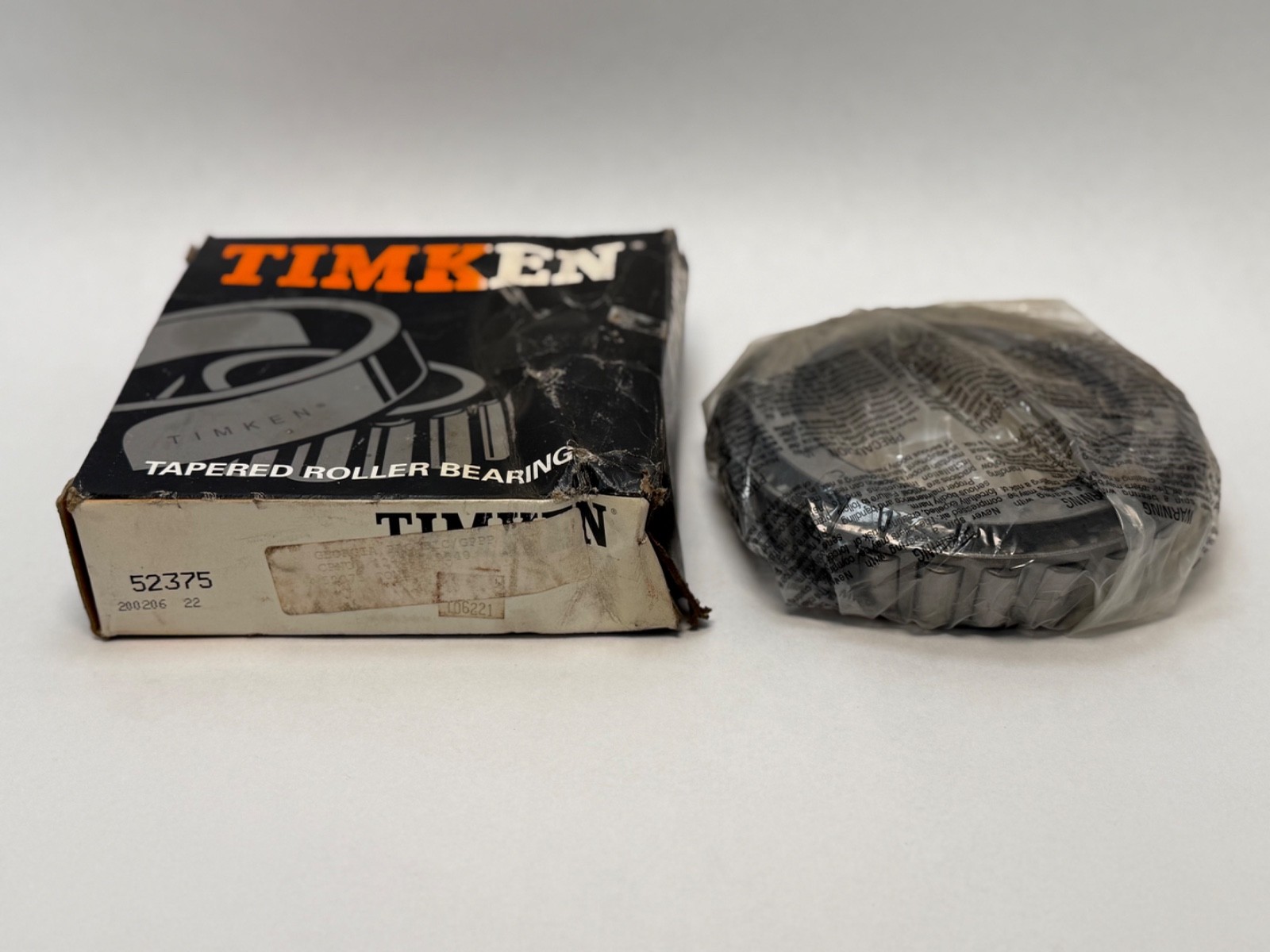

Timken 52375 inch tapered roller bearing cone. Bearing Type: Tapered roller bearing cone — the inner ring carrying the tapered rollers and cage as one assembly. Series: 523. Base Number: 52375. Bore Diameter: 3.7500 in (95.250 mm). Overall Width: 1.4219 in (36.116 mm). Bore Type: Straight. Rolling Elements: Tapered Roller. Number Of Rows: 1. Item Weight: 7.587 kg (16.73 lb). GTIN: 053893320731.

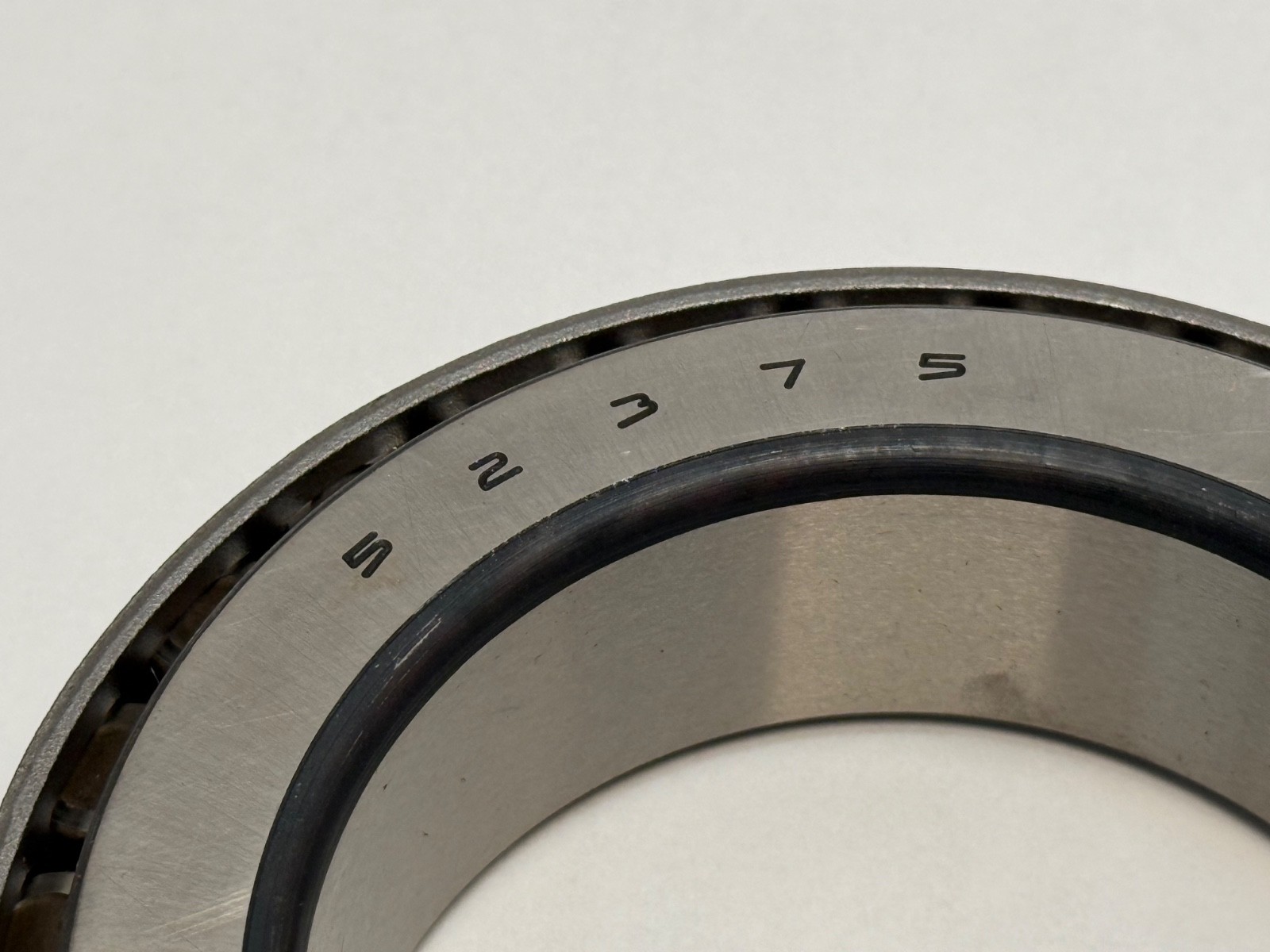

52375 — Timken base cone number in the 523 inch series, 3.7500 in bore. No precision suffix is present, so the tolerance class is Not specified.
-20026 — the Timken order-code form of the same cone, used as a search term by several distributors.
Dynamic Load Rating: 223,000 N (C1, one million revolutions). Static Load Rating: 343,000 N. Dynamic radial rating at 90 million revolutions (C90): 57,900 N. Dynamic axial rating at 90 million revolutions (Ca90): 47,100 N. K Factor: 1.23. A K factor near 1.2 puts the roller angle in the medium range, so the cone carries heavy radial load while still taking a useful thrust component in an opposed pair.
Effective Load Centre: -0.5 mm. Maximum fillet radius on the mating shaft: 3.600 mm (0.140 in). Shaft Backing Shoulder Diameter, frontface (da): 105 mm (4.13 in). Shaft Backing Shoulder Diameter, backface (db): 112 mm (4.41 in). Cage location relative to backface (Aa): 4.1 mm. Cage location relative to frontface (Ab): 3 mm. G1 Factor: 175.4. G2 Factor: 41.7. Geometry Factor (Cg): 0.152.
Unit Quantity: 1 Pc. Cone only. The matching cups are the Timken 52618 and 52618P.
52375 is an industry-standard inch tapered roller bearing cone number. Koyo, NTN, NSK, SKF and BCA/Bower all build a 52375 to the same boundary dimensions, and all interchange with this cone.
