Tapered roller bearing cone, 2.0312 in (51.592 mm) bore, 0.8750 in width, Timken Class 3 precision. 102,000 N dynamic, 95,800 N static. Mates with 362A cup.
List Price
$36.86
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 368S-3 |
| Model | 368 S #3 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 2.0312 in (51.592 mm) |
| Series | 365 |
|---|---|
| Material | Case-Hardened Steel |
| Base Number | 368S |
| Industry Terms | taper bearing cone, tapered roller bearing inner race, cone assembly, TS cone, inch taper cone |
| Common Misspellings | Timkin 368S-3, 368-5, 368S3, tappered roller bearing cone |
| Overall Width | 0.8750 in (22.225 mm) |
| Mpn Variants | 368S-3, 368-S-3, 368S*3, 368-S *3, 368S#3, 368 S #3, 368S |
| Compatible With Replaces | Timken 362A cup (assembly 368-S/362A) |
| Precision Class | Class 3 |
| Additional Attributes | Dynamic Radial Load Rating C90: 26,400 N (5,930 lbf); Dynamic Axial Rating Ca90: 14,400 N (3,250 lbf); K Factor: 1.83; Effective Center Location: -4.3 mm (-0.17 in); Max Shaft Fillet Radius: 2.0 mm (0.080 in); Shaft Backing Shoulder Diameter Frontface da: 56 mm (2.2 in); Shaft Backing Shoulder Diameter Backface db: 59 mm (2.32 in); Cage Location rel. to Backface Aa: 0 mm; Cage Location rel. to Frontface Ab: 1.8 mm (0.07 in); G1 Factor: 33.8; G2 Factor: 14; Geometry Factor Cg: 0.0773 |
| Dynamic Load Rating | 102,000 N |
| Static Load Rating | 95,800 N |
| Item Weight | 1.174 kg (2.59 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 362A |
| Design Units | Imperial |
| Cone Part Number | 368-S |
| Cone Width | 0.8750 in (22.225 mm) |
| Cone Backface To Clear Radius | 0.08 in |
| Cone Frontface Backing Diameter | 2.20 in |
| Cage Cone Frontface Clearance | 0.07 in |
| Cage Cone Backface Clearance | 0.00 in |
| Effective Center Location | -0.17 in |

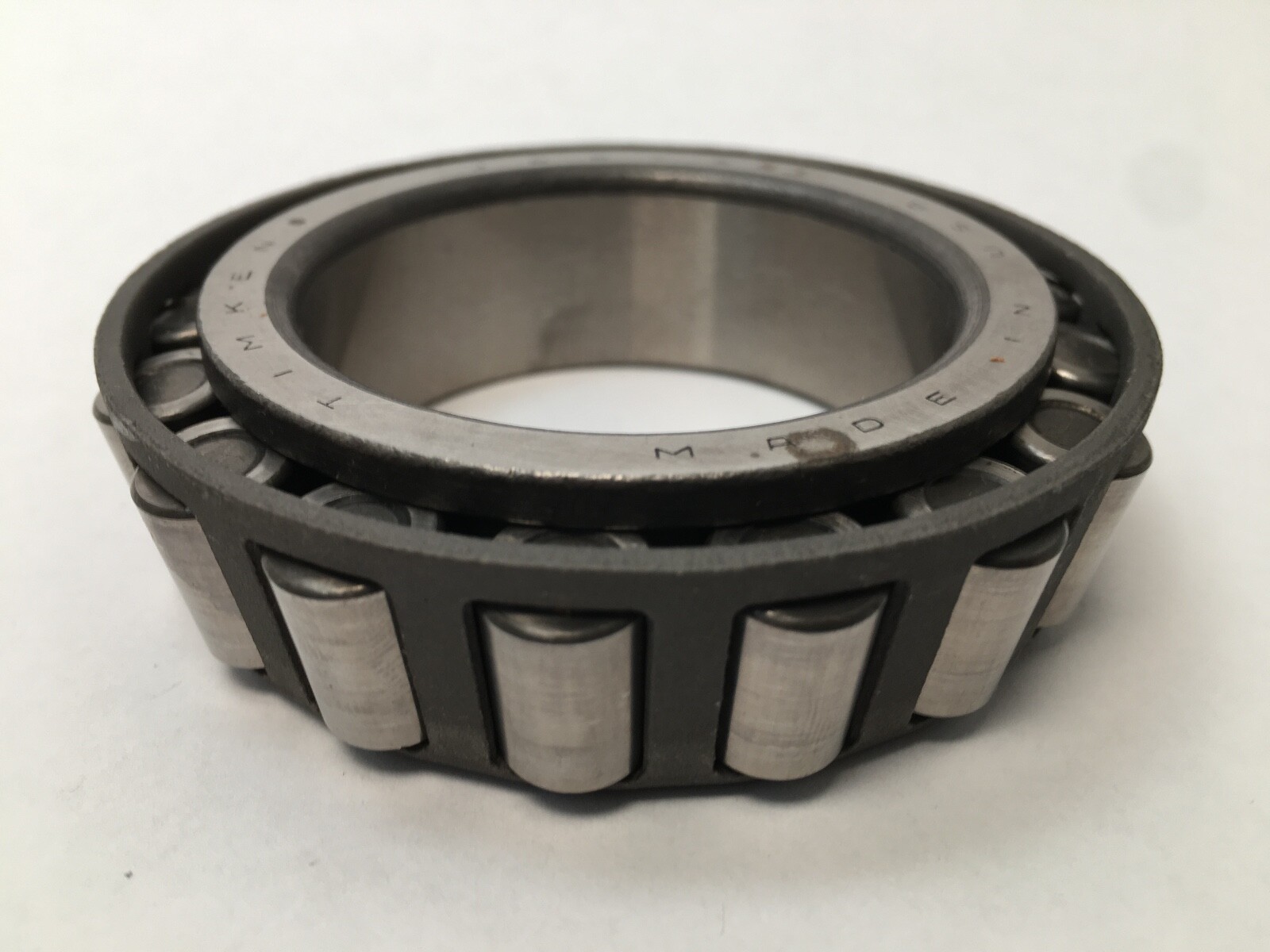

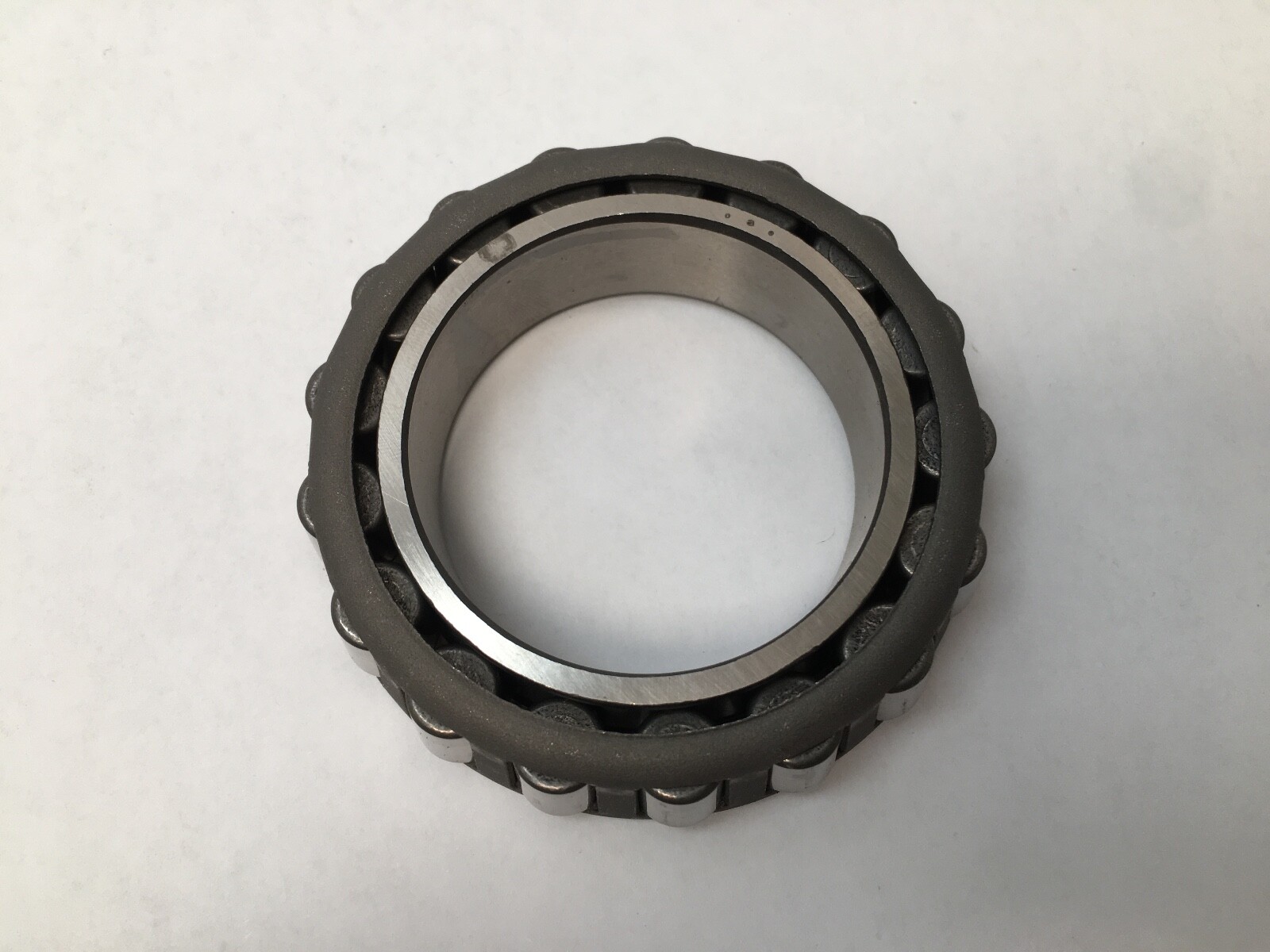

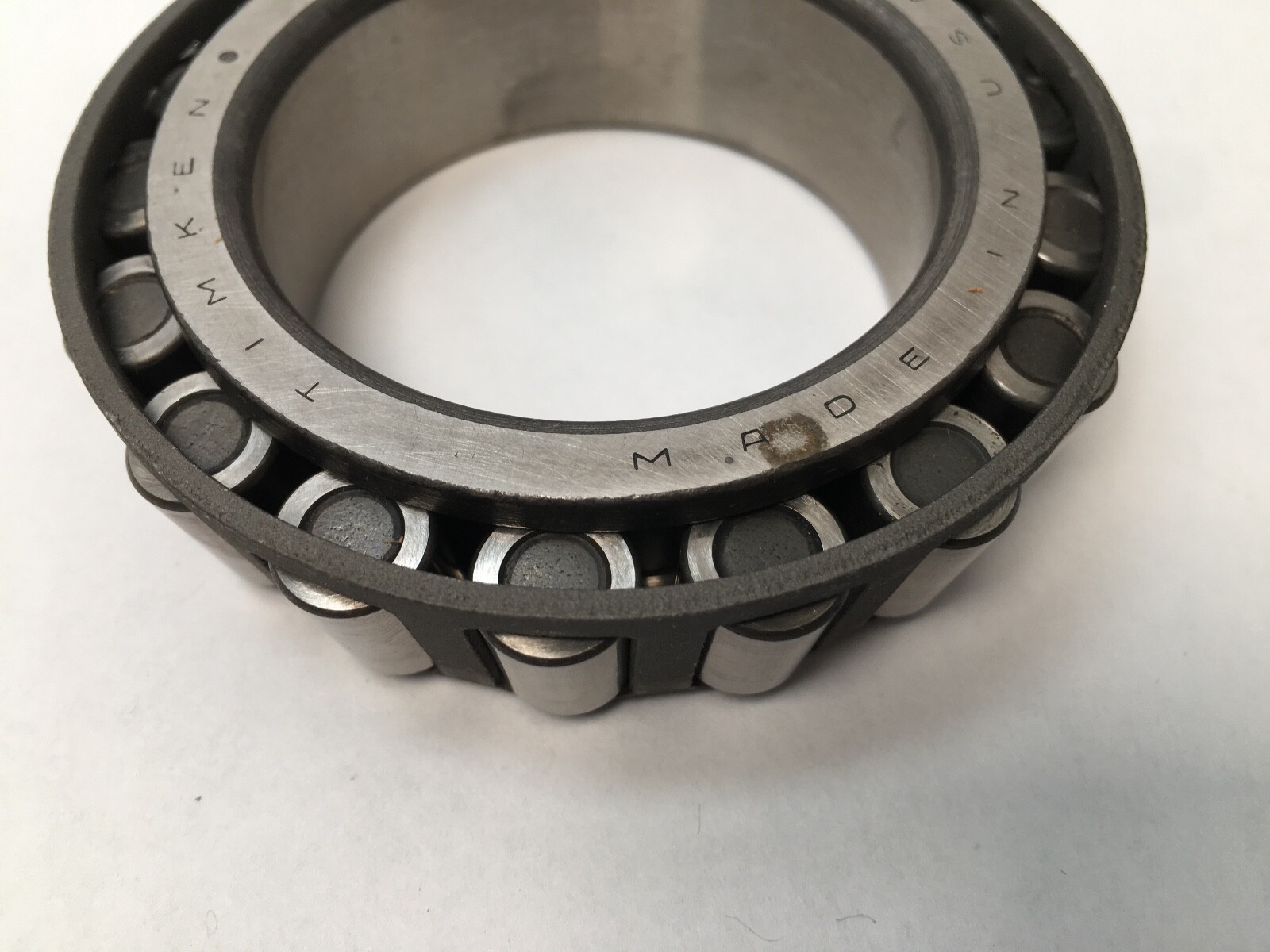

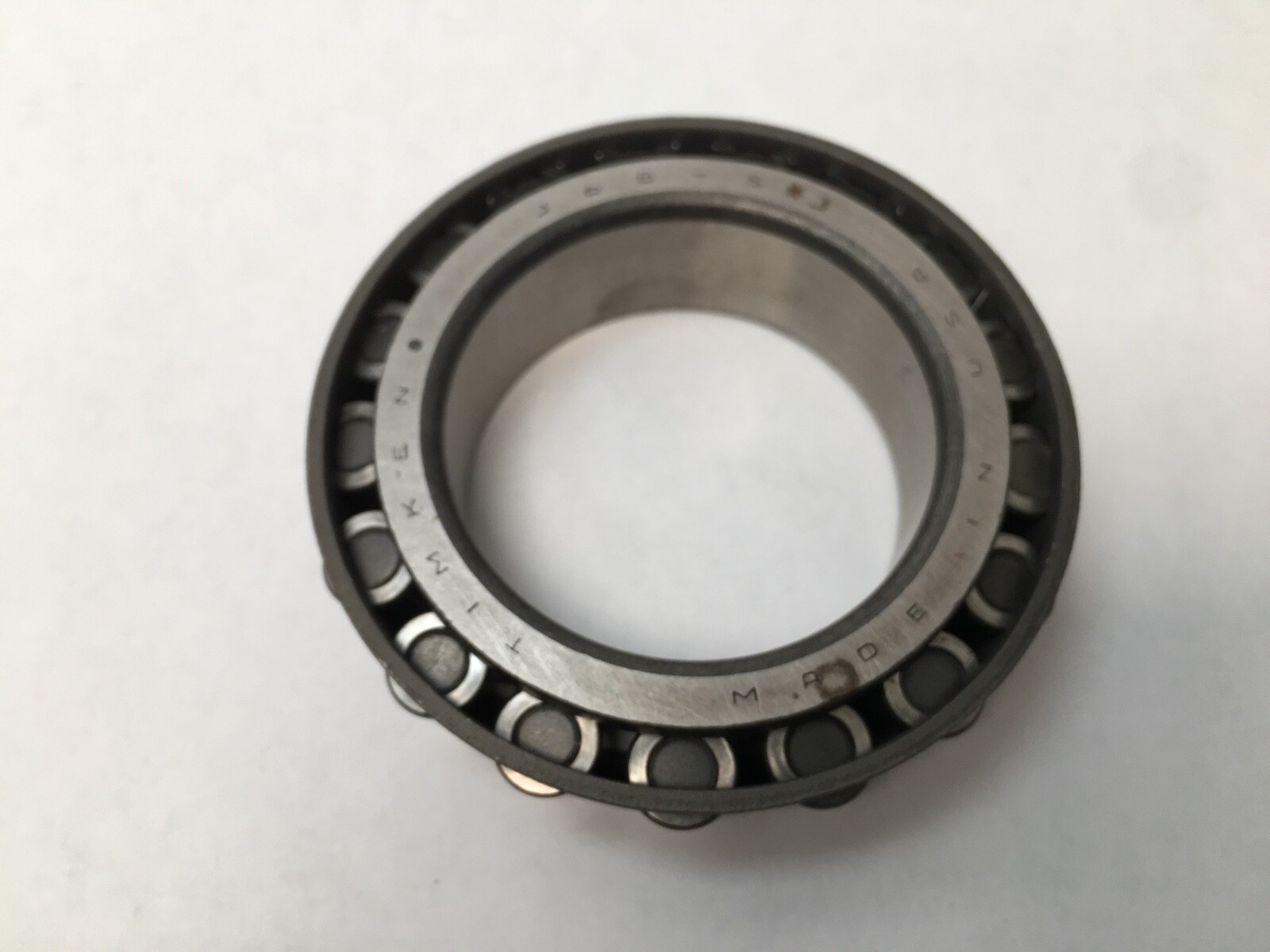

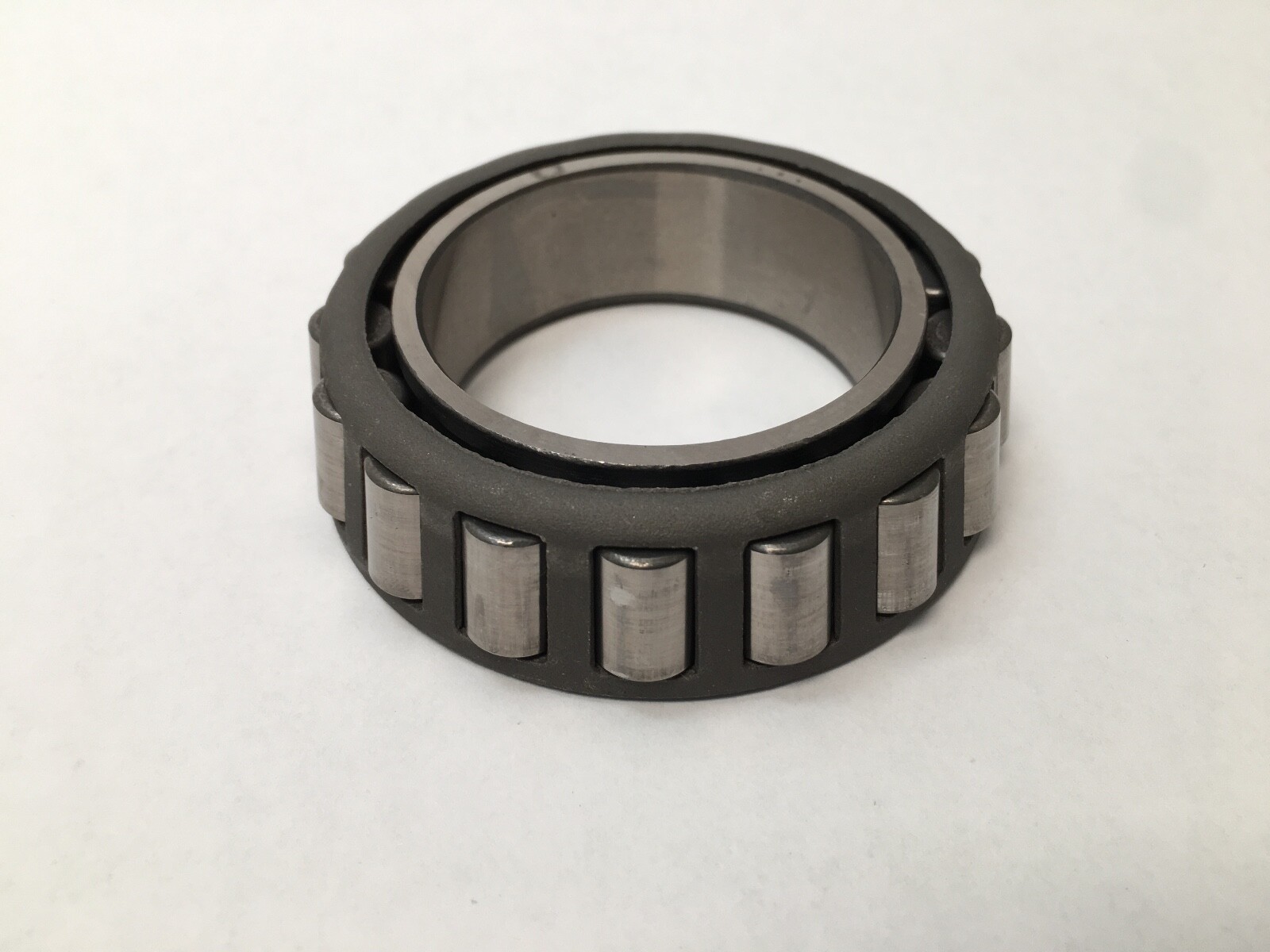

Timken 368S-3 tapered roller bearing cone: the inner ring, tapered rollers and cage of a single-row TS tapered roller bearing, in Timken Class 3 precision. Bearing type: Tapered Roller Bearing Cone. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Design Units: Imperial. Precision Class: Class 3.

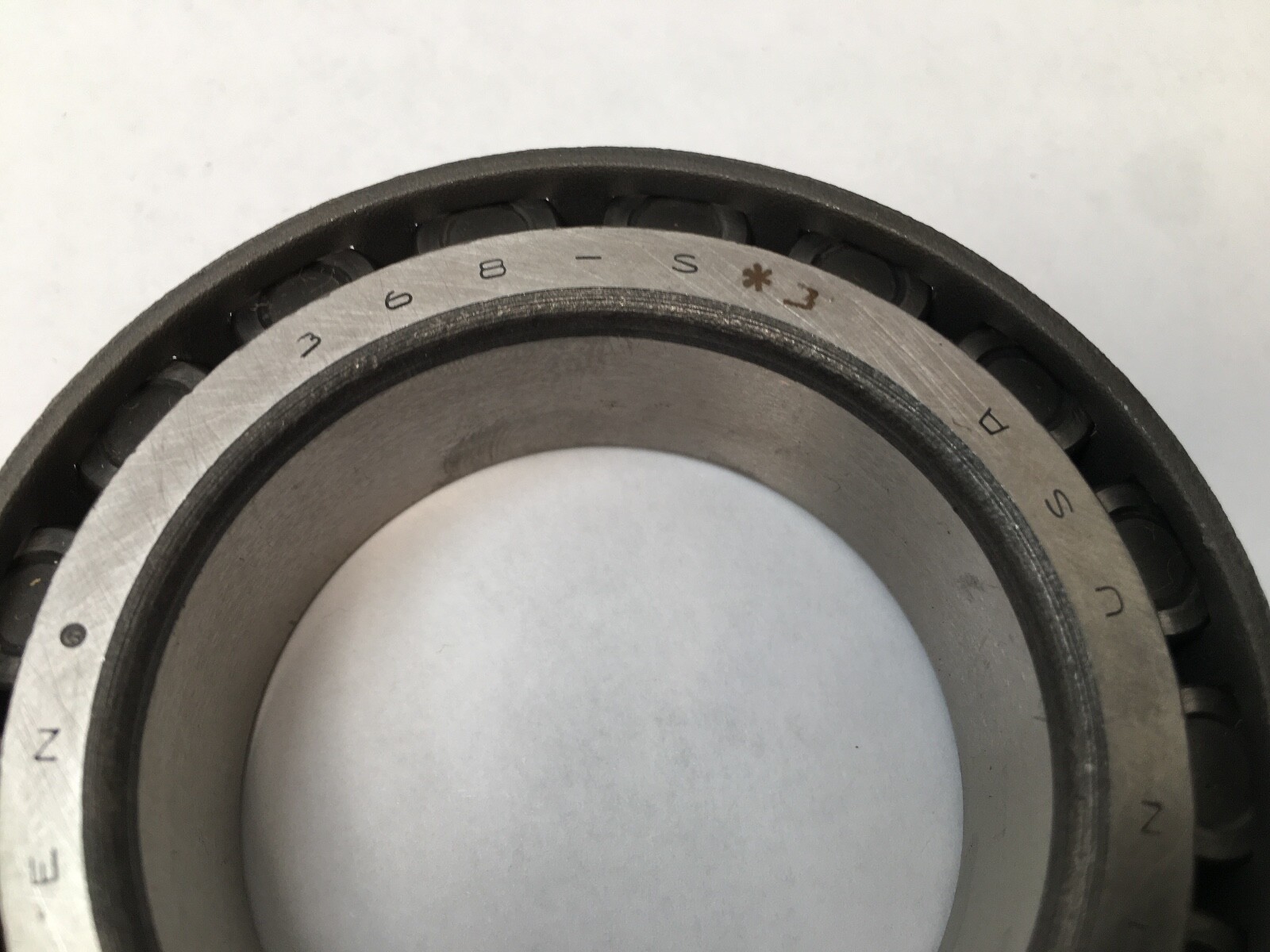

368-S — Timken cone number, filed by Timken under Single Cones – Imperial. The S execution is a separate part number from the plain 368 cone.

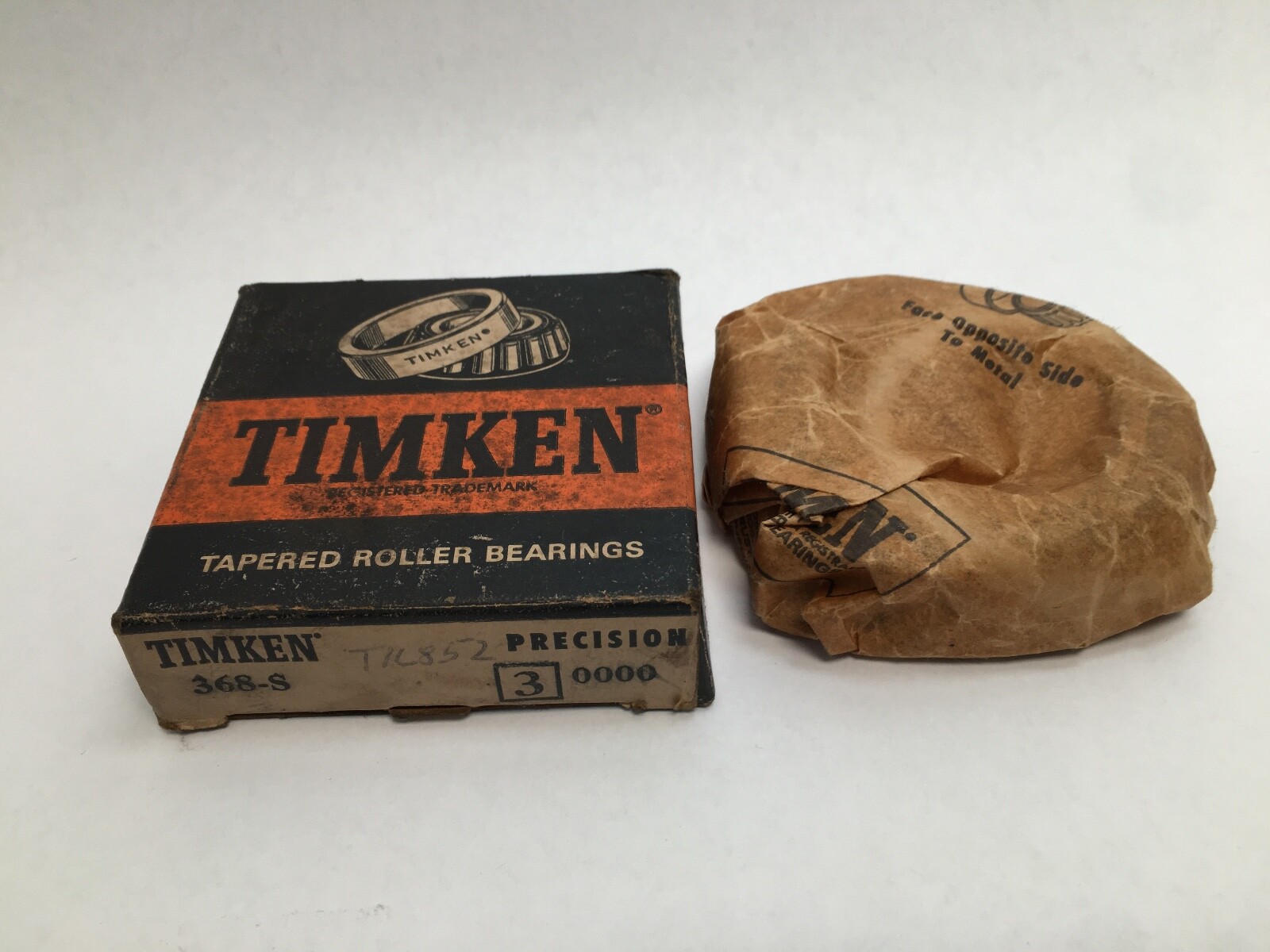

-3 — Timken precision Class 3, marked on cartons as -3, *3 or #3. Tighter running and mounting tolerance than standard Class 2 or Class 4 parts.
Bore Diameter: 2.0312 in (51.592 mm). Overall Width: 0.8750 in (22.225 mm). Cone Width: 0.8750 in (22.225 mm). Item weight: 1.174 kg (2.59 lb).
Dynamic load rating: 102,000 N (22,900 lbf), C1 on the ISO one-million-revolution basis. Static load rating: 95,800 N (21,500 lbf). Dynamic radial rating C90: 26,400 N (5,930 lbf) and dynamic axial rating Ca90: 14,400 N (3,250 lbf), on Timken’s ninety-million-revolution basis. K factor: 1.83. G1 factor: 33.8. G2 factor: 14. Geometry factor Cg: 0.0773.
Effective center location: −4.3 mm (−0.17 in), inside the cone backface. Maximum shaft fillet radius: 2.0 mm (0.080 in). Shaft backing shoulder diameter, frontface (da): 56 mm (2.2 in). Shaft backing shoulder diameter, backface (db): 59 mm (2.32 in). Cage location relative to backface (Aa): 0 mm. Cage location relative to frontface (Ab): 1.8 mm (0.07 in).
Cone only. Matching cup: Timken 362A. Cup Part Number: 362A. Cone Part Number: 368-S. Timken assembly: 368-S/362A.
Compatible With / Replaces: Timken 362A cup (assembly 368-S/362A). MPN Variants: 368S-3, 368-S-3, 368S*3, 368-S *3, 368S#3, 368 S #3, 368S. Harmonization Code: 8482.20.00.
