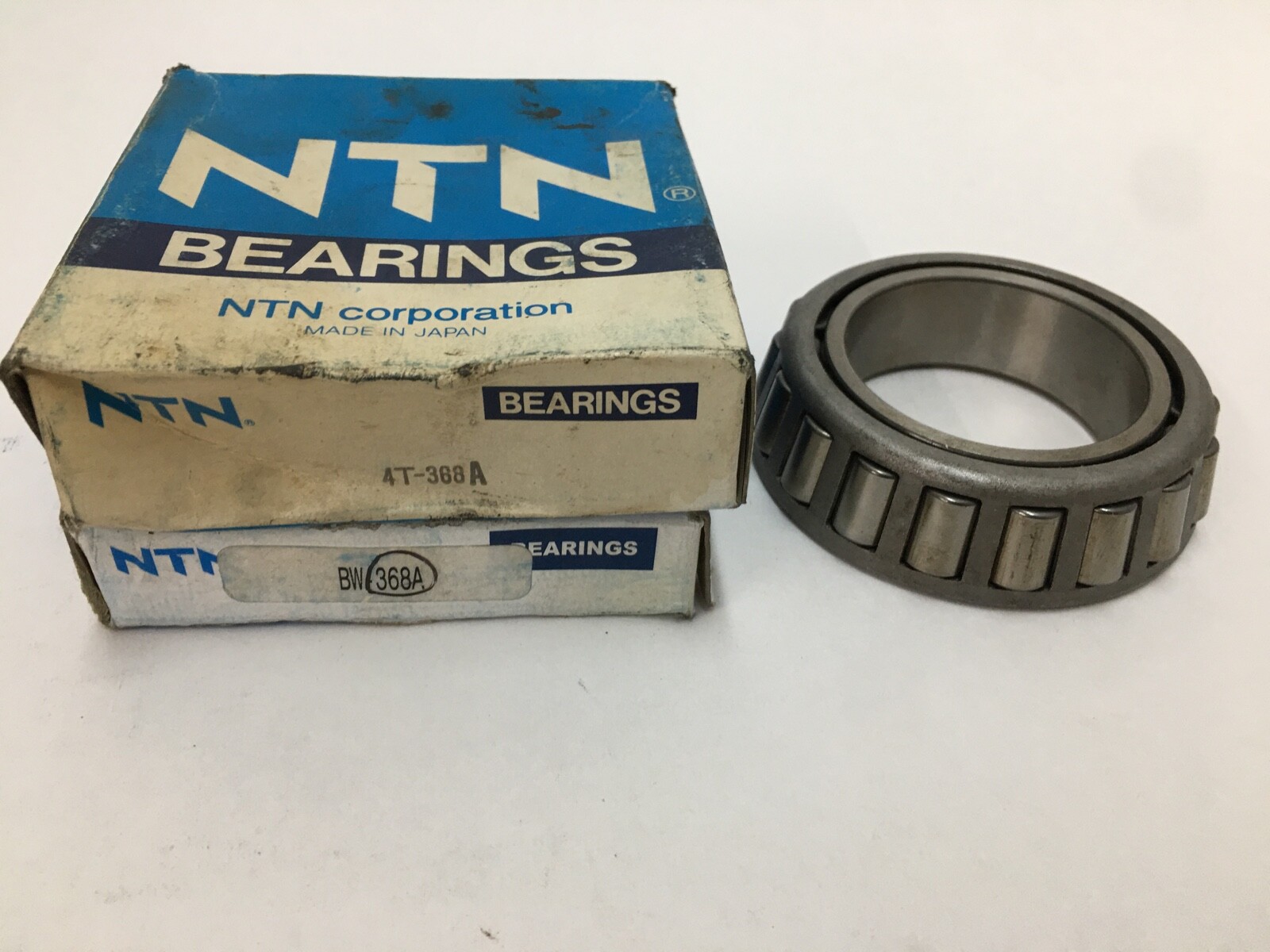

Tapered roller bearing cone, 2.000 in bore x 0.875 in wide, inch series, case carburized steel. Mates with NTN cups 362 or 362A. Two cones, 2 Pcs.
List Price
$35.80
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Imperial Tapered Roller Bearing Cone, 2.0000 in / 50.8 mm Bore, Class 3 Precision, Mates Cup 362A - 1 Pc$29.71
Imperial Tapered Roller Bearing Cone, 2.0625 in / 52.388 mm Bore, Mates Cup 3720 - 2 Pcs$29.73
Tapered Roller Bearing Cone — 1.6250 in Bore, 1.2160 in Width, Inch Series$29.84
Tapered Roller Bearing Cone - 1-7/8 in Bore, 1.193 in Width, Inch Series, Case Carburized Steel$33.63| MFR / Brand | NTN |
|---|---|
| MPN | 4T-368 |
| Model | 4T368 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 2.0000 in (50.800 mm) |
| Width | 0.8690 in |
| Series | 360 |
|---|---|
| Lubricant | Oil Preservative |
| Material | Case Carburized Steel |
| Closure Type | Open |
| Overall Width | 0.8750 in (22.225 mm) |
| Mpn Variants | 4T-368, 4T368, 368, 368A |
| Compatible With Replaces | Mates with NTN cups 362, 362A |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Duty Type | Standard |
| Cross Reference 1 | Timken 368 |
|---|---|
| Cross Reference 3 | FAG 368 |
| Cross Reference 4 | Bower 368 |
| Cross Reference 5 | Koyo 368 |

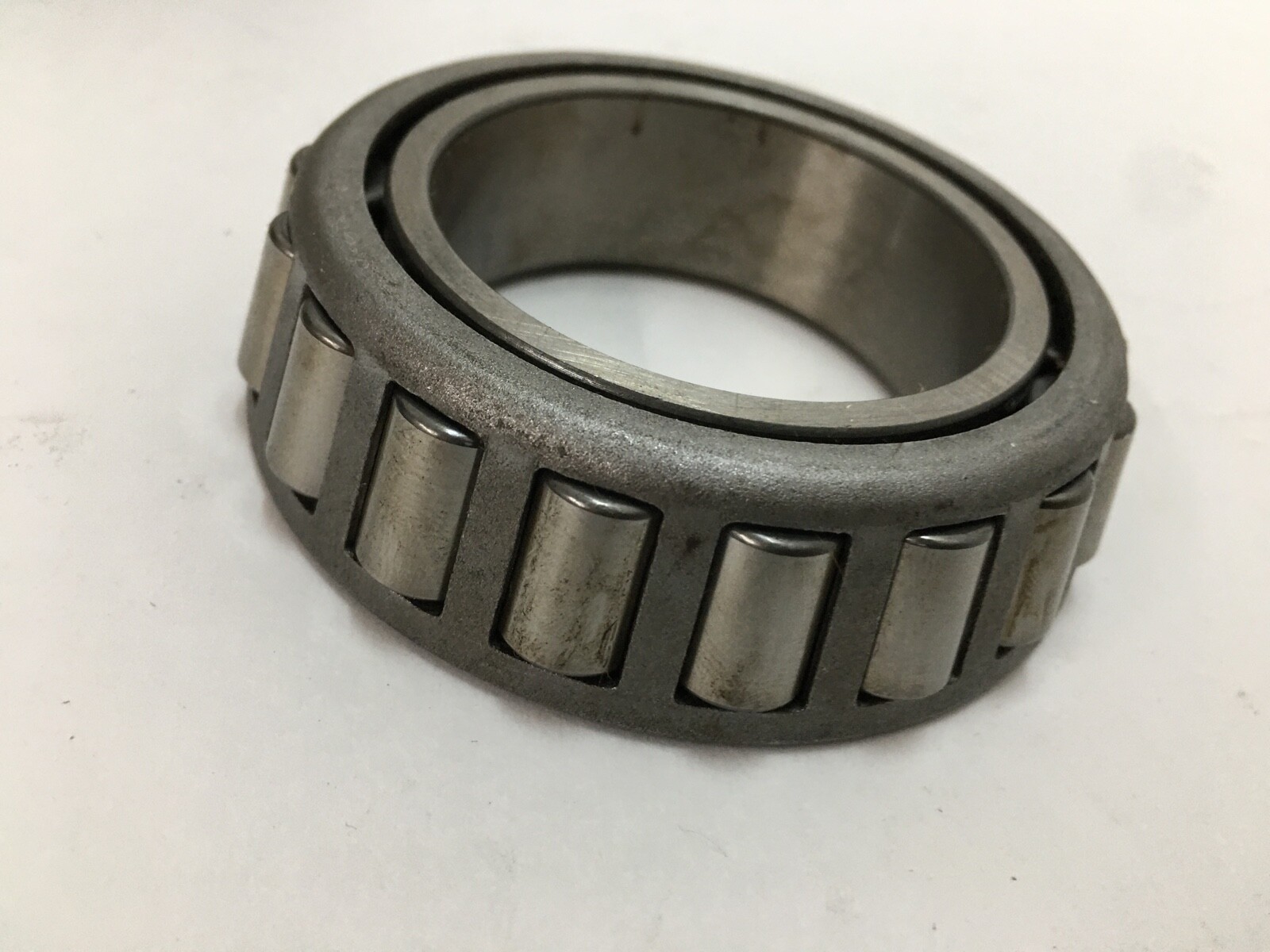

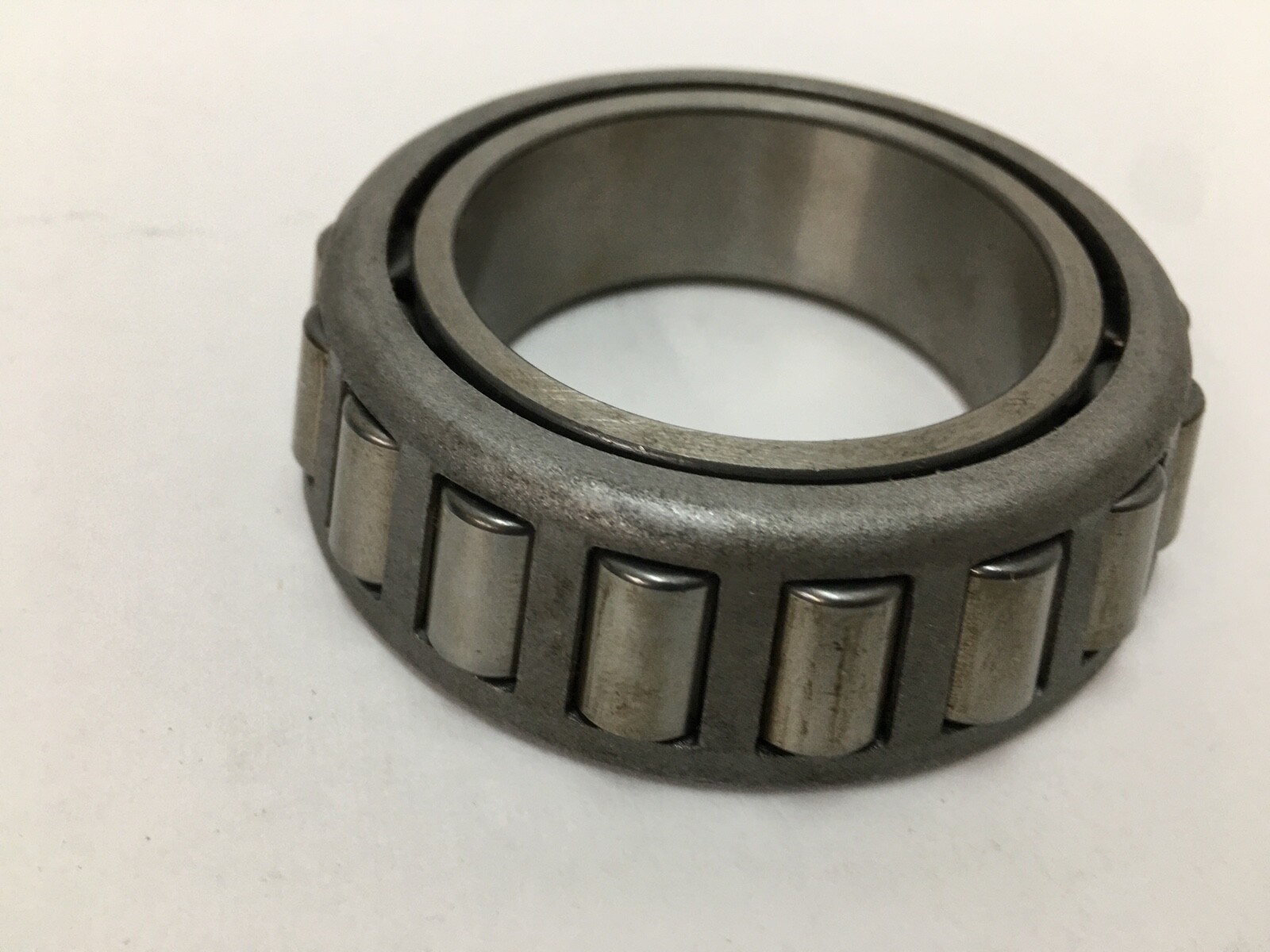

NTN 4T-368 is an inch-series tapered roller bearing cone: the inner ring with its roller and cage assembly. Bore Diameter: 2.0000 in (50.800 mm). Cone Width: 0.8750 in (22.225 mm). Material: Case carburized steel. Cone only. Matching cups: NTN 362 or 362A.

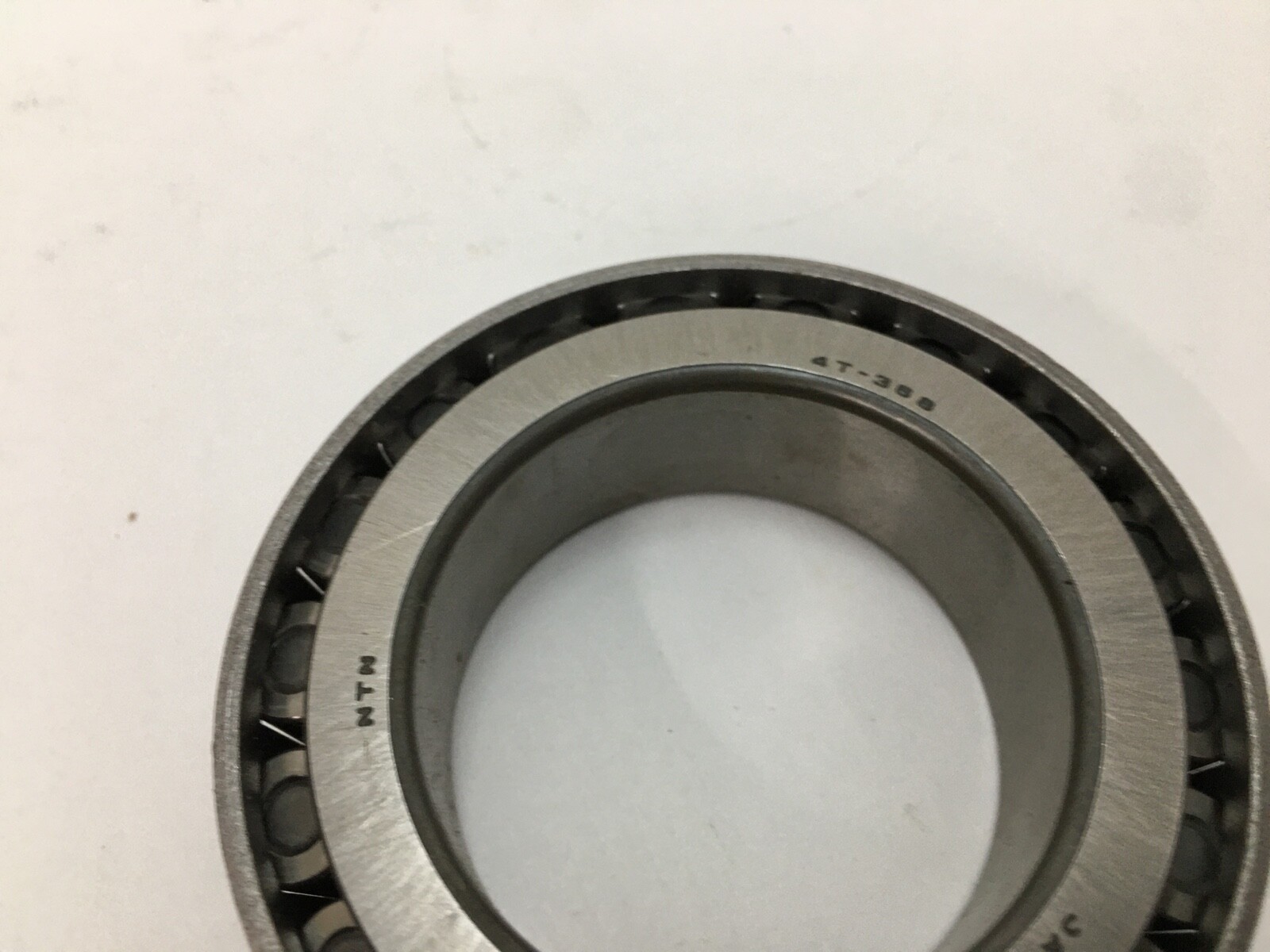

4T — NTN 4T tapered roller bearing execution, case hardened steel.
368 — inch-series cone number, 2.000 in bore, 360 series.
368A — NTN cone of the same bore and width with a larger back fillet radius.
Cone Front Backing Diameter V: 56 mm.
Unit Quantity: 2 Pcs. Two cones.
Same inch-series cone number: Timken 368, Koyo 368, FAG 368, Bower 368. Mating cups per NTN: 362, 362A.
