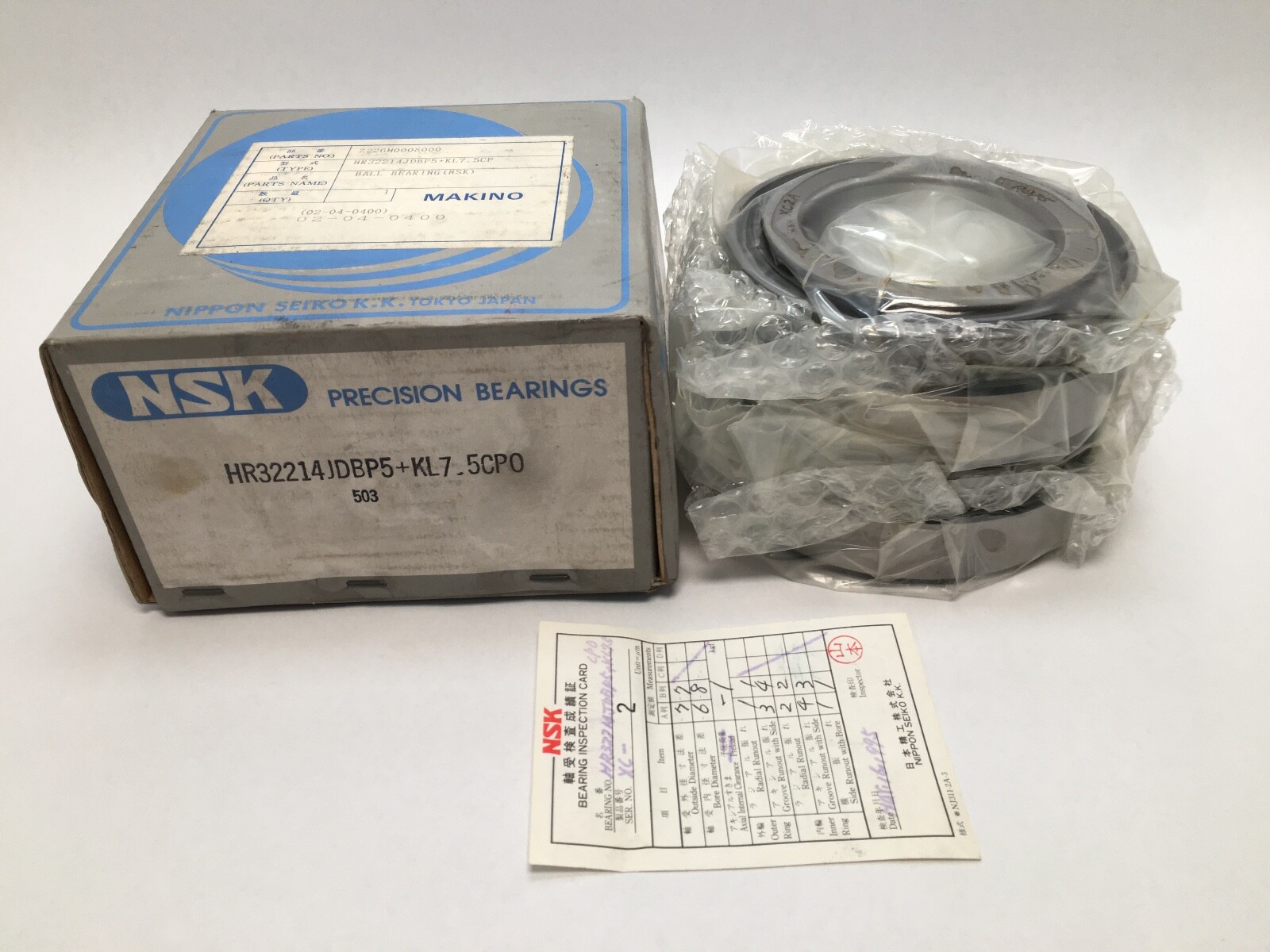

NSKHR32214JDBP5+KL7-5CP0High Capacity Tapered Roller Bearing Matched Pair 70×125 mm DB P5 With Spacers

Product Description

What this part is

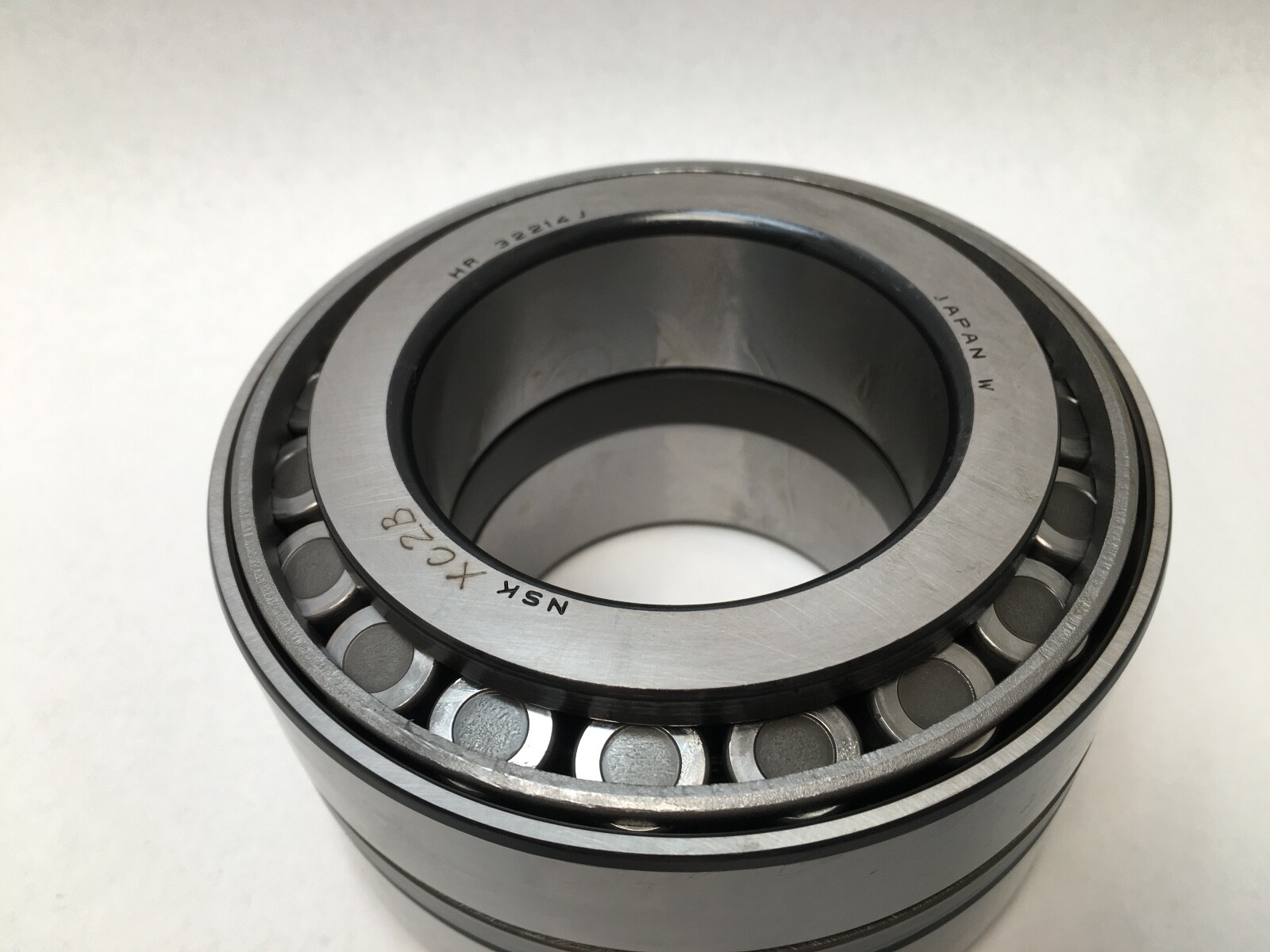

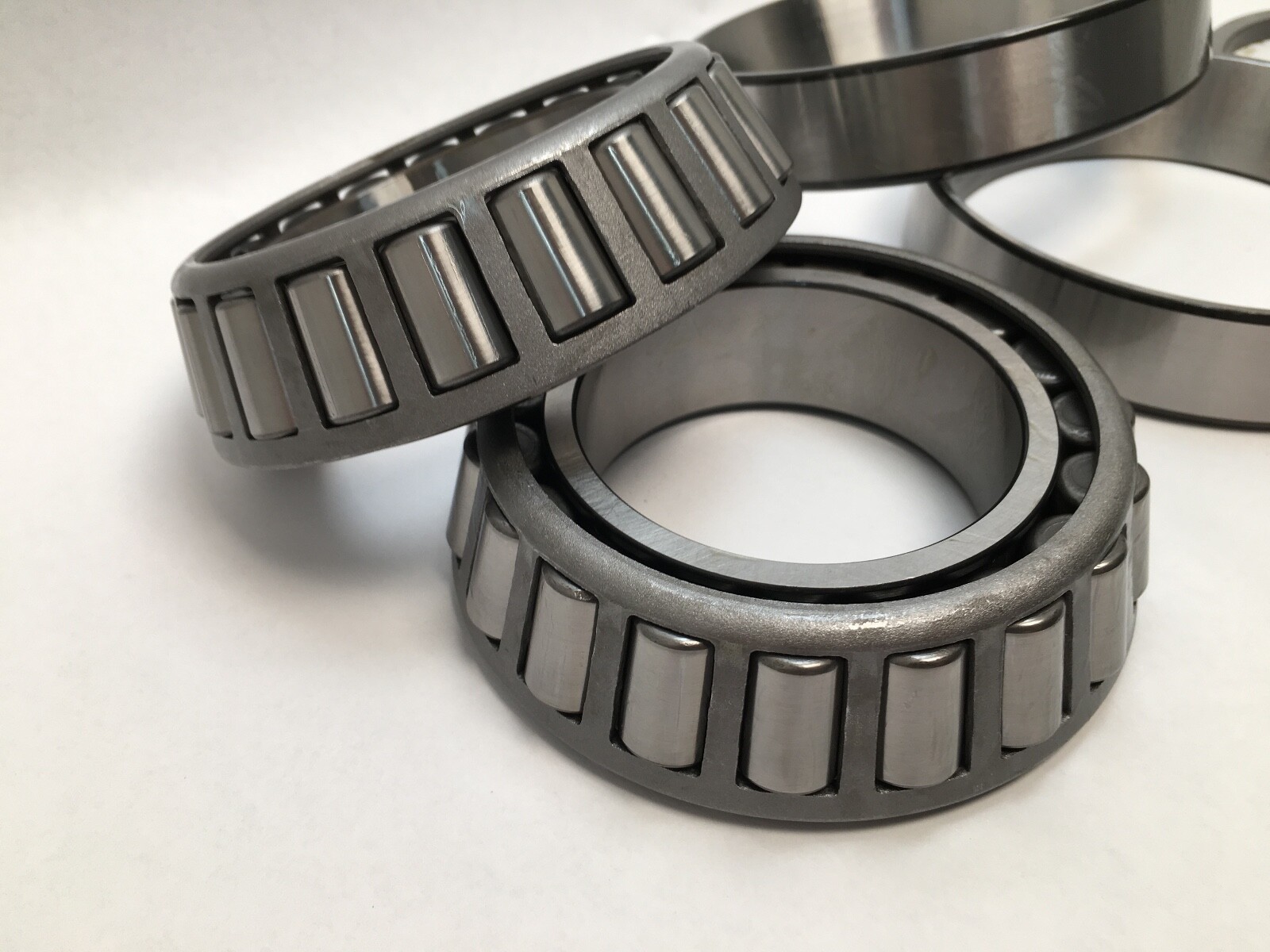

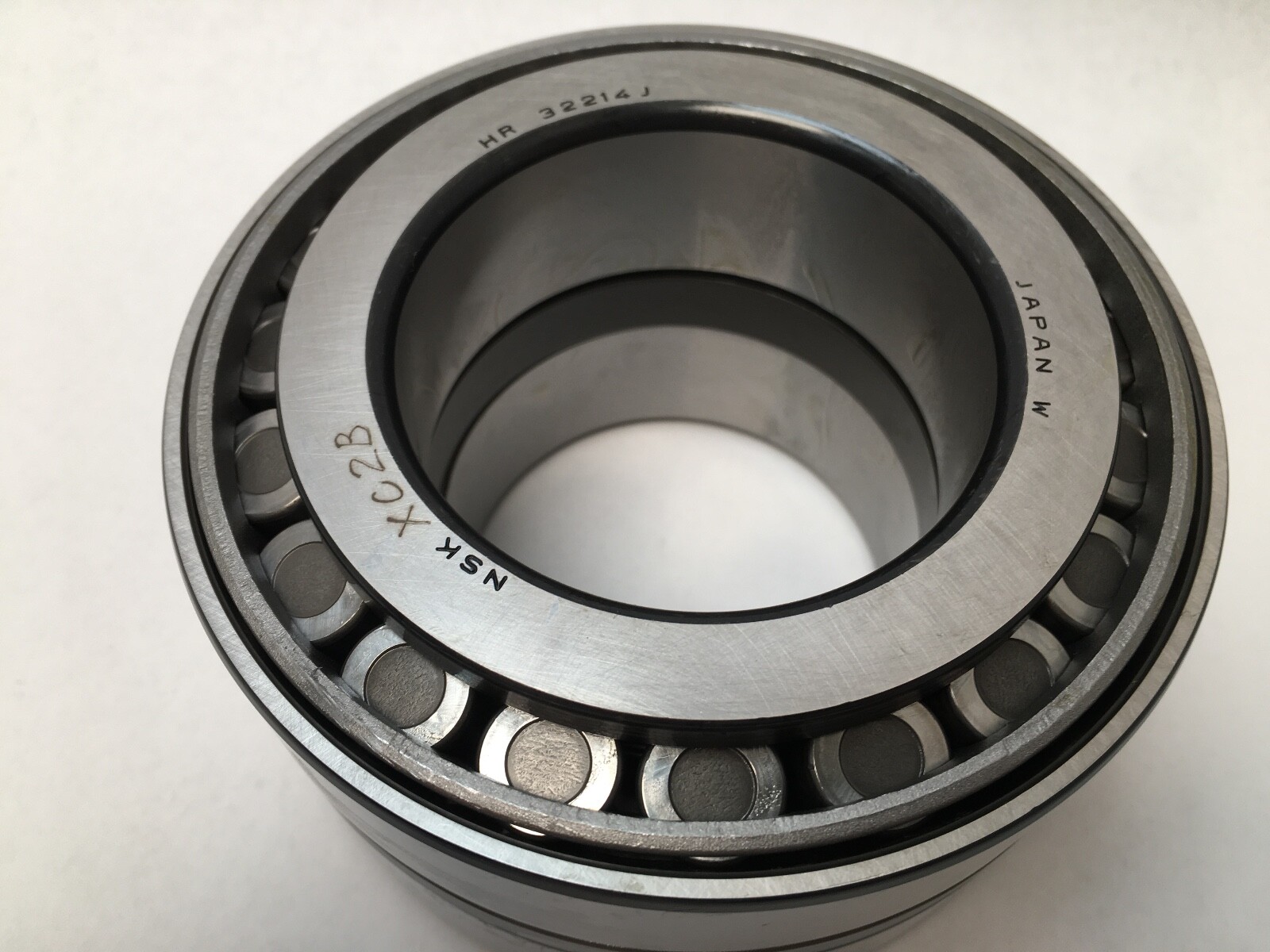

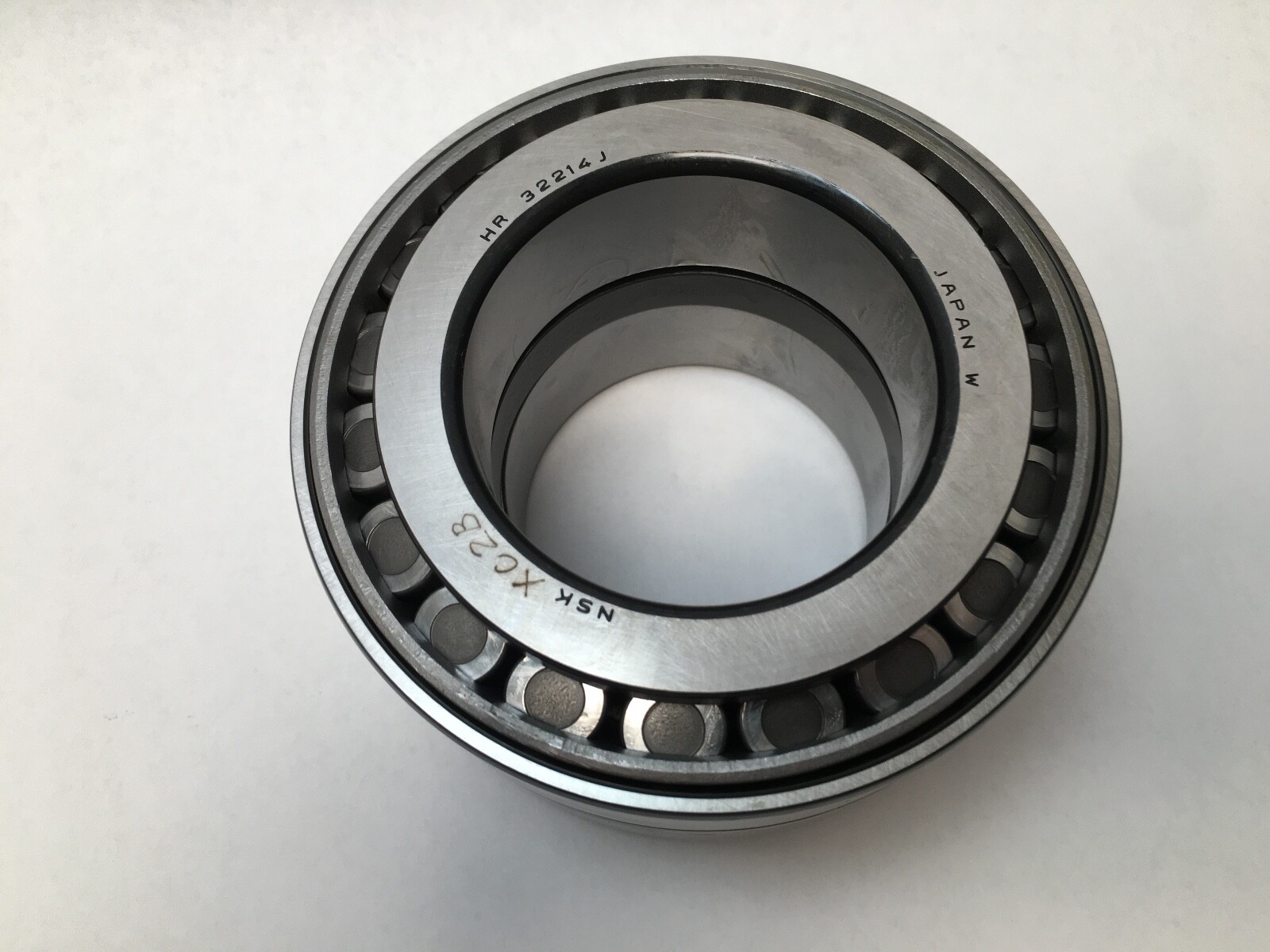

An NSK HR32214J tapered roller bearing set supplied as a back-to-back matched pair with its factory spacer set. Each bearing has a 70 mm bore, a 125 mm outside diameter and a 33.25 mm assembly height. Each bearing is a complete cone and cup.

Decoding the designation

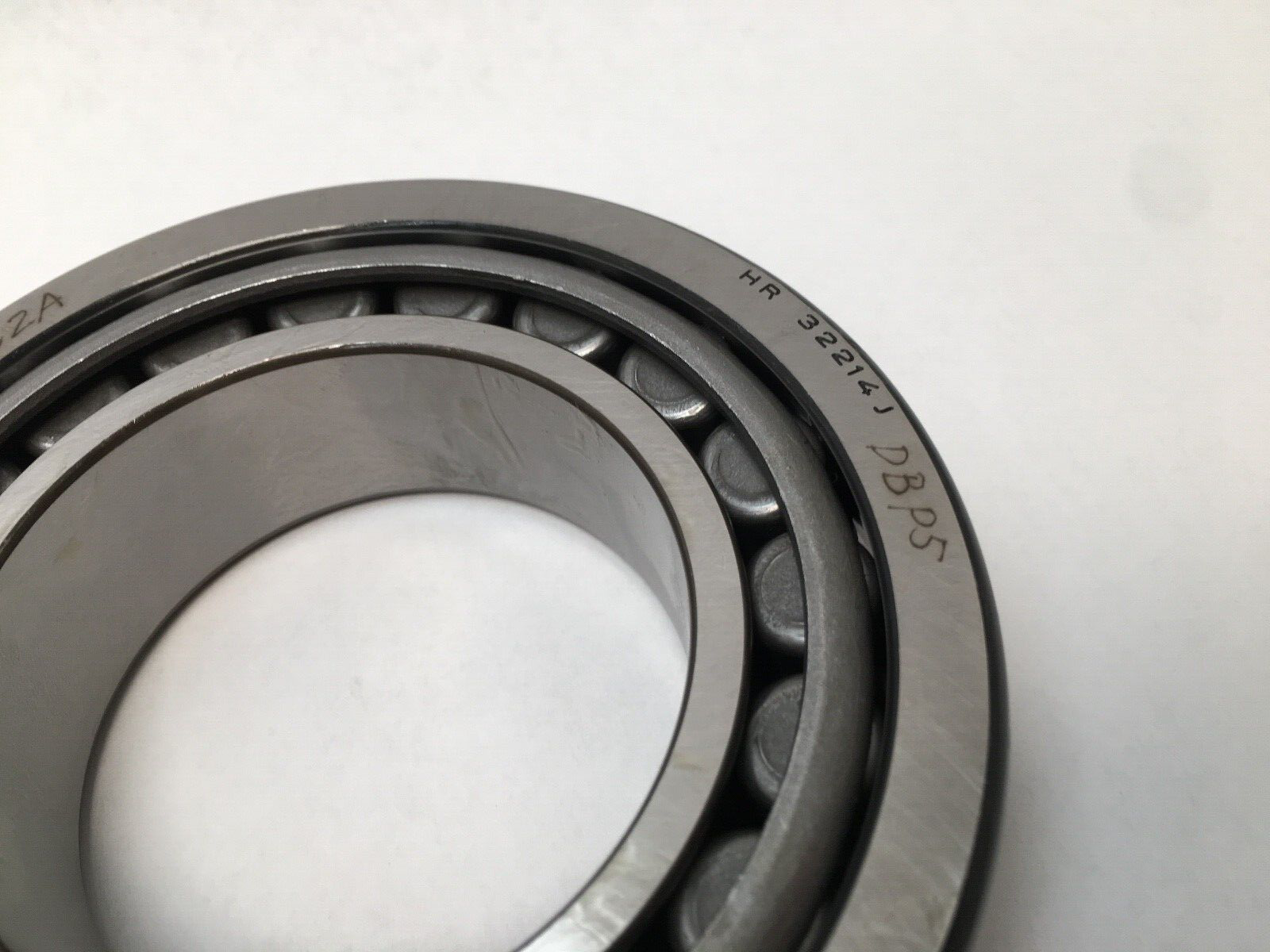

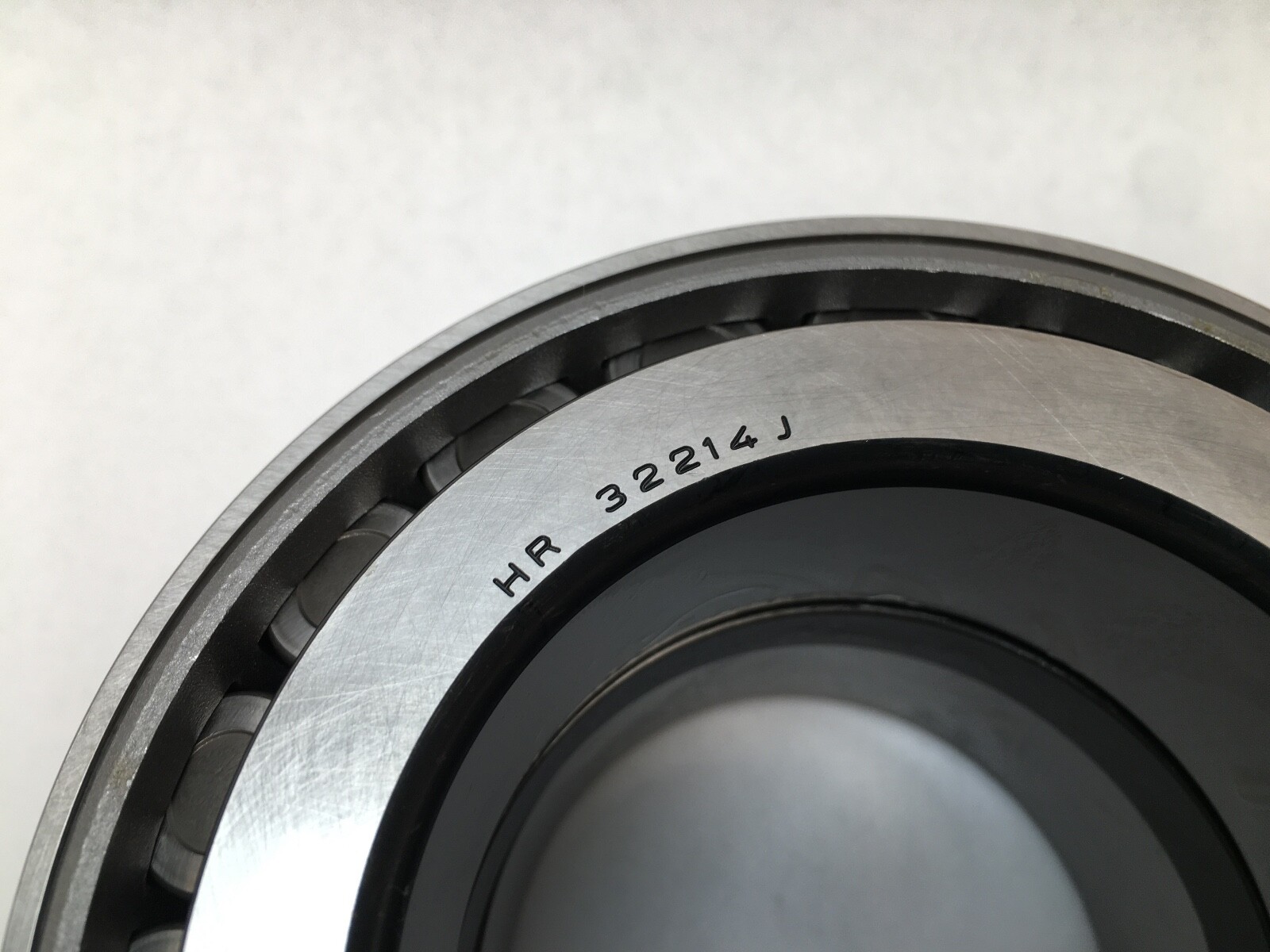

HR — NSK high-capacity uprated internal design, more and longer rollers than the standard 3221432214 — ISO metric tapered roller series, 70 mm bore, 125 mm OD, 33.25 mm assembly heightJ — pressed steel cageDB — back-to-back matched arrangementP5 — precision class 5, equivalent to ABEC 5KL7-5CP0 — matched cup and cone spacer set supplied with the bearings

What these specs mean in practice

Tapered rollers carry heavy radial and axial load together, and the back-to-back arrangement sets the two load lines apart so the pair also resists tilting moments – the standard build for a machine-tool or rolling-mill spindle that has to hold a shaft rigid in five degrees of freedom. The matched spacers are what make the preload repeatable: the cup and cone spacers are ground as a pair to set the exact axial clamp across the two bearings, so the set comes up to its designed preload when the nut is tightened. P5 precision holds raceway runout tight enough for that preload to be even around the circumference.

Published specifications

Bore: 70 mm (2.7559 in)Outside diameter: 125 mm (4.9213 in)Assembly height per bearing (T): 33.25 mm (1.3090 in)Cone width (B): 31 mm (1.2205 in)Cup width (C): 27 mm (1.0630 in)Precision class: P5, ABEC 5Cage: pressed steelNumber of rows: 1 per bearing, 2 rows in the setRolling elements: tapered rollersArrangement: back-to-back matched pair with spacers

What ships in the box

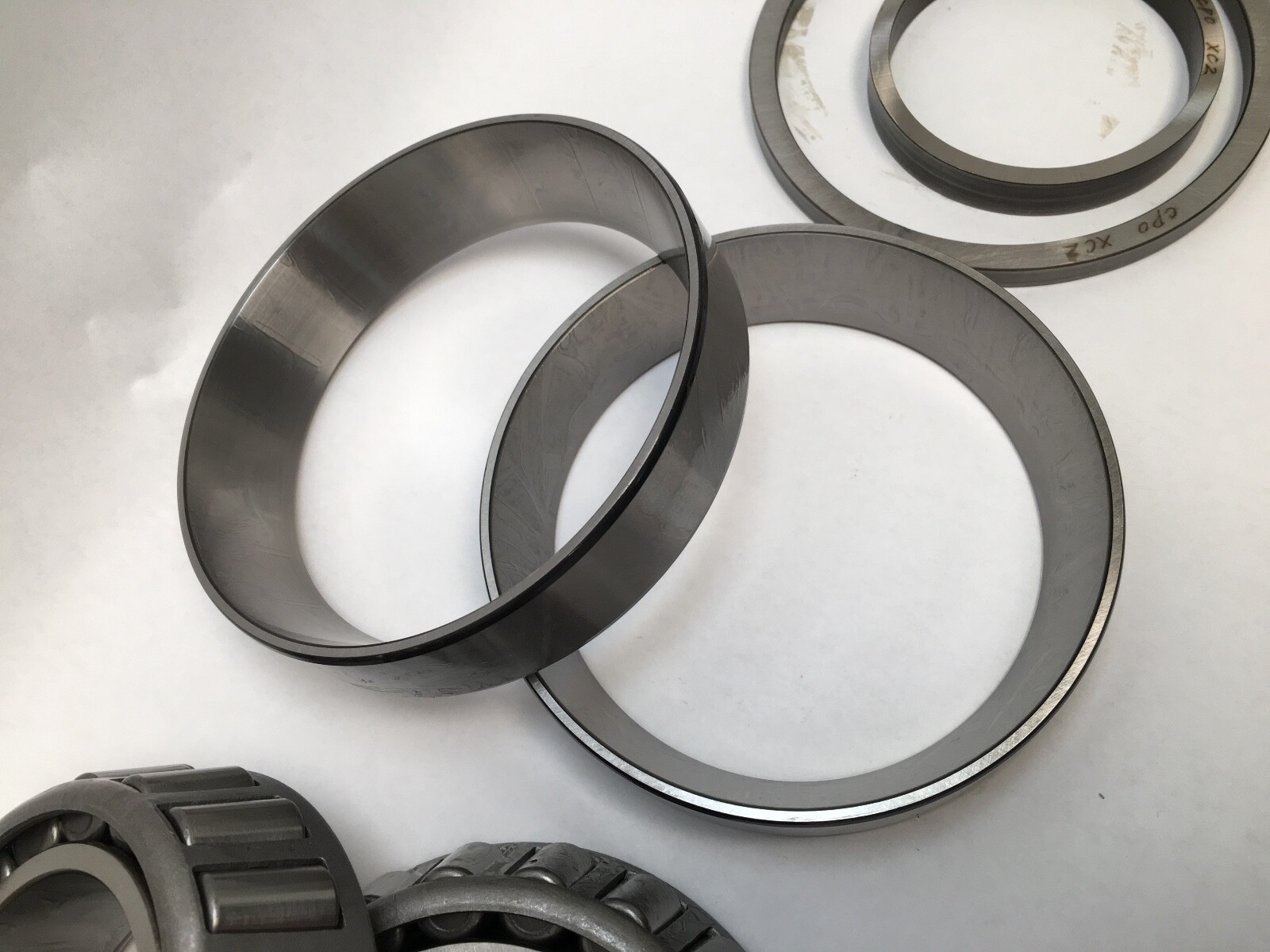

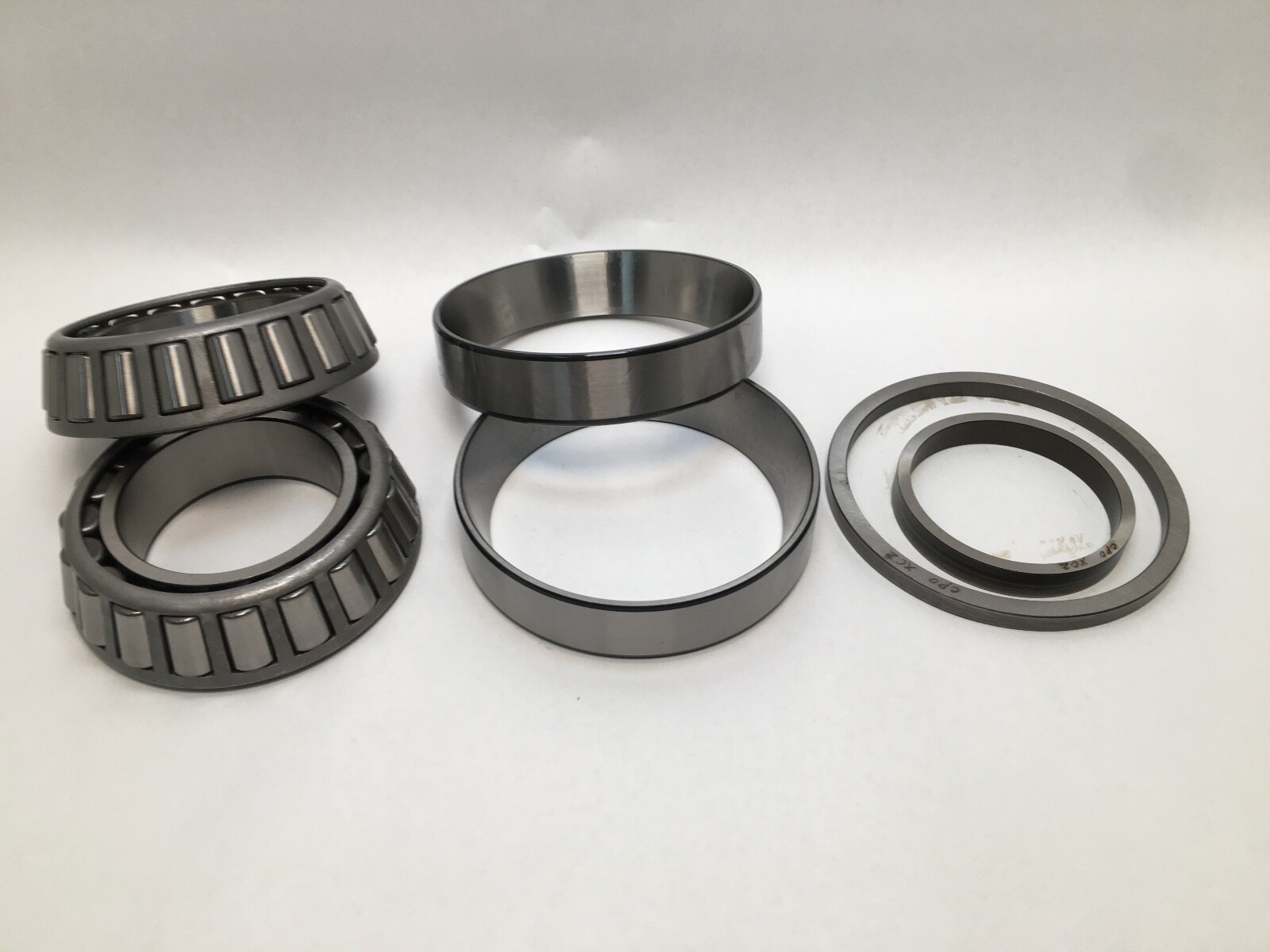

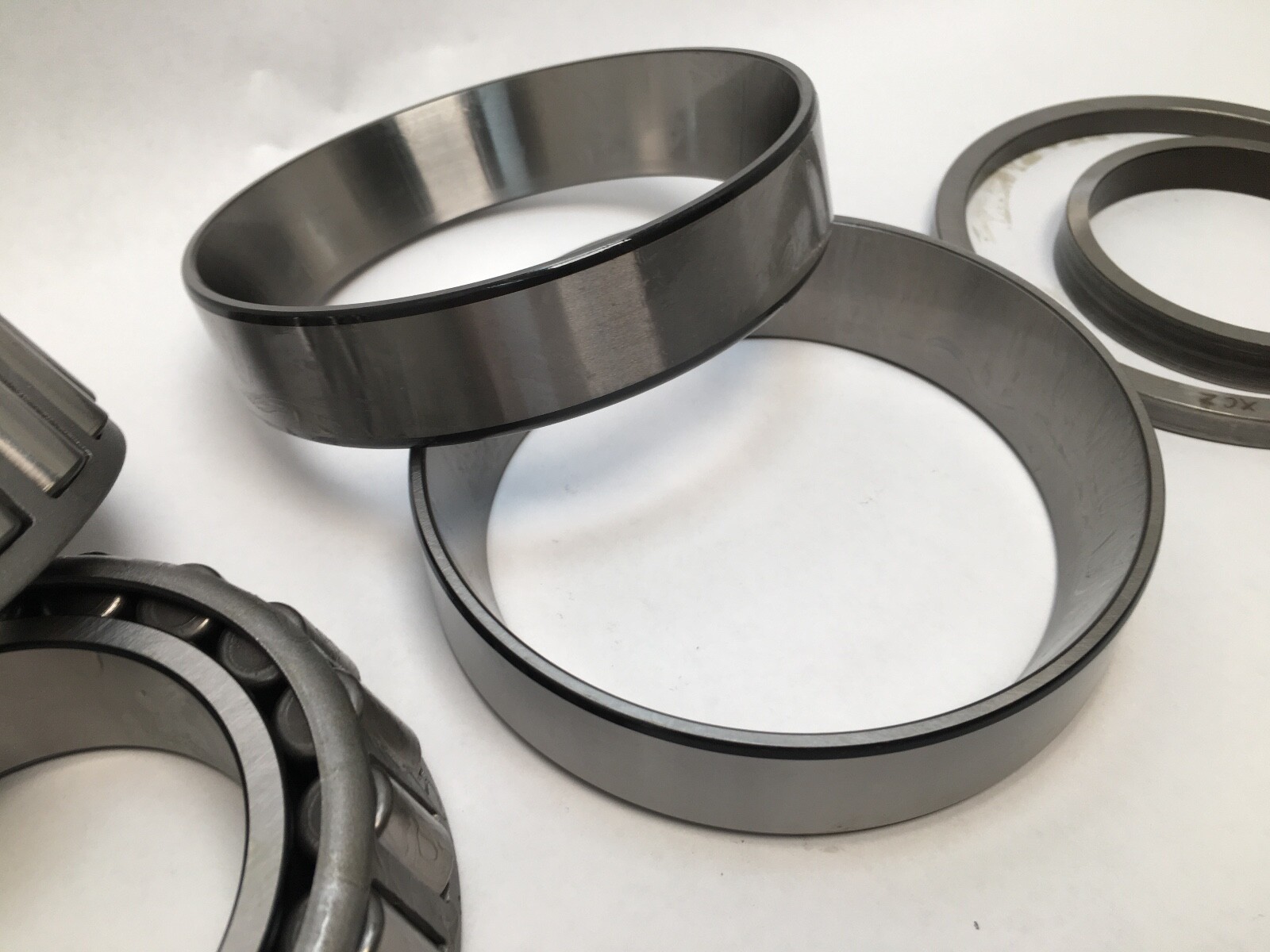

Two complete bearings, each with its cone and its cup, plus the matched cup and cone spacer set. Seals, lock nuts and shims are supplied separately.

Quantity and configuration

Supplied as one matched set of 2 bearings with spacers.

Fitting notes

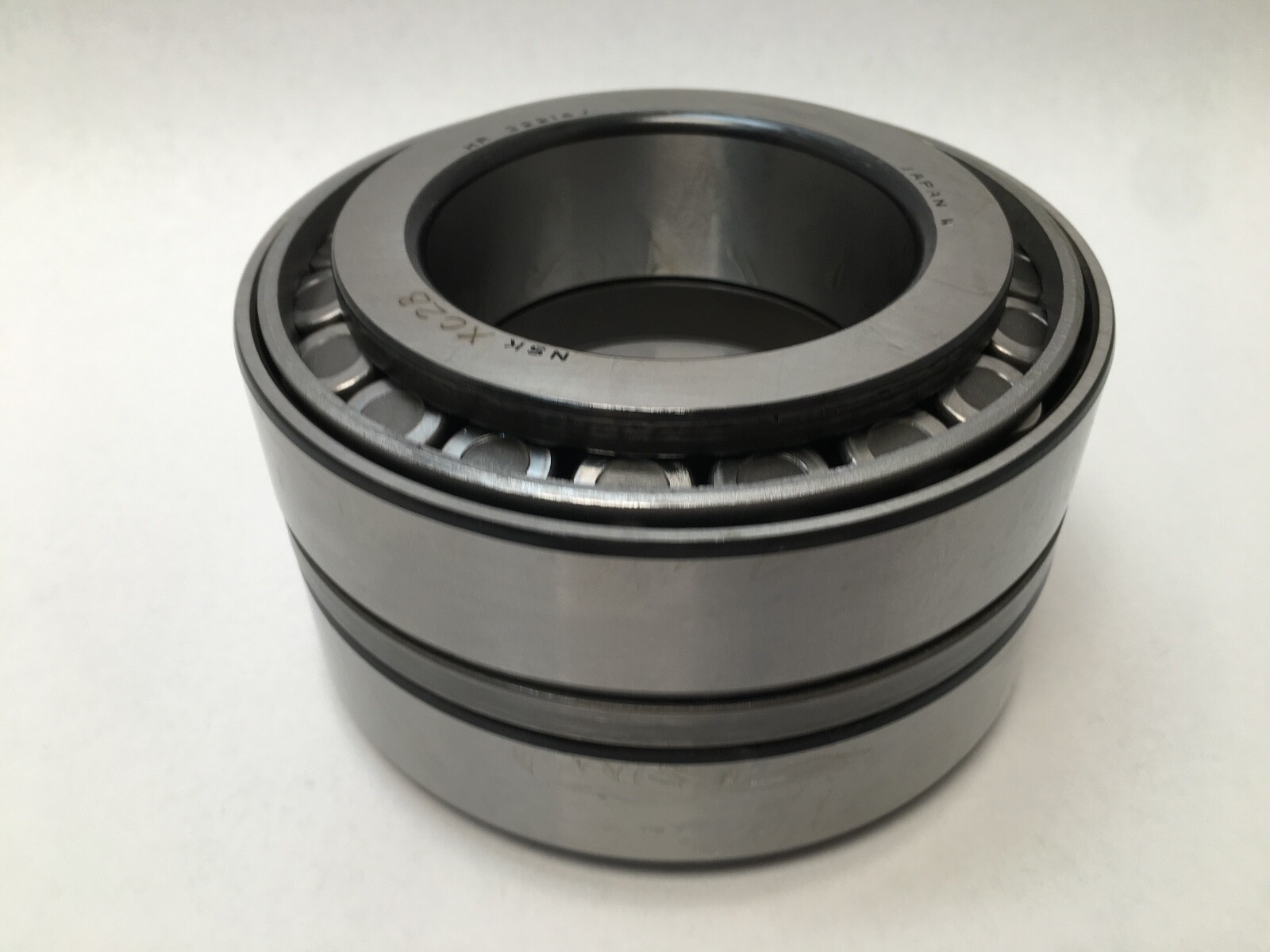

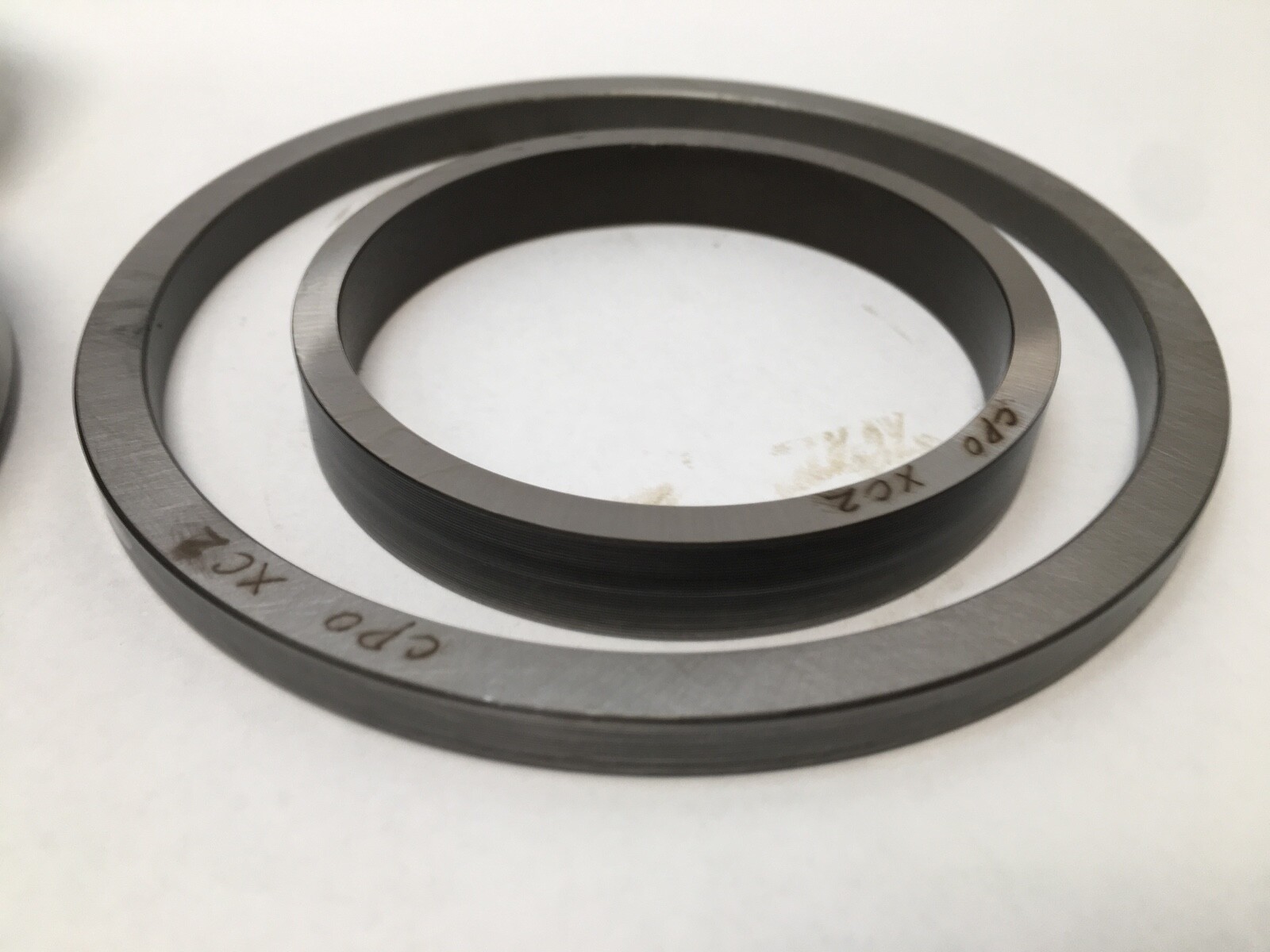

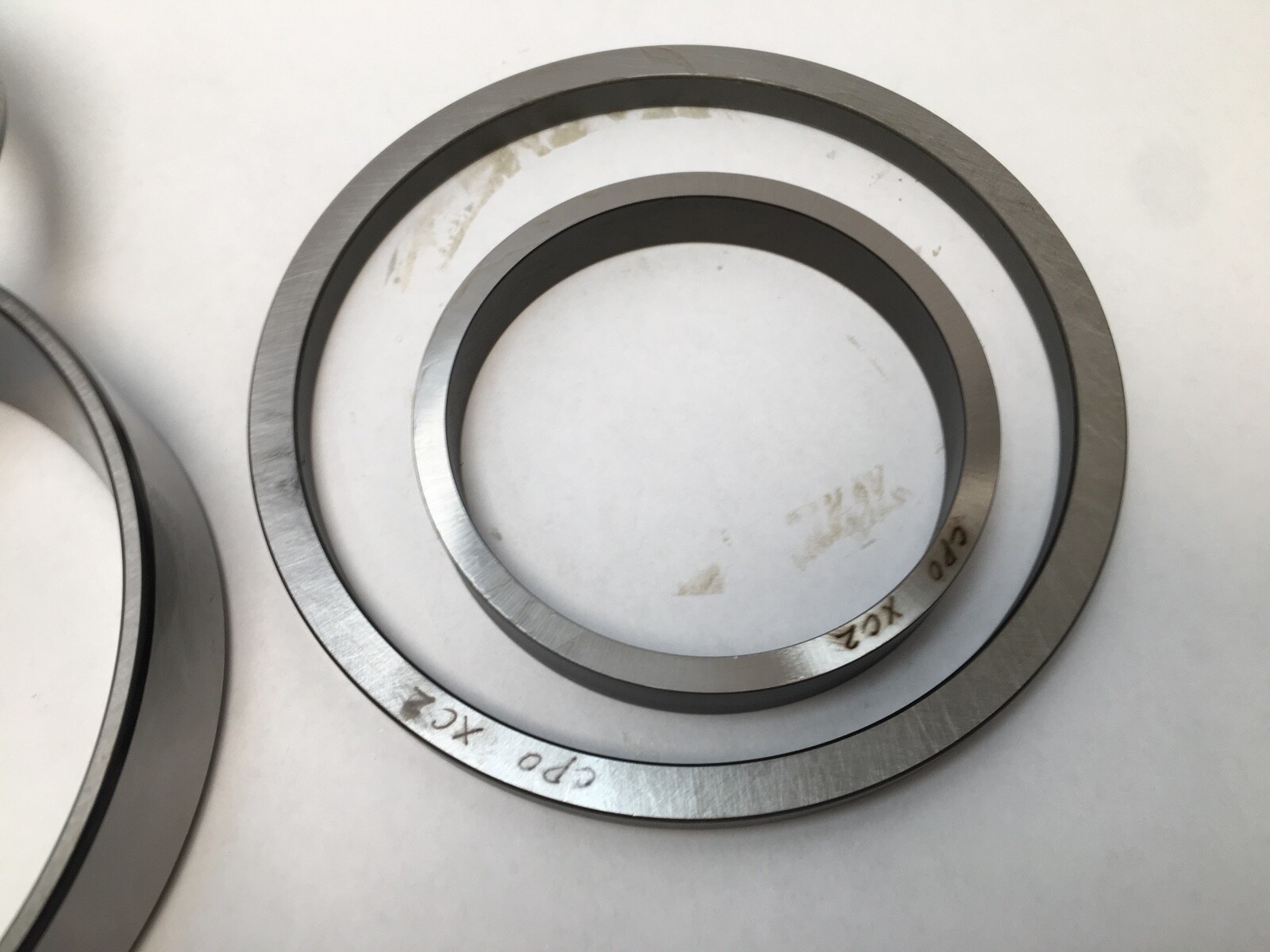

The set is installed with the two cups back-to-back in the housing, the cup spacer between them, and the cone spacer between the two cones on the shaft. The spacers are ground to this set and stay with it, since swapping in another spacer changes the preload. Cups are pressed square into the housing bore and cones drawn up on the shaft with the specified nut torque.

Interchange guidance

Interchange requires the same HR high-capacity internal design, the same P5 precision, the DB arrangement and a matched spacer set of the same ground length. A standard 32214J at normal precision fits the same envelope but has a different roller complement and no matched spacers, so it is a related size rather than an interchange. A single 32214 bearing on its own does not reproduce this set.
