This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing — 45 mm ID, 85 mm OD, 23 mm Width, Straight Bore, W33 Lube Groove, CN Clearance$33.98
Spherical Roller Bearing — 45 mm Tapered Bore, 85 mm OD, 23 mm Width, W33 Lube Groove, C3 Clearance$35.80
Spherical Roller Bearing — 45 mm Tapered Bore, 85 mm OD, 23 mm Width, W33 Lube Groove, C3 Clearance$35.80
Spherical Roller Bearing — 45 mm ID, 85 mm OD, 23 mm Width, Straight Bore, W33 Lube Groove, CN Clearance$35.80| MFR / Brand | Torrington |
|---|---|
| MPN | 22240W33 |
| Model | 22240 W33 / 200SD22 W33 F4 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 200 mm |
| OD | 360 mm |
| Width | 98 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | Oil |
| Min Temp | -30 °C |
| Cage Type | Pressed |
| Dynamic Load Rating | 1370 kN |
| Static Load Rating | 1860 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Roller |
| Max Temp | 200 °C |
| Item Weight | 108 lbs |
| Cage Material | Steel |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | CN |
| Limiting Speed | 1900 rpm |
| Maximum Permissible Misalignment | 1.5° |
| Cross Reference 1 | SKF 22240 CC/W33 |
|---|---|
| Cross Reference 2 | FAG 22240-E1 |

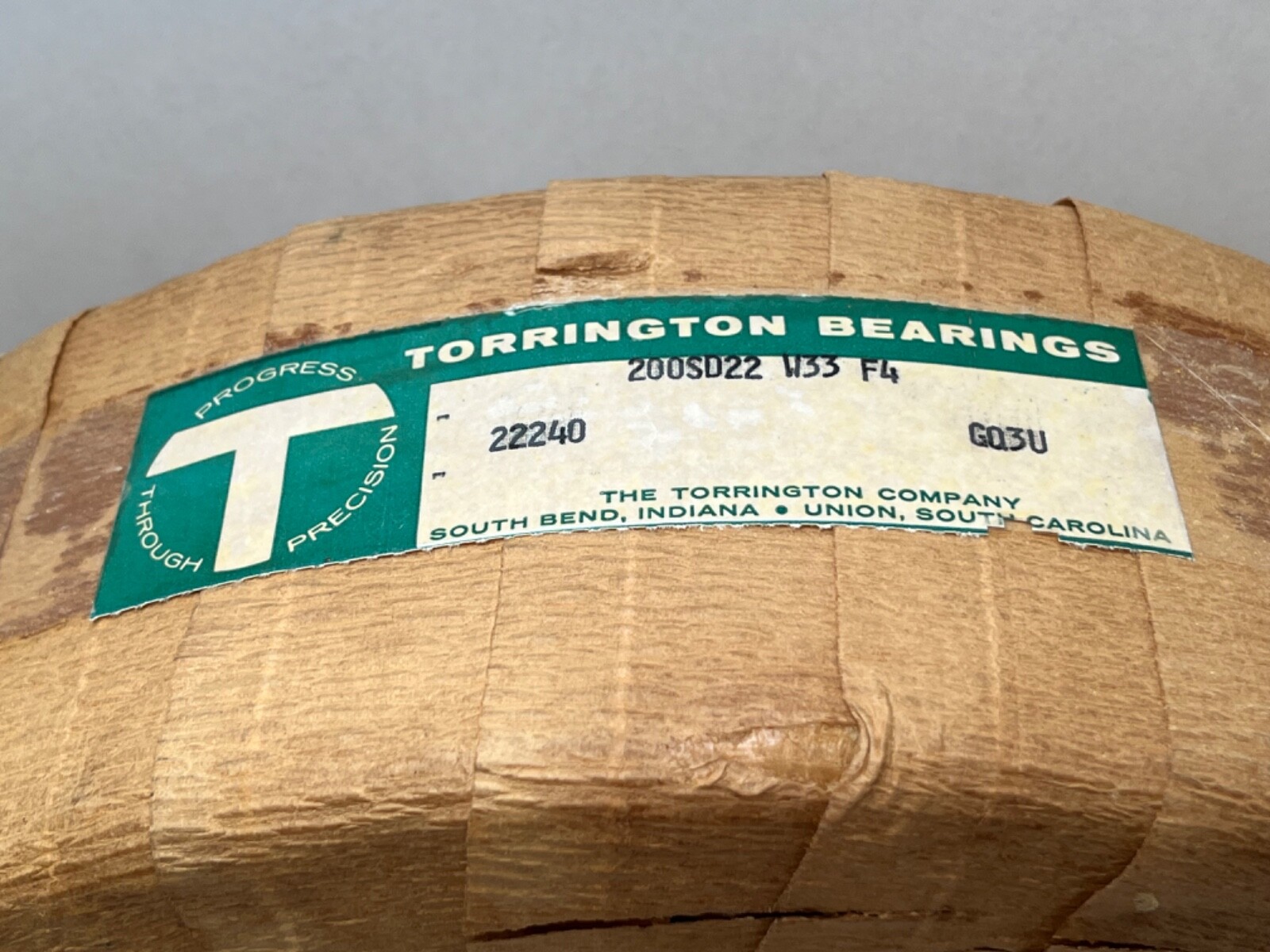

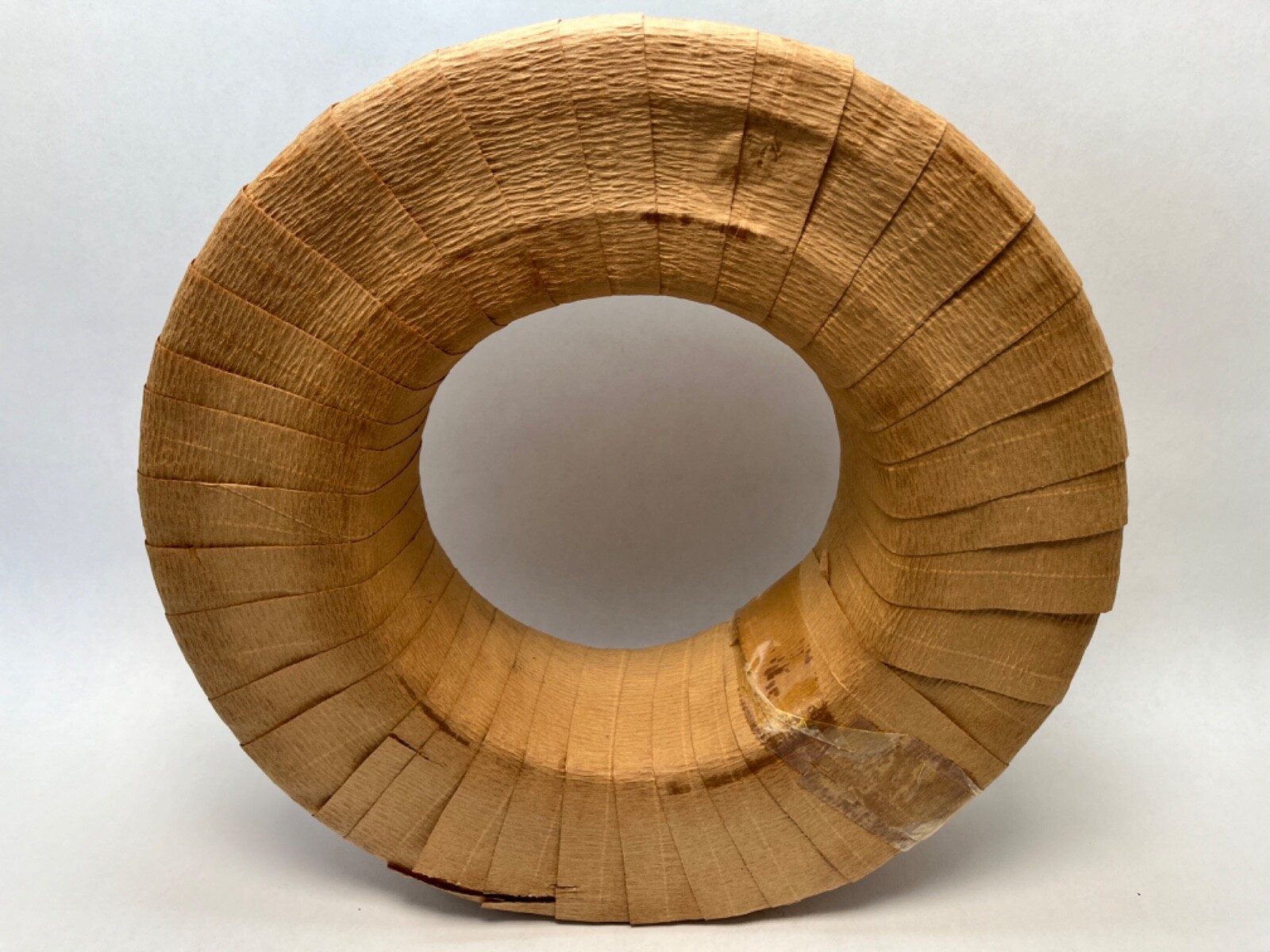

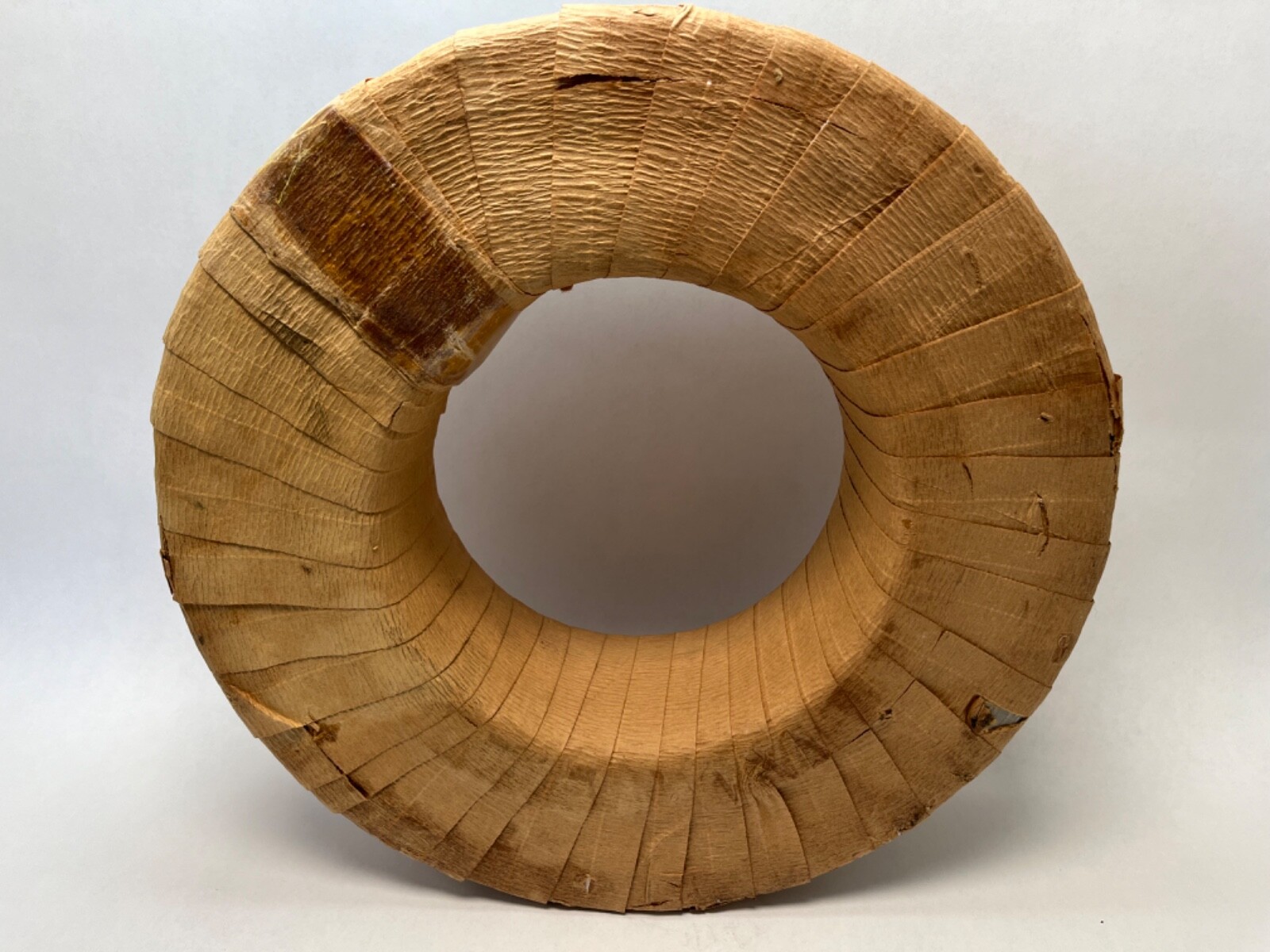

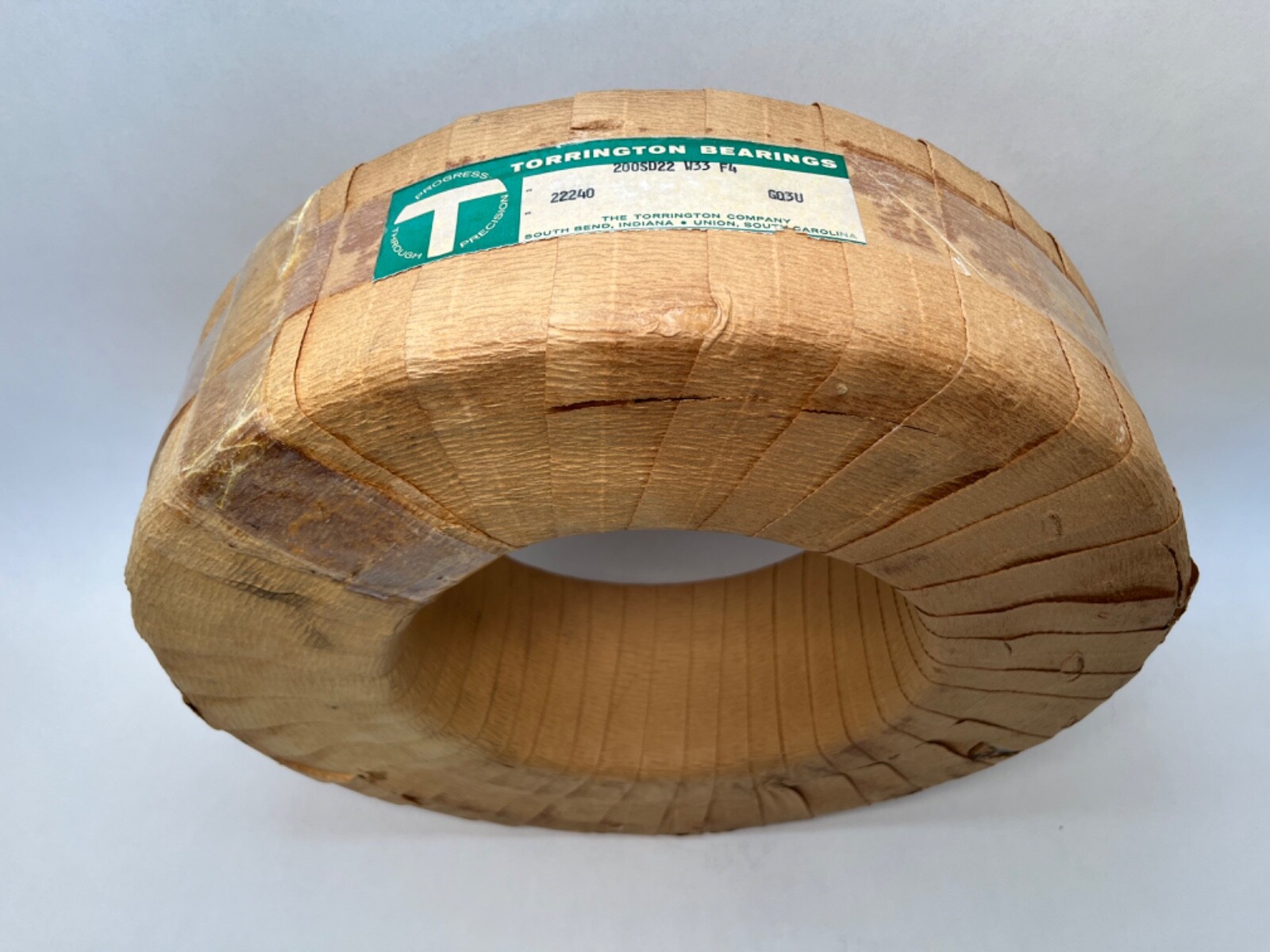

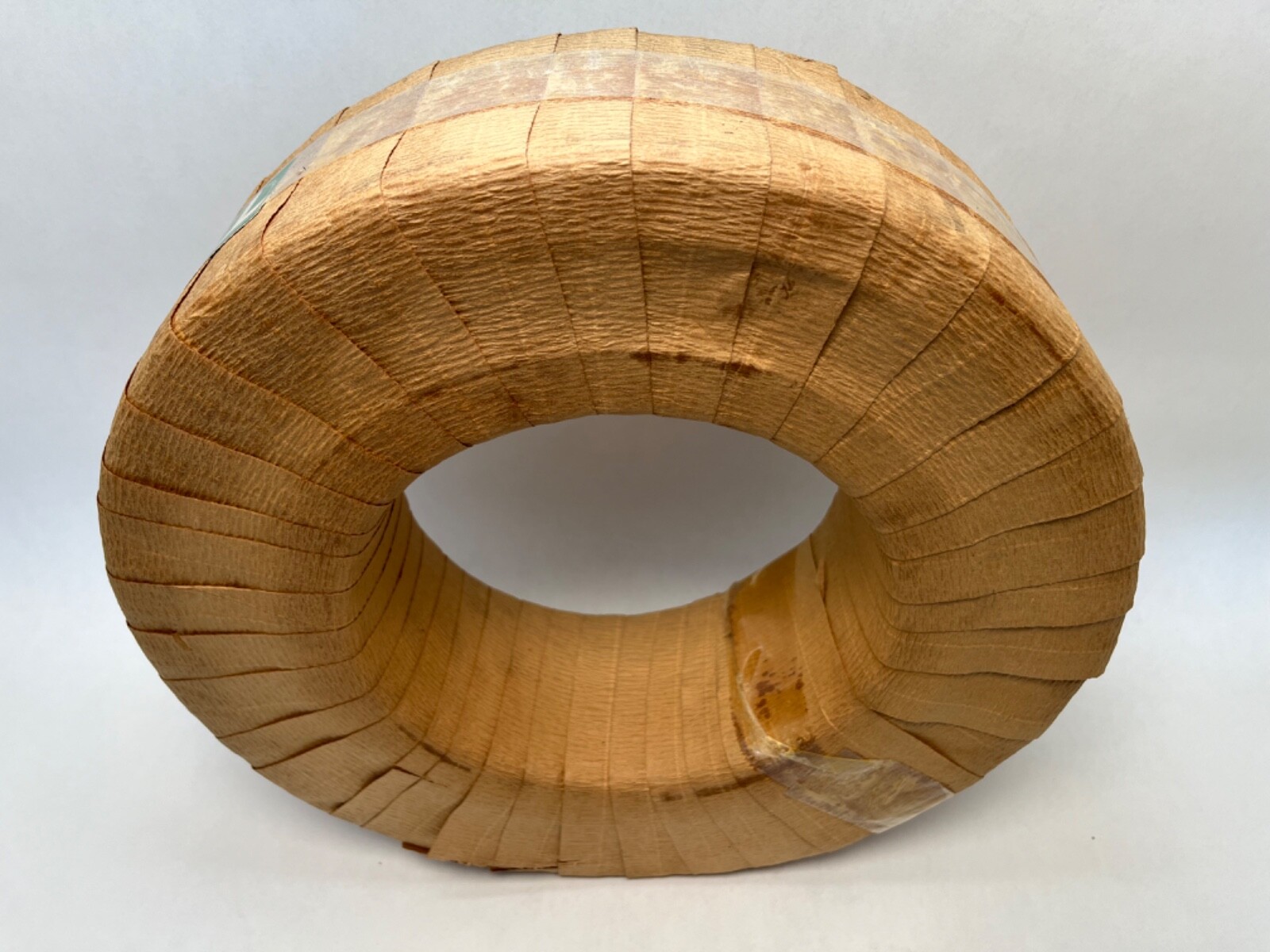

The Torrington 22240W33 Spherical Bearing is a high-quality industrial bearing made of steel. With a bore diameter of 200mm, an outside diameter of 360mm, and a width of 98mm, this bearing is designed for precision and durability. The spherical roller bearing model is 22240 W33 / 200SD22 W33 F4, ensuring smooth operation and reliable performance in various mechanical power transmission and industrial automation applications. Manufactured in the USA by the trusted brand TORRINGTON, this bearing is a crucial component for ensuring the smooth functioning of heavy machinery and equipment.
$151.33
29 in stock
$61.18
97 in stock
