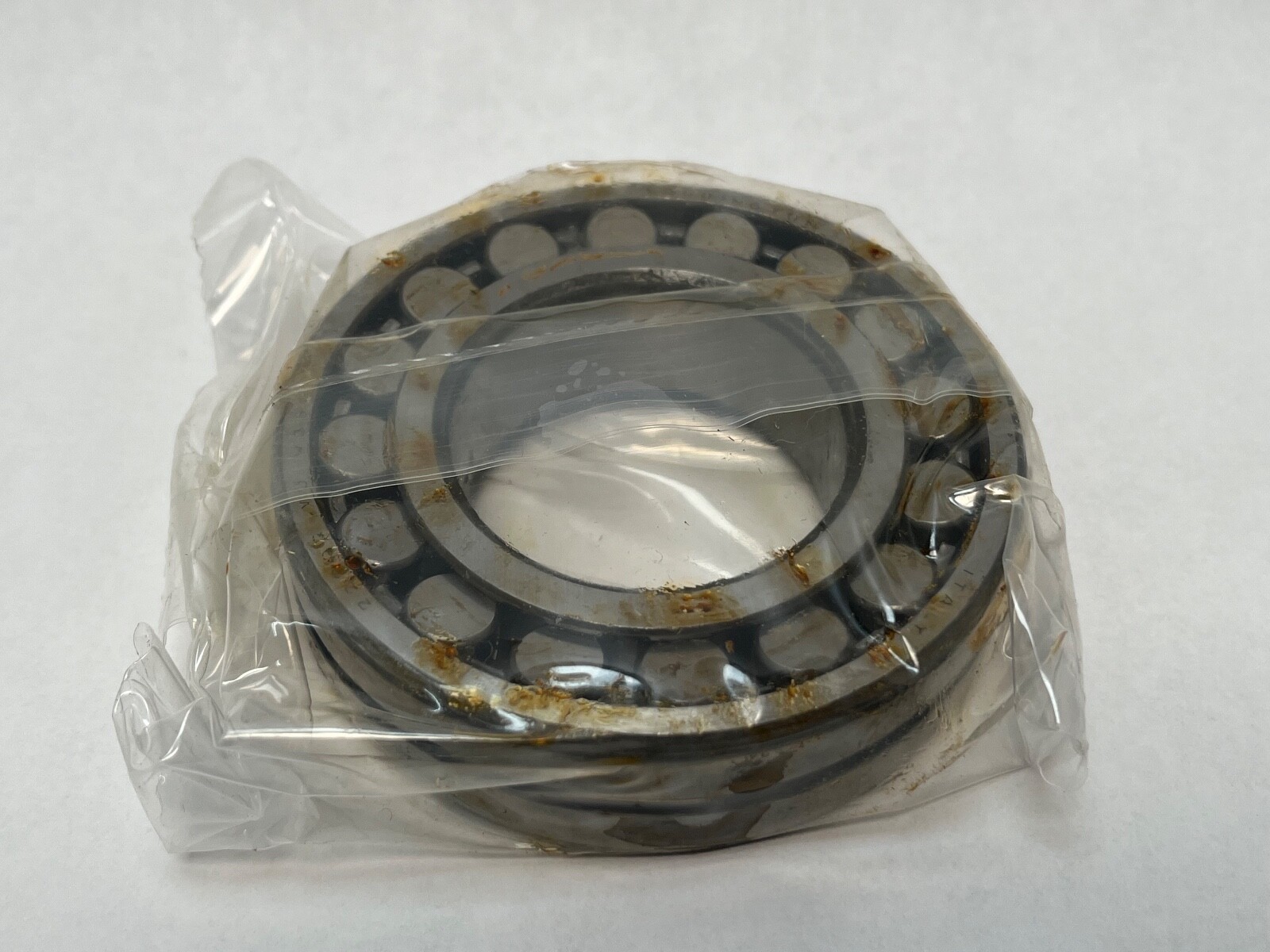

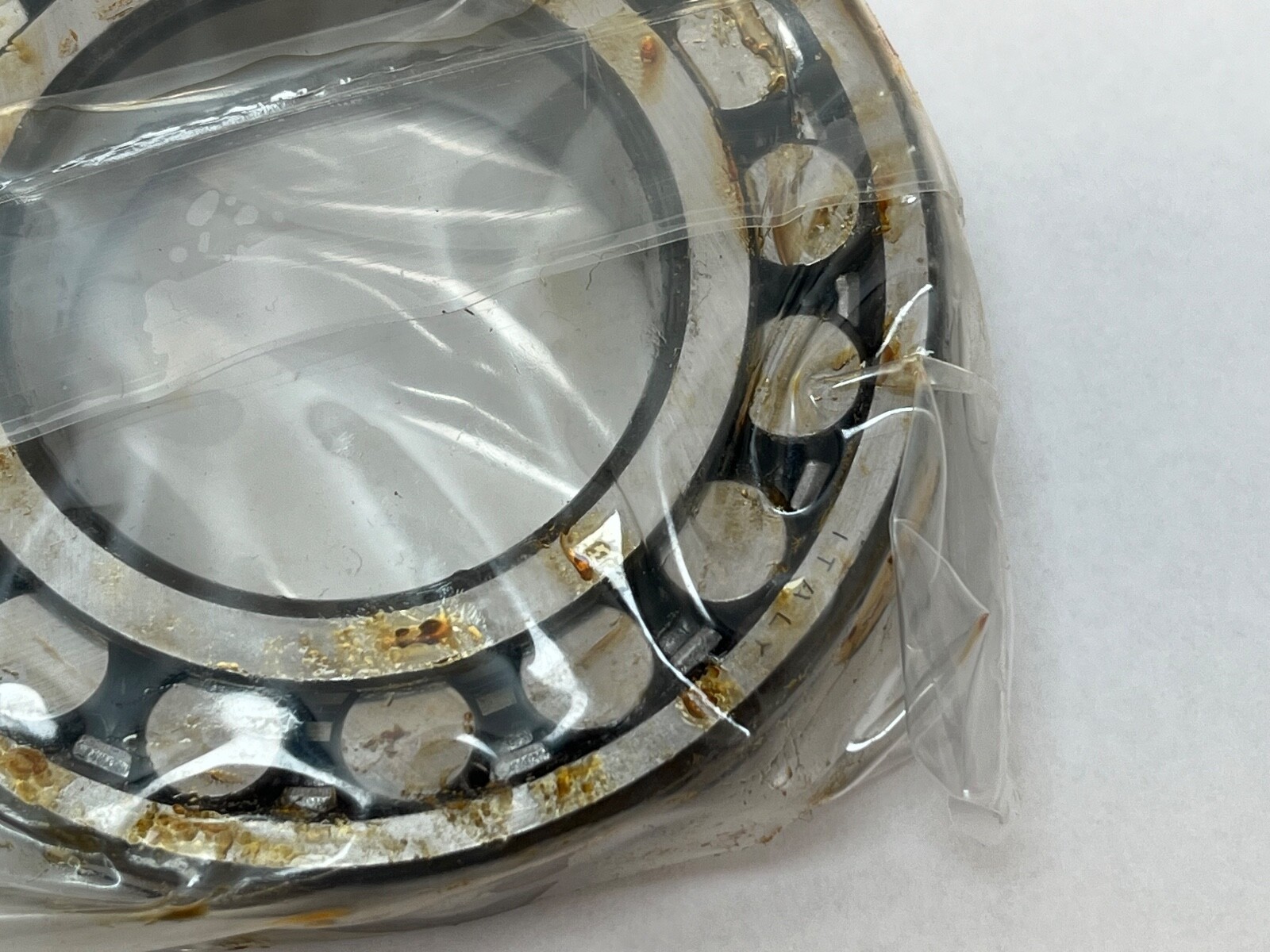

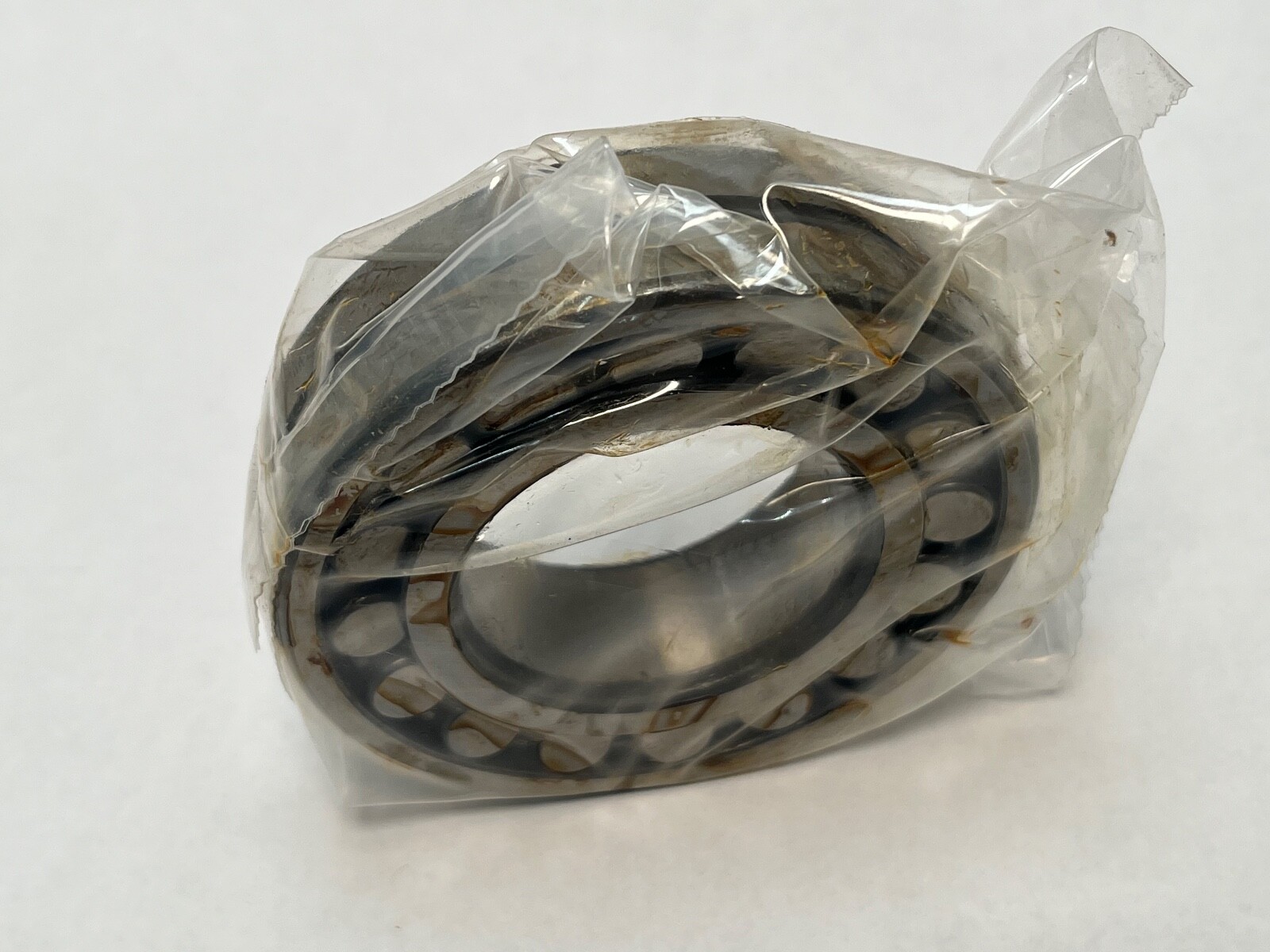

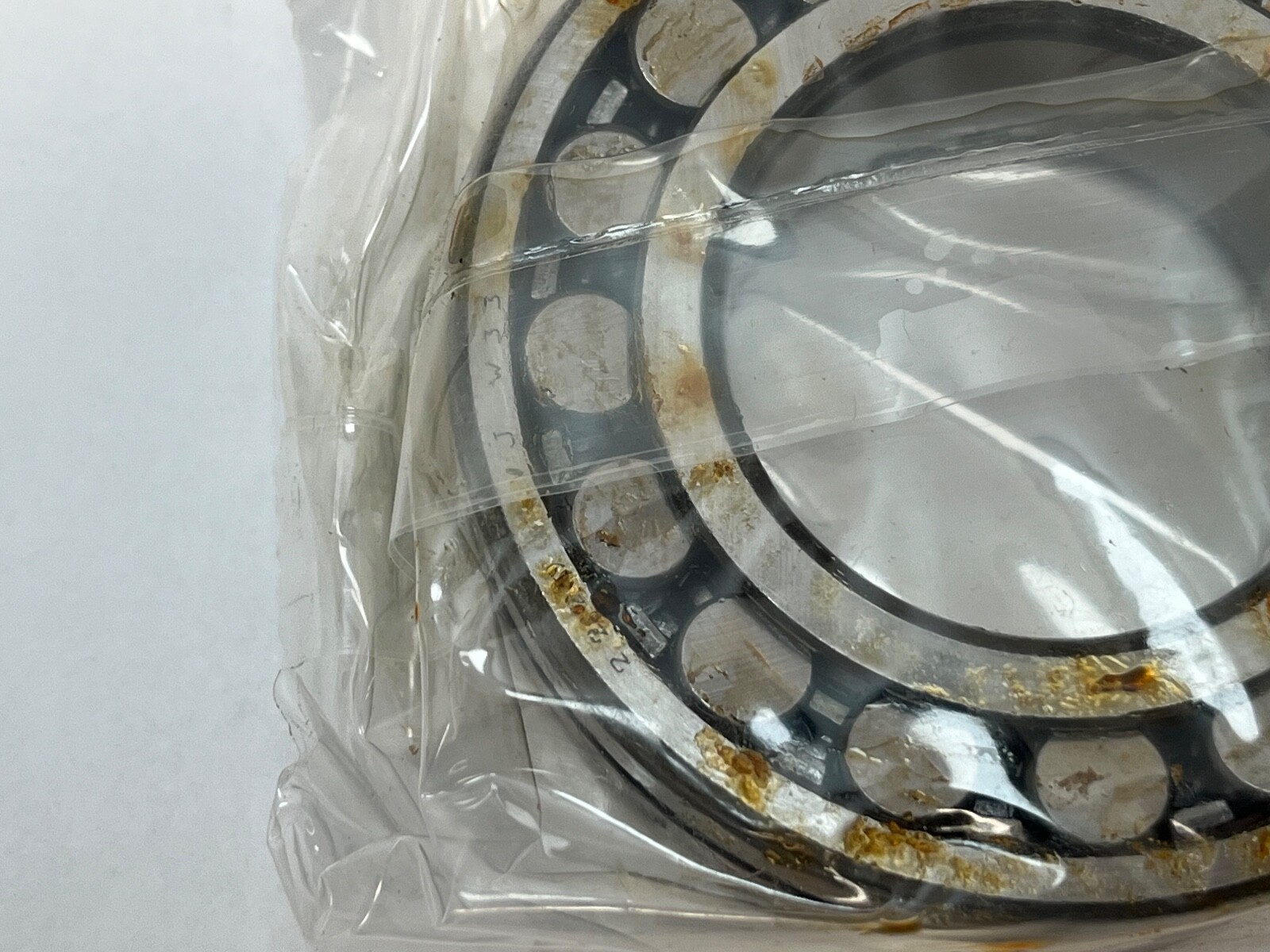

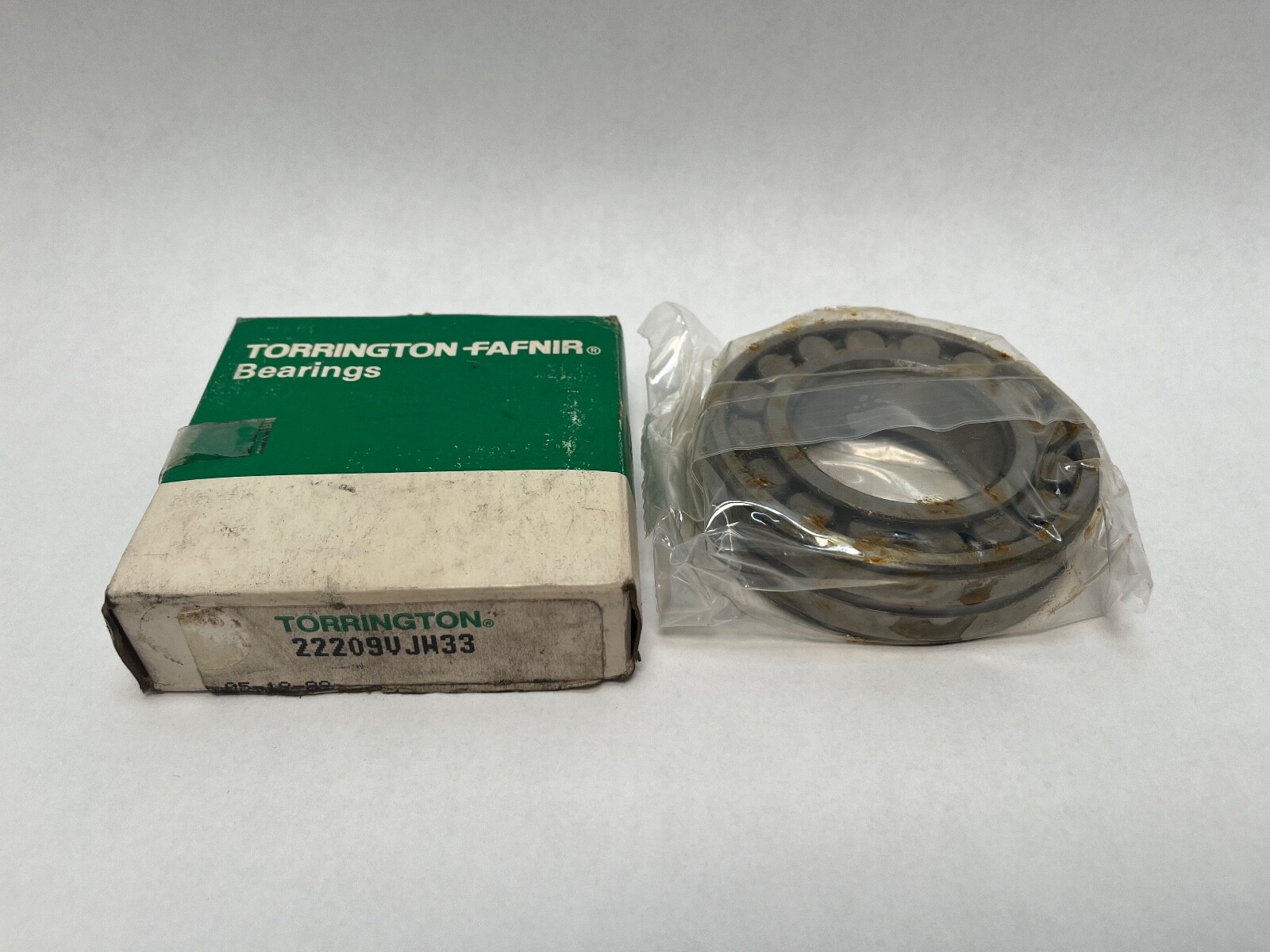

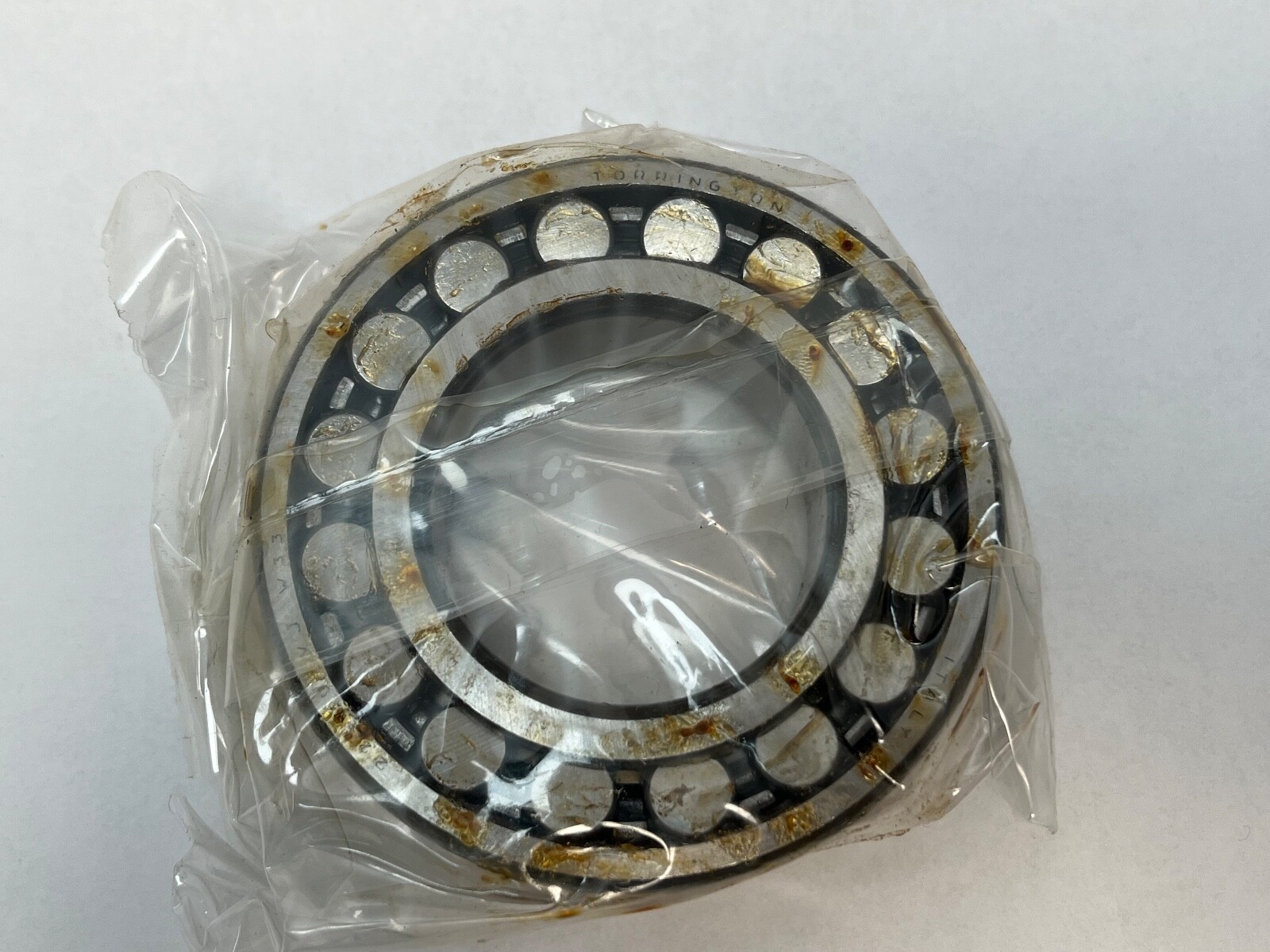

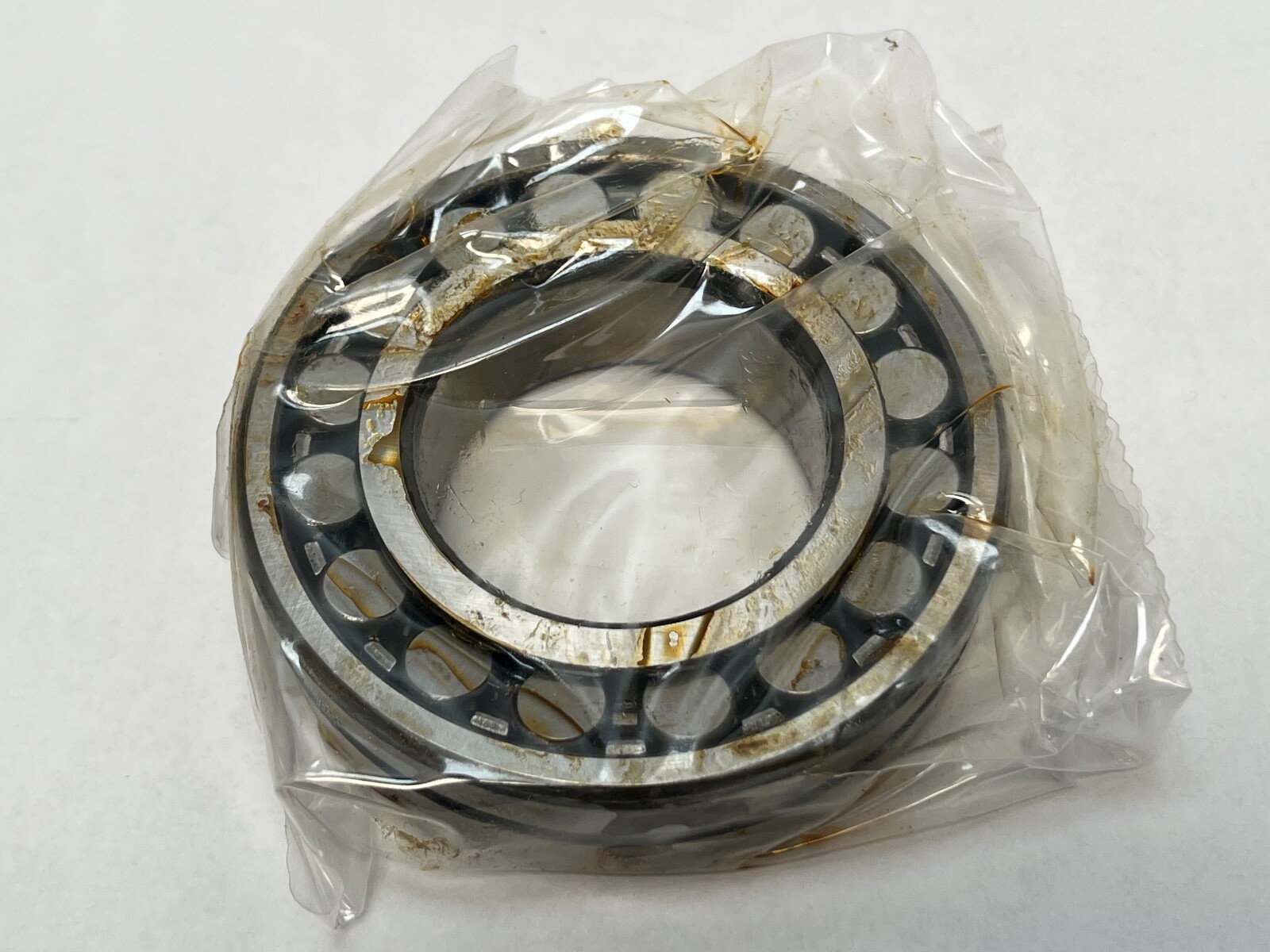

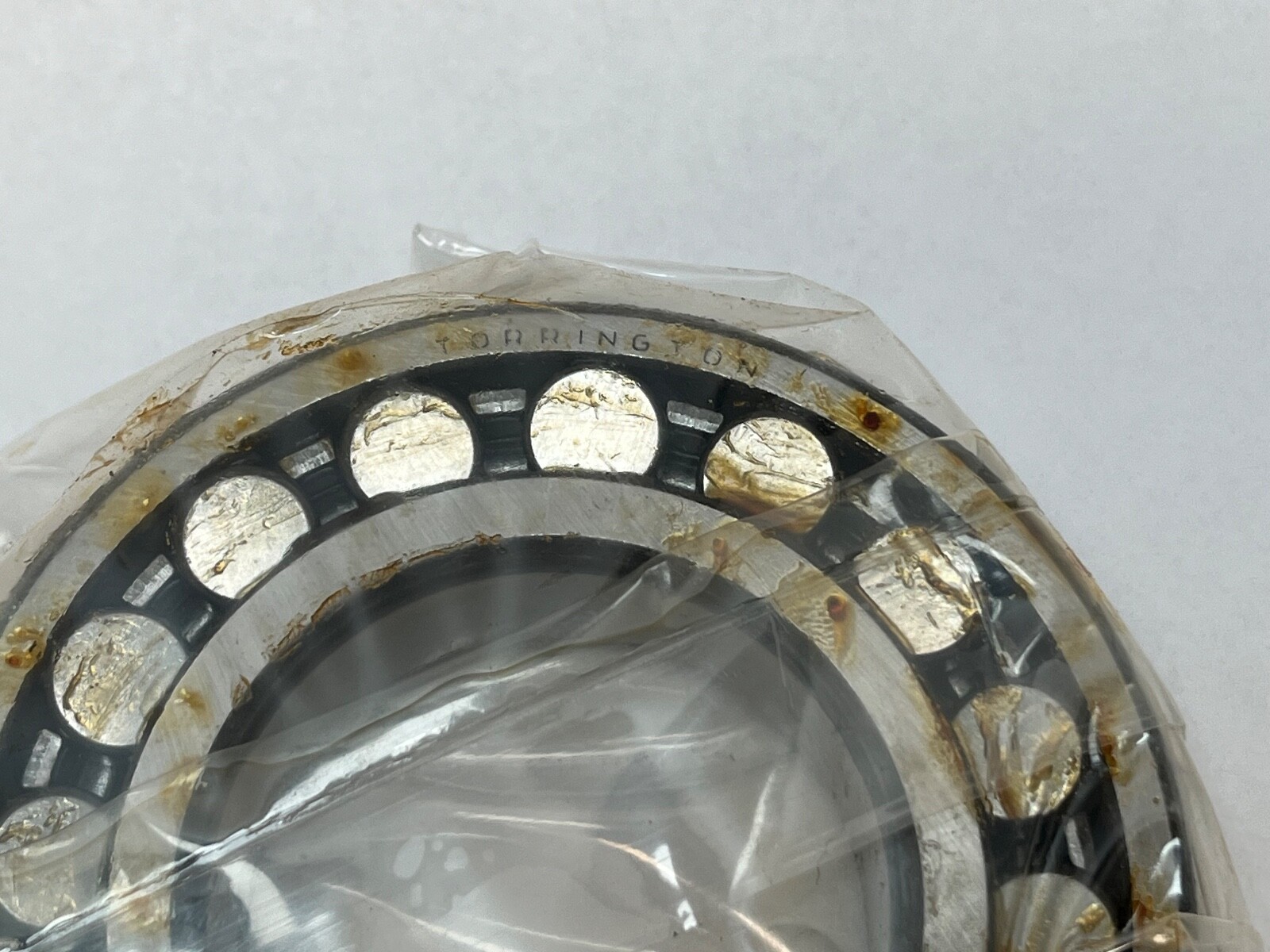

Torrington 22209VJW33 spherical roller bearing, 45 mm bore x 85 mm OD x 23 mm wide, straight bore, W33 lube groove, normal clearance. Successor: Timken 22209EJW33.
List Price
$35.80
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | 22209VJW33 |
| Model | 22209-VJ-W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Cage Type | Two-piece, finger type |
| Dynamic Load Rating | 109,000 N (Successor 22209EJW33 data) |
| Static Load Rating | 108,000 N (Successor 22209EJW33 data) |
| Rolling Elements | Spherical Roller |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Mpn Variants | 22209VJW33, 22209-VJ-W33, 22209 VJ W33, 22209 V J W33 |
| Compatible With Replaces | Timken 22209EJW33 (current successor design) |
| Additional Attributes | Successor 22209EJW33 data: e factor 0.26; Y0 2.58; Y1 2.64; Y2 3.93; shaft backing shoulder 55 mm; housing backing shoulder 77 mm; max fillet radius 1 mm |
| Lubricant | grease or oil |
| Relubrication Feature | W33 lubrication groove and three holes in outer ring |
| Design Units | Metric |
| Cross Reference 1 | Timken 22209EJW33 (current successor design) |
|---|---|
| Cross Reference 2 | SKF 22209 E |
| Cross Reference 3 | FAG 22209-E1-XL |
| Cross Reference 4 | NSK 22209EAE4 |
| Cross Reference 5 | NTN 22209EAW33 |
Torrington 22209VJW33 double-row spherical roller bearing: 45 mm straight bore, 85 mm outside diameter, 23 mm width, W33 lubrication groove, normal clearance. Unit Quantity: 1 Pc. One complete bearing. Torrington is a Timken brand; the current Timken design is 22209EJW33.
222 — spherical roller bearing, ISO dimension series 22.
09 — bore code. 09 × 5 = 45 mm bore.
VJ — two-piece steel cage, finger type.
W33 — lubrication groove with three radial holes in the outer ring.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Bore Type: Straight. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: CN. Closure Type: Open. Lubricant: grease or oil. Cage Type: Two-piece, finger type. Cage Material: Steel.
Timken 22209EJW33 data: Dynamic Load Rating: 109,000 N. Static Load Rating: 108,000 N. Reference Speed: 5,600 rpm grease; 6,900 rpm oil.
The spherical outer raceway lets the bearing self-align under shaft deflection while carrying heavy radial load and axial load in both directions. The W33 groove feeds grease or oil to the centre of both roller rows.
Timken 22209EJW33 data: Shaft Backing Shoulder Diameter: 55 mm. Housing Backing Shoulder Diameter: 77 mm. Maximum Fillet Radius: 1 mm. e factor: 0.26. Y1: 2.64. Y2: 3.93. Y0: 2.58.
Cross-Reference 1: Timken 22209EJW33, current successor design. Cross-Reference 2: SKF 22209 E. Cross-Reference 3: FAG 22209-E1-XL. Cross-Reference 4: NSK 22209EAE4. Cross-Reference 5: NTN 22209EAW33. All are 45 × 85 × 23 mm straight-bore, normal-clearance spherical roller bearings.
45 mm bore, 85 mm outside diameter, 23 mm width.
A two-piece steel cage, finger type.
Timken 22209EJW33.
