TORRINGTON22219W33Spherical Roller Bearing – Straight Bore, 95 mm ID, 170 mm OD, 43 mm Width, Open, CN Clearance, W33 Lubrication Groove

Product Description

What this part is

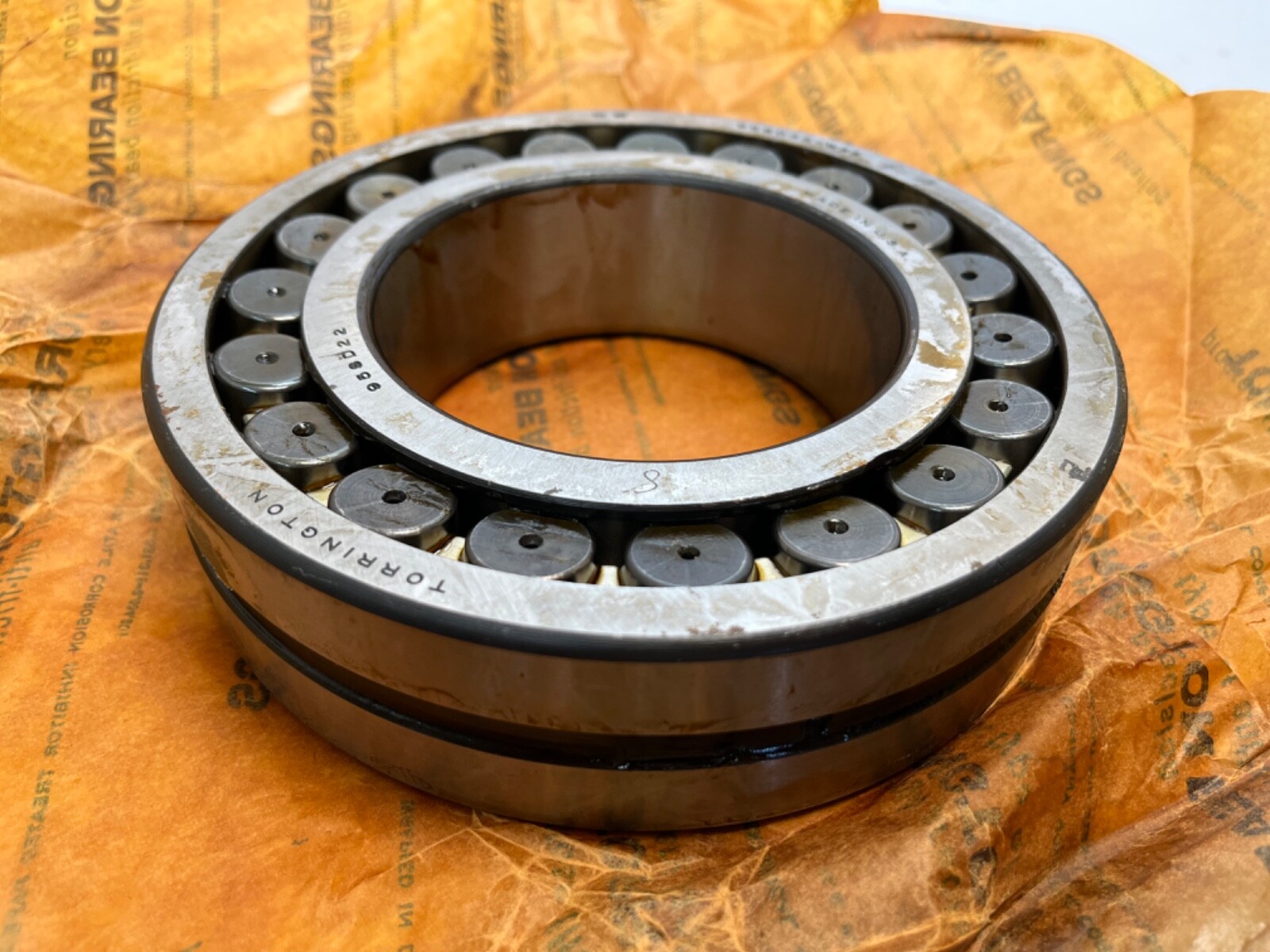

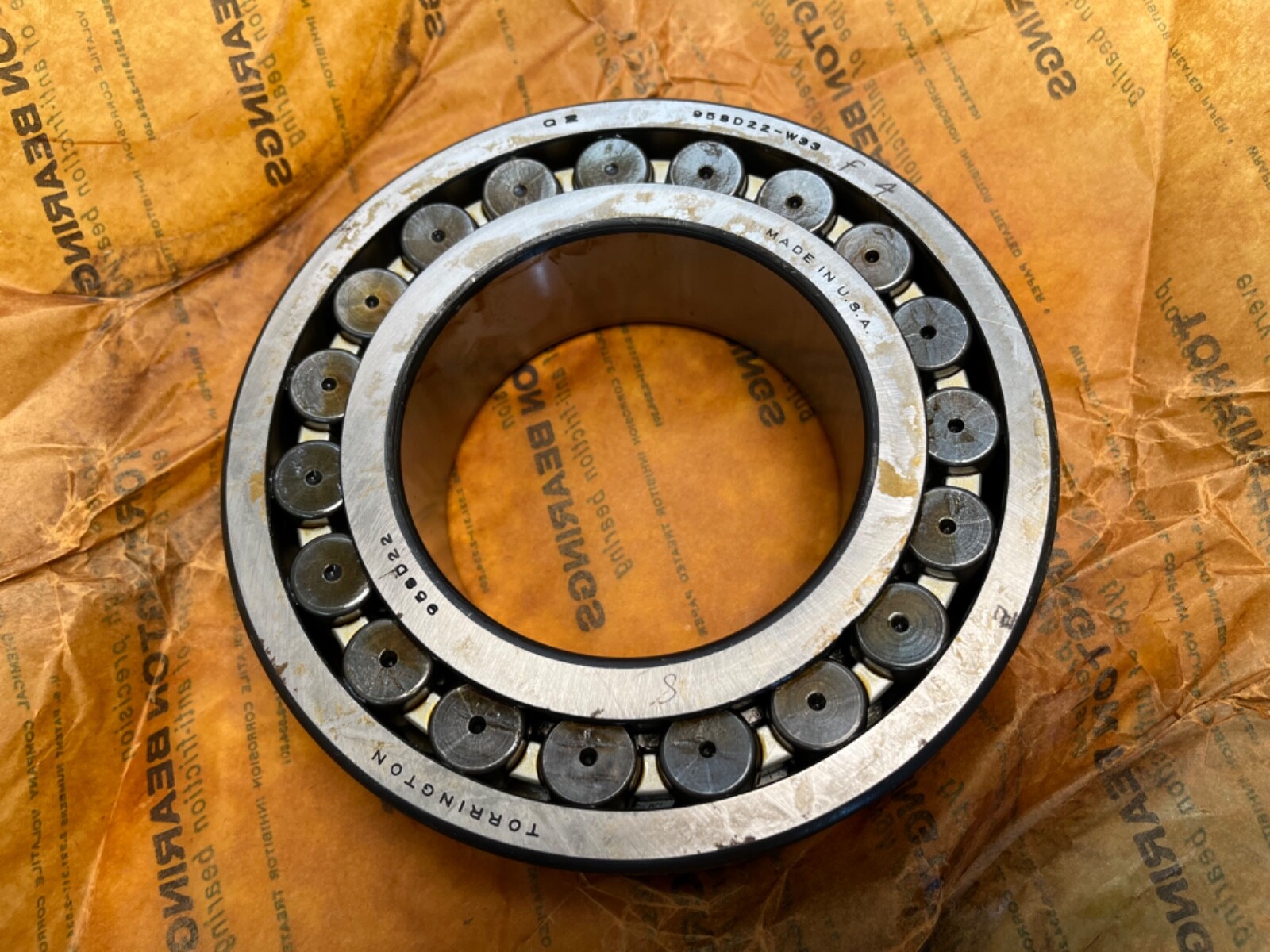

Torrington 22219 W33 double-row spherical roller bearing, 95 x 170 x 43 mm. Manufacturer: Torrington, now part of Timken. Manufacturer Part Number: 22219W33. Base Number: 22219. Series: 22200. Bearing Type: Spherical Roller Bearing. Number of Rows: 2. Rolling Elements: Spherical Rollers. Design Units: Metric. Bore: 95 mm. Outside Diameter: 170 mm. Overall Width: 43 mm. Bore Type: Straight. Closure Type: Open. Cage Type: Pressed steel, window. Cage Material: Steel. Bearing Material: Bearing Steel. Internal Clearance: CN. Precision Rating: ABEC 1 / P0. Maximum Permissible Misalignment: 2°. Unit Quantity: 1 Pc.

Decoding the designation

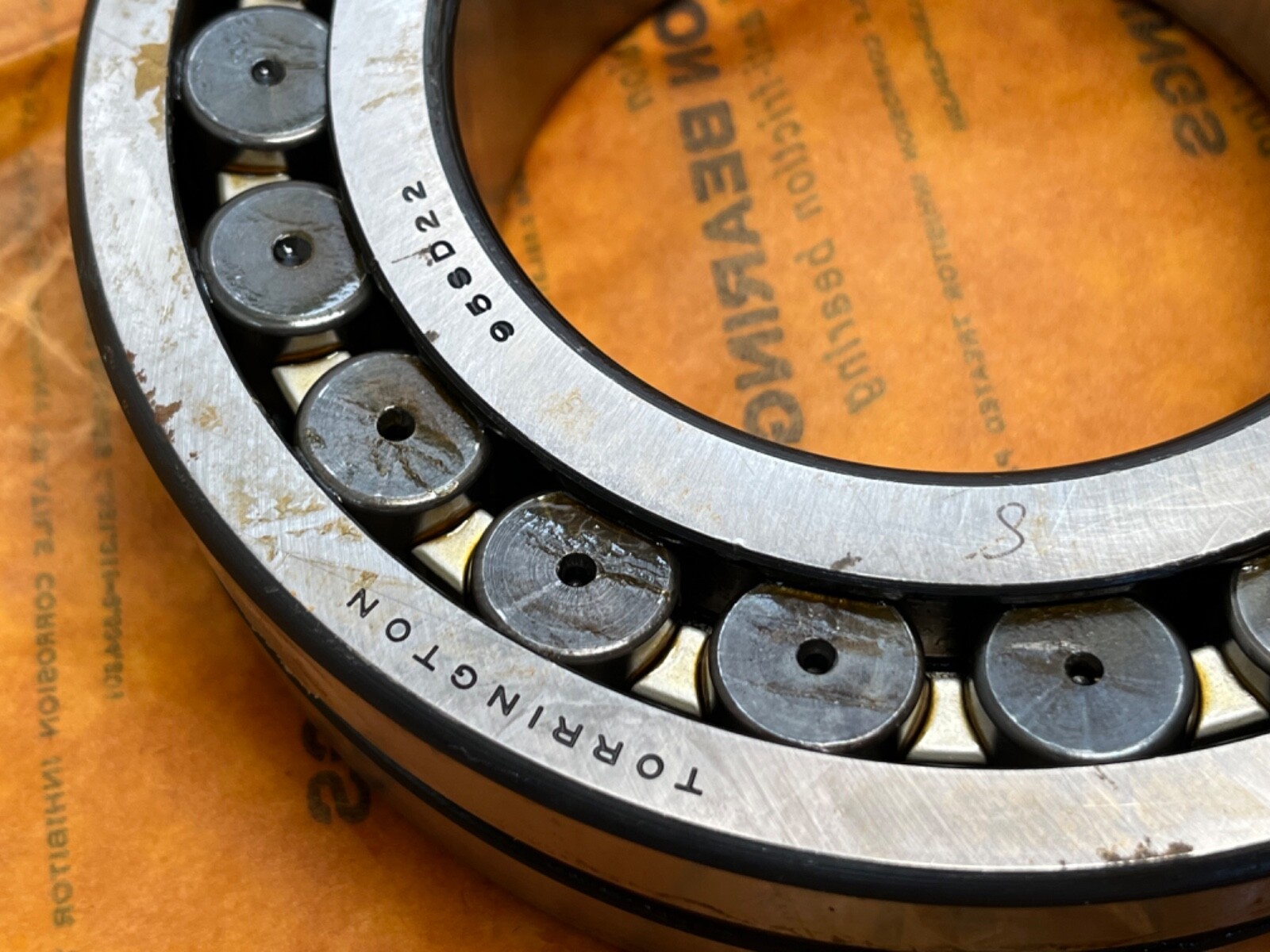

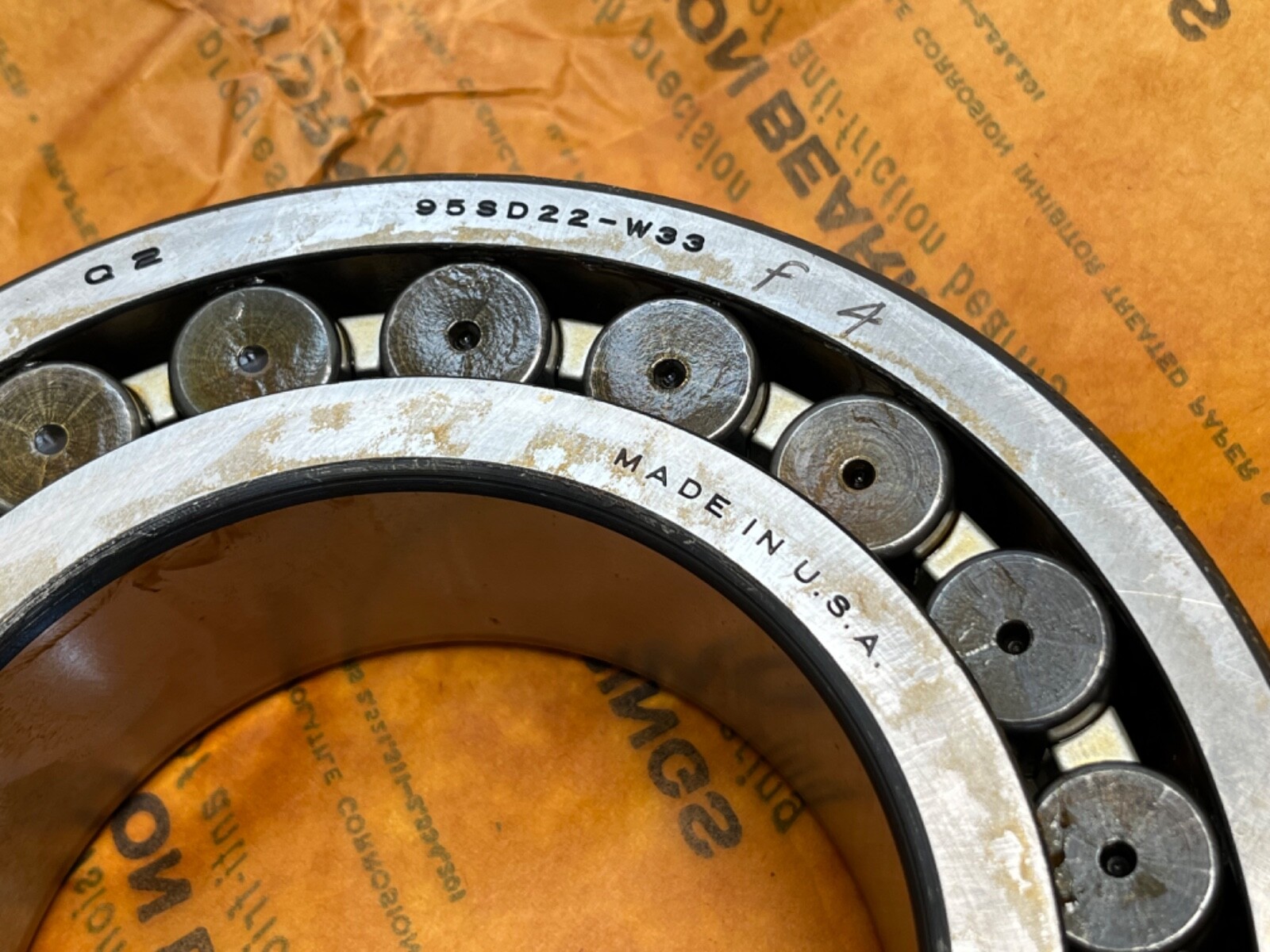

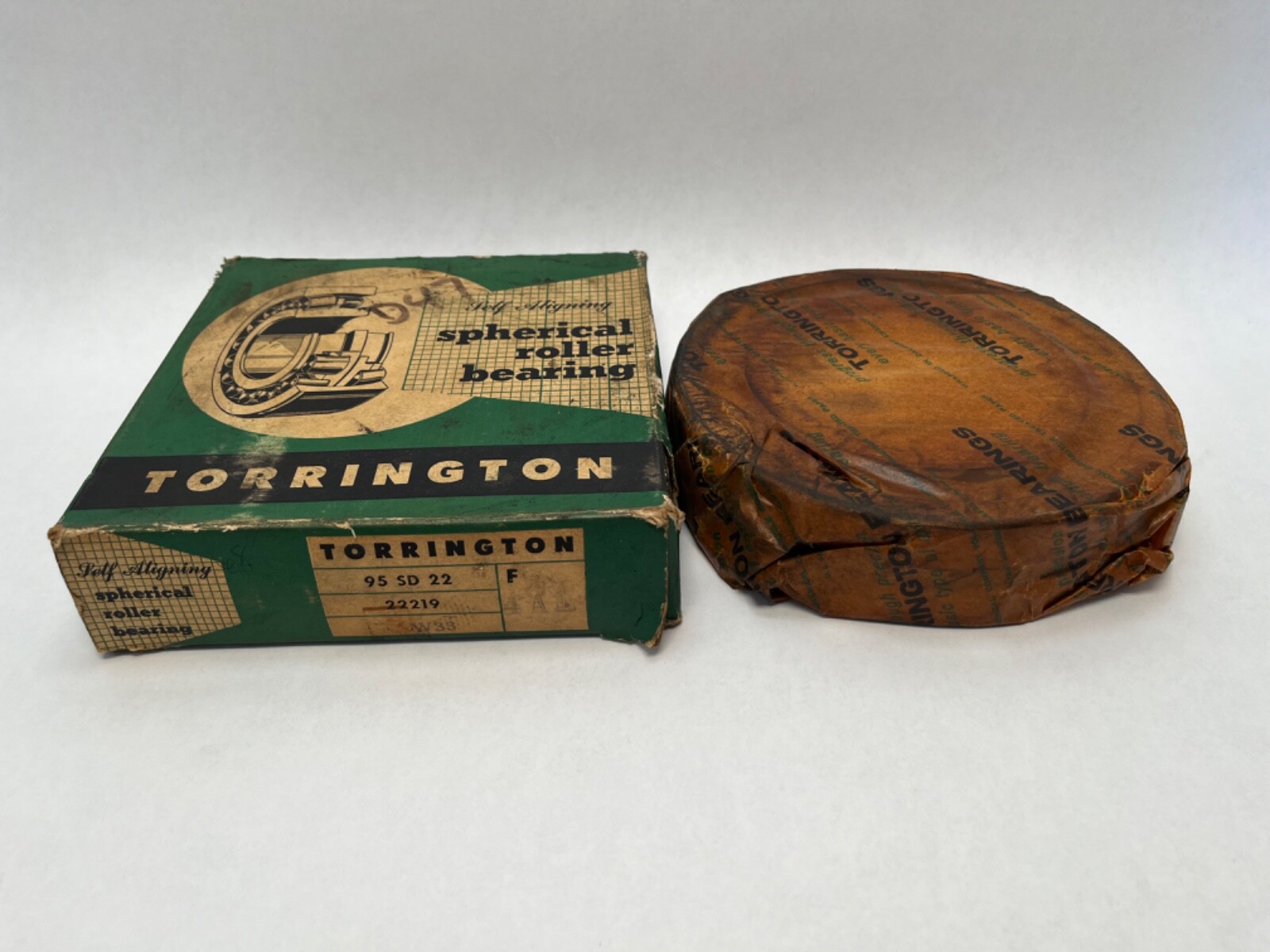

222 is the dimension series for a double-row spherical roller bearing. W33 is the lubrication feature: an annular groove machined into the outer ring outside diameter with three radial holes drilled through to the roller path. The carton also carries Torrington’s house designation, 95SD22-F4. Searchable forms of the number are 22219W33, 22219 W33, 22219-W33 and 95SD22-F4.

What these specs mean in practice

Dynamic Load Rating: 325 kN / 73,100 lbf. Static Load Rating: 415 kN / 93,300 lbf. Limiting Speed: 2,600 rpm. Item Weight: 8.80 lb (3.99 kg). Maximum Temperature: 200°C. Minimum Temperature: −30°C. Two rows of spherical rollers running in a common concave outer raceway carry high radial load and take thrust in both directions, and the roller set swivels within the outer ring, giving 2° of permissible shaft-to-housing misalignment without edge loading. On a double-row spherical roller bearing the static rating sits above the dynamic rating, which is the normal relationship for this type. At this bore the 415 kN static figure is the governing number for shock, jam and stationary load cases. CN is the standard radial internal clearance group. Harmonization Code: 8482.30.00.

Lubrication feature

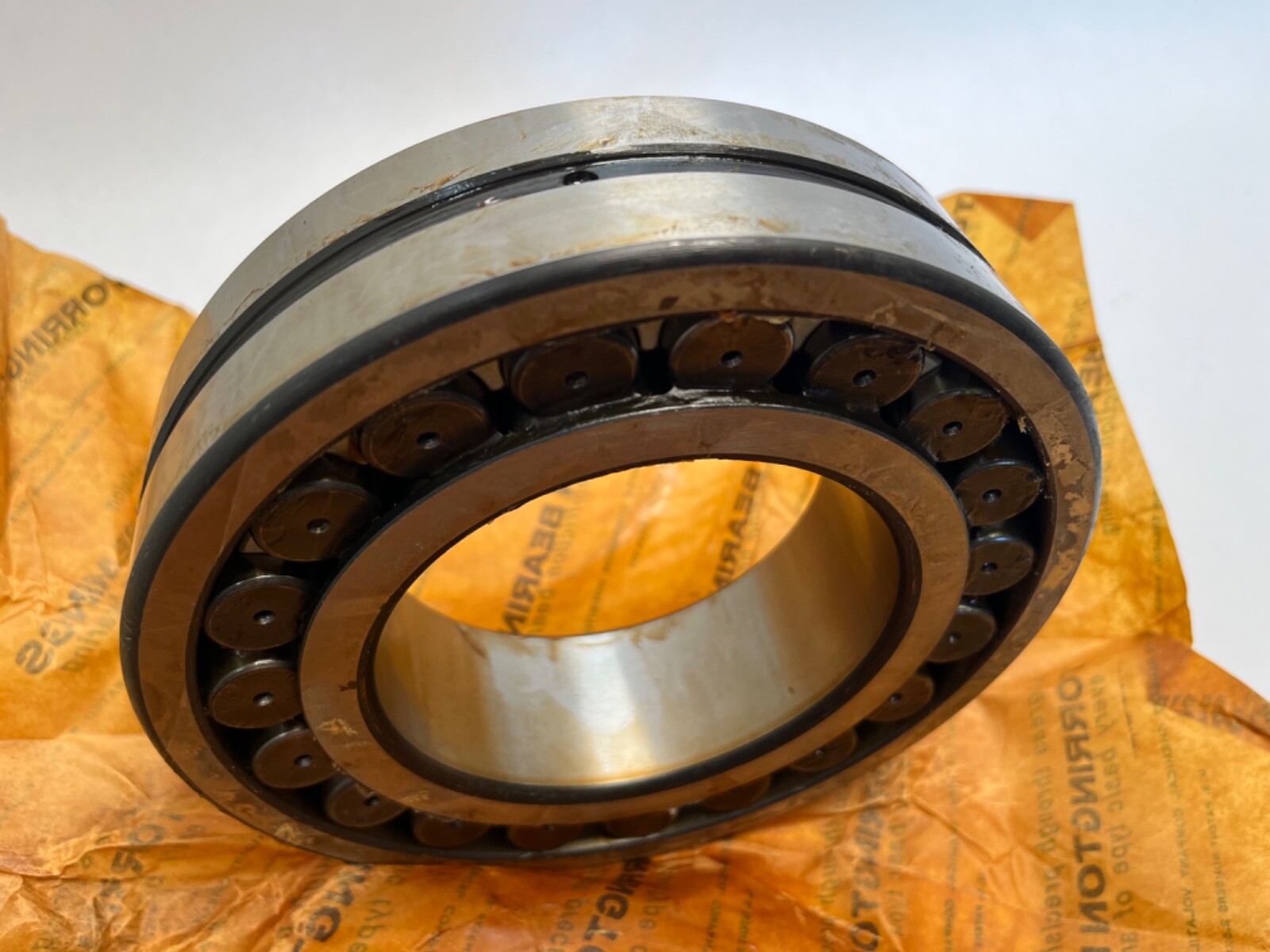

Lubricant: Grease or oil. Relubrication: Yes, through the W33 provision. The groove distributes lubricant circumferentially around the outer ring and the three radial holes carry it inward to the rolling elements, so the roller path is fed from the outside diameter rather than through the ring faces. The same passages serve a grease gun, a single-point lubricator, a centralised grease line, a circulating-oil system or oil mist, and at this bore size an oil feed is as common as grease.

Bore form and mounting

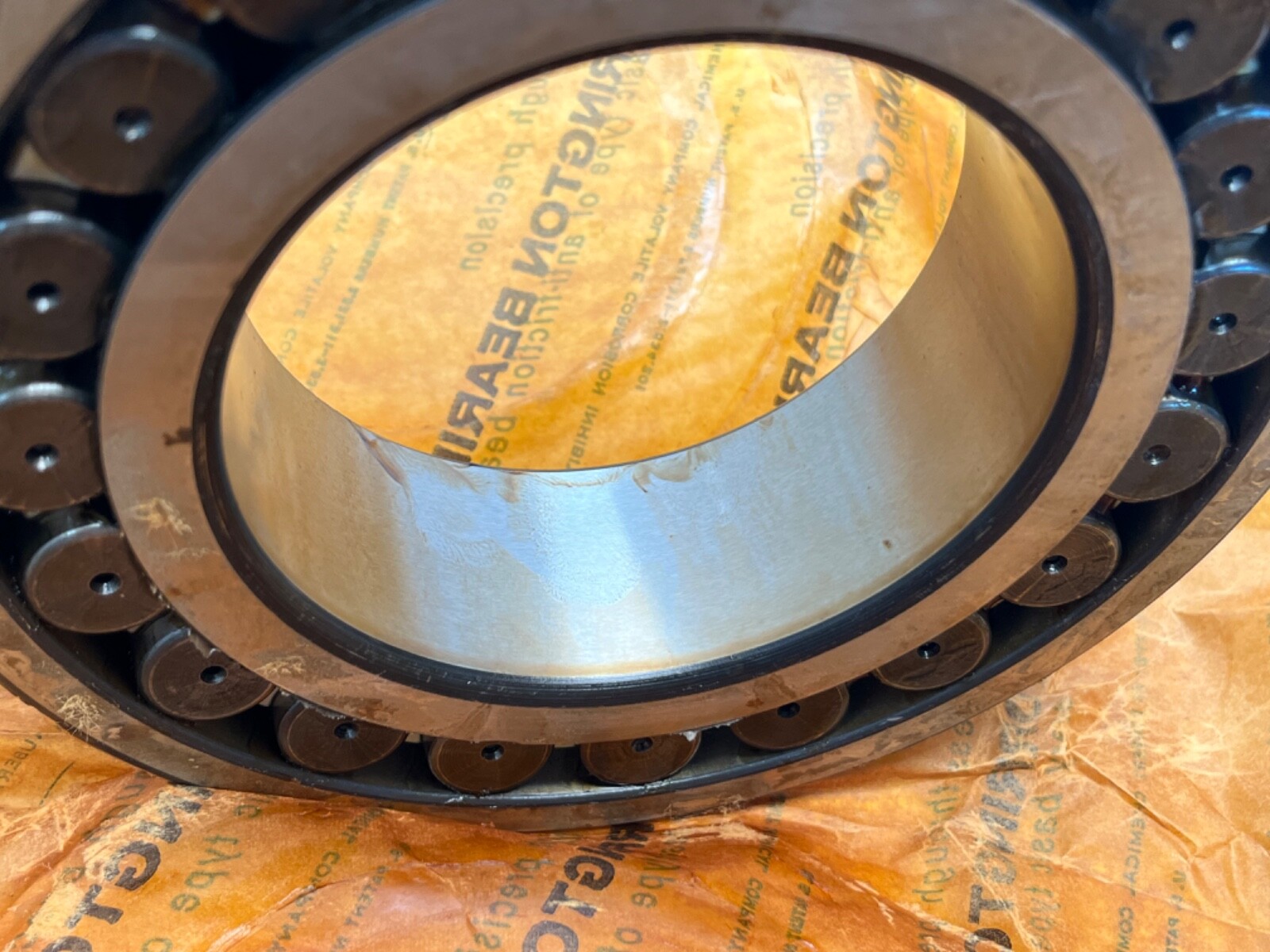

Bore Type: Straight. The 95 mm cylindrical bore mounts directly on the shaft journal, and the mounted clearance follows from the shaft and housing fits.

Quantity and configuration

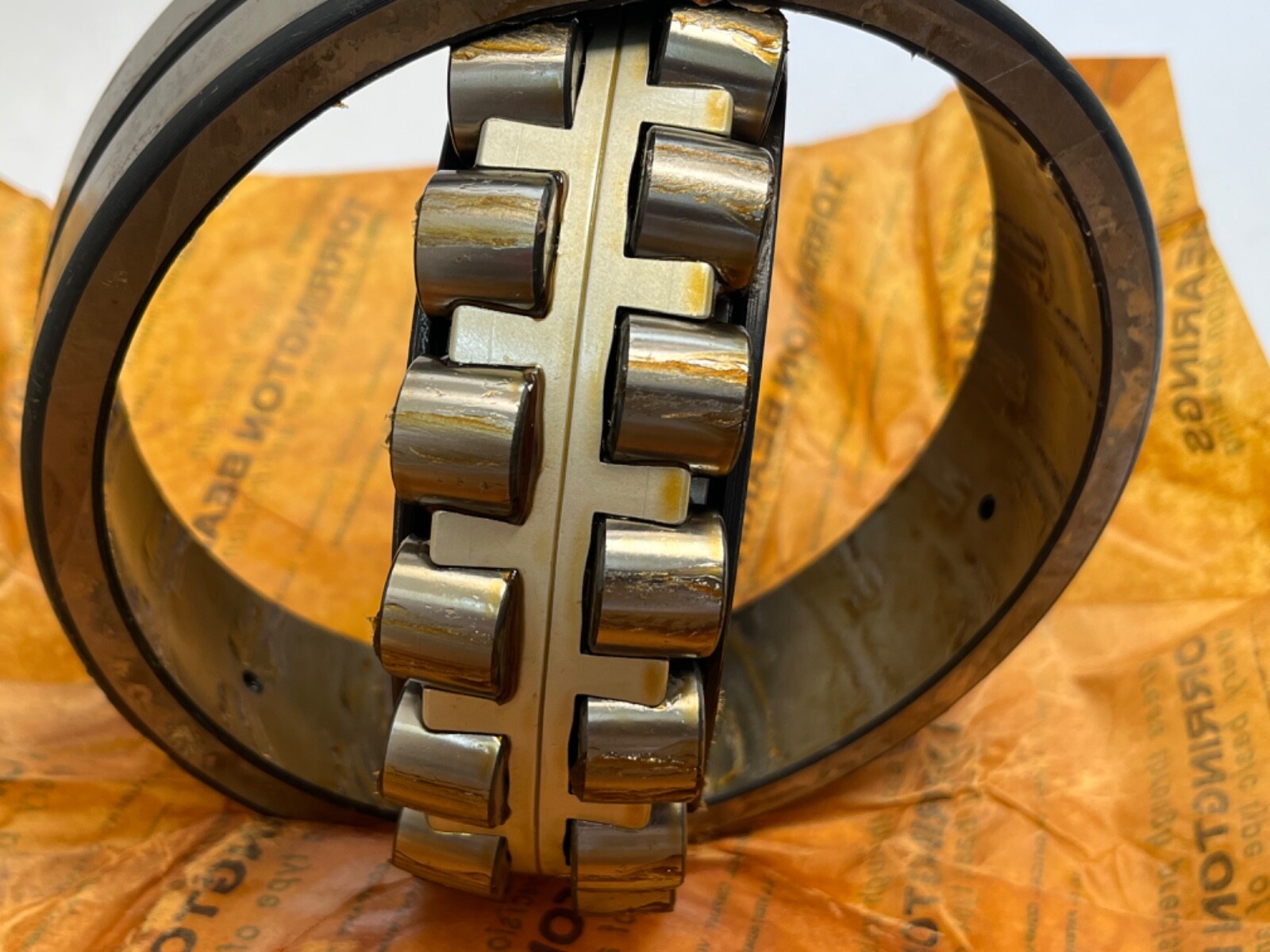

Unit Quantity: 1 Pc. One complete bearing: inner ring, two rows of rollers with their cages, and the outer ring with the W33 groove and holes.

Interchange guidance

Cross-Reference 1: SKF 22219 E. Cross-Reference 2: FAG 22219-E1. Cross-Reference 3: Timken 22219EJ. All three sit on the same 95 x 170 x 43 mm envelope with a cylindrical bore, and all three are reinforced E executions carrying higher load ratings than the figures published above. Take the rating from the designation actually fitted. A 22219 K on the same envelope has a 1:12 tapered bore and mounts on an adapter sleeve, so it is a related bore form rather than an interchange.
