Torrington22219BRW33Spherical Roller Bearing – Straight Bore, 95 mm ID, 170 mm OD, 43 mm Width, Open, Machined Brass Cage, CN Clearance, W33 Lubrication Groove

Product Description

What this part is

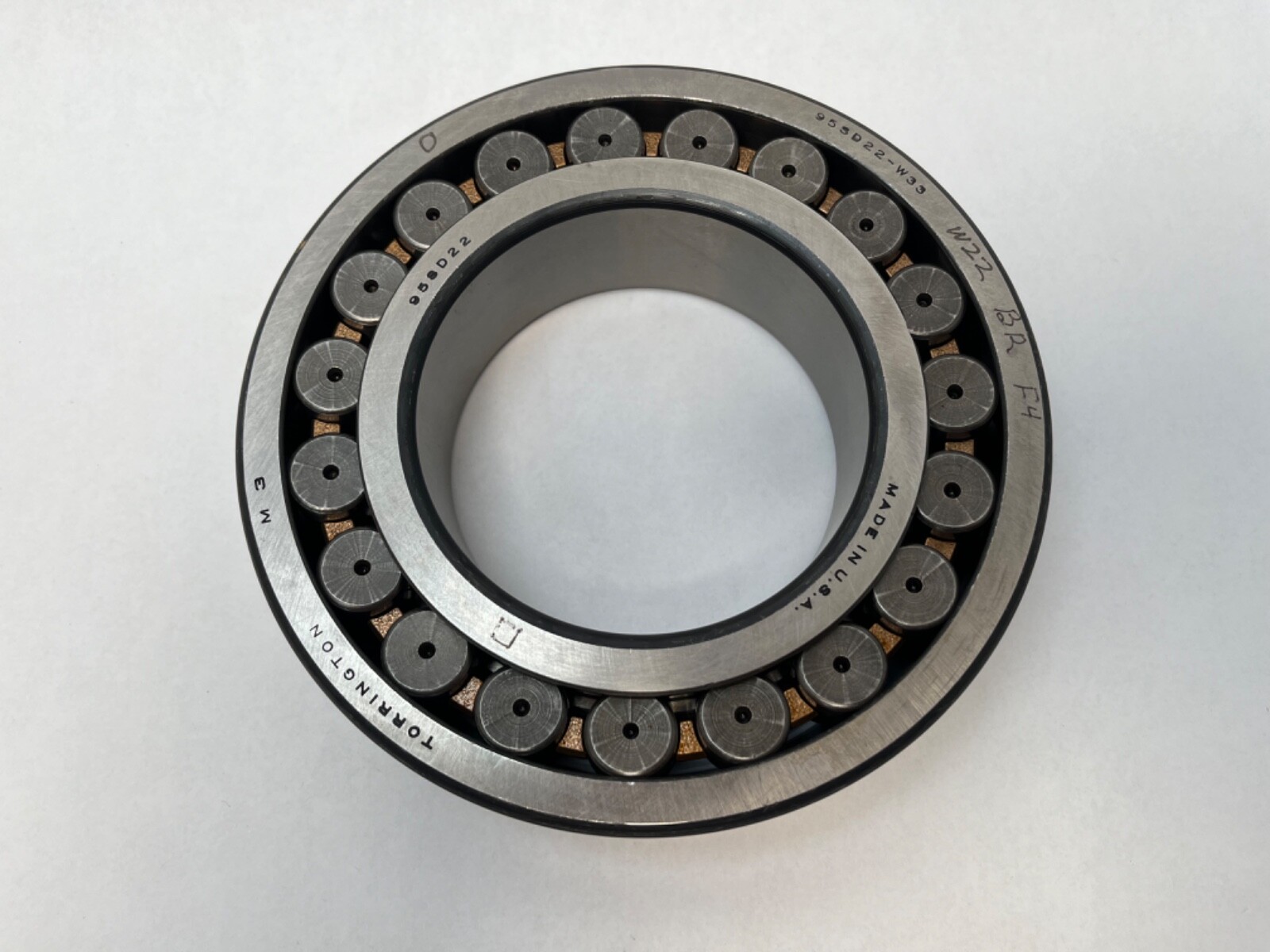

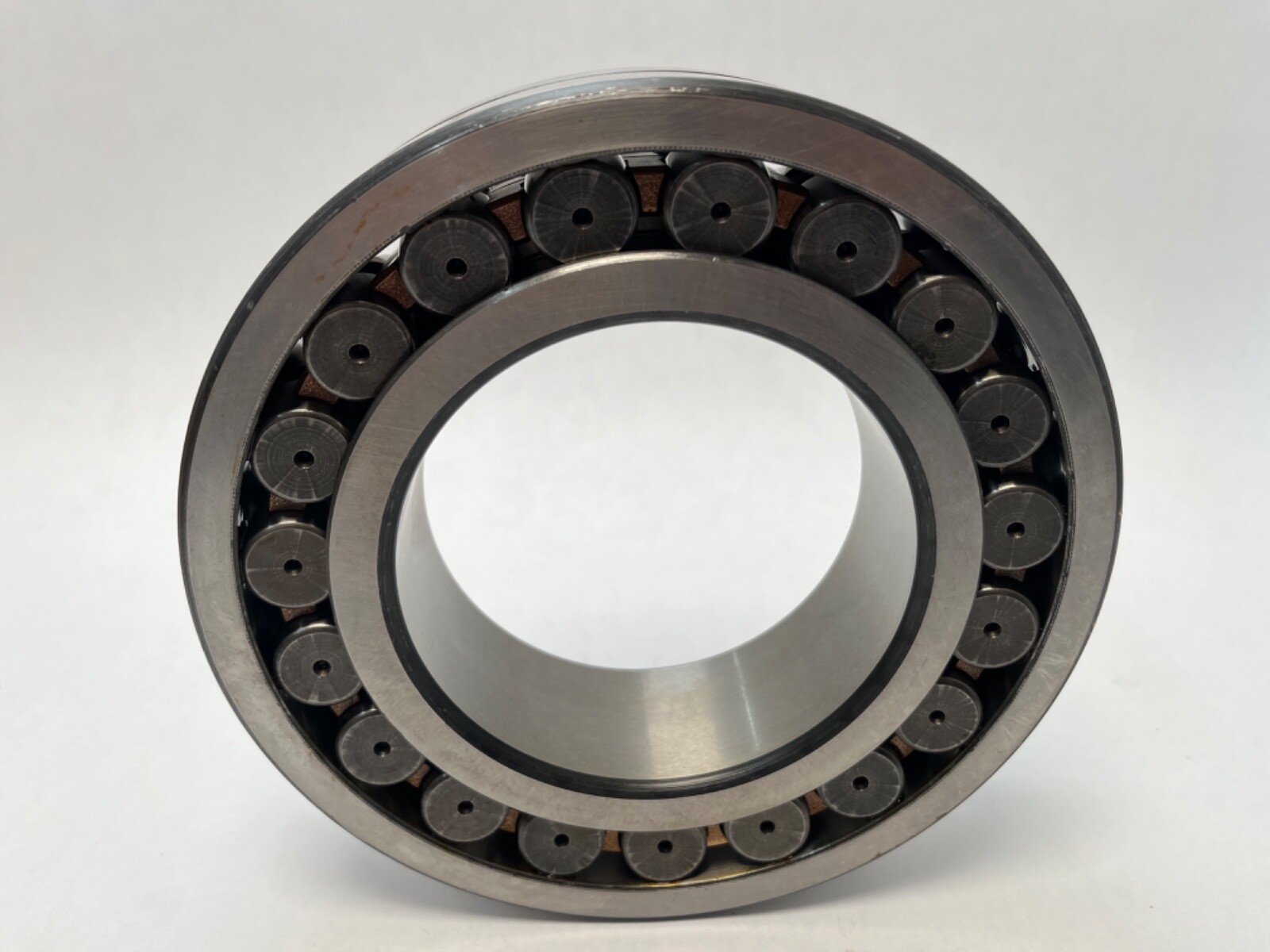

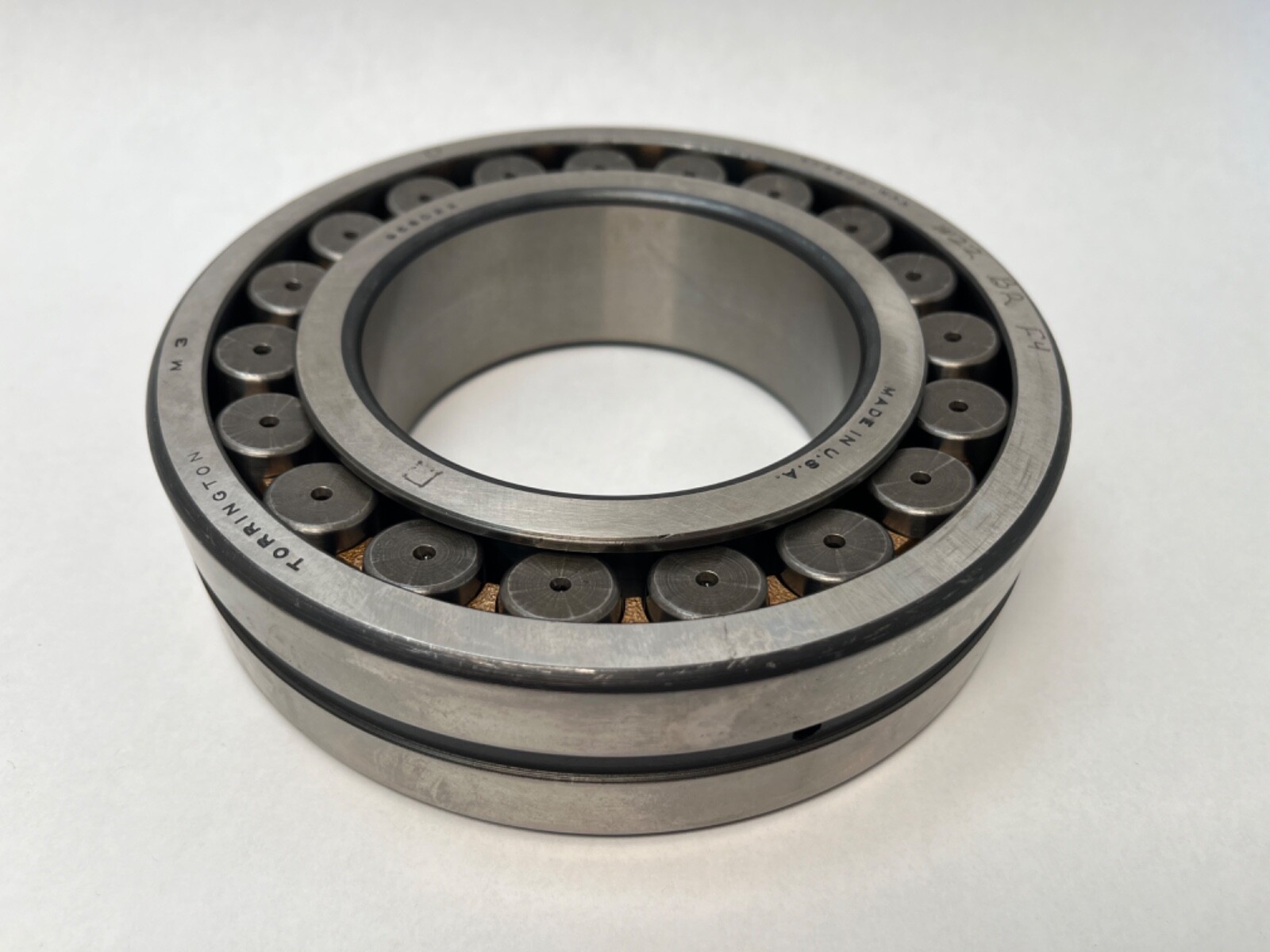

Torrington 22219 BR W33 double-row spherical roller bearing, 95 x 170 x 43 mm. Manufacturer: Torrington, now part of Timken. Manufacturer Part Number: 22219BRW33. Base Number: 22219. Series: 22200. Bearing Type: Spherical Roller Bearing. Number of Rows: 2. Rolling Elements: Spherical Rollers. Design Units: Metric. Bore: 95 mm. Outside Diameter: 170 mm. Overall Width: 43 mm. Bore Type: Straight. Closure Type: Open. Cage Type: Machined. Cage Material: Brass. Bearing Material: Bearing Steel. Internal Clearance: CN. Precision Rating: ABEC 1 / P0. Maximum Permissible Misalignment: 2°. Unit Quantity: 1 Pc.

Decoding the designation

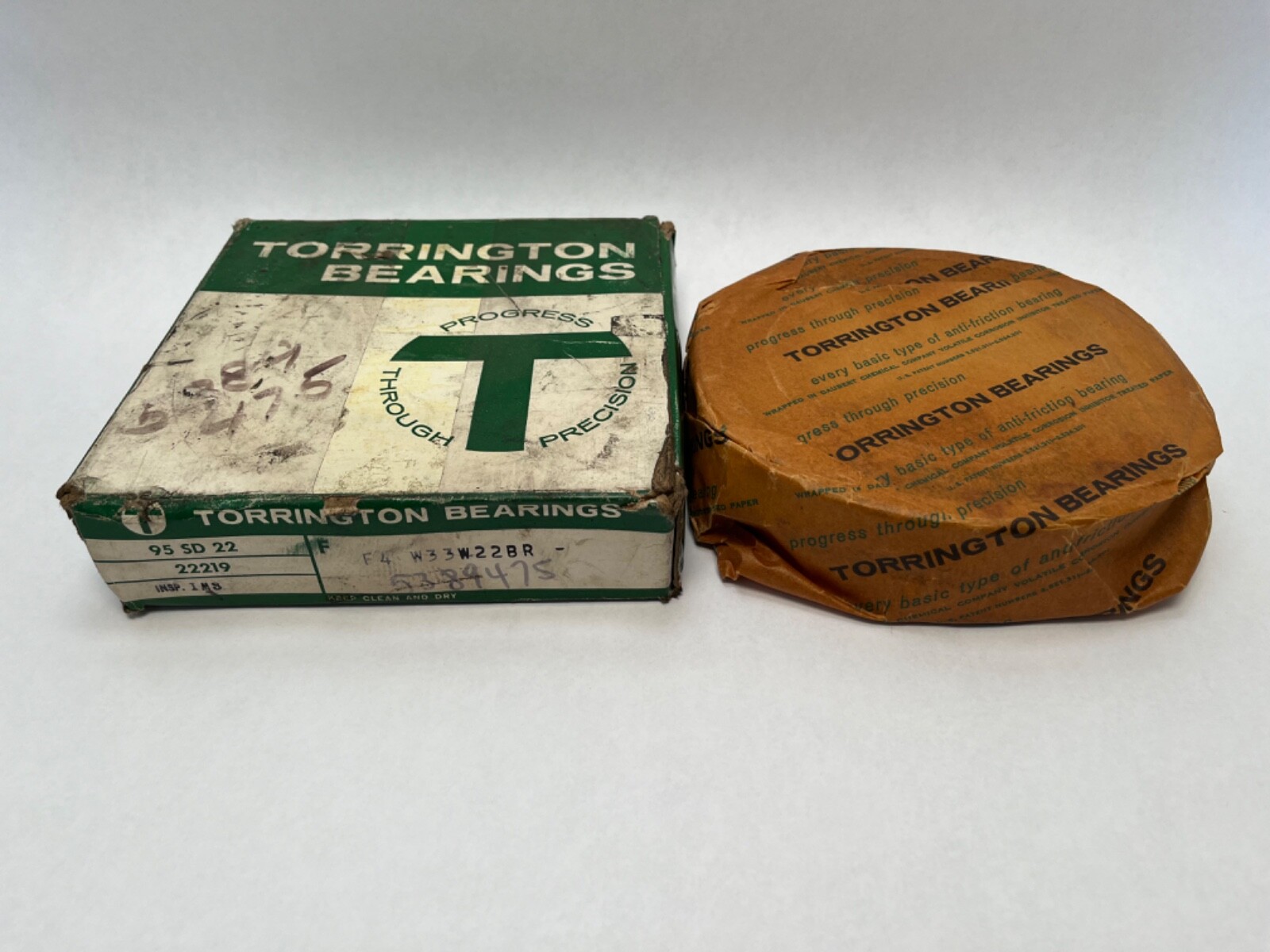

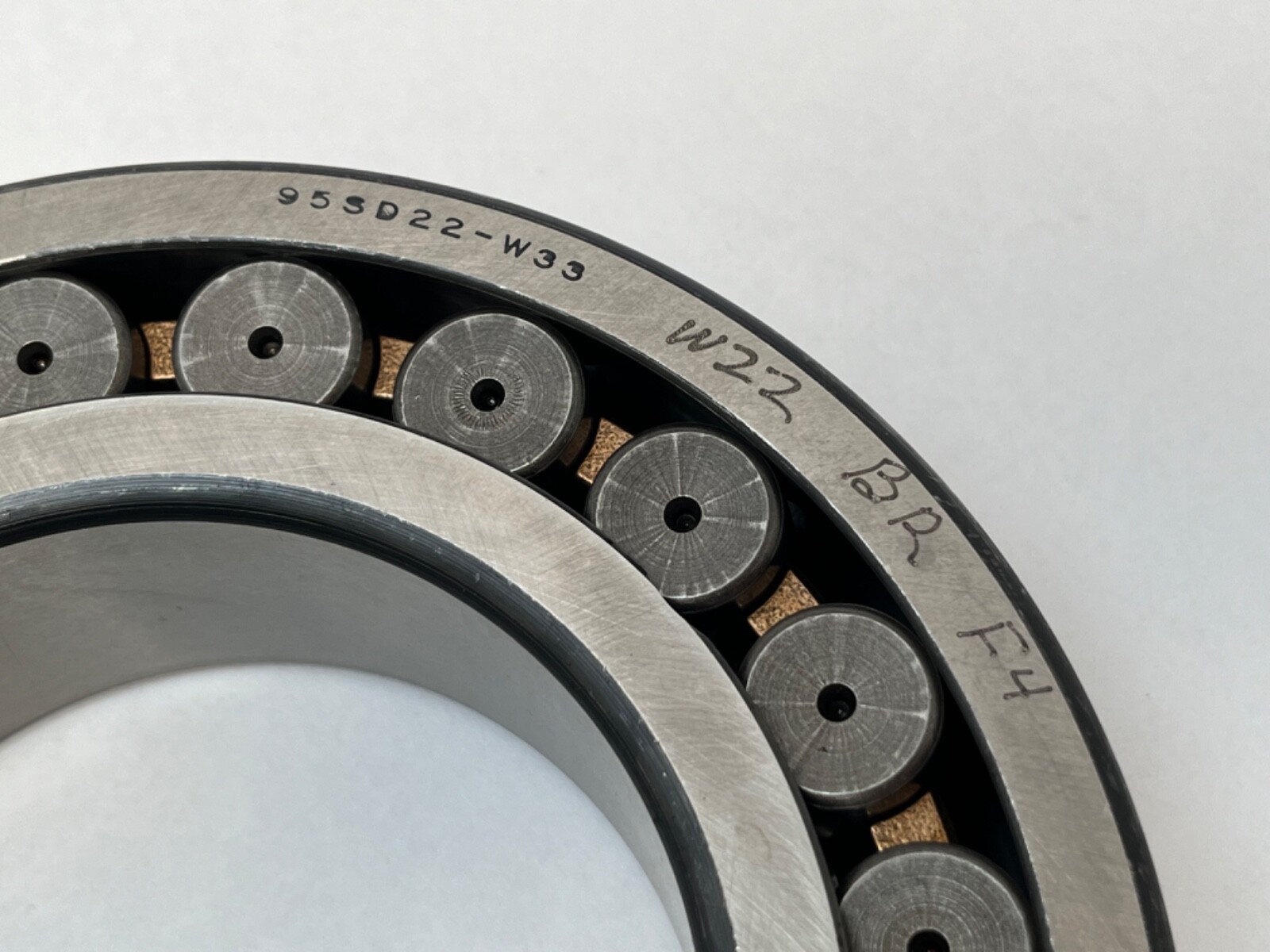

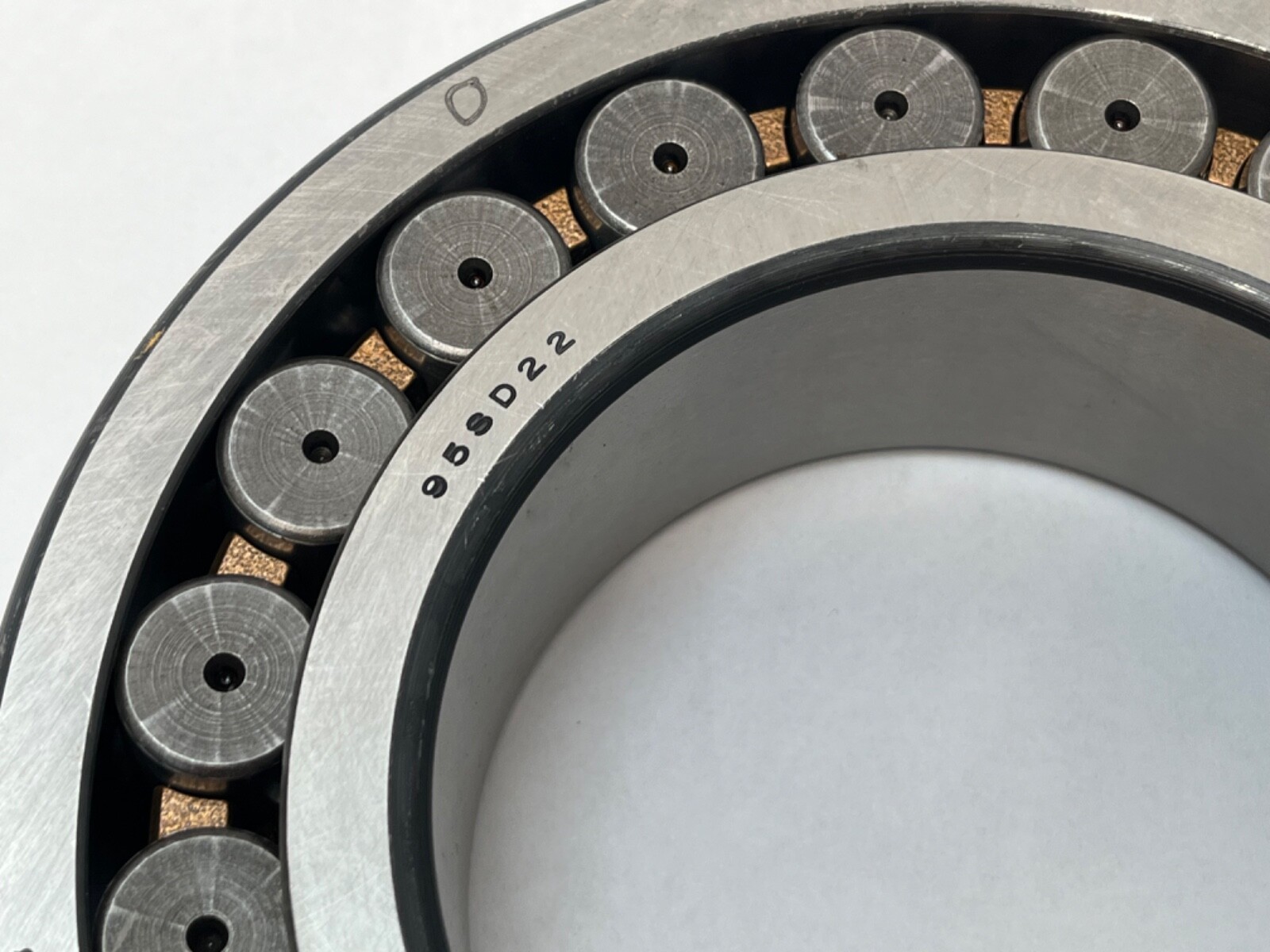

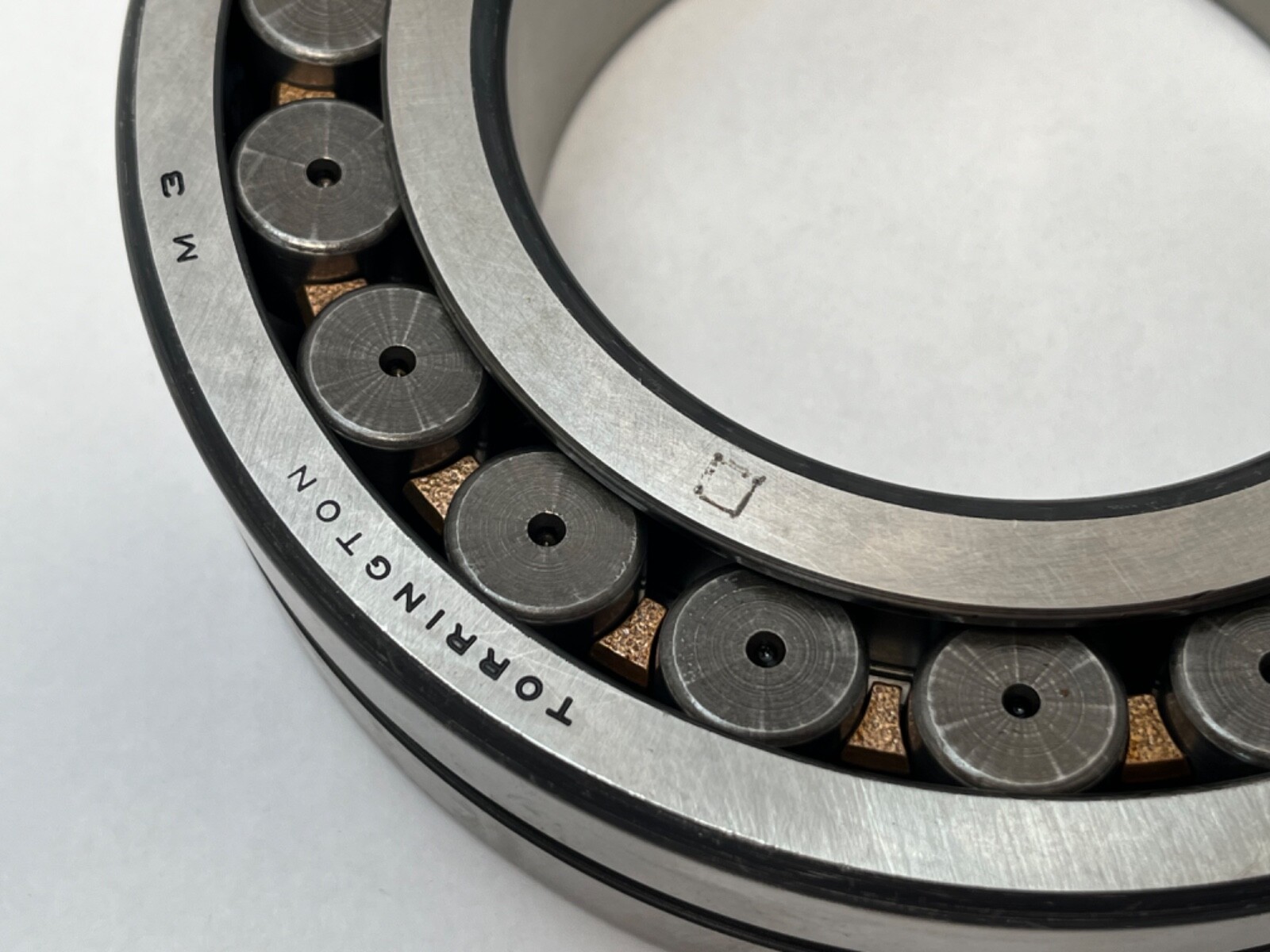

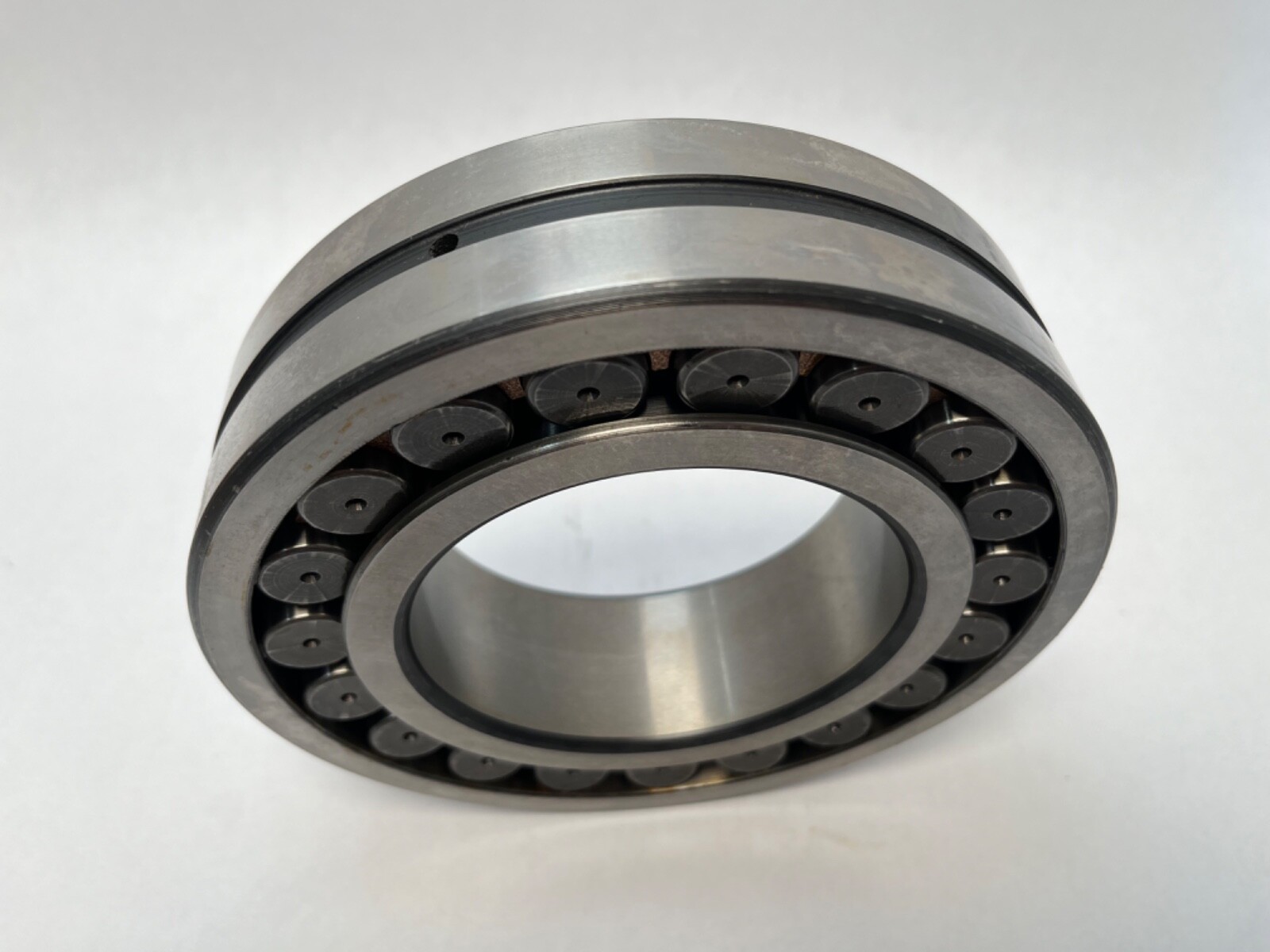

222 is the dimension series for a double-row spherical roller bearing. BR is the cage code: a machined brass cage. W33 is the lubrication feature: an annular groove machined into the outer ring outside diameter with three radial holes drilled through to the roller path. The carton also carries Torrington’s house designation, 95SD22-F4. Searchable forms of the number are 22219BRW33, 22219 BR W33, 22219-BR-W33, 22219 BRW33 and 95SD22-F4.

What these specs mean in practice

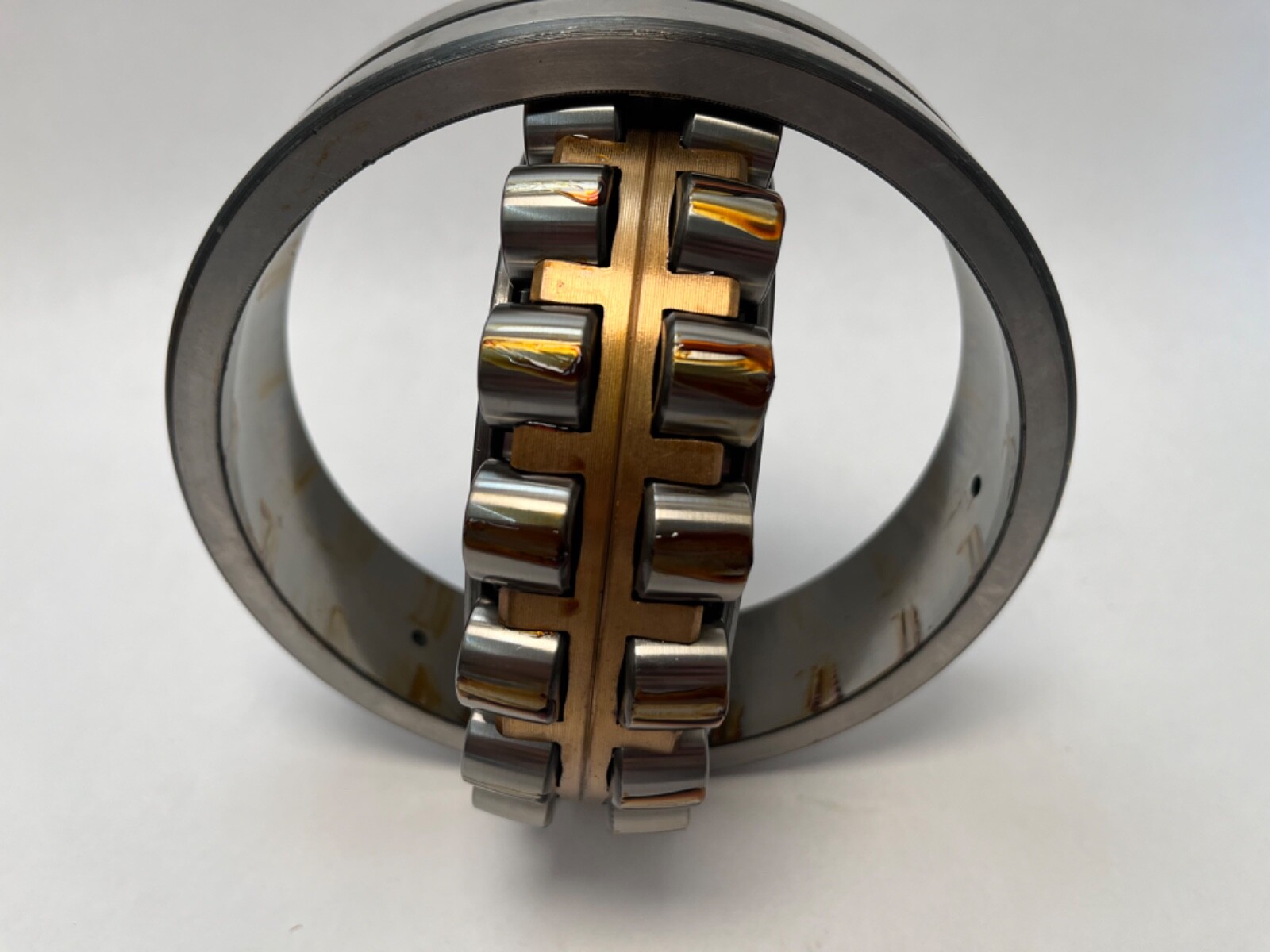

Dynamic Load Rating: 310 kN / 69,700 lbf. Static Load Rating: 415 kN / 93,300 lbf. Limiting Speed: 2,600 rpm. Item Weight: 8.80 lb (3.99 kg). Maximum Temperature: 200°C. Minimum Temperature: −30°C. Two rows of spherical rollers running in a common concave outer raceway carry high radial load and take thrust in both directions, and the roller set swivels within the outer ring, giving 2° of permissible shaft-to-housing misalignment without edge loading. On a double-row spherical roller bearing the static rating sits above the dynamic rating, which is the normal relationship for this type. A machined brass cage is stiffer and more tolerant of high temperature, shock load and marginal lubrication than a pressed steel cage, and it carries acceleration and deceleration loads that would flex a sheet cage. CN is the standard radial internal clearance group. Harmonization Code: 8482.30.00.

Lubrication feature

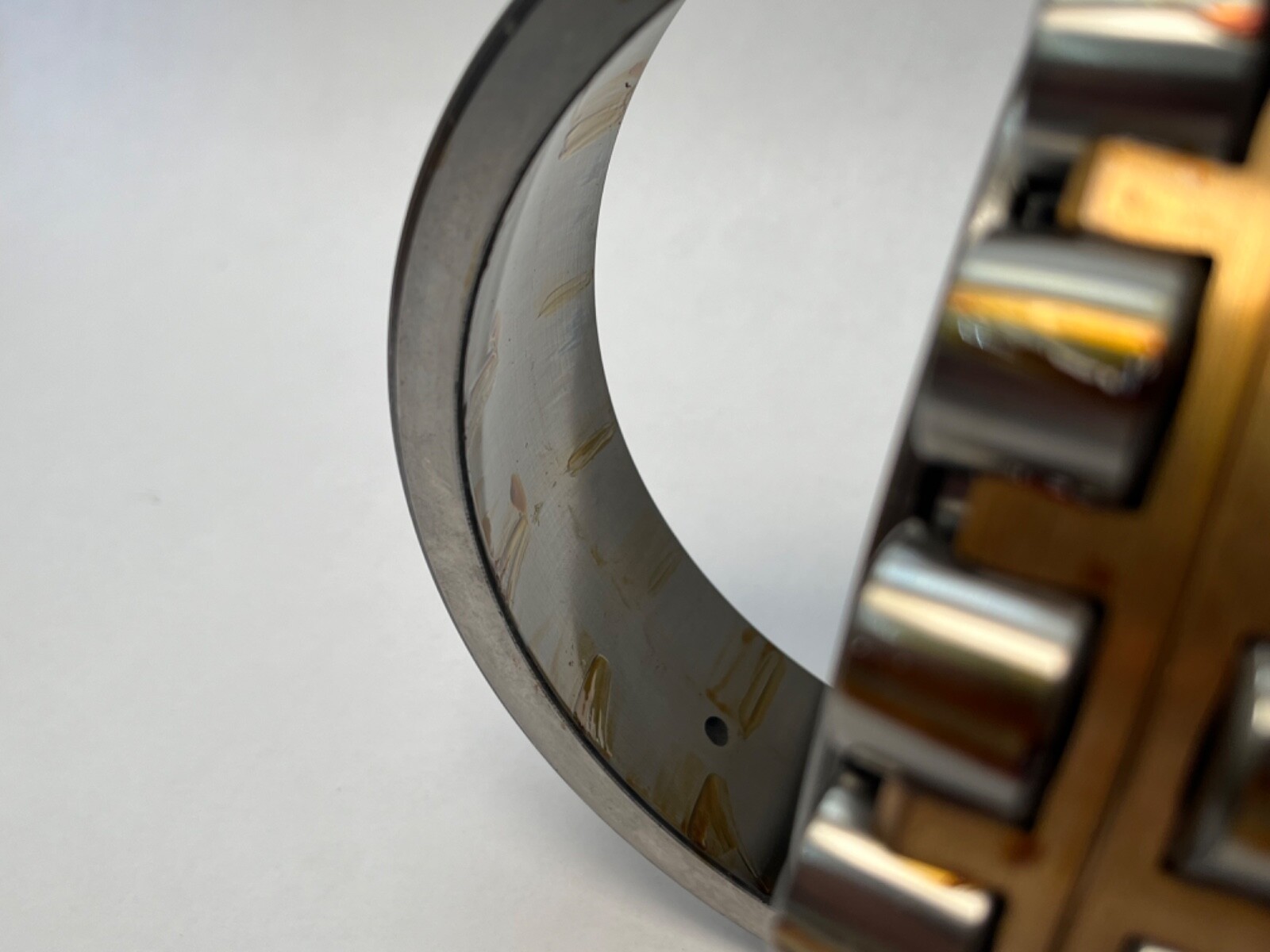

Lubricant: Grease or oil. Relubrication: Yes, through the W33 provision. The groove distributes lubricant circumferentially around the outer ring and the three radial holes carry it inward to the rolling elements, so the roller path is fed from the outside diameter rather than through the ring faces. The same passages serve a grease gun, a single-point lubricator, a centralised grease line, a circulating-oil system or oil mist, and at this bore size an oil feed is as common as grease.

Bore form and mounting

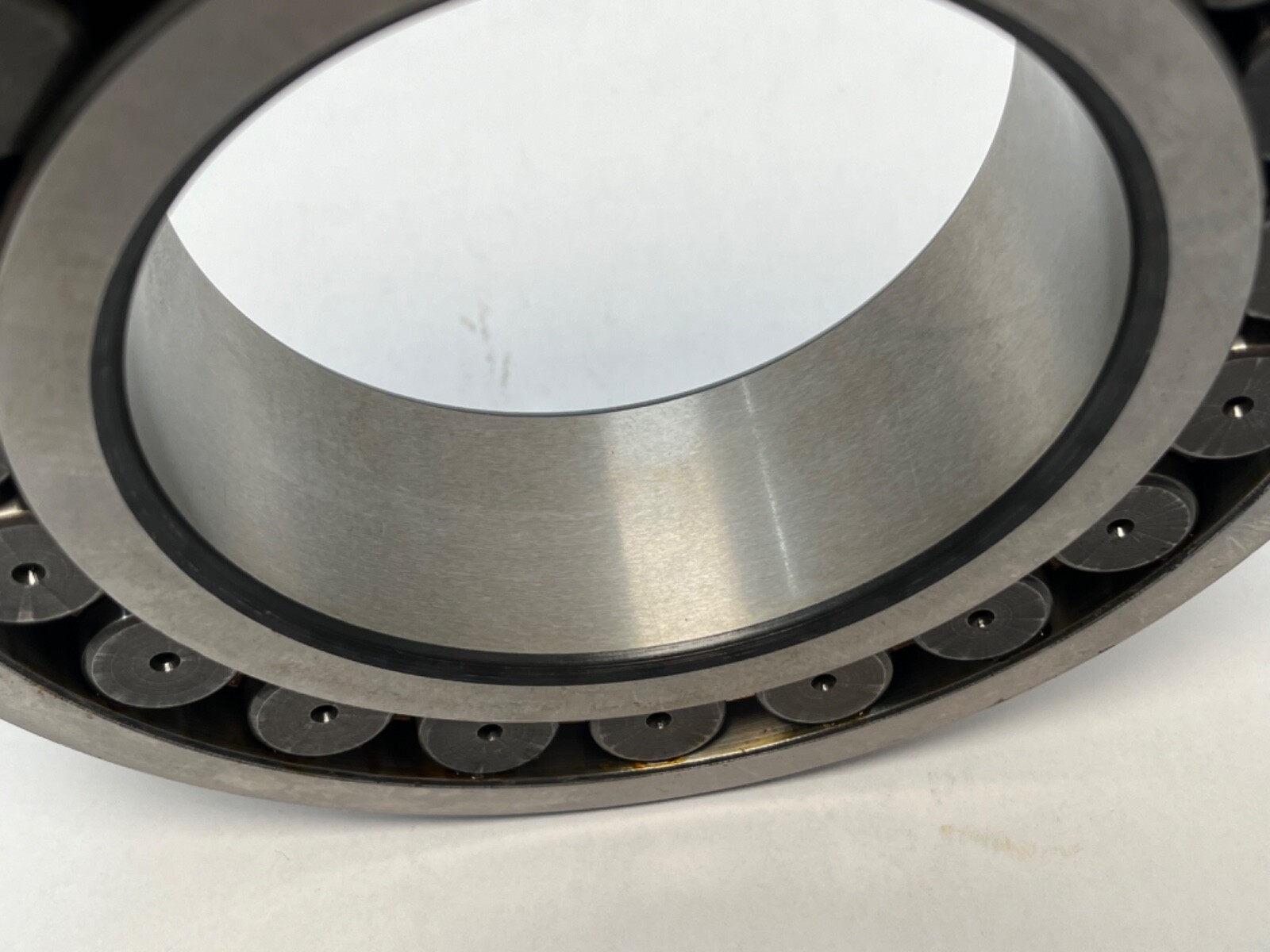

Bore Type: Straight. The 95 mm cylindrical bore mounts directly on the shaft journal, and the mounted clearance follows from the shaft and housing fits.

Quantity and configuration

Unit Quantity: 1 Pc. One complete bearing: inner ring, two rows of rollers in machined brass cages, and the outer ring with the W33 groove and holes.

Interchange guidance

Cross-Reference 1: SKF 22219 E. Cross-Reference 2: FAG 22219-E1-M. Cross-Reference 3: Timken 22219EM. All three sit on the same 95 x 170 x 43 mm envelope with a cylindrical bore, and all three are reinforced E executions carrying higher load ratings than the figures published above. Take the rating from the designation actually fitted. The pressed steel cage version of this envelope is a related execution with different speed and temperature behaviour, and a 22219 K has a tapered bore that needs an adapter sleeve.
