This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Double-Row Spherical Roller Bearing, 70 x 125 x 31 mm, Straight Bore, C4 Extra Internal Clearance$67.79
Double-Row Spherical Roller Bearing, 70 x 125 x 31 mm, 1:12 Tapered Bore, Stamped Steel Cages, W33 Lubrication, C5 Extra-Loose Clearance$68.64
Spherical Roller Bearing 70 x 125 x 31 mm, Straight Bore, W33 Lubrication Groove and Three Feed Holes$62.87
Double-Row Spherical Roller Bearing - Straight Bore, 70 mm ID x 125 mm OD x 31 mm Width, Open, C3 Internal Clearance, W33 Lubrication Groove$42.77| MFR / Brand | Torrington |
|---|---|

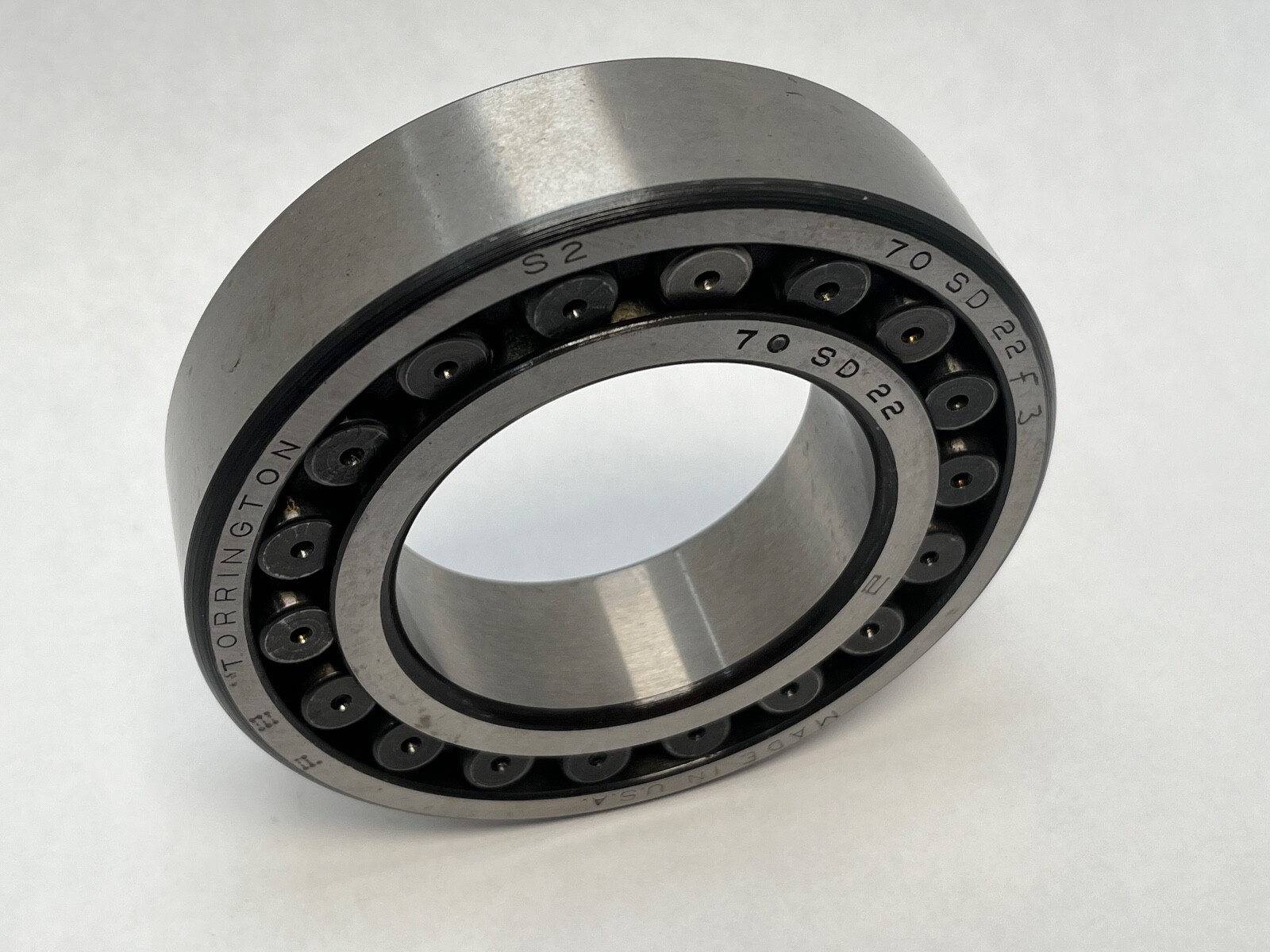

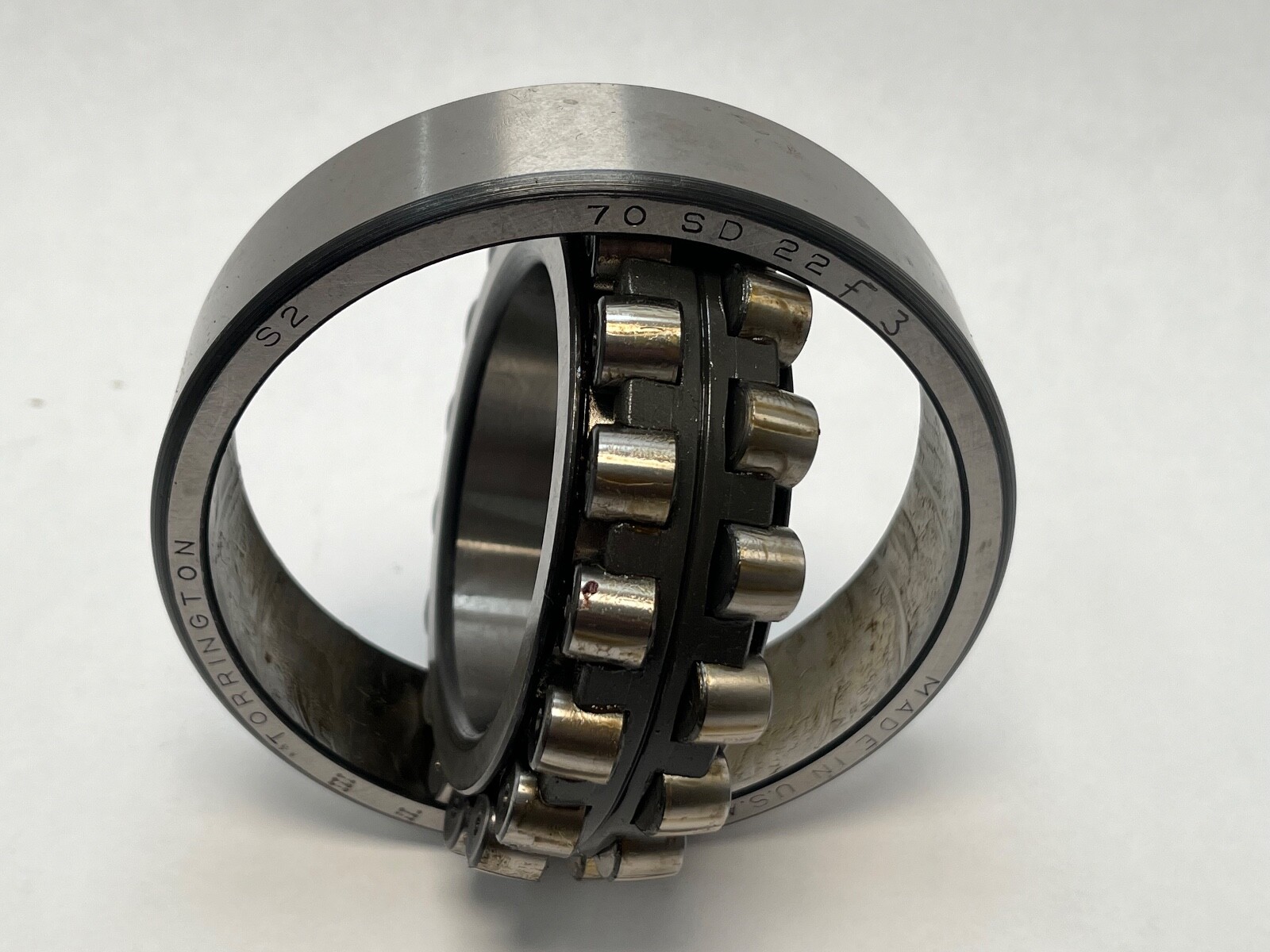

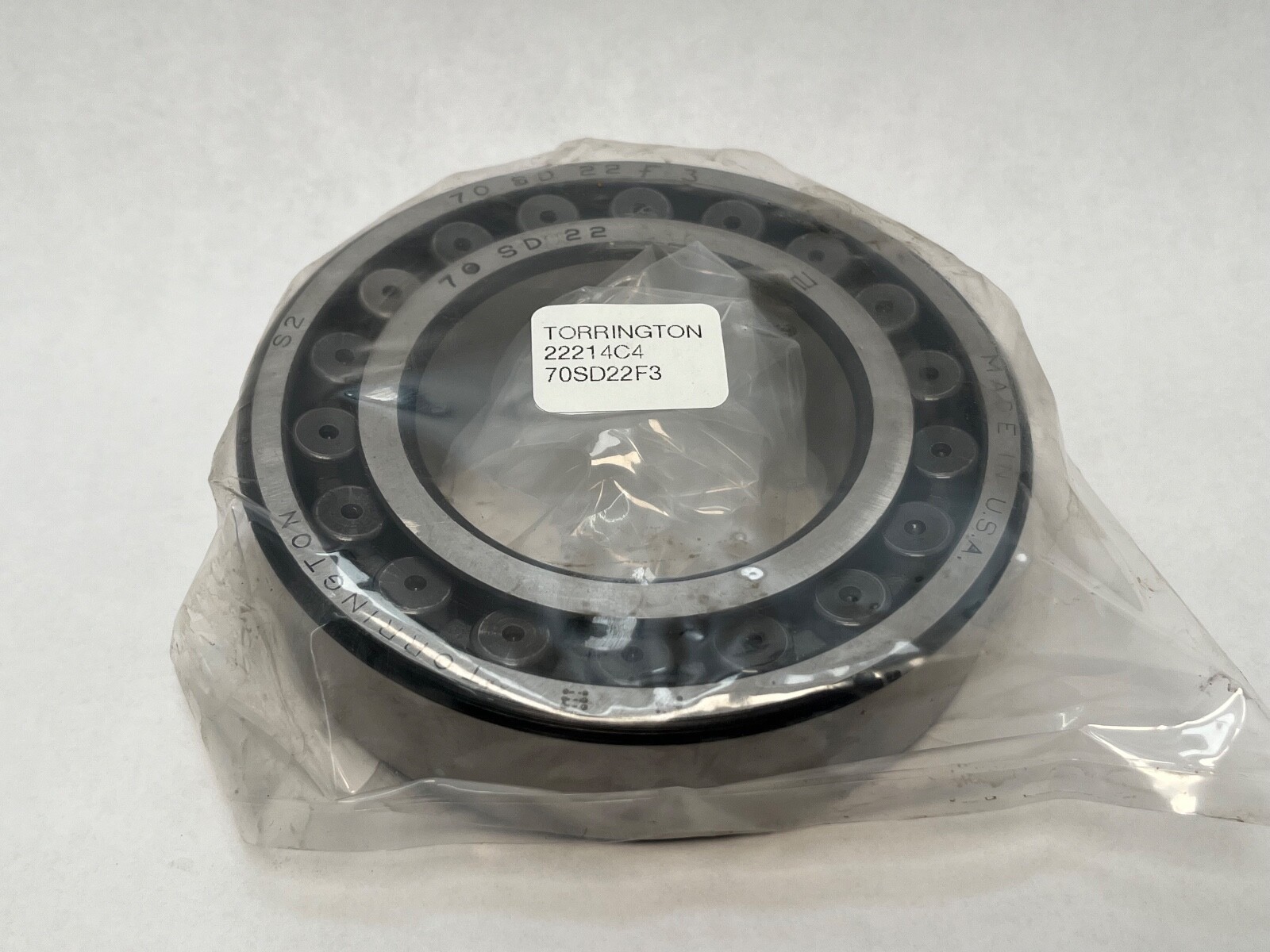

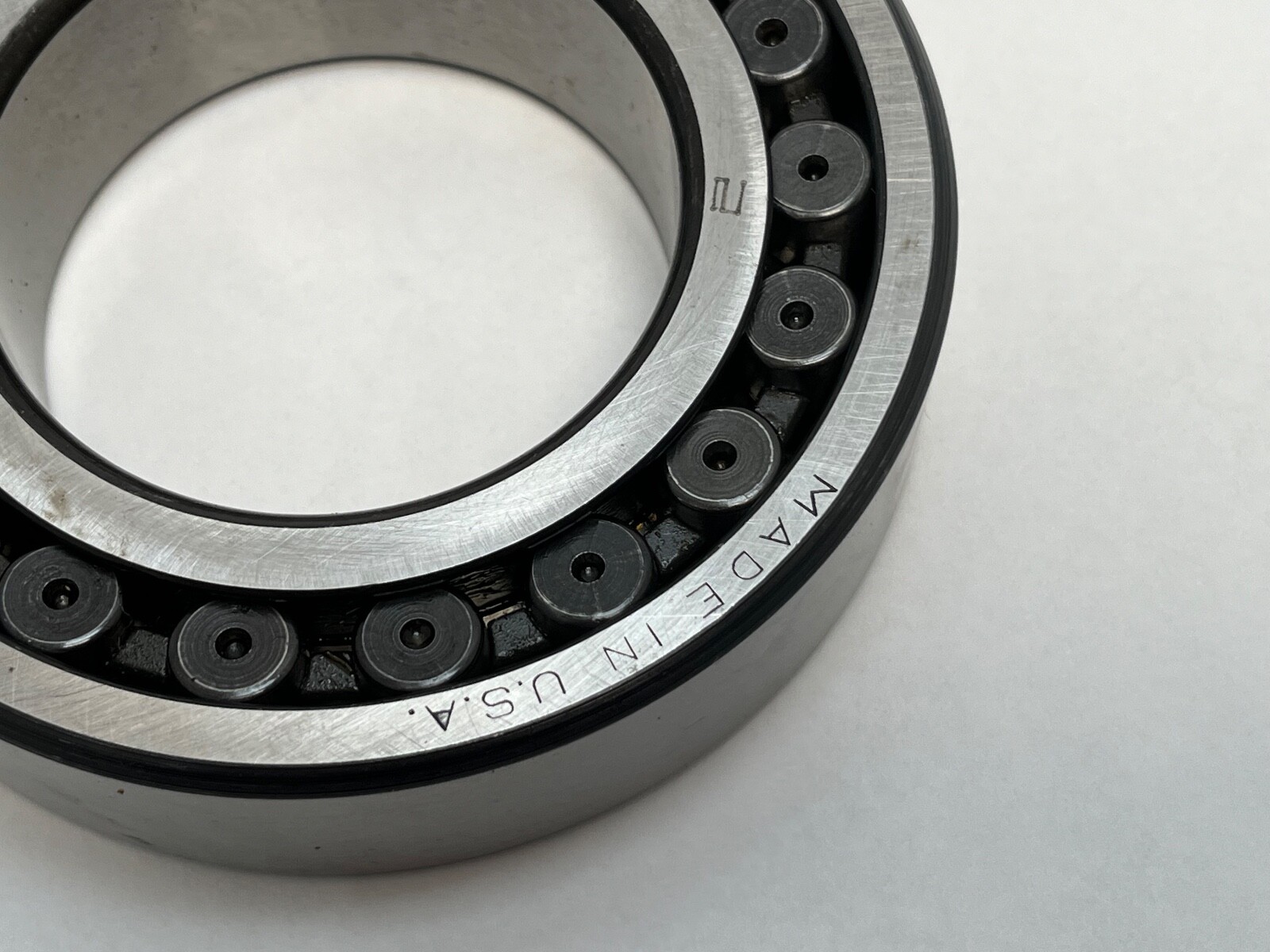

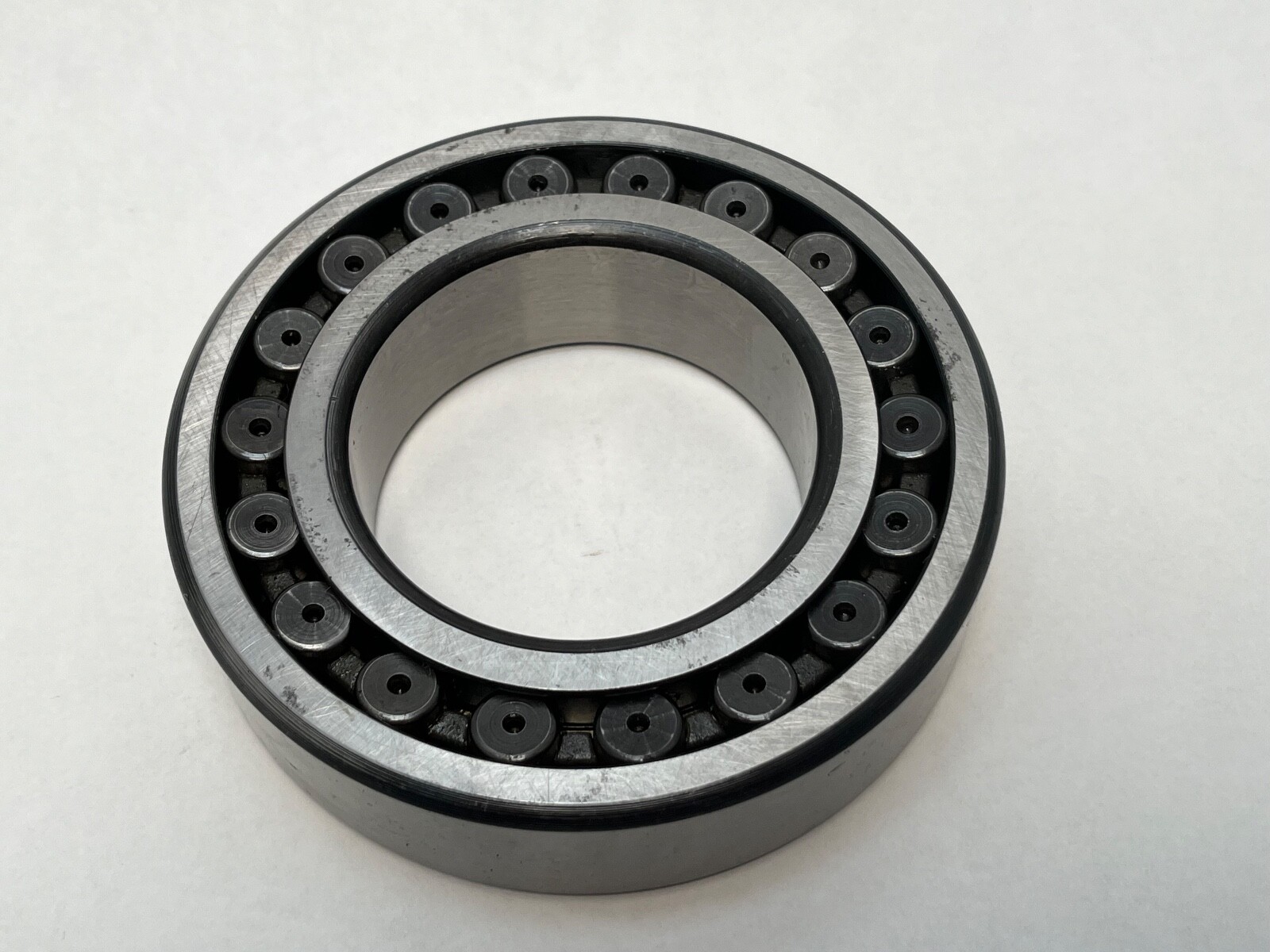

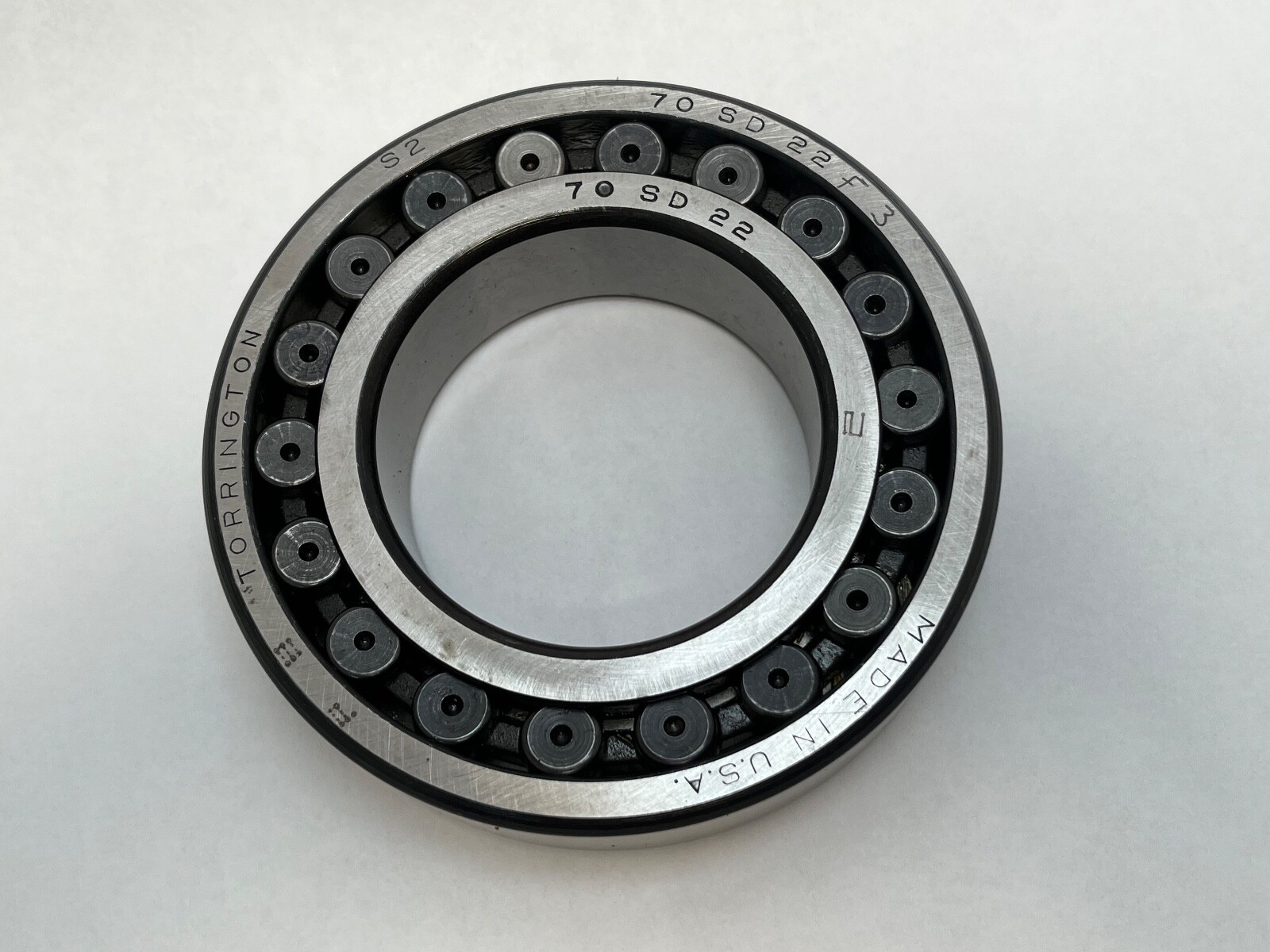

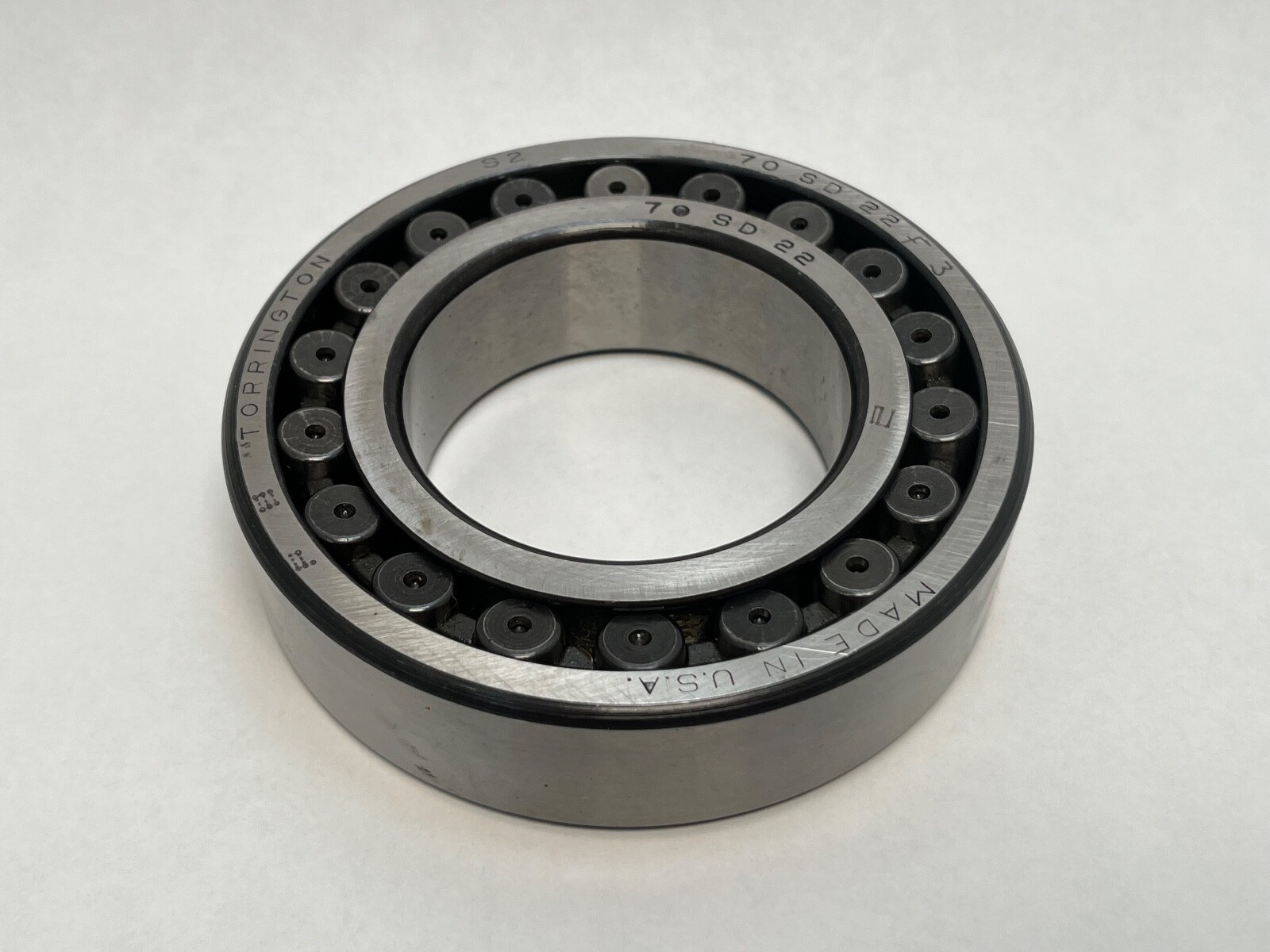

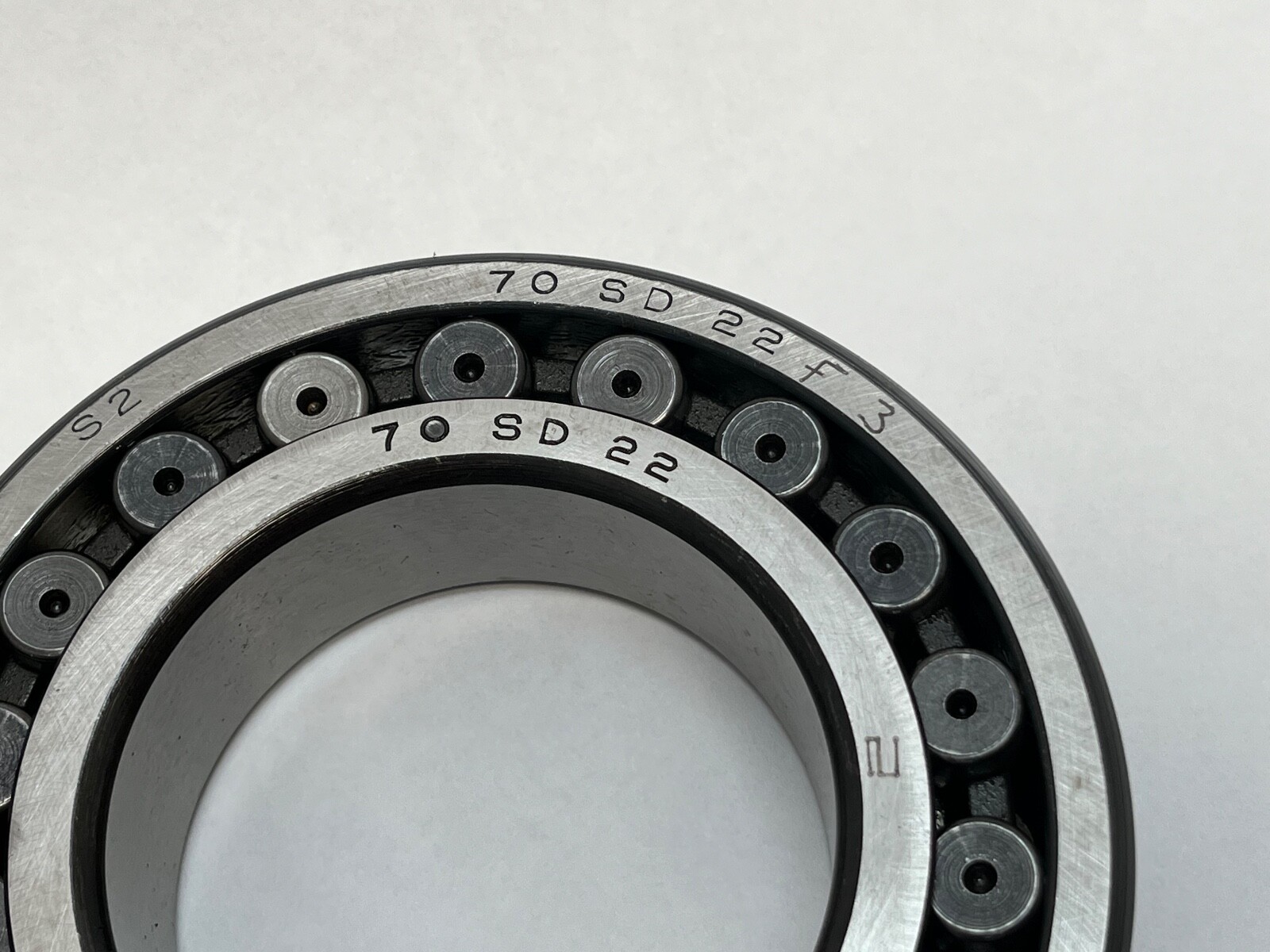

| MPN | 22214C4 |
| Model | 22214 C4 / 70SD22 F3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 31 mm |
| Material | Bearing Steel |
|---|---|
| Min Temp | -40°C |
| Cage Type | Steel |
| Dynamic Load Rating | 240 kN |
| Static Load Rating | 275 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Rollers |
| Max Temp | 200°C |
| Item Weight | 3.64 lbs |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Internal Clearance | C4 |
| Limiting Speed | 4800 rpm |
| Cross Reference 1 | SKF 22214 E/C4 |
|---|---|
| Cross Reference 2 | FAG 22214E1.C4 |
Can’t find a part you’re looking for? CLICK HERE TO CONTACT US!-We can get all parts needed at competitive prices -International shipping is offered on every item and all orders-Shipping is combined on all orders-Collect Shipping offered for UPS, FedEx, DHL, FreightSAME DAY SHIPPING ON ALL ITEMSNEXT DAY SHIPPING AVAILABLE AT CHECKOUT
