SKF22214-CKJ-C5-W33Double-Row Spherical Roller Bearing, 70 x 125 x 31 mm, 1:12 Tapered Bore, Stamped Steel Cages, W33 Lubrication, C5 Extra-Loose Clearance

Product Description

What this part is:

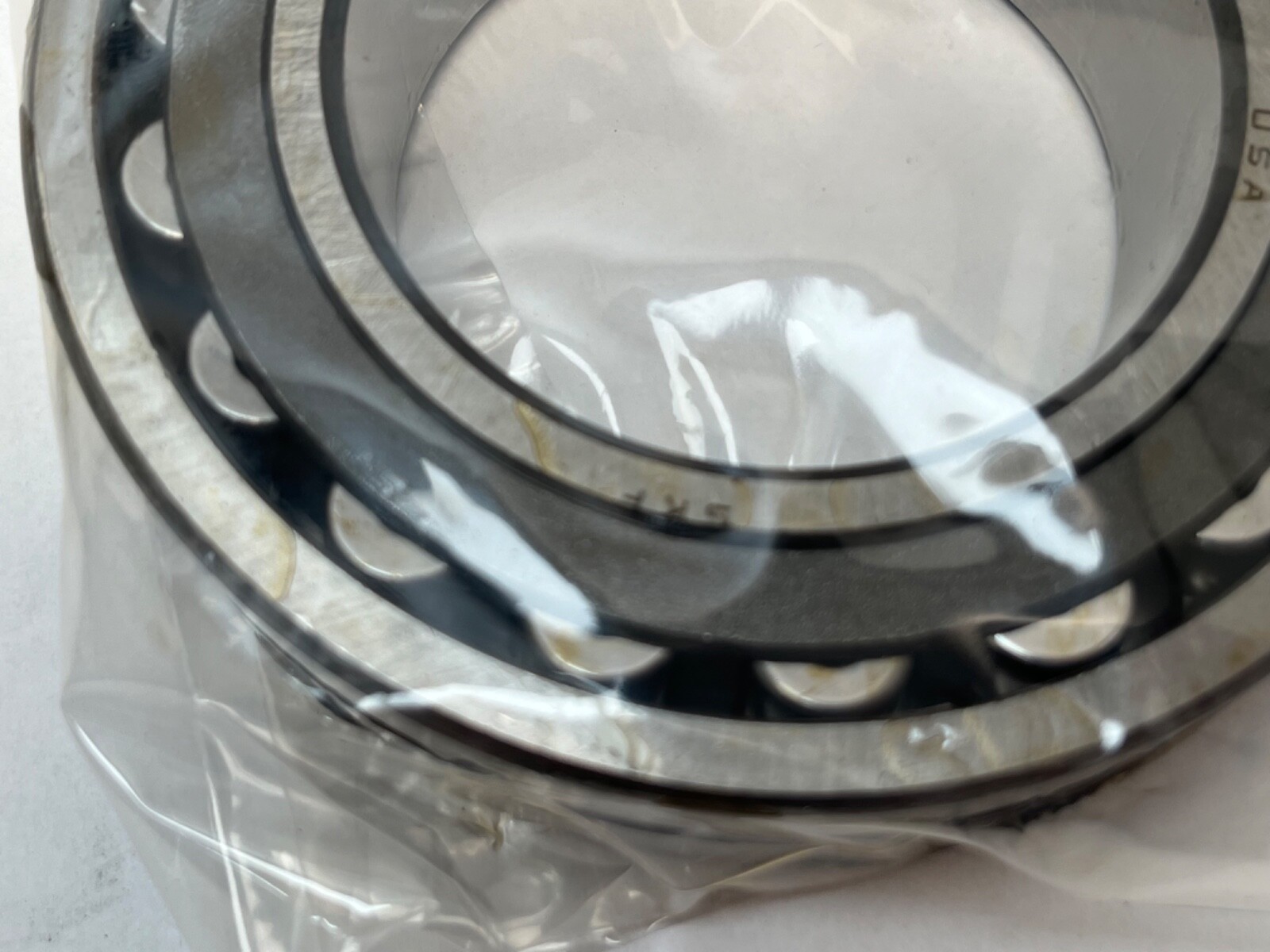

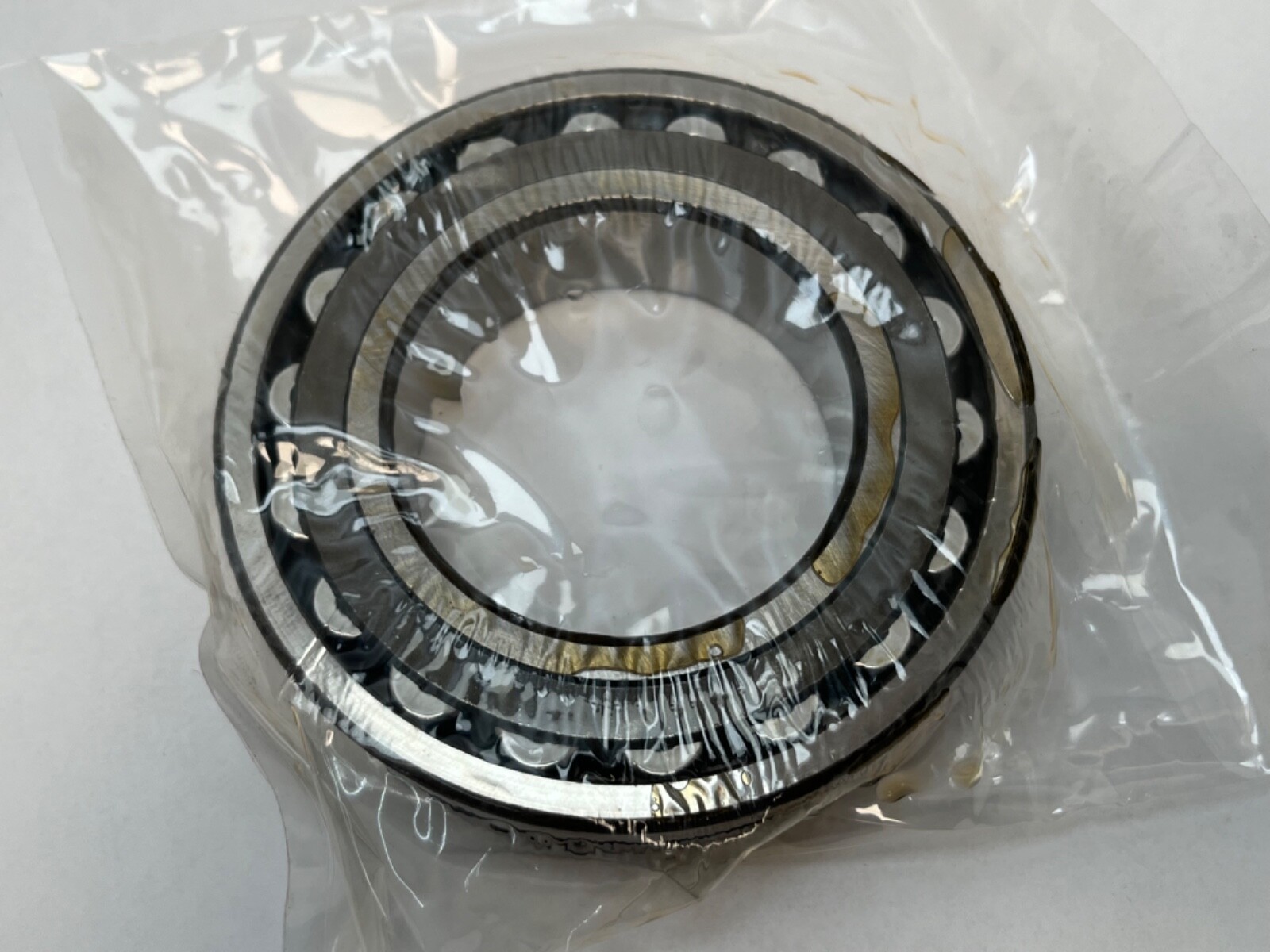

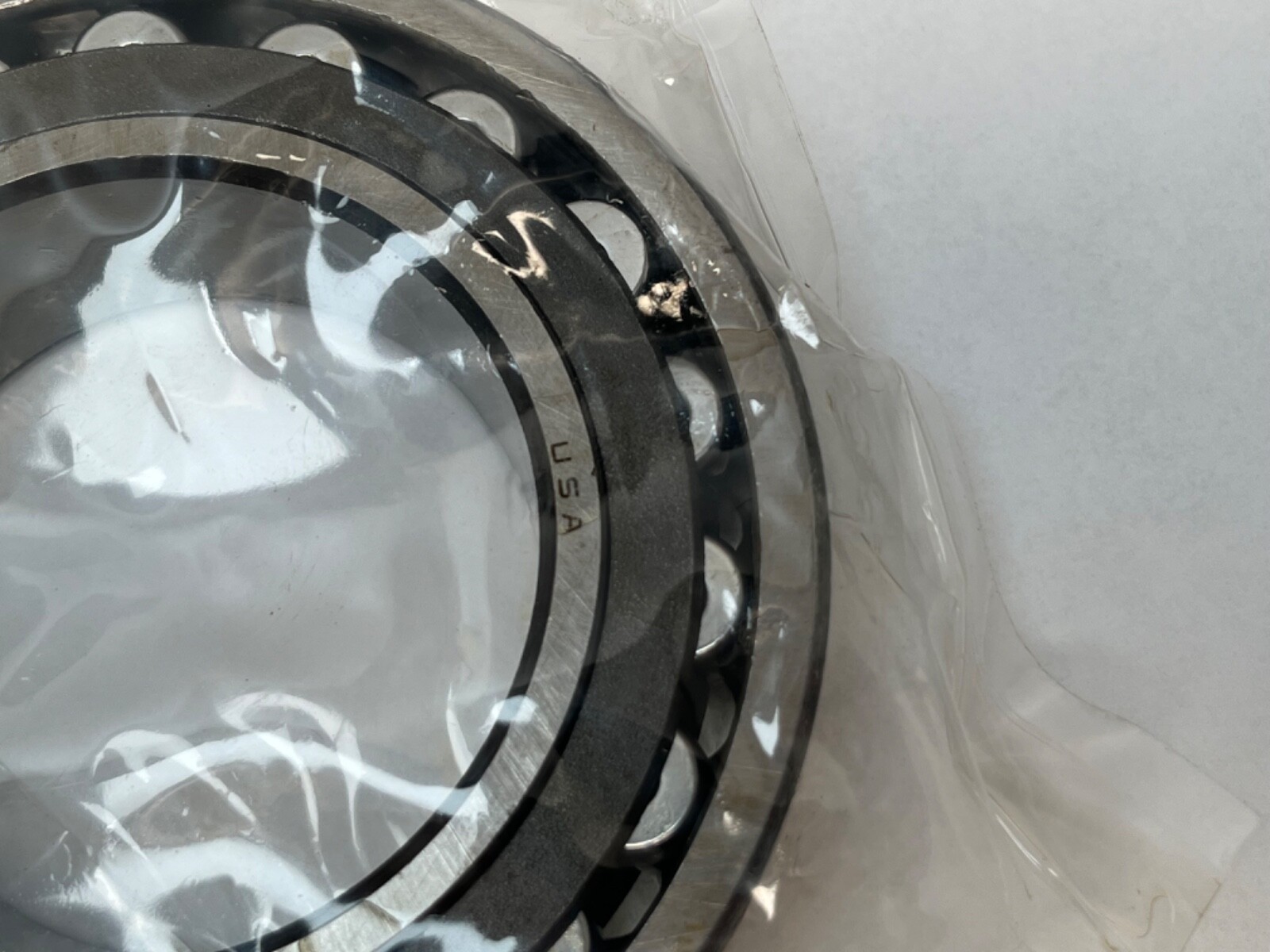

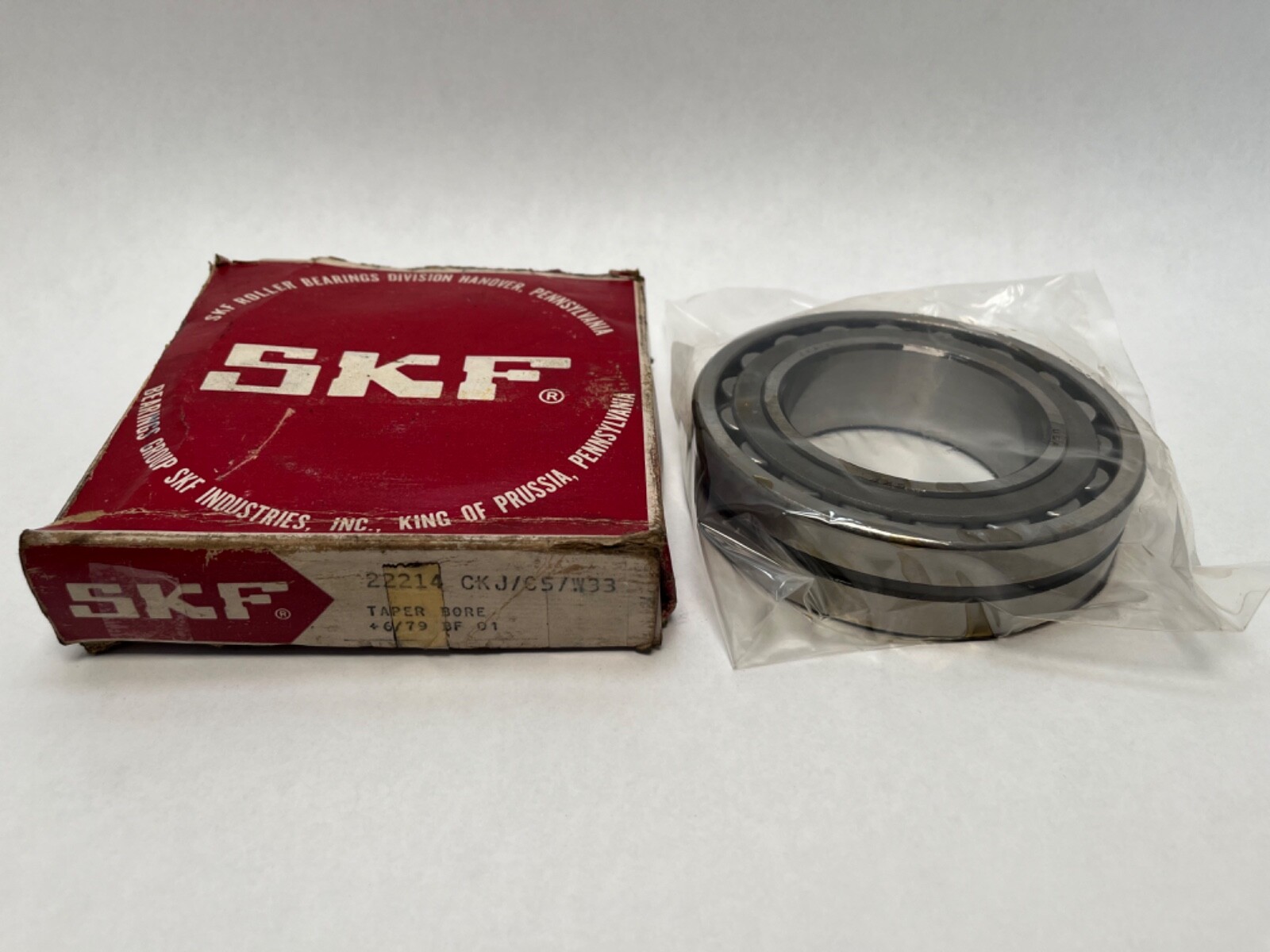

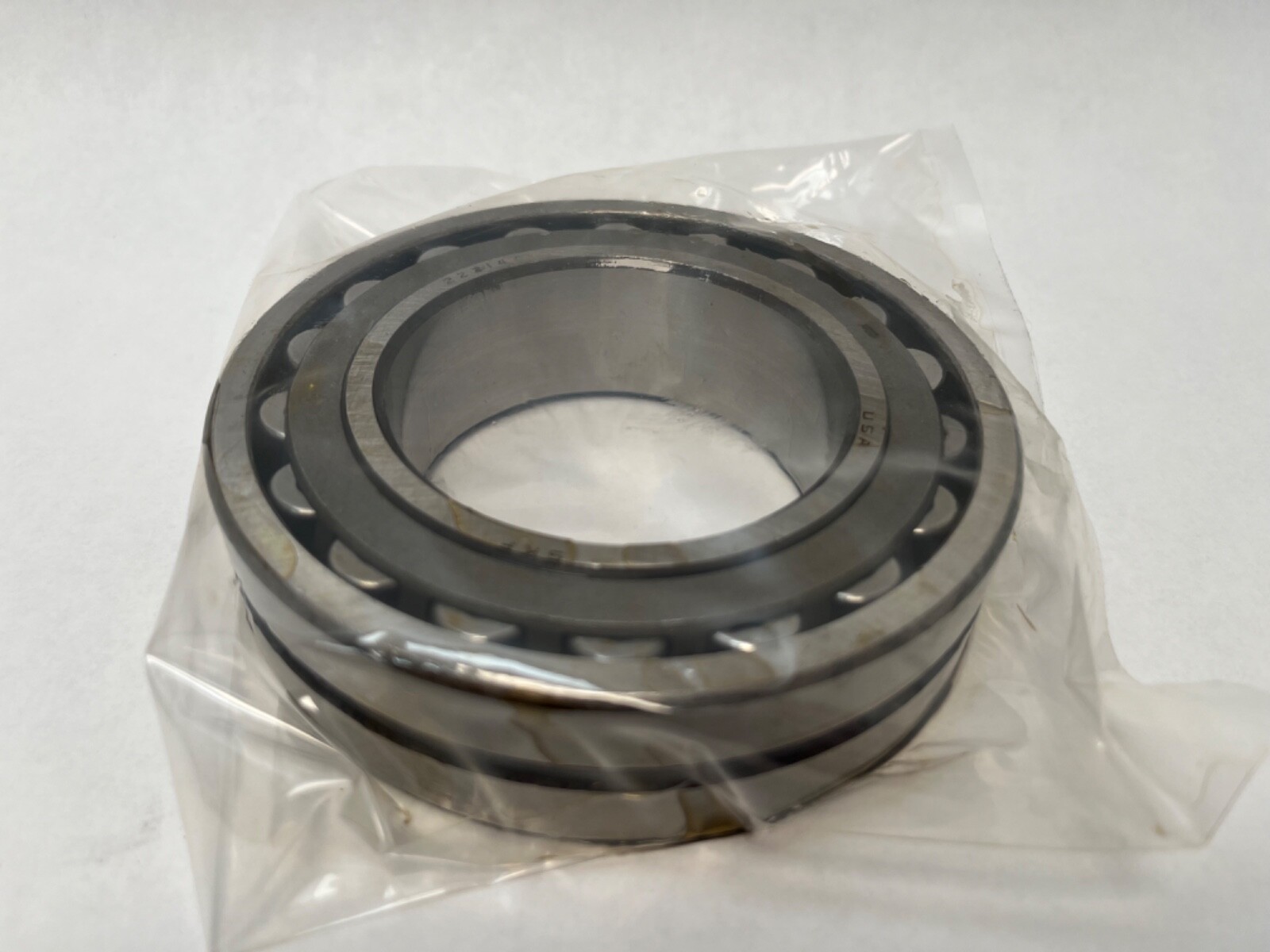

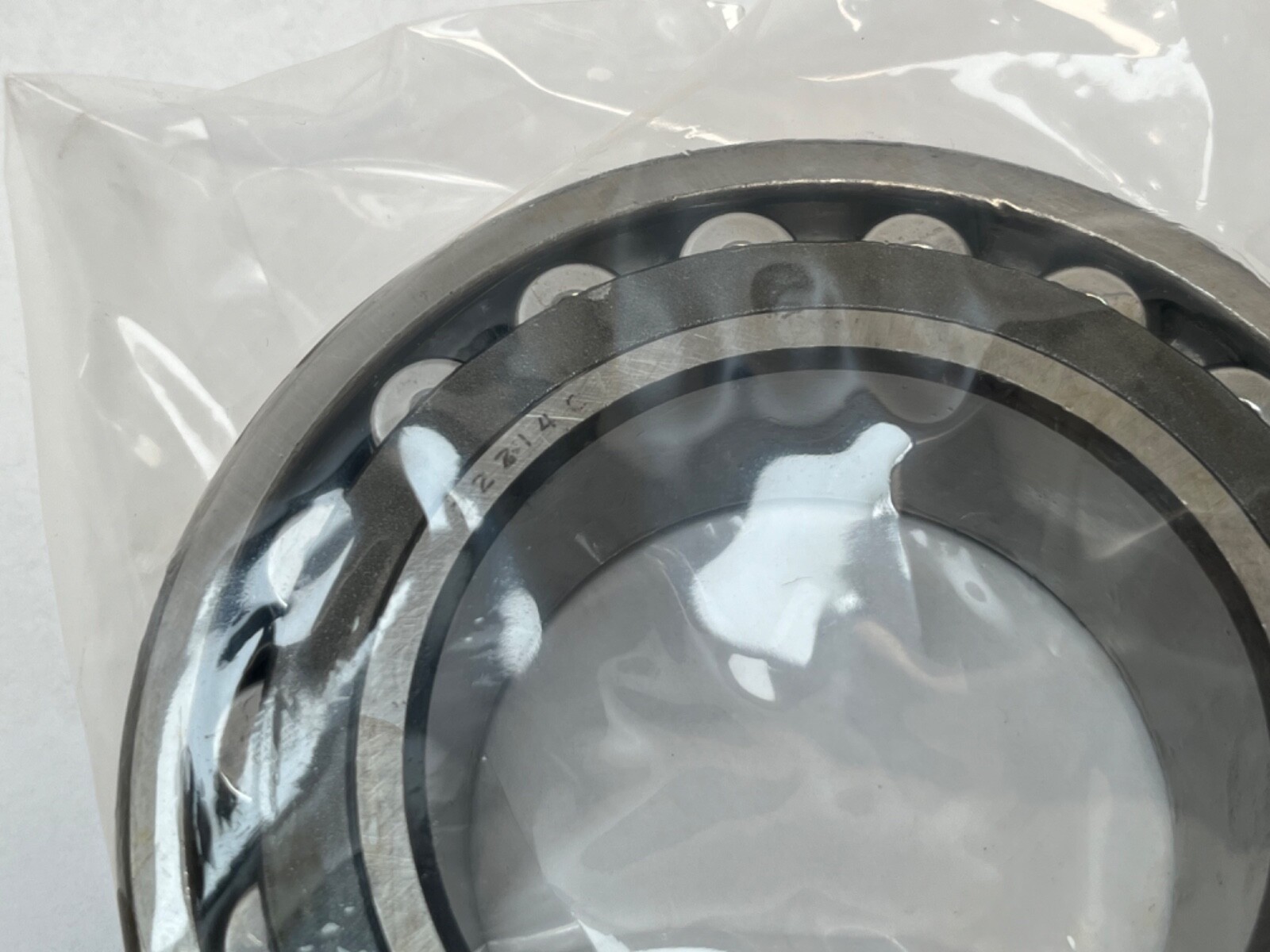

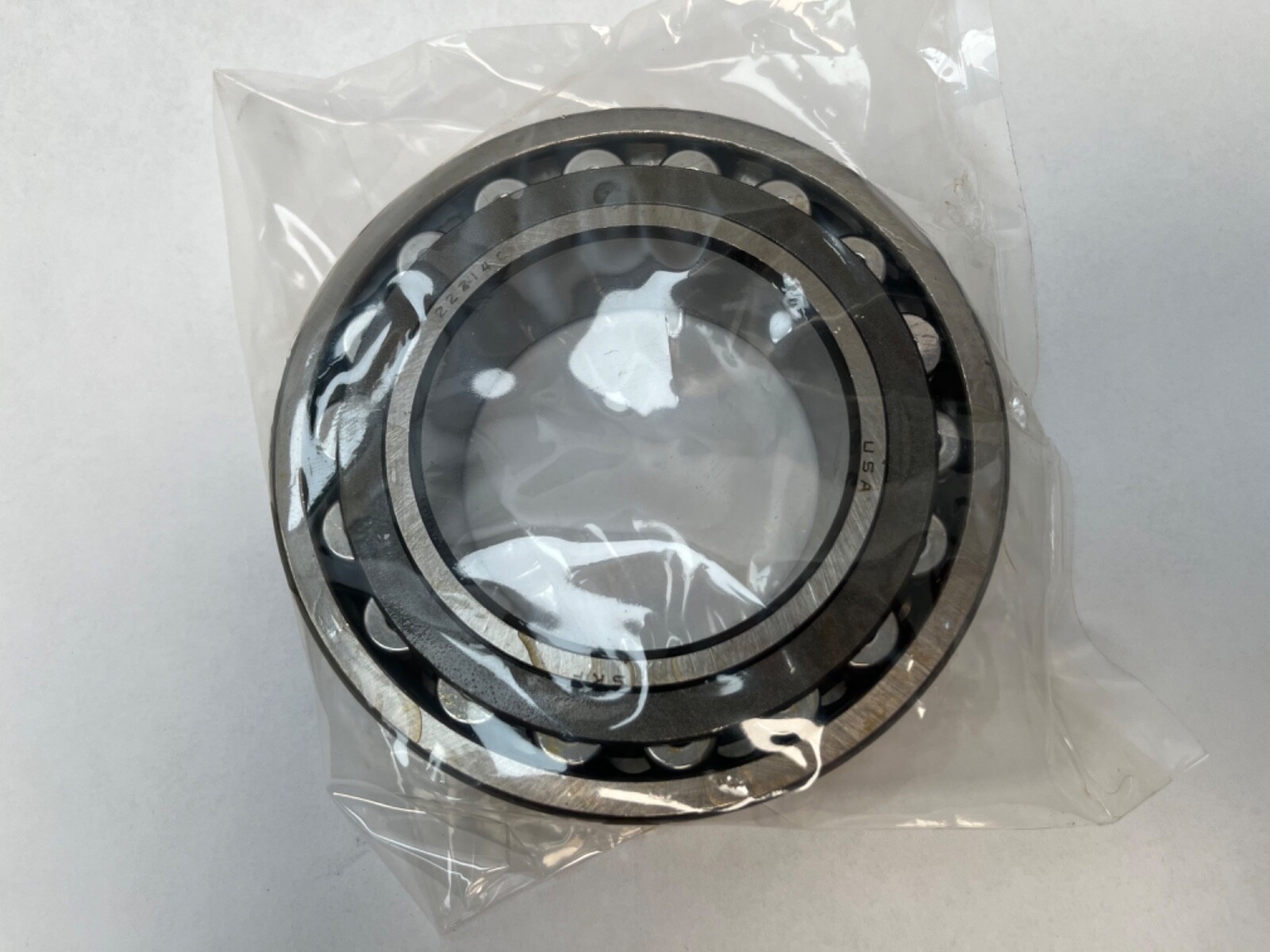

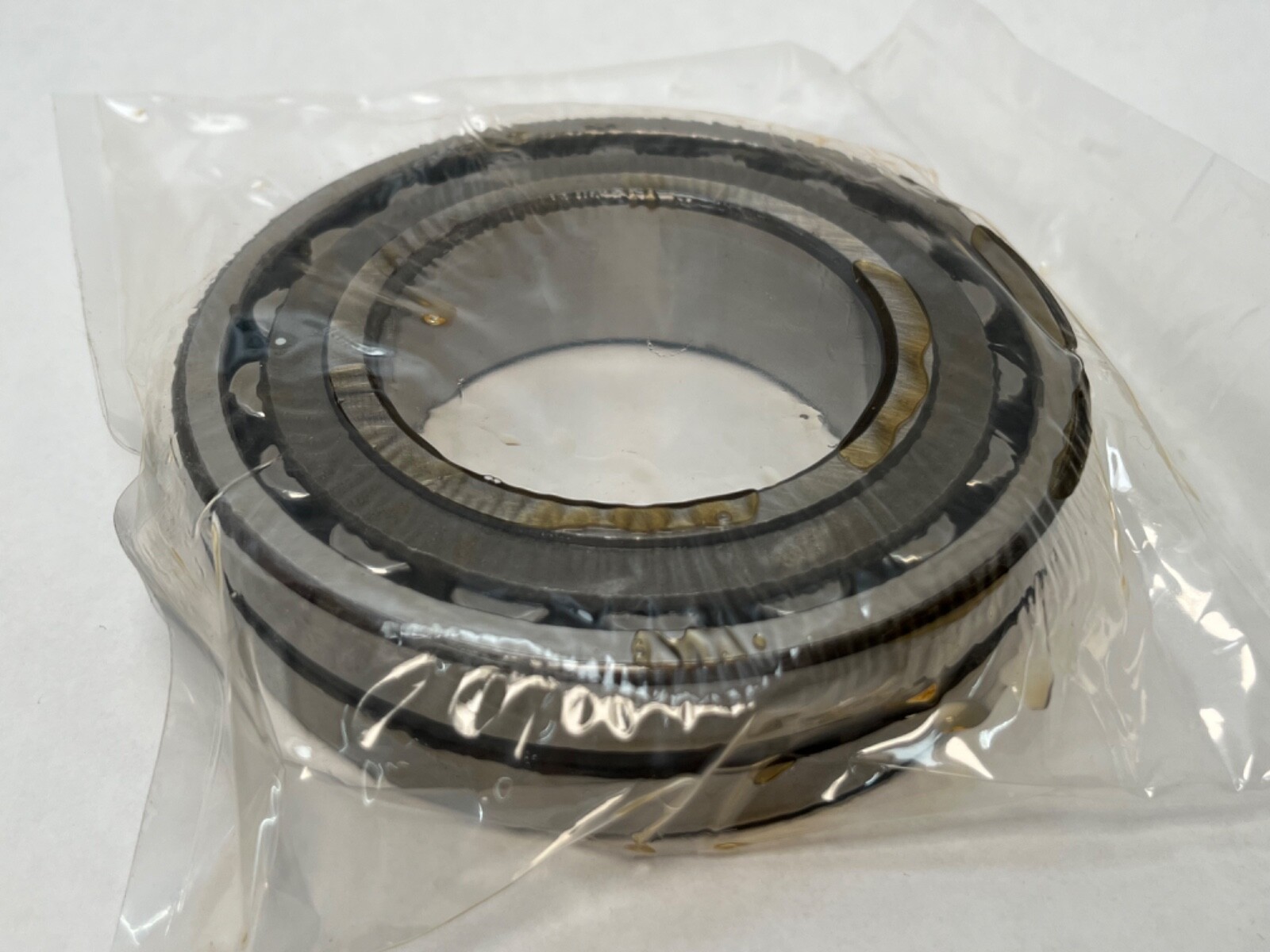

SKF 22214 CKJ C5 W33 double-row spherical roller bearing: 70 mm bore, 125 mm outside diameter, 31 mm width. 1:12 tapered bore, stamped steel cages on a guide ring, outer-ring lubrication groove with three holes, C5 radial internal clearance. Unit Quantity: 1 Pc, one complete non-separable bearing.

Decoding the designation:

222 — double-row spherical roller bearing, ISO dimension series 22.

14 — bore code; 14 x 5 = 70 mm bore.

C — SKF internal design: optimised internal geometry with a guide ring between the roller rows in place of a fixed central rib.

K — tapered bore, taper 1:12.

J — stamped steel cage, centred on the inner ring.

C5 — radial internal clearance greater than C4, which is itself greater than C3.

W33 — circumferential lubrication groove around the outer ring plus three radial lubrication holes to the raceway, delivering grease or oil between the two roller rows.

Specifications:

Bearing Type: Spherical Roller Bearing, Double Row. Bore Diameter: 70 mm. Bore Type: Tapered, 1:12. Outside Diameter: 125 mm. Overall Width: 31 mm. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Pressed steel. Internal Clearance: C5. Precision Class: ISO normal (ABEC 1 / P0). Lubricant: grease or oil.

Dimensions and mounting:

Chamfer rs min: 1.5 mm. Fillet ras max: 1.5 mm. Shaft abutment da min: 79 mm. Housing abutment Da max: 116 mm. Inner ring shoulder d1: 84 mm. Outer ring shoulder D1: 113 mm. Outer ring lubrication groove width: 7 mm. Lubrication hole diameter: 3.5 mm, three holes. Mounts on an H314 adapter sleeve (60 mm shaft seat) with KM14 locknut and MB14 lockwasher, is withdrawn with an AH314 withdrawal sleeve, or sits on a machined 1:12 tapered shaft seat.

Compatibility and replacement:

Tapered-bore 70 x 125 x 31 mm bearings with C5 clearance from other makers, each a different internal design: SKF 22214 EK/C5W33, FAG 22214-E1-K-C5, Timken 22214KEJW33C5, NTN 22214EAKW33C5. SKF 22214 CCK/C4W33 is the same size at C4 clearance. The same designation without the K suffix has a straight cylindrical bore; a brass-caged version carries CA in SKF nomenclature.

Frequently asked questions:

What are the dimensions of the SKF 22214 CKJ C5 W33?

The bore is 70 mm with a 1:12 taper, the outside diameter is 125 mm and the width is 31 mm.

What does C5 mean?

C5 is radial internal clearance greater than C4, which is itself greater than C3.

Which adapter sleeve fits this bearing?

The H314 adapter sleeve with KM14 locknut and MB14 lockwasher fits the 70 mm tapered bore.
