A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

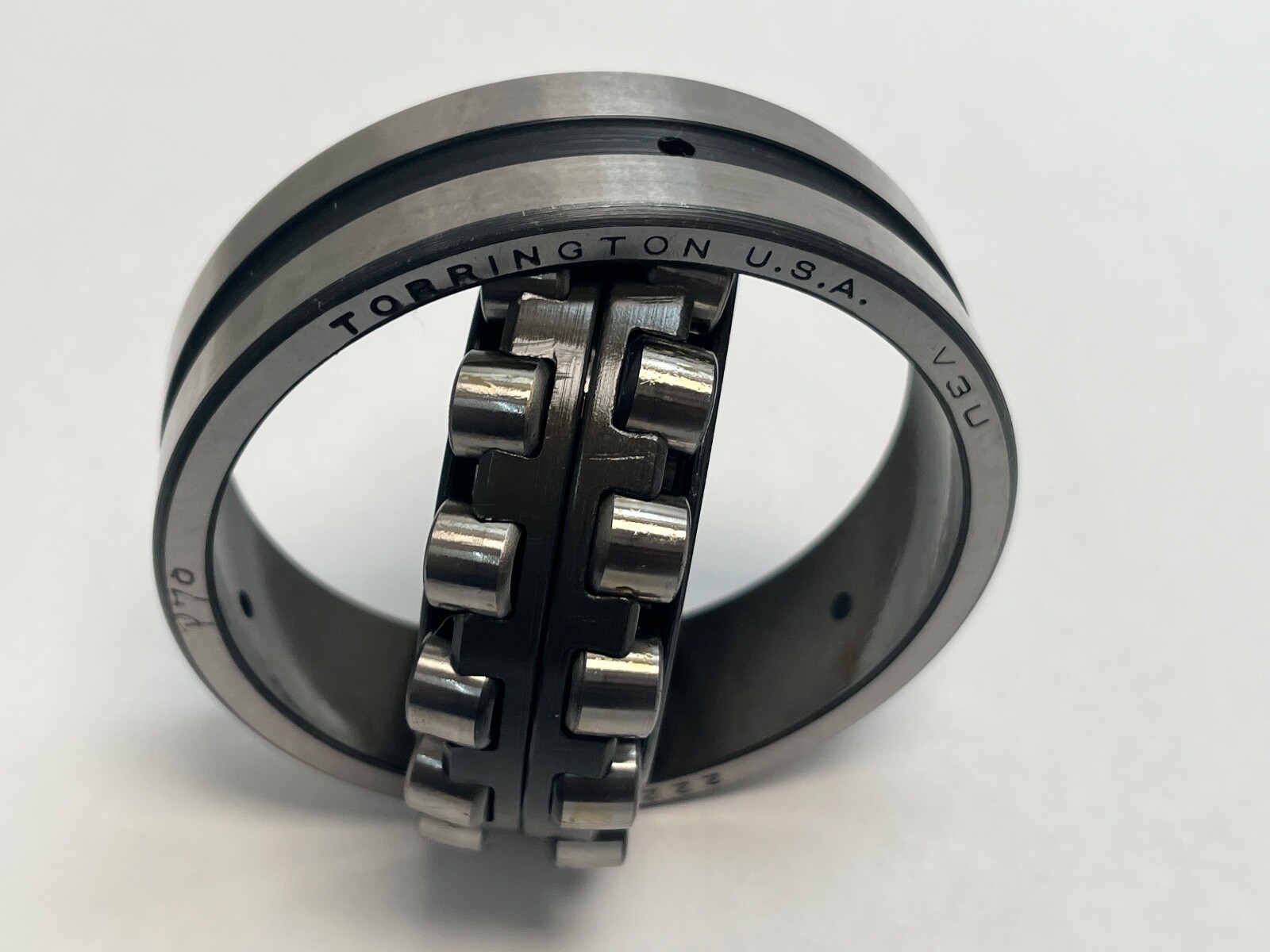

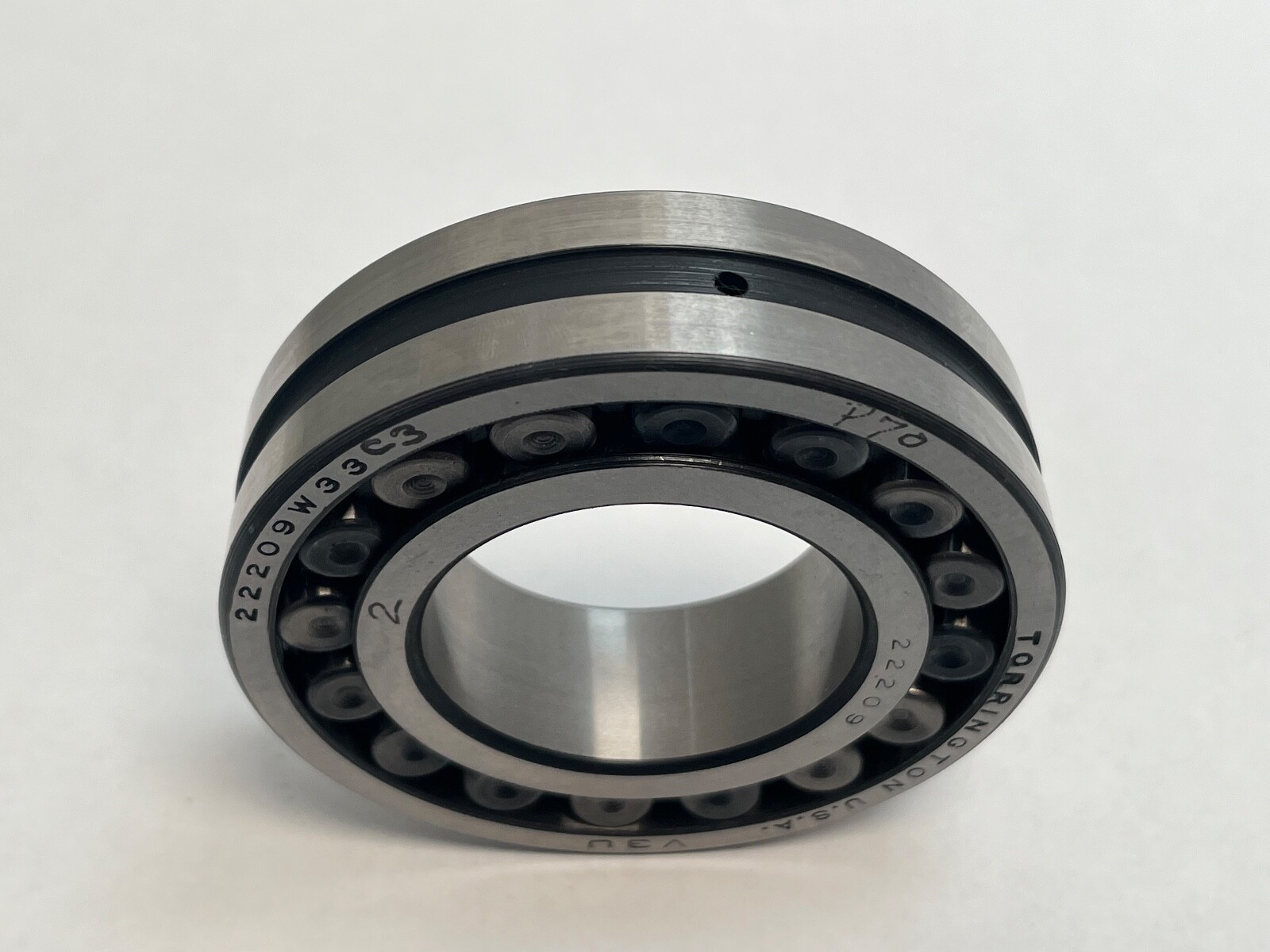

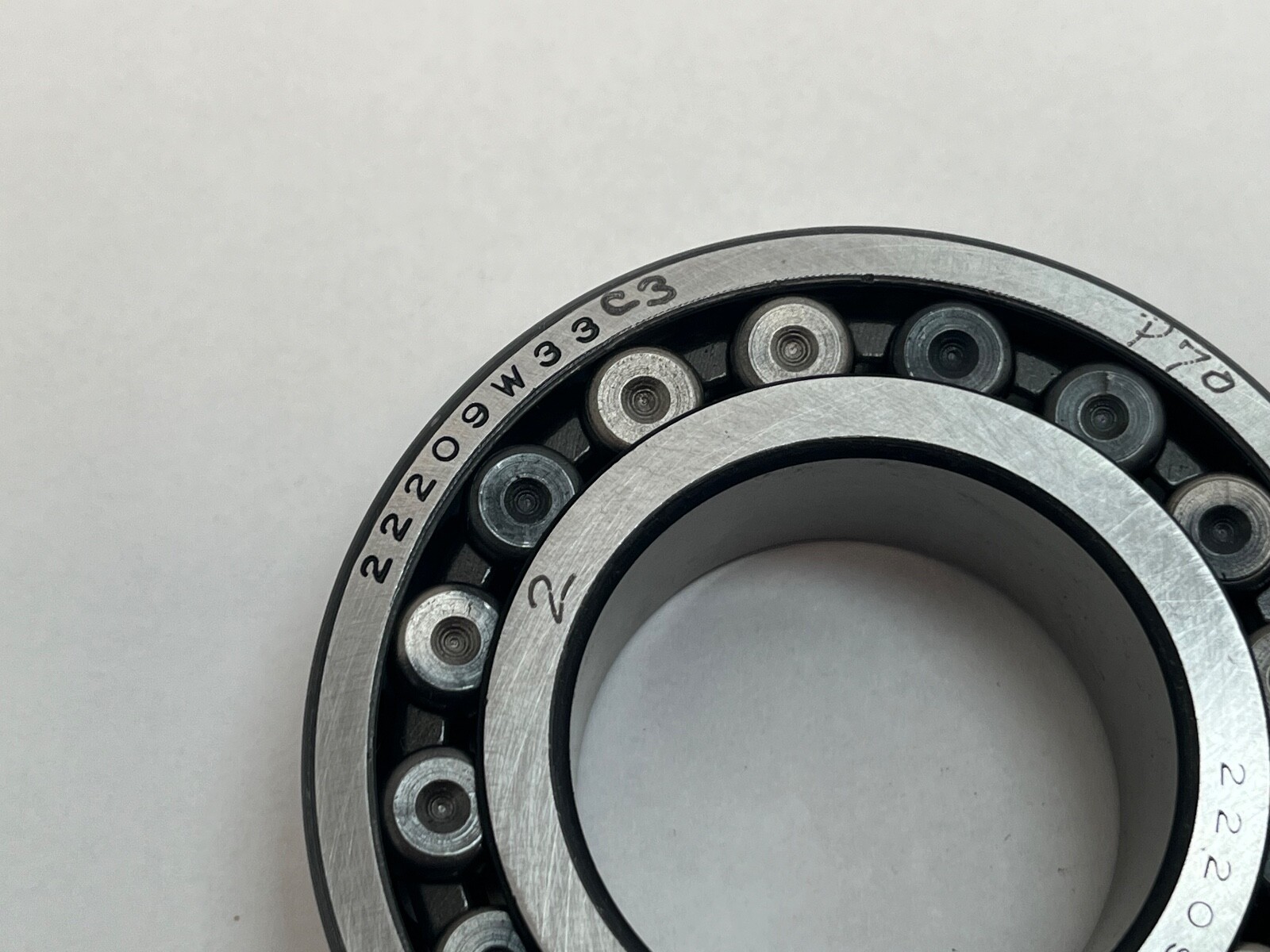

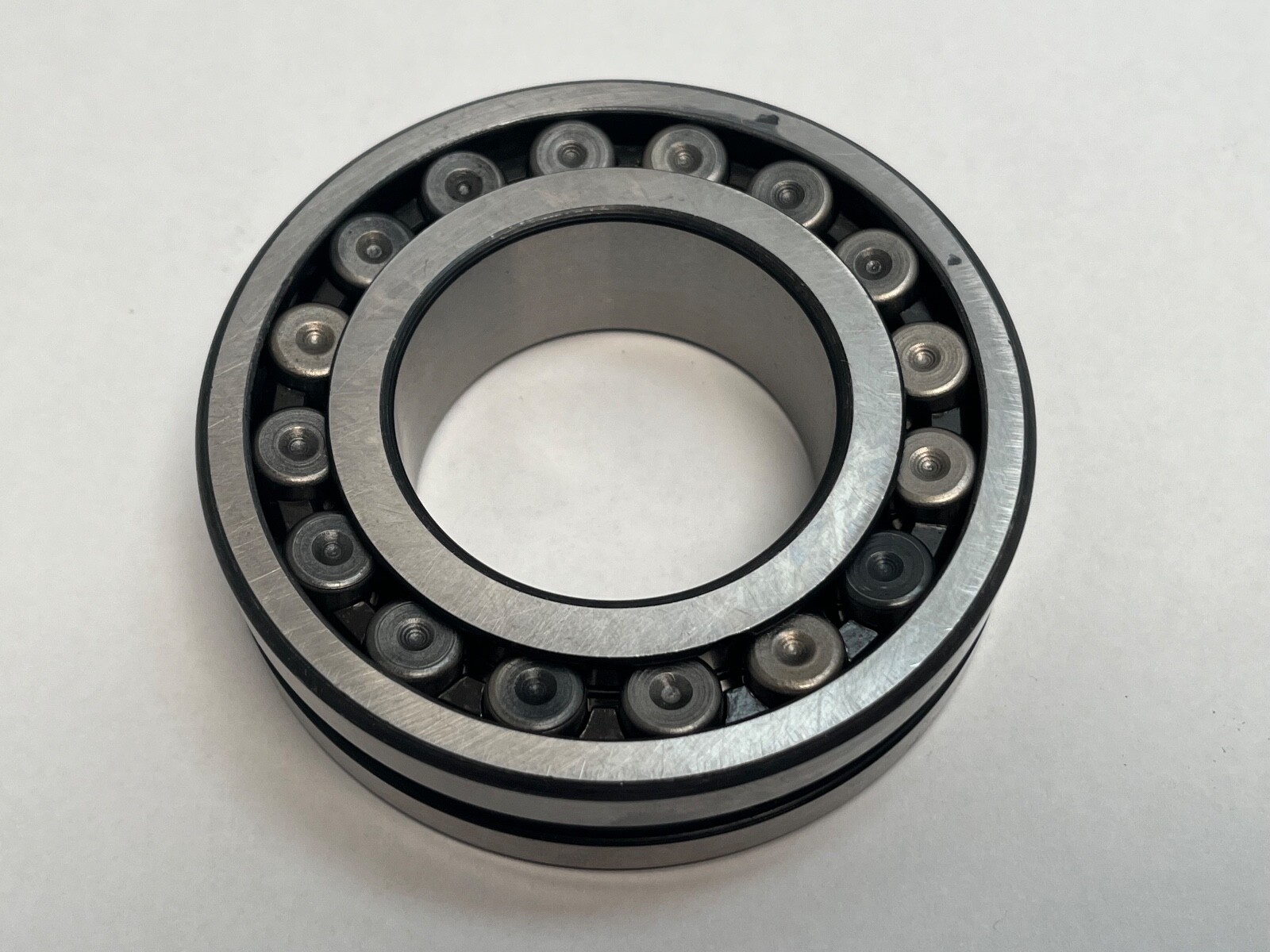

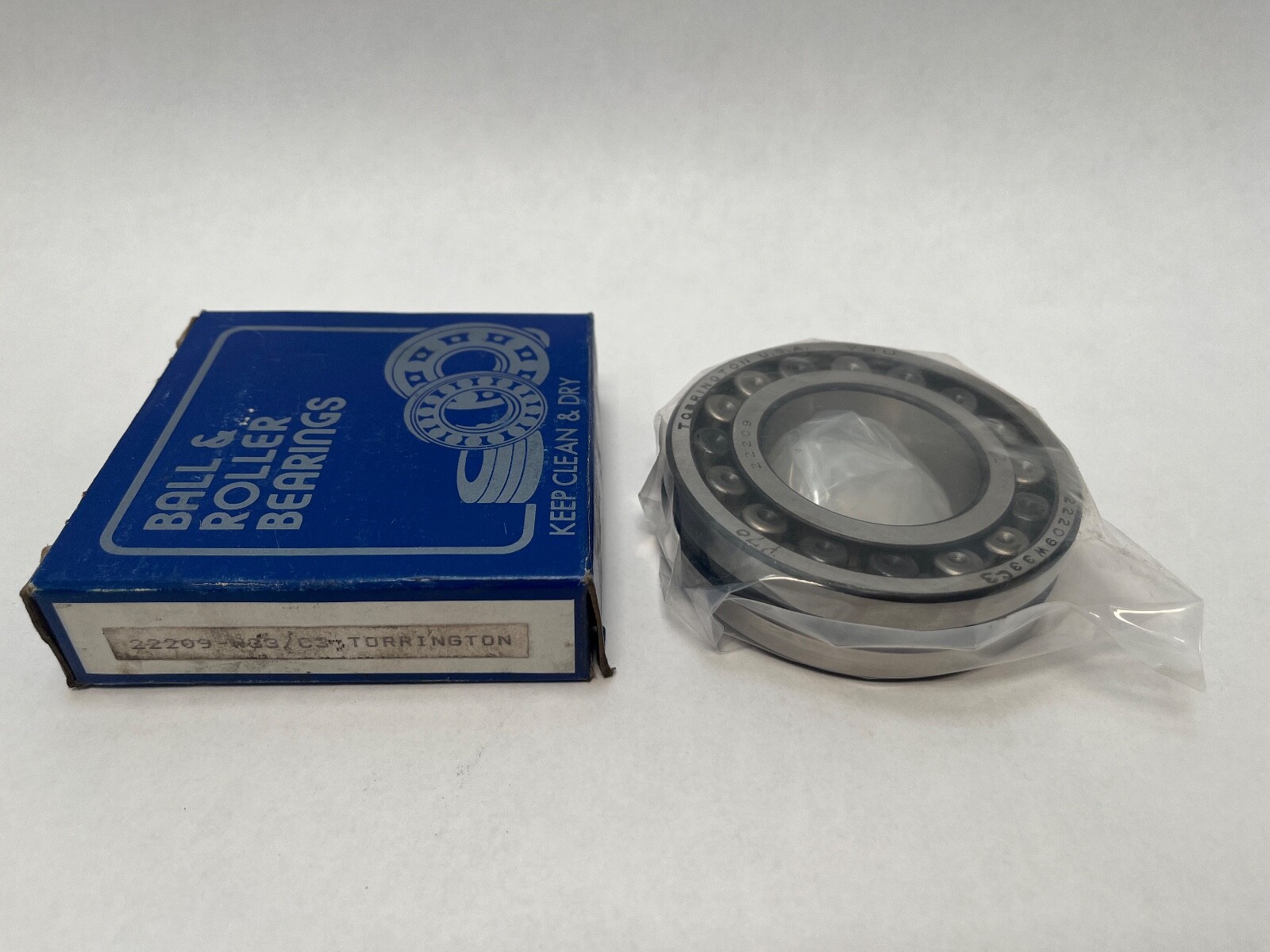

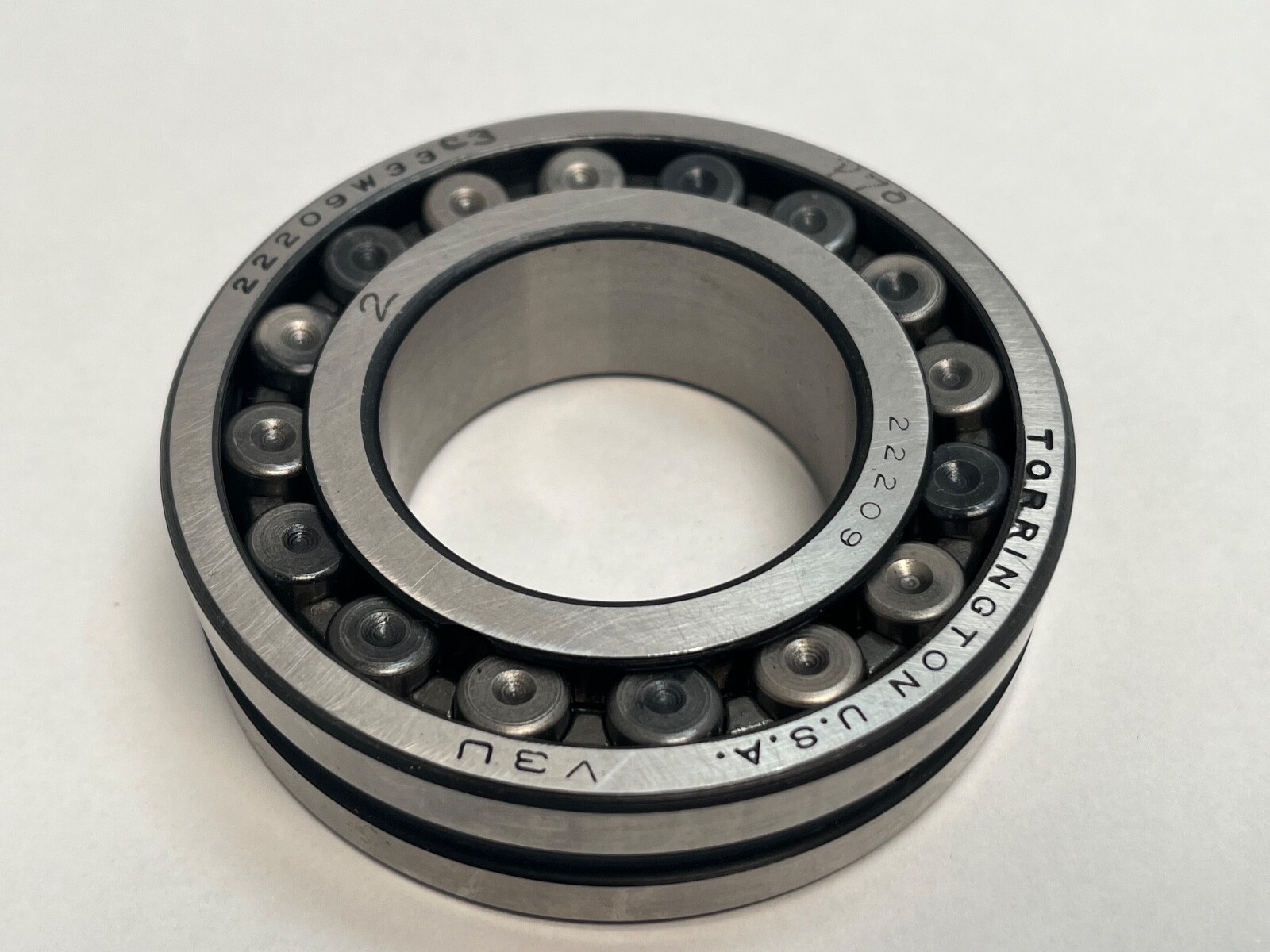

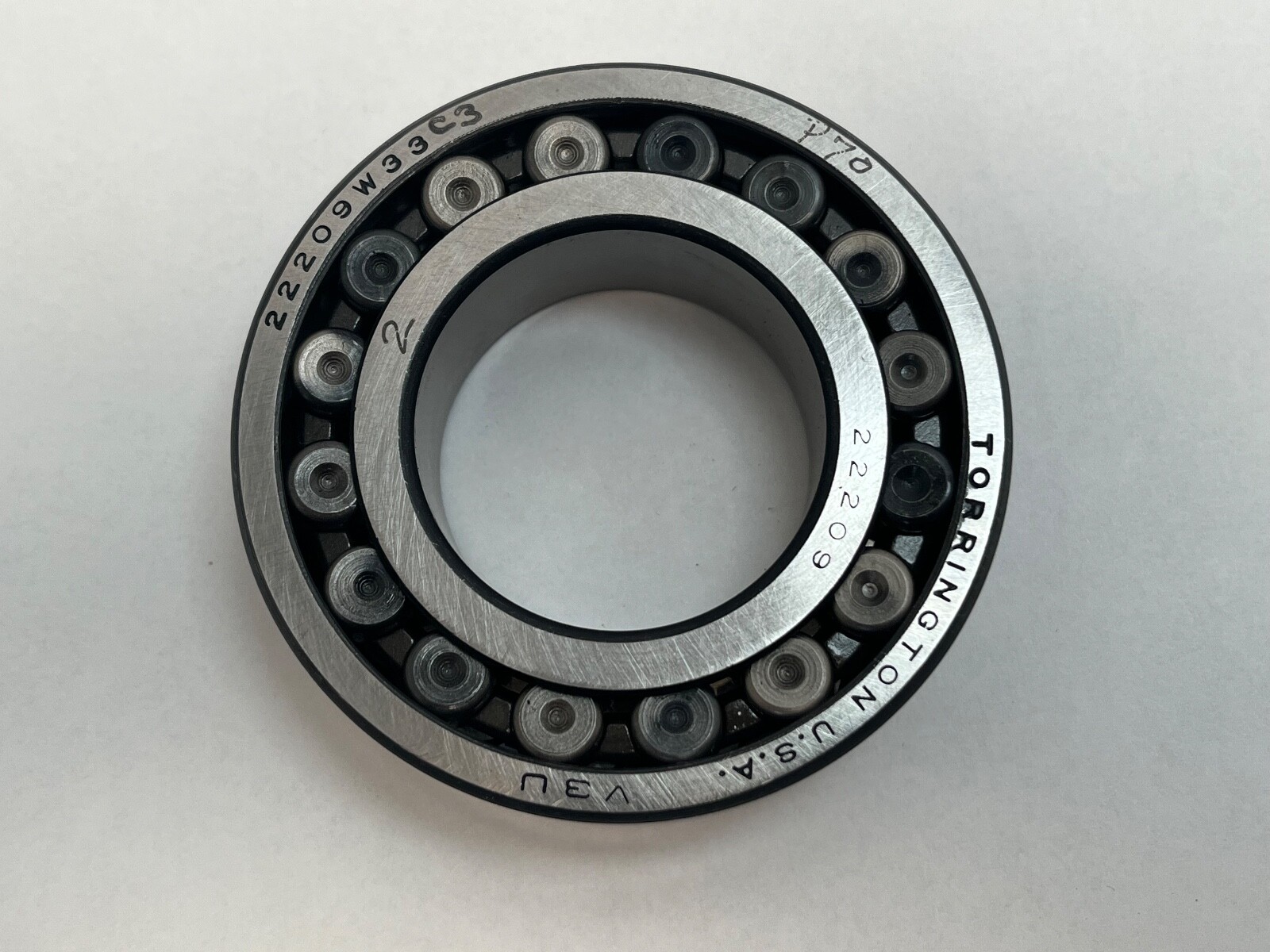

Torrington 22209W33C3 spherical roller bearing, 45 mm bore x 85 mm OD x 23 mm wide, straight bore, W33 lube groove, C3 clearance. Successor: Timken 22209EJW33C3.
List Price
$42.49
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| Model | 22209W33C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Lubricant | grease or oil |
| Dynamic Load Rating | 109,000 N (Successor 22209EJW33C3 data) |
| Static Load Rating | 108,000 N (Successor 22209EJW33C3 data) |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Mpn Variants | 22209W33C3, 22209-W33-C3, 22209 W33 C3, 45SD22 C3 |
| Compatible With Replaces | Timken 22209EJW33C3 (current successor design) |
| Additional Attributes | Successor 22209EJW33C3 data: e factor 0.26; Y0 2.58; Y1 2.64; Y2 3.93; shaft backing shoulder 55 mm; housing backing shoulder 77 mm; max fillet radius 1 mm |
| Relubrication Feature | W33 lubrication groove and three holes in outer ring |
| Design Units | Metric |
| Cross Reference 1 | Timken 22209EJW33C3 |
|---|---|
| Cross Reference 2 | SKF 22209 E/C3 |
| Cross Reference 3 | FAG 22209-E1-XL-C3 |
| Cross Reference 4 | NSK 22209EAE4C3 |
Torrington 22209W33C3 double-row spherical roller bearing: 45 mm straight bore, 85 mm outside diameter, 23 mm width, W33 lubrication groove, C3 internal clearance. Torrington is a Timken brand; the current Timken design is 22209EJW33C3.
222 — spherical roller bearing, ISO dimension series 22.
09 — bore code. 09 × 5 = 45 mm bore.
W33 — lubrication groove with three radial holes in the outer ring.
C3 — radial internal clearance greater than normal, for heat, interference fits or thermal expansion.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Bore Type: Straight. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil.
Successor 22209EJW33C3 data: Dynamic Load Rating: 109,000 N. Static Load Rating: 108,000 N. Reference Speed: 5,600 rpm grease; 6,900 rpm oil. e factor: 0.26. Y1: 2.64. Y2: 3.93. Y0: 2.58.
The spherical outer raceway lets the bearing self-align under shaft deflection while carrying heavy radial load and axial load in both directions. The W33 groove feeds grease or oil to the centre of both roller rows.
Successor 22209EJW33C3 data: Shaft Backing Shoulder Diameter: 55 mm. Housing Backing Shoulder Diameter: 77 mm. Maximum Fillet Radius: 1 mm.
Unit Quantity: 1 Pc. One complete bearing.
Same 45 × 85 × 23 mm straight-bore, C3-clearance envelope: Timken 22209EJW33C3, SKF 22209 E/C3, FAG 22209-E1-XL-C3, NSK 22209EAE4C3, NTN 22209EAW33C3.
