Spherical roller bearing, 20 mm bore x 52 mm OD x 15 mm wide, E internal design, glass-fibre reinforced polyamide TVPB cage, normal CN clearance.
List Price
$44.26
14 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 21304ETVPB |
| Model | 21304 E TVPB 21304E |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 20 mm |
| OD | 52 mm |
| Width | 15 mm |
| Material | Bearing Steel |
|---|---|
| Series | 21300 |
| Condition | New |
| Lubricant | Oil |
| Mpn Variants | 21304E.TVPB, 21304-E-TVPB, 21304ETVPB, 21304E |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Harmonization Code | 8482.30.00.40 |
| Cross Reference 1 | SKF 21304 CC |
|---|---|
| Cross Reference 2 | SNR 21304E |
| Cross Reference 3 | Koyo 21304R |

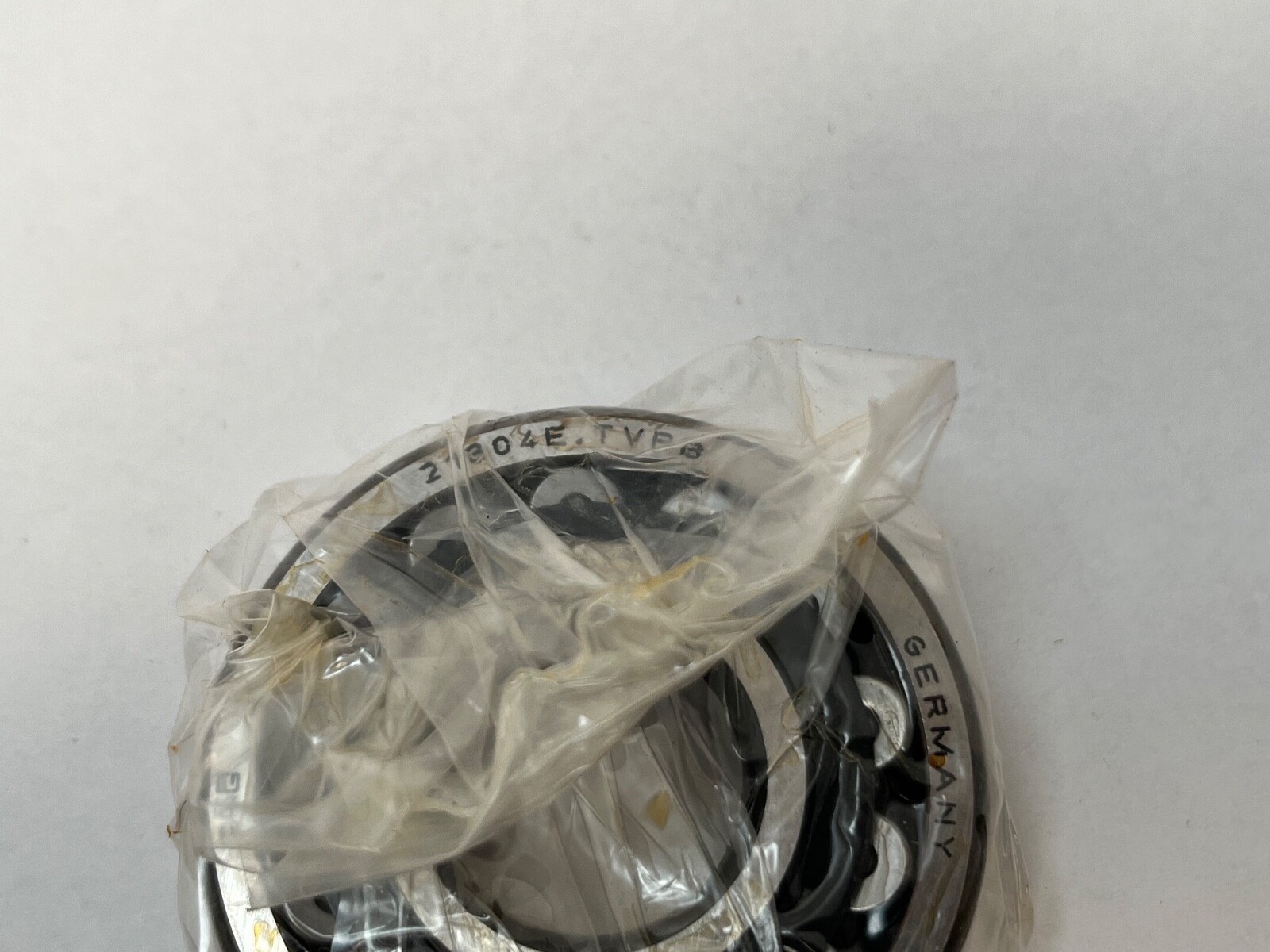

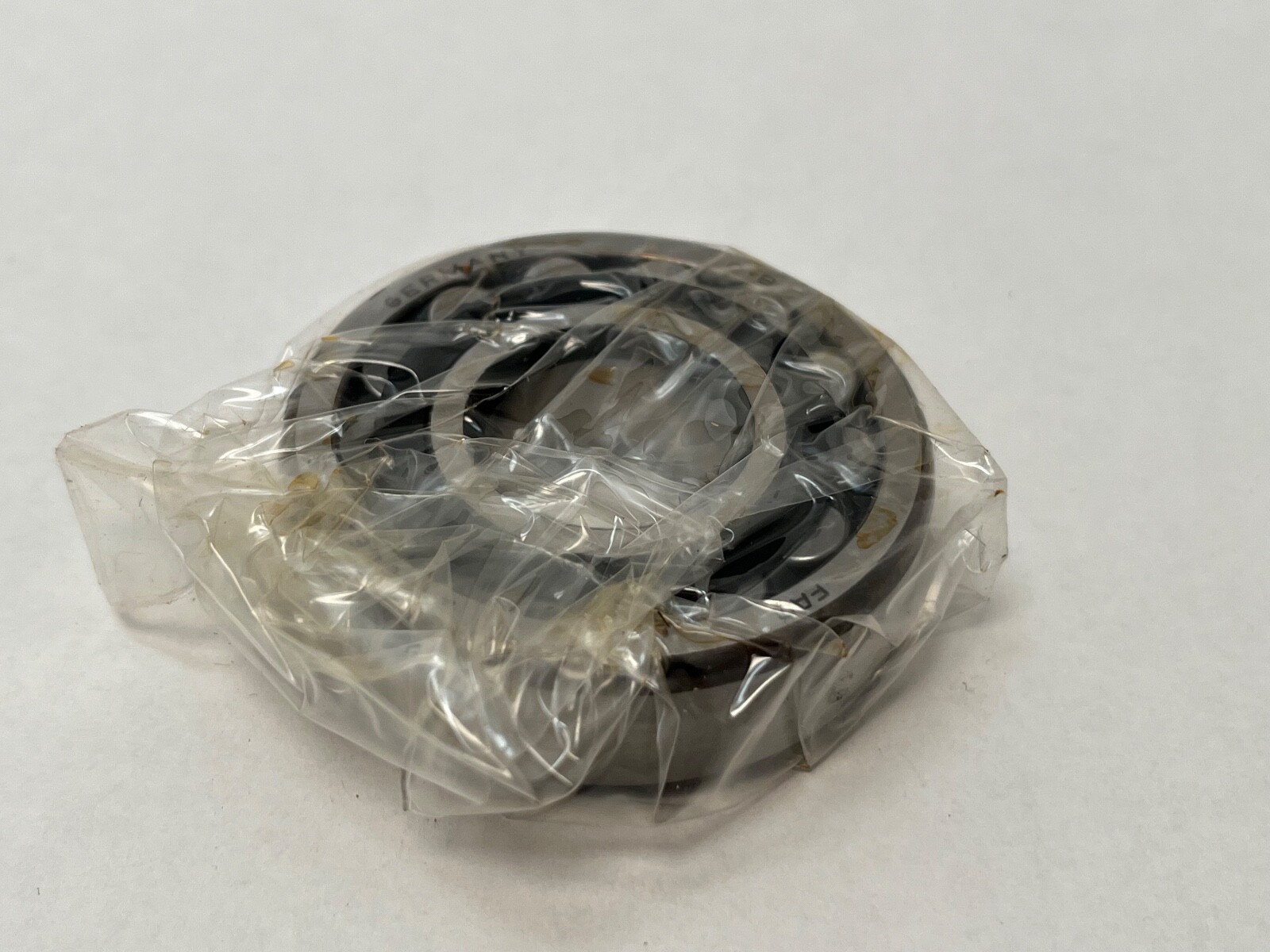

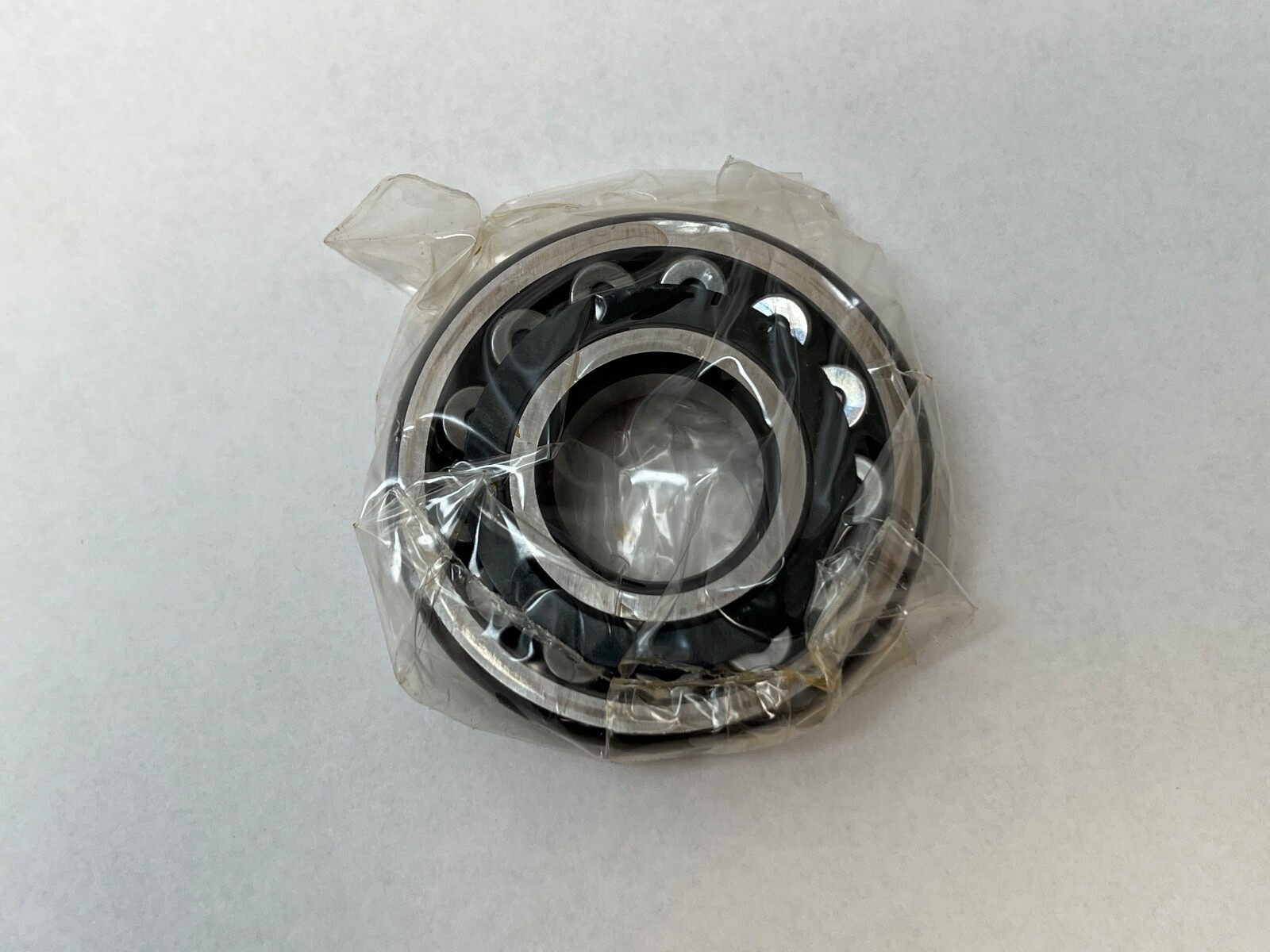

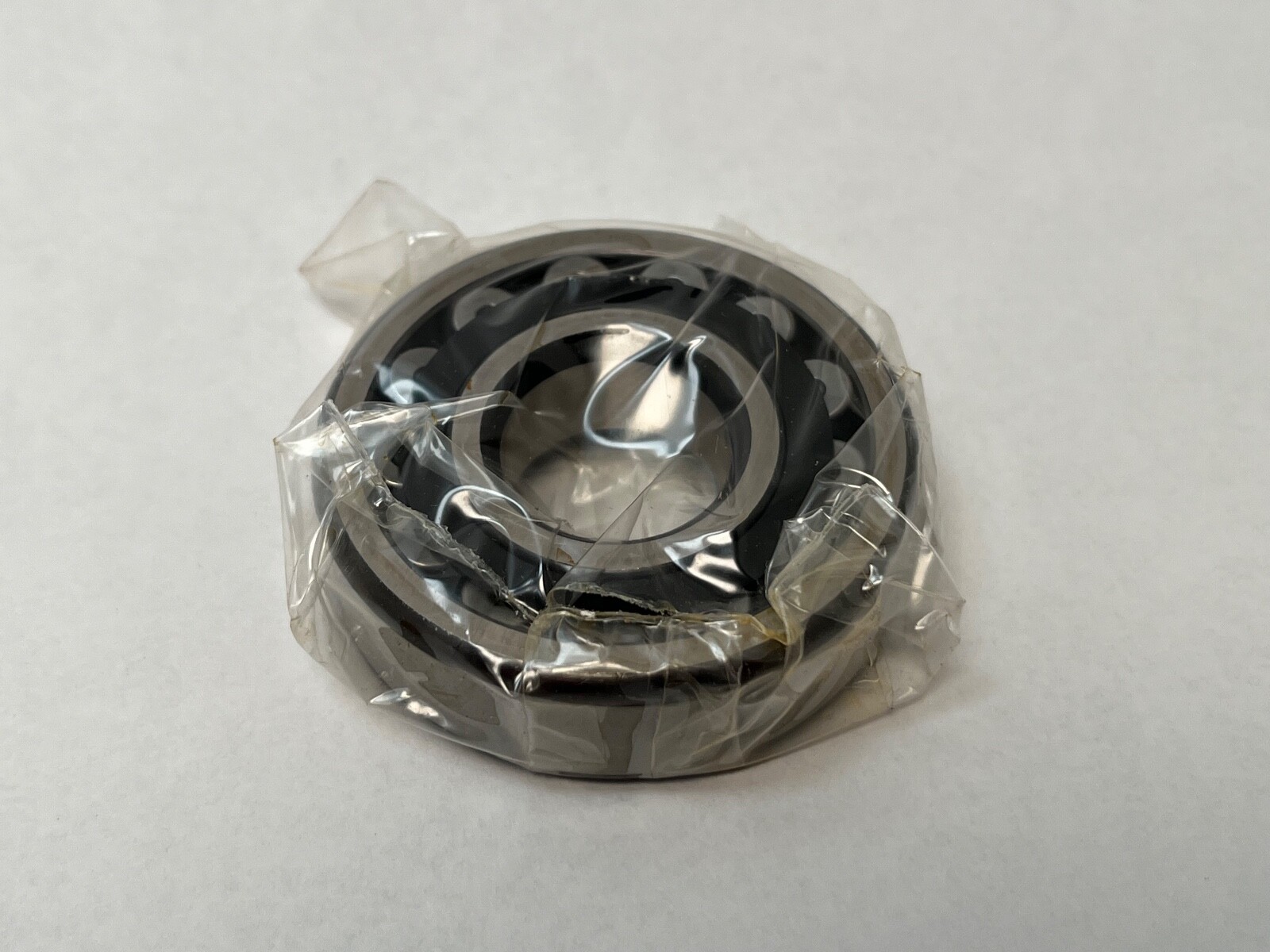

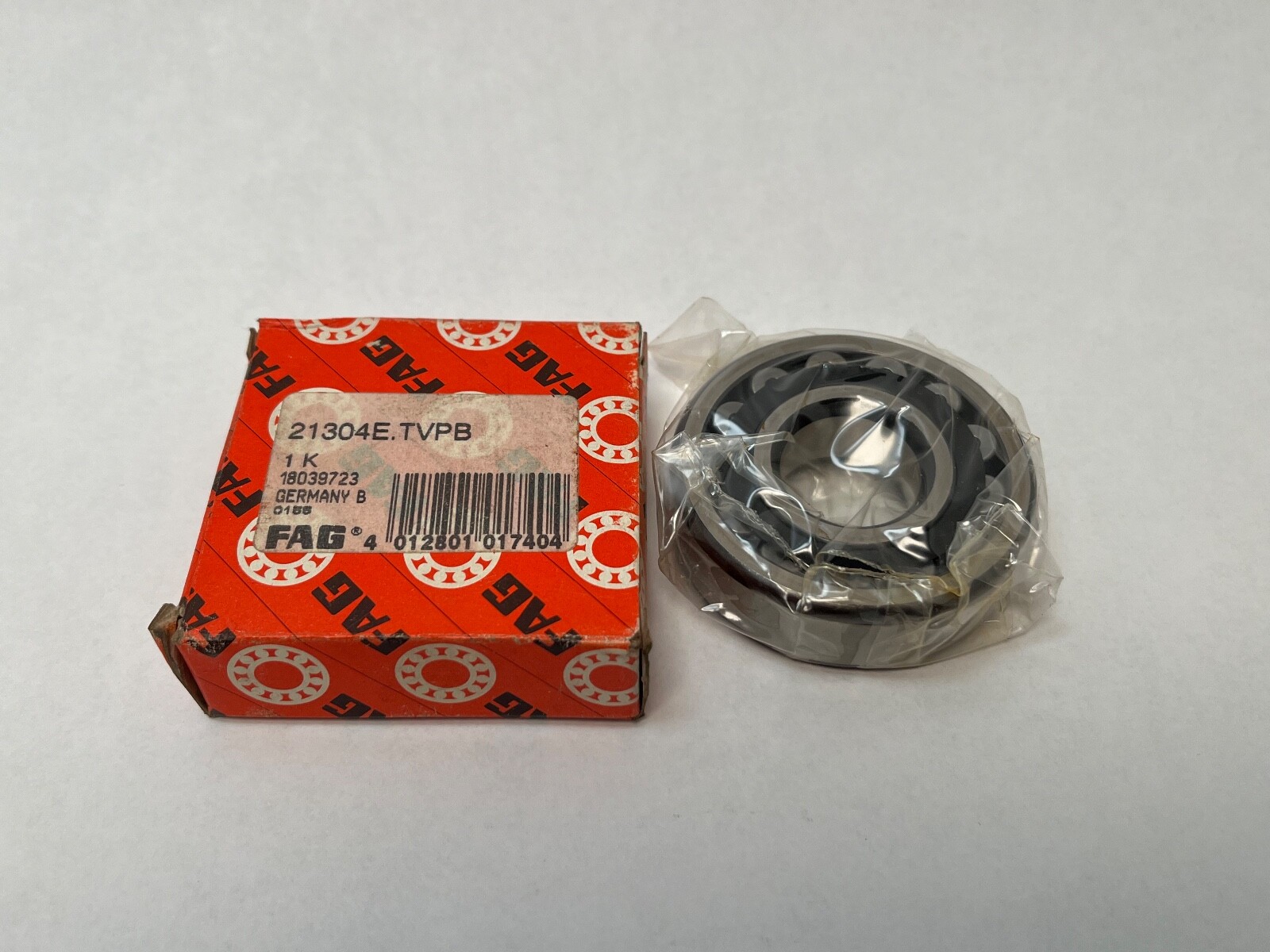

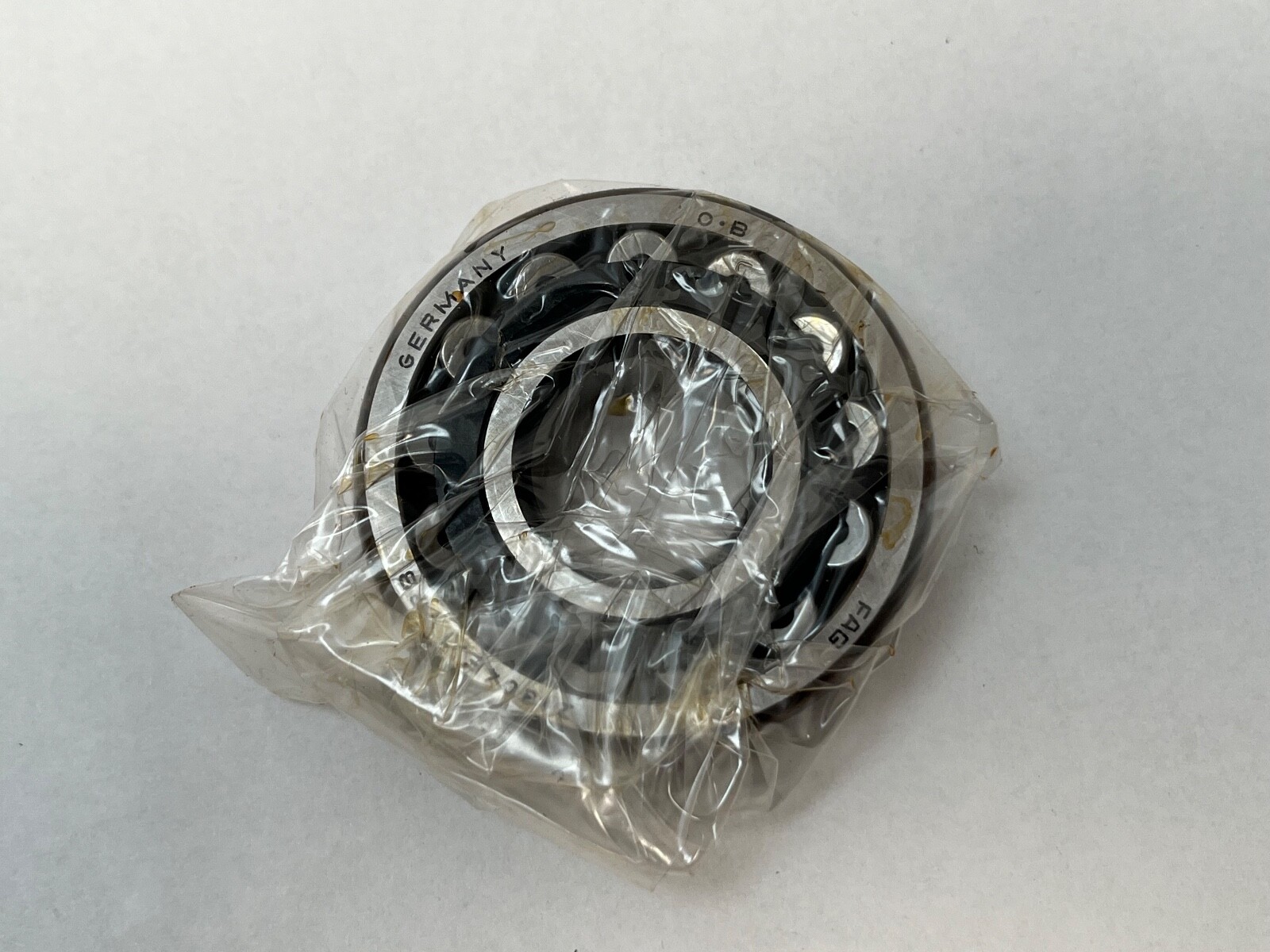

FAG 21304E.TVPB double-row spherical roller bearing with a straight cylindrical bore. Bore Diameter: 20 mm. Outside Diameter: 52 mm. Width: 15 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. The outer ring raceway is spherical, so the bearing accommodates shaft misalignment and carries heavy radial load with moderate axial load in both directions.
213 — FAG 213 series spherical roller bearing, medium-section 03 diameter series.
04 — bore code, 4 x 5 = 20 mm bore.
E — FAG reinforced E internal design.
TVPB — glass-fibre reinforced polyamide cage.
No clearance suffix — normal radial internal clearance, CN.
Cage Material: Polyamide. Internal Clearance: CN. Bore Type: Straight. Seal Type: Open. The polyamide cage is light and runs with low friction. CN clearance suits standard fits and normal operating temperatures.
Unit Quantity: 1 Pc. Single bearing, open, straight bore.
Same 20 x 52 x 15 mm envelope: SKF 21304 CC, SNR 21304E, Koyo 21304R. The current FAG production execution of this size is 21304-E1-XL-TVPB, an E1 internal design.
