Timken22214KCJW33C3Spherical Roller Bearing, Double Row, 70 x 125 x 31 mm, 1:12 Tapered Bore, Steel Window Cage, W33 Lubrication Groove, C3 Clearance, Open, 1 Pc

Product Description

What this part is

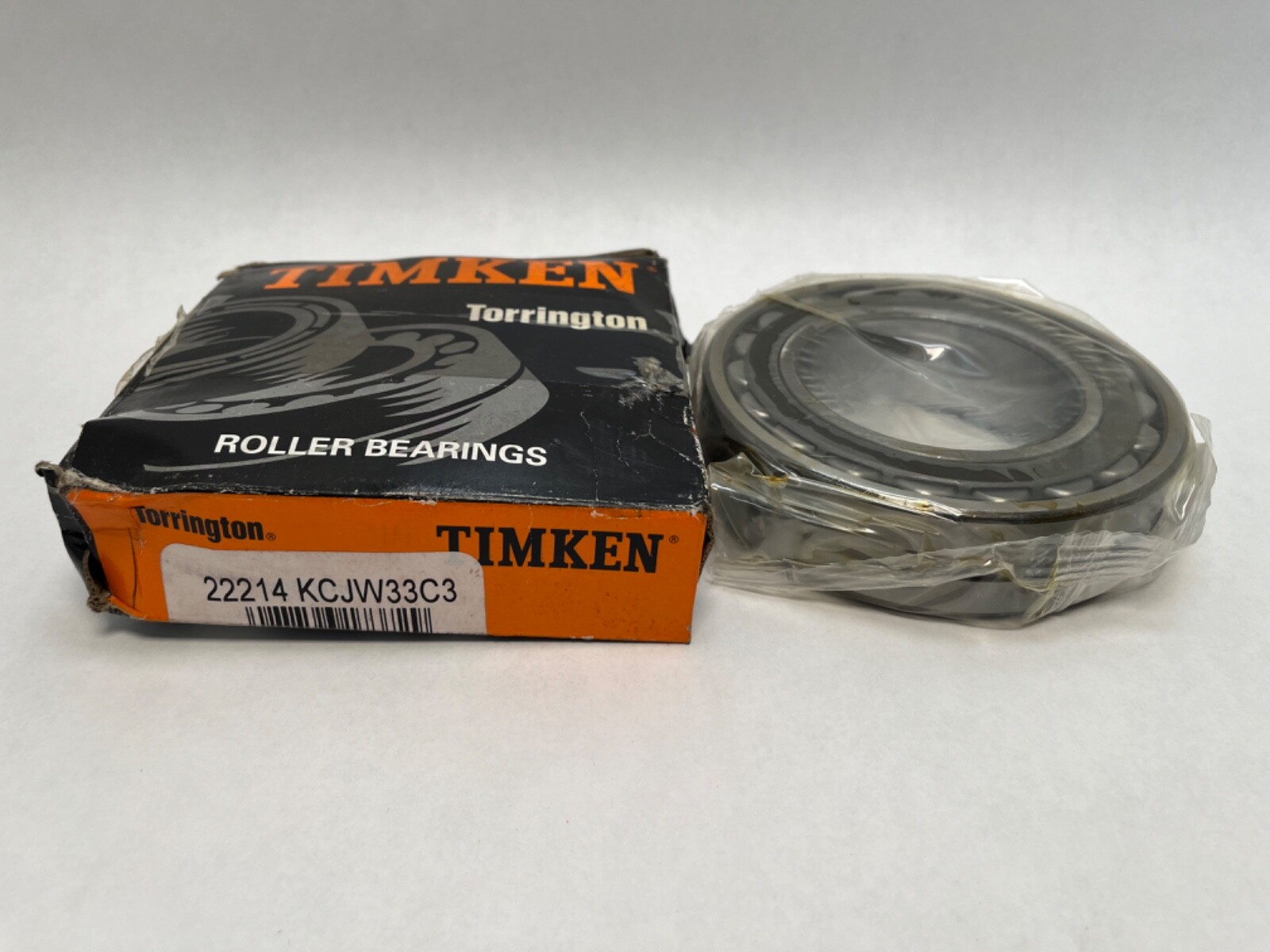

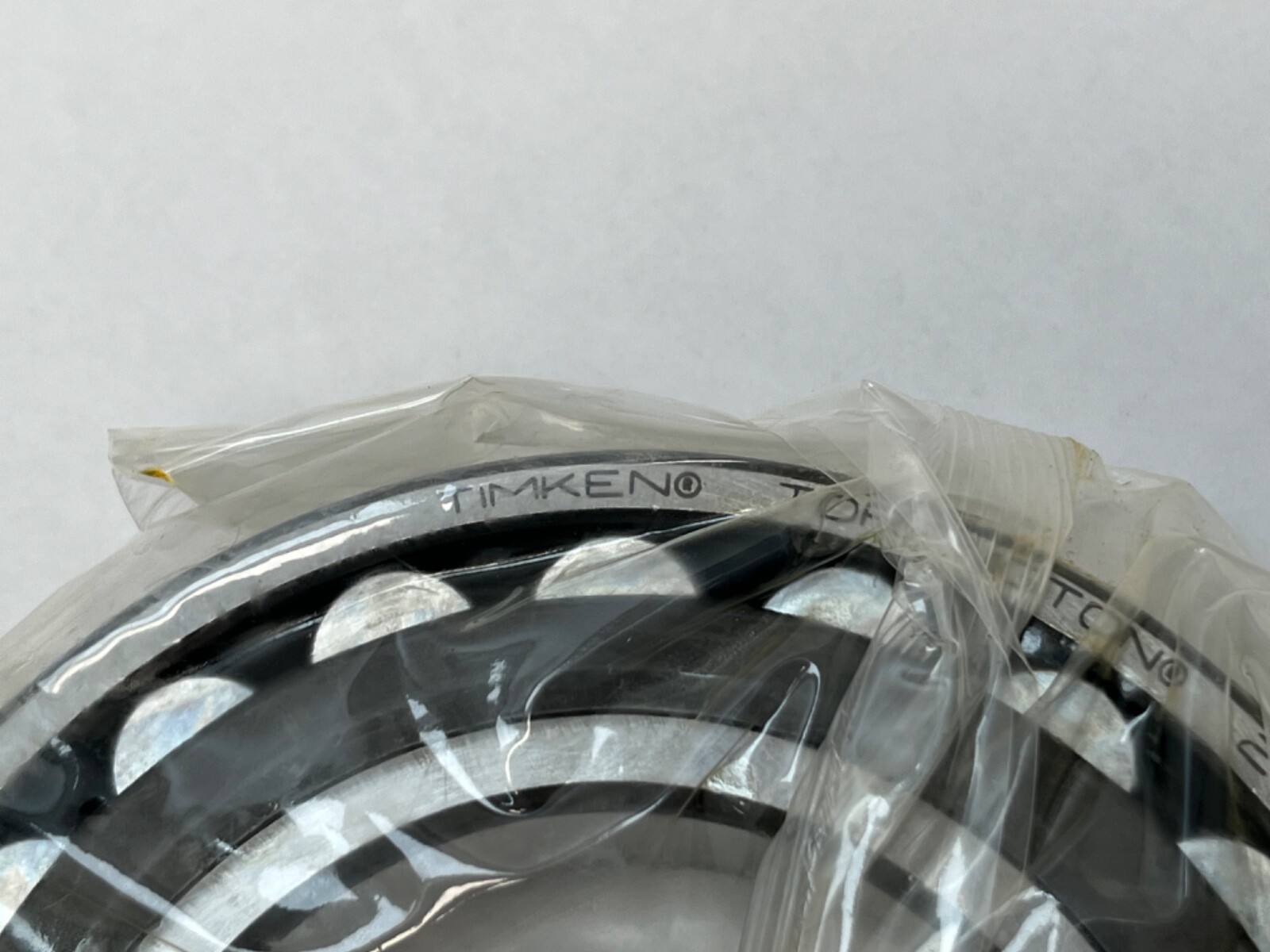

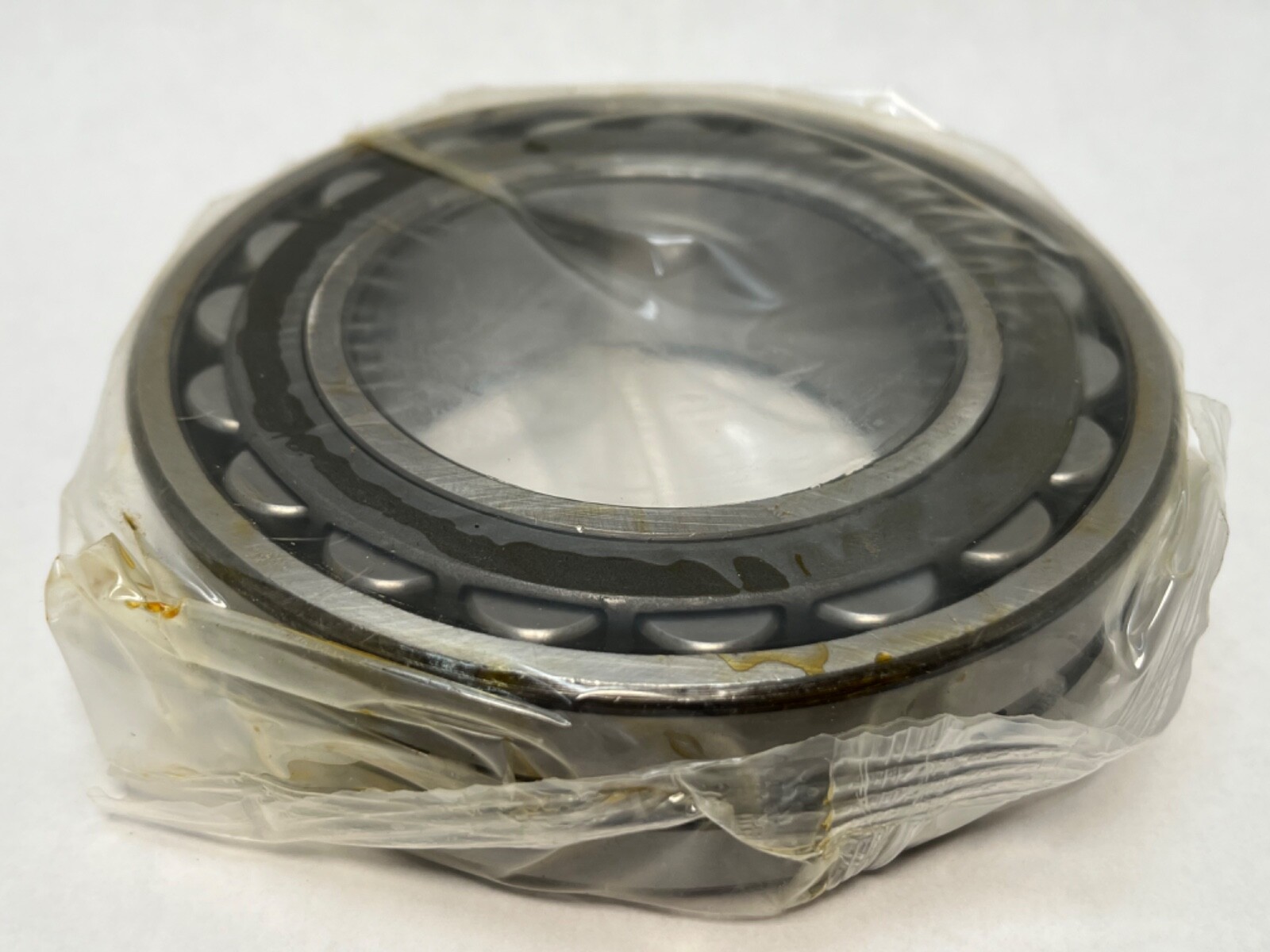

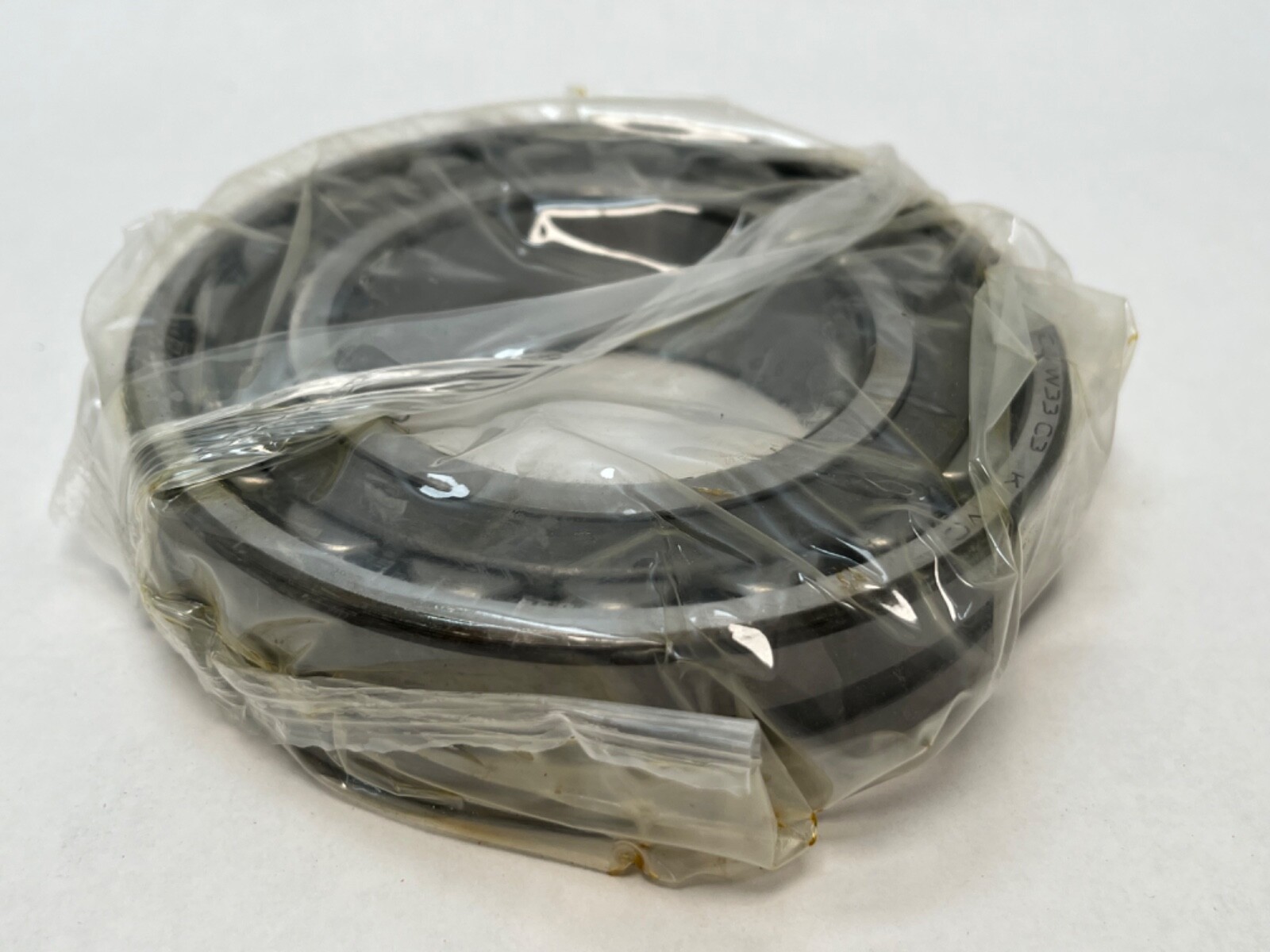

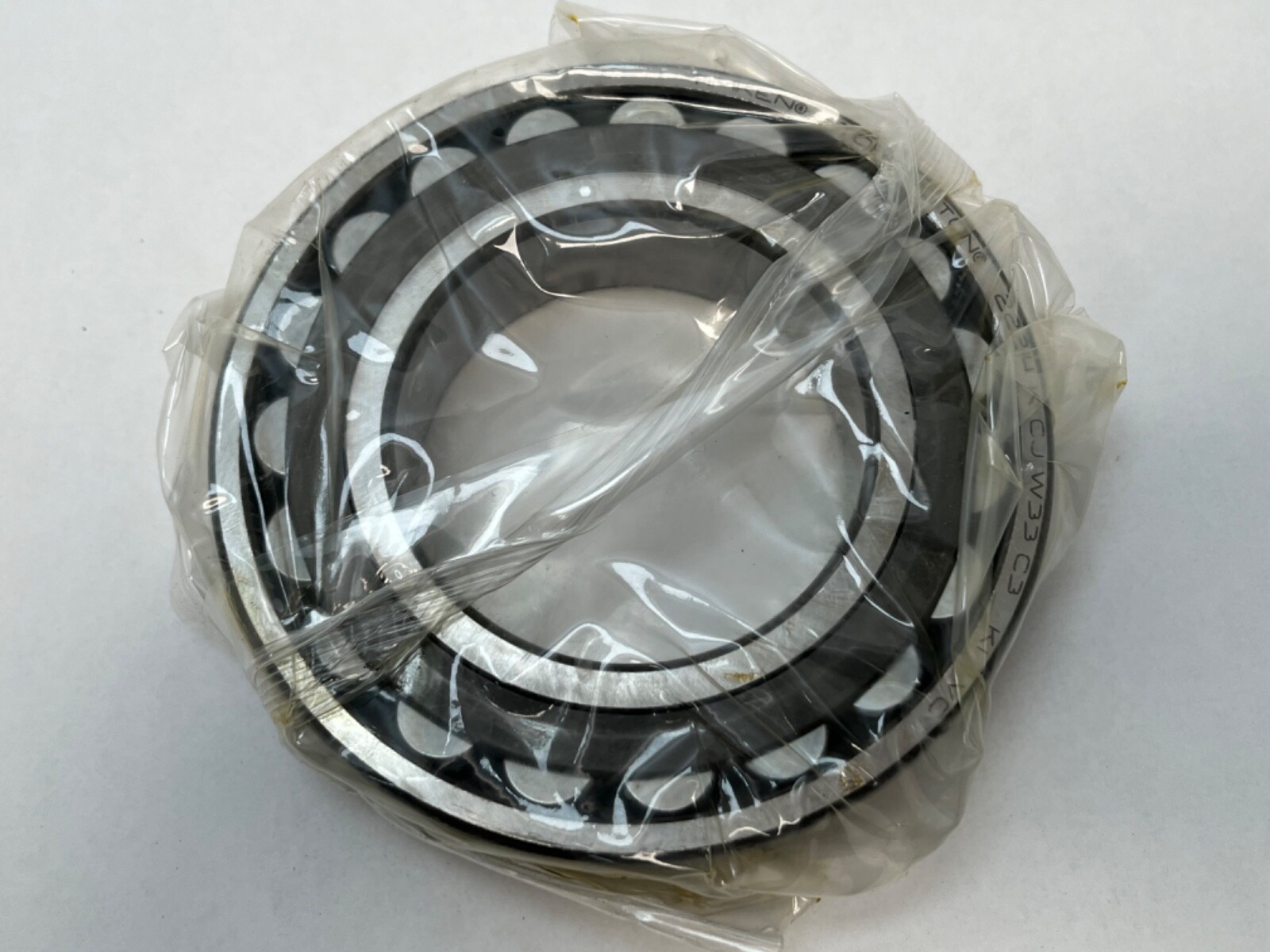

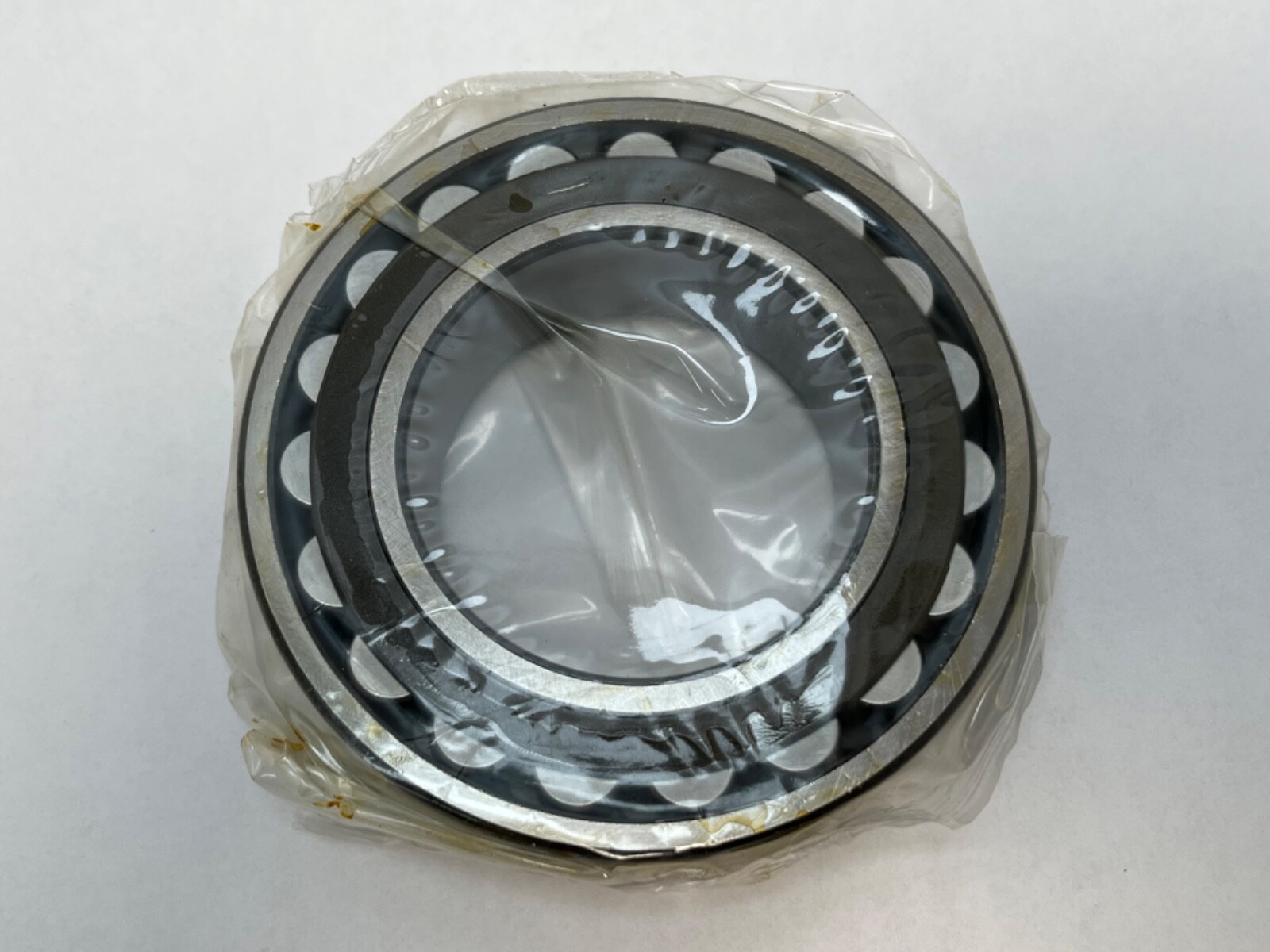

Timken 22214KCJW33C3 double-row spherical roller bearing on the ISO 22214 envelope. Bore: 70 mm, 1:12 tapered. Outside Diameter: 125 mm (4.9213 in). Overall Width: 31 mm (1.2205 in). Number Of Rows: 2. Rolling Elements: barrel-shaped spherical rollers, two rows. Cage Type: CJ, two-piece window-type cage, one per roller row. Cage Material: Pressed steel. Closure Type: Open. Internal Clearance: C3, greater than normal radial internal clearance. Relubrication: W33 lubrication groove with three radial oil holes through the outer ring. Precision Class: ABEC 1 / P0. Series: 222 (ISO dimension series 222); legacy Torrington SD22. Design Units: Metric. Unit Quantity: 1 Pc.

Decoding the designation

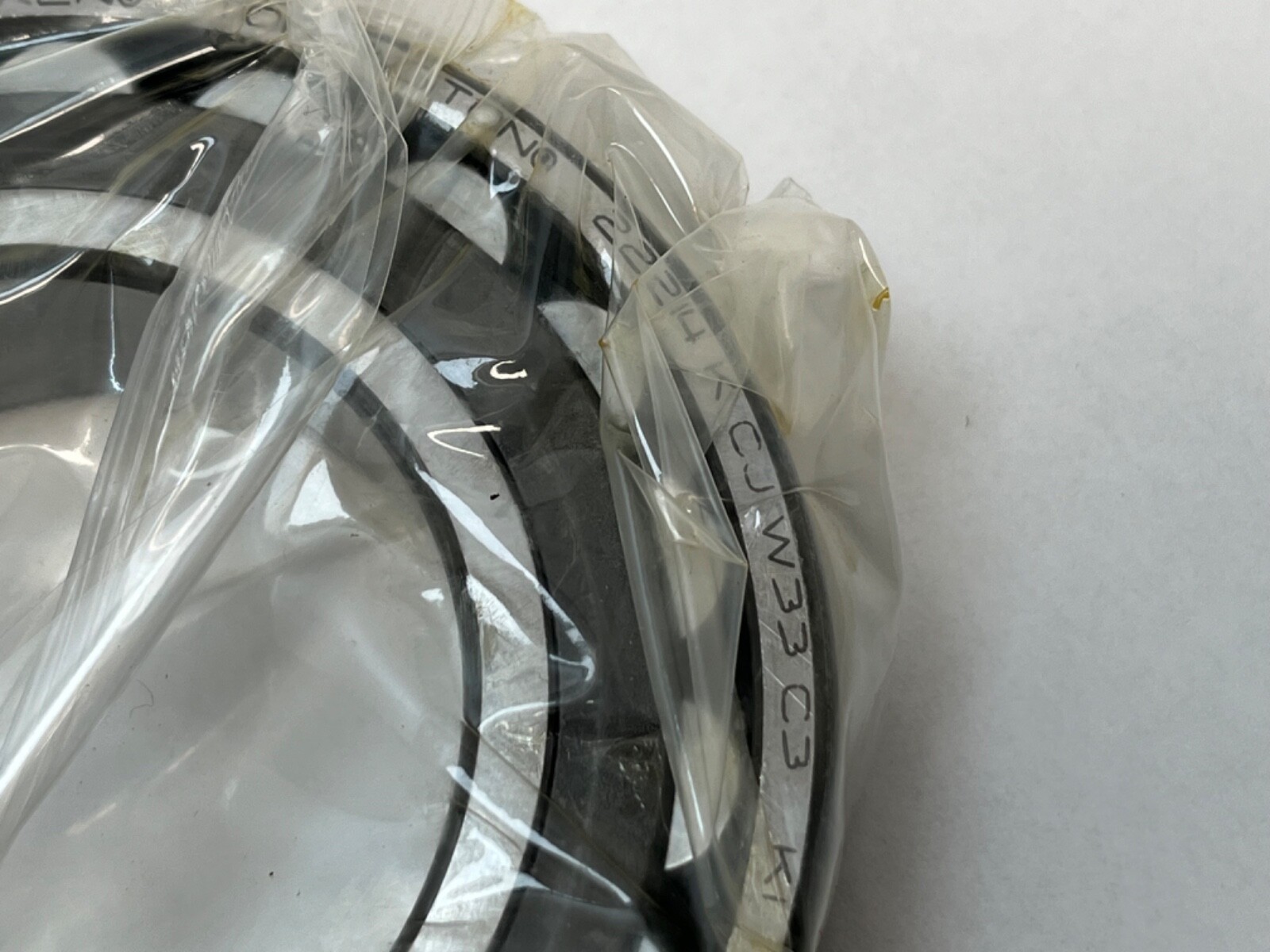

222: ISO dimension series 222, the wider and higher-capacity of the two common spherical roller series. 14: bore code, 14 × 5 = 70 mm bore. K: tapered bore, 1:12 taper. CJ: Timken and Torrington cage code for a two-piece steel cage of the window type. W33: lubrication groove machined around the outer ring with three radial oil holes through it. C3: radial internal clearance greater than normal. The 22214E designation is the same bearing under the E-design naming used by other makers. Searchable variants: 22214-K-CJ-W33-C3, 22214 K CJ W33 C3, 22214KCJW33, 22214E, 22214EK, 22214K, 70SD22K.

Published ratings and mounting data

Dynamic Load Rating (C1): 213,000 N (47,800 lbf) at 1 million revolutions. Static Load Rating (C0): 231,000 N (52,000 lbf). Thermal reference speed: 4,900 rpm on oil, 4,000 rpm on grease. Maximum Permissible Misalignment: 2°. e factor 0.23. Y0 2.84. Y = 2.90 when Fa/Fr is at or below e; Y = 4.32 when Fa/Fr exceeds e. Geometry factor Cg 0.0552. Maximum shaft fillet radius: 1.5 mm (0.060 in). Shaft backing shoulder diameter: 84.0 mm (3.300 in). Housing backing shoulder diameter: 114.0 mm (4.500 in).

What these specs mean in practice

Two rows of barrel-shaped rollers run against a single spherical outer raceway, so the inner ring, rollers and cages swivel bodily inside the outer ring. That absorbs static misalignment from housings bored out of line and dynamic misalignment from a shaft that bows under load, without loading the roller ends.

The tapered bore sets the interference fit and the running clearance in one operation as the inner ring is driven up its seat, so the bearing mounts on a plain shaft through an adapter sleeve and the clearance can be re-set at every rebuild. C3 clearance carries the extra room a heavy interference fit and a hot inner ring both consume, which is why it suits duties that run warm and tightly fitted.

The pressed steel window cage is tough against shock loading and carries no temperature ceiling of its own. Cage material moves the published load rating, so the cage code is part of the capacity, not a cosmetic detail.

Quantity and configuration

Unit Quantity: 1 Pc. One complete double-row spherical roller bearing: outer ring, inner ring, two rows of rollers and their steel cages, assembled. Open on both faces. Mounting Arrangement: 1:12 tapered bore on an H314 adapter sleeve with lock nut and lock washer over a 60 mm plain shaft, or directly on a shaft seat cut to a 1:12 taper. The sleeve tapered outside diameter matches the bearing 70 mm bore.

Interchange guidance

Manufacturer Status: superseded by Timken 22214KEJW33C3 — Timken sell sheet 11433 states EJ bearings supersede CJ and VCSJ bearings. Tapered-bore, open, W33, C3 interchanges: SKF 22214 EK/C3W33, FAG 22214-E1-K-C3, NSK 22214EAKE4C3, NTN 22214EAKD1C3, Koyo 22214RHKW33C3, Consolidated 22214 K C3 W33, Link-Belt 22214LBKW33C3, Rollway 22214KW33C3, Browning 22214CKW33C3. Legacy Torrington 70SD22K is the same bearing.

Two related sizes share the envelope with different execution. The straight-bore 22214 has a cylindrical bore and seats on a machined cylindrical shaft seat. The brass-caged 22214KBRW33C3 and 22214KMBW33C3 builds carry their own published ratings for the same 70 × 125 × 31 boundary.
