Spherical Roller Bearing - Straight Bore, 90 mm ID, 160 mm OD, 40 mm Width, Open, C3 Internal Clearance.$107.08| MFR / Brand | Steyr |
|---|---|
| MPN | 22218CMBC3W33 |
| Model | 20SD22 W33 BR / 22218 C MB C3 SV20/W33 / 22218MB / 22218M |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | Oil/Grease |
| Min Temp | -30°C |
| Cage Type | Inner Ring Guided |
| Dynamic Load Rating | 280 kN / 62946 lbf |
| Static Load Rating | 330 kN / 74186 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Rollers |
| Max Temp | 200°C |
| Item Weight | 7.5 lbs |
| Cage Material | Machined Brass |
| Limiting Speed | 4500 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Running Accuracy | Normal |
| Running Accuracy Radial And Axial Runout | Normal |
| Cross Reference 1 | SKF 22218 EM/C3 |
|---|---|
| Cross Reference 2 | FAG 22218-E1-M-C3 |

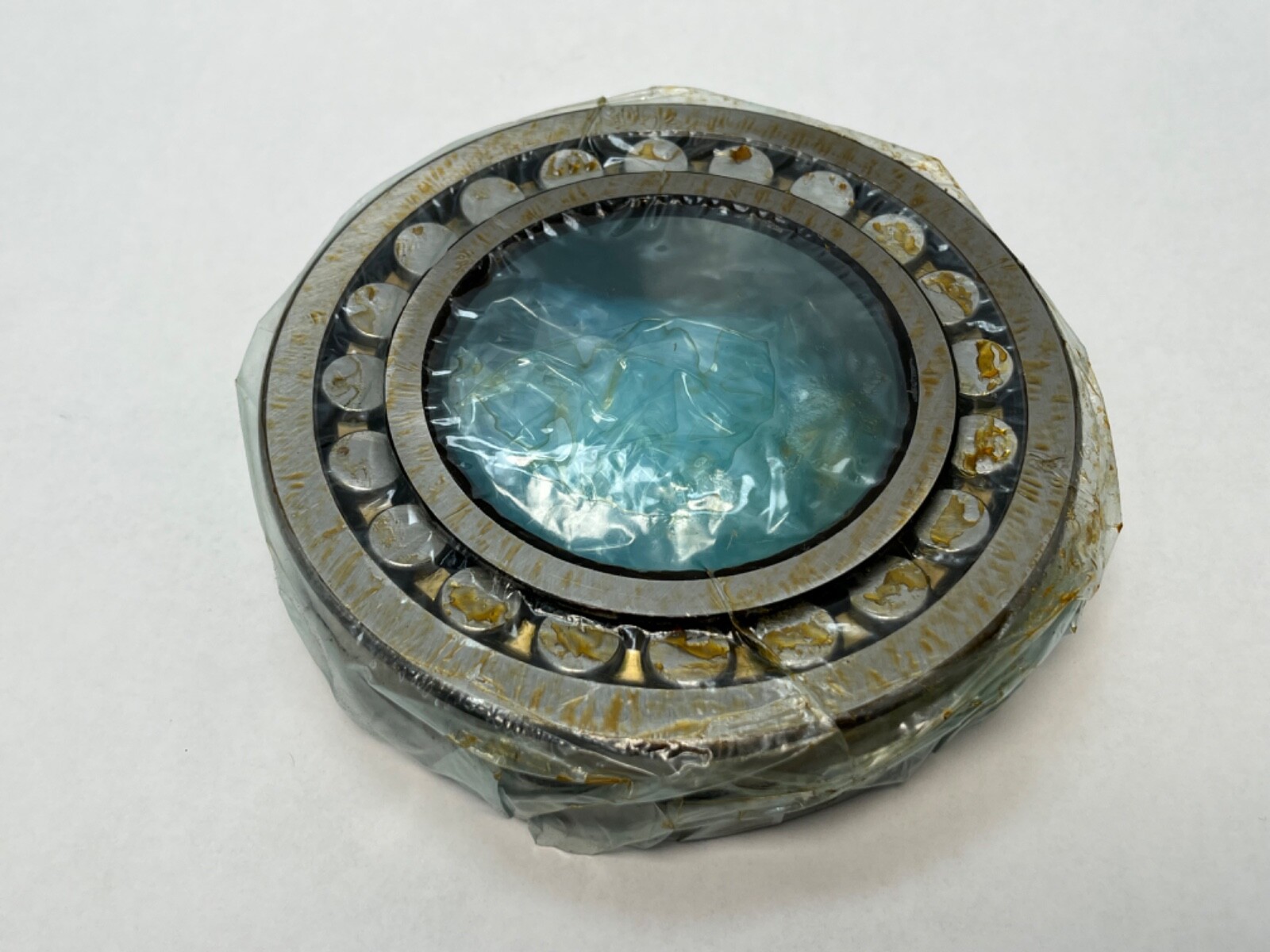

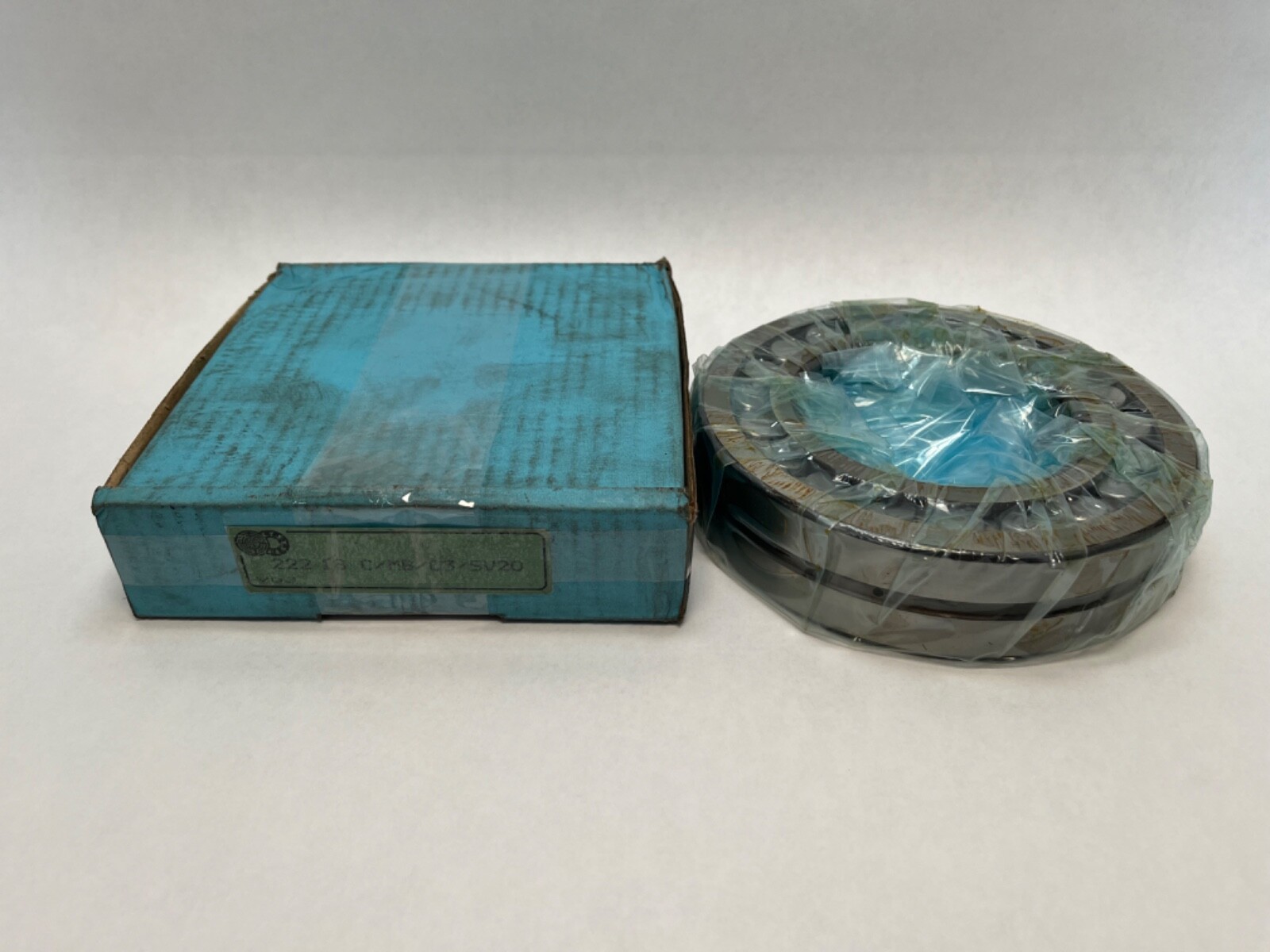

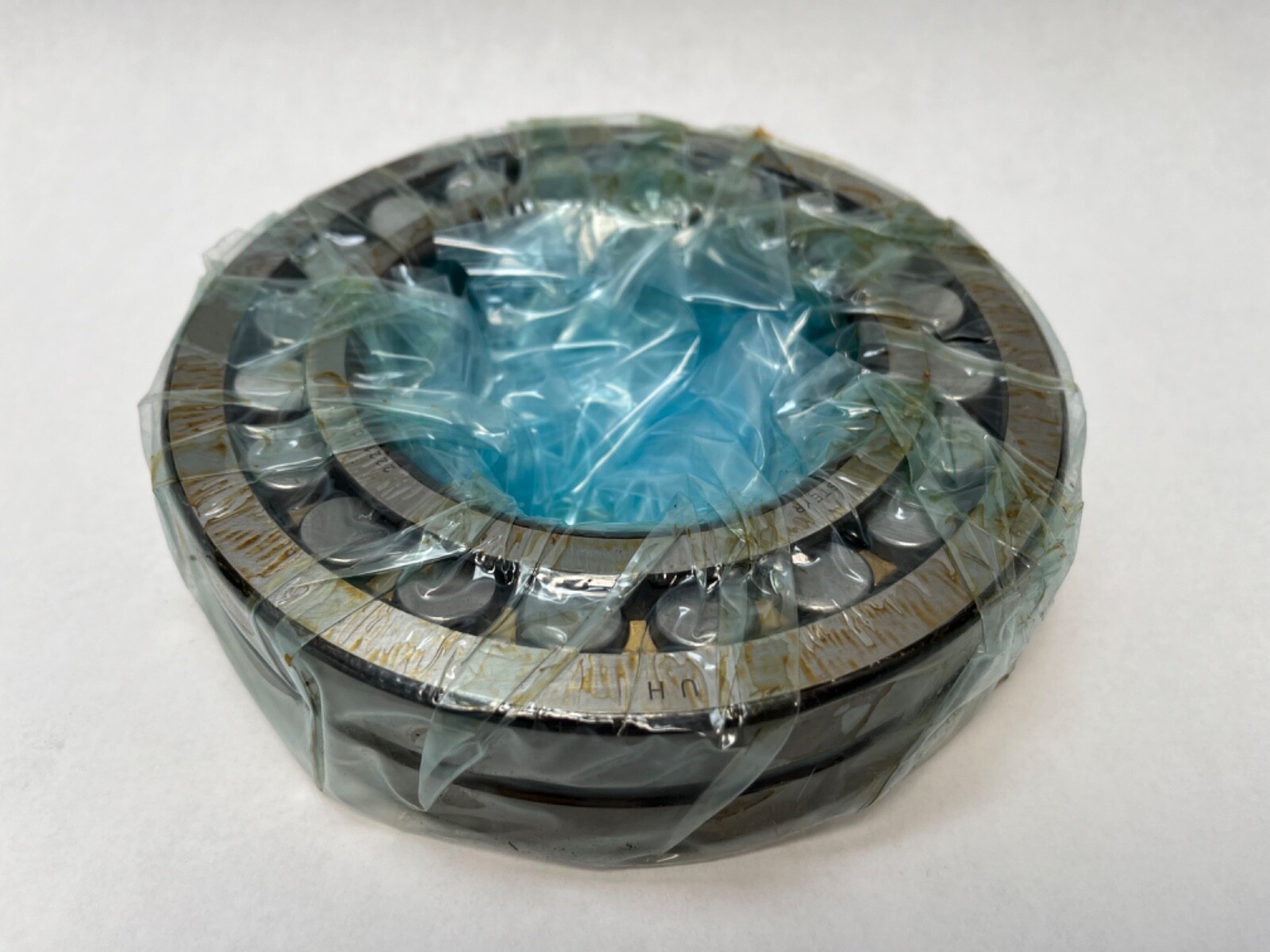

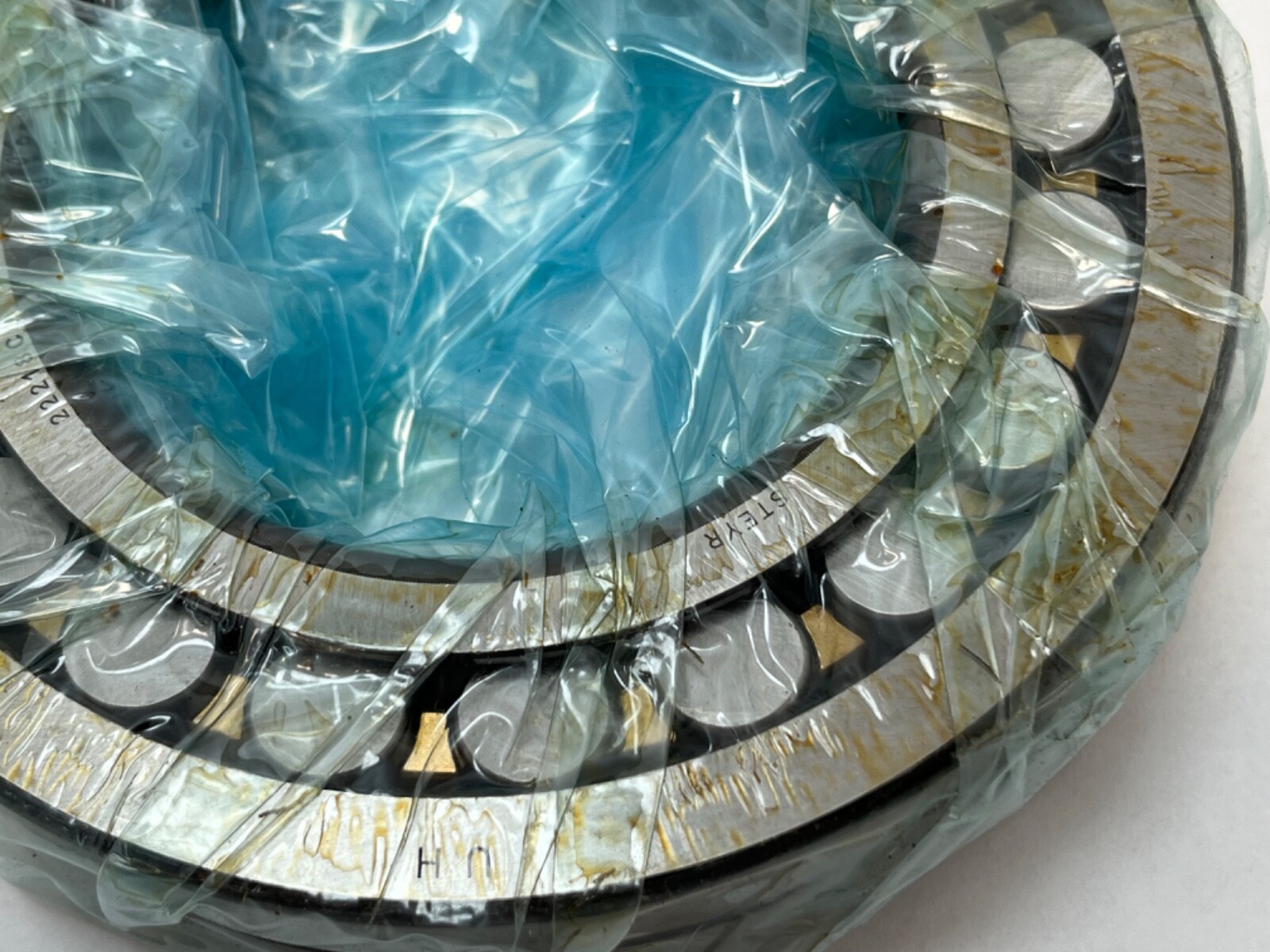

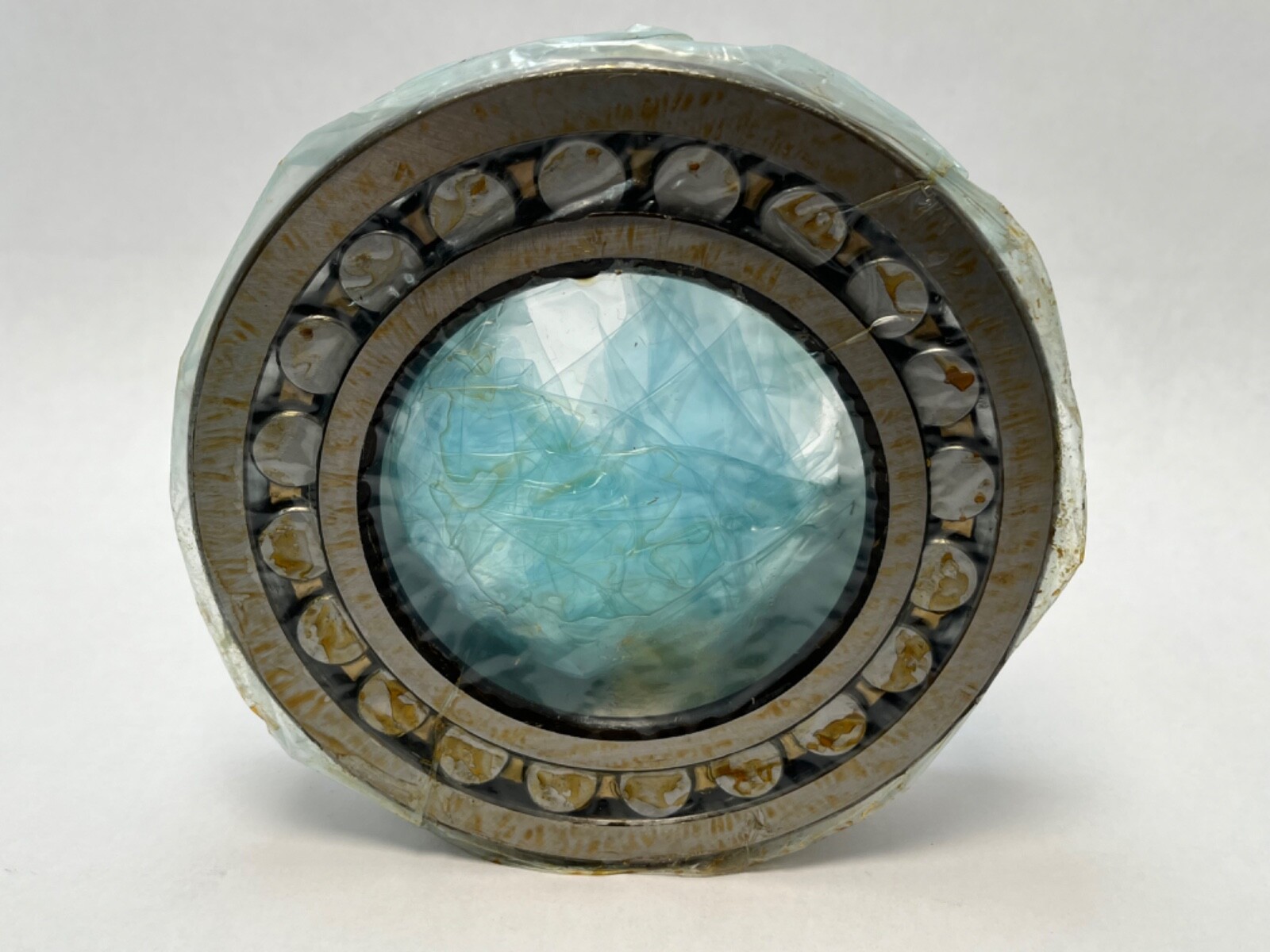

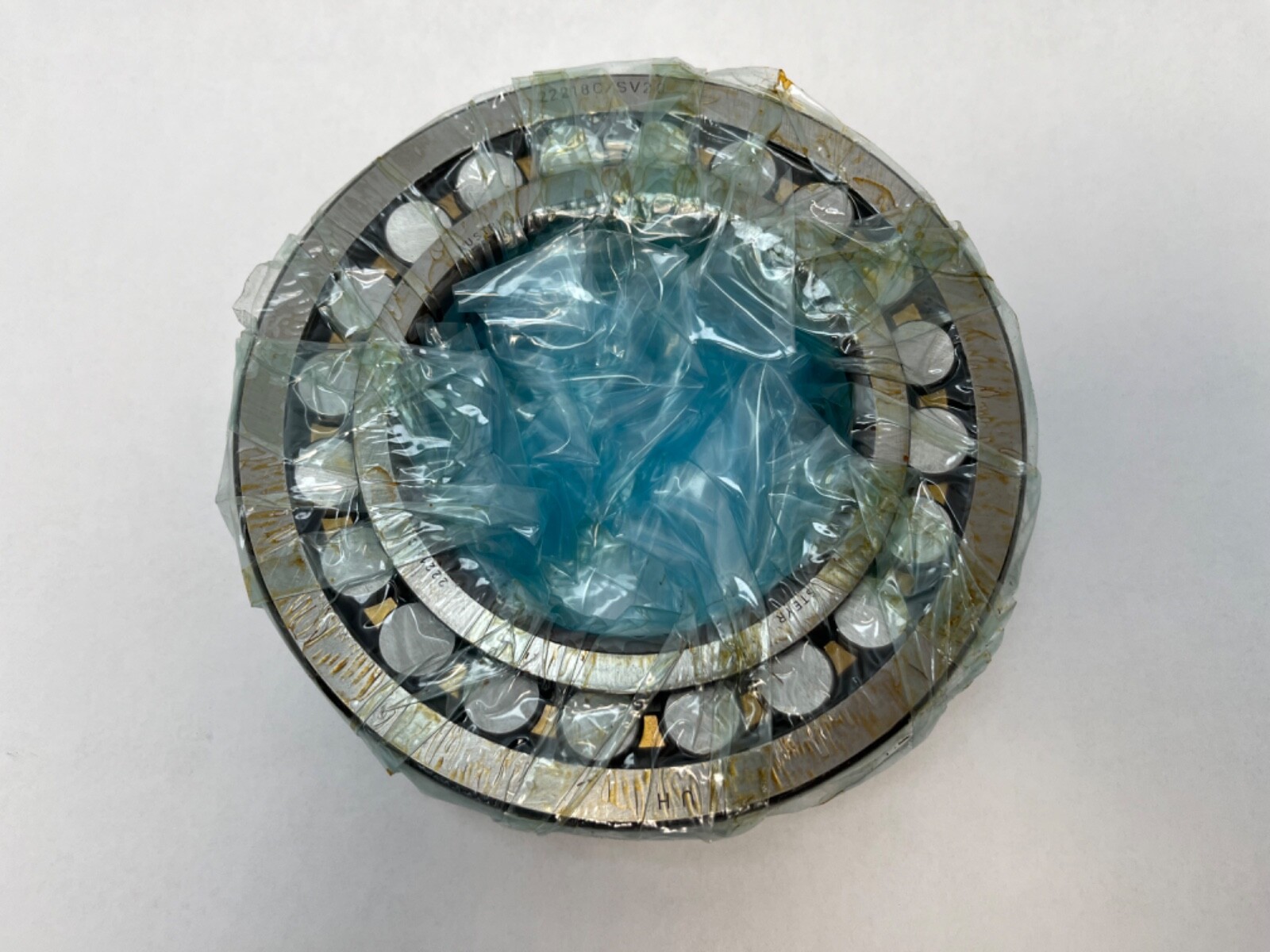

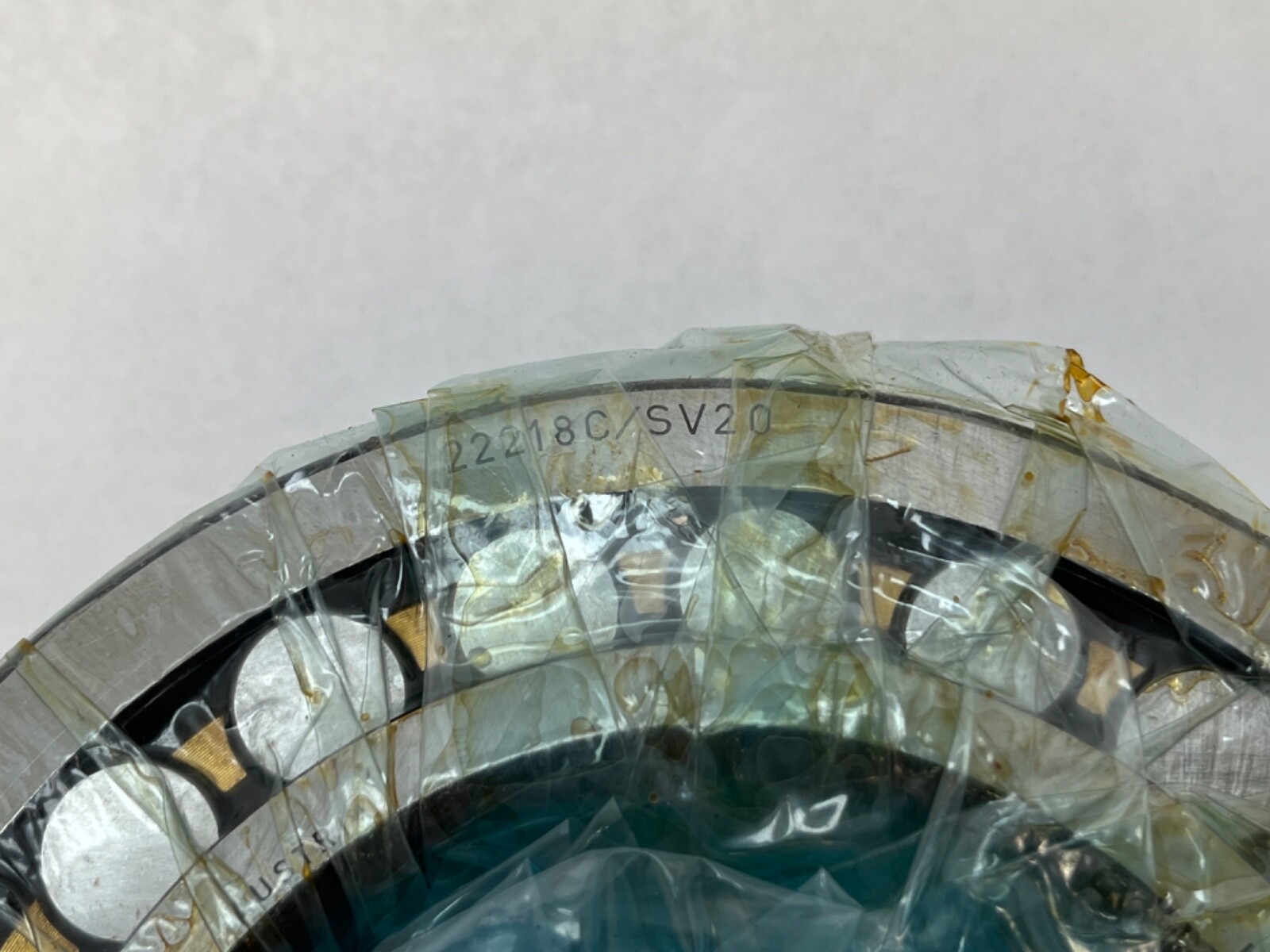

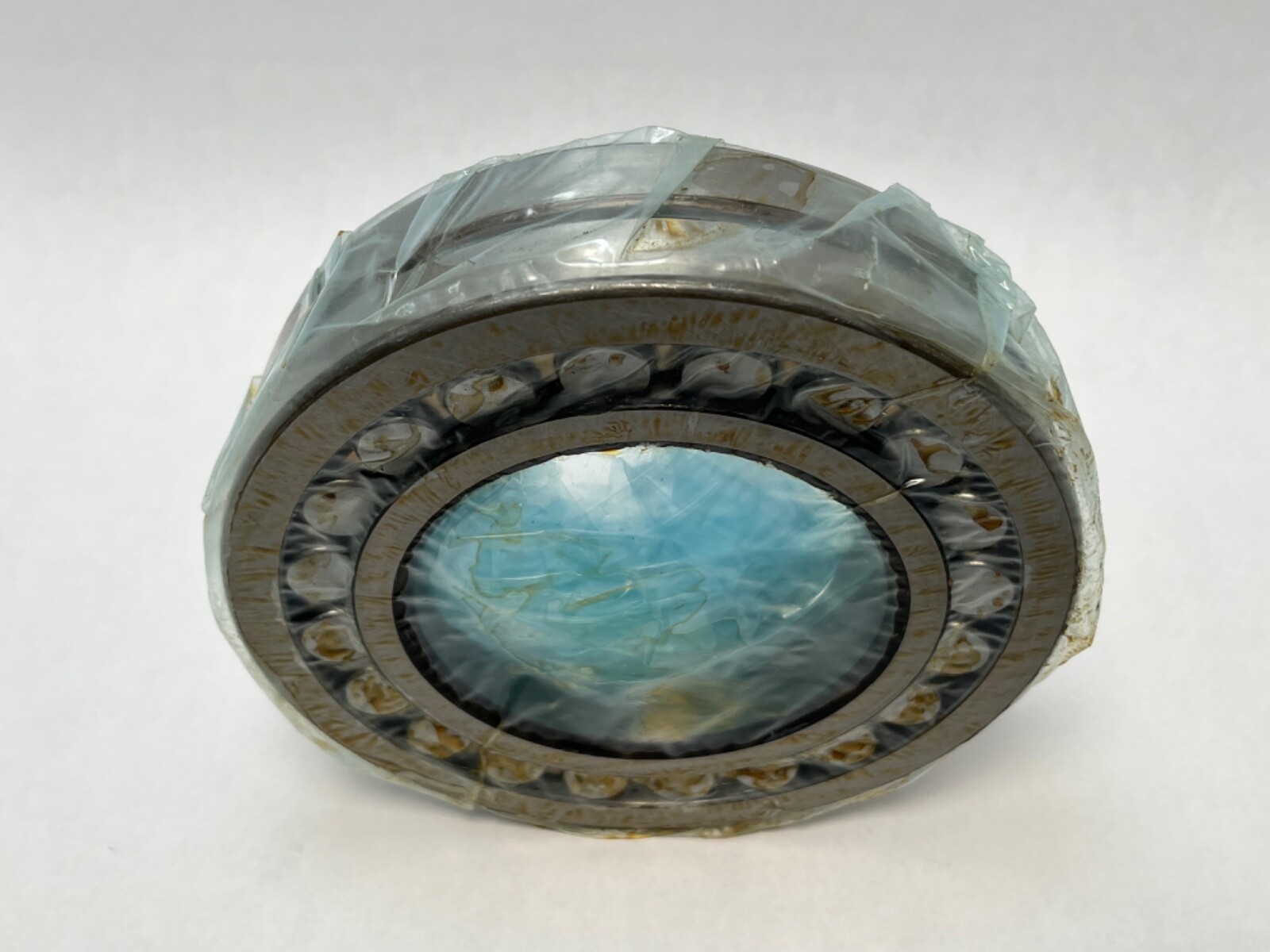

Enhance the performance of your machinery with the Steyr 22218CMBC3W33 Bearing, specifically designed to meet the demands of your industrial applications. This robust Spherical Roller Bearing measures 90x160x40 mm and is manufactured to the highest standards in the United States.
Brand: STEYR – A trusted name in quality bearings.
Type: Spherical Roller Bearing, ideal for accommodating high radial loads.
Model: 20SD22 W33 BR / 22218 C MB C3 SV20/W33 / 22218MB / 22218M for versatile applications.
Condition: New – ensuring optimal performance and longevity.
Bore Diameter: Straight Bore – designed for easy installation.
Do you need assistance finding the right part? Our team is ready to help! We offer competitive prices on all products, including international shipping, with combined shipping options for additional savings. Experience same-day shipping on all items, and take advantage of next-day shipping at checkout for those urgent needs.
Choose the Steyr 22218CMBC3W33 Bearing for reliability and efficiency in your operations. Order today and ensure your equipment runs smoothly!
