This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing, Tapered Bore, 90x160x40 mm, W33 Groove$113.73
Double-Row Spherical Roller Bearing - 90 mm Tapered Bore (1:12), 160 mm OD, 40 mm Width, W33 Lubrication Groove, Open, CN Clearance$116.42
Double-Row Spherical Roller Bearing - Tapered Bore 1:12, 90 mm ID, 160 mm OD, 40 mm Width, Open, C3 Clearance, Machined Brass Cage.$117.95
Spherical Roller Bearing — 90 mm Tapered Bore, 160 mm OD, 40 mm Width, Steel Cage, W33 Lube Groove, CN Clearance$102.79| MFR / Brand | FAG |
|---|---|
| MPN | 22218HLASKW33 |
| Model | 22218 HL AS K W33 / 22218 AS K M/MB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Series | 22200 |
|---|---|
| Bore | Taper Bore |
| Material | Bearing Steel |
| Min Temp | -30 °C |
| Cage Type | Stamped |
| Dynamic Load Rating | 331 kN / 74400 lbf |
| Static Load Rating | 375 kN / 84300 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Rollers |
| Max Temp | 200 °C |
| Item Weight | 7.50 lbs |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00 |
| Limiting Speed | 3800 rpm |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | SKF 22218 EK |
|---|---|
| Cross Reference 2 | NTN 22218EAKD1 |
| Cross Reference 3 | Timken 22218K |

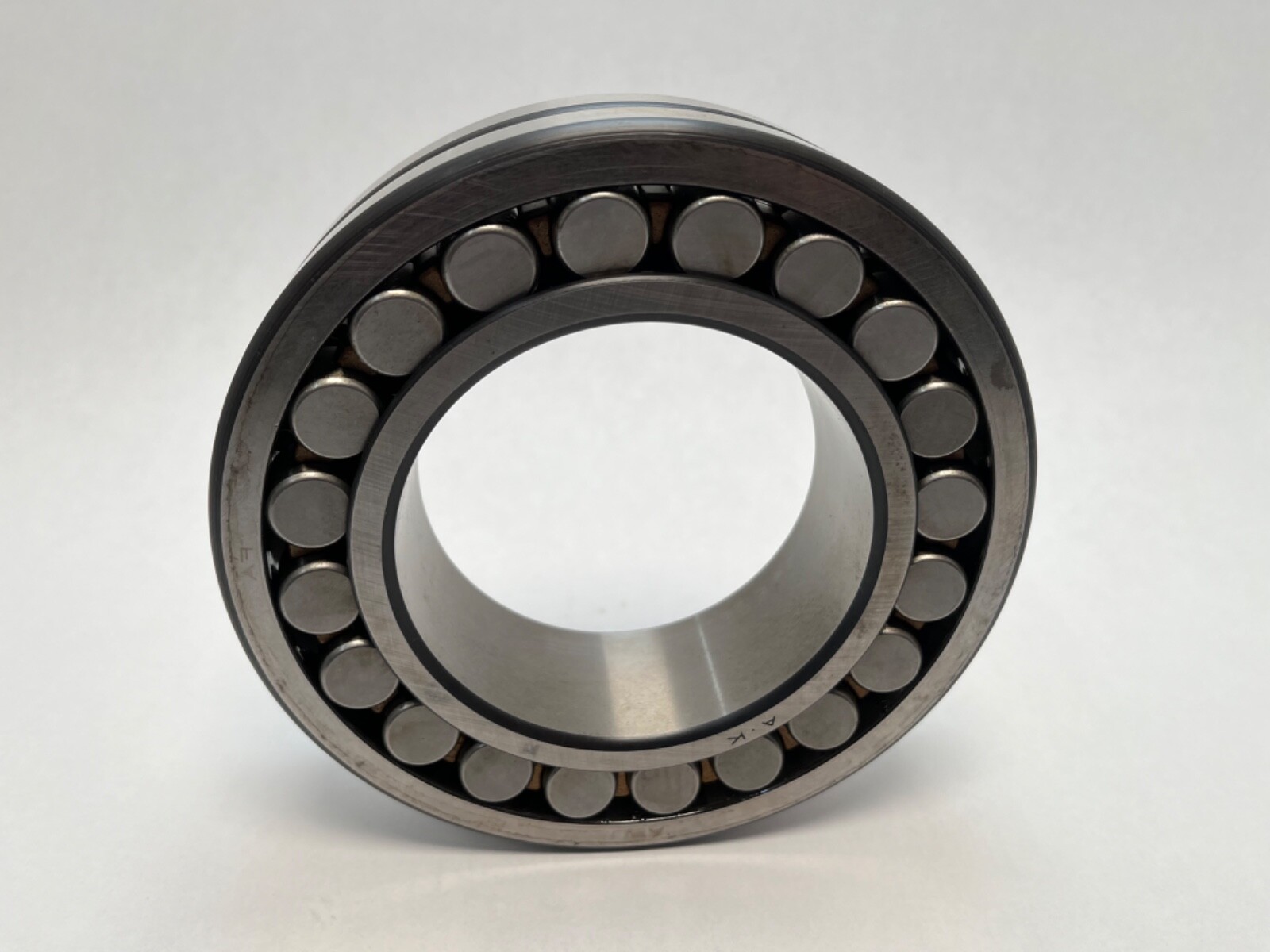

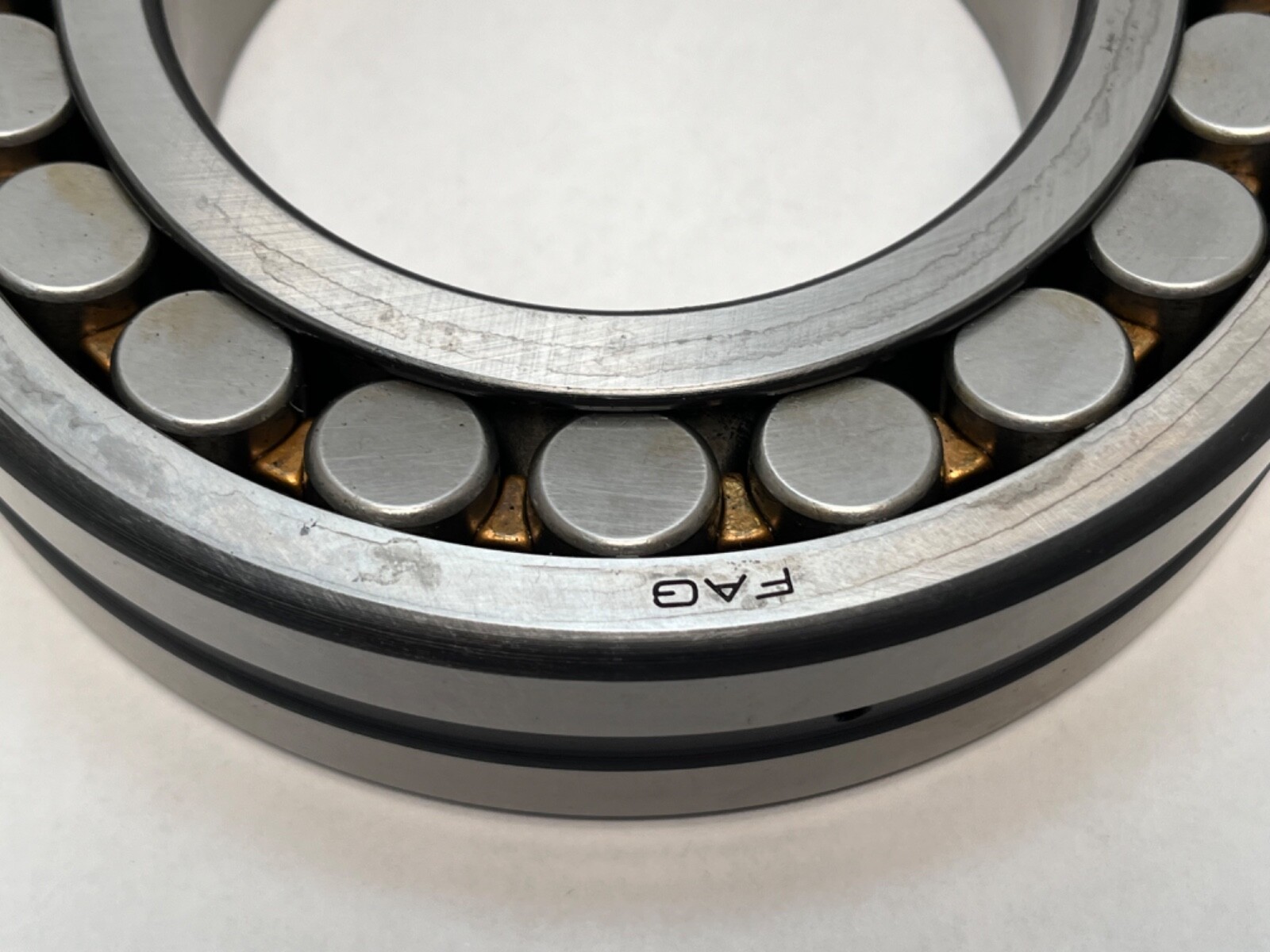

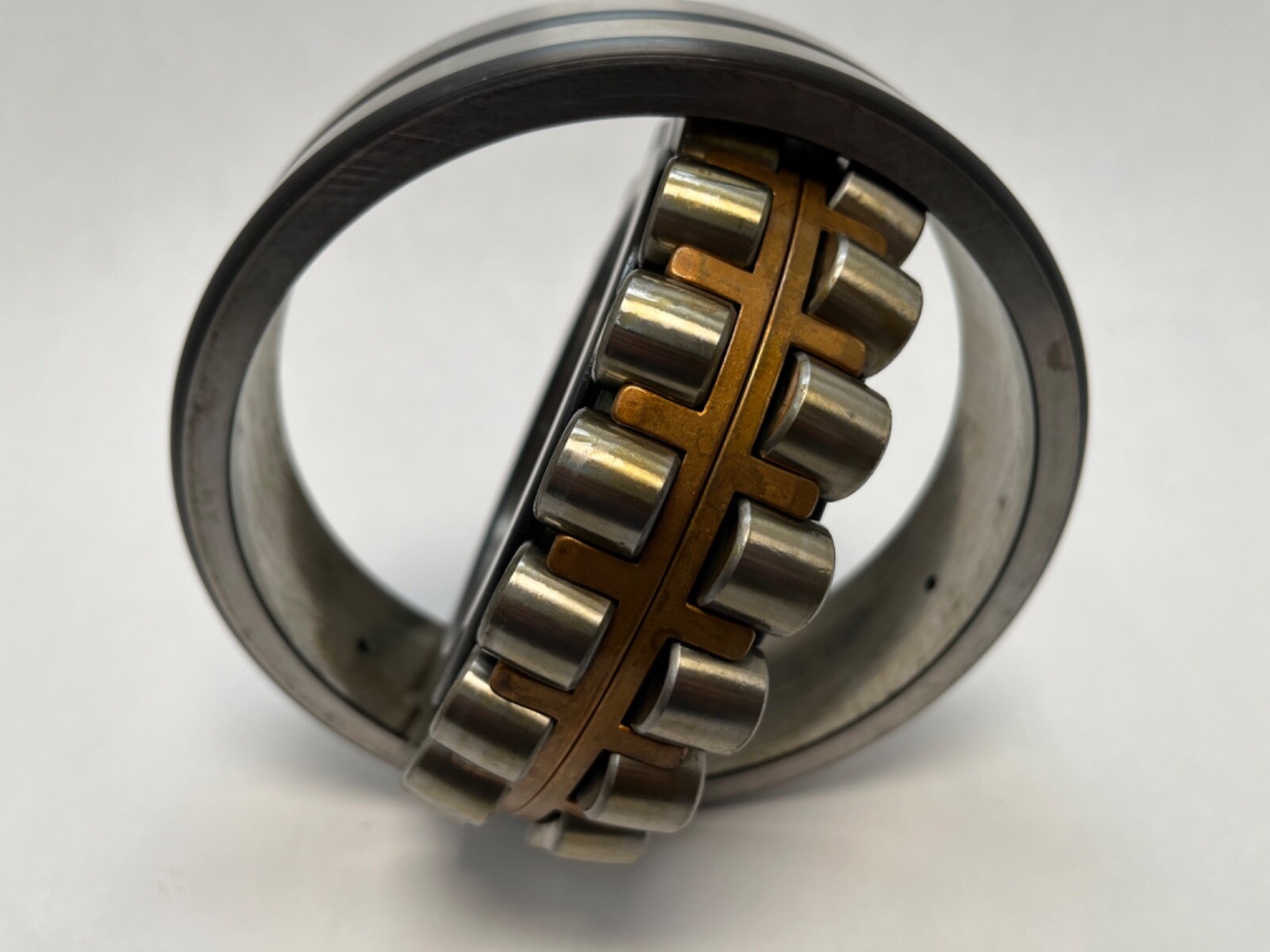

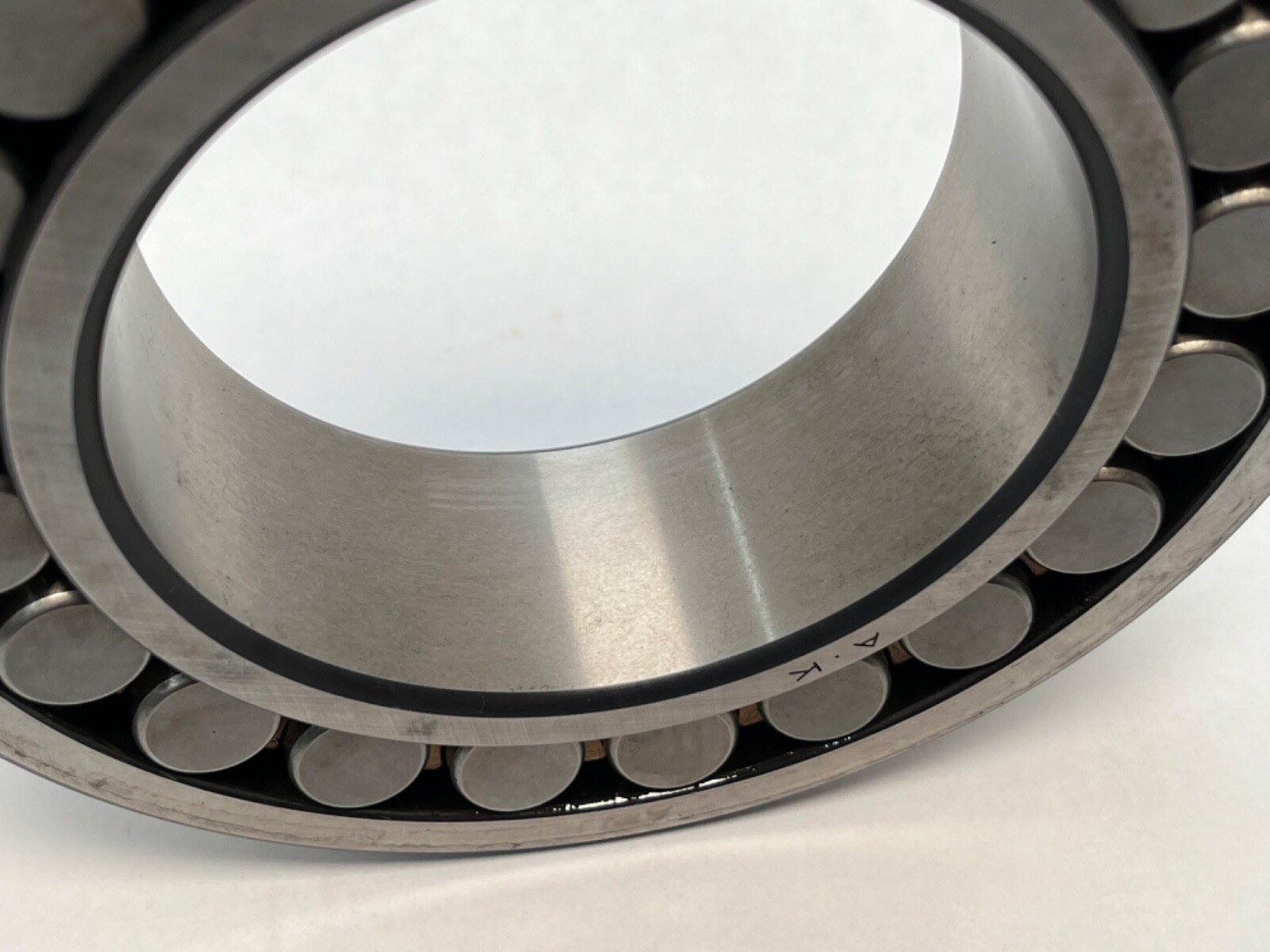

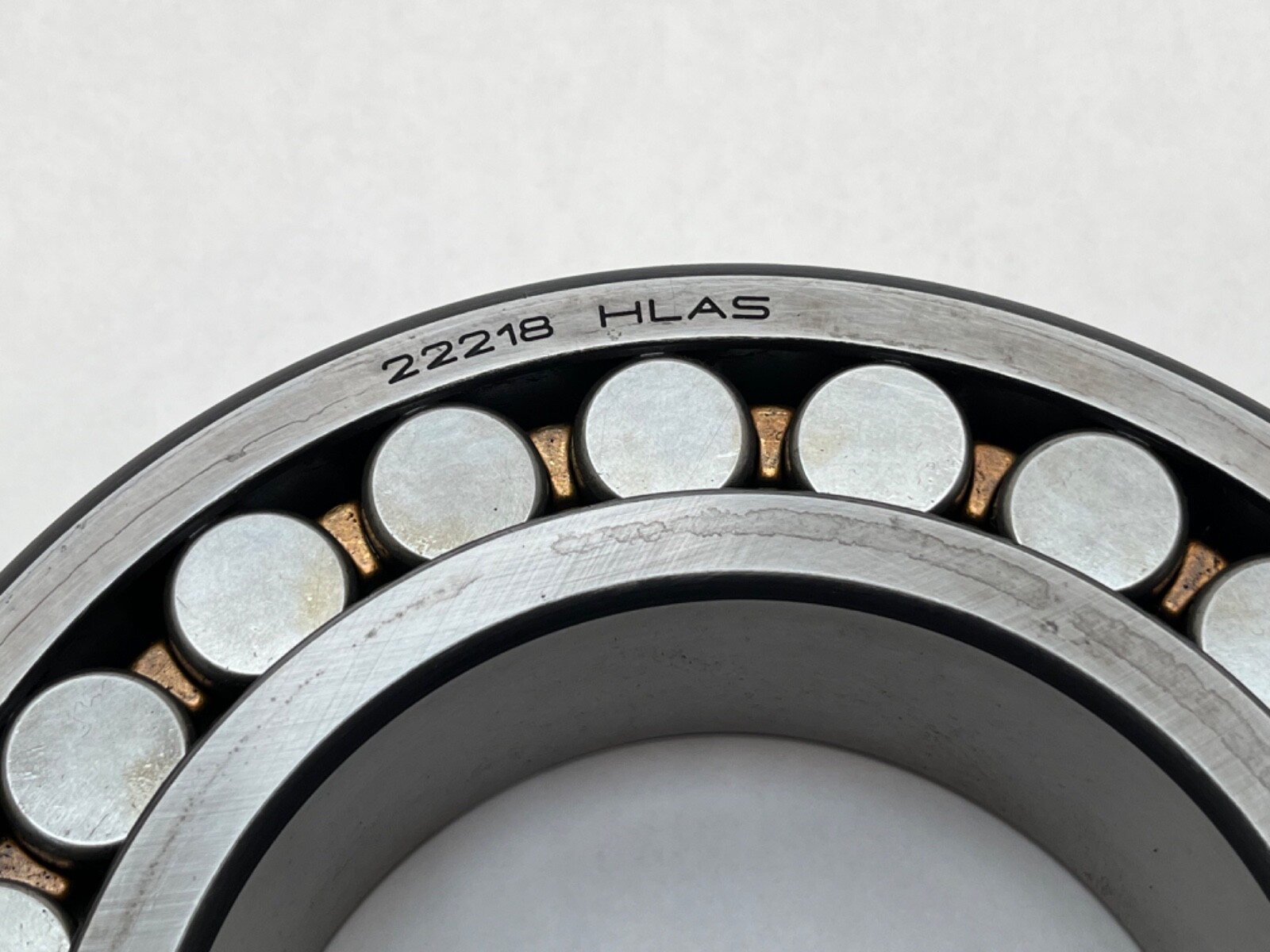

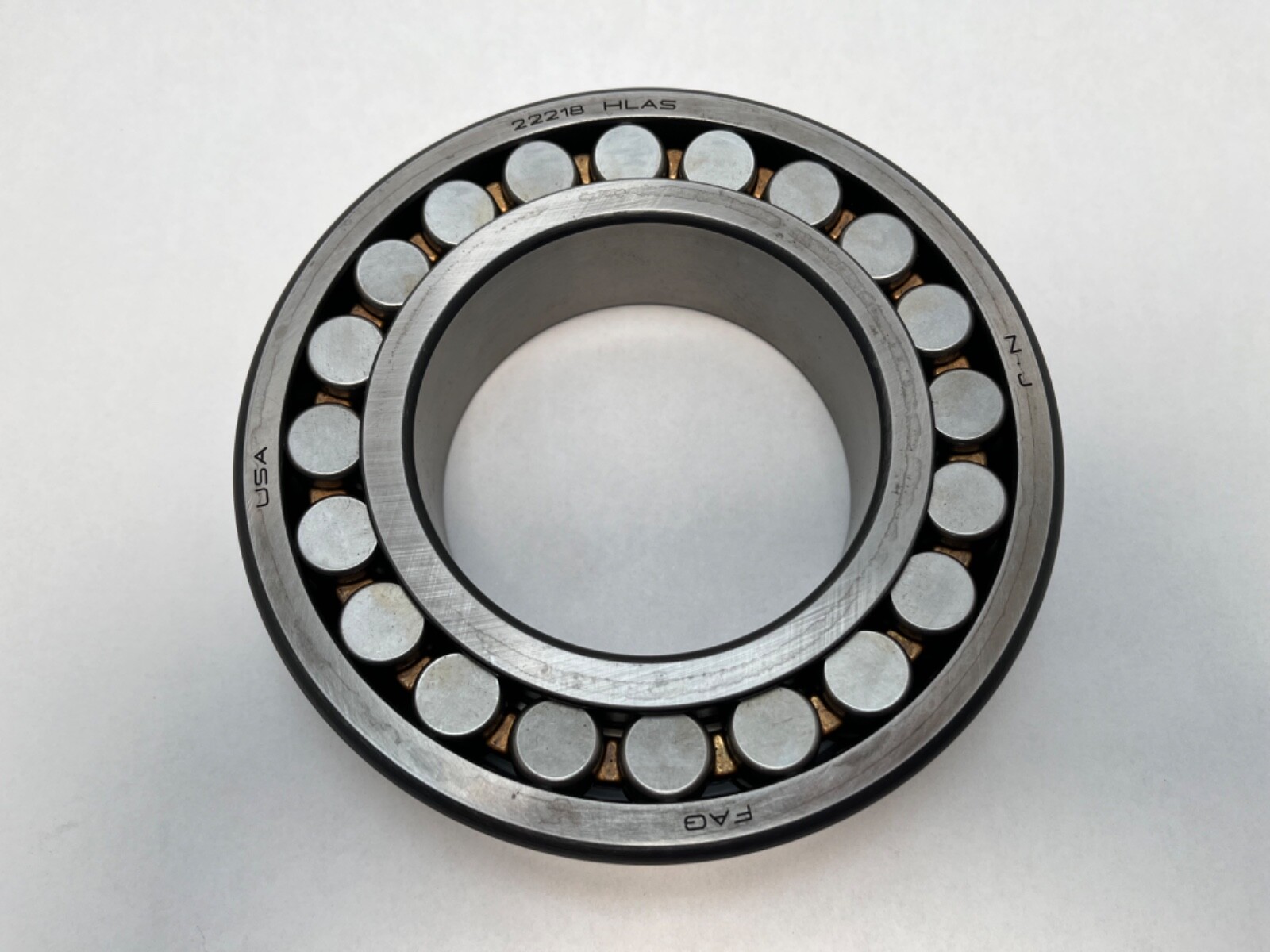

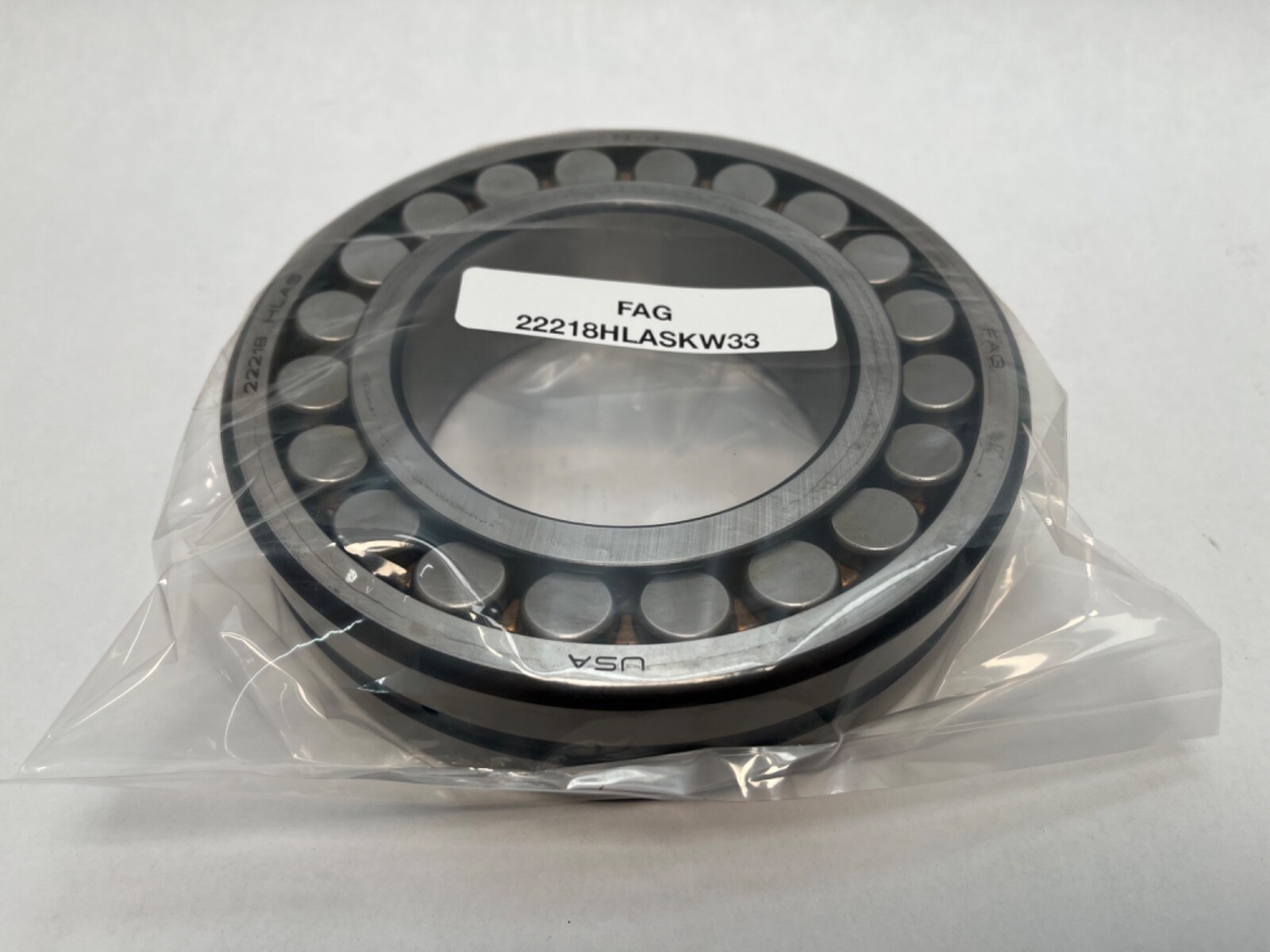

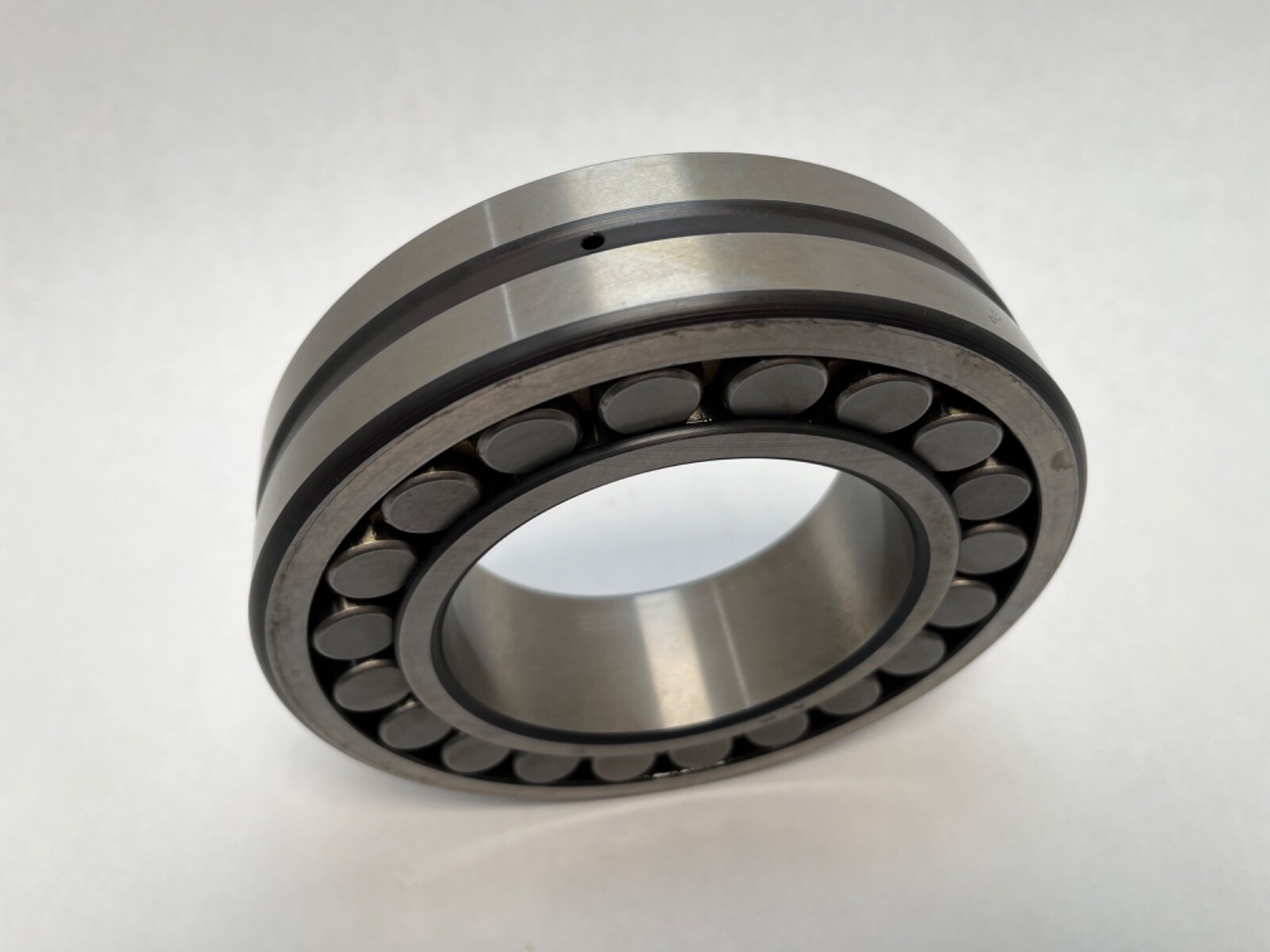

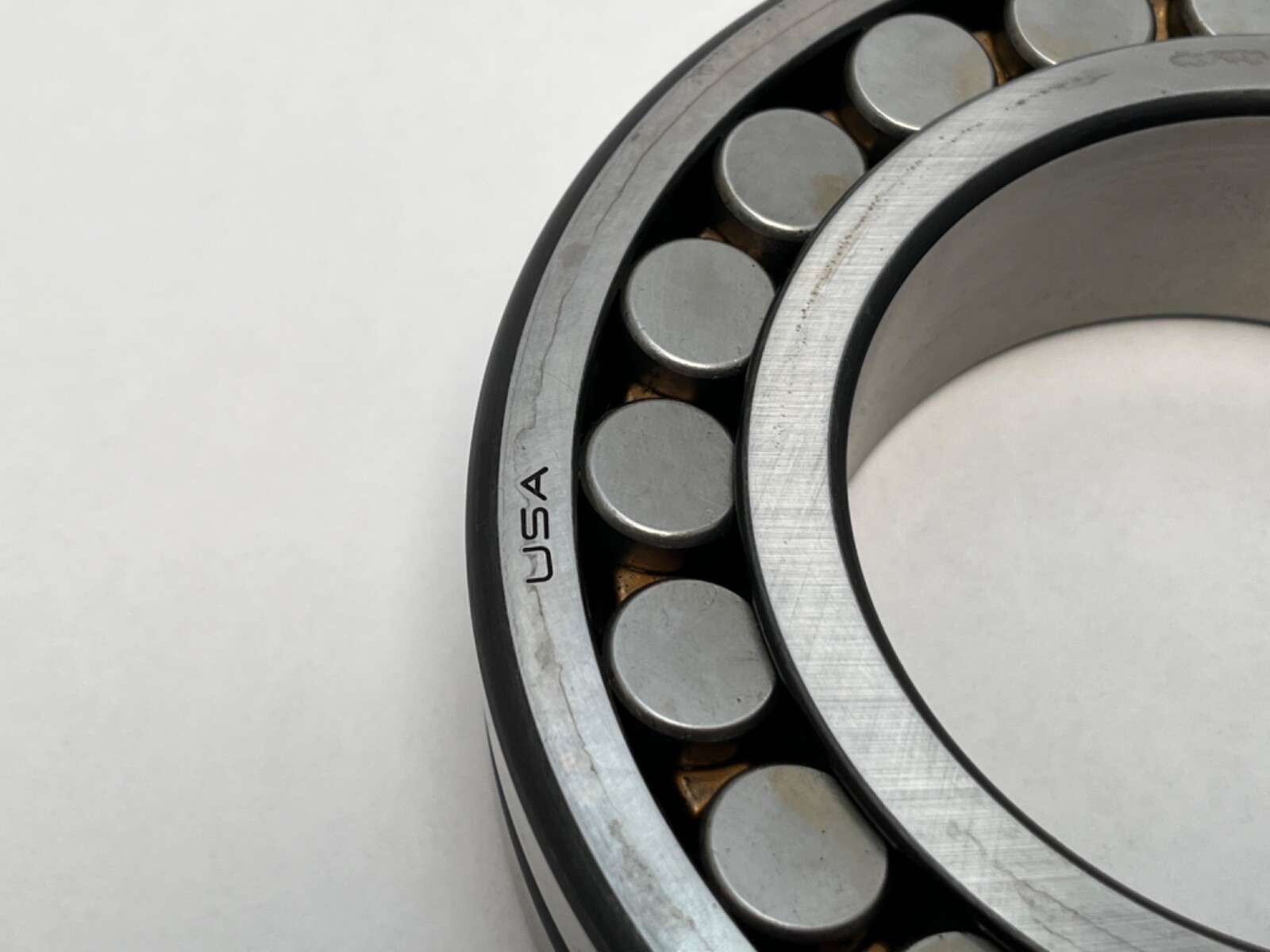

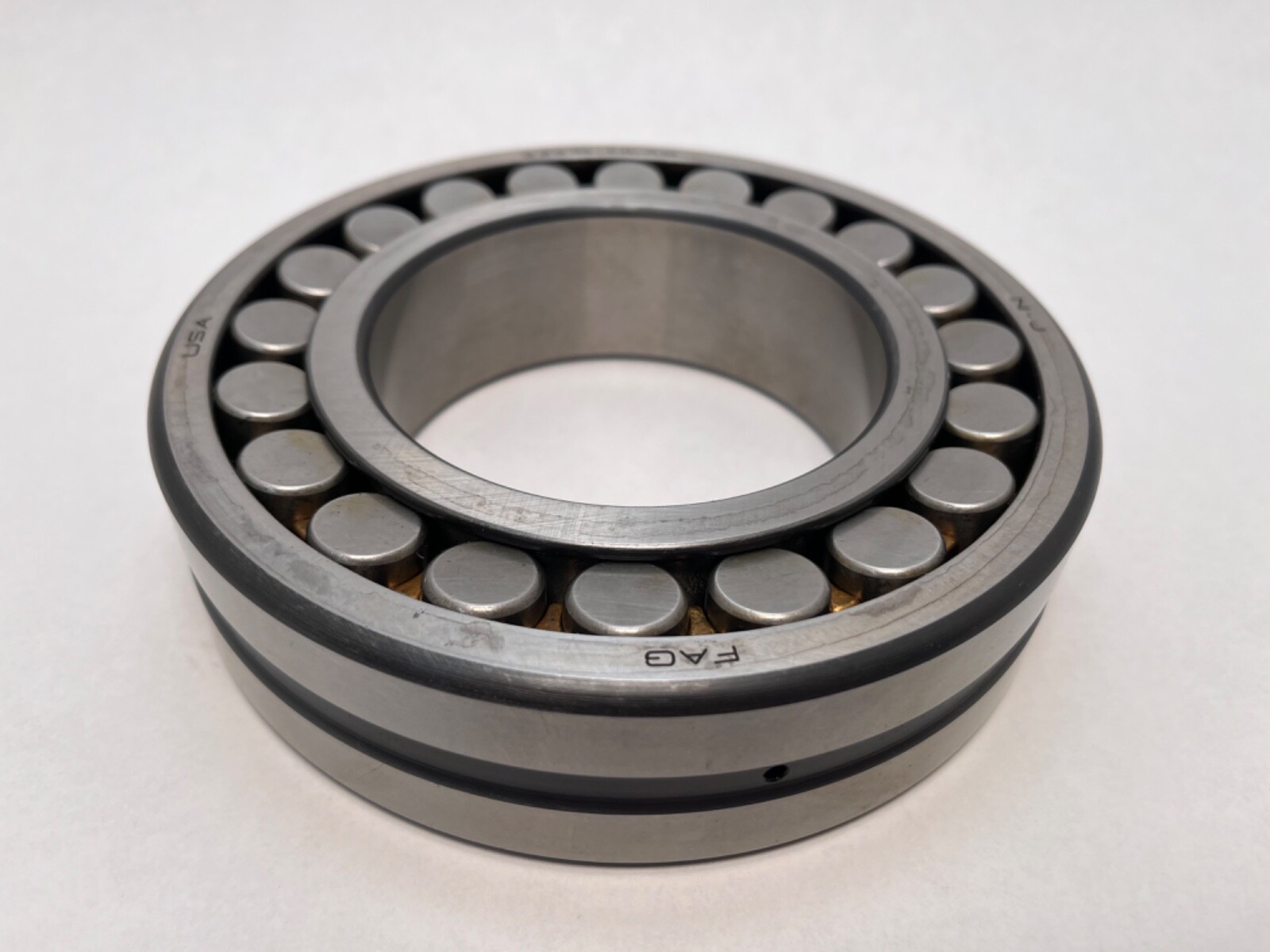

Introducing the FAG 22218HL.ASK Spherical Bearing, a highly reliable solution for your machinery and industrial applications. This new, open box spherical roller bearing, with the model number 22218 HL AS K W33, boasts impressive dimensions of 90 mm bore diameter, 160 mm outside diameter, and a 40 mm width, ensuring a perfect fit for your needs. Designed by FAG, a trusted name in the bearings industry, this bearing type is engineered for high performance and durability. It features a taper bore design, which allows for easy installation and adaptability, making it ideal for various applications. Key Features: Brand: FAG Type: Spherical Roller Bearing Dimensions: 90x160x40 mm MPN: 22218HLASKW33 Country of Manufacture: United States Your purchase is backed by competitive prices and international shipping, ensuring you can get all the parts you need promptly. We offer combined shipping on all orders and a collect shipping option for UPS, FedEx, DHL, and Freight. Enjoy same-day shipping on all items with next-day options available at checkout. Optimize your machinery’s performance with the FAG 22218HL.ASK Spherical Bearing! Contact us for any inquiries regarding parts or additional information.
$144.52
4 in stock
