Availability:
1 in stock
Double-row spherical roller bearing, 75 mm bore x 130 mm OD x 31 mm wide, straight bore, machined brass cage, with the W33 annular groove and three lubrication holes in the outer ring. Self-aligning under shaft deflection and housing misalignment. Sold as one bearing.
List Price
$84.12
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | 22215EASMW33 |
| Model | 22215E AS M W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 31 mm |
| Condition | New – Open box |
|---|---|
| Material | Bearing Steel |
| Relubrication | W33 - annular groove and three lubrication holes in the outer ring |
| Base Number | 22215 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; double row barrel roller bearing; W33 lube groove bearing; brass cage roller bearing |
| Common Misspellings | 22215EASMW3; 22215 EASM W33; 22215EASMW-33; FAG 22215EA SM W33 |
| Application Types | Fans and blowers; conveyor pulleys; crushers and screens; gearbox shafts; pumps; paper machinery |
| Condition Note | New Old Stock |
| Bore Shaft Size | 75 mm |
| Mpn Variants | 22215EASMW33; 22215-E-AS-M-W33; 22215 E AS M W33; 22215EMW33; 22215-E-M-W33; 22215E; 22215 |
| Manufacturer Status | Superseded by current Schaeffler X-life 22215-E1-XL series |
| Arrangement Configuration | Single bearing, straight cylindrical bore, mounts direct to shaft |
| Additional Attributes | Straight bore - no adapter sleeve required or included. Non-separable assembly. |
| Min Temp | -40°C |
| Cage Type | Brass |
| Dynamic Load Rating | 216 kN |
| Static Load Rating | 240 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Rollers |
| Max Temp | 200°C |
| Item Weight | 3.42 lbs |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Design Units | Metric |
| Internal Clearance | CN |
| Part Number | 22215-E-AS-M-W33 |
| Cross Reference 1 | SKF 22215 E / 22215 EK (K is tapered bore) |
|---|---|
| Cross Reference 2 | NSK 22215EAE4 / 22215EAKE4 |
| Cross Reference 3 | NTN 22215EAD1 / 22215EAKD1 |
| Cross Reference 4 | Timken 22215EJW33 |
| Cross Reference 6 | Consolidated 22215 E M W33 |
| Cross Reference 7 | 22215-E1-XL-M-C3 (current Schaeffler X-life nomenclature, same 75x130x31 envelope) |

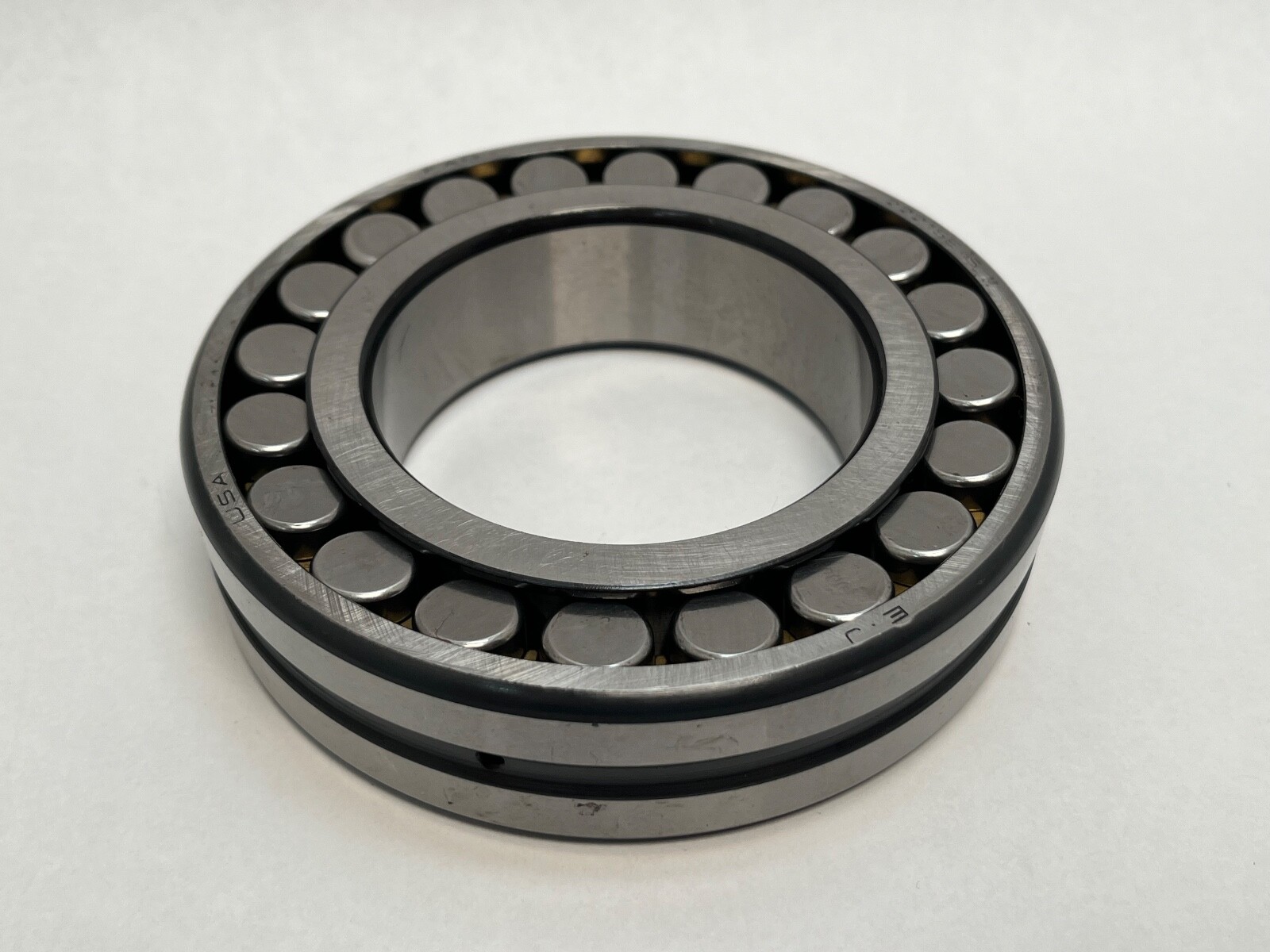

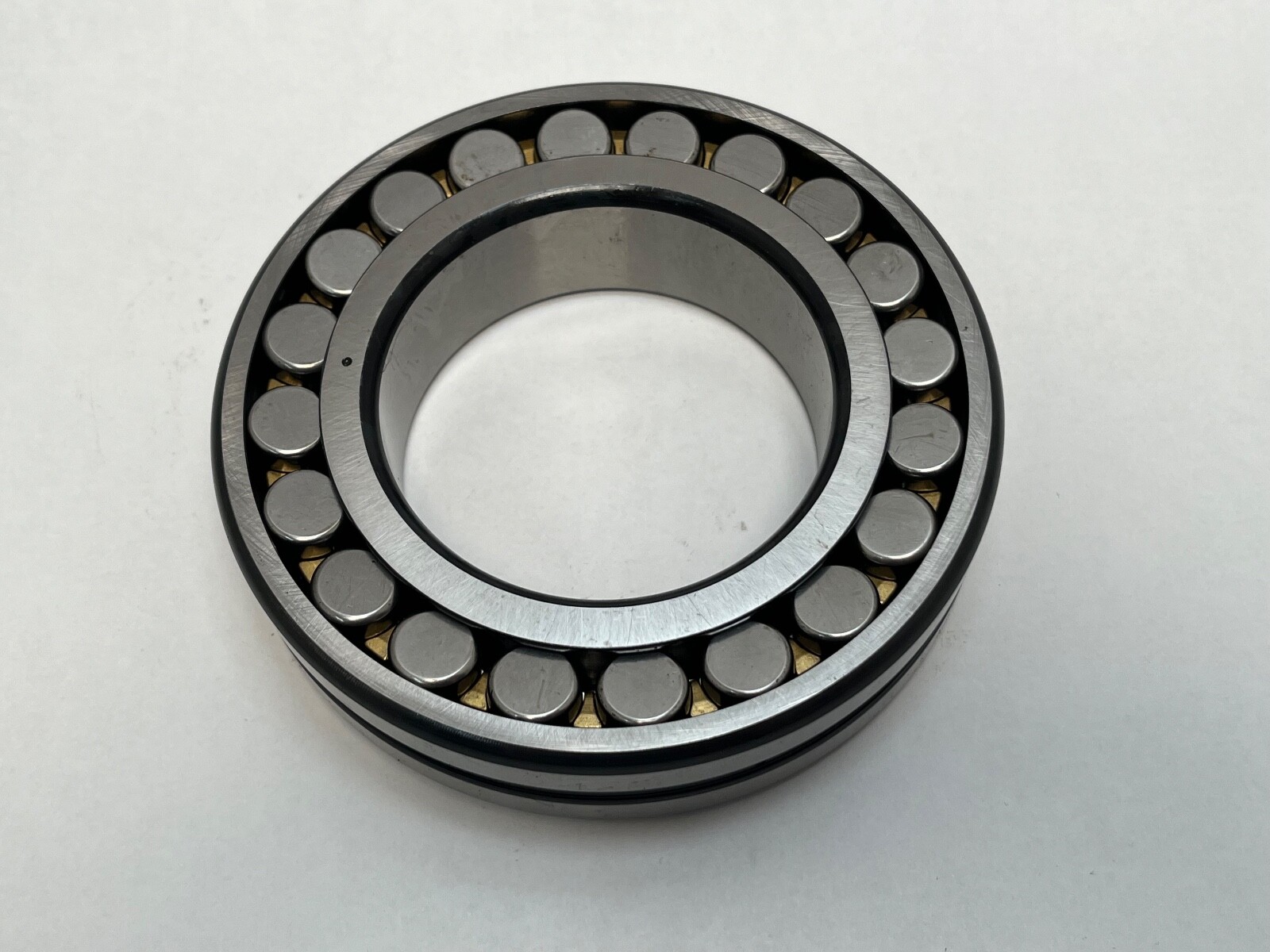

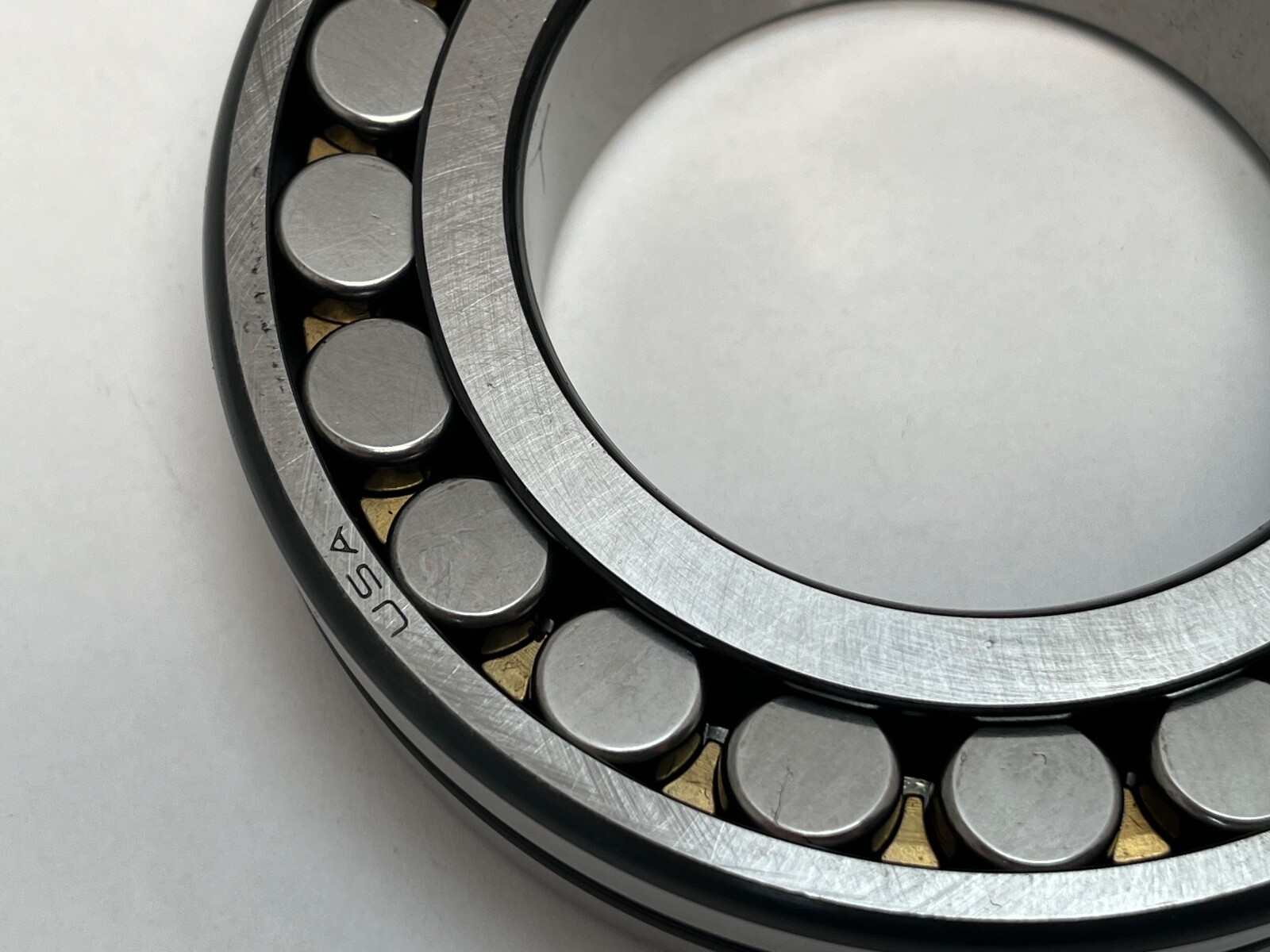

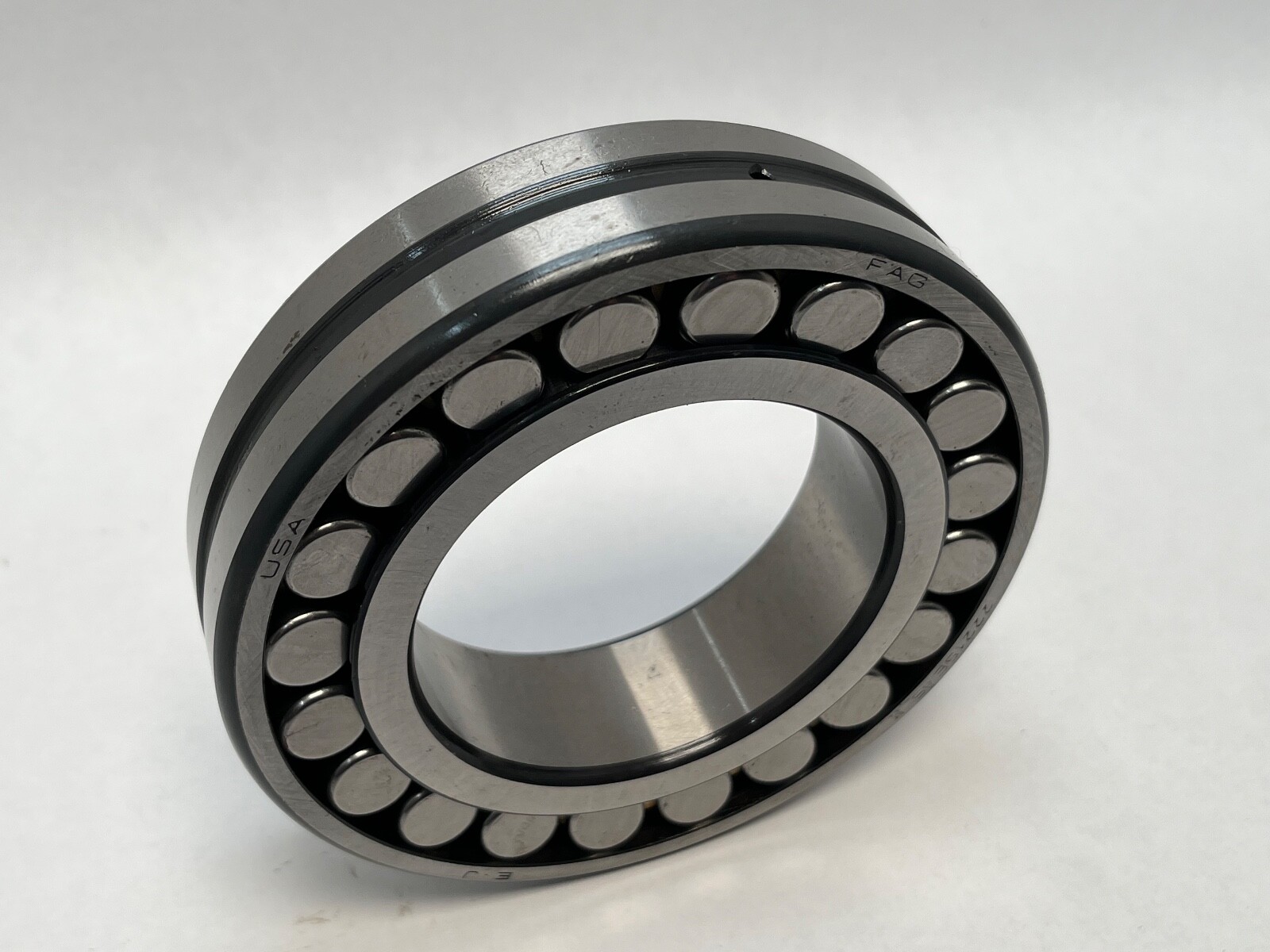

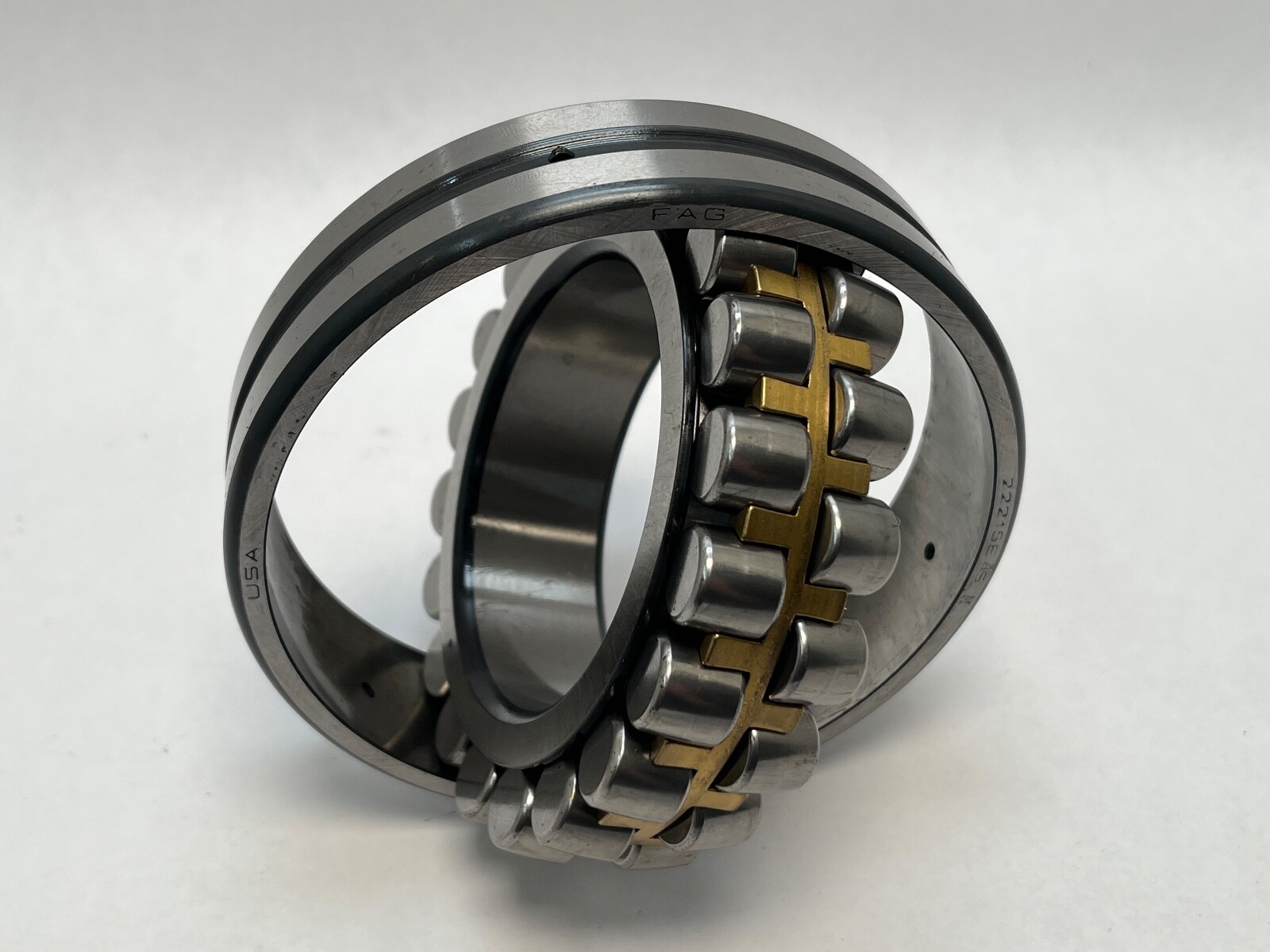

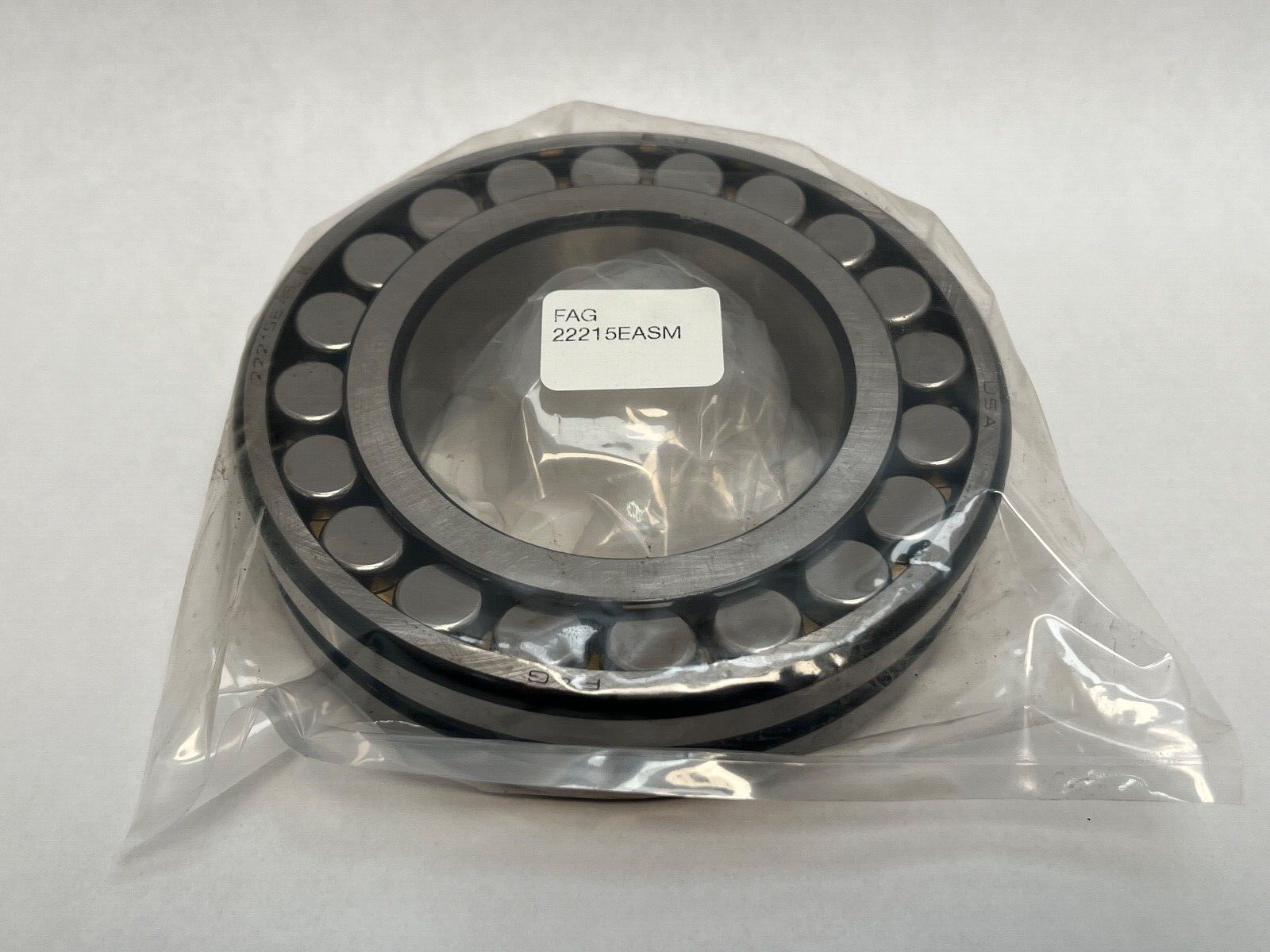

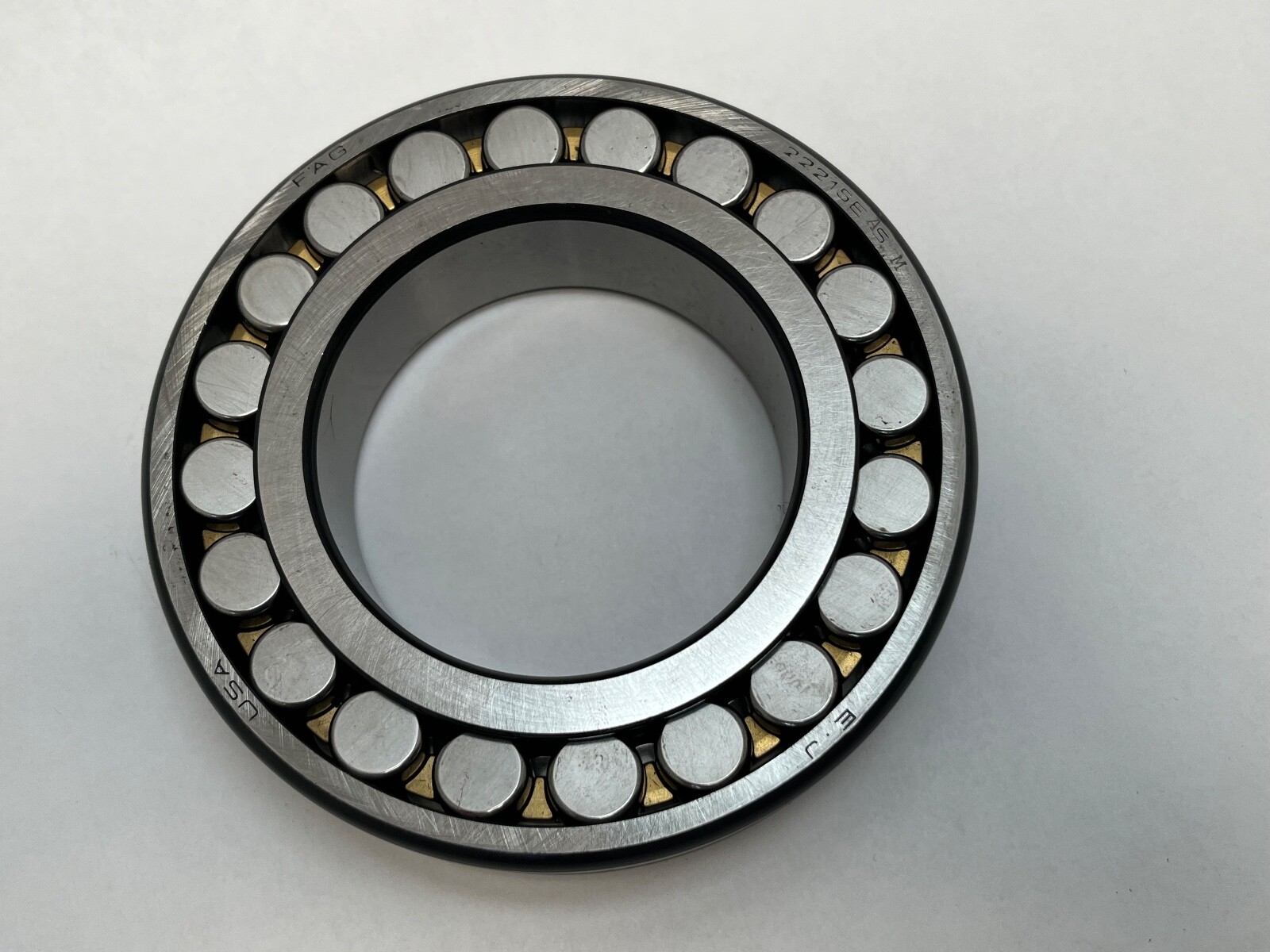

A FAG 22215-series double-row spherical roller bearing in the 222 dimension series — 75 mm bore, 130 mm outside diameter, 31 mm wide, straight (cylindrical) bore. Two rows of barrel-shaped rollers run on a common spherical outer raceway, so the inner ring and roller set can swivel inside the outer ring. That is what makes this bearing self-aligning: it absorbs shaft deflection and housing-to-housing misalignment without generating edge loading.

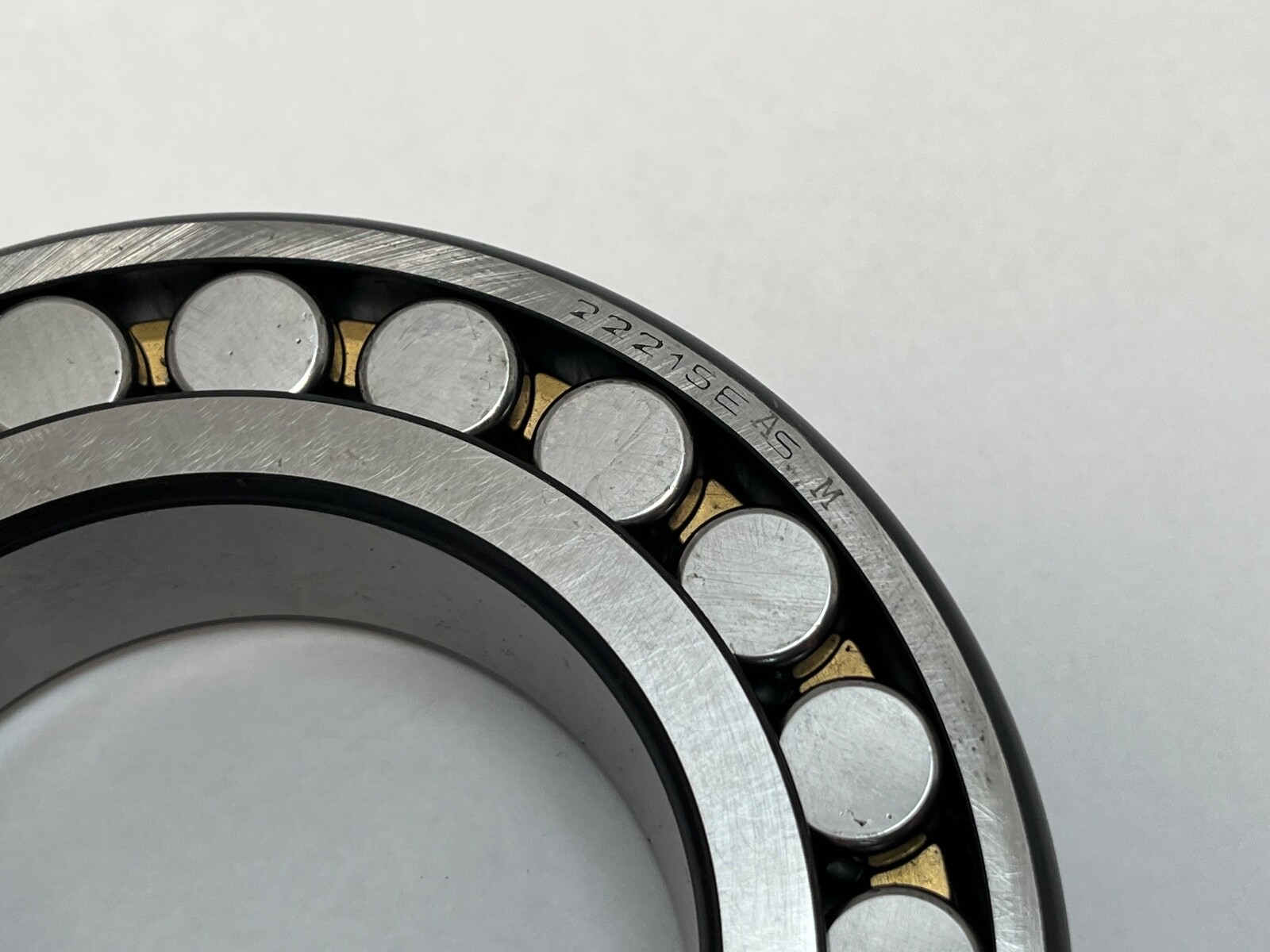

222 – ISO spherical roller bearing dimension series 222 (the wider of the two common 22-series envelopes).
15 – bore code, 15 x 5 = 75 mm bore.
E – FAG reinforced internal design: larger rollers, higher load capacity than the original 222 design at the same envelope.
M – machined (solid) brass cage.
W33 – annular lubrication groove in the outer ring with three radial lubrication holes, for relubrication through the housing.
AS – carton marking carried as supplied; retained here as a searchable reference rather than published as a spec.
Spherical roller bearings are chosen where the load is heavy and the alignment is imperfect — fans, crushers, conveyor pulleys, vibrating screens, gearbox output shafts, paper-machine rolls. The machined brass cage tolerates higher temperature, shock and acceleration than a pressed-steel cage, which is why it is the default on E-design 222-series bearings in industrial service. The W33 groove matters at specification time: it lets you relubricate through the housing without stripping the assembly, but the housing must actually have a matching lubrication port for it to do anything.
Bore (d): 75 mm
Outside diameter (D): 130 mm
Width (B): 31 mm
Rows: 2
Bore type: straight cylindrical (no adapter sleeve required, and none included)
Closure: open
Cage: machined brass
This listing is one complete bearing — inner ring, outer ring, both roller rows and the cage as one non-separable unit. No adapter sleeve, withdrawal sleeve, locknut or housing is included; the straight bore mounts directly on a shaft to an interference fit.
Mount by heating the bearing or with a hydraulic press against the inner ring face — never drive through the rollers. A straight-bore spherical roller bearing needs a correct shaft interference fit to avoid inner-ring creep; the self-aligning feature compensates for misalignment, not for a loose fit. If the housing has a relubrication port, orient the W33 holes to it.
Dimensionally interchangeable with other makers’ 22215 in the same 75 x 130 x 31 mm envelope — SKF 22215 E, NSK 22215EAE4, NTN 22215EAD1, Timken 22215EJW33, Koyo 22215RHRW33. Where the substitute carries no W33 suffix it is the same envelope but without the outer-ring lubrication groove; where it carries a K suffix it is a 1:12 tapered bore and will not mount on a plain shaft. Match cage material and internal clearance to your original if the application is hot or heavily loaded.
