Double-row spherical roller bearing, 50 mm bore, 90 mm OD, 23 mm width, C3 clearance, W33 lubrication groove, self-aligning, straight bore.
List Price
$38.14
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing - 50 mm ID, 90 mm OD, 23 mm Width, Cylindrical Bore, Steel Cage, Lubrication Groove, CN Clearance$48.29
Spherical Roller Bearing, 50 mm Bore, 90 mm OD, 23 mm Width, Pressed Brass Cage, Straight Bore$32.28
Spherical Roller Bearing - Straight Bore, 50 mm ID, 90 mm OD, 23 mm Width, Lubrication Groove and Holes, CN Clearance$45.41
Spherical Roller Bearing — 50 mm Tapered Bore, 90 mm OD, 23 mm Width, 1:12 Taper, Normal Clearance$45.71| MFR / Brand | RHP |
|---|---|
| MPN | 22210HLW33C3 |
| Model | 22210 HL W33 C3 22210 CJ/CC/C |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Lubricant | Oil Preservative |
| Material | Bearing Steel |
| Rolling Elements | Spherical Rollers |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Duty Type | Heavy |
| Cross Reference 5 | NSK 22210EA |
|---|

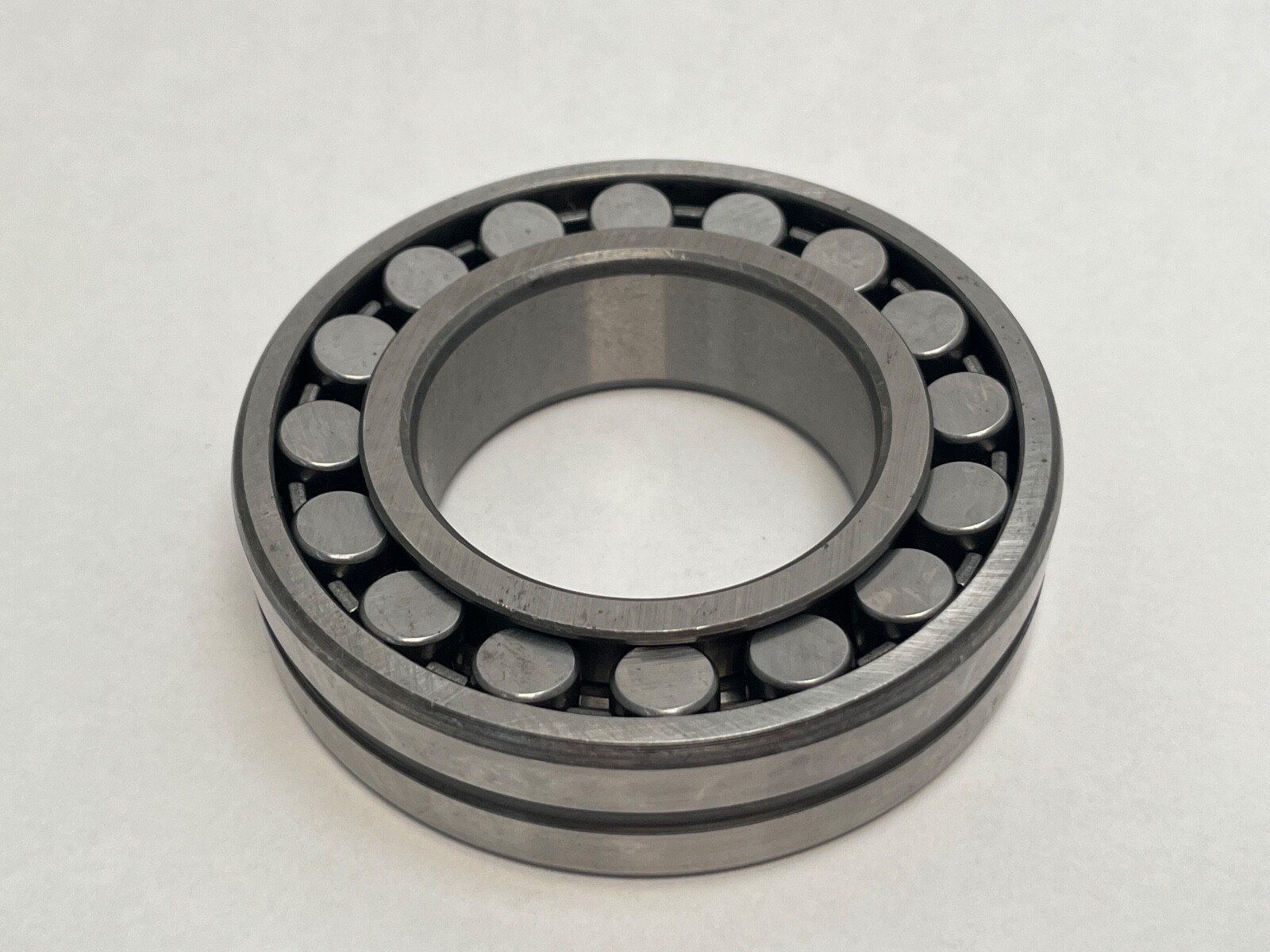

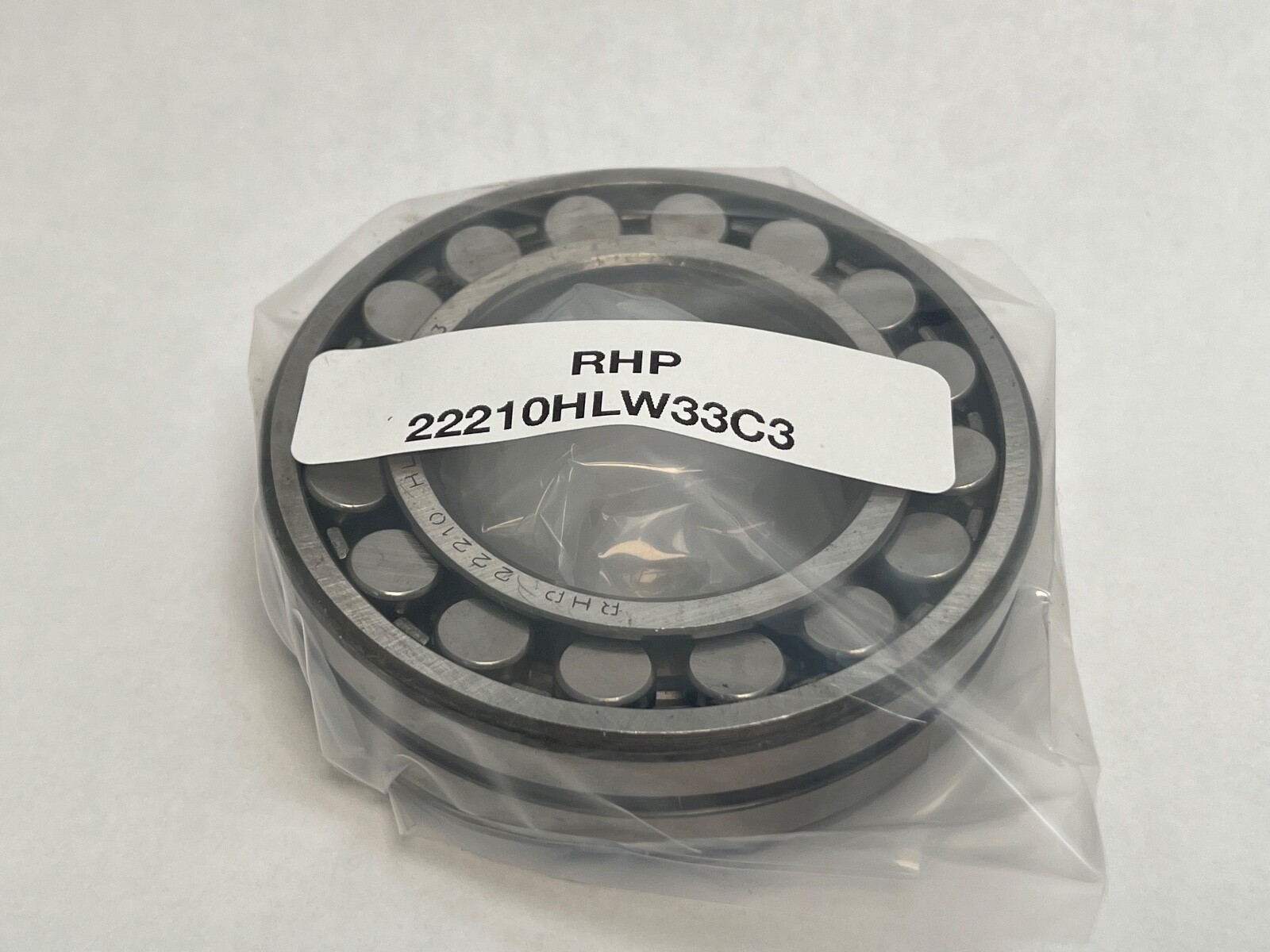

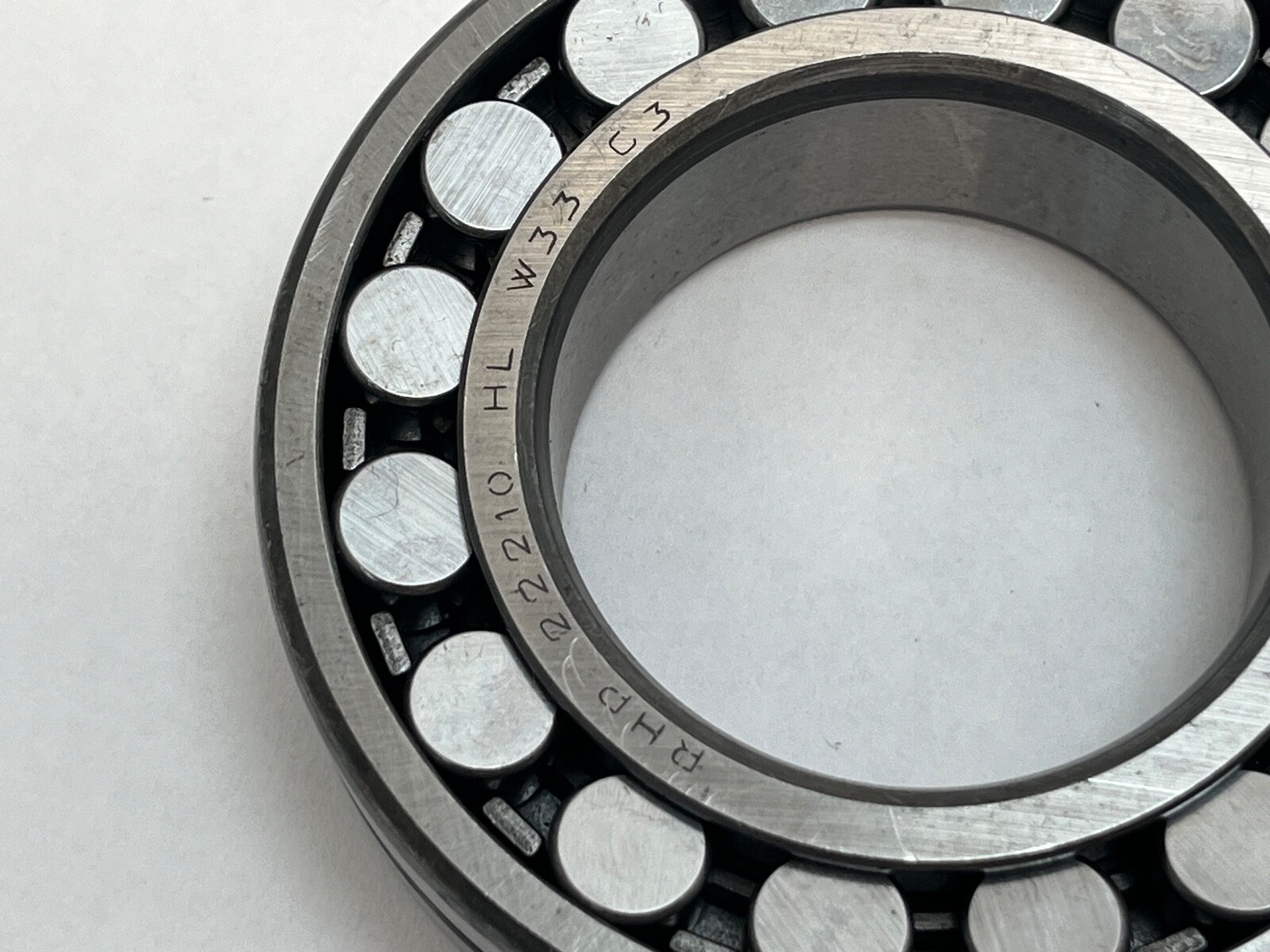

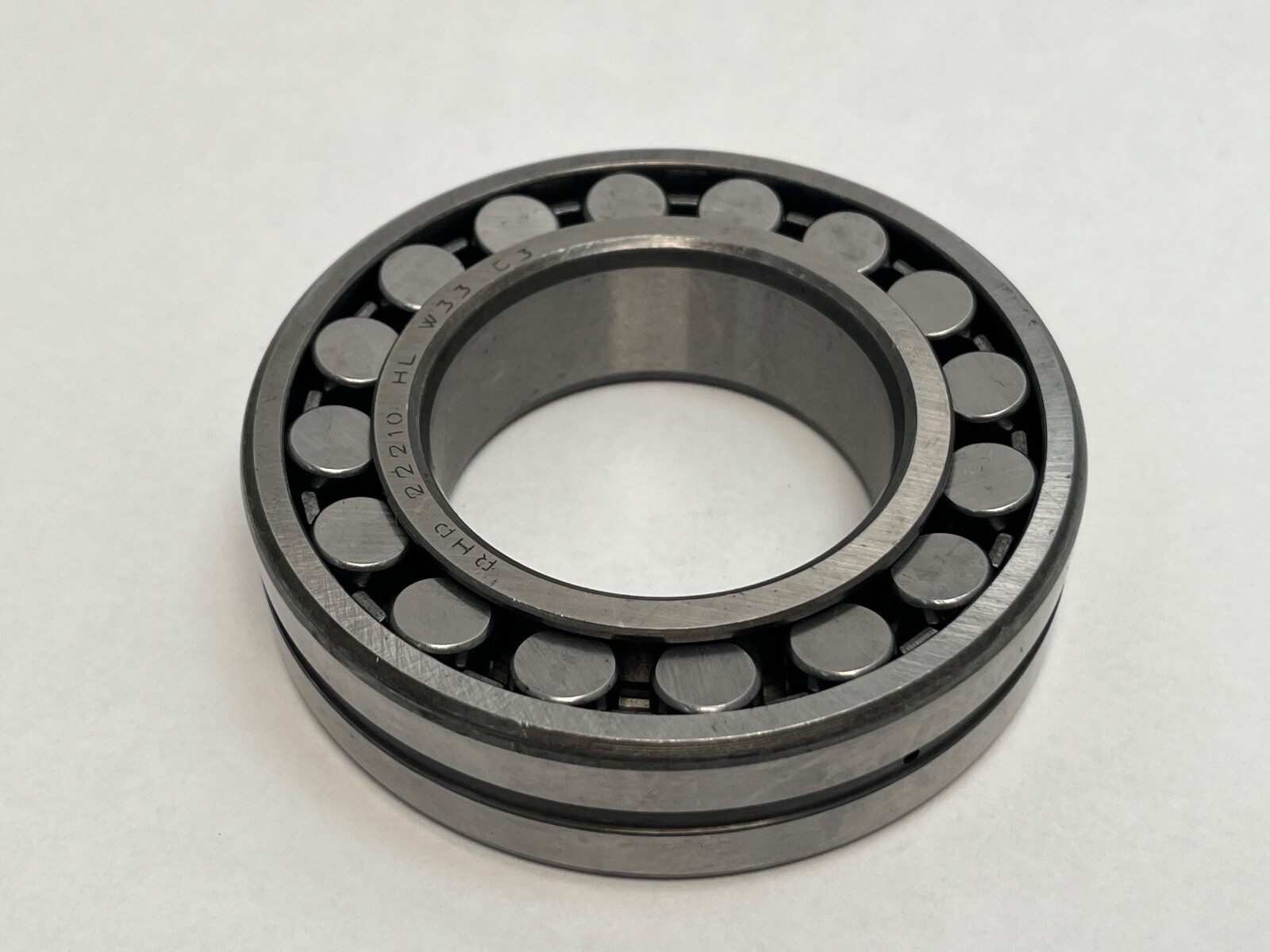

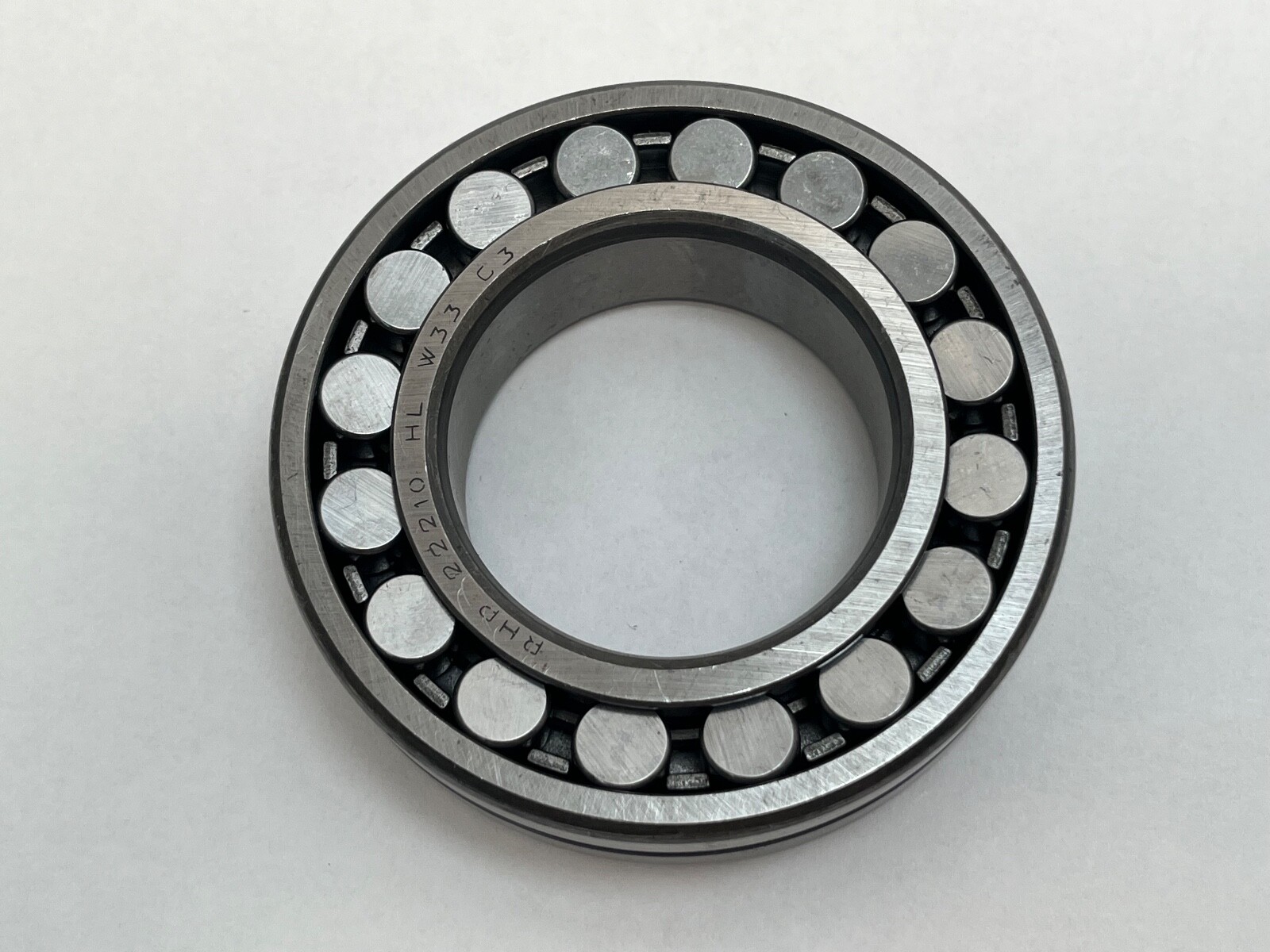

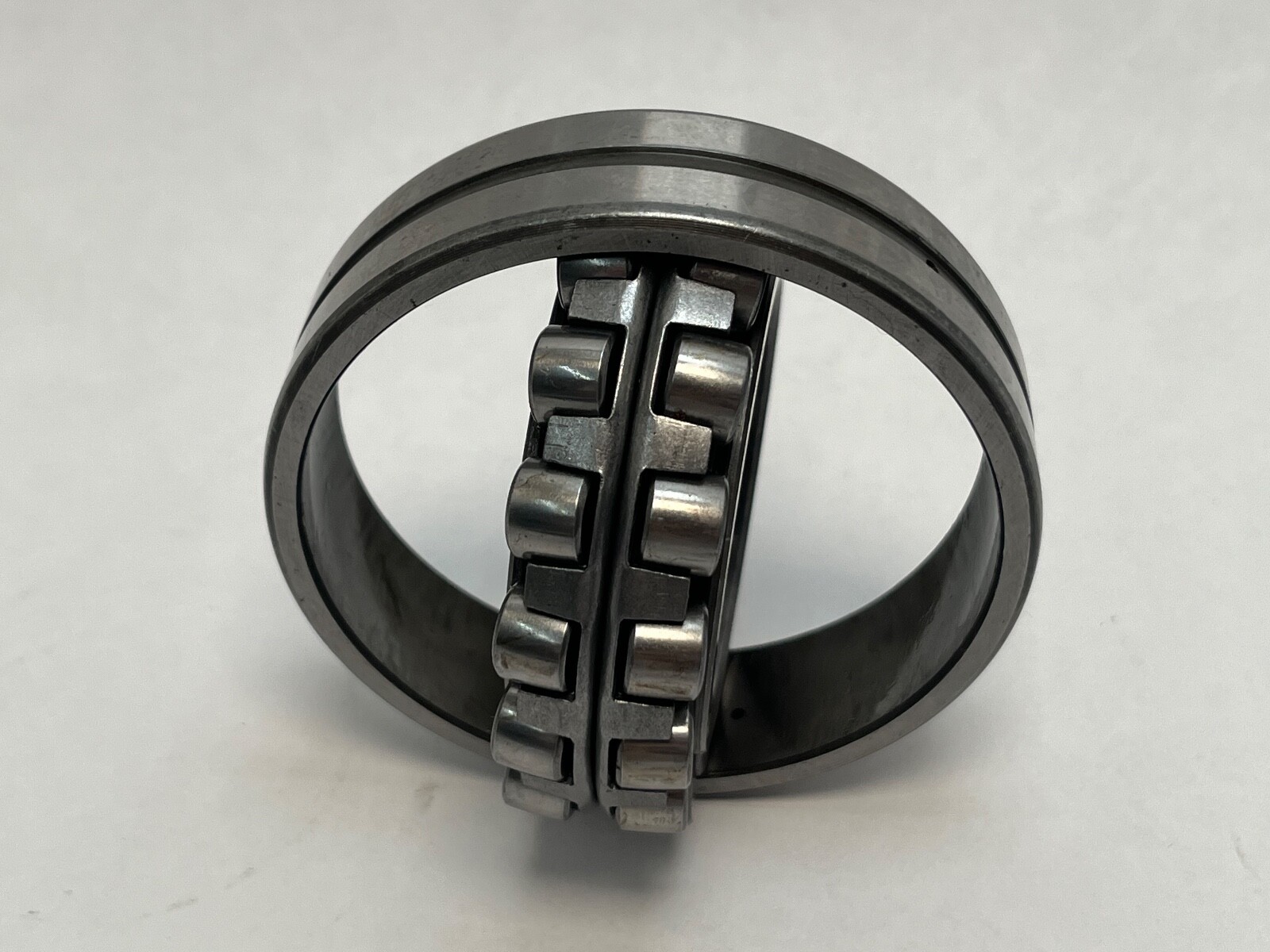

Double-row spherical roller bearing with a 50 mm straight bore, 90 mm outside diameter and 23 mm width. Self-aligning construction accommodates shaft misalignment while carrying heavy radial and moderate axial load.
22210 — RHP’s number for the ISO 22210 envelope, 50 x 90 x 23 mm.
W33 — oil groove and three radial holes on the outer ring.
C3 — greater-than-normal internal clearance.
Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 23 mm. Bore Type: Straight. Internal Clearance: C3. Rolling Elements: Spherical Rollers. Number Of Rows: 2. The W33 groove and holes deliver grease or oil to the outer ring.
Same 50 x 90 x 23 mm envelope as Timken 22210EJ, NTN 22210E and NSK 22210EA.
