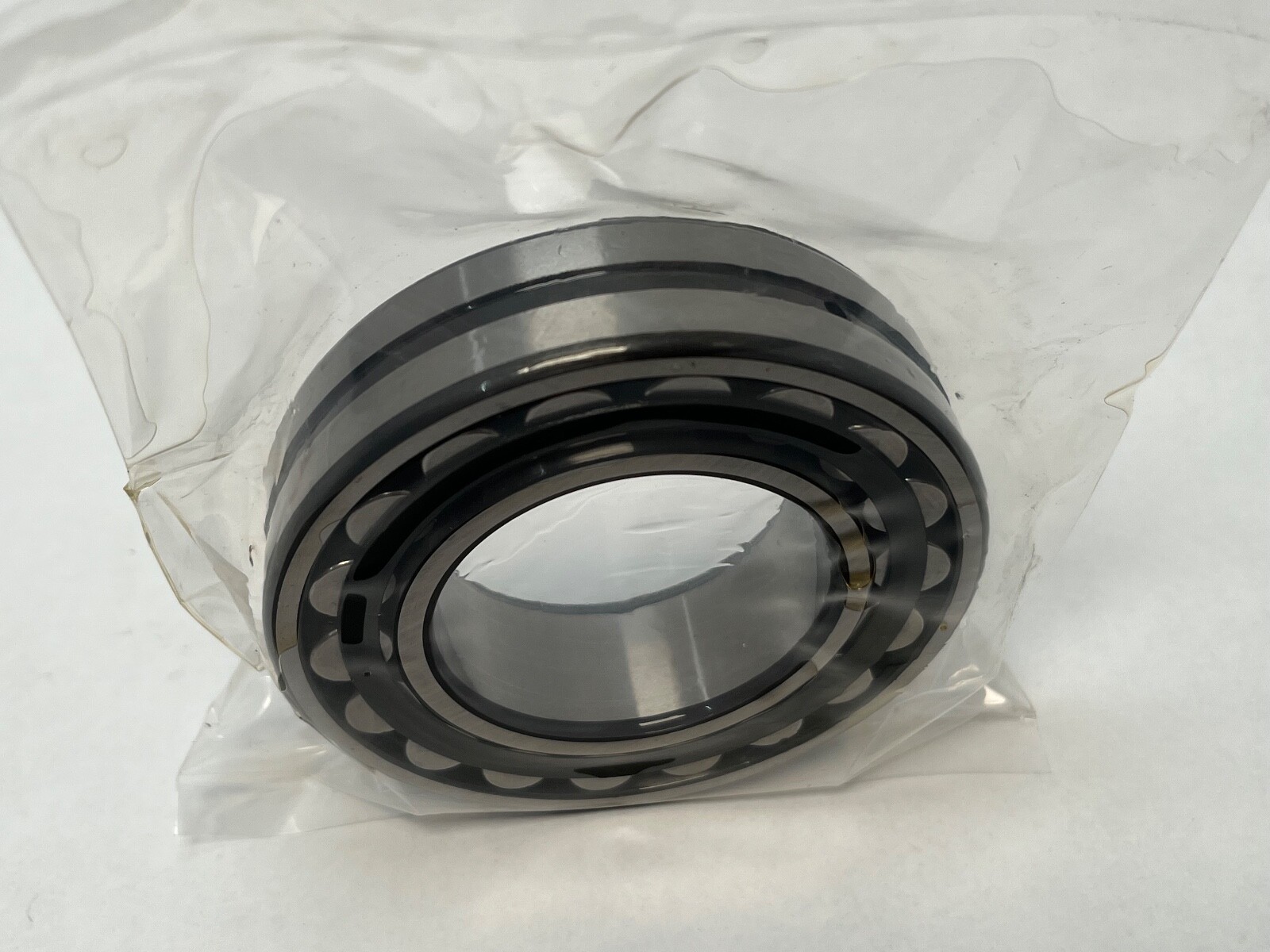

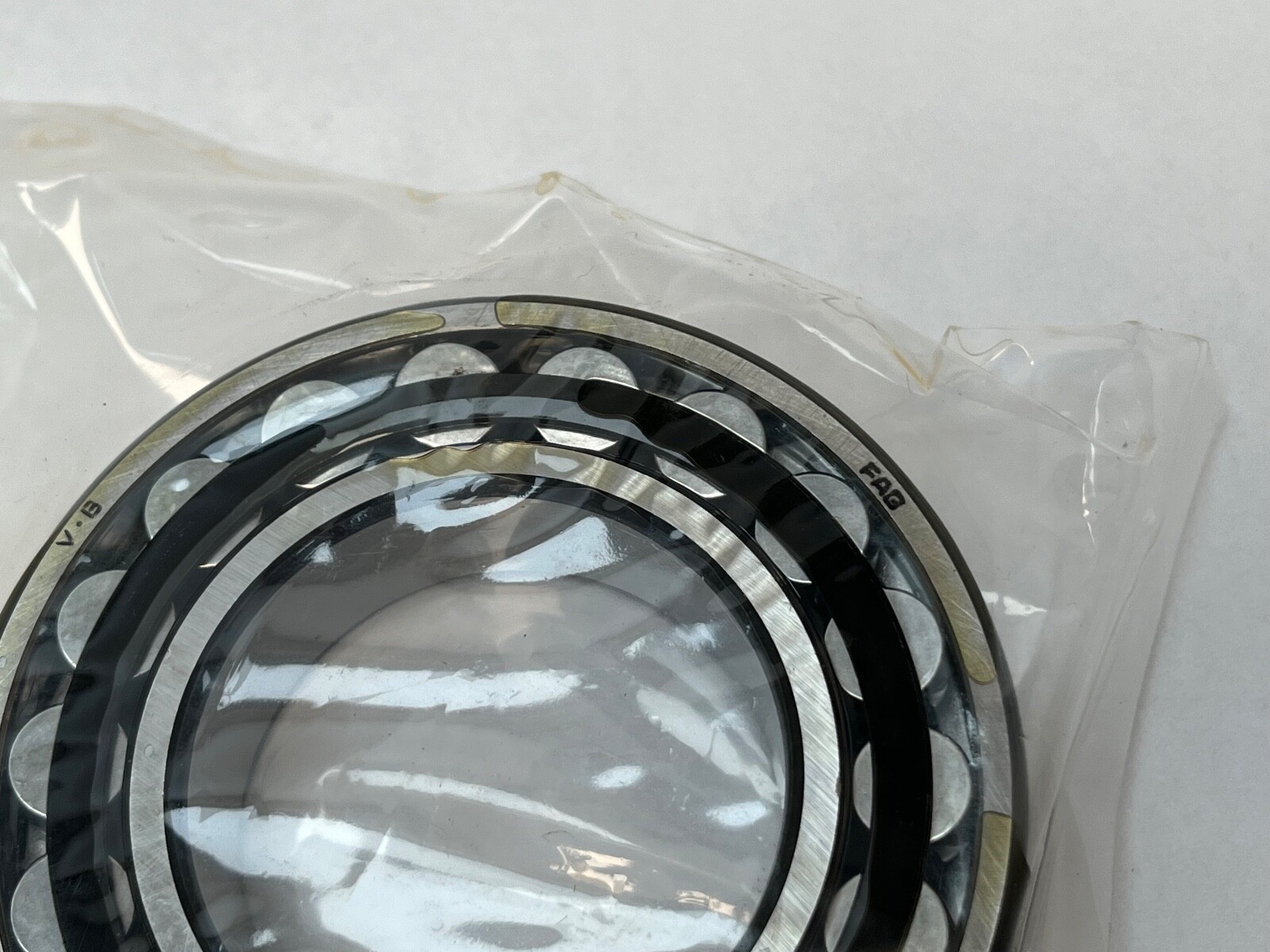

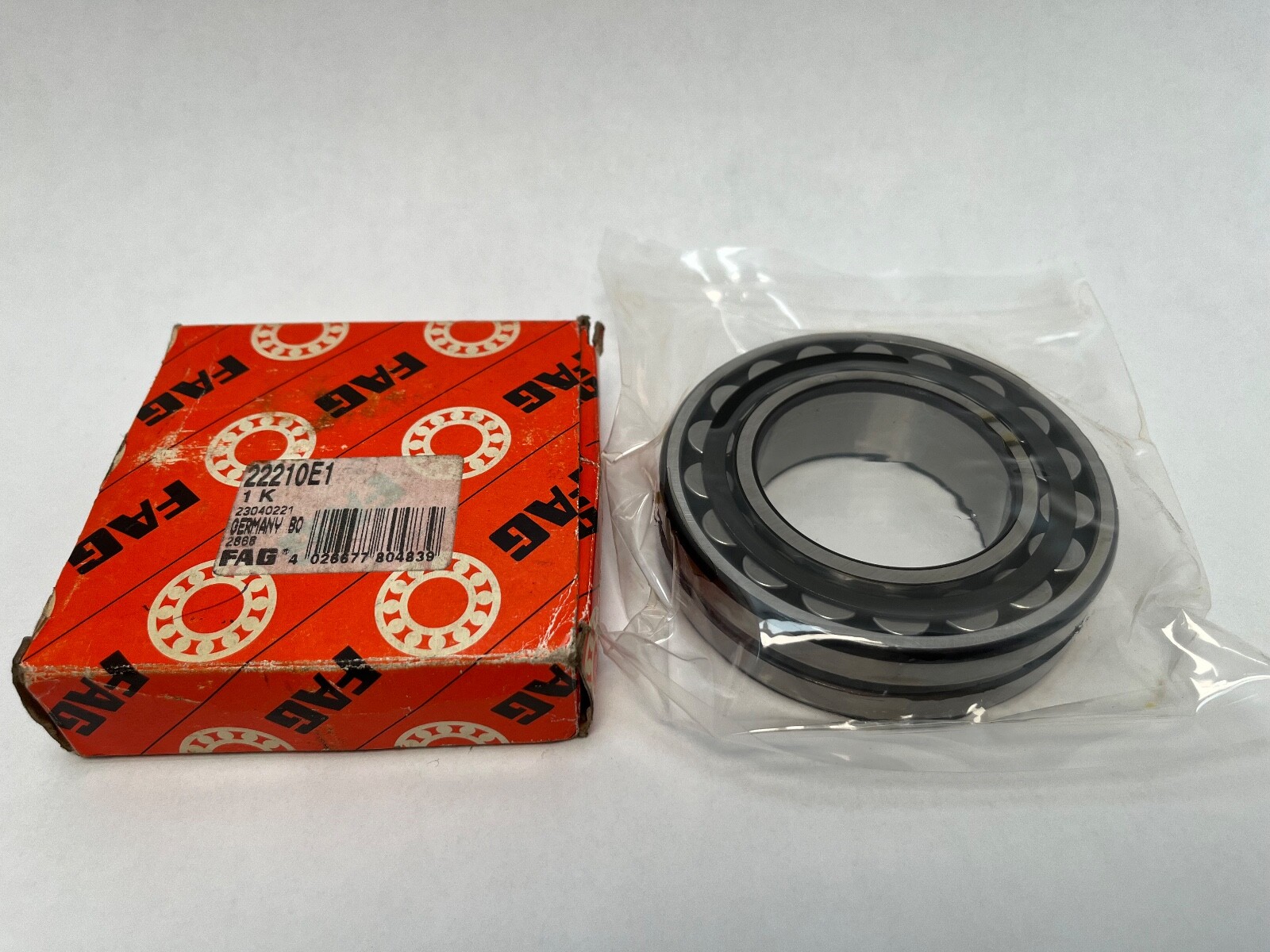

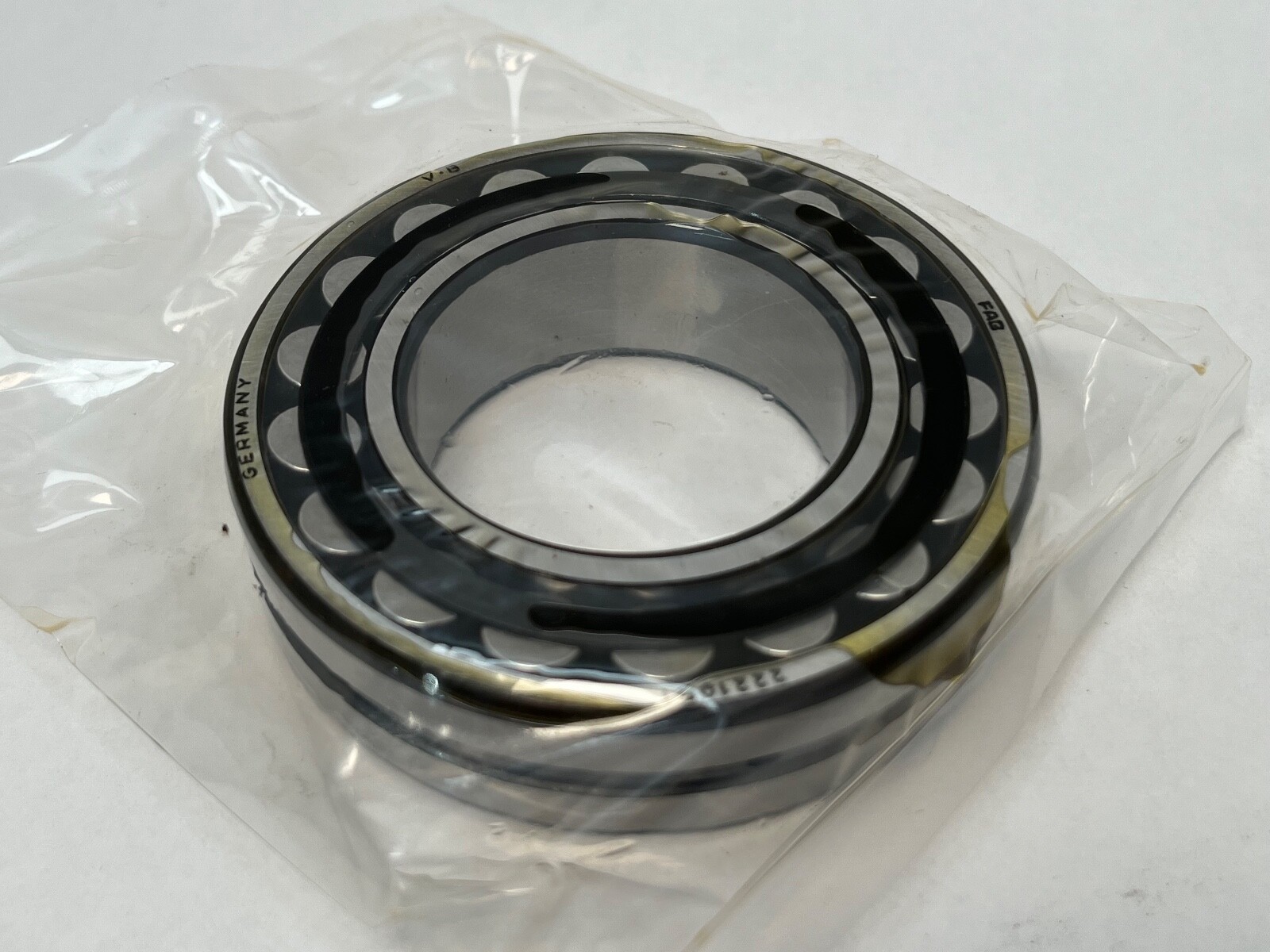

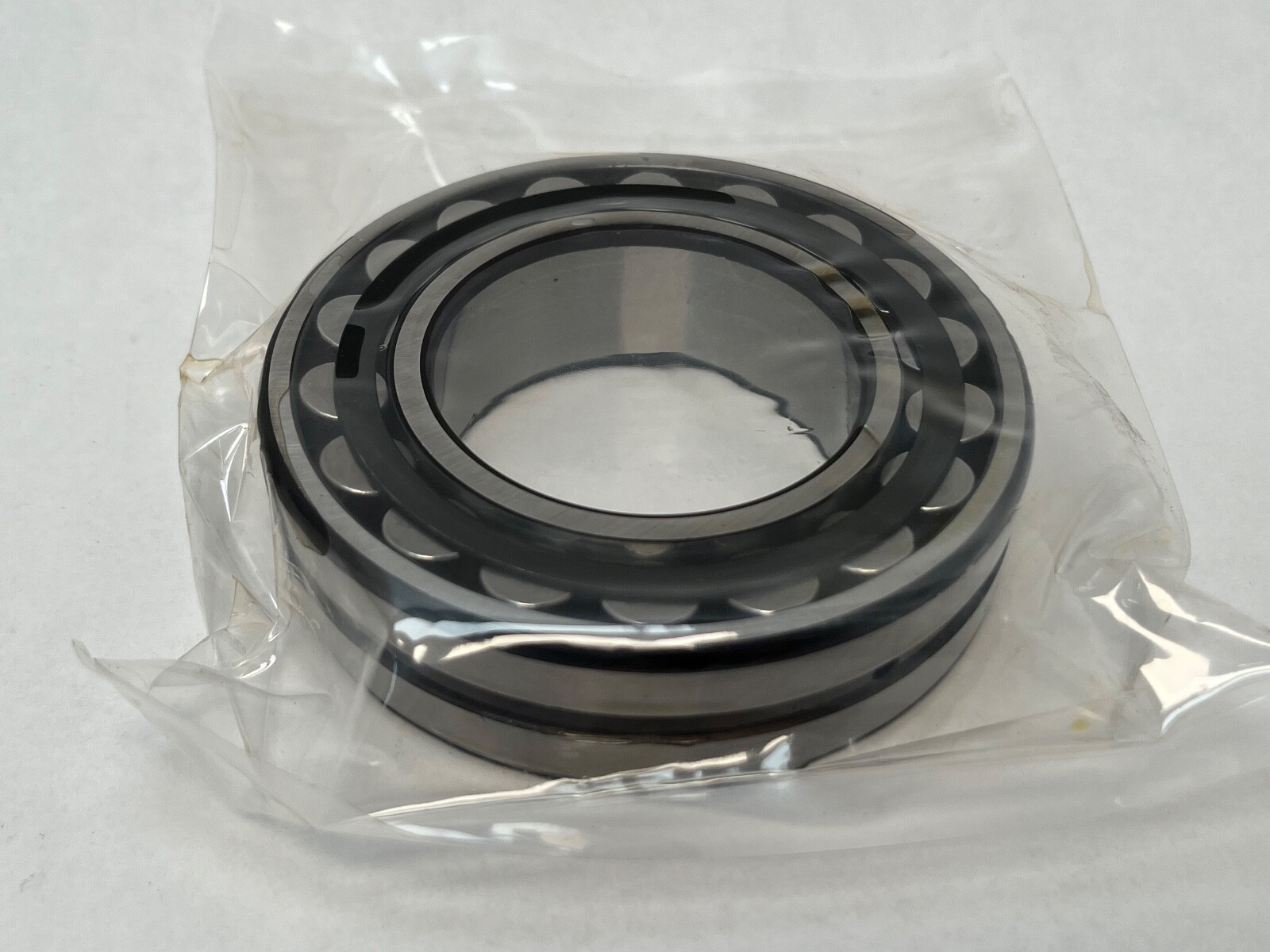

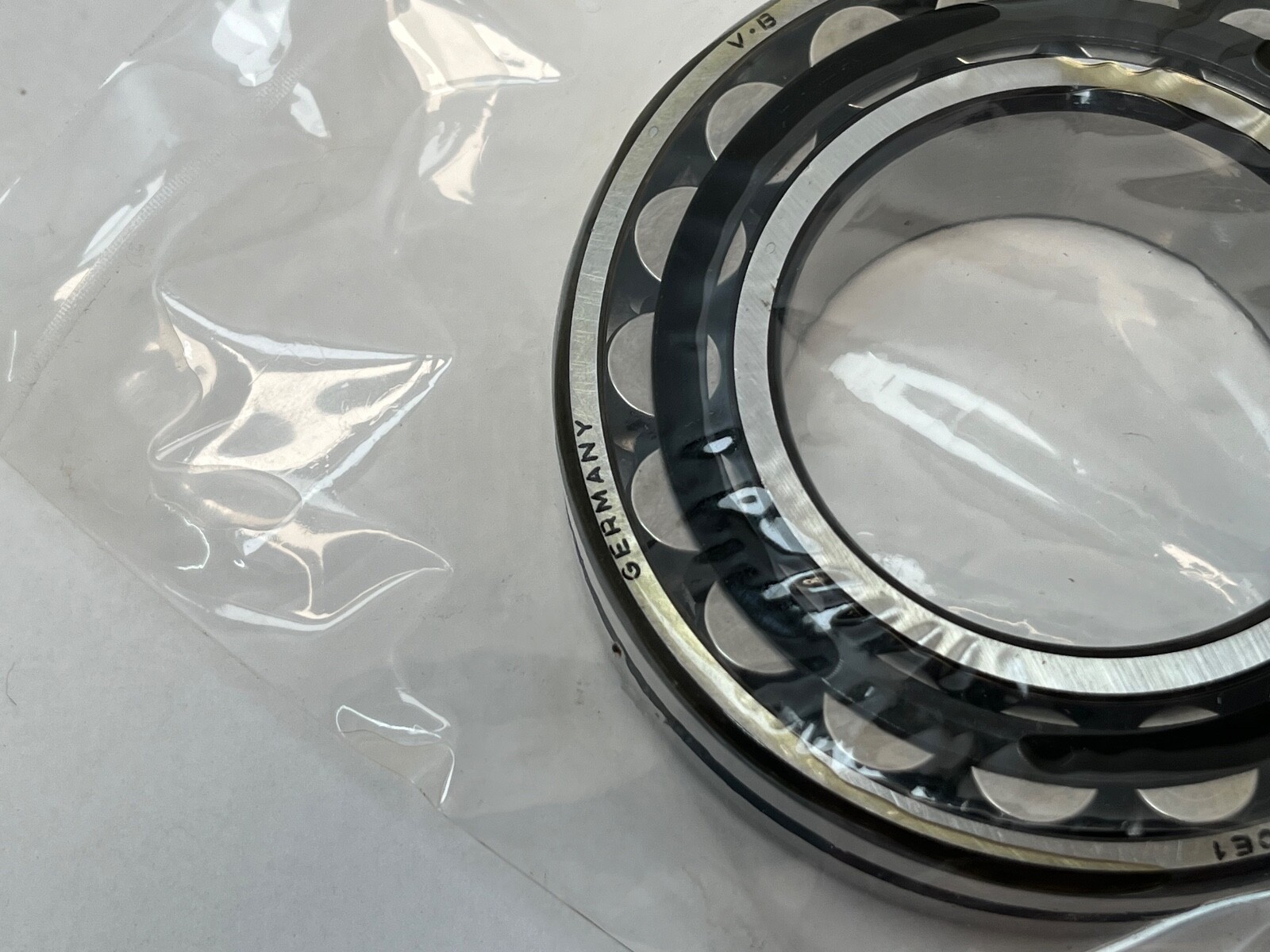

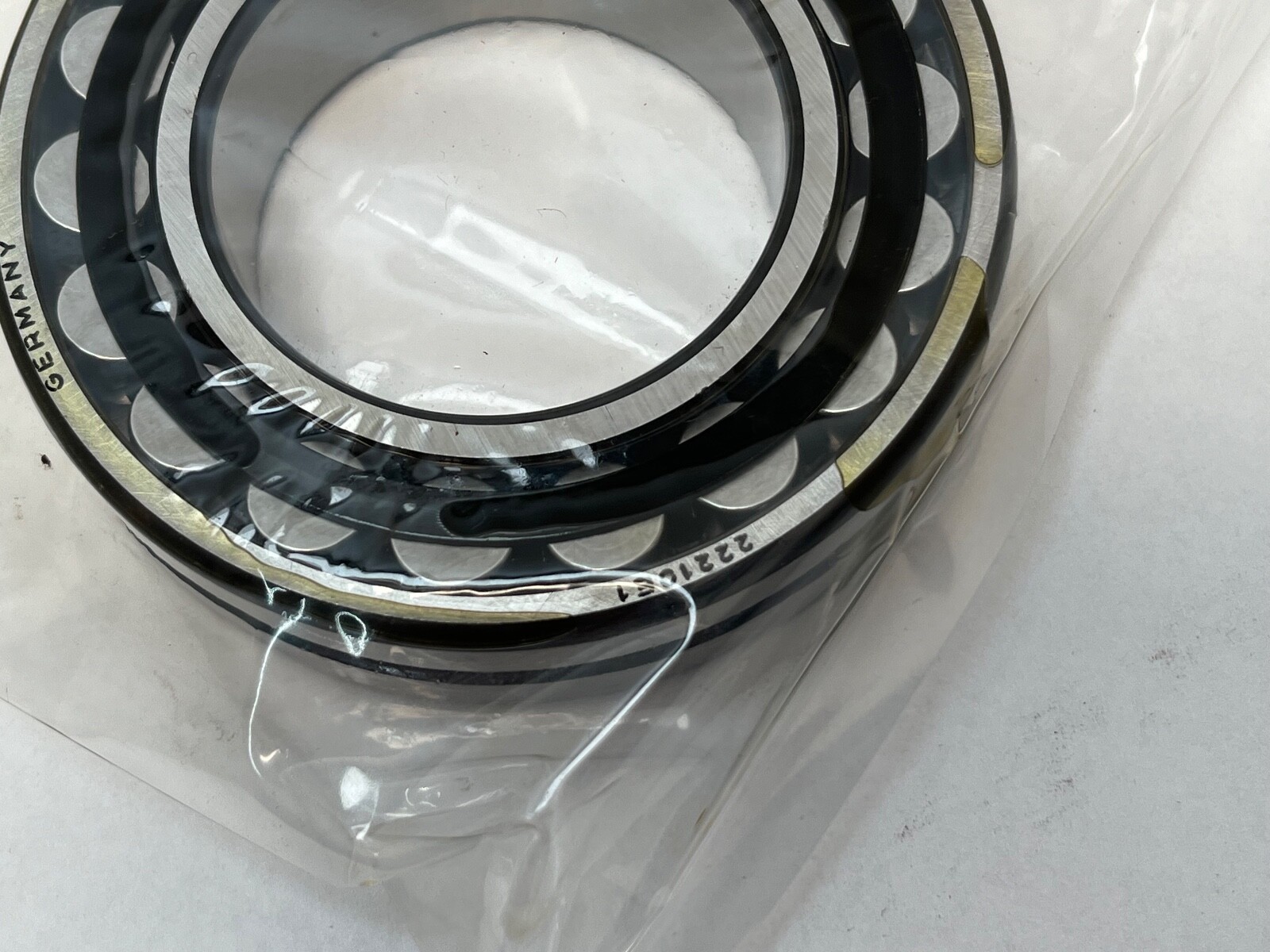

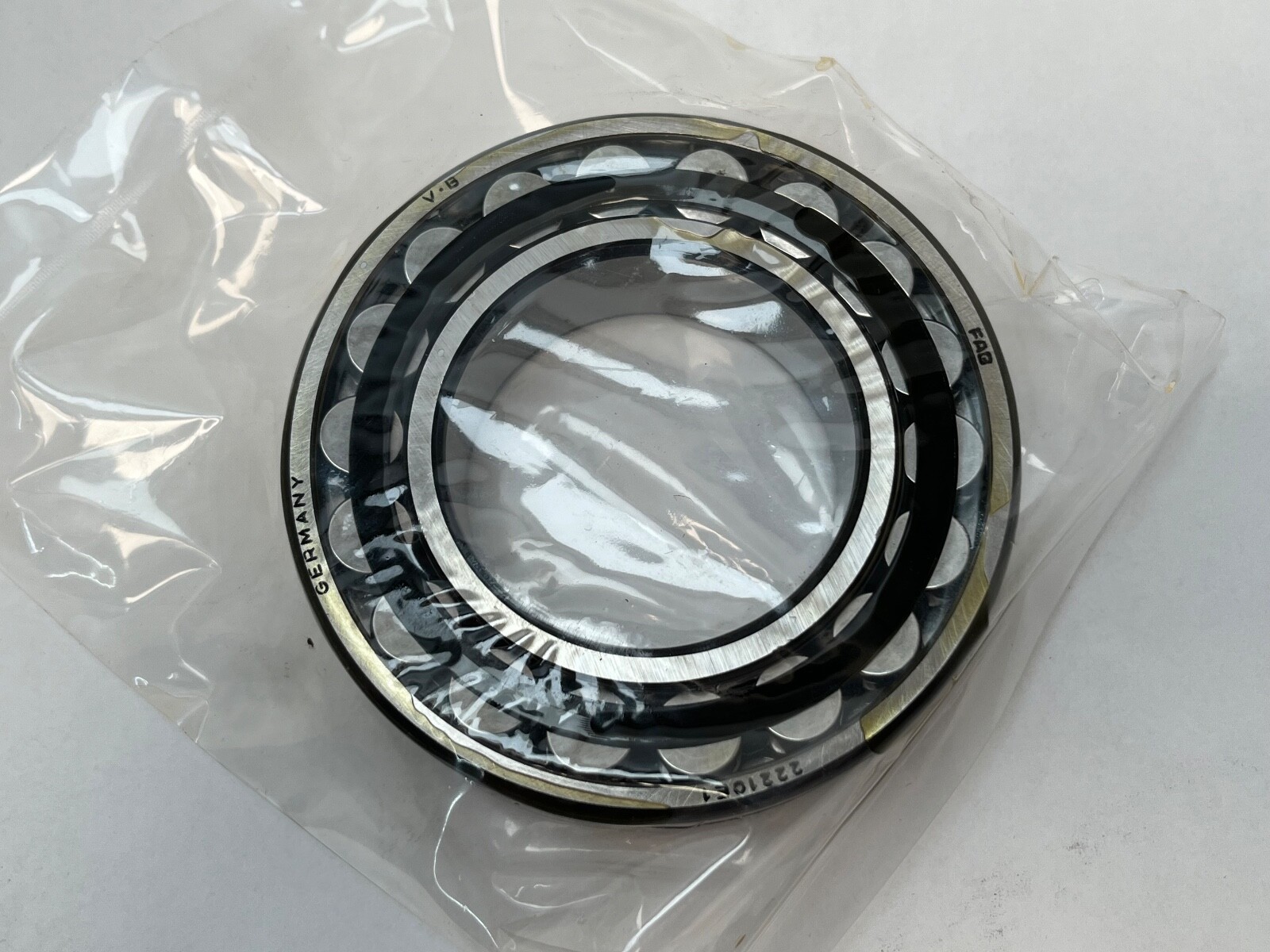

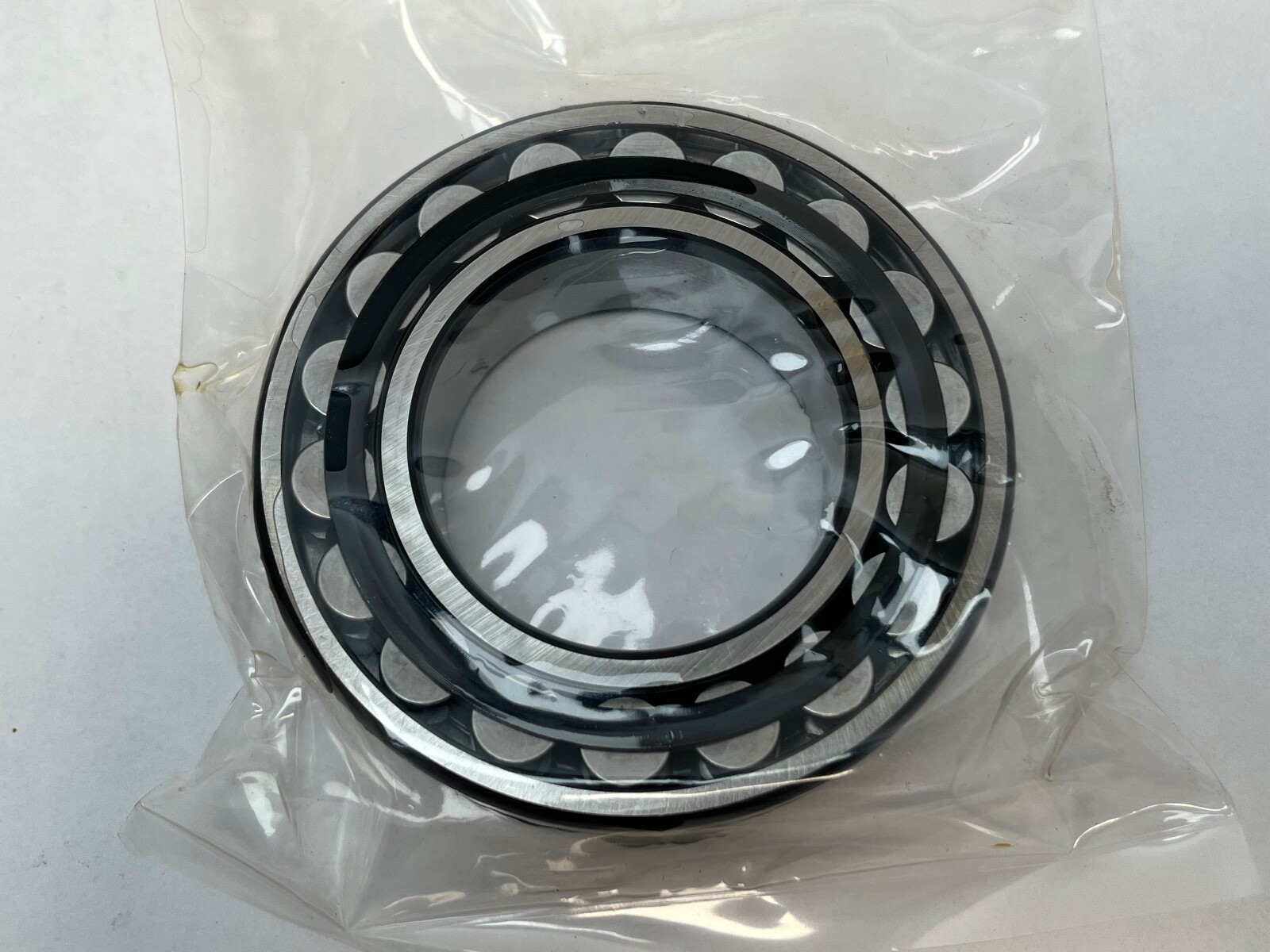

FAG 22210-E1 spherical roller bearing, 50 x 90 x 23 mm, cylindrical bore, steel cage, lubrication groove, normal clearance. Cr 109,000 N, C0r 107,000 N.
List Price
$48.29
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22210-E1 |
| GTIN | 4026677804839 |
| Model | 22210E1W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 23 mm |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row roller bearing, W33 groove |
|---|---|
| Overall Width | 23 mm |
| Mpn Variants | 22210-E1, 22210E1, 22210-E1-W33, 22210E1W33, 22210 E1 W33, 22210-E1-XL |
| Compatible With Replaces | Current FAG designation: 22210-E1-XL |
| Additional Attributes | Fatigue limit load Cu: 14,600 N; Reference speed: 5,100 rpm; Lubrication hole ds: 3.2 mm; Groove width ns: 4.8 mm; da: 57 mm; Da: 83 mm; r min: 1.1 mm |
| Min Temp | -30 °C |
| Dynamic Load Rating | 109,000 N |
| Static Load Rating | 107,000 N |
| Series | 222 |
| Rolling Elements | Spherical Roller |
| Max Temp | 200 °C |
| Item Weight | 0.585 kg (1.29 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 9,800 rpm |
| Internal Clearance | CN |
| Lubricant | Grease or oil |
| Relubrication Feature | Lubrication groove and holes in outer ring |
| Harmonization Code | 8482.30 |
| Common Misspellings | FAG 22210 E1; FAG22210E1; FAG 22210-EI; FAG 22210 E 1 W33; FAG 2210-E1 |
| Application Types | Conveyor pulleys and head shafts; gearboxes; fans and blowers; crushers and screens; mixers and agitators; general heavy industrial plant |
| Cross Reference 1 | SKF 22210 E - E design |
|---|---|
| Cross Reference 2 | NSK 22210EAE4 - EA design, E4 groove and holes |
| Cross Reference 3 | Timken 22210EJW33 - EJ design, W33 groove and holes |
| Cross Reference 4 | NTN 22210EAW33 - ULTAGE EA design, W33 groove |
| Cross Reference 5 | Koyo 22210RHRW33 - RHR design, W33 groove and holes |
FAG 22210-E1 double-row spherical roller bearing with a cylindrical bore, sheet steel cage, lubrication groove and holes in the outer ring, and Normal (CN) radial internal clearance. Current FAG designation: 22210-E1-XL. Unit Quantity: 1 Pc. GTIN: 4026677804839.
222 — spherical roller bearing, ISO dimension series 22.
10 — bore code, 50 mm.
E1 — FAG increased-capacity internal design, with lubrication groove and holes in the outer ring.
22210-E1-XL — current Schaeffler designation of this bearing; its Replaces list names 22210-E1 and 22210E1.
Bearing Type: Spherical roller bearing. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Straight. Internal Clearance: CN. Cage Material: Pressed steel. Closure Type: Open. Dynamic Load Rating: 109,000 N. Static Load Rating: 107,000 N. Limiting Speed: 9,800 rpm. Reference Speed: 5,100 rpm. Fatigue Limit Load: 14,600 N. Item Weight: 0.585 kg (1.29 lb). Operating Temperature: -30 °C to 200 °C. Lubricant: grease or oil, fed through the outer-ring groove and holes. Country of Origin: Germany.
Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 23 mm. Chamfer r min: 1.1 mm. Fillet ra max: 1 mm. Shaft Abutment da: 57 mm. Housing Abutment Da: 83 mm. Lubrication Hole Diameter ds: 3.2 mm. Lubrication Groove Width ns: 4.8 mm.
Same 50 x 90 x 23 mm envelope, straight bore and normal clearance: SKF 22210 E (E design), NSK 22210EAE4 (EA design, E4 groove and holes), Timken 22210EJW33 (EJ design, W33 groove and holes), NTN 22210EAW33 (ULTAGE EA design, W33 groove) and Koyo 22210RHRW33 (RHR design, W33 groove and holes). Current FAG designation: 22210-E1-XL. MPN Variants: 22210-E1, 22210E1, 22210-E1-W33, 22210E1W33, 22210 E1 W33, 22210-E1-XL.
Schaeffler publishes a dynamic load rating of 109,000 N and a static load rating of 107,000 N.
22210-E1-XL. Schaeffler’s Replaces list names 22210-E1 and 22210E1.
Limiting speed 9,800 rpm and reference speed 5,100 rpm.
