Spherical roller bearing, 55 x 100 x 25 mm, cylindrical bore, C3 clearance, outer ring oil groove and holes. NTN 22211BD1C3, B design with ribbed inner ring.
List Price
$48.90
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 22211BD1C3 |
| Model | 22211 B W33 C3 / 22211 E A W33 / 22211CJ 22211CCJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 25 mm |
| Series | 22200 |
|---|---|
| Material | Bearing Steel |
| Lubricant | grease or oil |
| Mpn Variants | 22211BD1C3, 22211 B D1 C3, 22211BW33C3, 22211B C3 |
| Additional Attributes | B internal design; ribbed one-piece inner ring; centre guide rib; D1 groove and oil holes |
| Closure Type | Open |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Relubrication Feature | Yes |
| Harmonization Code | 84823000 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row spherical bearing |
| Common Misspellings | NTN 22211 B D1 C3; NTN 22211BDIC3; 22211BD1 C3; NNT 22211BD1C3; NTN 22211-BD1-C3 |
| Application Types | gearboxes; industrial fans and blowers; conveyors; pumps; vibrating screens; general machinery |
| Cross Reference 1 | SKF 22211 E/C3 - no W33 groove |
|---|---|
| Cross Reference 2 | FAG 22211-E1-C3 - no W33 groove |
| Cross Reference 3 | Timken 22211EJW33C3 |
| Cross Reference 4 | NSK 22211EAE4C3 |
| Cross Reference 5 | Koyo 22211RHRW33C3 |

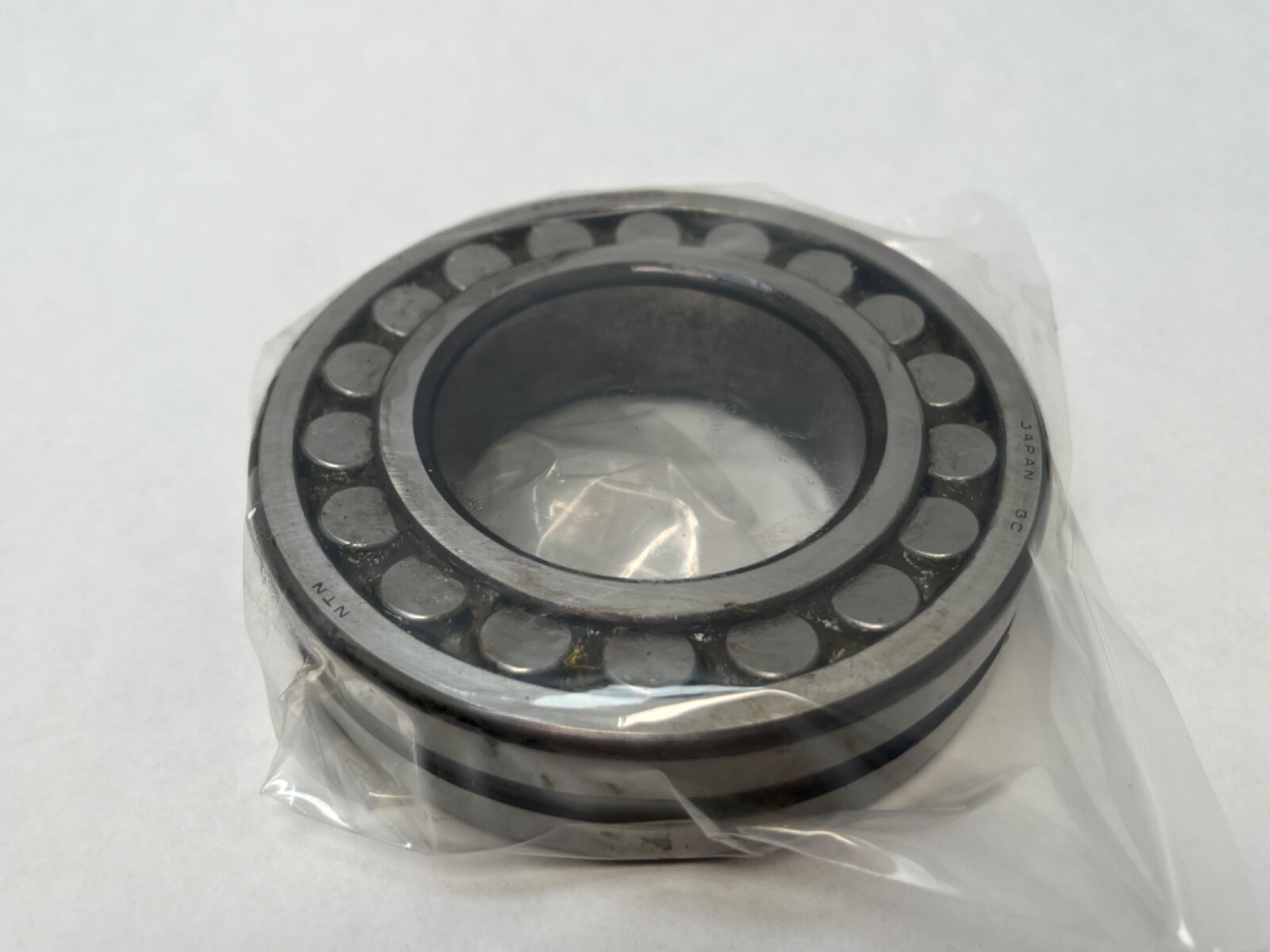

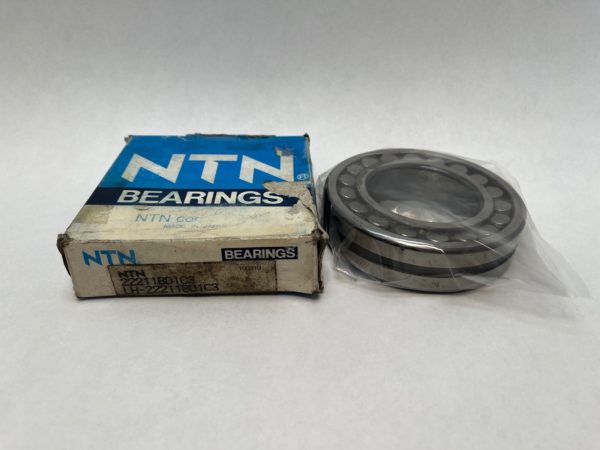

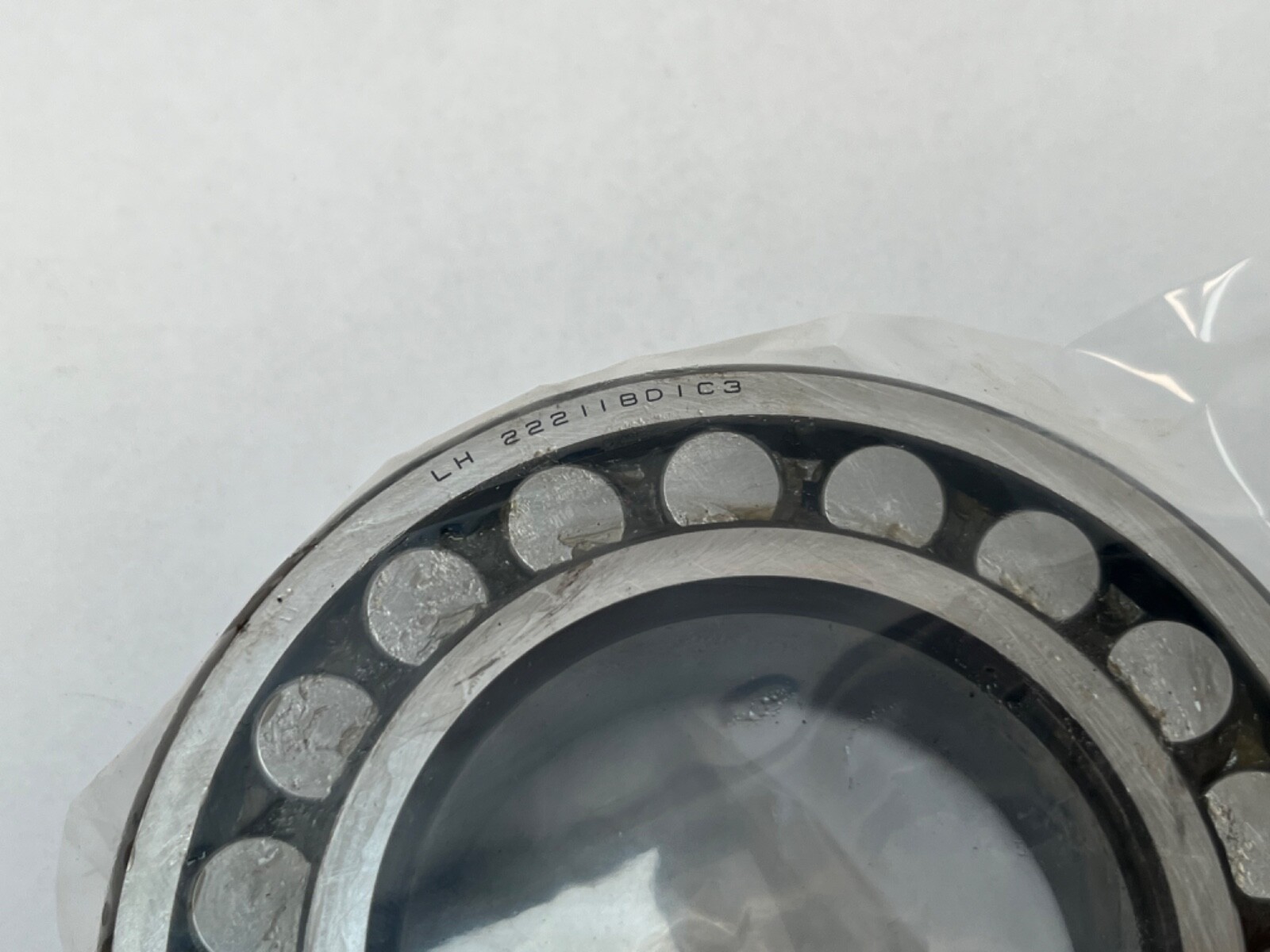

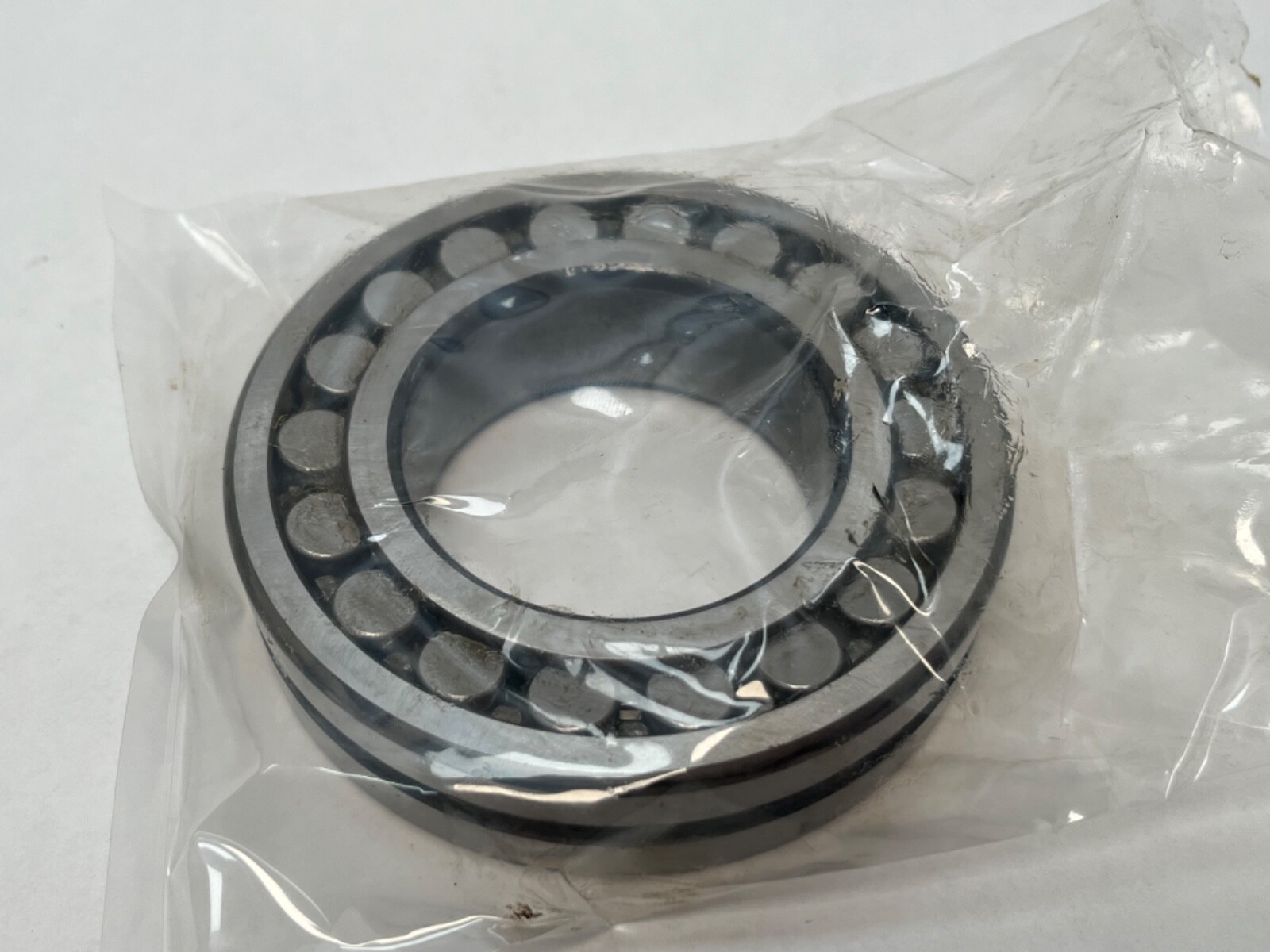

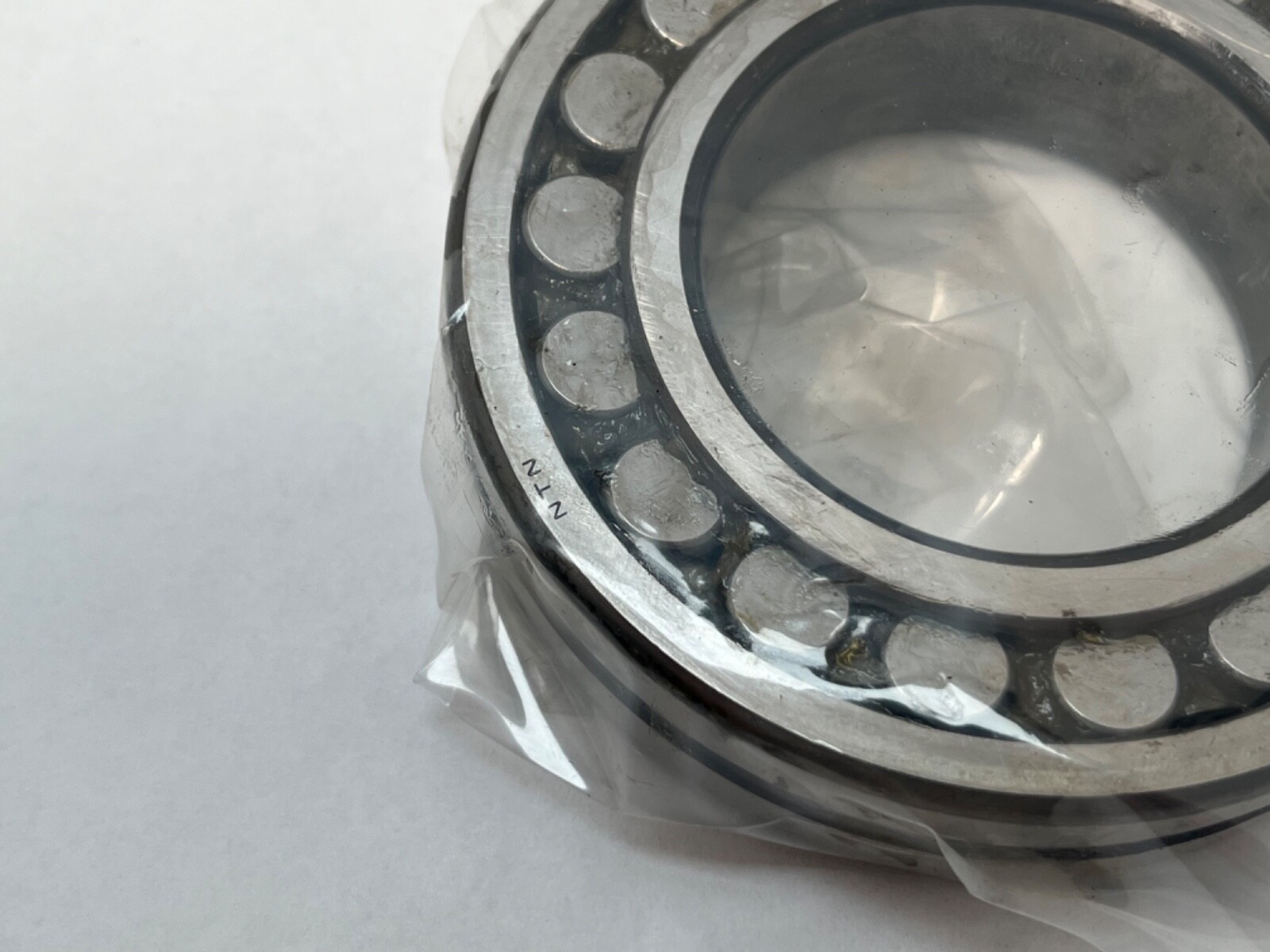

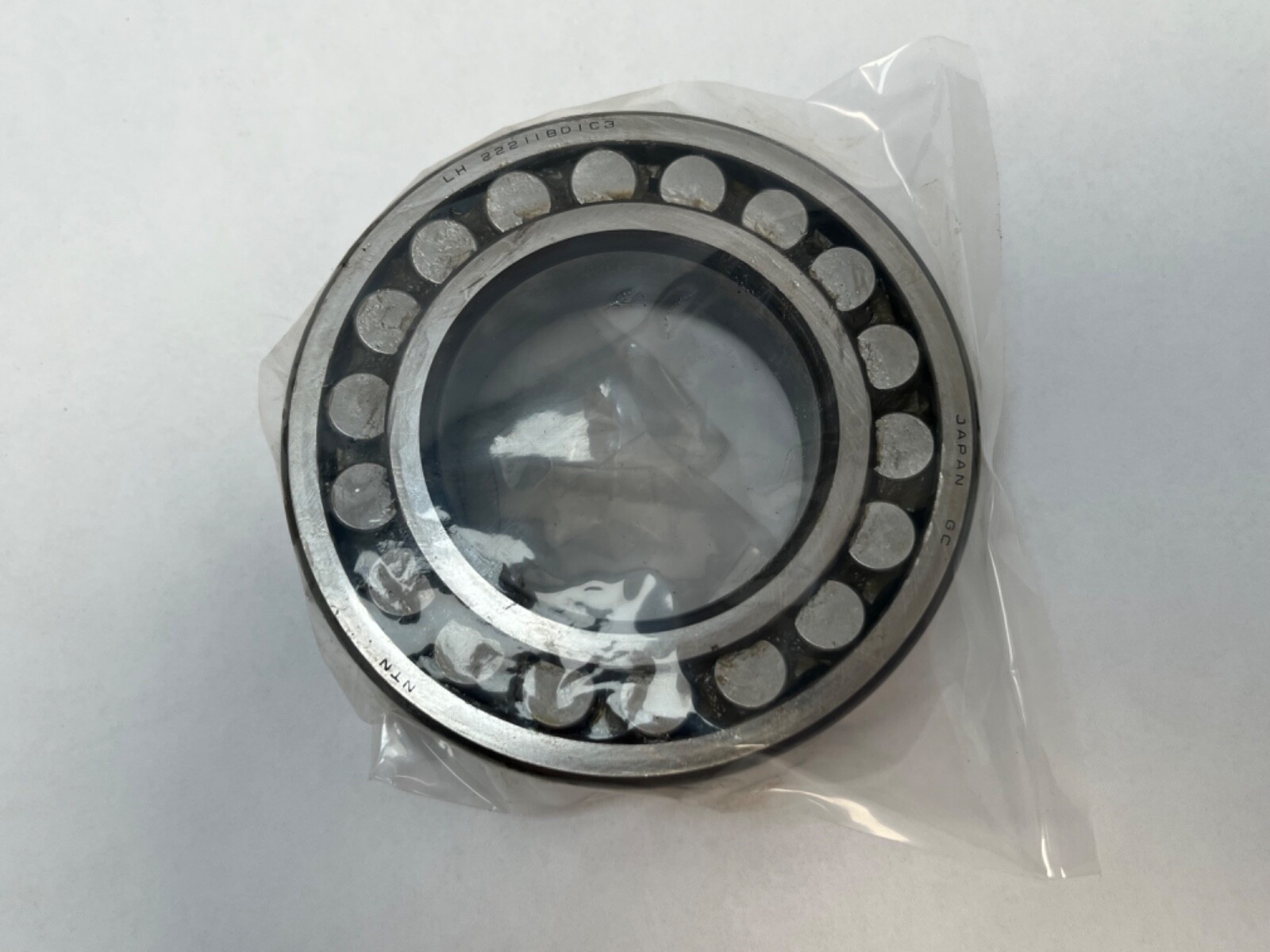

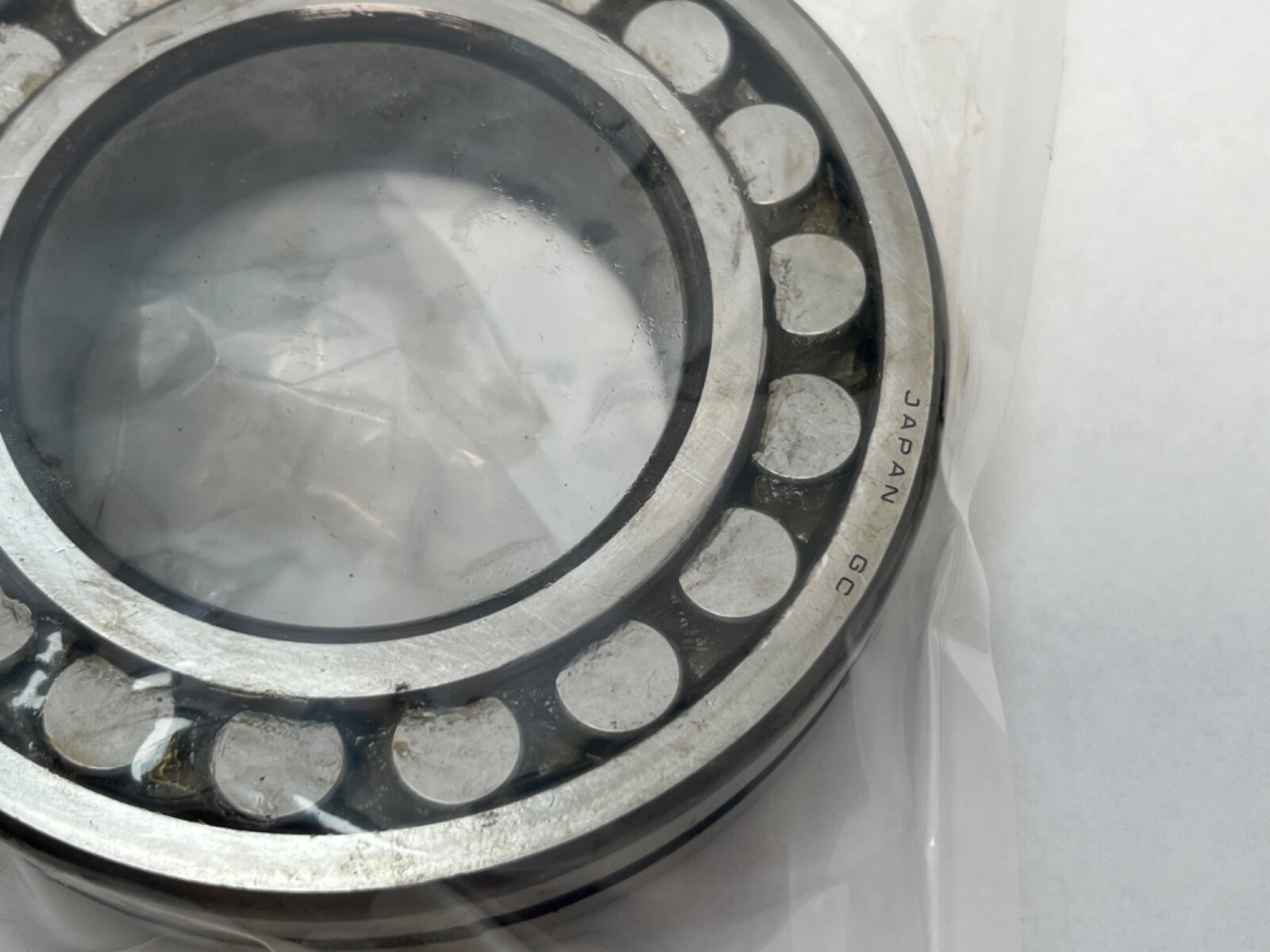

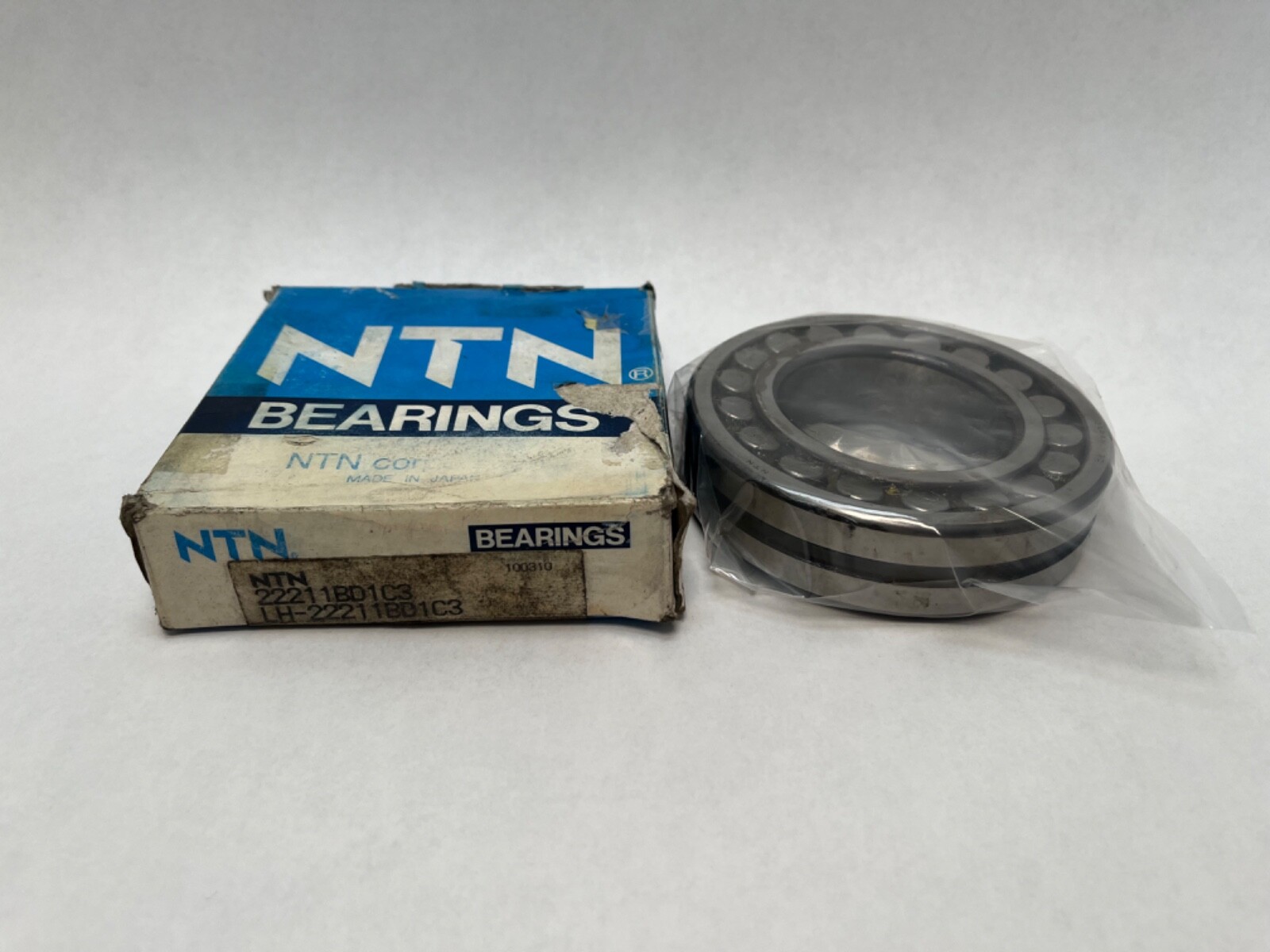

NTN 22211BD1C3 is an open double-row spherical roller bearing with a cylindrical bore, in NTN’s B internal design. Bore Diameter: 55 mm. Outside Diameter: 100 mm. Width: 25 mm. Internal Clearance: C3. Lubricant: grease or oil. Unit Quantity: 1 Pc.
222 — spherical roller bearing, width series 2 and diameter series 2, the light 222 section.
11 — bore code, 11 x 5 = 55 mm.
B — NTN B design: one-piece inner ring with ribs, asymmetrical rollers and a centre guide rib.
D1 — lubrication groove and oil holes in the outer ring, the NTN counterpart of the W33 feature.
C3 — radial internal clearance greater than normal.
Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 25 mm. Bore Type: Cylindrical. Number Of Rows: 2. Rolling Elements: Spherical Roller. Internal Clearance: C3. Lubricant: grease or oil. Closure Type: Open. Series: 22200. Unit Quantity: 1 Pc.
The cylindrical 55 mm bore seats on a 55 mm shaft. The 100 mm outer ring carries a lubrication groove with oil holes that deliver grease or oil to the centre of the bearing between the two roller rows. Two rows of rollers run on a spherical outer raceway, so the bearing carries heavy radial load and axial load in both directions while accommodating shaft deflection.
Crosses to Timken 22211EJW33C3, NSK 22211EAE4C3 and Koyo 22211RHRW33C3, which carry the same lubrication groove and C3 clearance. SKF 22211 E/C3 and FAG 22211-E1-C3 share the 55 x 100 x 25 mm envelope and C3 clearance and carry no W33 groove. Also marked 22211 B D1 C3, 22211BW33C3 and 22211CJ.
55 mm bore, 100 mm outside diameter and 25 mm width.
D1 is a lubrication groove and oil holes in the outer ring, the NTN counterpart of the W33 feature.
Cylindrical bore, 55 mm.
