Spherical roller bearing, 45 x 85 x 23 mm, straight bore, C3 clearance, machined brass cage, W33 oil groove and holes. Dynamic 115,000 N, 6,100 rpm grease.
List Price
$48.51
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 22209EMW33C3 |
| Model | 22209E M W33 C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Mpn Variants | 22209EMW33C3, 22209.EMW33C3, 22209 EM W33 C3, 22209E M W33 C3, 22209EMW33 C3 |
| Precision Class | RBEC 1 / P0 |
| Min Temp | -40 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 115,000 N |
| Static Load Rating | 113,000 N |
| Rolling Elements | Spherical Roller |
| Max Temp | 200 °C |
| Item Weight | 0.577 kg (1.27 lb) |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 6,100 rpm grease; 7,700 rpm oil |
| Internal Clearance | C3 |
| Lubricant | grease or oil |
| Relubrication Feature | W33 lubrication groove and three holes in outer ring |
| Harmonization Code | 8482.30.00.40 |
| Closure Type | Open |
| Cross Reference 1 | SKF 22209 E/C3 - no W33 groove |
|---|---|
| Cross Reference 2 | FAG 22209-E1-C3 - no W33 groove |
| Cross Reference 3 | NSK 22209EAE4C3 - pressed steel cage |
| Cross Reference 4 | Timken 22209EJW33C3 |
| Cross Reference 5 | Koyo 22209RHRW33C3 - pressed steel cage |

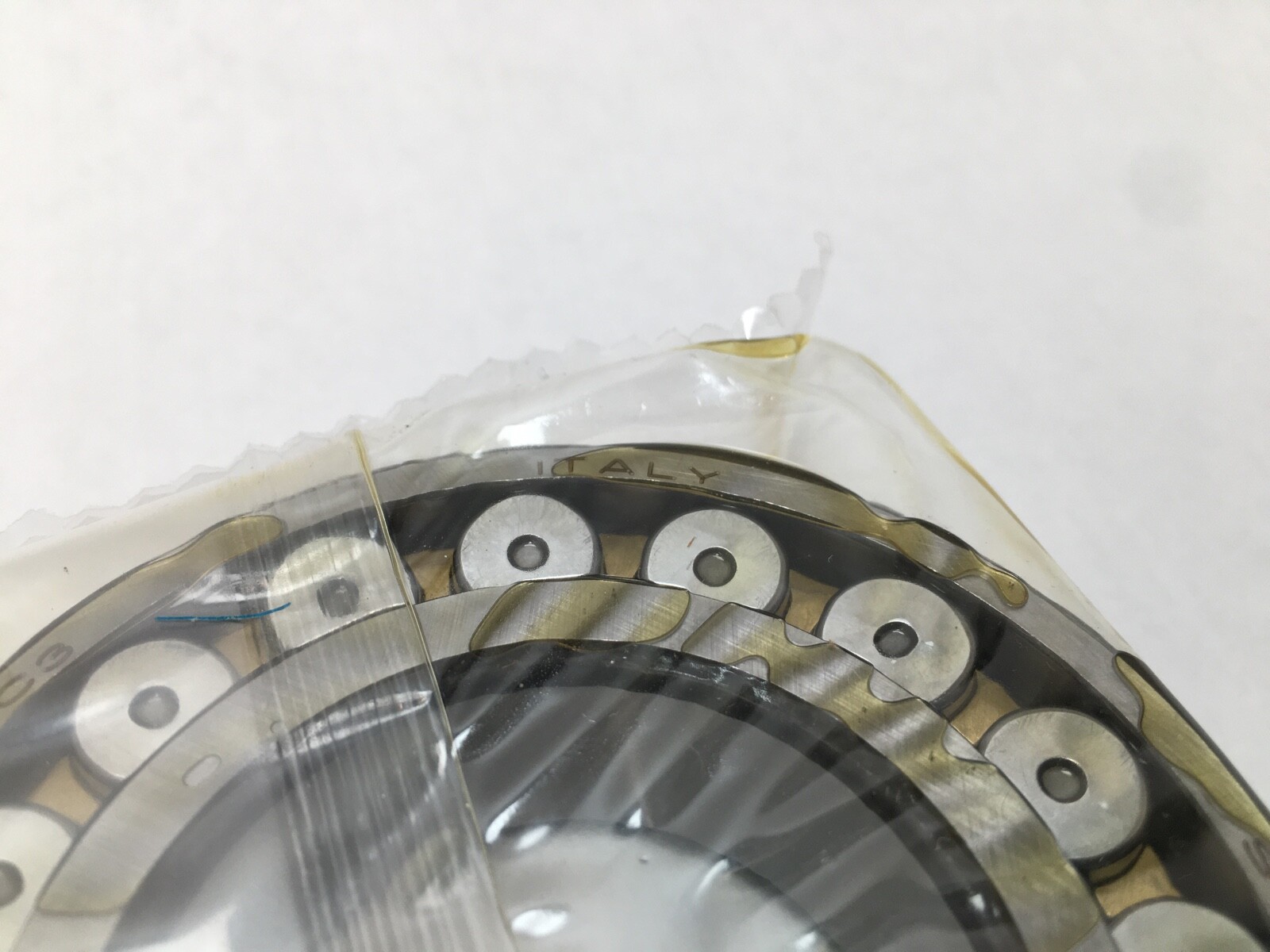

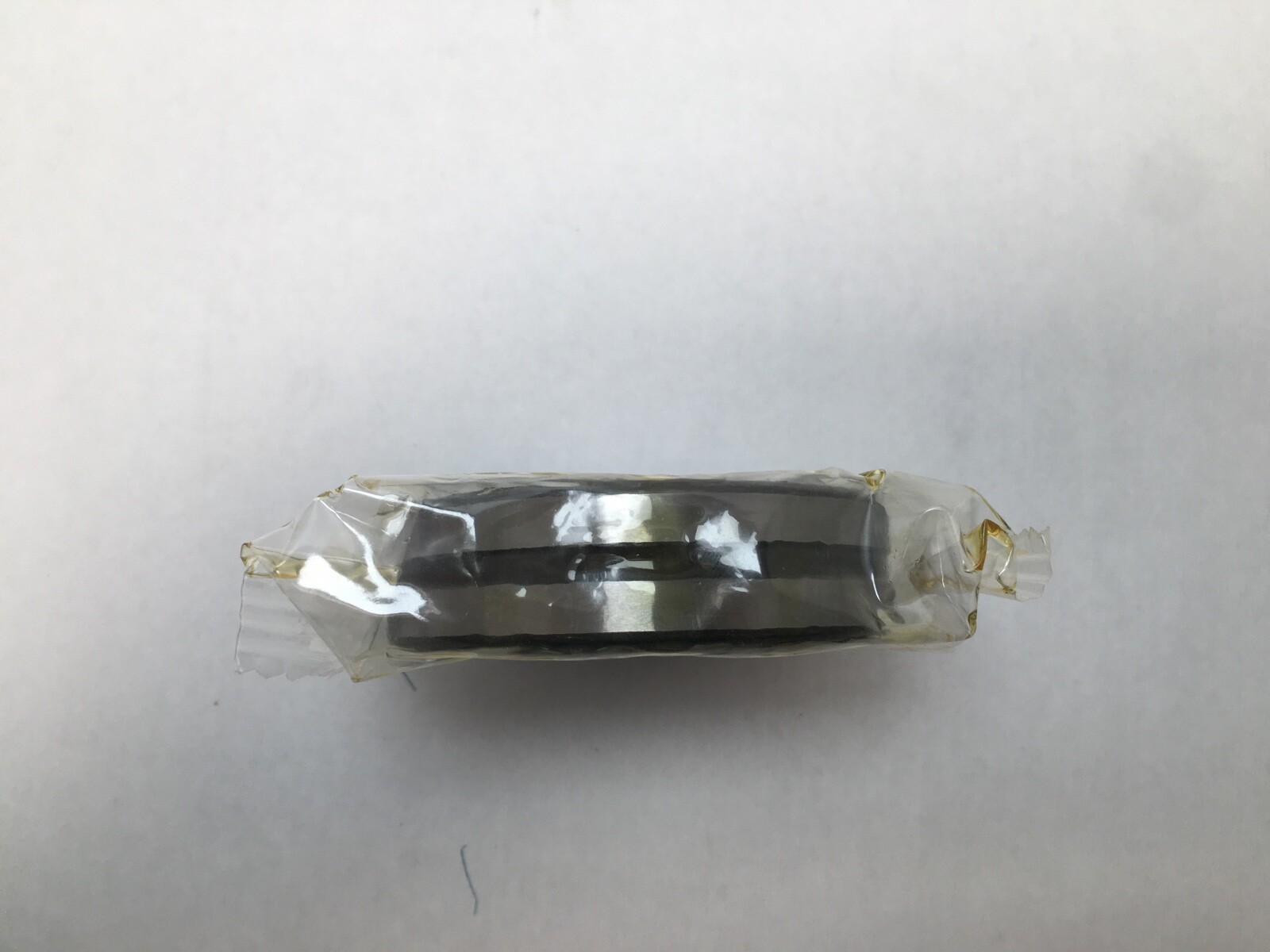

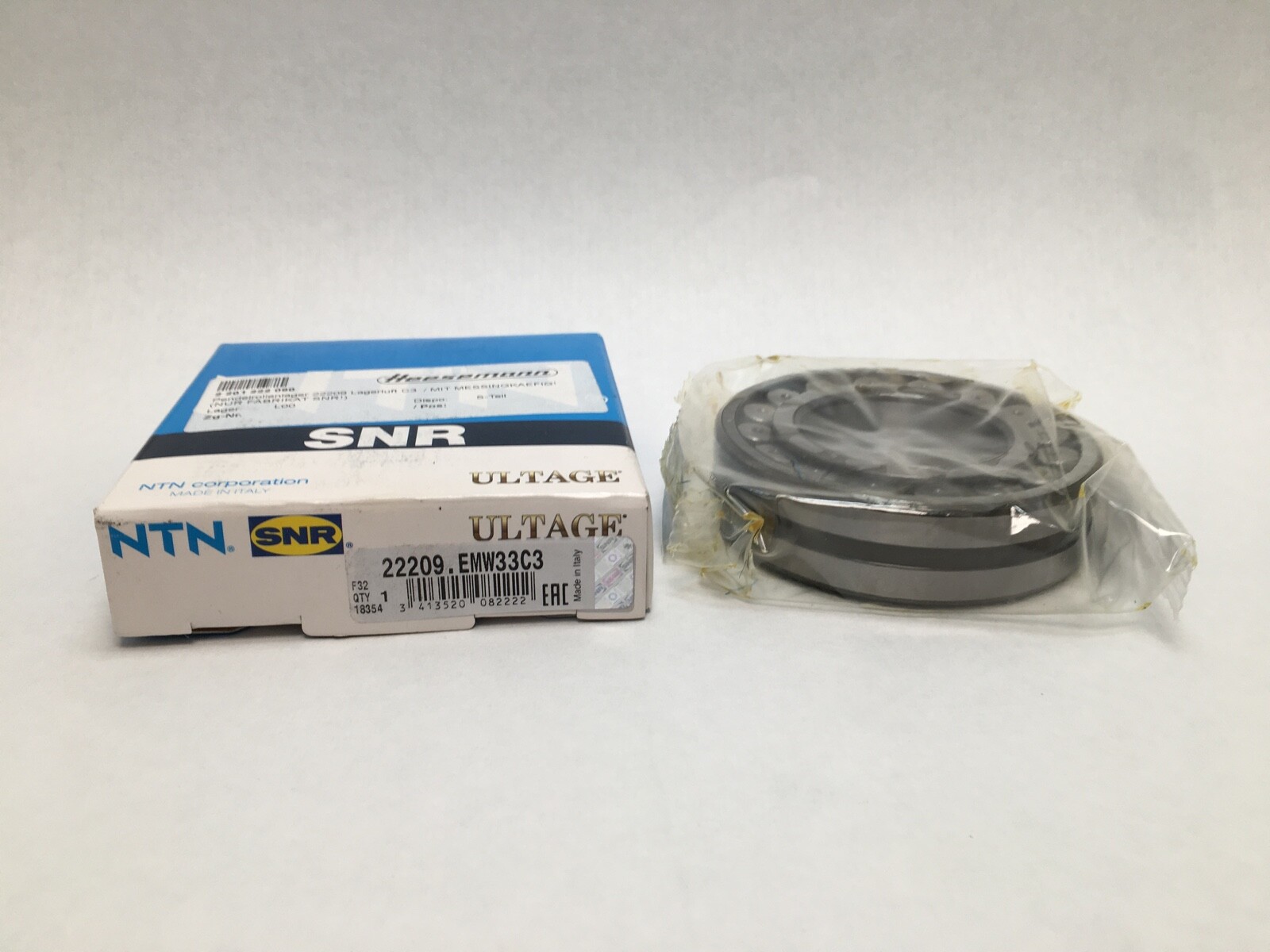

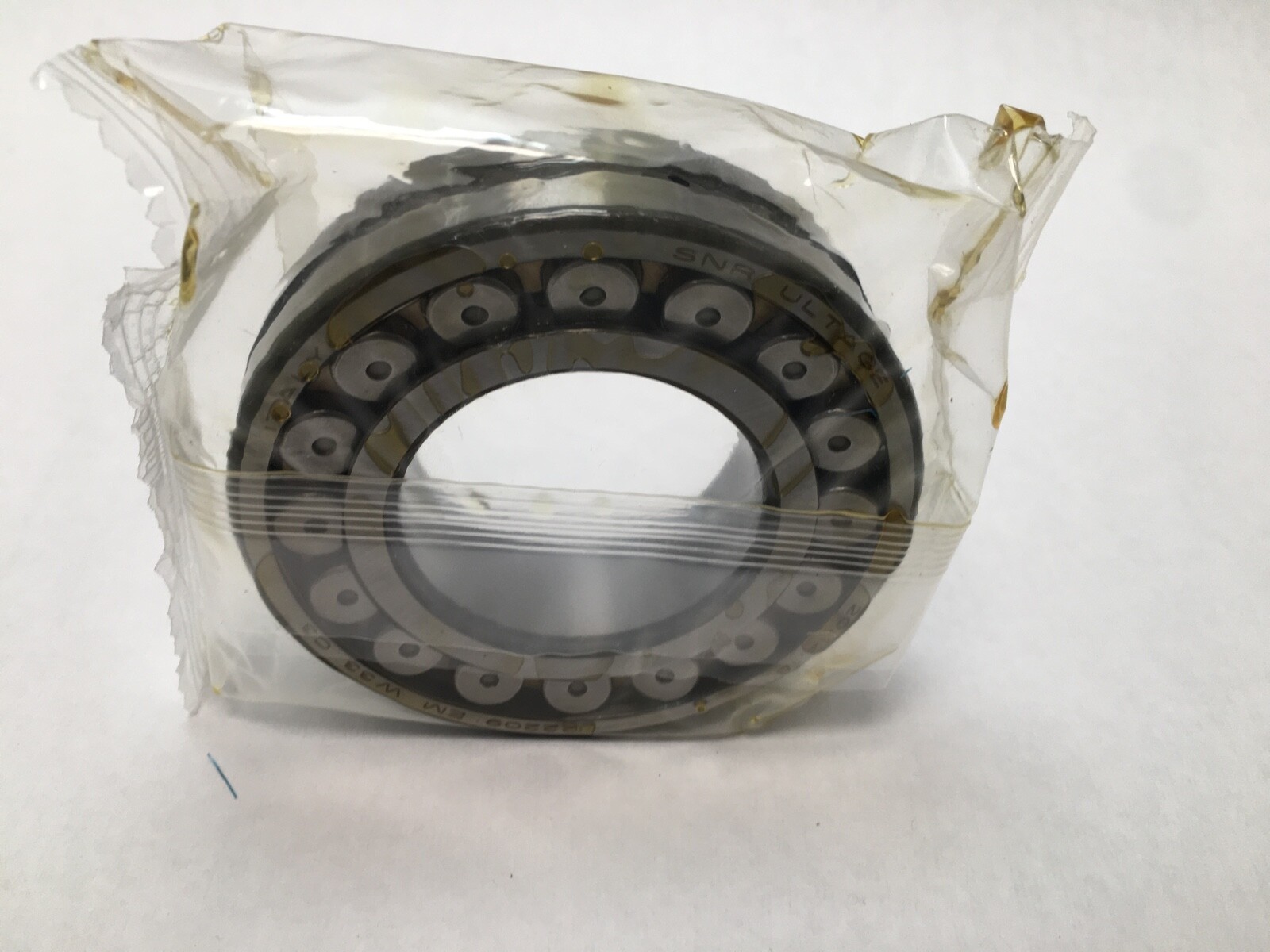

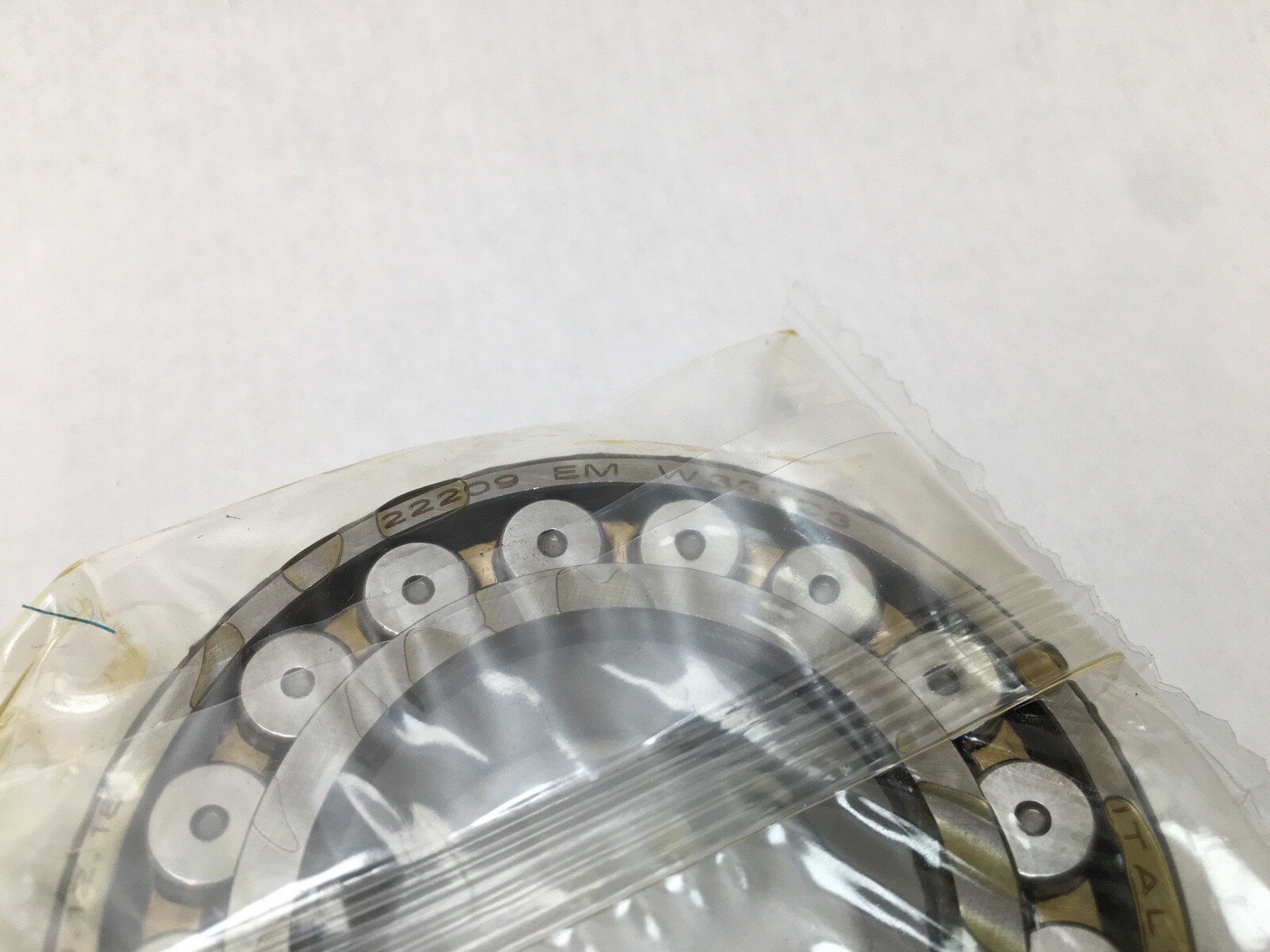

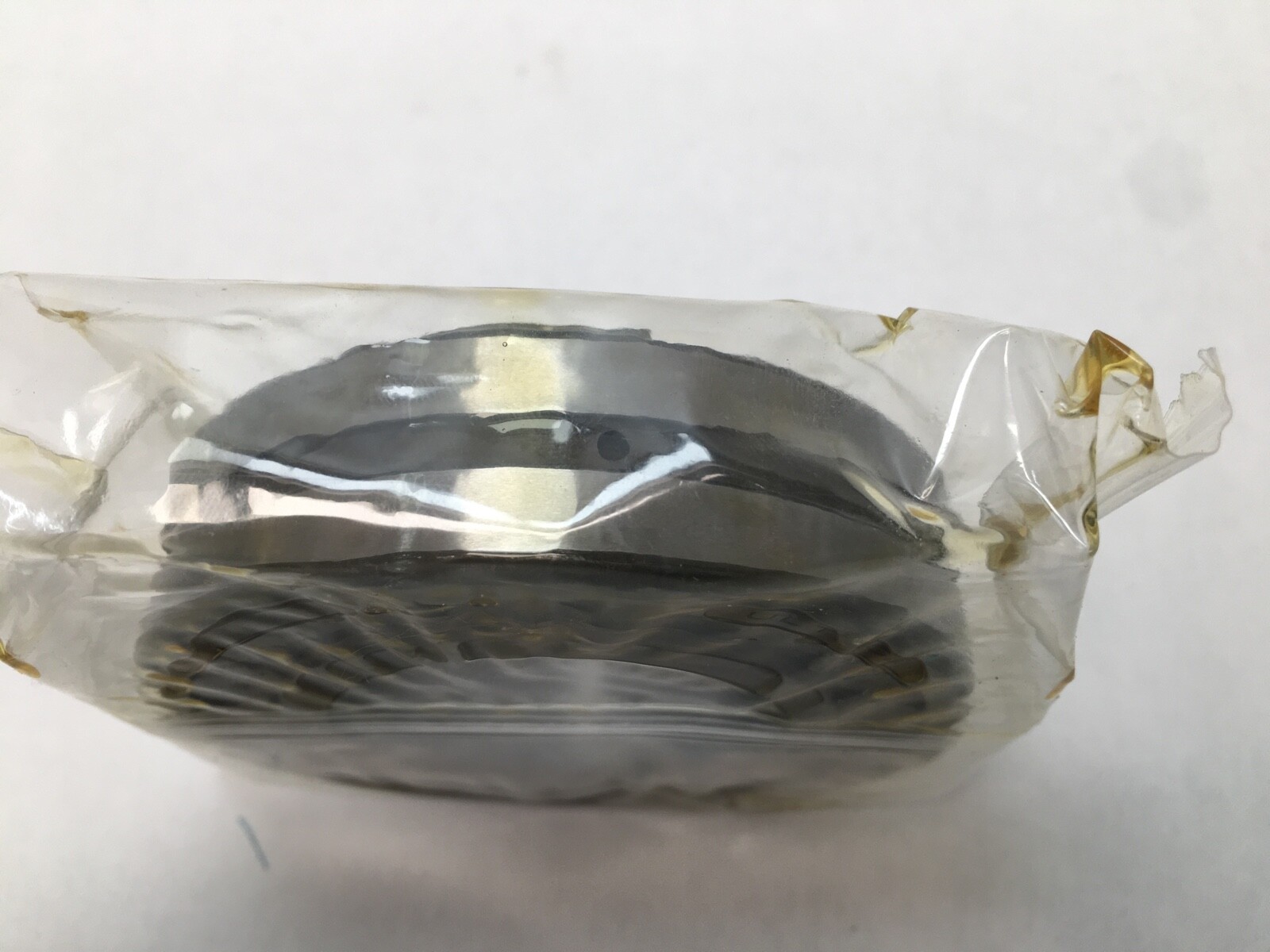

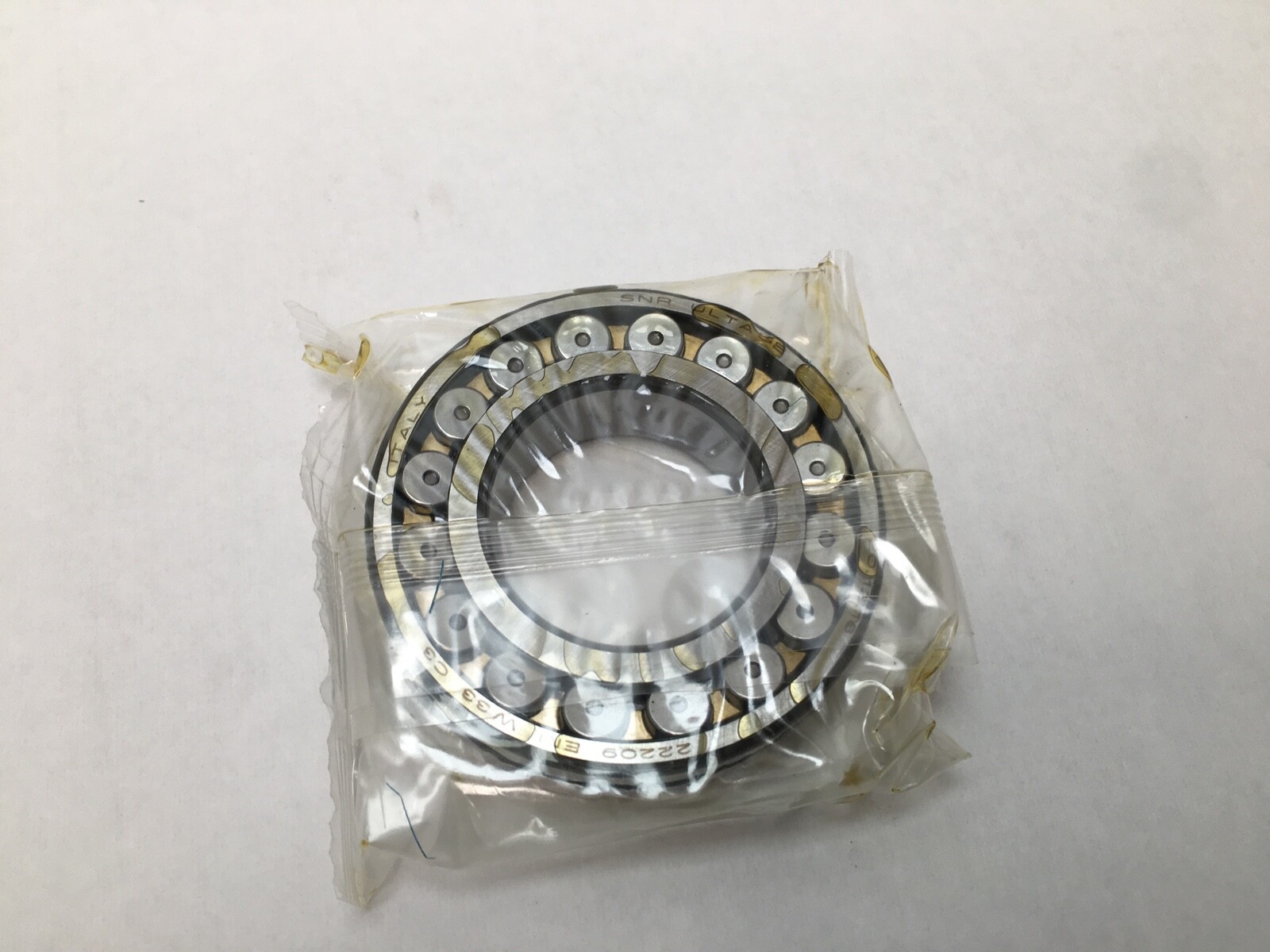

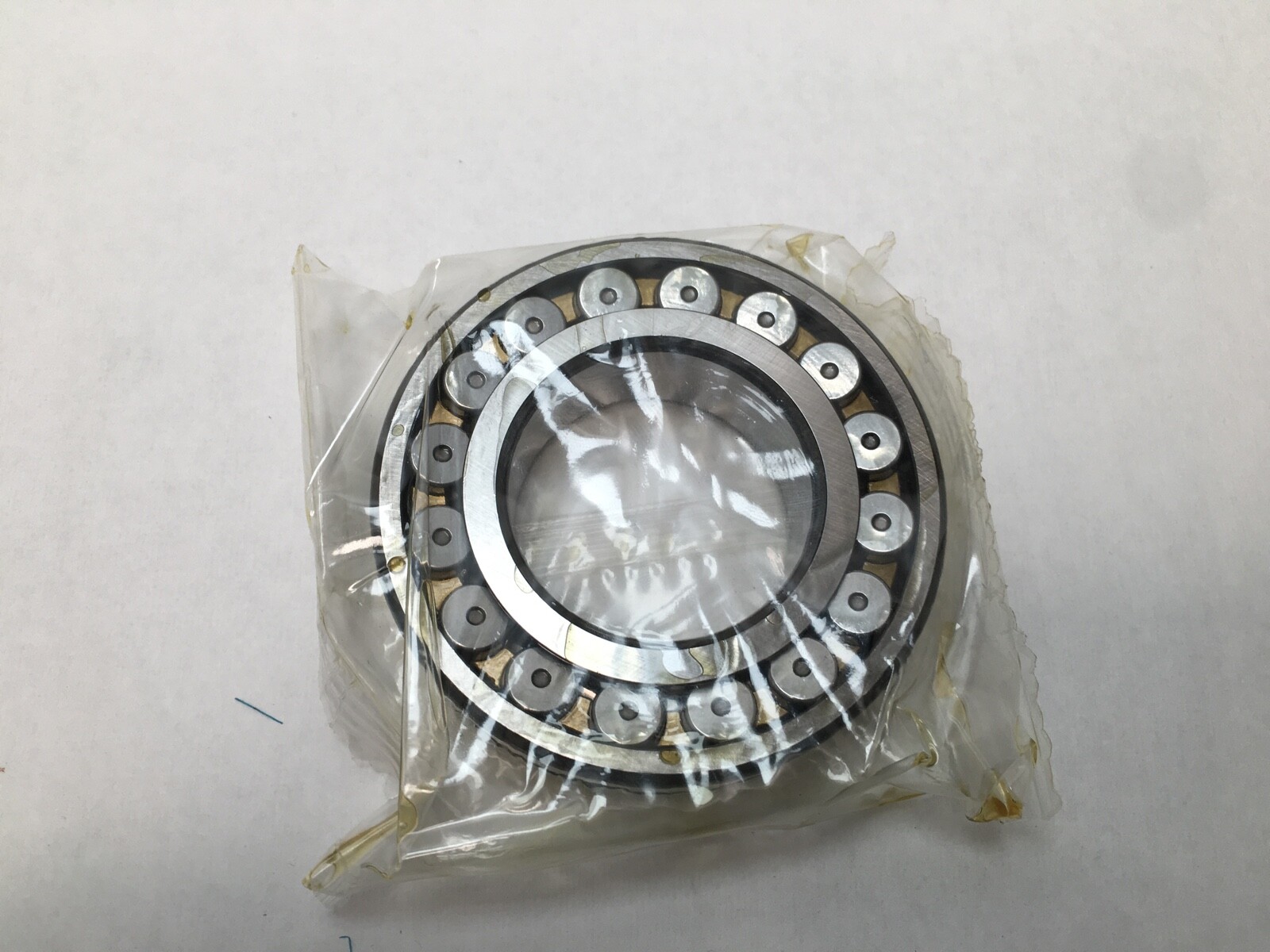

NTN 22209EMW33C3 double-row spherical roller bearing in the 222 series with a straight bore, a machined brass cage, a lubrication groove and holes in the outer ring, and C3 radial internal clearance. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Unit Quantity: 1 Pc.
222 — spherical roller bearing, diameter series 2, width series 2.
09 — bore code, 09 x 5 = 45 mm.
E — NTN high-capacity internal design.
M — machined brass cage.
W33 — circumferential lubrication groove with three radial holes in the outer ring, for grease or oil feed.
C3 — radial internal clearance greater than normal.
Dynamic Load Rating: 115,000 N. Static Load Rating: 113,000 N. Limiting Speed: 6,100 rpm grease; 7,700 rpm oil. Cage Material: Machined brass. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: C3. Precision Class: RBEC 1 / P0. Lubricant: grease or oil. Operating Temperature Range: -40 to 200 °C. Item Weight: 0.577 kg (1.27 lb). Closure Type: Open. Bore Type: Straight. Unit Quantity: 1 Pc.
Inner ring shoulder diameter d1: 54 mm. Outer ring shoulder diameter D1: 76 mm. Chamfer r min: 1.1 mm. Lubrication groove width W0: 6.0 mm. Lubrication hole diameter d0: 2.5 mm. Abutment da min: 52 mm. Abutment Da max: 78 mm. Fillet ras max: 1.1 mm.
Same 45 x 85 x 23 mm envelope and C3 clearance. SKF 22209 E/C3 and FAG 22209-E1-C3 carry no W33 groove. NSK 22209EAE4C3 and Koyo 22209RHRW33C3 carry the W33 groove with pressed steel cages. Timken 22209EJW33C3 carries the W33 groove.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm.
W33 is a circumferential lubrication groove with three radial holes in the outer ring, for grease or oil feed.
Dynamic Load Rating: 115,000 N. Static Load Rating: 113,000 N. Cage Material: Machined brass.
