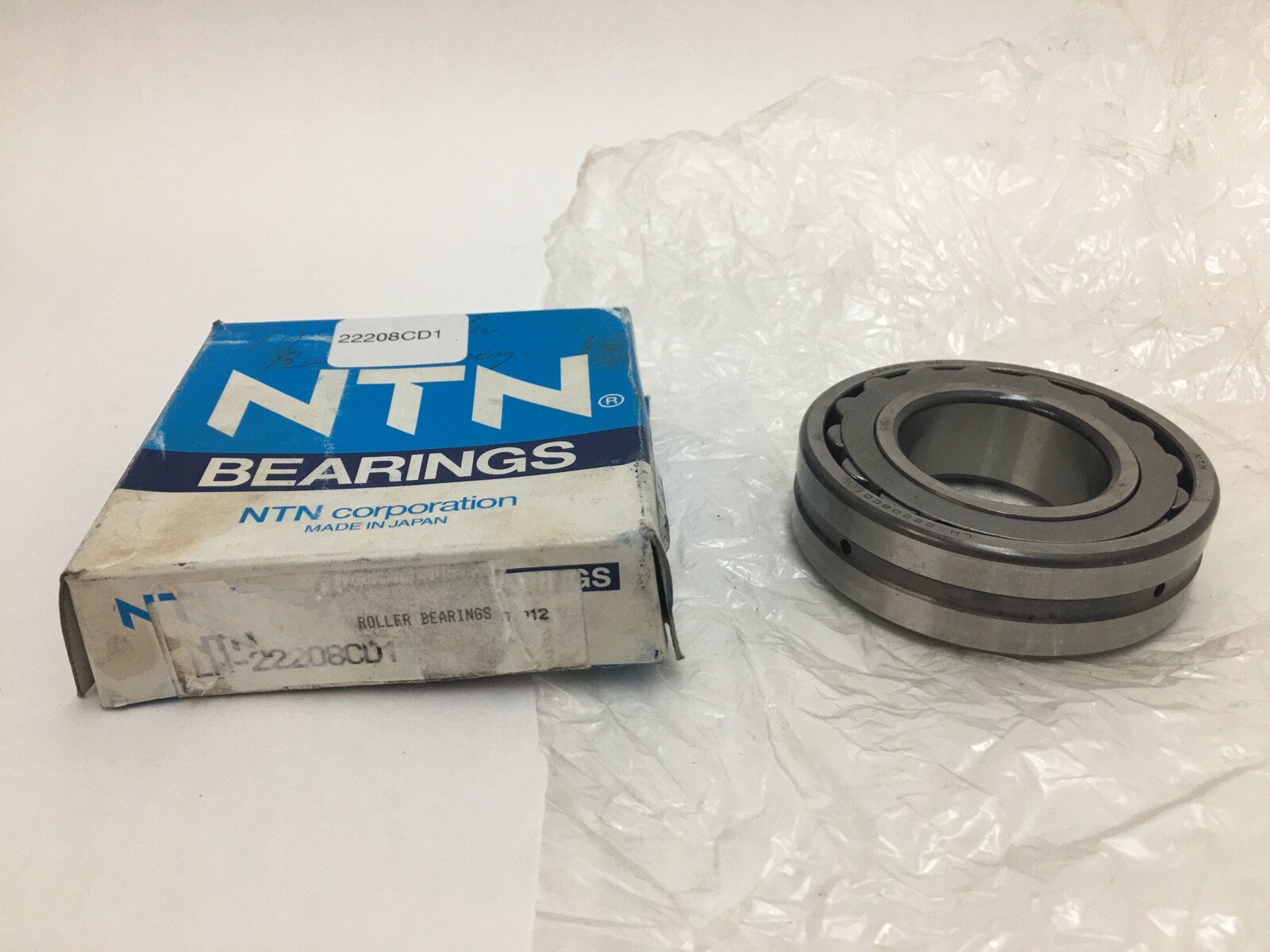

Spherical roller bearing, 40 x 80 x 23 mm, straight bore, oil groove and holes, two-piece pressed cage. NTN 22208C with D1 lubrication feature, CN clearance.
List Price
$50.87
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Double-Row Spherical Roller Bearing 40 x 80 x 23 mm W33 Groove$42.47
Spherical Roller Bearing - 40 mm Straight Bore, 80 mm OD, 23 mm Width, Open, C3 Clearance$39.20
Double-Row Spherical Roller Bearing - Straight Bore, 40 mm ID x 80 mm OD x 23 mm Width, Open, CN Internal Clearance$42.47
Spherical Roller Bearing - Double Row, Straight Bore, 40 mm ID, 80 mm OD, 23 mm Width, Open, C4 Internal Clearance$42.47| MFR / Brand | NTN |
|---|---|
| MPN | 22208CD1 |
| Model | LH 22208 C D 1 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Material | Bearing Steel |
| Mpn Variants | 22208CD1, 22208 CD1, 22208C D1, 22208C, LH 22208 C D 1 |
| Additional Attributes | Double-row; outer-ring groove and holes (W33 equivalent); two-piece pressed cage with symmetrical rollers; series 22200 |
| Closure Type | Open |
| Cage Type | Two-piece pressed |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Lubricant | grease or oil |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00 |
| Industry Terms | 22208 spherical roller bearing; 40x80x23 spherical roller bearing; 22208 W33 bearing; double row self-aligning roller bearing; 40 mm bore spherical roller bearing; 22208 C3 alternative |
| Common Misspellings | NTN 22208 CD 1; NTN 22208CDI; NTN22208CD1; NNT 22208CD1; NTN 22208 C D1; NTN 22208CDl |
| Application Types | Industrial machinery; Gearboxes; Conveyors; Pumps and fans; Misaligned shaft supports |
| Cross Reference 1 | SKF 22208 E - E design, higher ratings |
|---|---|
| Cross Reference 2 | FAG 22208-E1 - E1 design, reinforced |
| Cross Reference 3 | NSK 22208EAE4 - EA design, pressed steel cage |
| Cross Reference 4 | Timken 22208EJW33 - EJ design, W33 groove |
| Cross Reference 5 | Koyo 22208RHR |

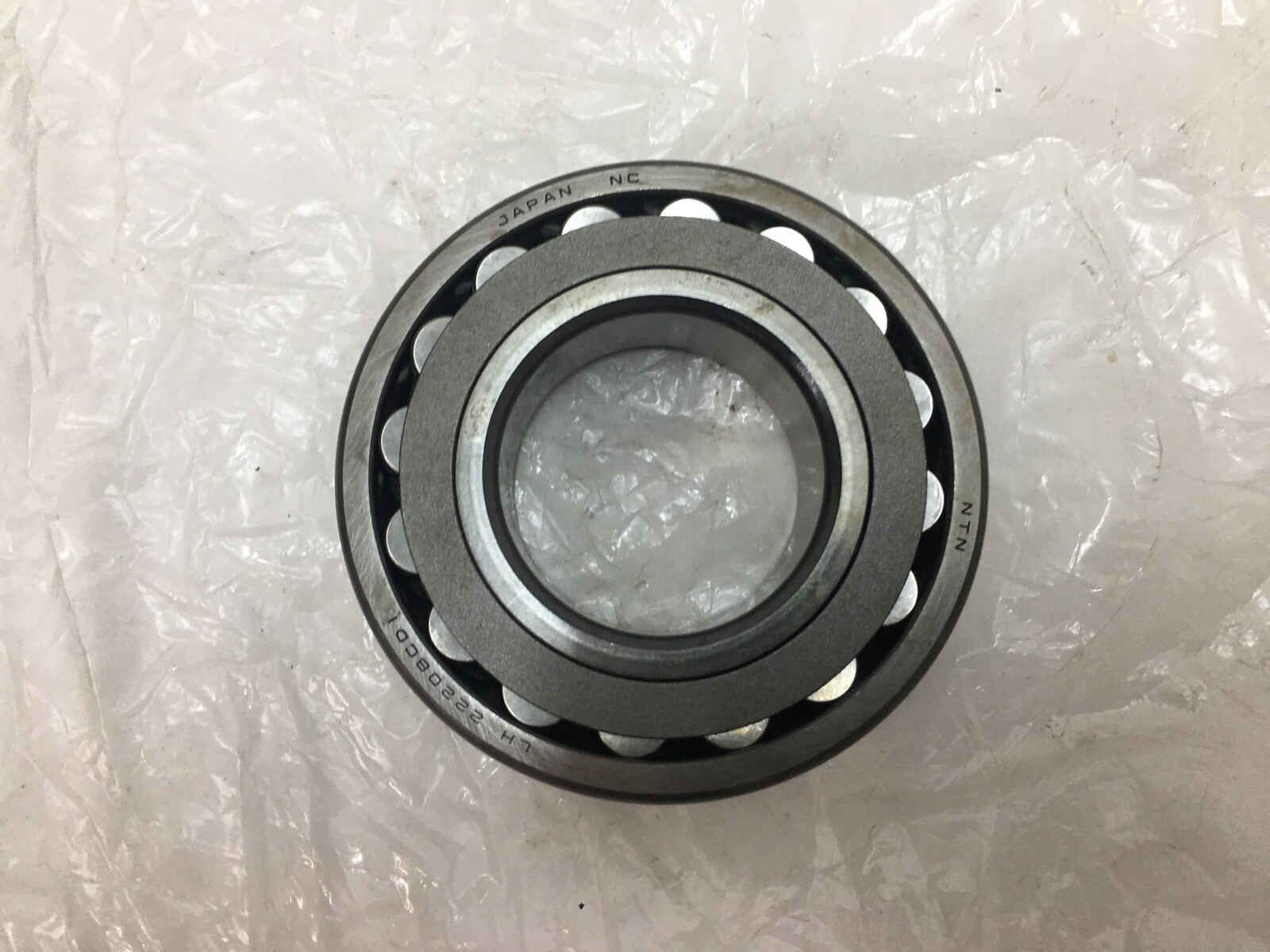

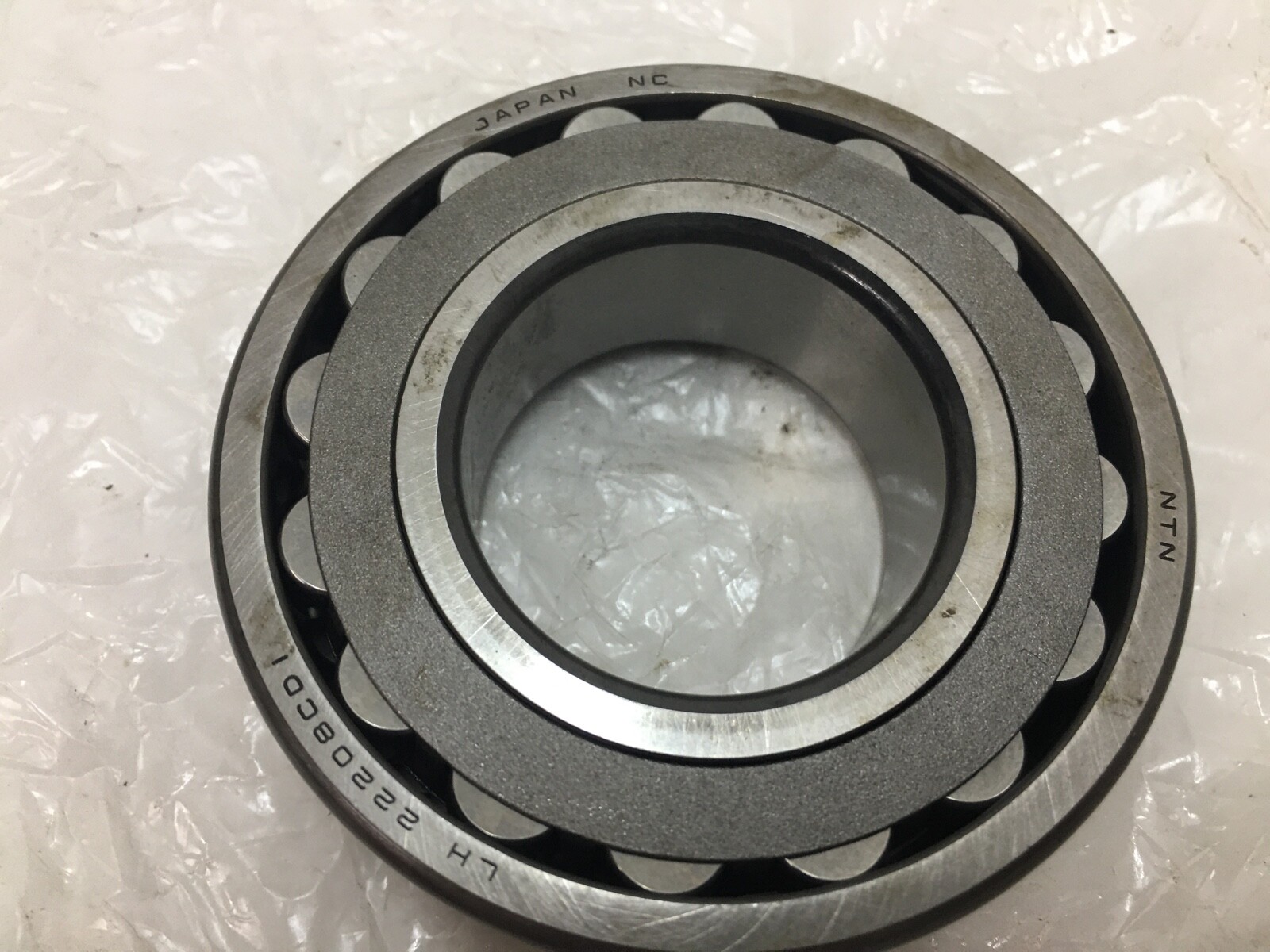

NTN 22208CD1 double-row spherical roller bearing with a 40 mm straight bore, an open design and an outer-ring lubrication groove with radial holes.
22208 — spherical roller bearing, 222 series, 40 mm bore.
C — two-piece pressed cage with symmetrical rollers.
D1 — lubrication groove and holes in the outer ring, NTN’s equivalent of W33.
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 23 mm. Bore Type: Straight. Seal Type: Open. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: CN. Cage Type: Two-piece pressed. Lubricant: grease or oil. Series: 22200. Unit Quantity: 1 Pc.

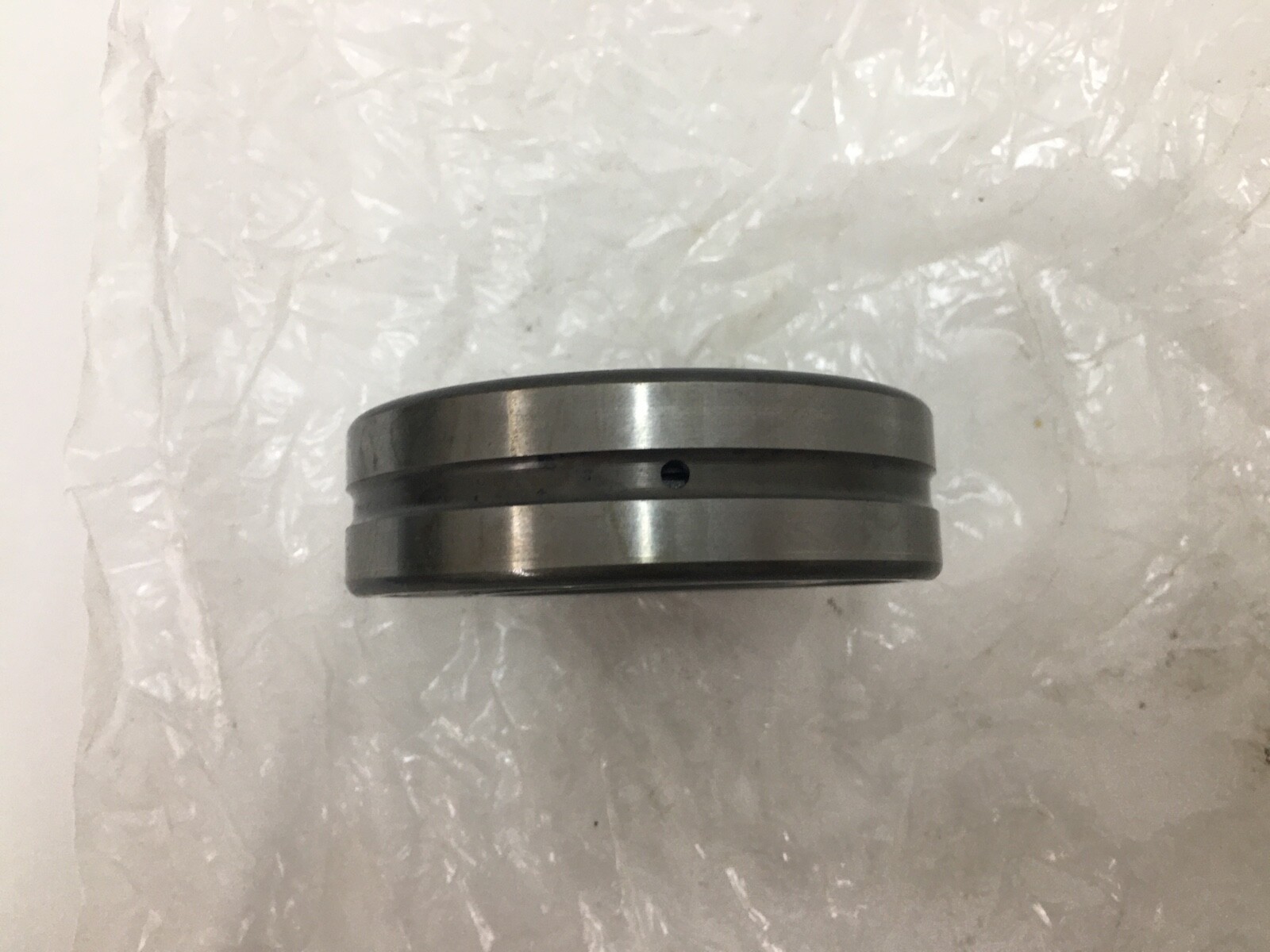

Envelope: 40 x 80 x 23 mm. The groove distributes lubricant around the outer ring and the radial holes carry it to the roller rows, so the bearing takes grease or circulating oil from the housing.
Current-design equivalents on the 40 x 80 x 23 mm envelope: SKF 22208 E, FAG 22208-E1, NSK 22208EAE4, Timken 22208EJW33 and Koyo 22208RHR.
40 mm bore, 80 mm outside diameter and 23 mm width.

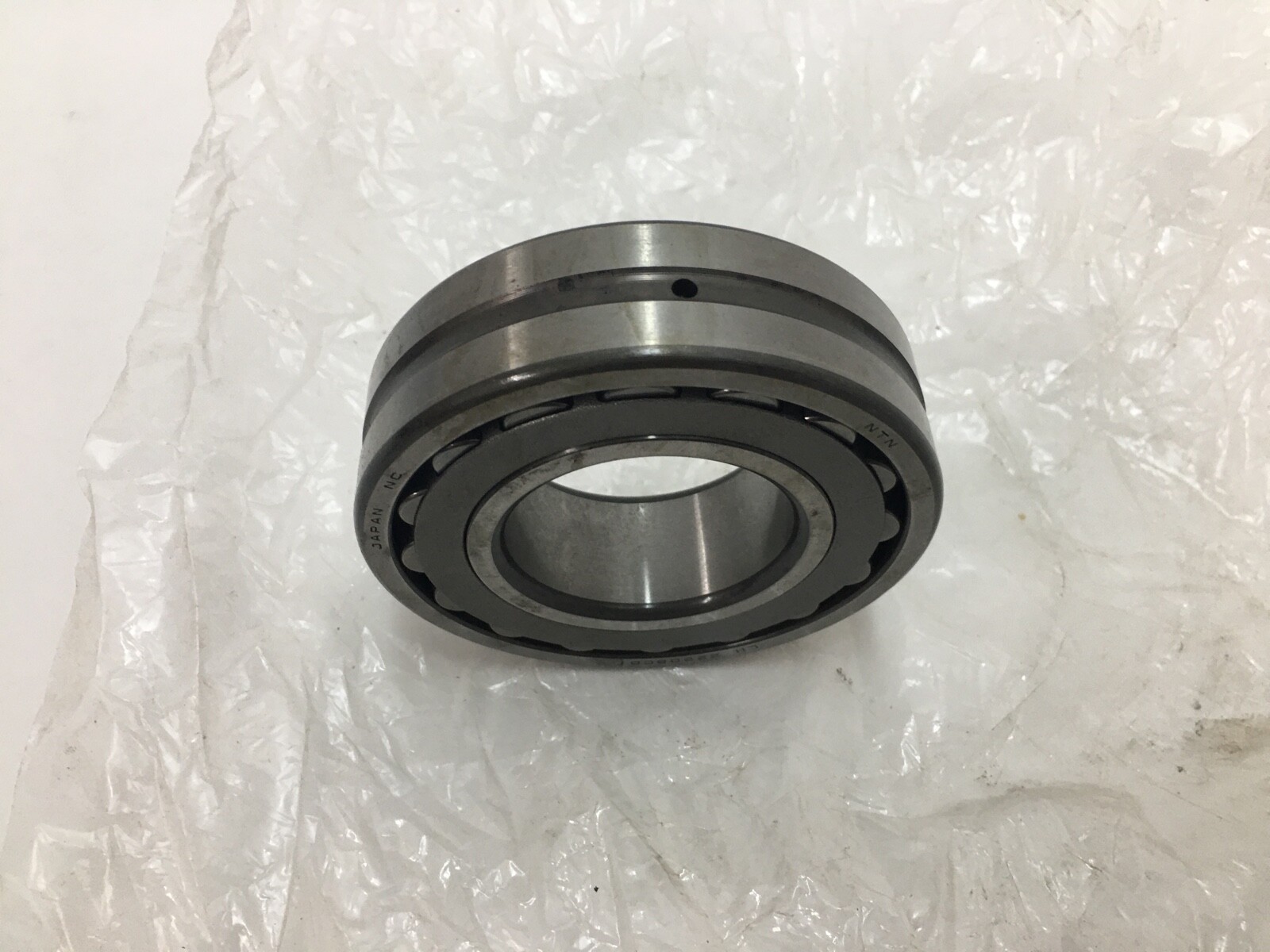

A lubrication groove and holes in the outer ring, NTN’s equivalent of W33.

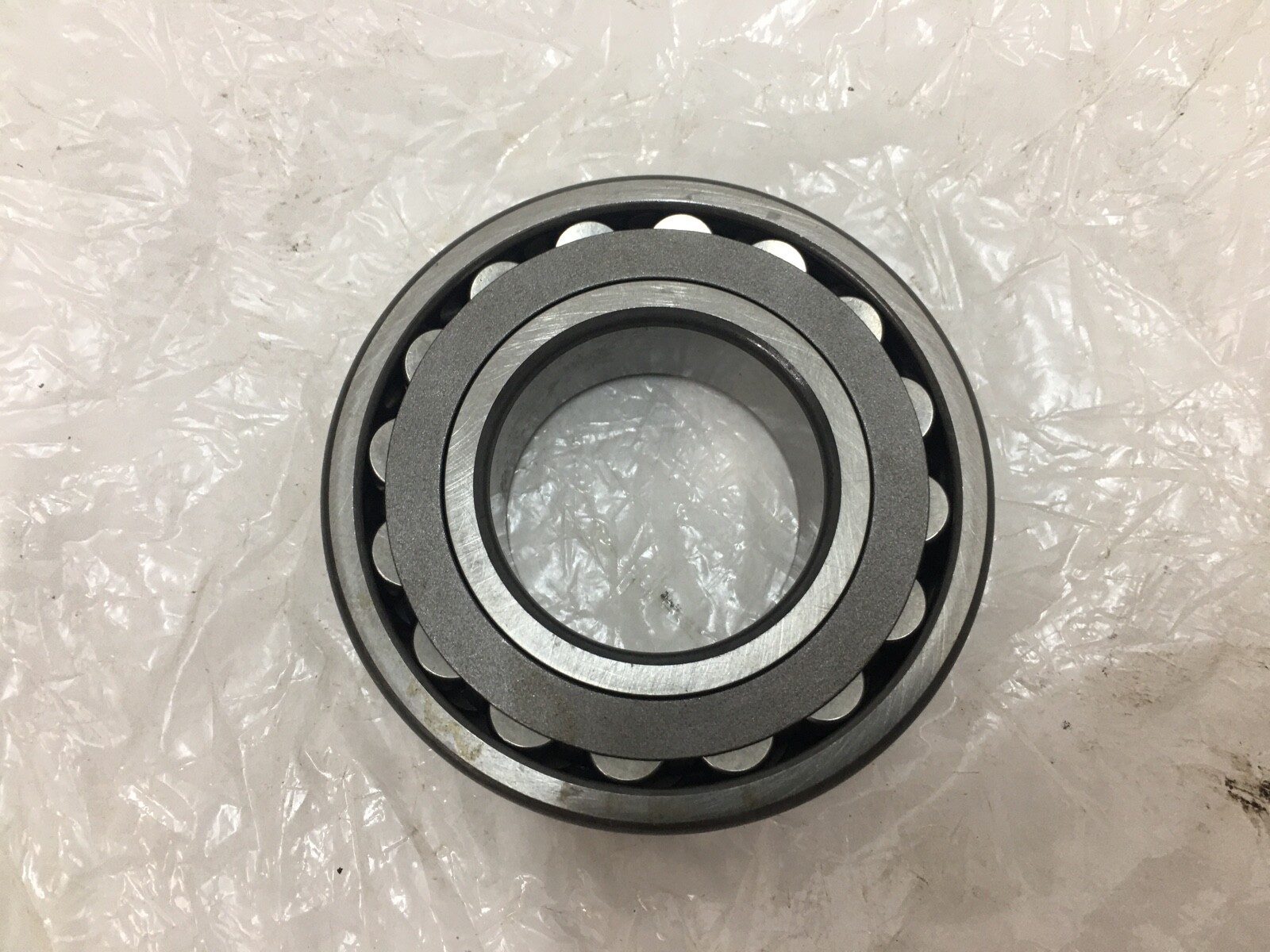

A two-piece pressed cage with symmetrical rollers, identified by the C in the designation.
