Availability:
5 in stock
Double-row spherical roller bearing, 40 mm bore x 80 mm OD x 23 mm wide, straight bore, pressed steel cage, W33 lube groove and three holes. 1 Pc.
List Price
$42.47
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| GTIN | 747023046058 |
| Model | 22208E J W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Relubrication | W33 groove, three radial holes in outer ring |
| Base Number | 22208 |
| Industry Terms | double row spherical roller bearing; self-aligning roller bearing |
| Common Misspellings | 22208 EJW33; 22208EJ-W33; 22208EJW-33; 2208EJW33 |
| Application Types | Conveyor drives; gearboxes; fans and blowers; pumps |
| Bore Shaft Size | 40 mm |
| Mpn Variants | 22208EJW33; 22208 EJ W33; 22208-EJ-W33; 22208EJ W33; 22208EW33 |
| Manufacturer Status | RHP bearing production became part of NSK |
| Arrangement Configuration | Single bearing |
| Cage Type | Pressed |
| Rolling Elements | Spherical Roller |
| Item Weight | 0.5 kg (1.1 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 2 (double row) |
| Bore Type | Straight |
| Snap Ring Included | No |
| Relubrication Feature | W33 groove, three radial holes in outer ring |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Internal Clearance | CN (normal) |
| Part Number | 22208EJW33 |
| Total Width | 23 mm |
| Overall Width | 23 mm |
| Lubricant | Grease or oil |
| Bearing Material | Bearing steel |
| Cross Reference 1 | Timken 22208EJW33 |
|---|---|
| Cross Reference 2 | NSK 22208EAE4 |
| Cross Reference 3 | Koyo 22208RHRW33 |
| Cross Reference 4 | Nachi 22208EXW33 |
| Cross Reference 5 | SKF 22208 E - no W33 groove |
| Cross Reference 6 | FAG 22208-E1-XL - no W33 groove |

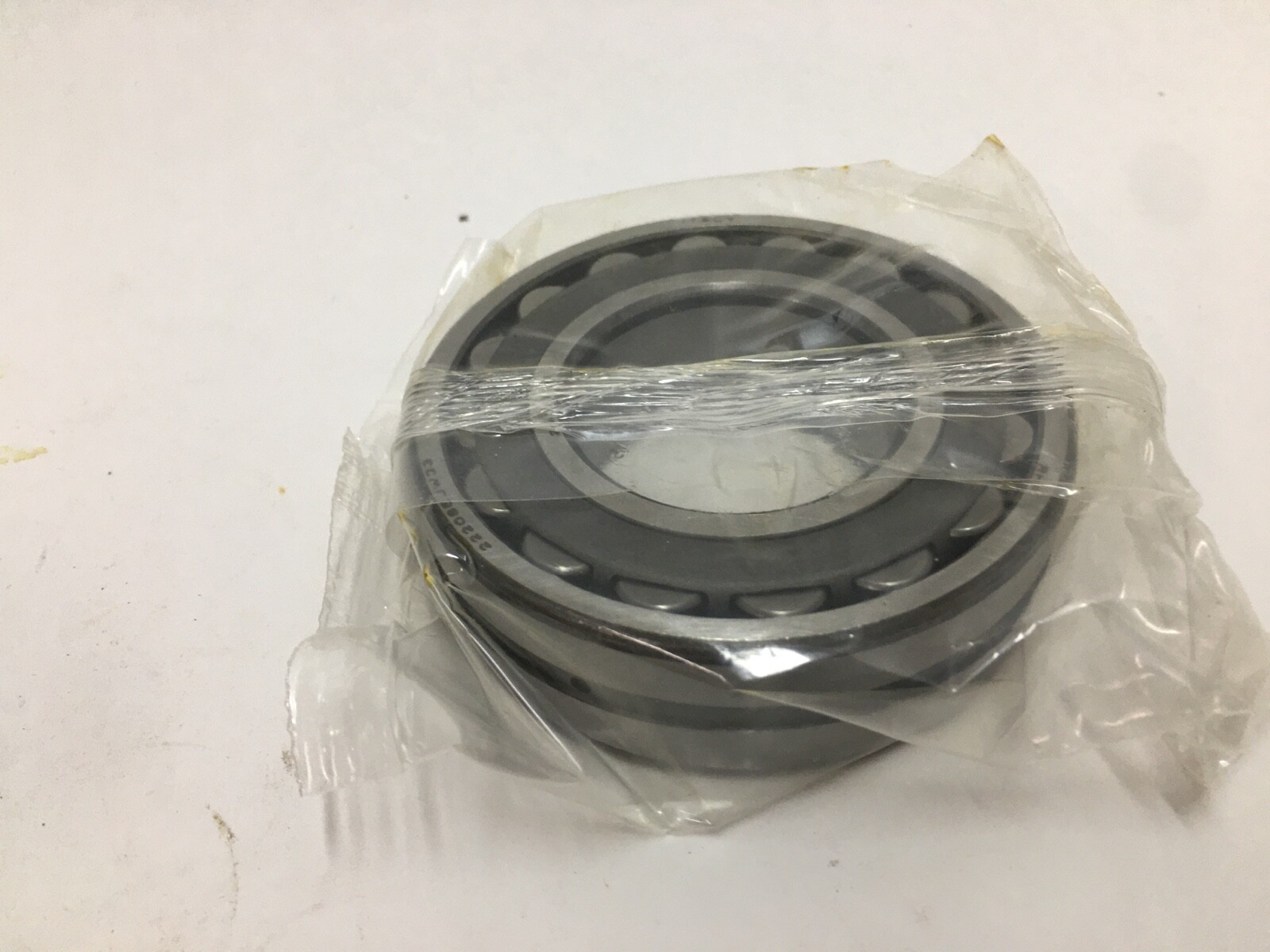

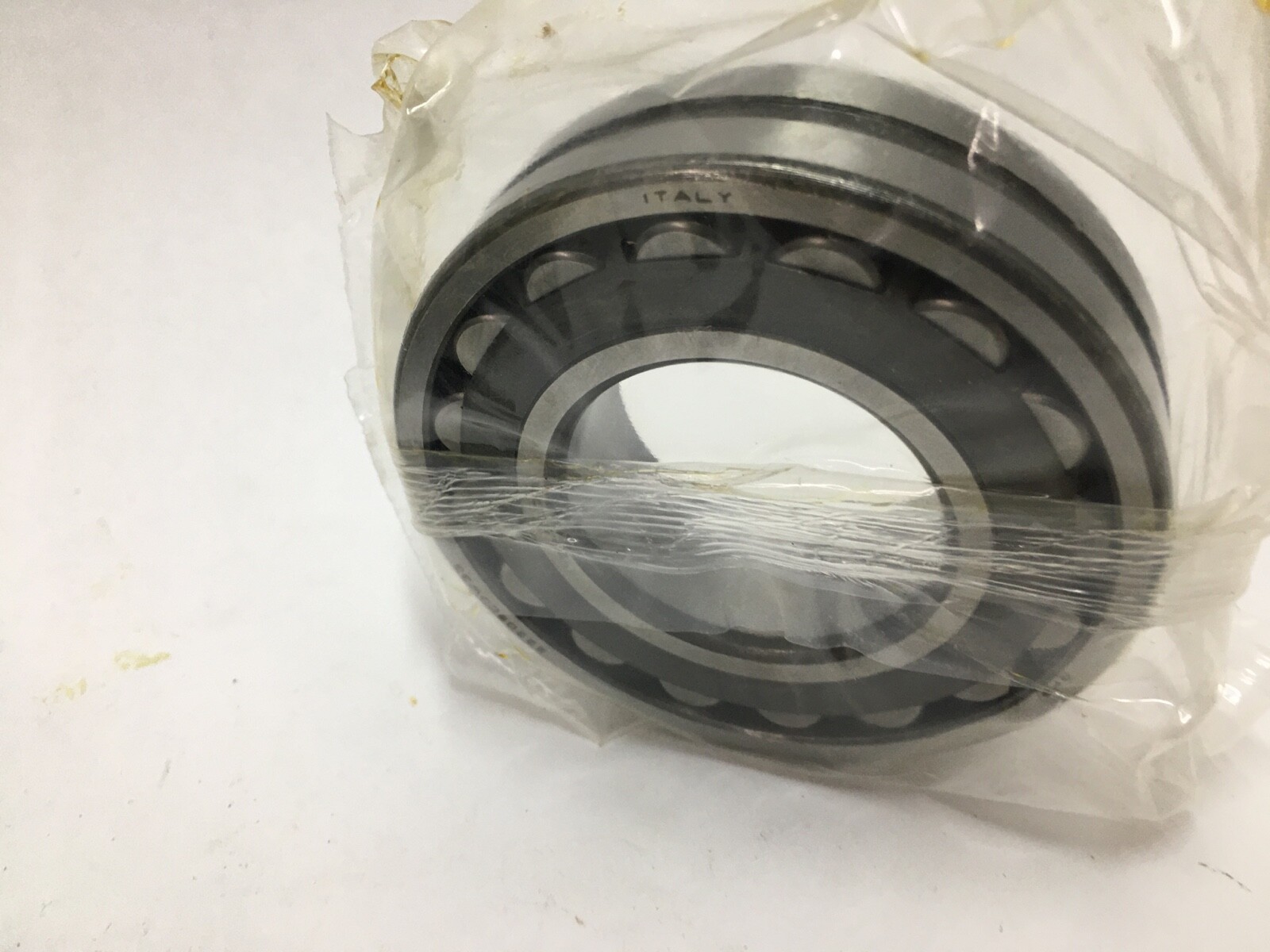

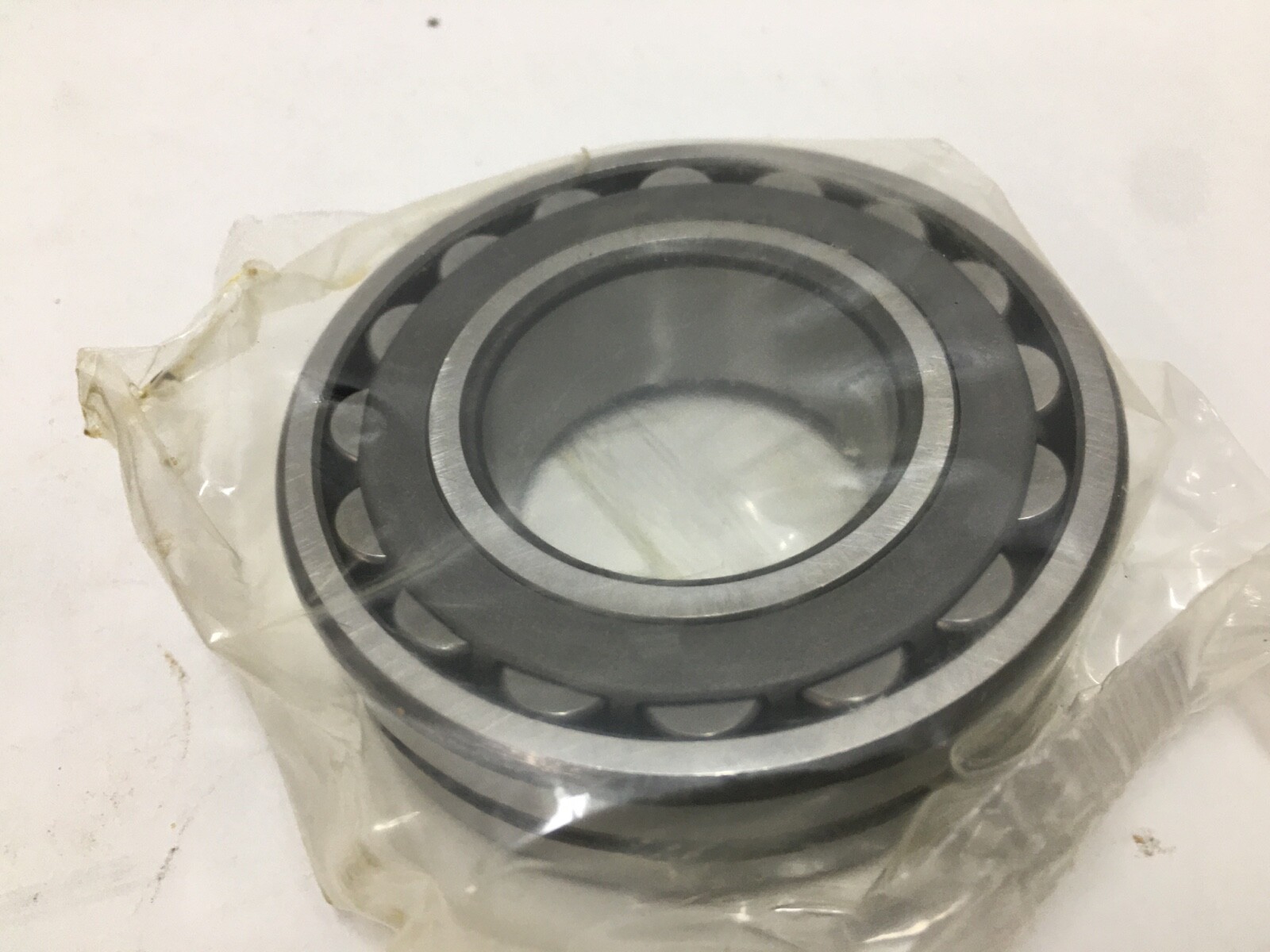

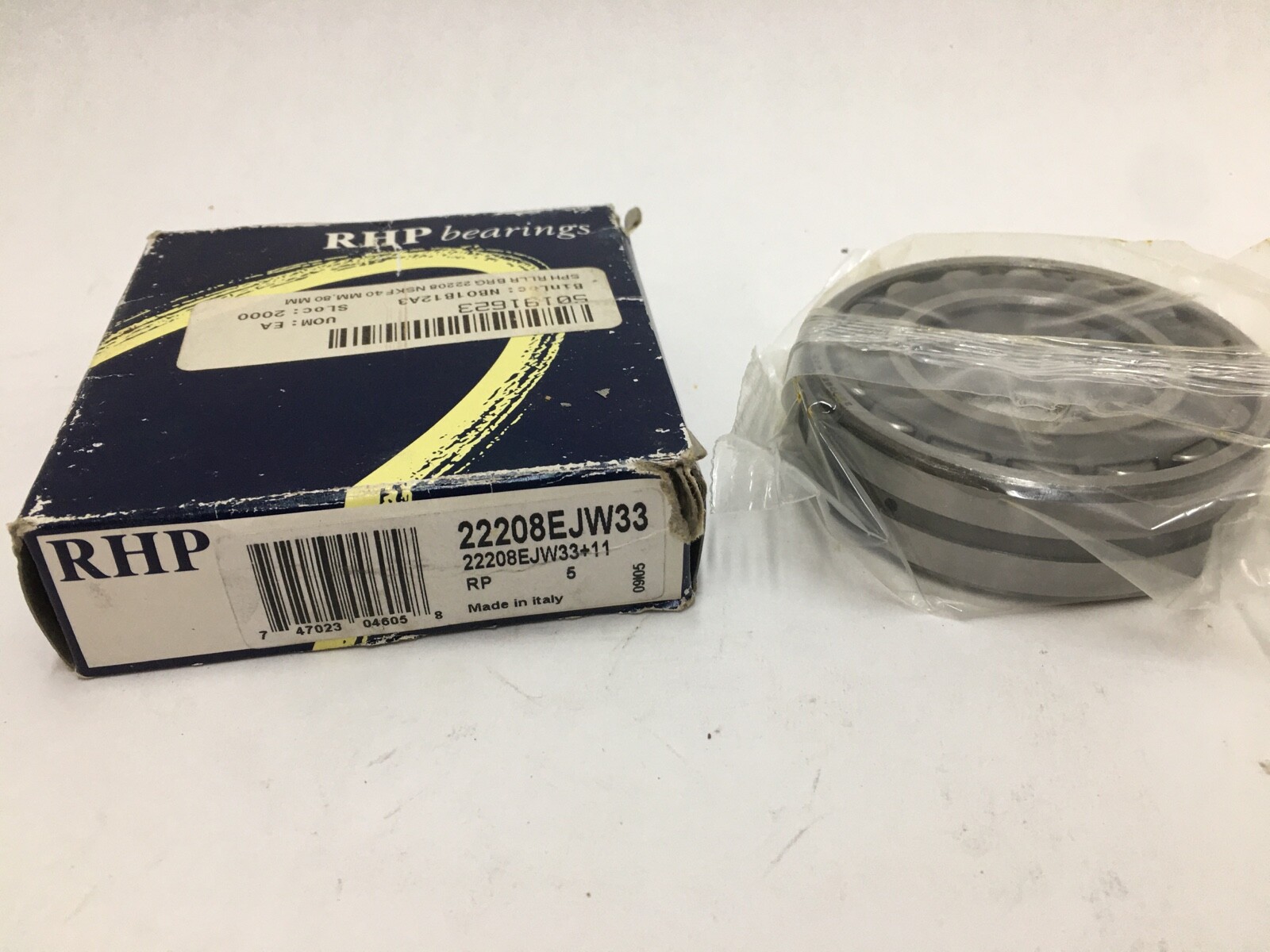

RHP 22208EJW33 is a double-row spherical roller bearing, 40 mm bore x 80 mm outside diameter x 23 mm wide, with a straight cylindrical bore, a pressed steel cage, and a W33 lubrication groove with three radial holes in the outer ring. Complete non-separable bearing: outer ring, both roller rows, cages and inner ring. Unit Quantity: 1 Pc.
222 — ISO dimension series for the wide, high-capacity double-row spherical roller family.
08 — bore size code, 40 mm bore.
E — increased-capacity internal design: larger rollers on a flangeless inner ring.
J — pressed steel cage.
W33 — lubrication groove around the outside diameter of the outer ring with three radial feed holes through to the rollers.
No clearance suffix — normal (CN) radial internal clearance.
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 23 mm. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Straight. Cage Material: Pressed steel. Internal Clearance: CN. Closure Type: Open. Lubricant: grease or oil. Relubrication Feature: W33 lubrication groove with three radial feed holes in the outer ring. Series: 222. Item Weight: approximately 0.5 kg (1.1 lb). Unit Quantity: 1 Pc.
Envelope: 40 x 80 x 23 mm. Straight cylindrical bore. Lubrication groove around the outer ring outside diameter with three radial holes at mid-width. Single bearing.
Same 40 x 80 x 23 mm envelope with the W33 feature: Timken 22208EJW33, NSK 22208EAE4, Koyo 22208RHRW33, Nachi 22208EXW33. Same envelope without a W33 groove: SKF 22208 E, FAG 22208-E1-XL. Manufacturer Status: RHP bearing production became part of NSK.
What are the dimensions of the RHP 22208EJW33?
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 23 mm.
What does W33 mean?
W33 is a lubrication groove around the outside diameter of the outer ring with three radial feed holes through to the rollers.
What cage and internal clearance does it have?
Cage Material: Pressed steel. Internal Clearance: CN (normal).
