Availability:
1 in stock

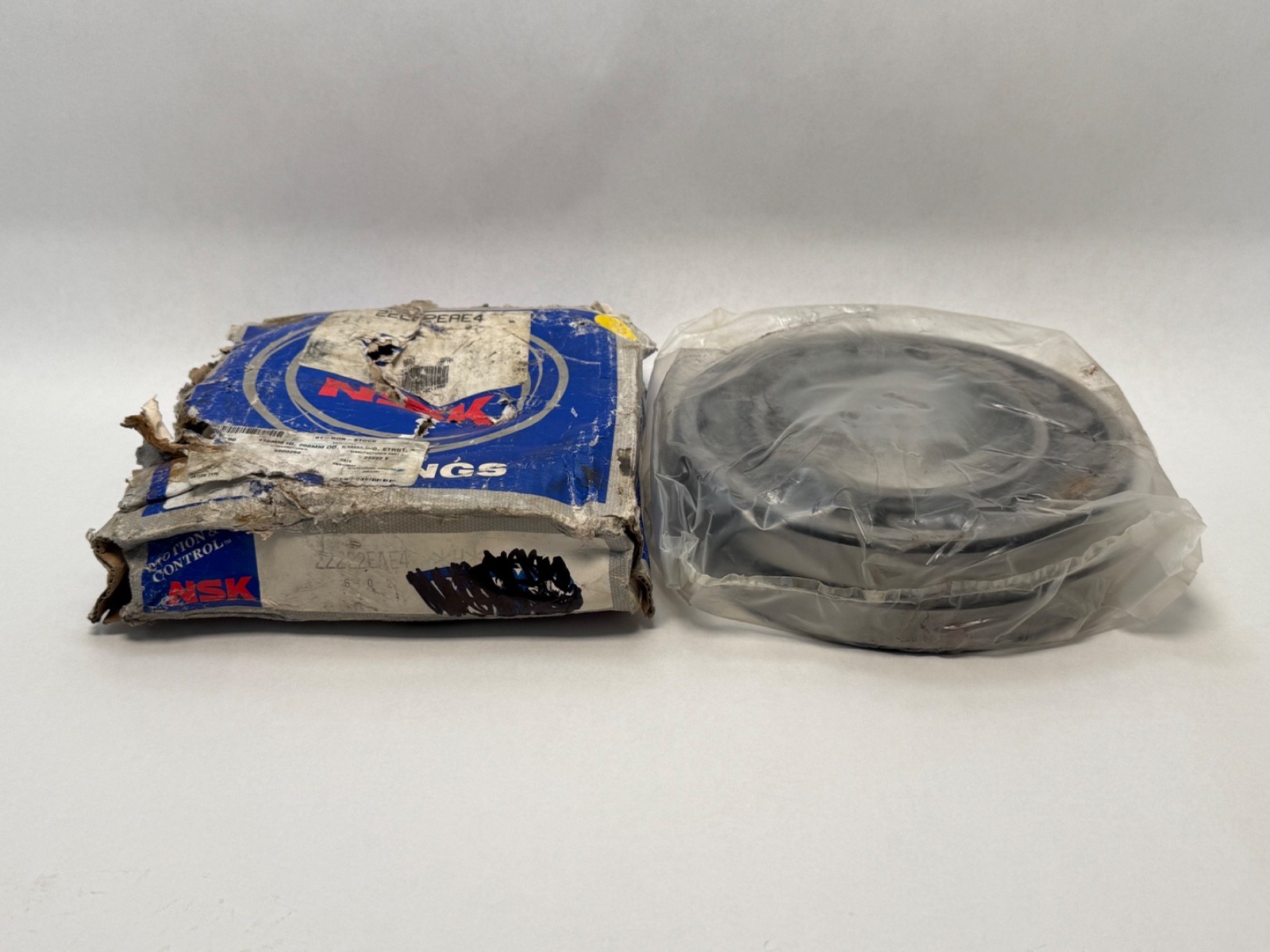

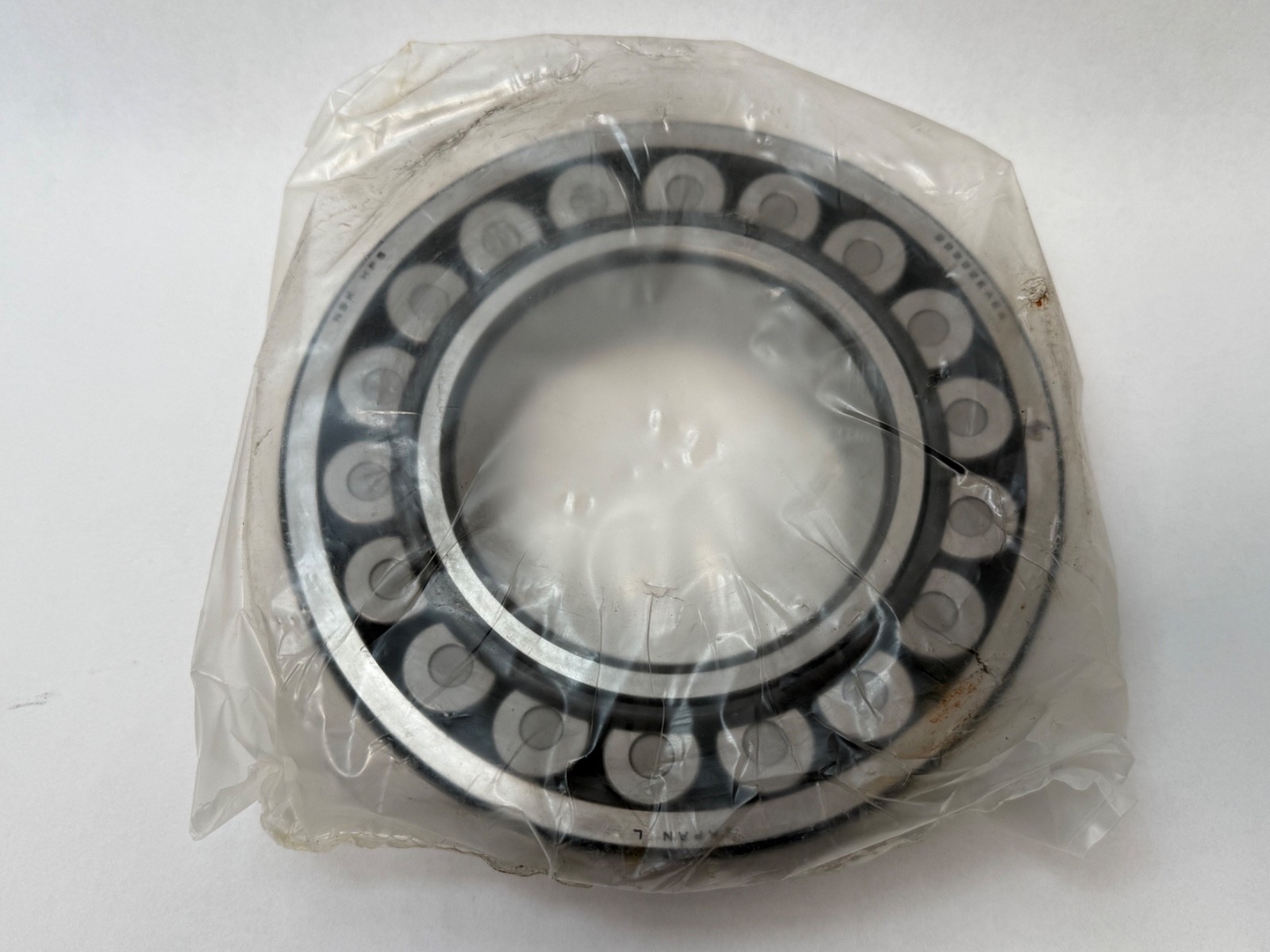

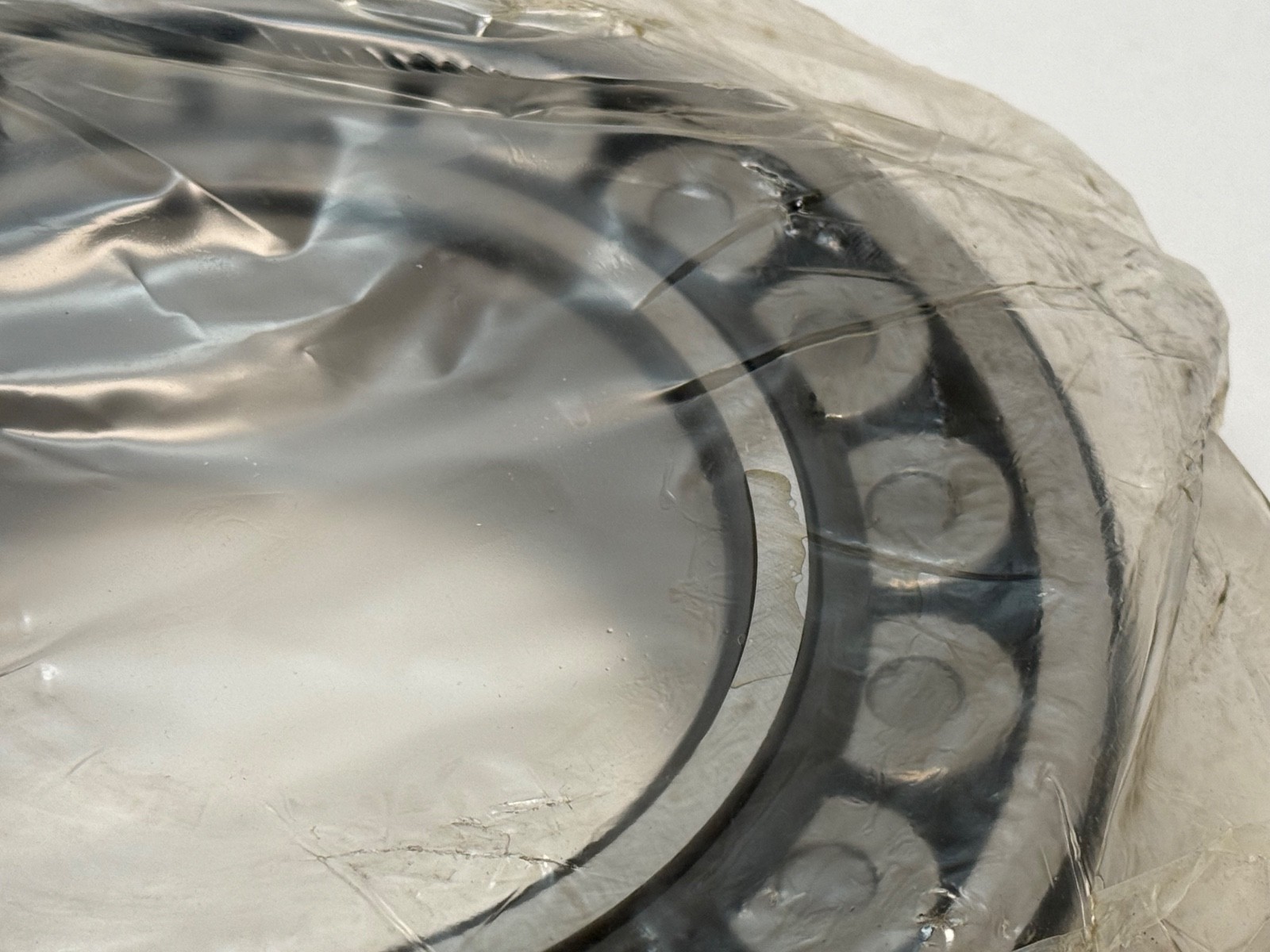

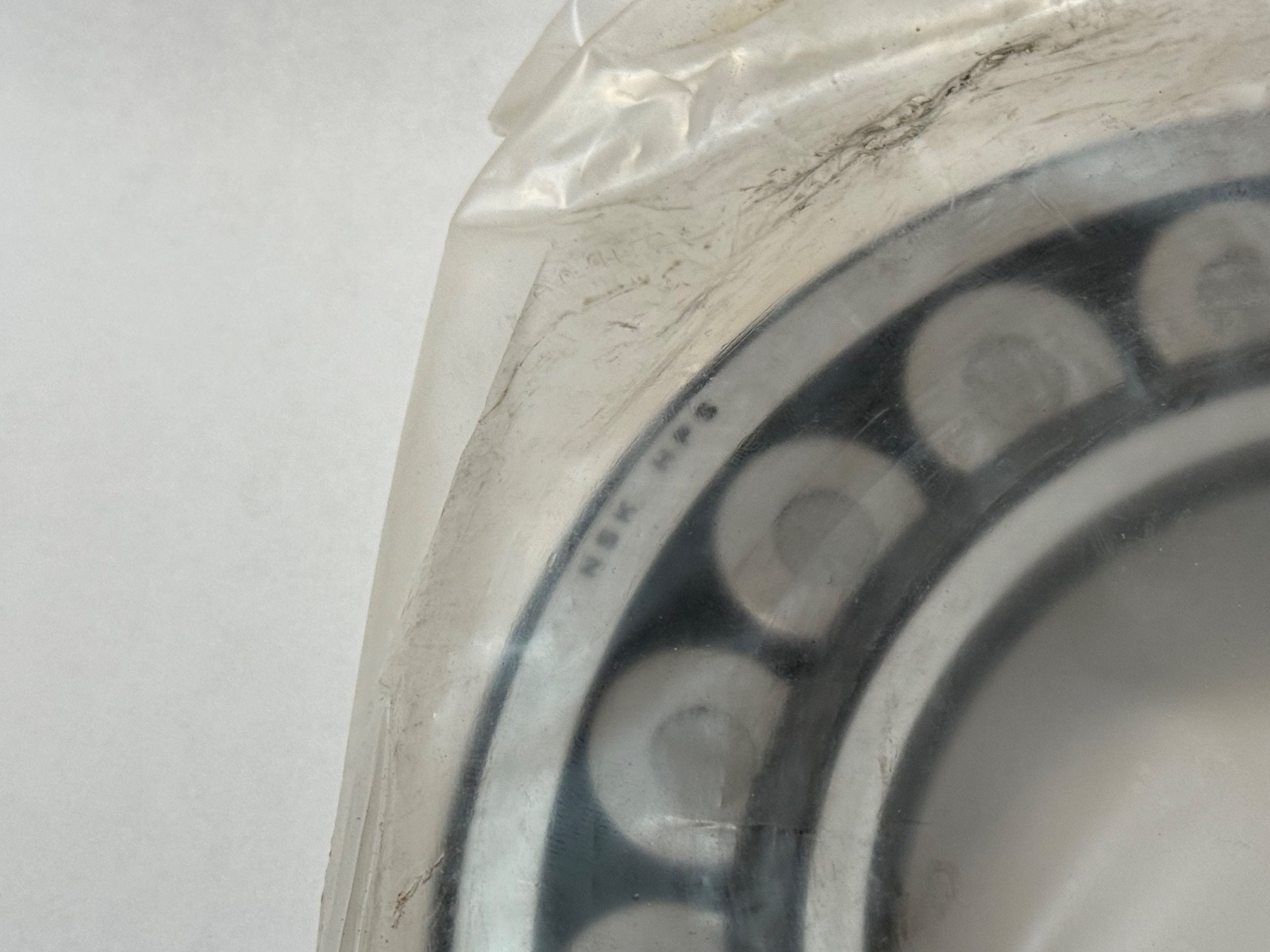

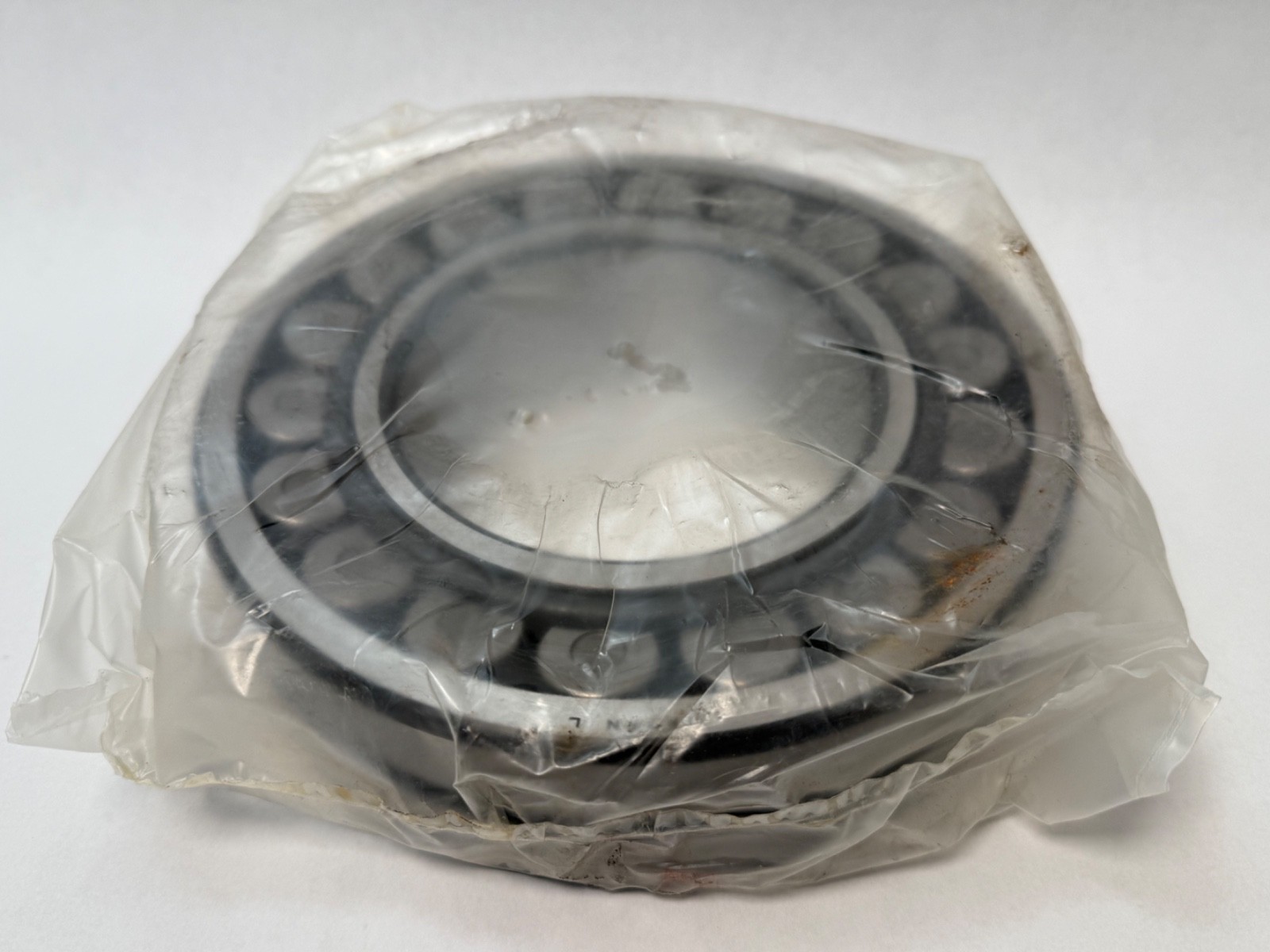

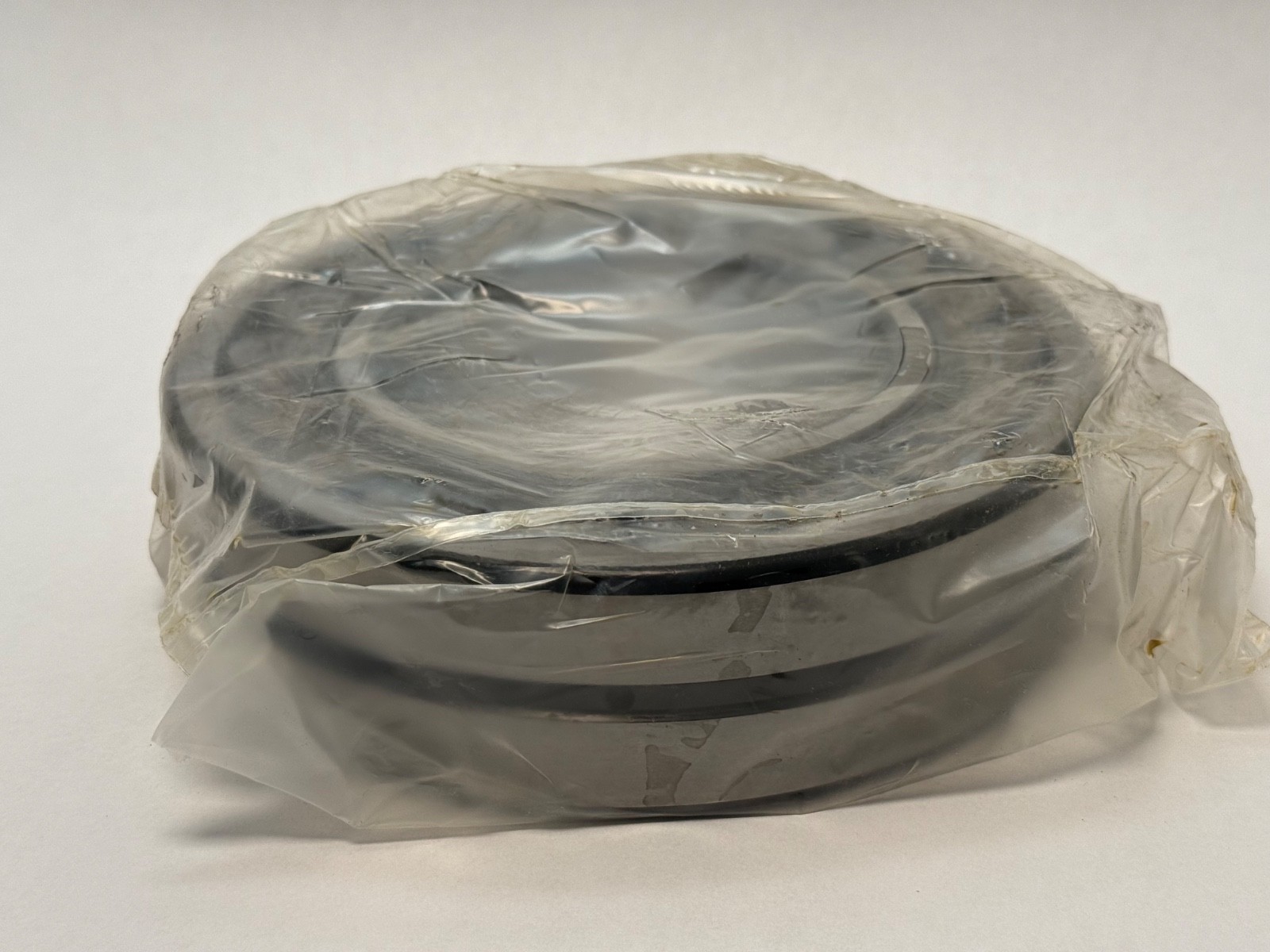

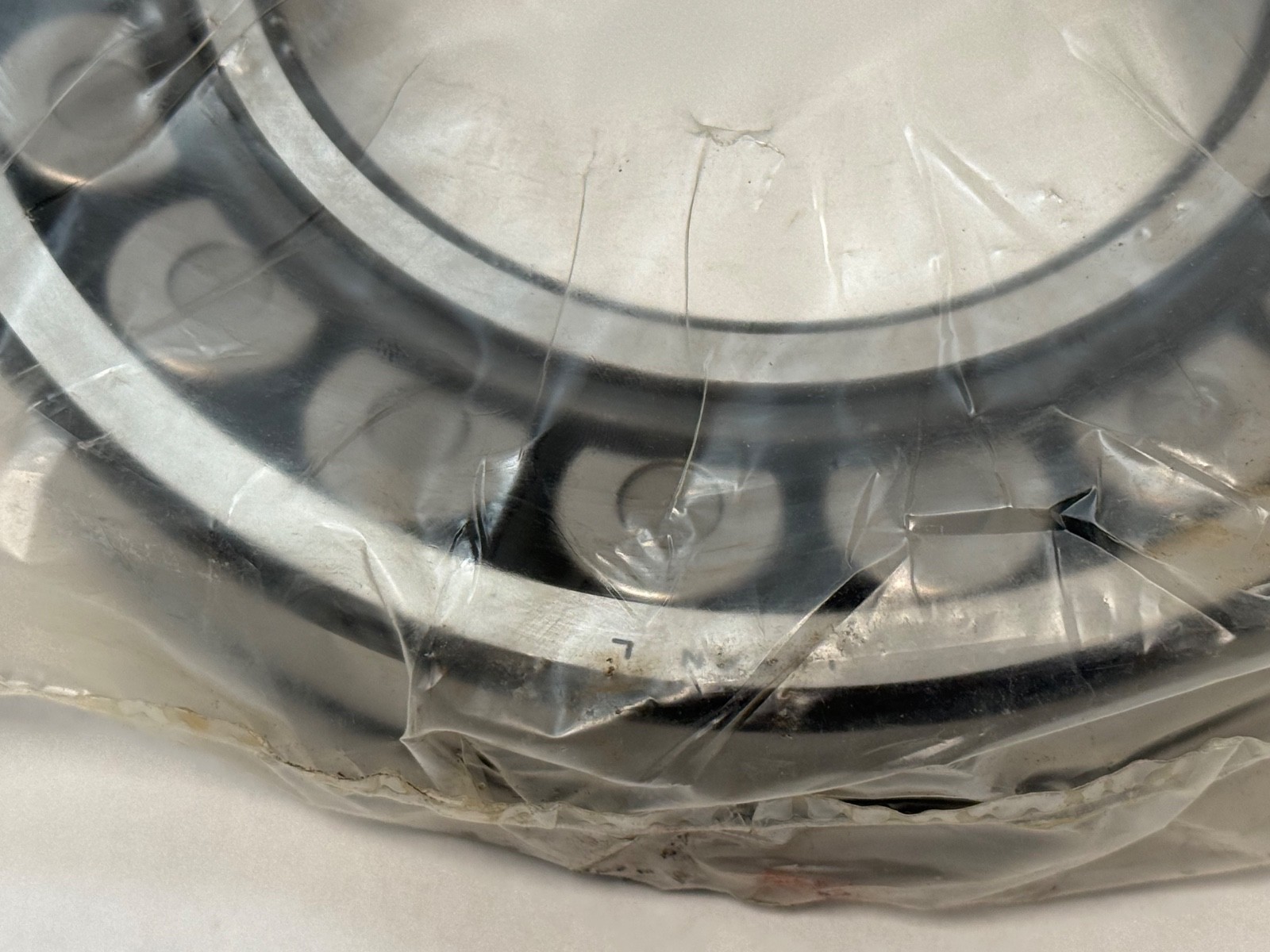

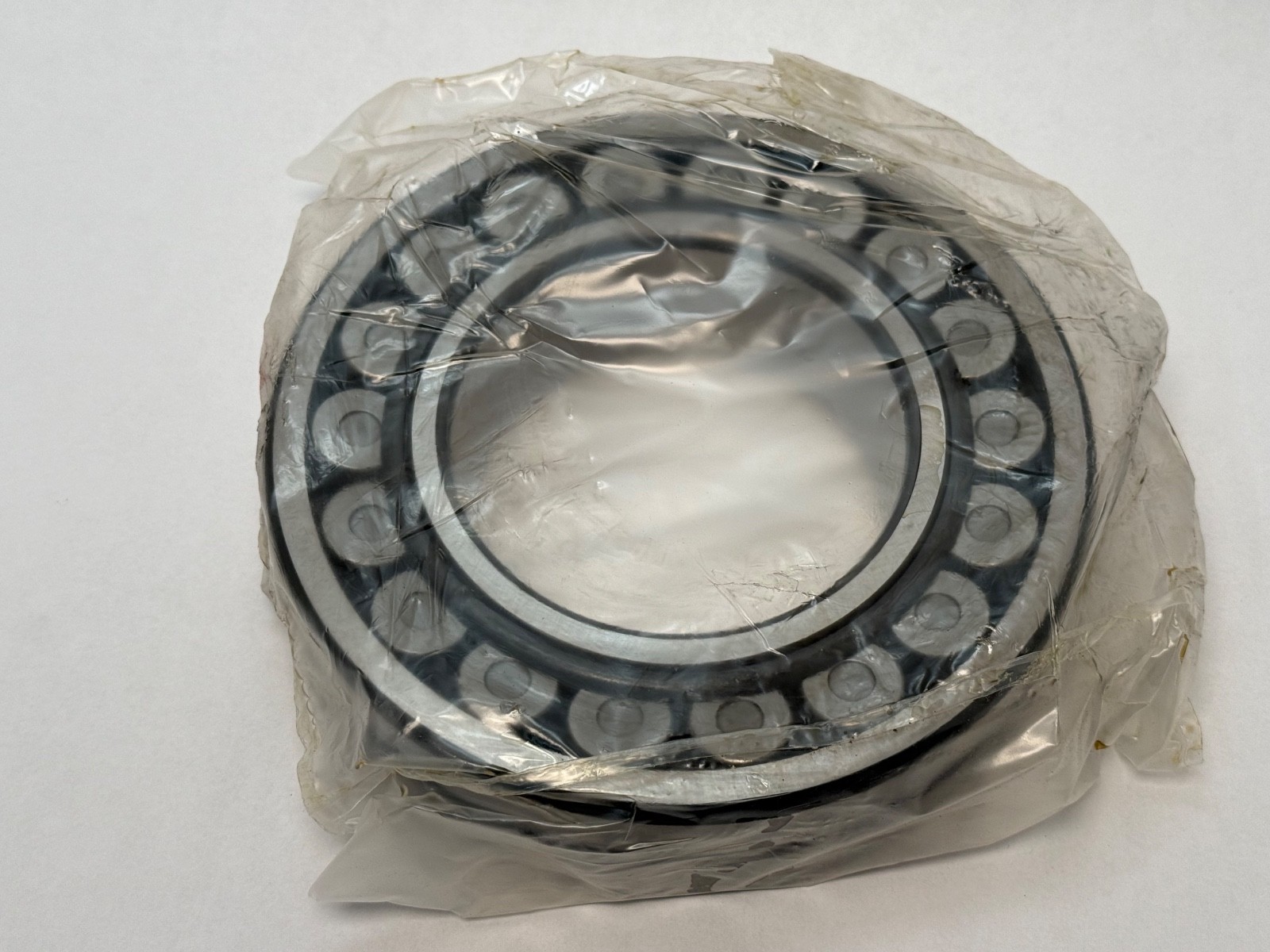

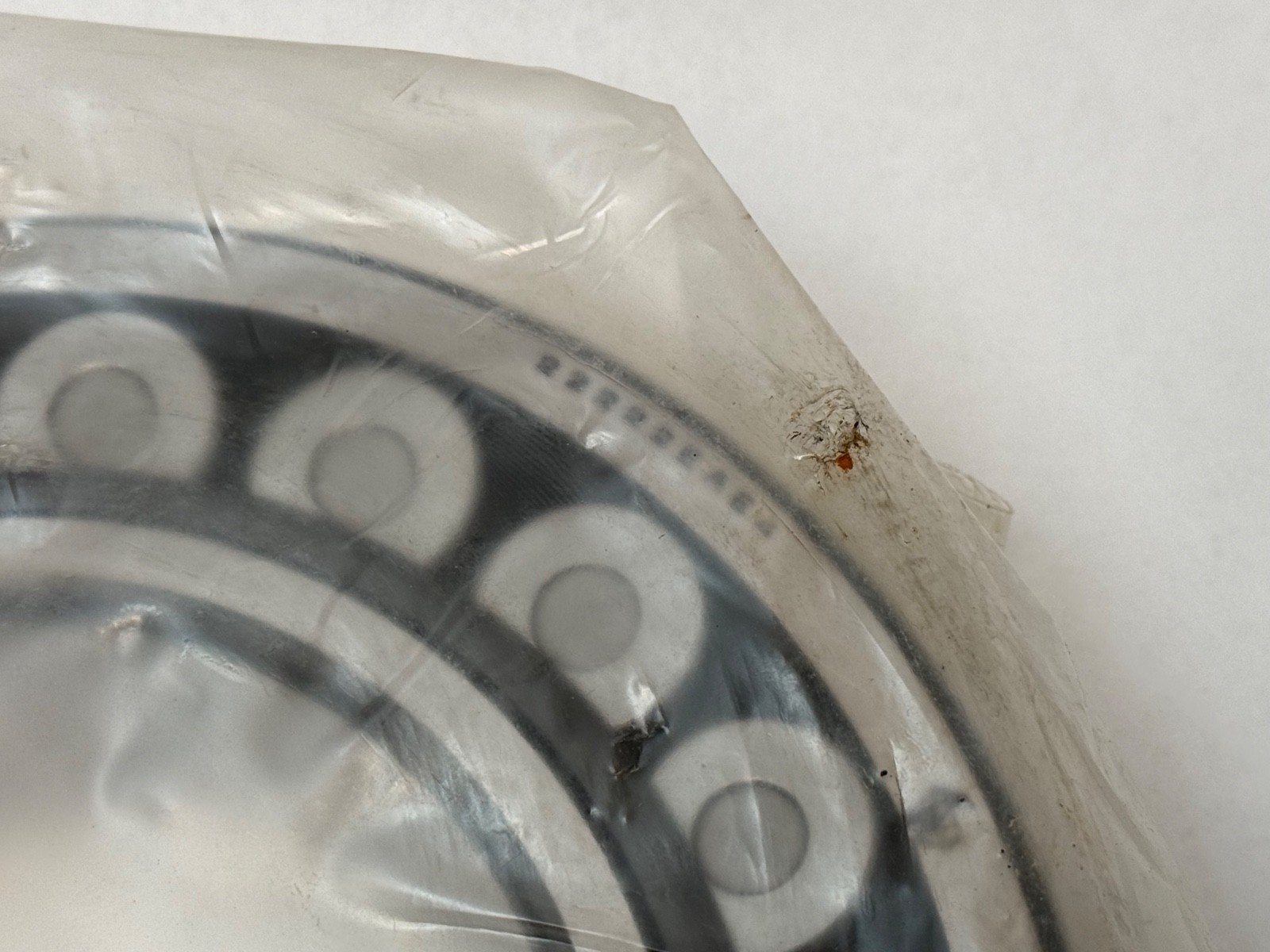

Double row spherical roller bearing, 110 x 200 x 53 mm, W33 lubrication groove, straight bore. Cr 605,000 N. NSK EA high-capacity design.
List Price
$181.89
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 22222EAE4 |
| GTIN | 029176411502 |
| Model | 22222E A E4 / 22222 E A W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 110 mm |
| OD | 200 mm |
| Width | 53 mm |
| Material | Bearing Steel |
|---|---|
| Bore | Straight |
| Base Number | 22222 |
| Common Misspellings | NKS 22222EAE4, 2222EAE4, 22222EAE-4, 22222 EA-E4, 22222EAEA, 22222EAF4, NSK 22222 EA W33 |
| Mpn Variants | 22222EAE4, 22222 EA E4, 22222EA, 22222EAW33, 22222 EAE4, 22222E4, 22222EAE4C3 |
| Precision Class | ISO Normal |
| Additional Attributes | Load factors e 0.25, Y0 2.6, Y2 4, Y3 2.7. Shaft abutment da 122-129 mm. Housing abutment Da 178-188 mm. Fillet radius ra max 2 mm. Chamfer r min 2.1 mm. NSK also prints a thermal speed rating (oil-bath) of 3,400 rpm and a mechanical forced-circulation-oil figure of 3,400 rpm on the same page. |
| Dynamic Load Rating | 605,000 N |
| Static Load Rating | 645,000 N |
| Precision Rating | ISO Normal |
| Series | 22200 |
| Rolling Elements | Spherical Roller |
| Item Weight | 6.99 kg (15.41 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Limiting Speed | 2,600 rpm grease; 3,200 rpm oil |
| Internal Clearance | CN |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Bearing Material | Bearing steel |
| Cross Reference 1 | NSK 22222EAKE4 – tapered 1:12 bore version, mounts on an adapter sleeve |
|---|---|
| Cross Reference 2 | SKF 22222 E/W33 – same 110x200x53 mm envelope, ratings differ by maker |
| Cross Reference 3 | FAG 22222-E1-XL-K – same envelope, tapered bore, ratings differ by maker |
| Cross Reference 4 | Timken 22222EJW33 – same envelope, ratings differ by maker |
| Cross Reference 6 | NTN 22222EAD1 – same envelope, ratings differ by maker |
NSK 22222EAE4 double row spherical roller bearing. Bore Diameter: 110 mm (4.3307 in). Outside Diameter: 200 mm (7.8740 in). Overall Width: 53 mm (2.0866 in). Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Straight. Cage Material: Pressed steel. Internal Clearance: CN. Precision Class: ISO Normal.
222 — ISO spherical roller series 222, the light-section double row family.
22 — bore code, 22 x 5 = 110 mm.
EA — NSK’s high-capacity execution with a pressed steel cage.
E4 — W33 lubrication feature: a groove around the outer ring with three radial holes through to the rollers.
Dynamic Load Rating: 605,000 N (136,010 lbf). Static Load Rating: 645,000 N (145,003 lbf). Limiting Speed: 2,600 rpm grease; 3,200 rpm oil. Item Weight: 6.99 kg (15.41 lb). Lubricant: grease or oil. Load factors: e 0.25, Y0 2.6, Y2 4, Y3 2.7.
Two rows of barrel-shaped rollers run on a common spherical raceway in the outer ring, so the inner ring and roller set swivel relative to the outer. That accommodates shaft misalignment and housing deflection while carrying very heavy radial load and axial load in both directions.
The W33 groove and three radial holes feed lubricant directly to the roller set through the outer ring, which is what makes a relubricatable or oil-fed housing arrangement practical on a bearing this size.
Bore Type: Straight, mounting directly on the shaft seat. Shaft abutment diameter da: 122–129 mm. Housing abutment diameter Da: 178–188 mm. Fillet radius ra max: 2 mm. Chamfer r min: 2.1 mm.
Unit Quantity: 1 Pc. Single one-piece double row bearing.
NSK 22222EAKE4 is the tapered-bore version of this bearing, 1:12 taper, mounted on an adapter sleeve rather than directly on the shaft. Same 110 x 200 x 53 mm envelope from other makers: SKF 22222 E/W33, FAG 22222-E1-XL-K, Timken 22222EJW33, Koyo 22222RHW33. Each maker’s internal design and published ratings differ.
Common spellings: 22222 EA E4, 22222EA, 22222 EAE4, 22222EAW33, 22222E4.
