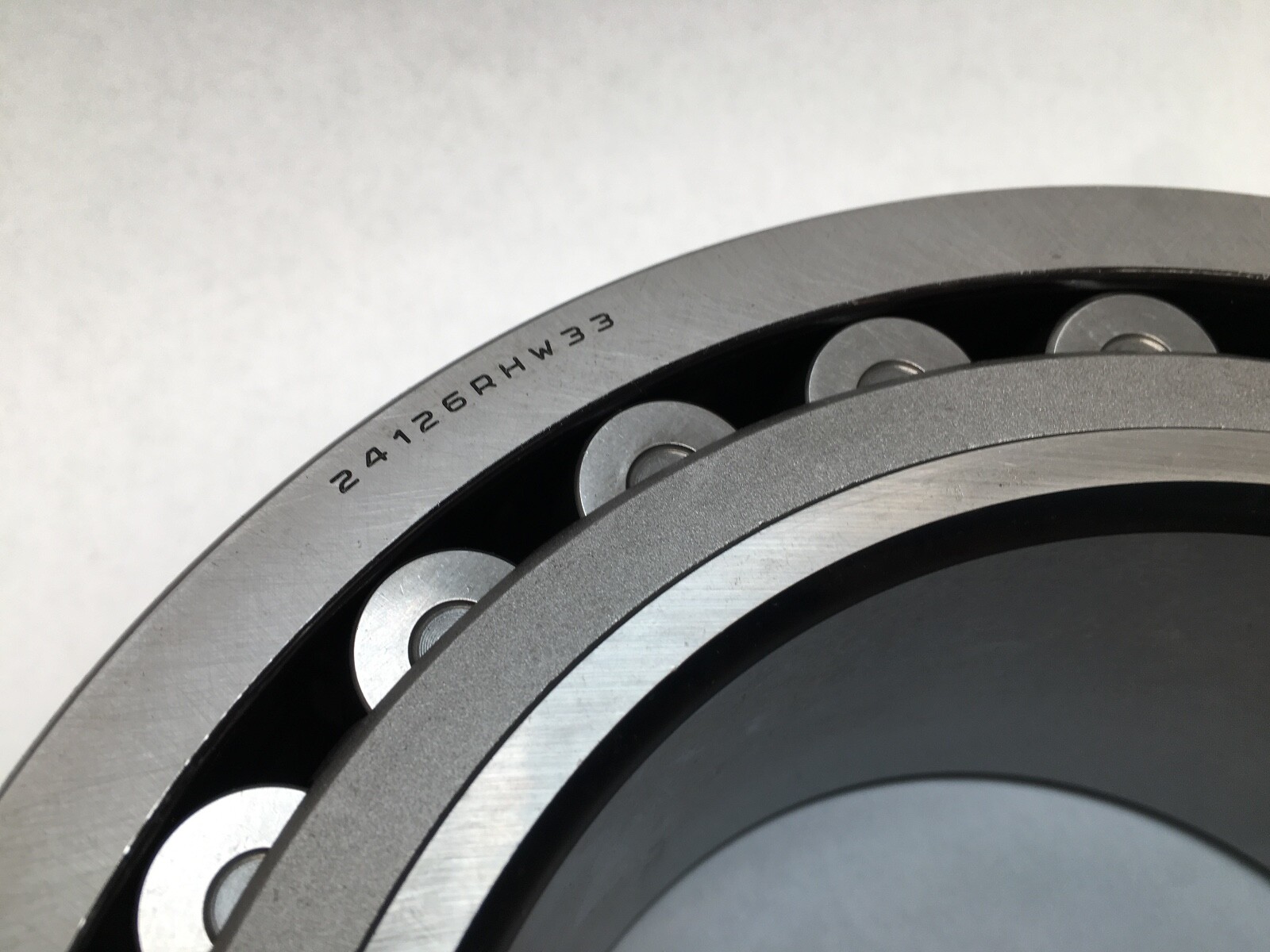

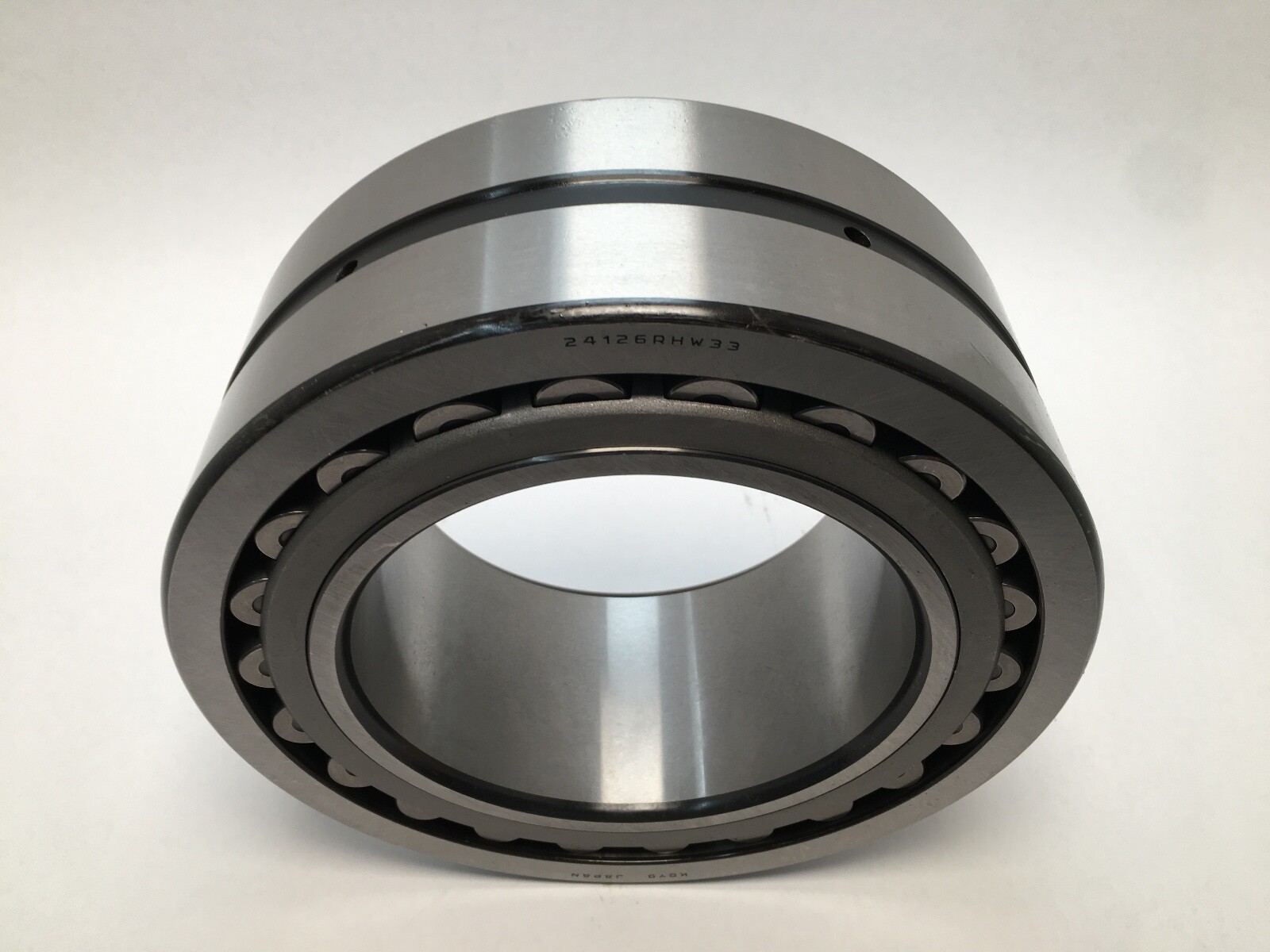

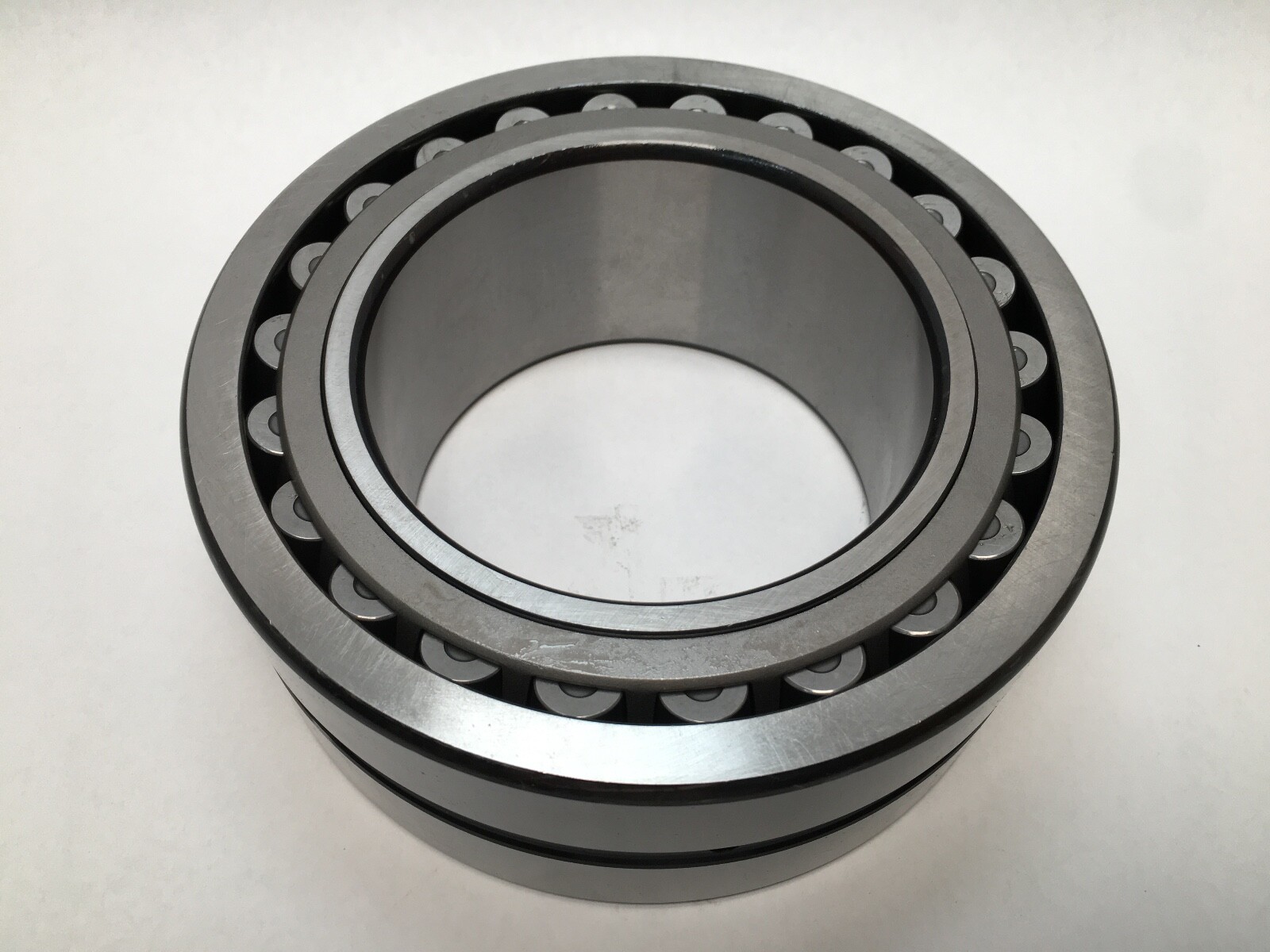

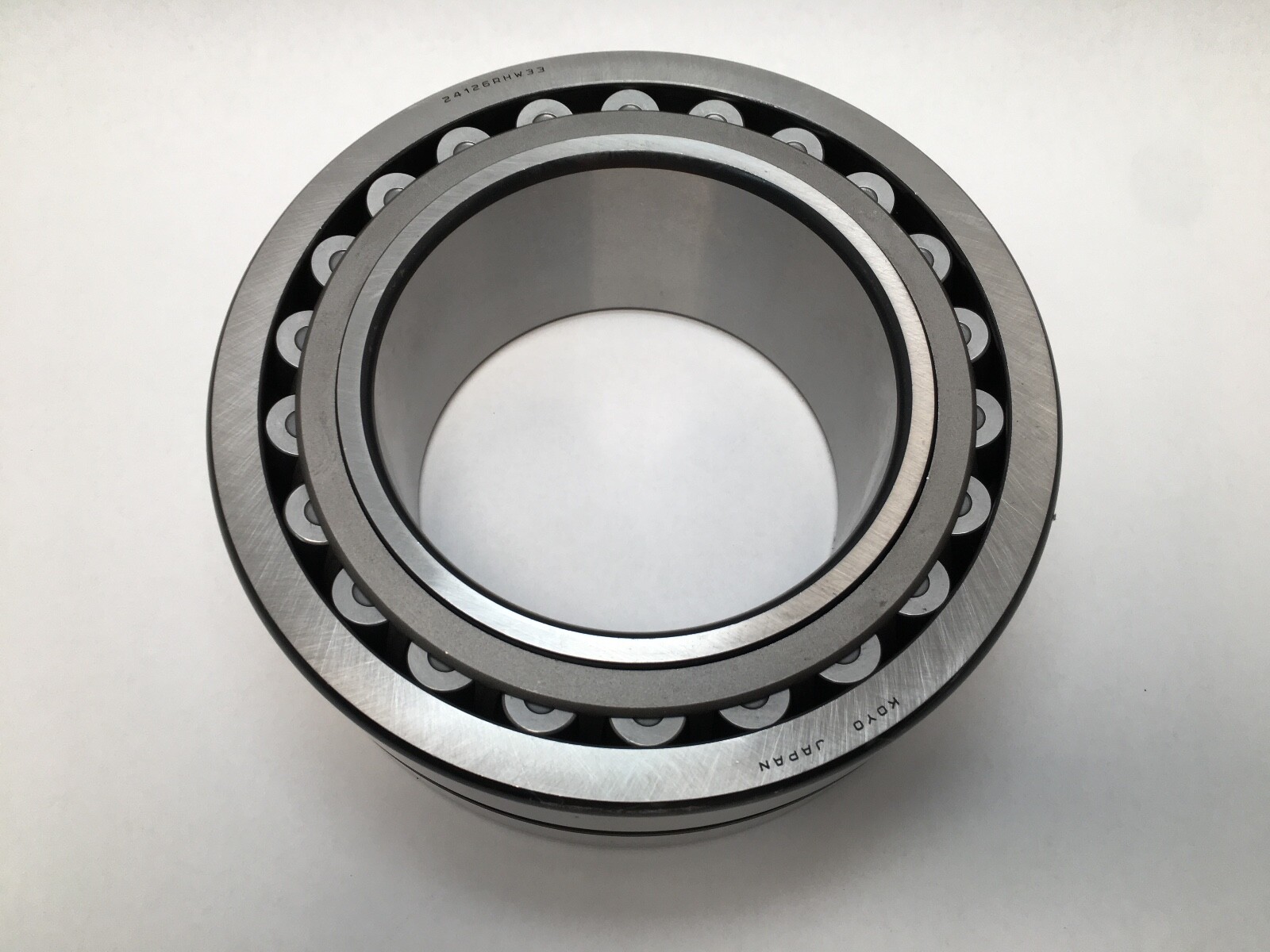

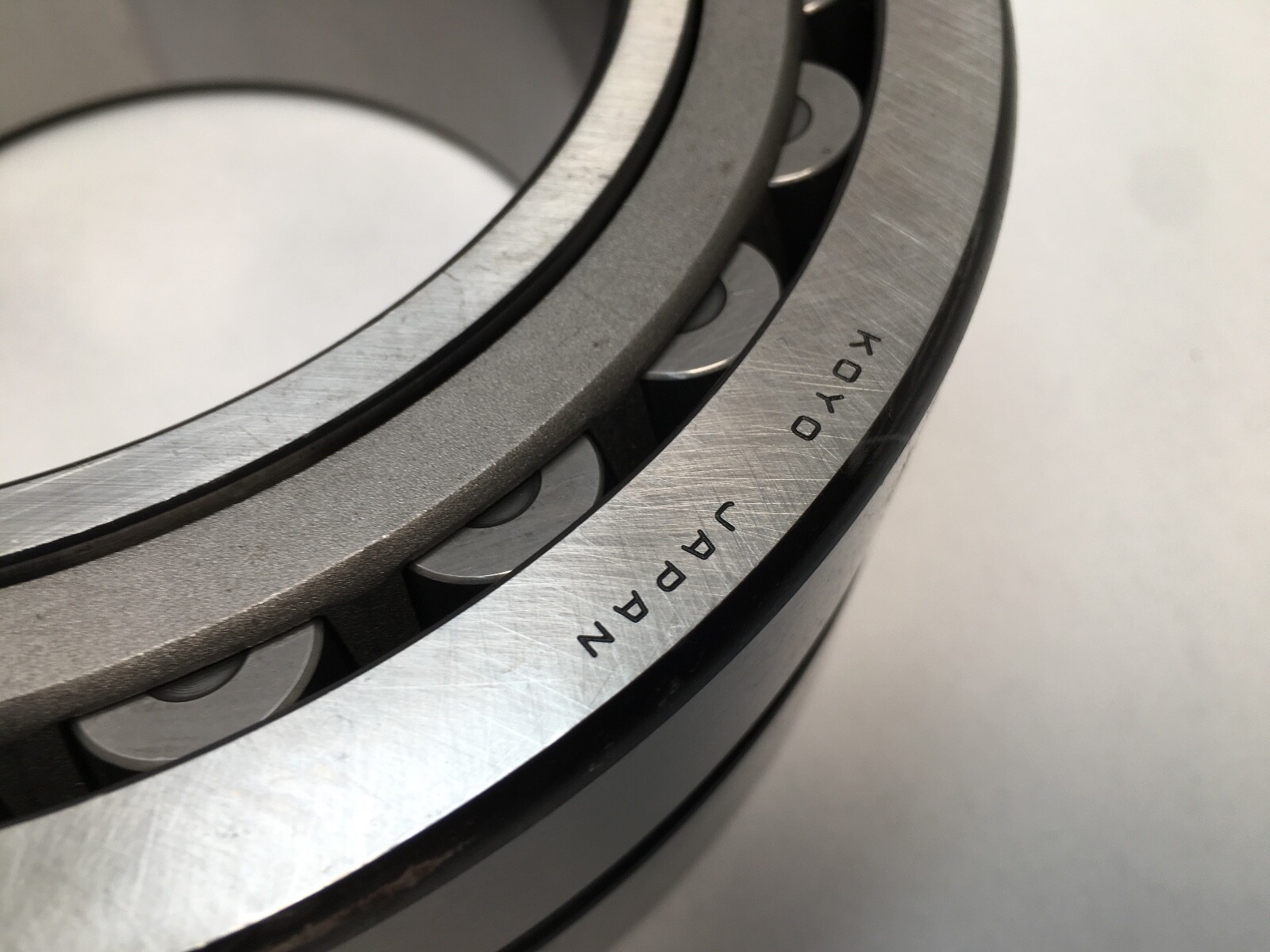

Spherical roller bearing, 130 mm bore x 210 mm OD x 80 mm wide, straight bore, W33 lube groove, pressed steel cage, 754 kN dynamic rating. Koyo 24126RHW33.
List Price
$512.44
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| Model | 24126RH W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 130 mm |
| OD | 210 mm |
| Width | 80 mm |
| Material | Chrome Steel |
|---|---|
| Series | 241 |
| Condition | New – Open box |
| Lubricant | Grease or oil |

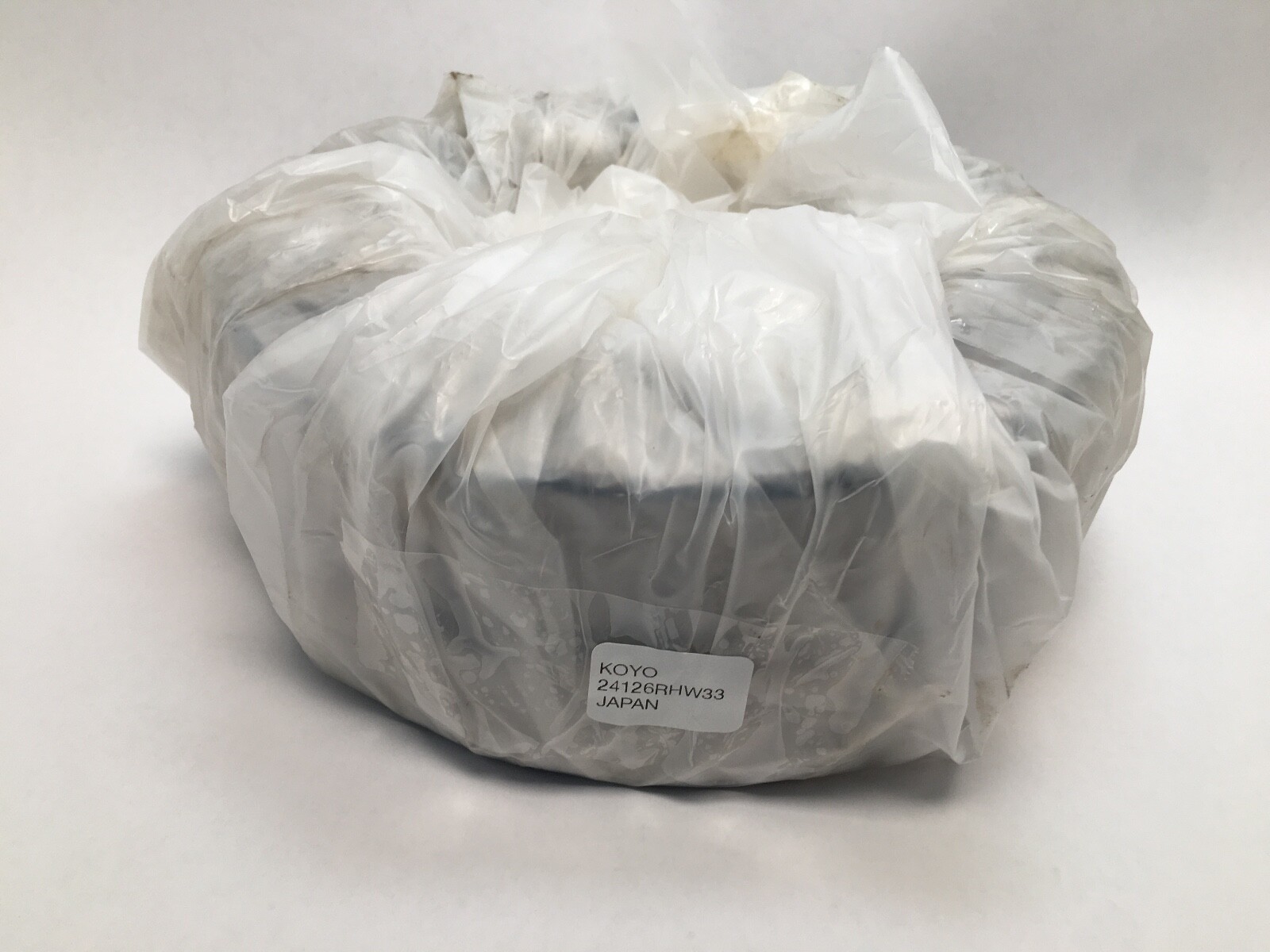

| Condition Note | Made In Japan, New, No Box |
| Overall Width | 80 mm |
| Mpn Variants | 24126RHW33, 24126RH W33, 24126 RH W33, 24126RH |
| Closure Type | Open |
| Dynamic Load Rating | 754,000 N |
| Static Load Rating | 1,080,000 N |
| Rolling Elements | Spherical Roller |
| Item Weight | 10.8 kg (23.81 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 2,100 rpm grease; 2,800 rpm oil |
| Internal Clearance | CN |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00.80 |
| Maximum Permissible Misalignment | 1.5° |
| Cross Reference 1 | SKF 24126 CC/W33 |
|---|---|
| Cross Reference 2 | FAG 24126-E1 |
| Cross Reference 3 | NSK 24126CE4 |
| Cross Reference 4 | NTN 24126B |
| Cross Reference 5 | Timken 24126EJW33 |

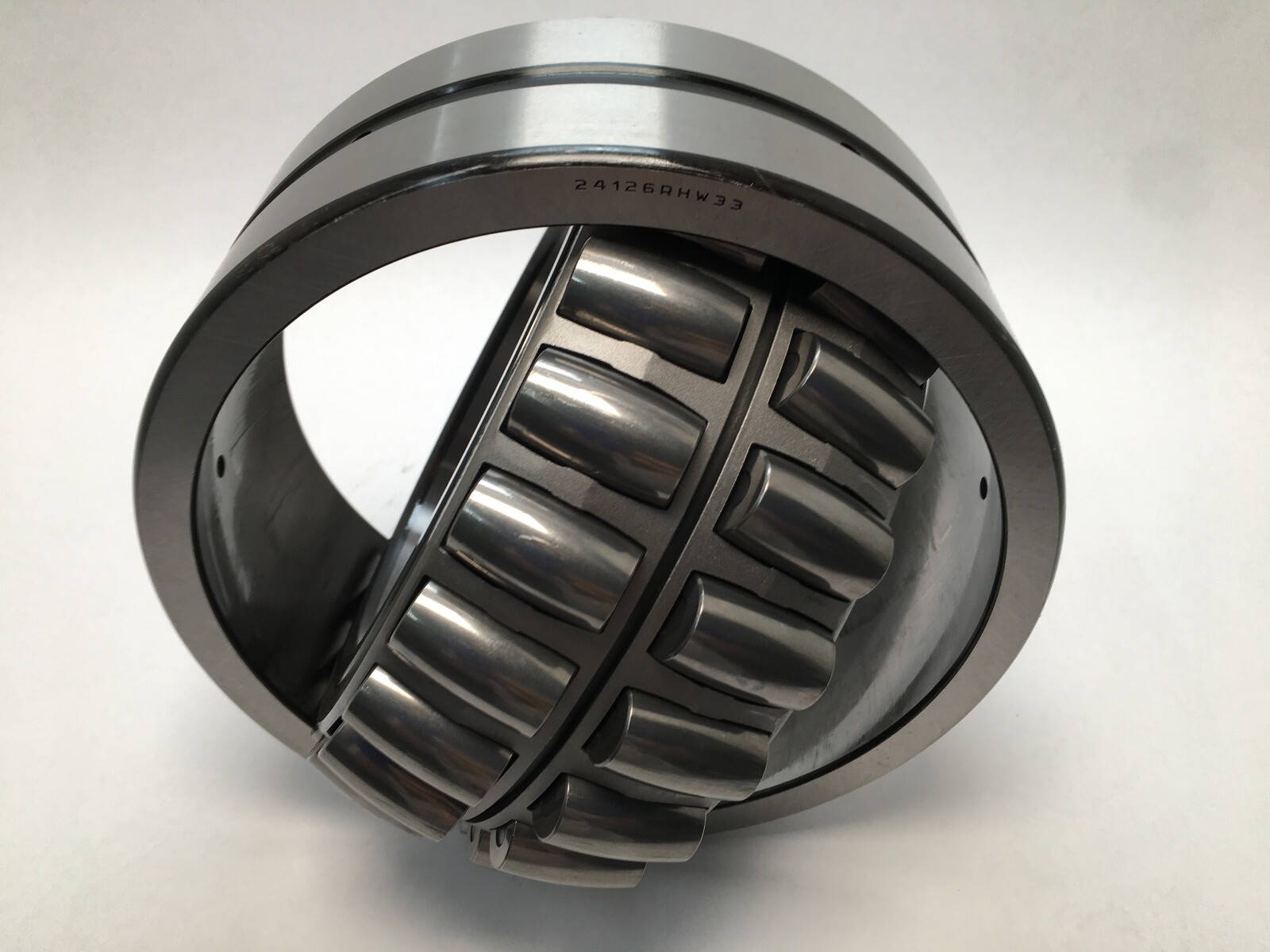

Koyo (JTEKT) 24126RHW33 double-row spherical roller bearing, ISO 241 series. Bore Diameter: 130 mm. Outside Diameter: 210 mm. Overall Width: 80 mm. Bore Type: Straight (cylindrical). Rolling Elements: Spherical Roller. Number Of Rows: 2. The wide 241 section carries very high radial load with moderate axial load in both directions, and self-aligns under shaft deflection.
241 — ISO dimension series 41, the wide, high-capacity spherical roller series.
26 — bore code: 26 x 5 = 130 mm.
RH — Koyo execution with symmetric rollers and a pressed steel cage.

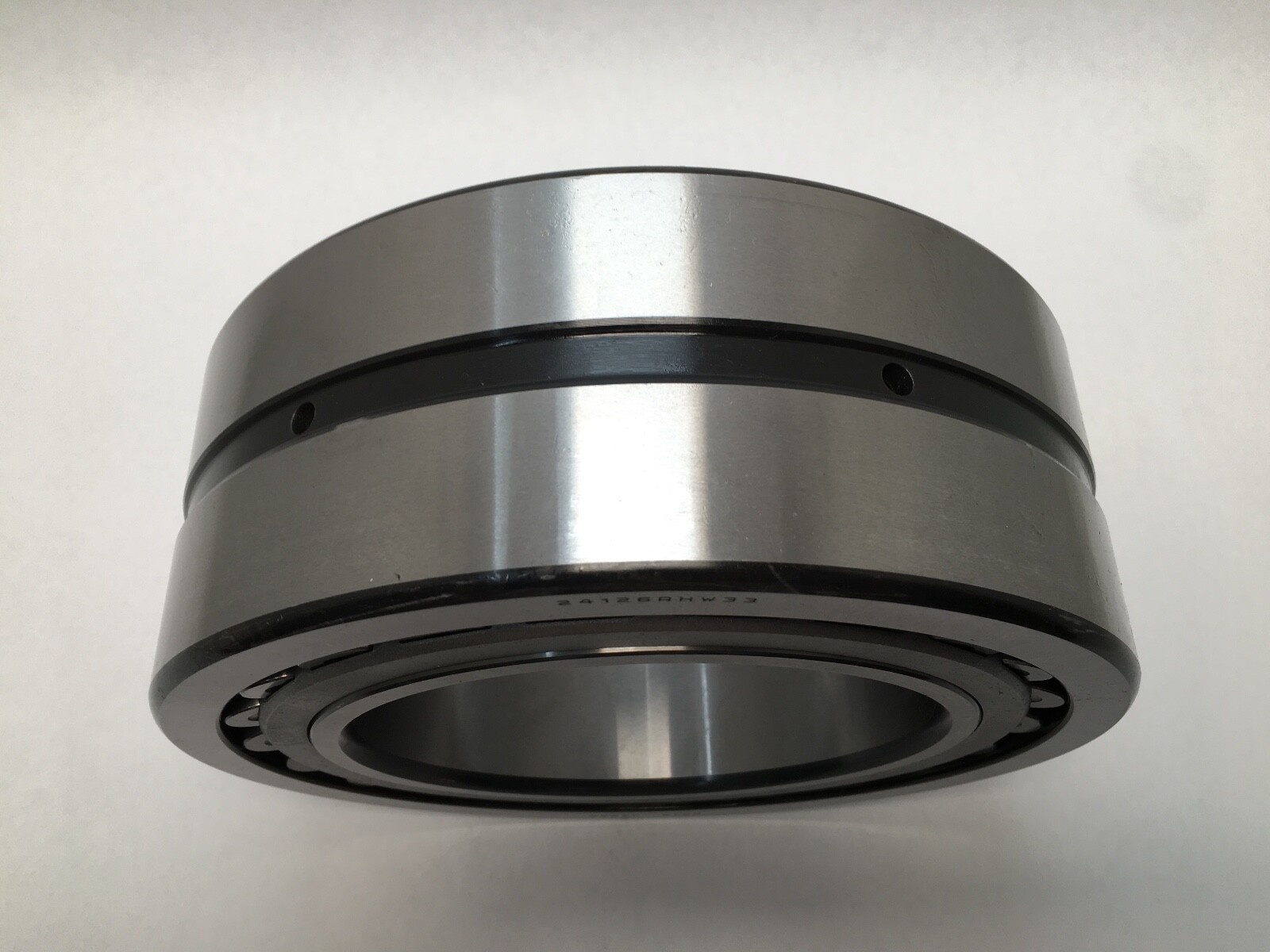

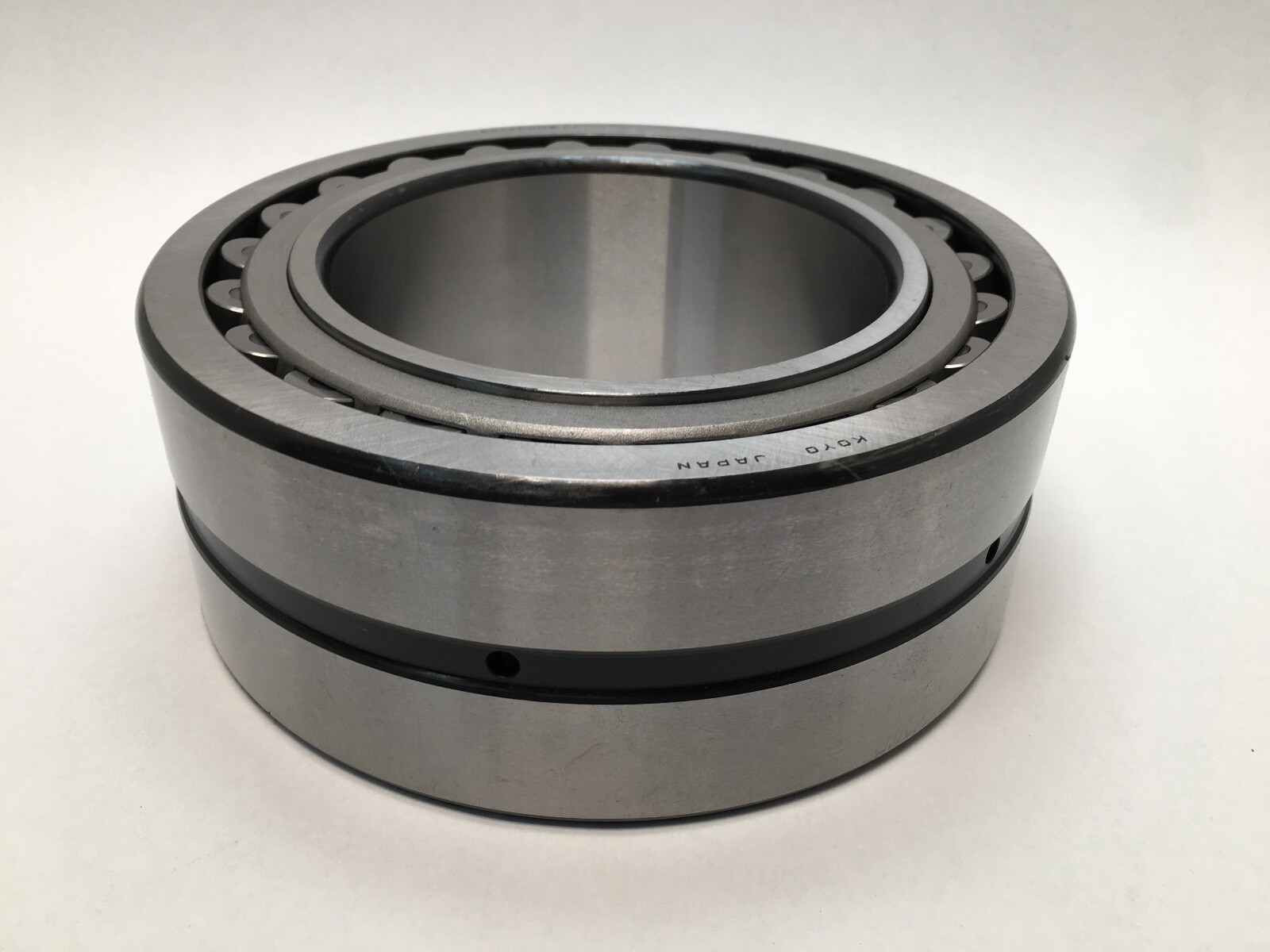

W33 — lubrication groove with three radial holes in the outer ring.
Dynamic Load Rating: 754,000 N. Static Load Rating: 1,080,000 N. Fatigue Load Limit: 91,800 N. Limiting Speed: 2,100 rpm grease; 2,800 rpm oil. Cage Material: Pressed steel. Internal Clearance: CN. Lubricant: Grease or oil. The W33 groove distributes lubricant around the outer ring; three radial holes carry it to the roller rows. Constant e: 0.36. Axial Load Factors: Y1 1.90, Y2 2.83, Y0 1.86.
Fillet Radius r min: 2 mm. Shaft Abutment da min: 140 mm. Housing Abutment Da max: 200 mm. Abutment Fillet ra max: 2 mm. Item Weight: 10.8 kg (23.81 lb).
Unit Quantity: 1 Pc. Condition: New, no box.
Same 130 x 210 x 80 mm envelope, straight bore, lubrication groove: SKF 24126 CC/W33, FAG 24126-E1, NSK 24126CE4, NTN 24126B, Timken 24126EJW33. Ratings and cage design differ by maker.
