Koyo22216W33Double-Row Spherical Roller Bearing 80 x 140 x 33 mm, Straight Bore, W33 Lubrication Groove, Normal Clearance, 1 Pc

Product Description

What this part is

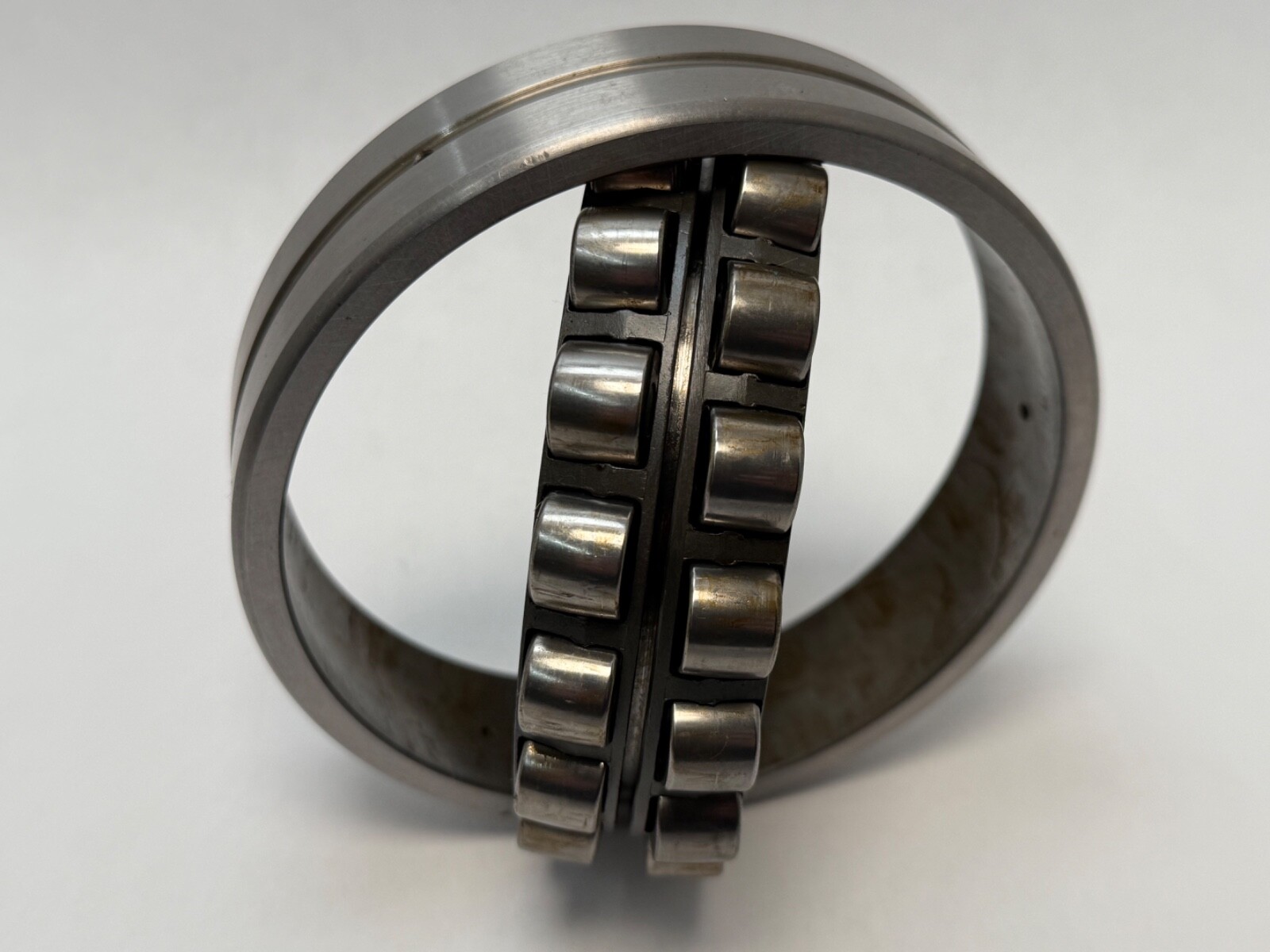

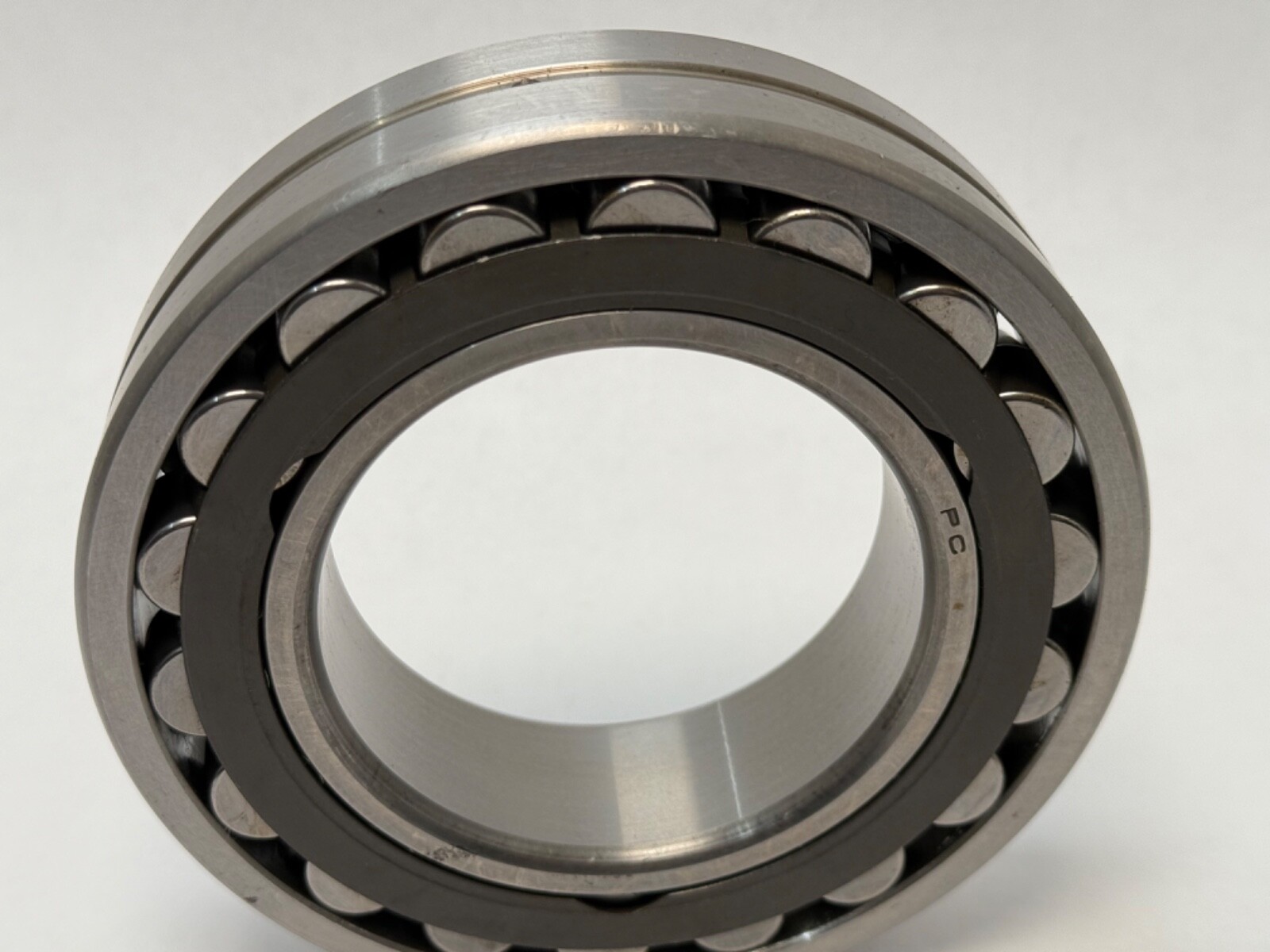

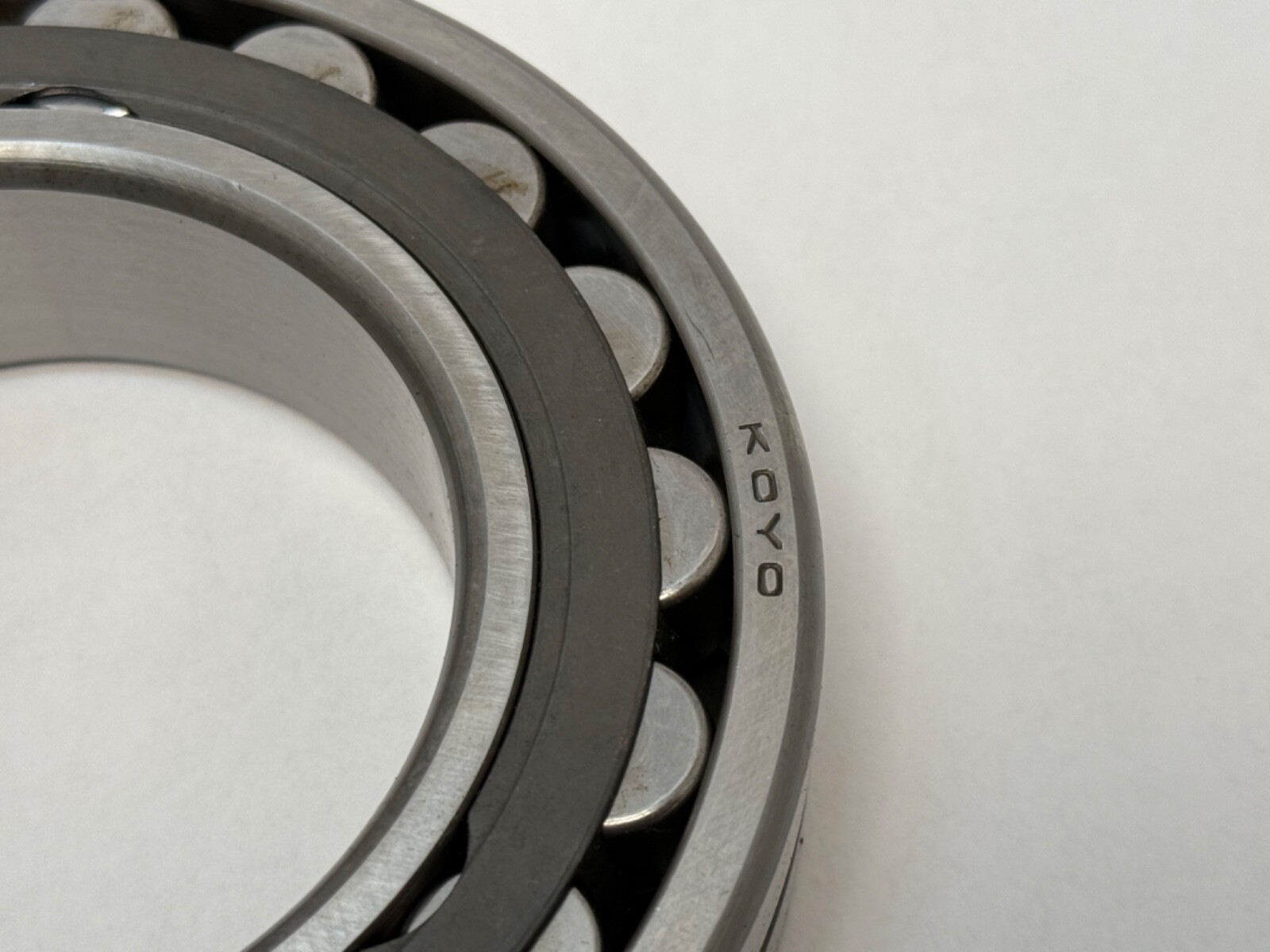

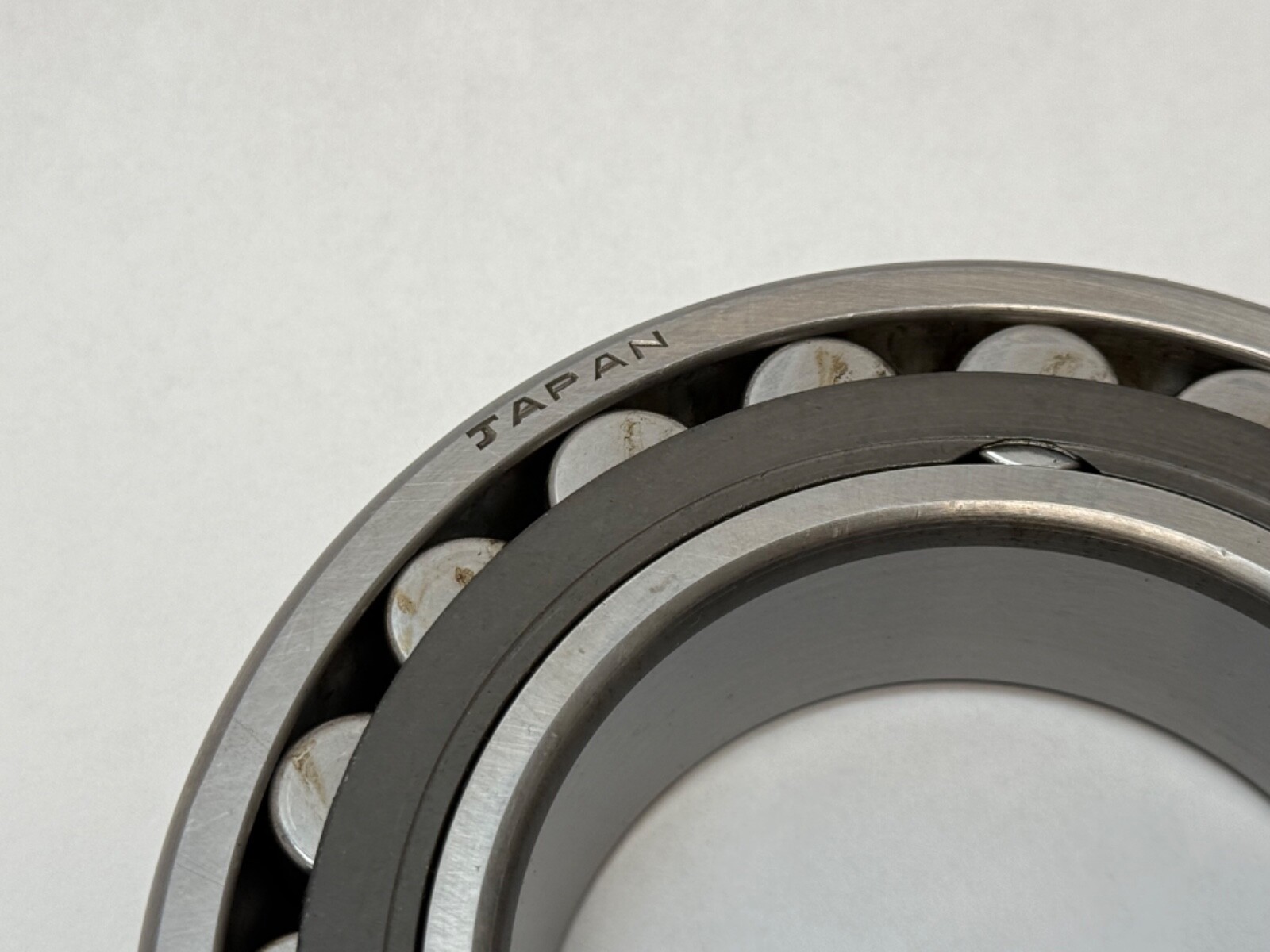

A Koyo double-row spherical roller bearing, 80 mm bore x 140 mm outside diameter x 33 mm wide, in the ISO 222 dimension series. Two rows of barrel rollers share one spherical outer raceway, so the inner ring and roller set swivel bodily inside the outer ring. That self-aligning action absorbs shaft deflection and housing misalignment that would destroy a cylindrical roller or deep groove ball bearing of the same size, while carrying very heavy radial load and thrust in both directions. At this size that capability matters: an 80 mm shaft in a long span will flex under load, and a self-aligning bearing follows it instead of fighting it.

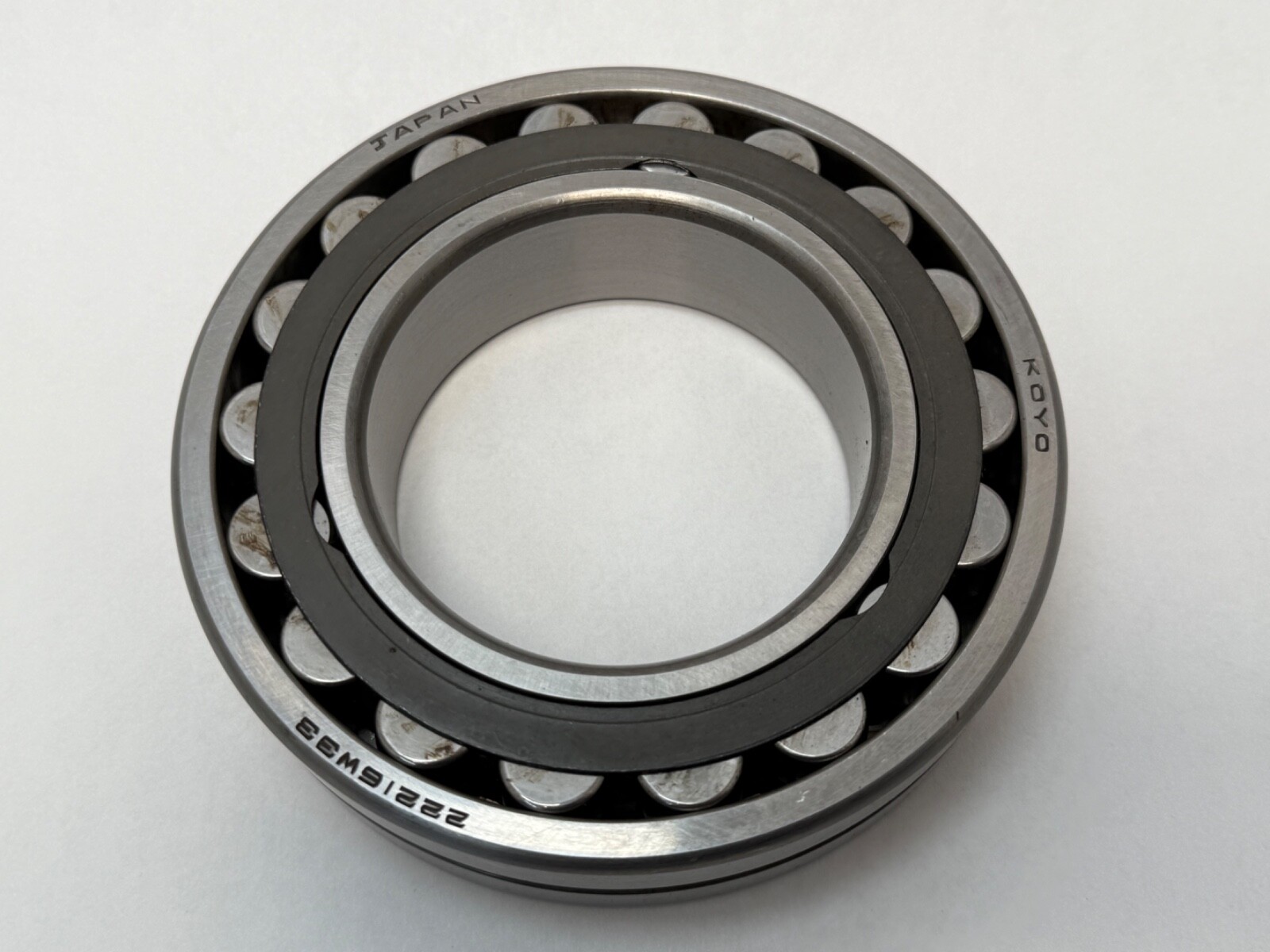

Decoding the designation

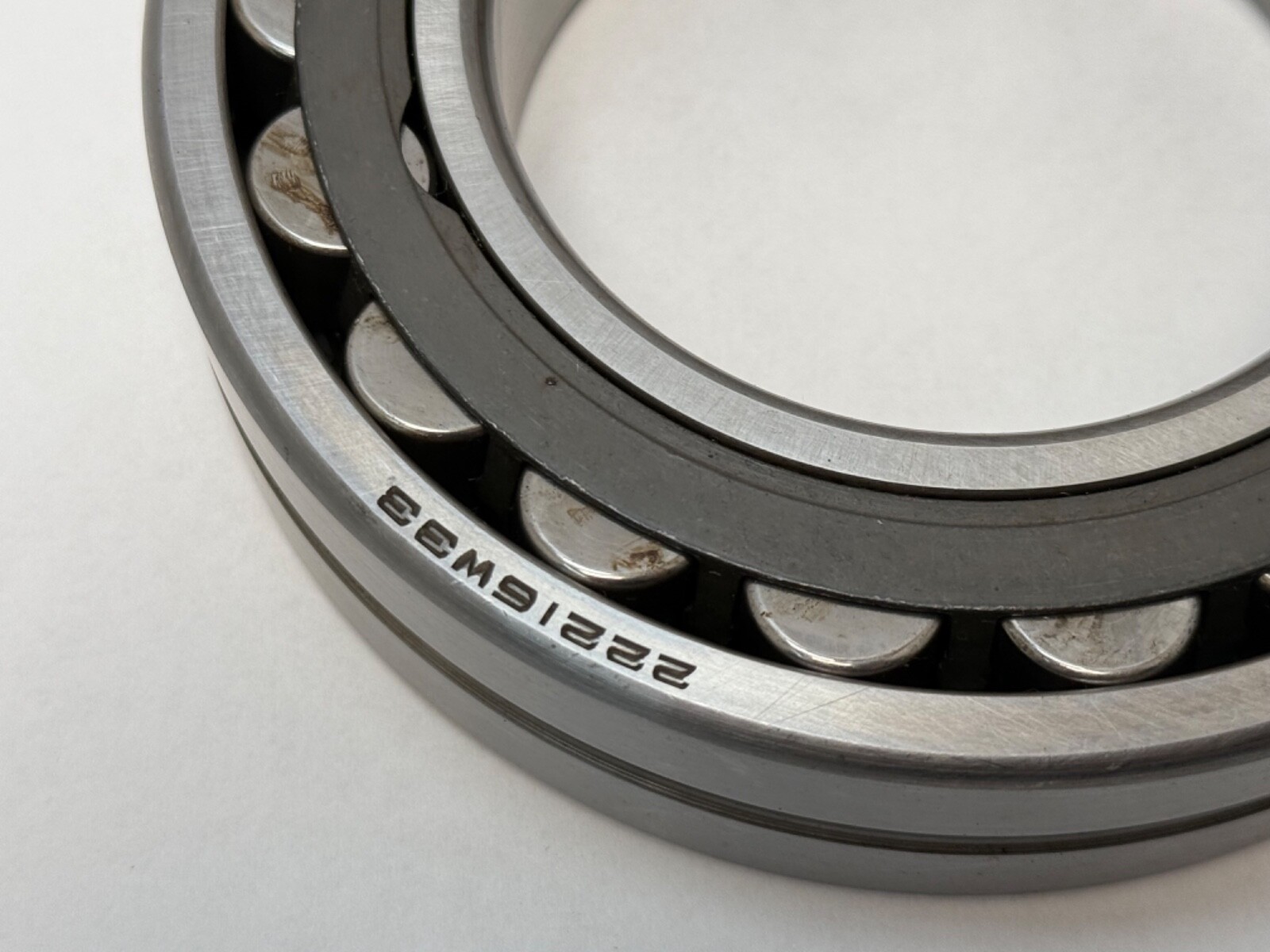

222 — double-row spherical roller bearing, dimension series 22.
16 — bore code for an 80 mm bore.

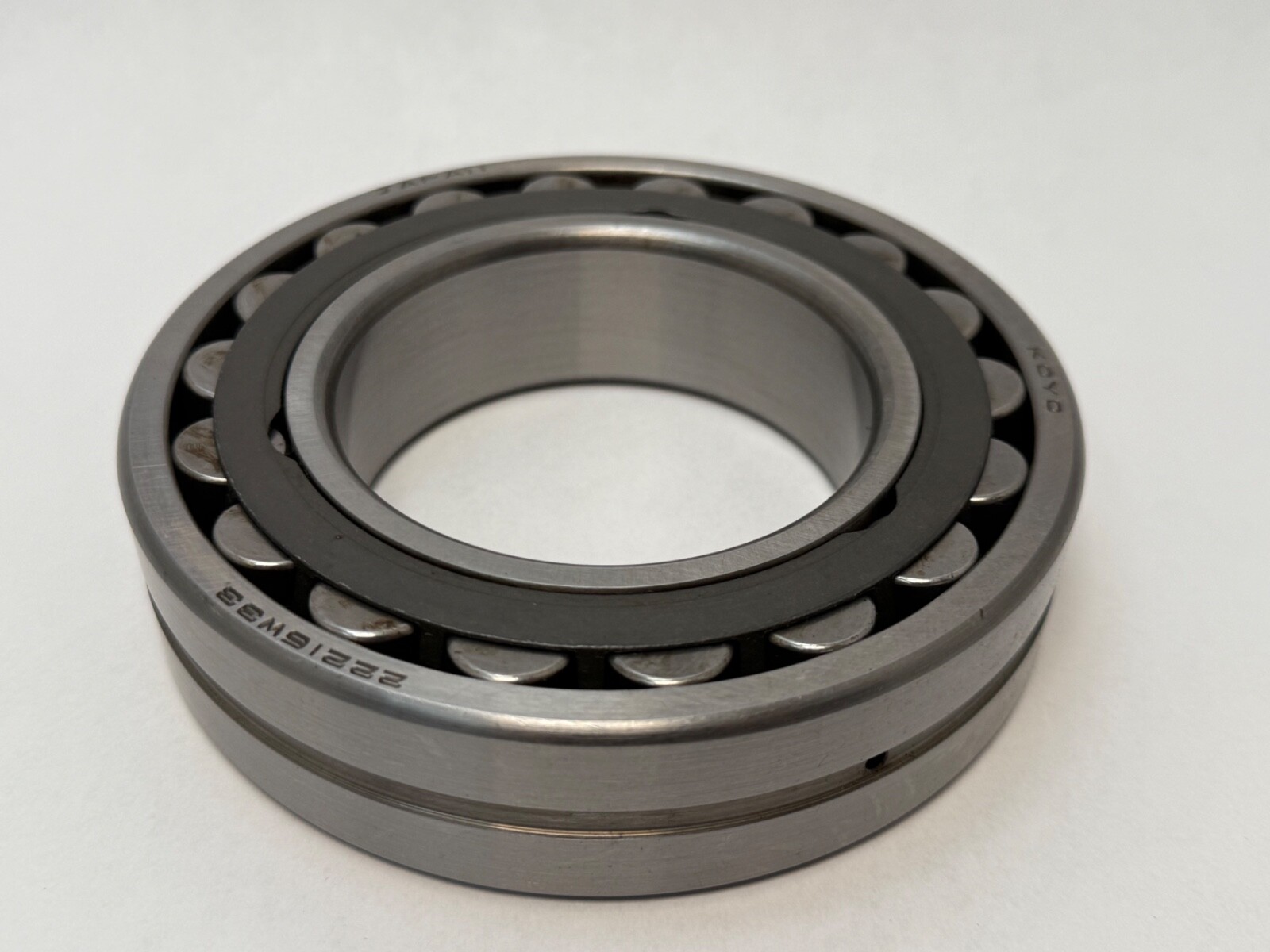

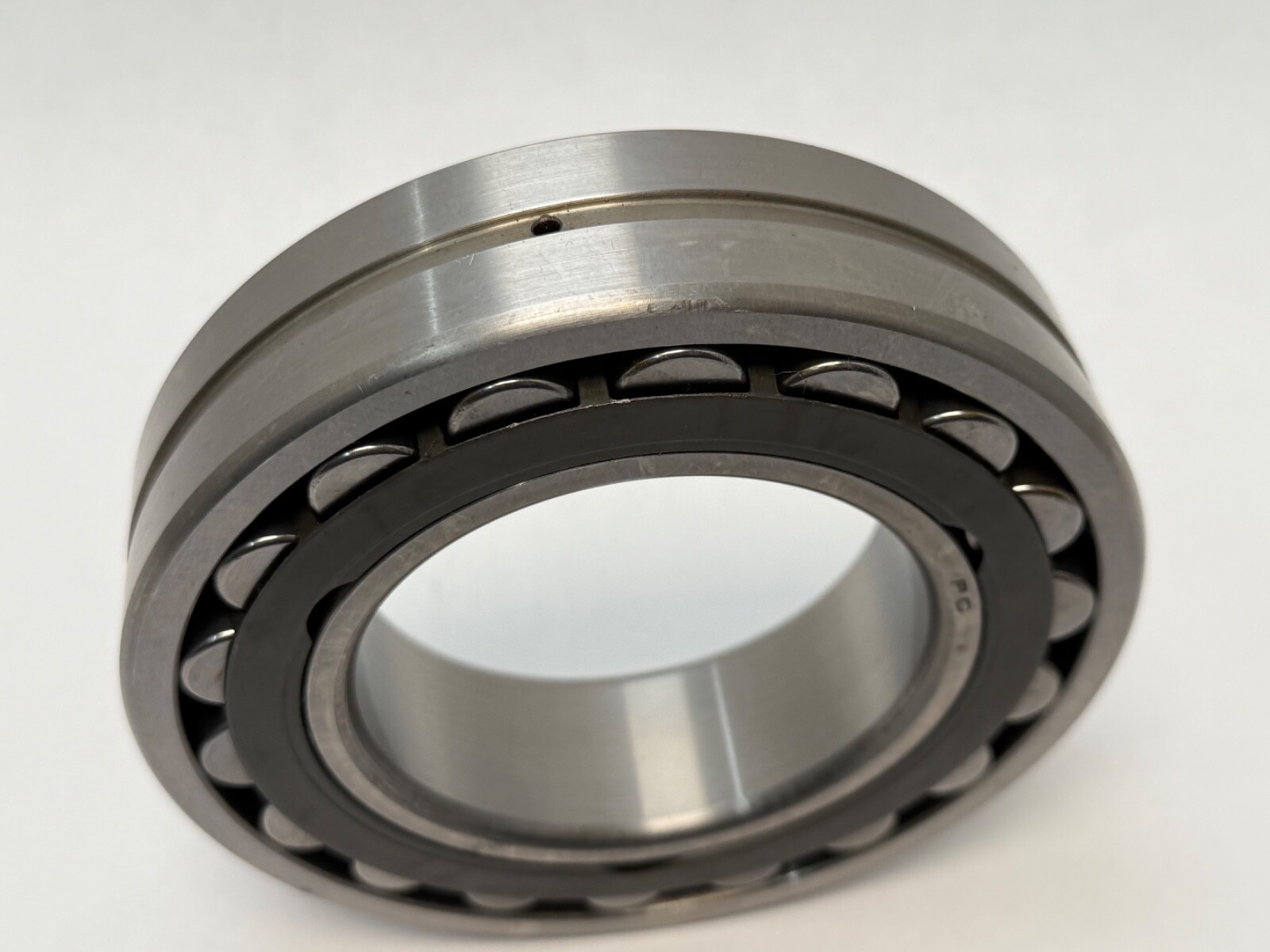

W33 — annular lubrication groove around the outer ring plus three lubrication holes through it.

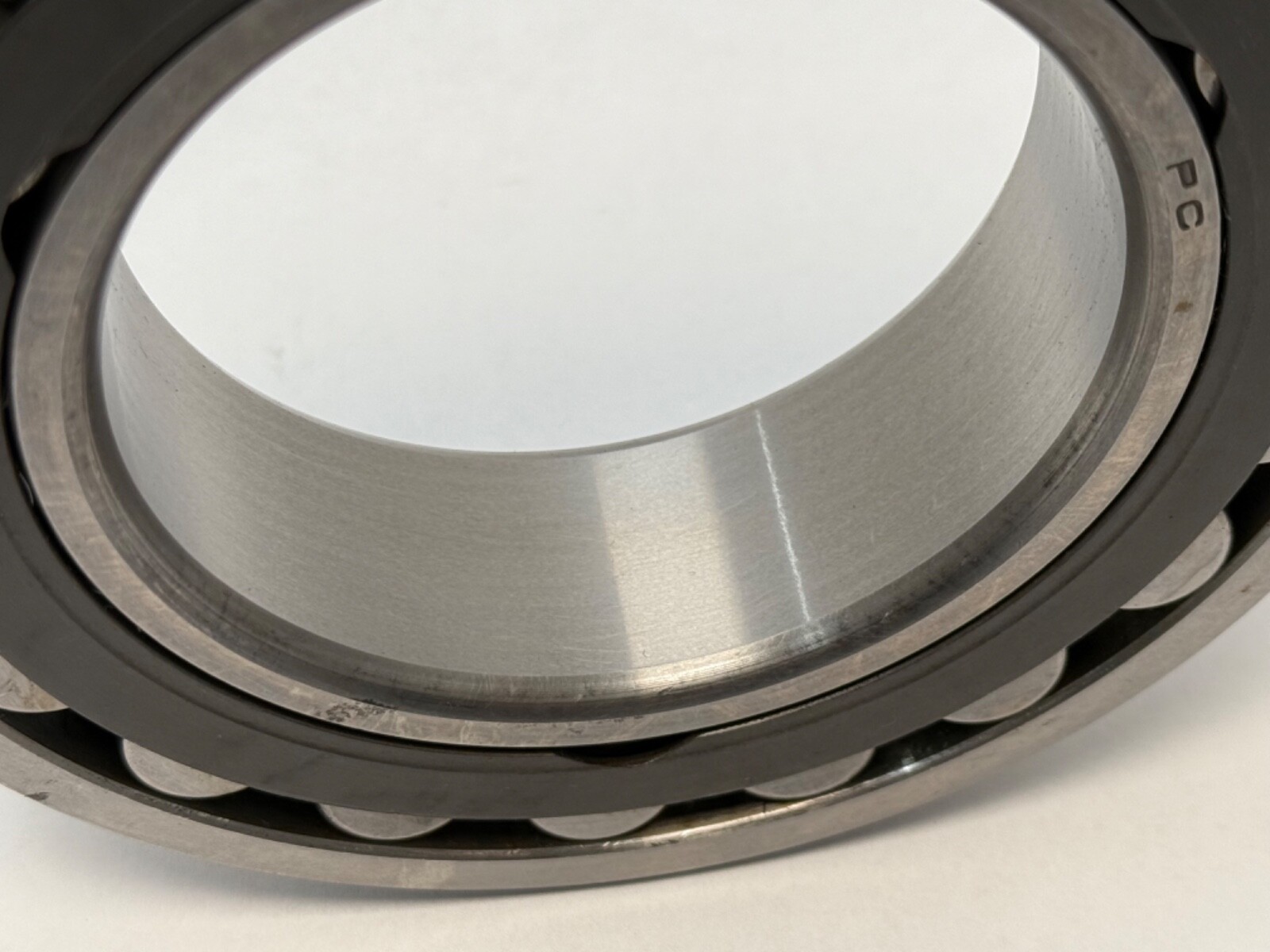

There is no K in the designation, so the bore is straight and cylindrical. There is no clearance suffix, so the bearing carries Normal (CN) radial internal clearance.

What these specs mean in practice

Check the bore type against your machine before anything else. This bearing mounts directly onto a plain 80 mm shaft seat — it is not a sleeve-mount bearing and it will not fit an H316 adapter sleeve. If the bearing you are replacing came off a sleeve, you want the 22216K tapered-bore version, not this one, and the difference is not something you can work around at assembly.

Normal clearance is the right default for a moderate shaft interference fit in a housing that does not run hot. Where the shaft fit is heavy or the machine runs warm, a C3 version of the same bearing is the correct choice, because the inner ring grows on the shaft and under heat and eats the clearance you started with. Fit the wrong one and the bearing preloads itself, runs hot and fails early; fit C3 where the machine needs tight shaft location and you lose accuracy and gain noise.

The outer-ring groove and three holes let grease or oil be fed straight into the roller rows through the housing rather than relying on lubricant migrating in from the ends. On a bearing this size that is not a nicety — the grease volume is large, the relubrication interval is short under load, and feeding the rollers directly is the single biggest factor in service life. It does require a housing with a lubrication port aligned to the groove; in a plain bore the feature simply goes unused.

Published ratings and mounting data

Koyo publishes the following for its 22216 in this envelope:

Basic dynamic load rating Cr: 271 kN
Basic static load rating C0r: 271 kN
Fatigue limit load Cu: 30.5 kN
Limiting speed: 3 300 rpm on grease, 4 400 rpm on oil
Calculation factors: e = 0.22, Y0 = 3.00
Mass: approximately 2.17 kg

Quantity and configuration

Sold as 1 Pc. One complete bearing: inner ring with both roller rows and cage, plus the outer ring. Spherical roller bearings ship as a non-separable assembly, so there is no cup, cone or separate ring to source. Because the bore is straight, no adapter sleeve, locknut or lockwasher is needed or included, and no housing or pillow block is supplied.

Fitting notes

Mount on the inner ring, never through the rollers. At 80 mm bore this bearing takes a substantial interference fit, so heat it to about 80 – 100 °C above the shaft in an induction heater or a clean oil bath rather than attempting to press or drive it on. Seat the outer ring squarely in the housing bore and let it take up its own alignment before the assembly is drawn down — clamping the outer ring off-neutral during build throws away the self-aligning capability that is the entire reason for choosing a spherical roller bearing. Align the housing lubrication port with the outer-ring groove and purge the groove with grease before the first run.

Interchange guidance
