SNR22216EAKB33J30Double-Row Spherical Roller Bearing, 80 x 140 x 33 mm, 1:12 Tapered Bore, ULTAGE High-Capacity Design, W33 Lubrication, C3 Clearance, 200 C Rated

Product Description

What this part is:

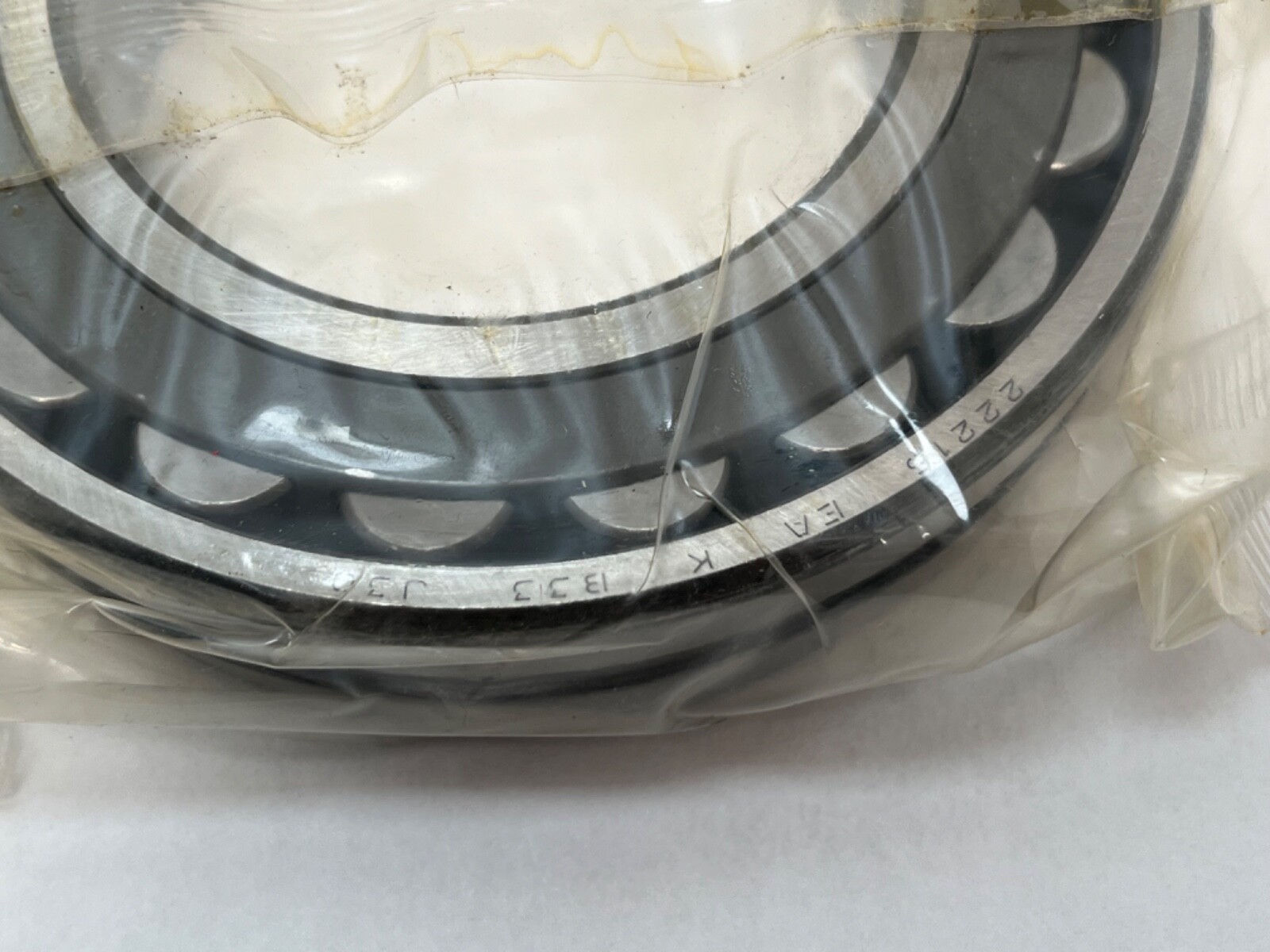

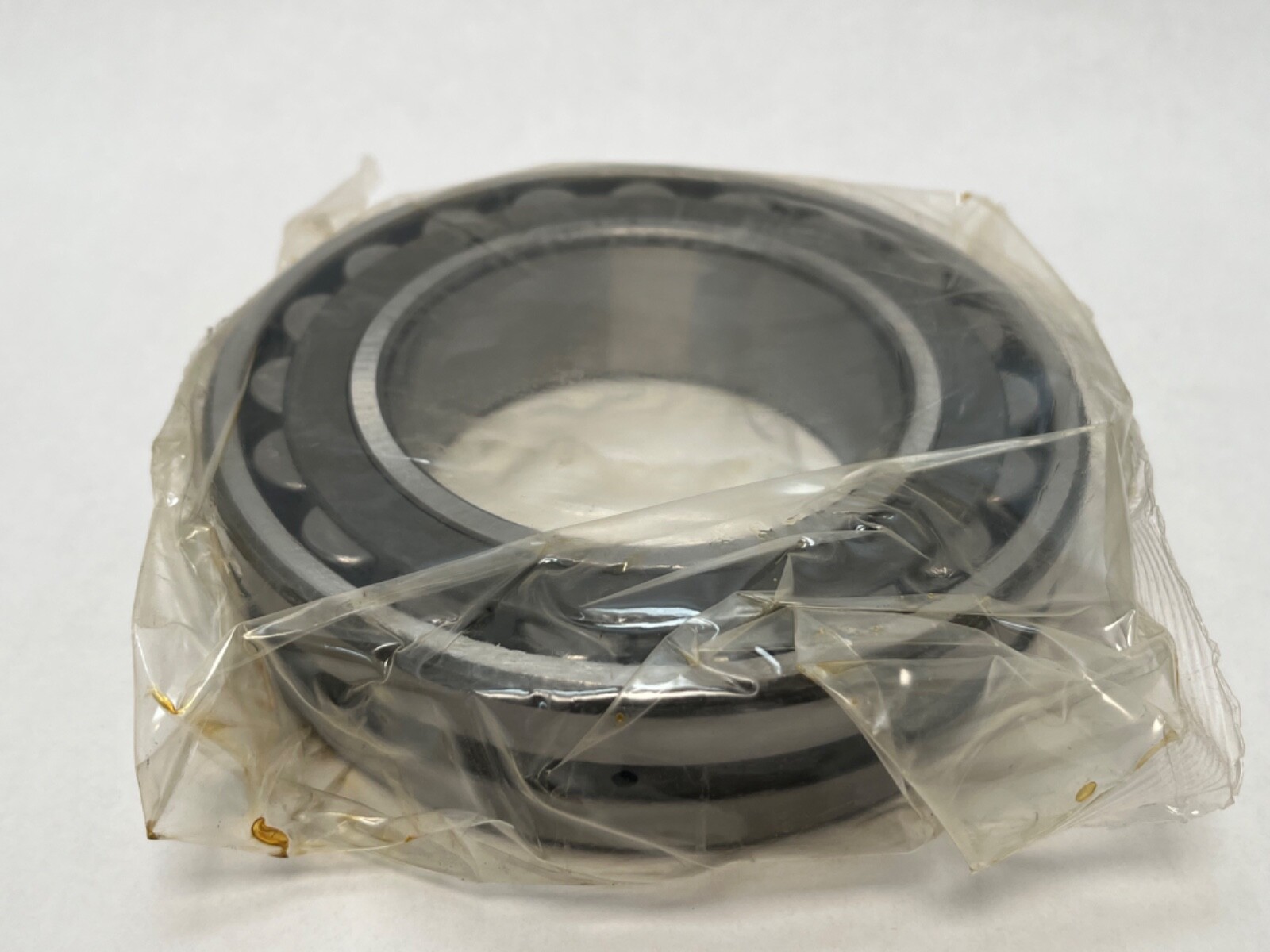

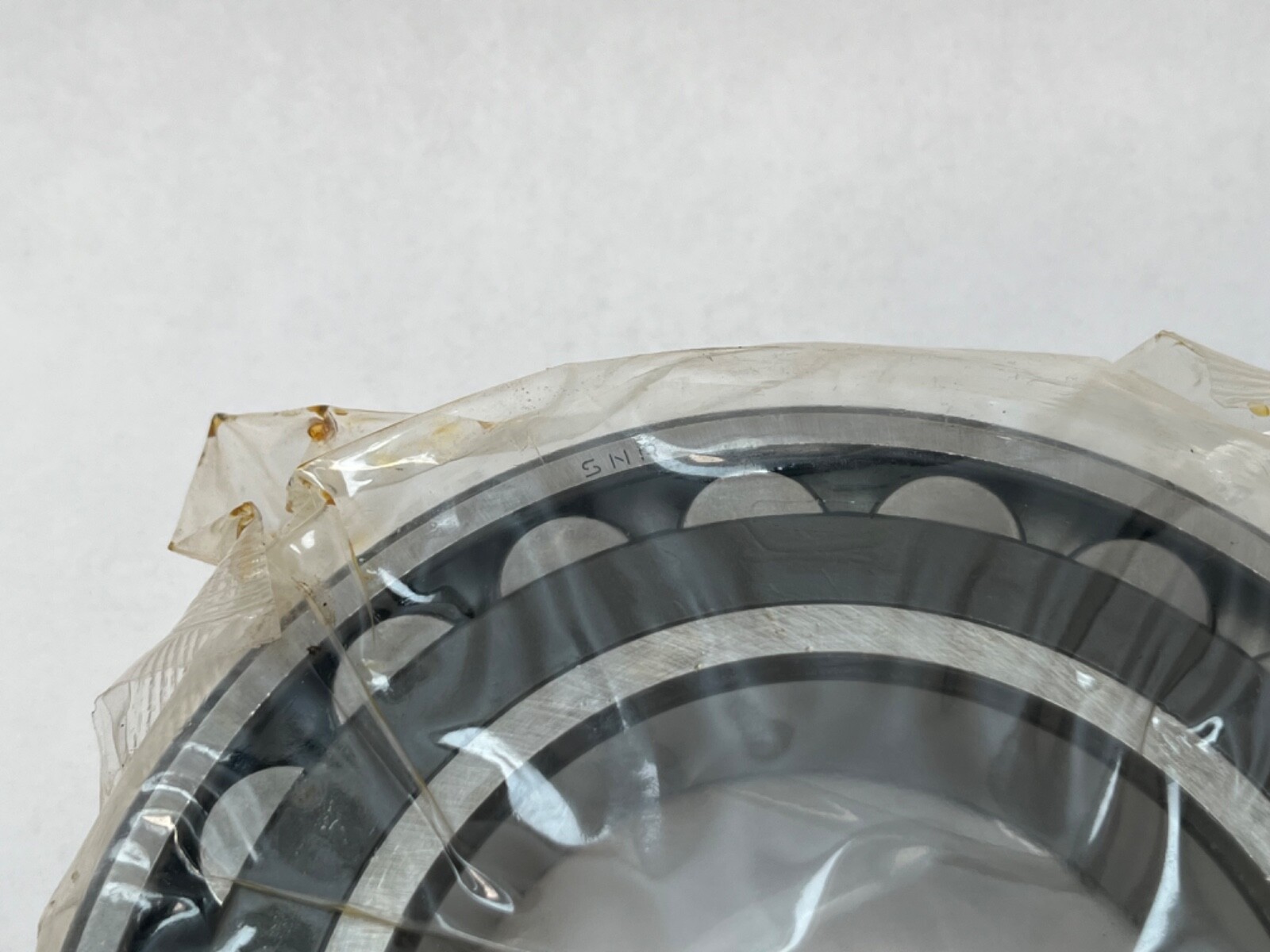

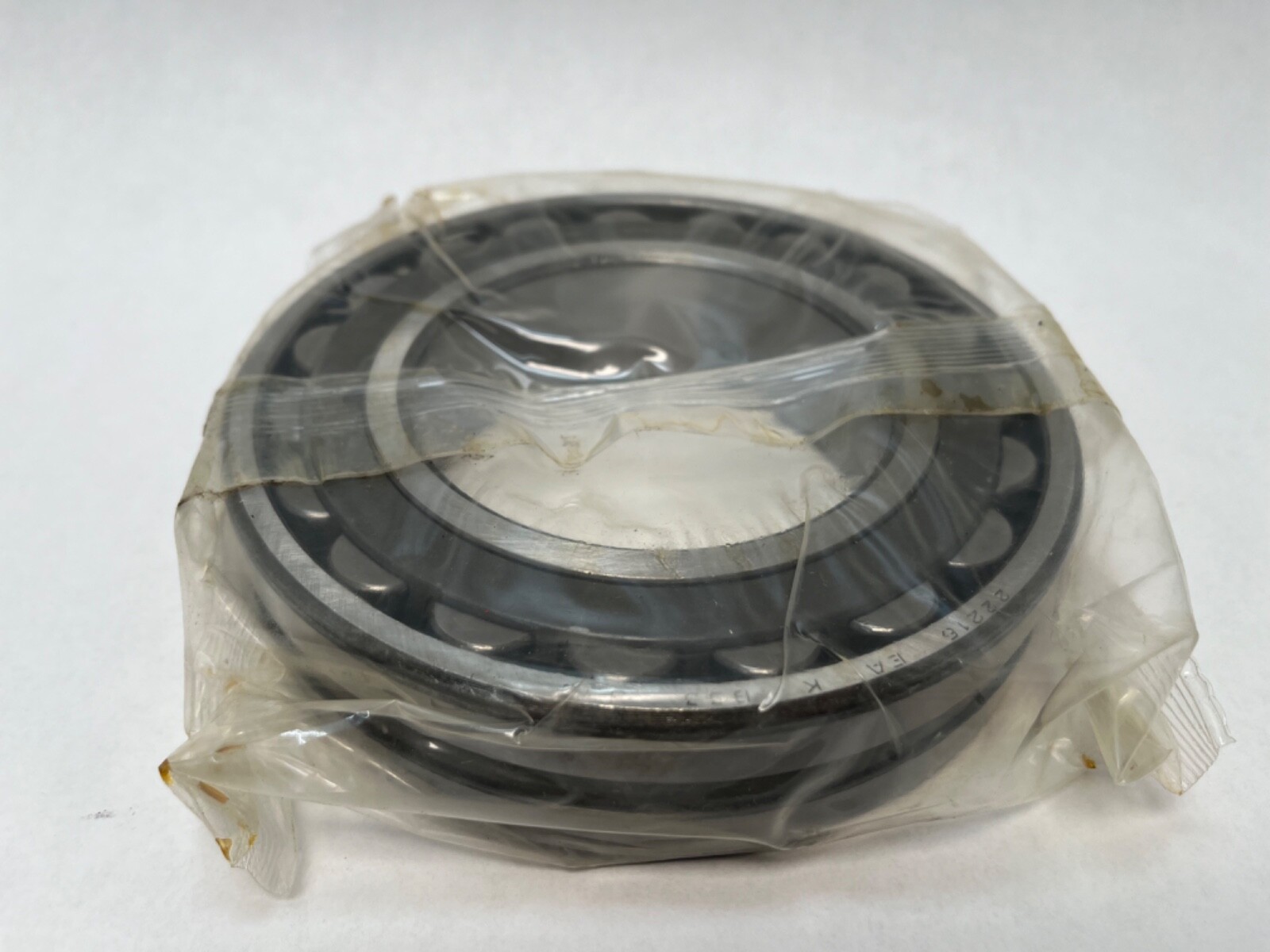

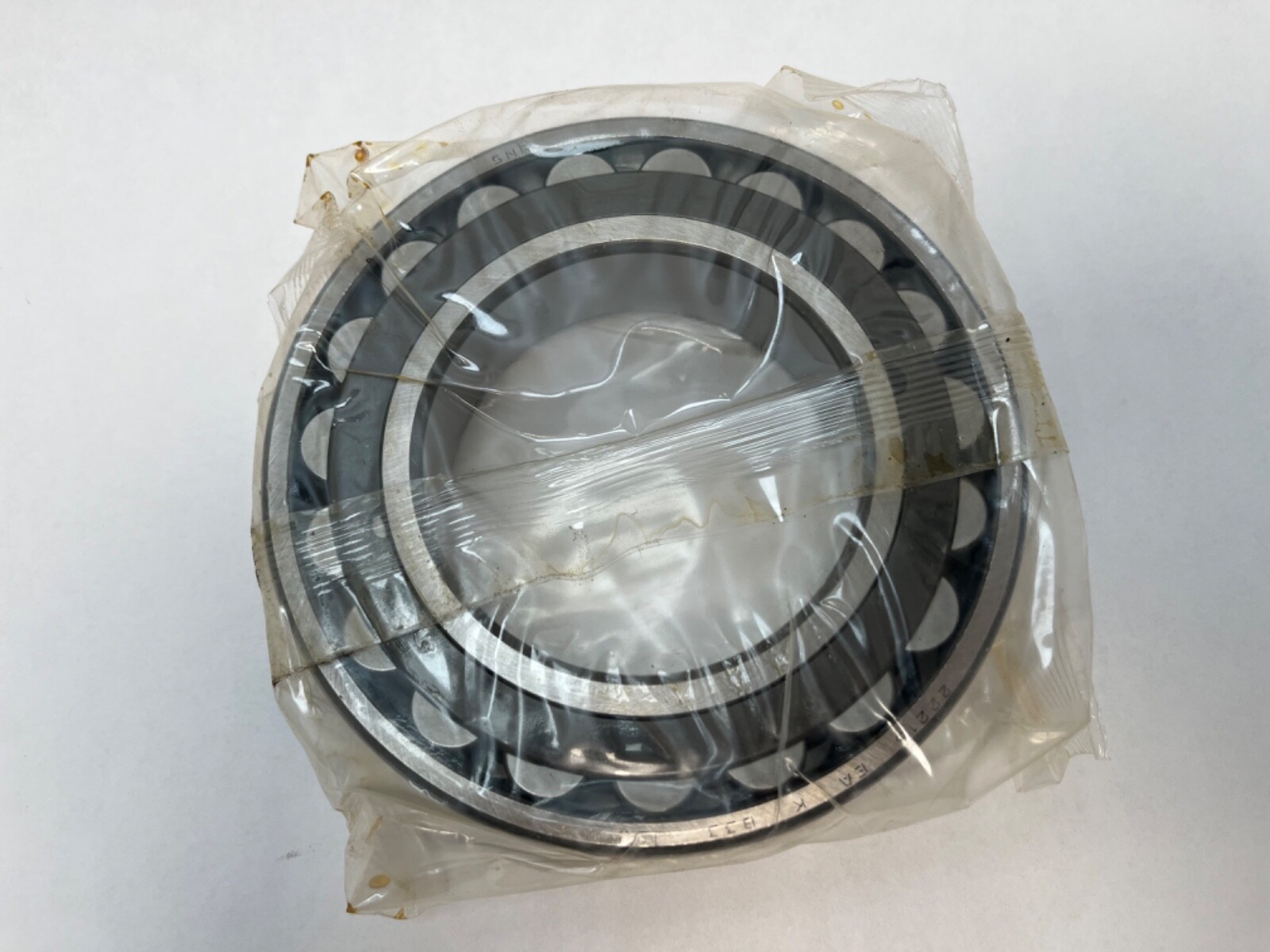

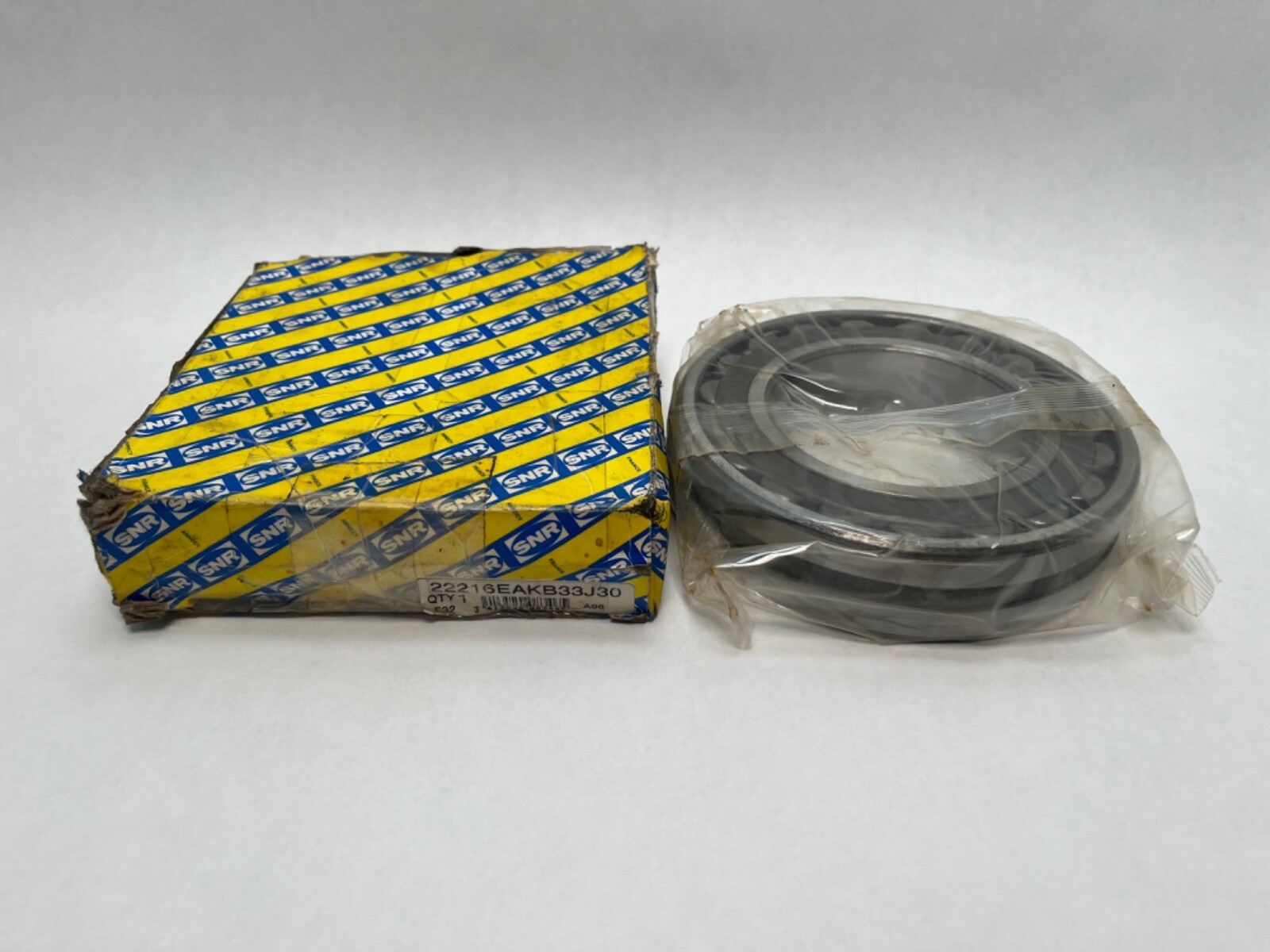

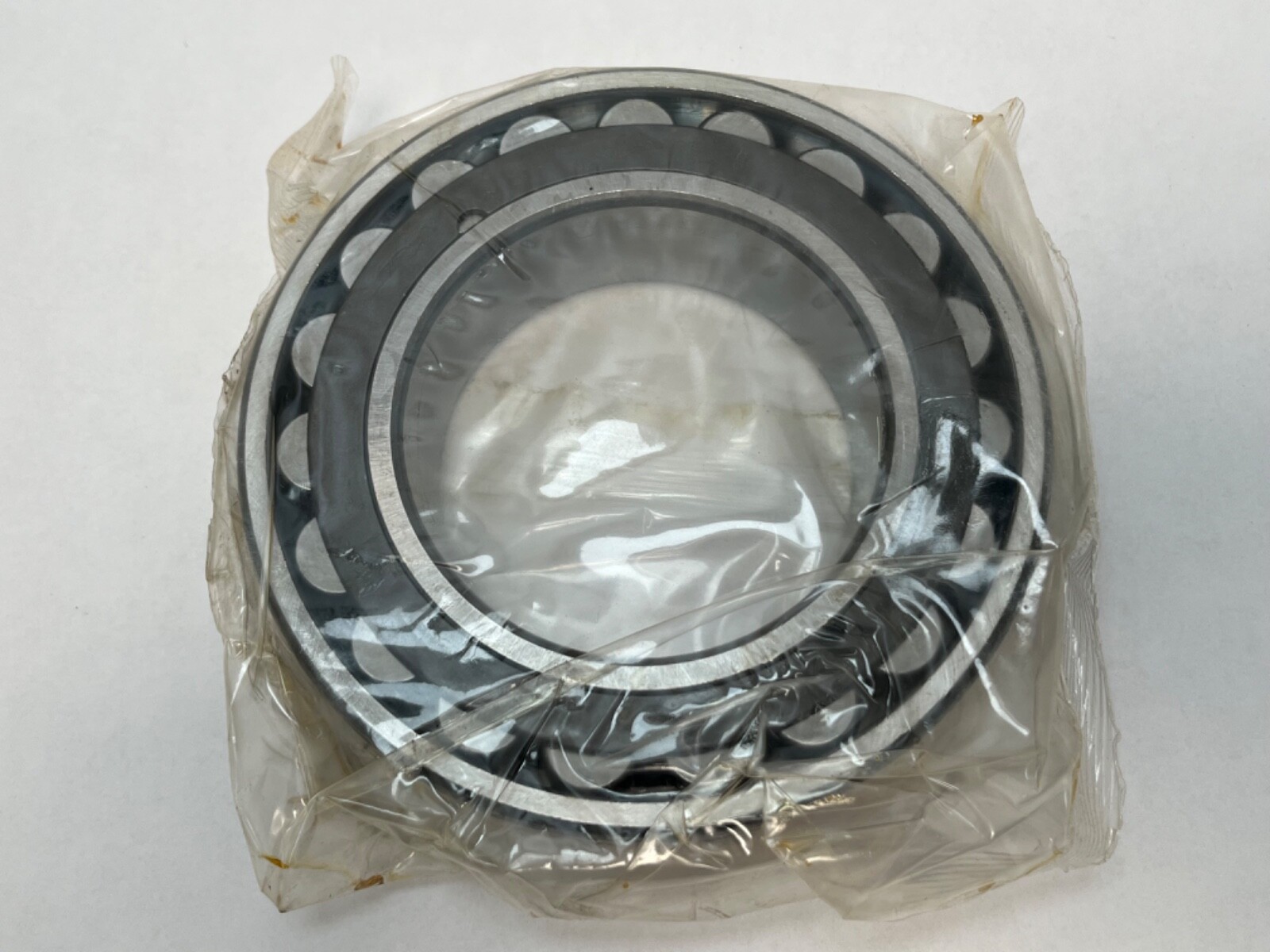

SNR 22216 EA.K.B33.J30 double-row spherical roller bearing: 80 mm tapered bore (1:12), 140 mm outside diameter, 33 mm width, C3 internal clearance. NTN-SNR ULTAGE high-capacity design with a lubrication groove and three holes through the outer ring. Unit Quantity: 1 Pc. Complete non-separable bearing: inner ring with the 1:12 tapered bore, two rows of symmetrical rollers, two window-type drawn steel cages, and outer ring with the lubrication groove and three holes.

Decoding the designation:

222 — double-row spherical roller bearing, ISO dimension series 22.

16 — bore code, 16 x 5 = 80 mm bore.

EA — NTN-SNR ULTAGE increased-capacity design: symmetrical rollers, no central inner-ring rib, steel stabilised for use to +200 °C. The A specifies two window-type drawn steel cages centred on the ground surface of the inner ring, each roller guided by a four-tang pocket.

K — tapered bore, taper 1:12.

B33 — SNR code for a lubrication groove and holes in the outer ring, equivalent to the industry W33 code.

J30 — SNR clearance and precision code. The first digit is the ISO radial internal clearance class, 3 = C3, greater than normal. The second digit is the ISO precision class, 0 = normal class.

Specifications:

Bore Diameter: 80 mm. Outside Diameter: 140 mm. Width: 33 mm. Bore Type: Tapered 1:12. Number Of Rows: 2. Internal Clearance: C3. Cage Material: Drawn steel. Cage Type: Two window-type cages. Precision: ISO normal class (P0).

Dynamic Load Rating Cr: 277 kN. Static Load Rating C0r: 286 kN. Fatigue Load Limit Cu: 33.7 kN. Reference Speed, grease: 4,300 rpm. Limiting Speed, oil: 5,800 rpm. Maximum Operating Temperature: 200 °C.

The spherical outer raceway lets the inner-ring assembly swivel, so the bearing self-aligns to shaft deflection or housing misalignment and carries radial load plus axial load in both directions.

Dimensions and mounting:

Chamfer rs min: 2 mm. Fillet ra max: 2 mm. Shaft abutment da min: 91 mm. Housing abutment Da max: 129 mm. Inner ring shoulder d2: 94.9 mm. Outer ring shoulder D1: 126.7 mm. Outer ring lubrication groove width: 7.87 mm. Lubrication hole diameter: 3.5 mm, three holes. Axial load factors: e 0.22, Y1 3.14, Y2 4.67, Y0 3.07.

Bore Type: Tapered 1:12. The bearing mounts on an H316 adapter sleeve, which makes the shaft seat under the sleeve 70 mm, or on a machined 1:12 tapered shaft seat. Matching accessories: H316 adapter sleeve (70 mm shaft), AH316 withdrawal sleeve, KM16 locknut, MB16 lockwasher.

Compatibility and replacement:

Cross-Reference 1: NTN 22216EAKW33C3, the same ULTAGE design under the NTN name. Cross-Reference 2: FAG 22216-E1-K-C3. Cross-Reference 3: SKF 22216 EK/C3W33. Cross-Reference 4: Koyo 22216RHKW33C3. Cross-Reference 5: NSK 22216CDKE4C3, pressed steel cage. Cross-Reference 6: Timken 22216KEJW33C3, stamped steel cage. All are tapered-bore, relubricatable 22216 bearings with C3 clearance. 22216E is the E-design base number for the 80 x 140 x 33 mm envelope. 53516 is the GOST designation.

Frequently asked questions:

What are the dimensions of the SNR 22216EAKB33J30?

80 mm tapered bore, 140 mm outside diameter, 33 mm width.

What clearance does J30 mean?

C3, with ISO normal precision class.

What are the load ratings?

Dynamic 277 kN, static 286 kN.
