Availability:
1 in stock
Double-row spherical roller bearing, 45 x 100 x 36 mm, straight bore, open, steel cage, CN clearance, axial capacity in both directions. 6000 rpm limit.
List Price
$80.73
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22309ET41A |
| GTIN | 4026677008312 |

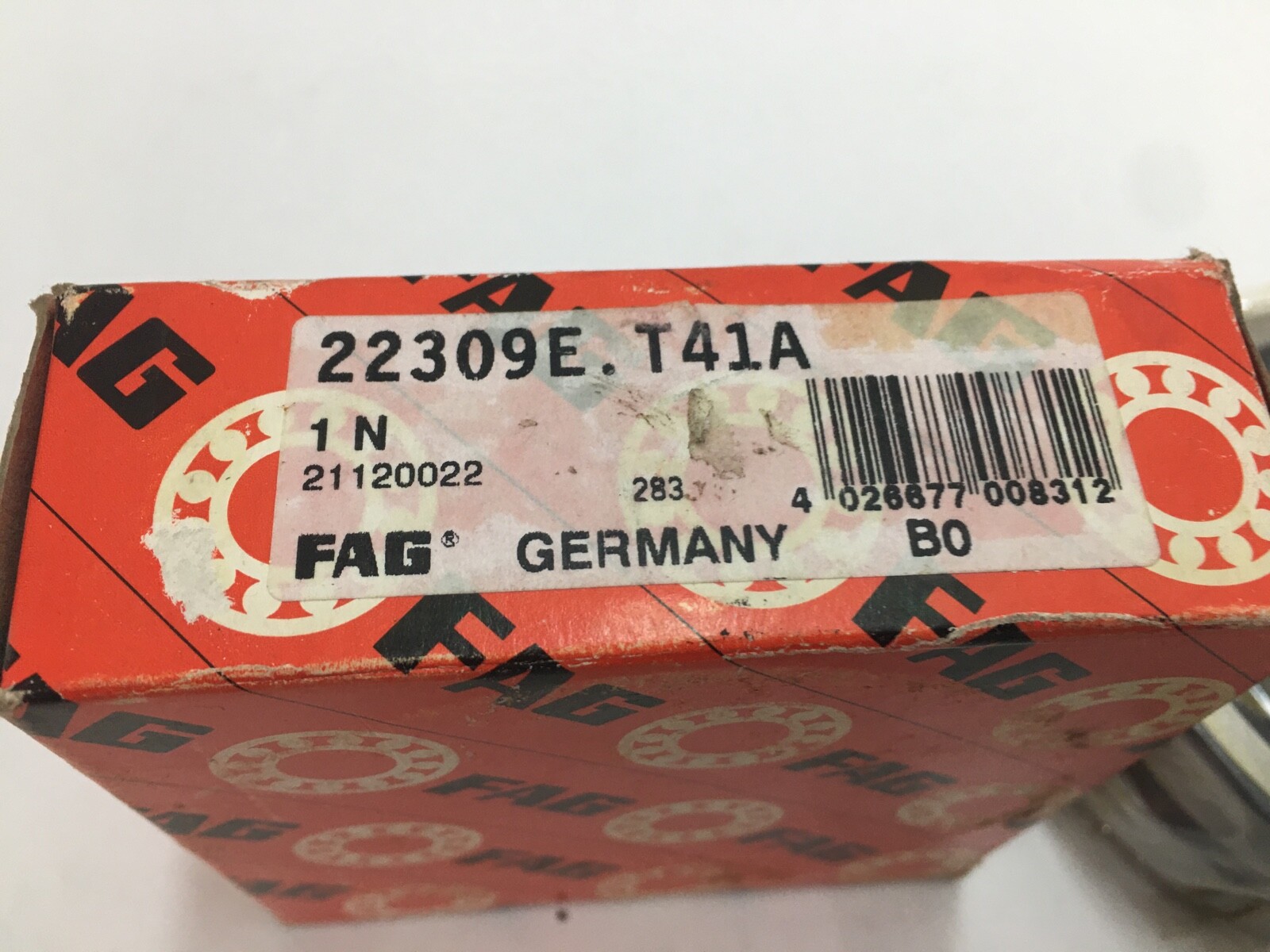

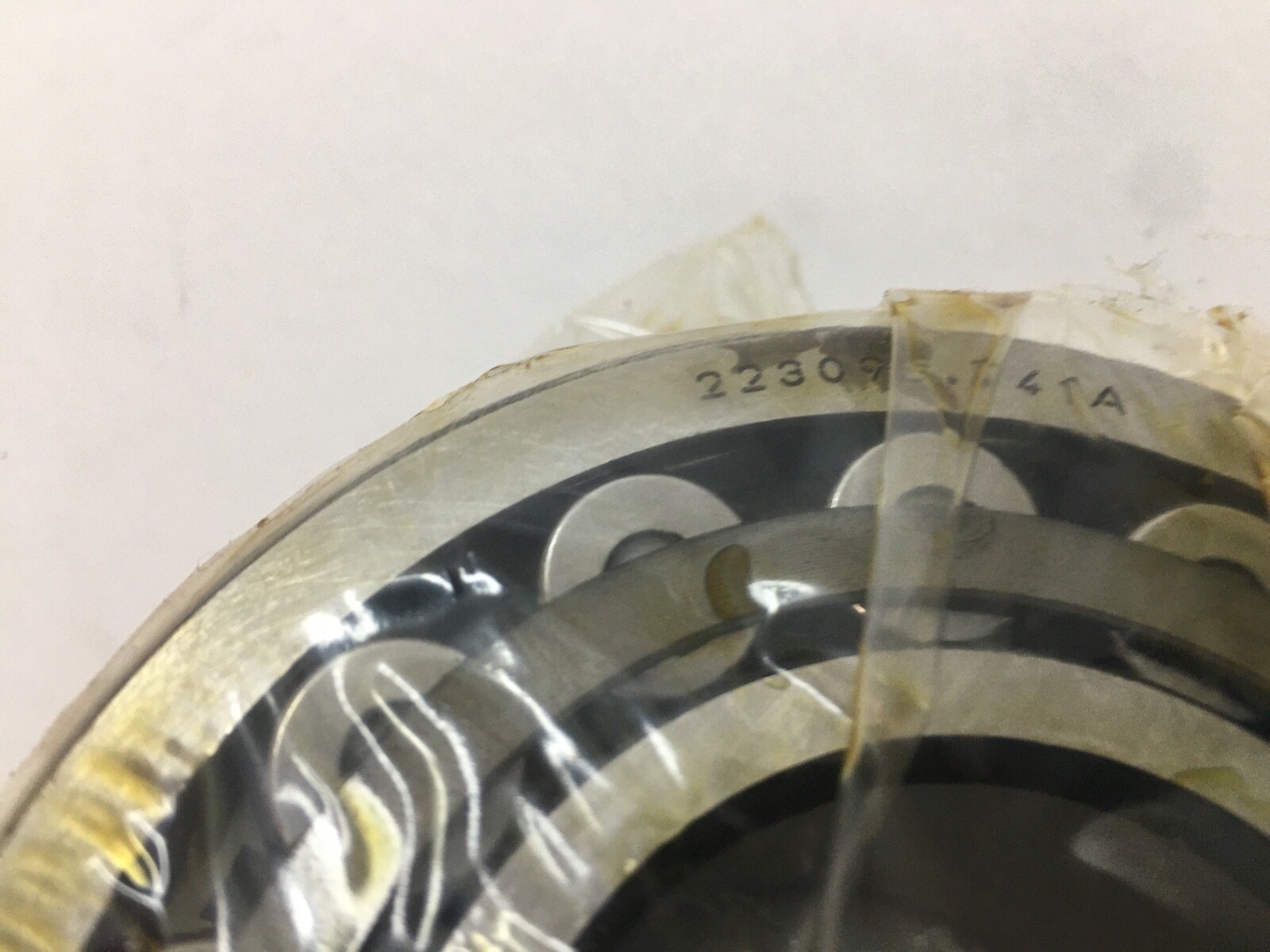

| Model | 22309-E-T41A |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 100 mm |
| Width | 36 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 22309 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; 22300 series; barrel roller bearing; heavy duty roller bearing |
| Common Misspellings | 22309 E FAG; 2309E; 22309-E T41-A; 22309EA |
| Application Types | Vibrating and screening plant; crushers; conveyor drives; fans; gearboxes and heavy shaft supports |
| Bore Shaft Size | 45 mm |
| Mpn Variants | 22309E; 22309 E; 22309ET41A; 22309-E-T41A; 22309 |
| Rolling Elements | Spherical Rollers |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Part Number | 22309E |
| Cross Reference 6 | FAG 22309E.W33 (related size, W33 lubrication groove) |
|---|

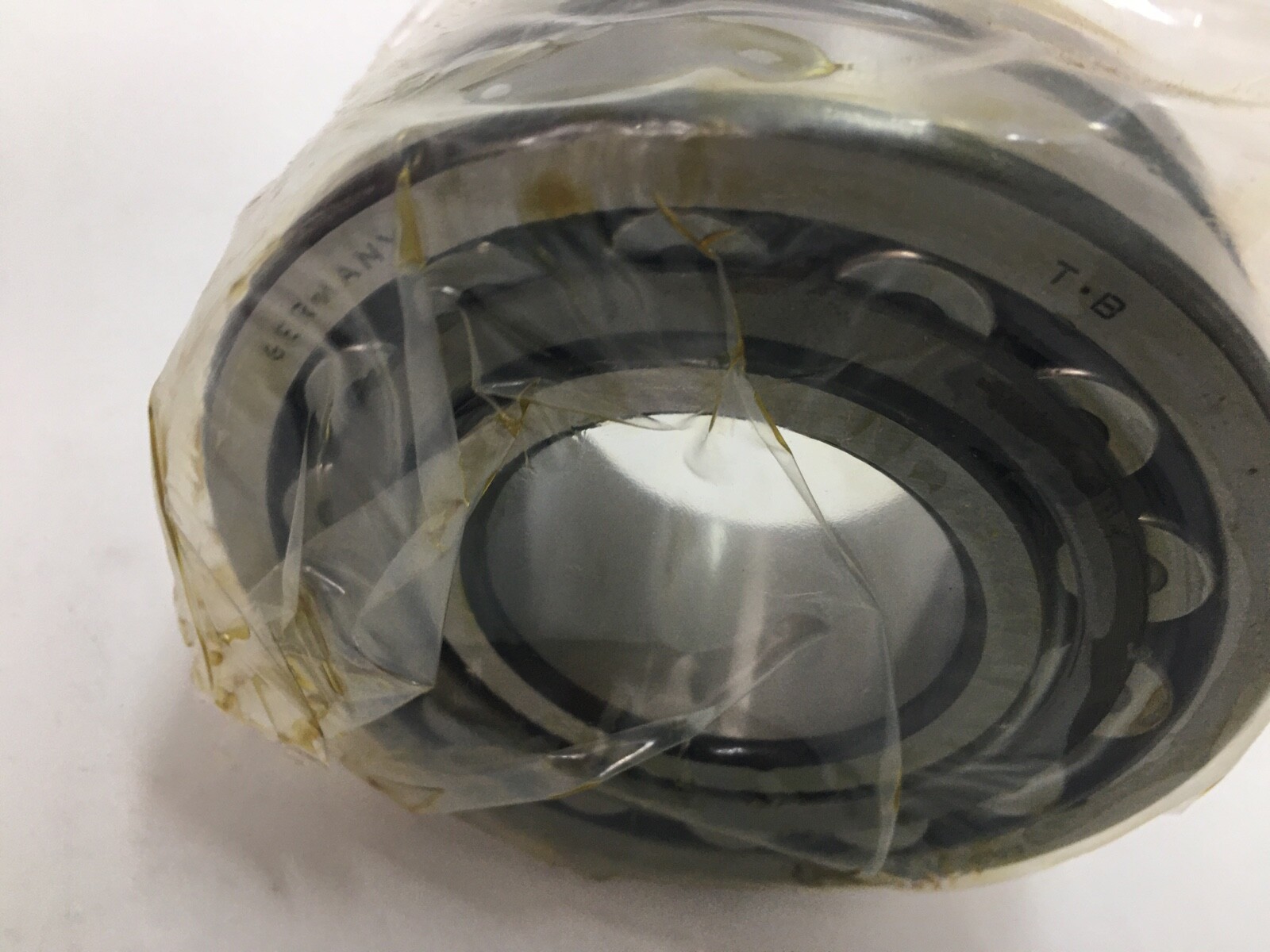

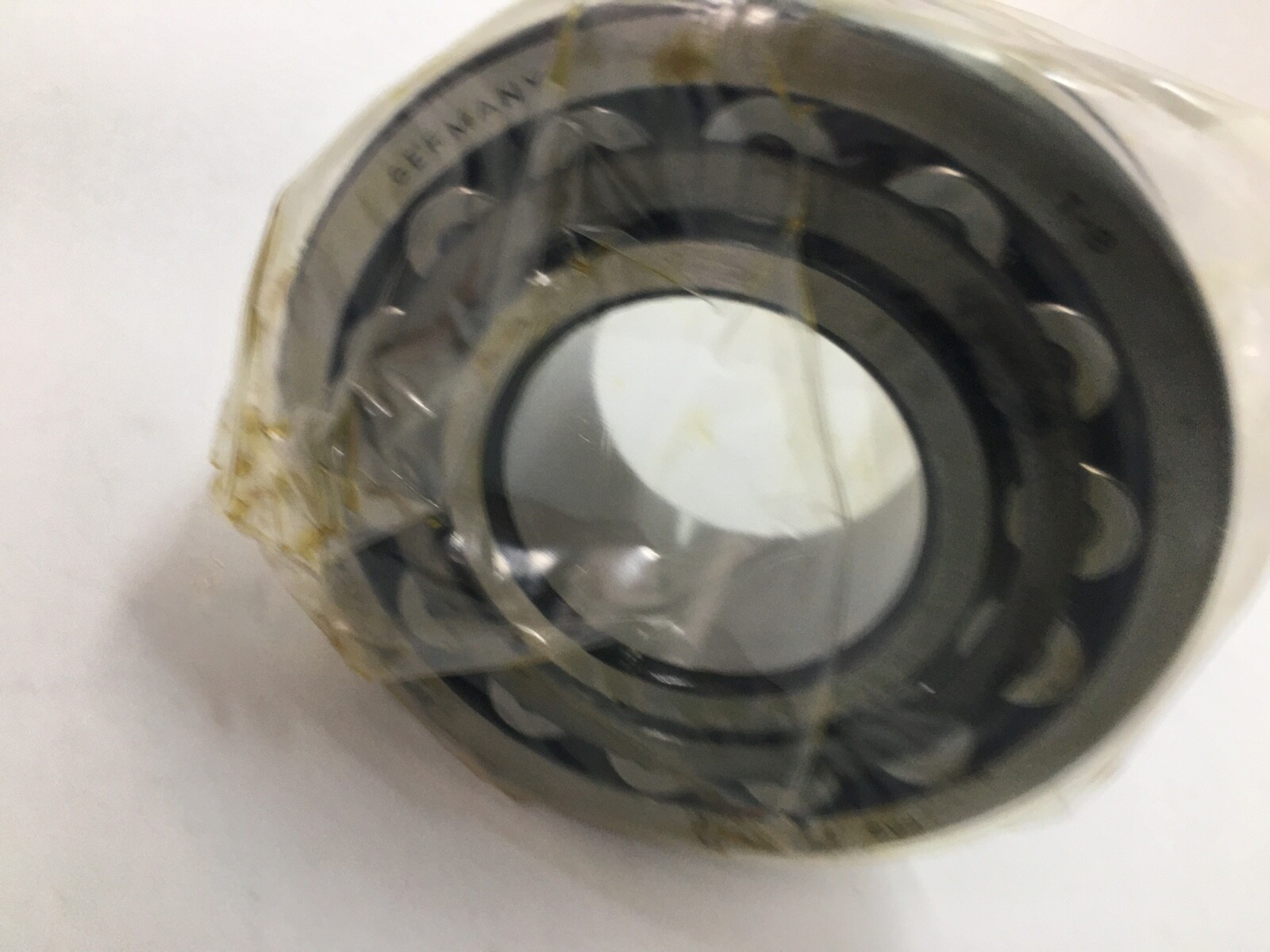

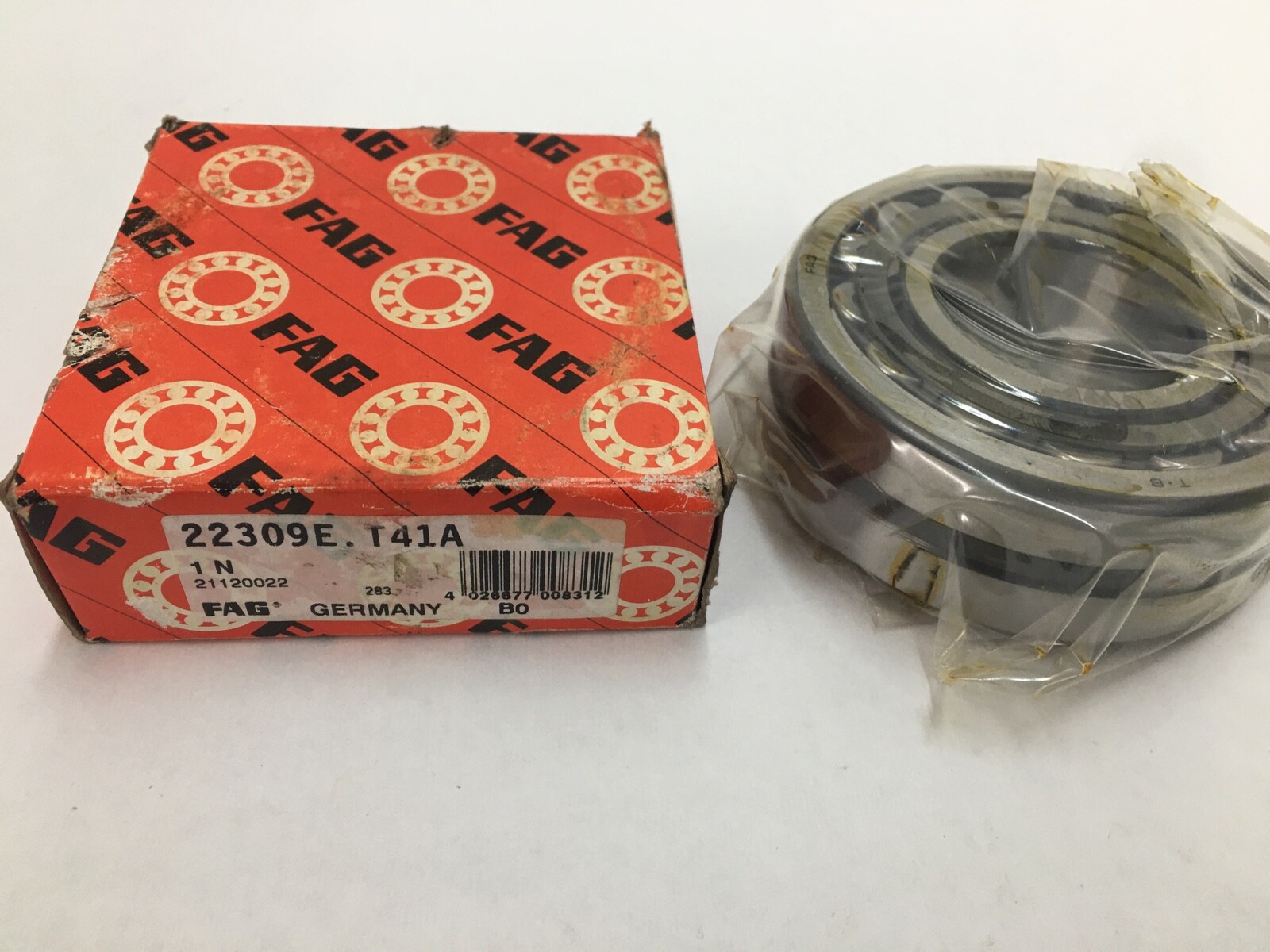

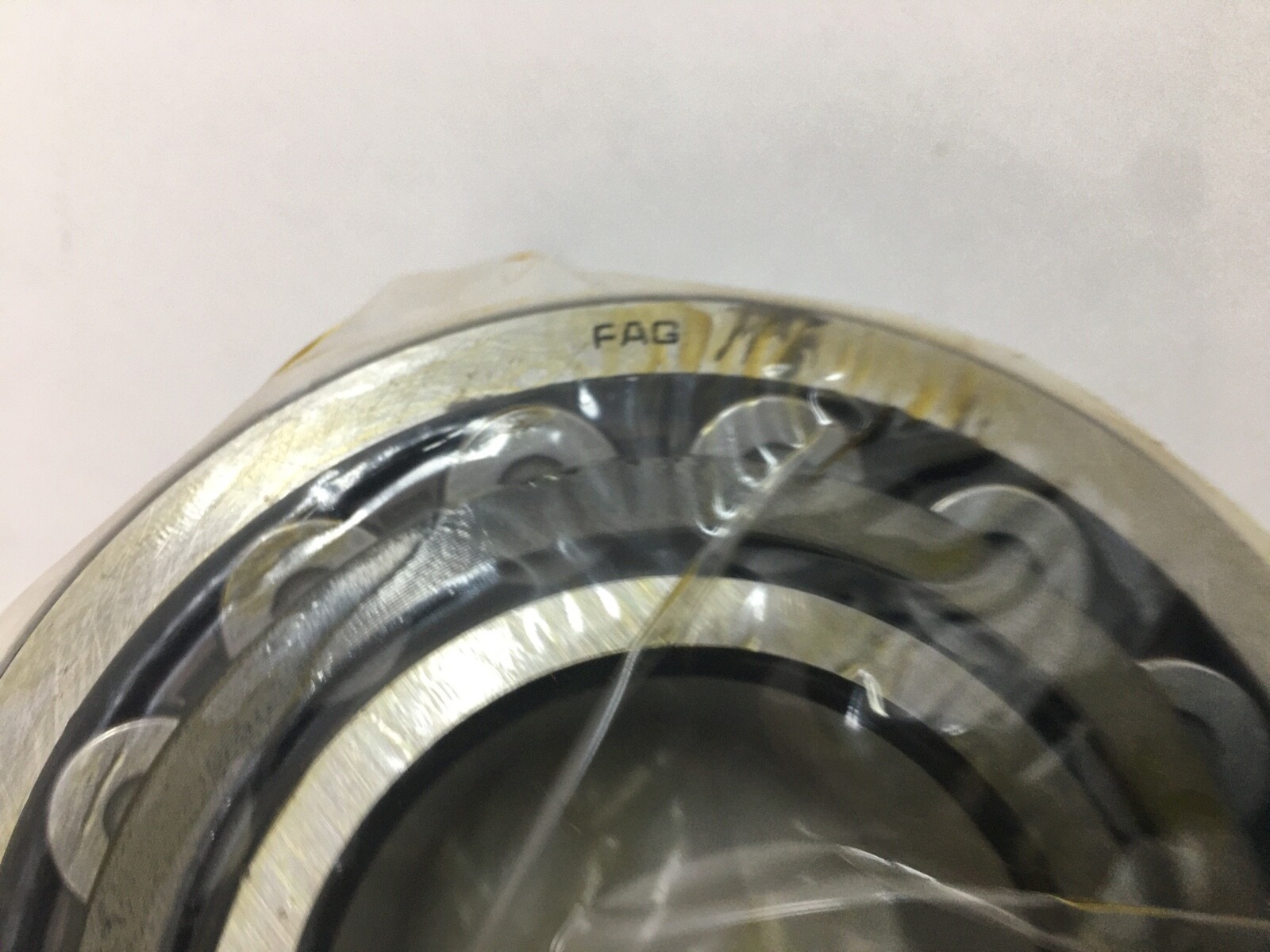

A FAG 22309E double-row spherical roller bearing, 45 mm bore, 100 mm outside diameter, 36 mm width. Straight cylindrical bore, open, steel cage, reinforced E internal design, normal precision class, CN internal clearance.
223 identifies the double-row spherical roller bearing in the 23 dimension series, the widest and heaviest of the common spherical roller series. The bore code 09 gives 45 mm. E is the reinforced FAG internal design with a larger roller set and a higher dynamic rating than the base design. There is no K, so the bore is straight and the bearing mounts directly on the shaft.
Two rows of barrel rollers share a spherical outer raceway, so the roller set swivels inside the outer ring and the bearing absorbs shaft misalignment and housing deflection under very heavy radial load. A double-row spherical roller bearing takes thrust in both directions. The 23 series packs a taller roller into the same bore as the 22 series, which raises radial capacity and lowers the speed limit.
1 Pc. Complete bearing: outer ring, two roller rows, cage and inner ring. Open both faces, without snap ring.

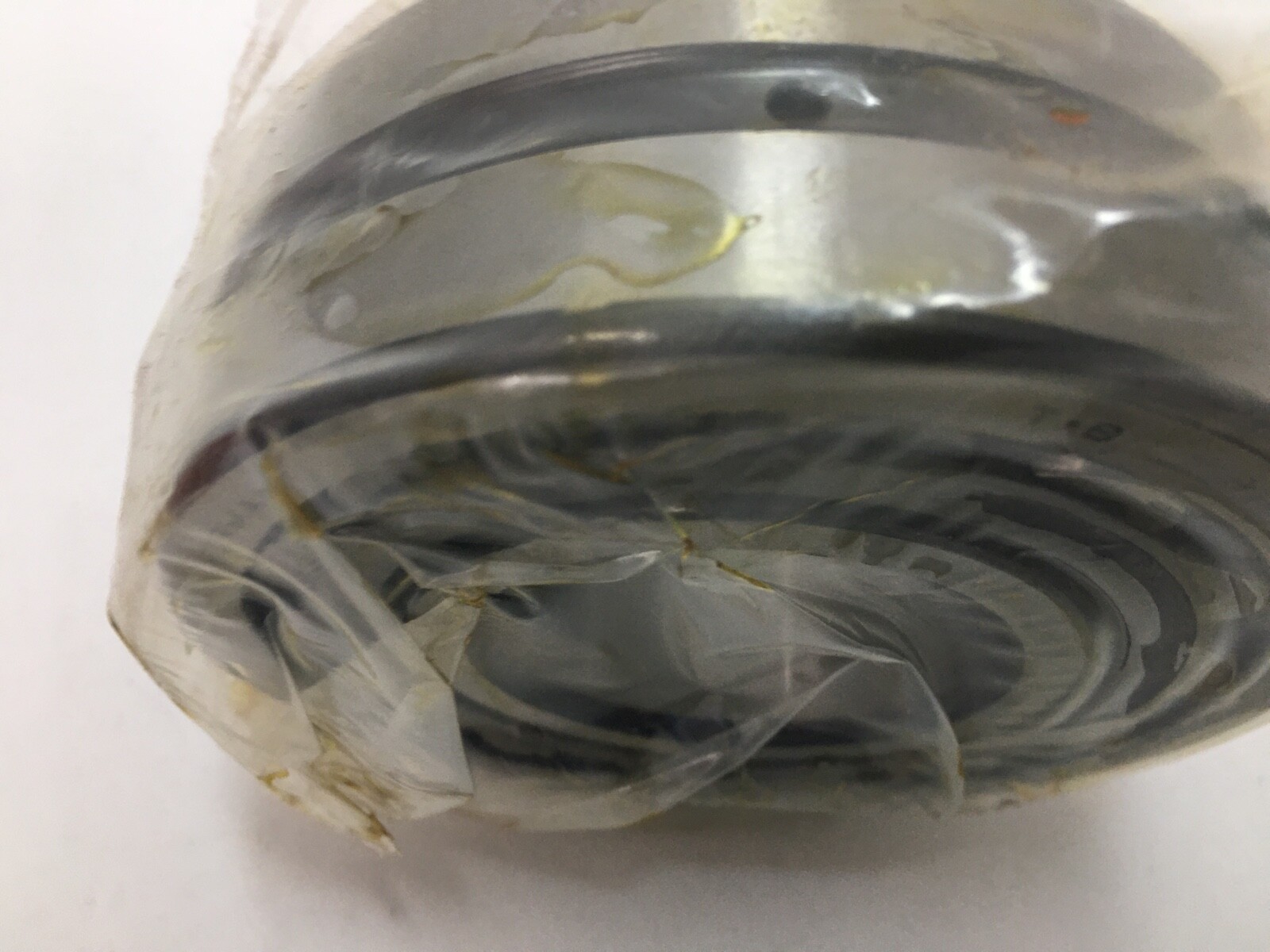

The straight bore takes an interference fit on a cylindrical shaft seat, mounted by induction or oil-bath heating. Relubrication is through the housing, since the outer ring carries no lubrication groove.
SKF 22309 E and NTN 22309EAE4 are same-envelope equivalents in the reinforced design. FAG 22309EK is a related size with a 1:12 tapered bore that mounts on an H2309 adapter sleeve; FAG 22309E.W33 is a related size with a lubrication groove and three feed holes in the outer ring.
