Availability:
2 in stock

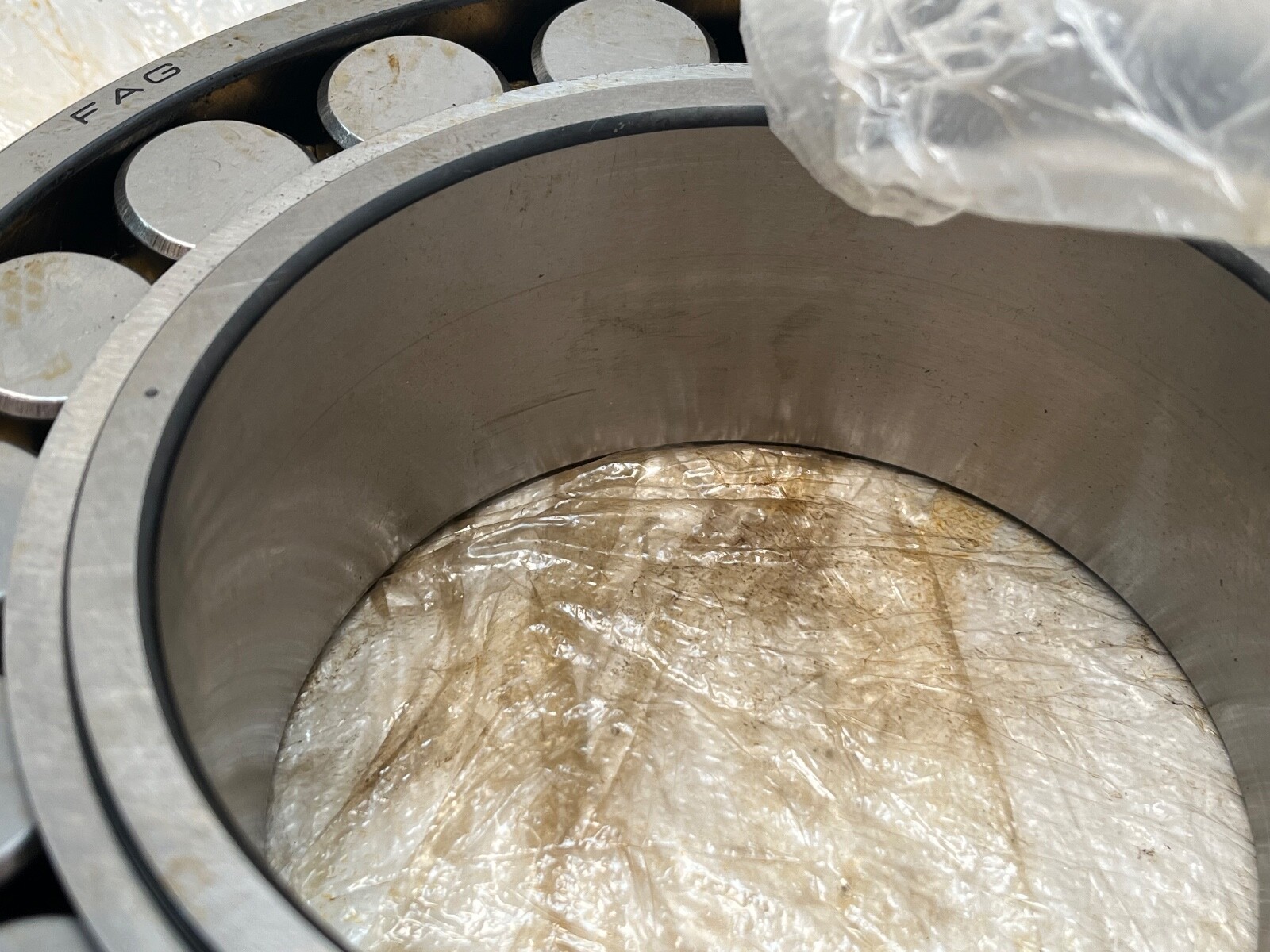

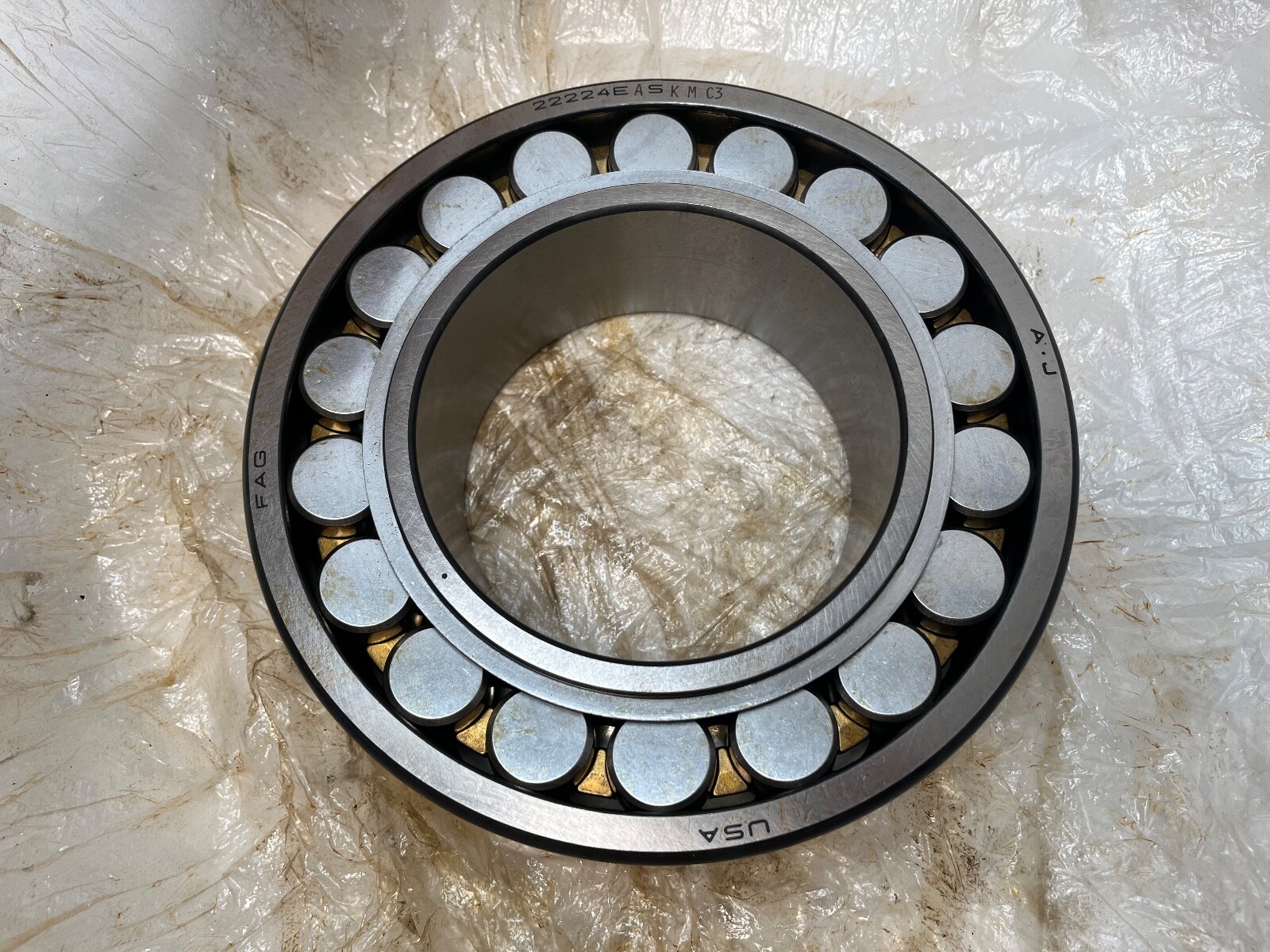

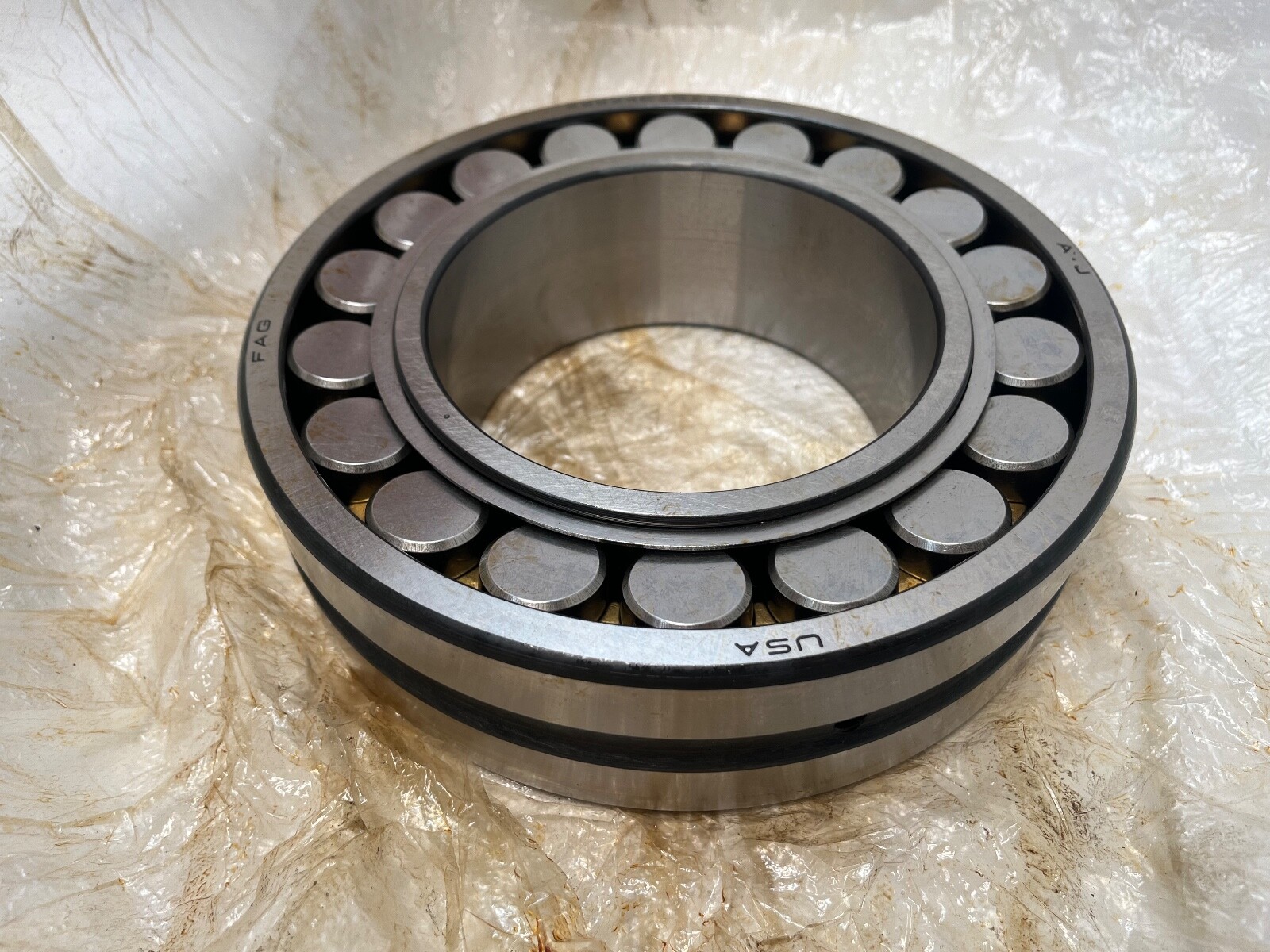

Spherical roller bearing, 120 mm tapered bore x 215 mm OD x 58 mm, C3 clearance, machined brass cage, W33 lube groove. Mounts on an H324 adapter sleeve.
List Price
$205.75
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22224ESKC3W33 |
| Model | 22224 ESK/CKY/ASK M/MB C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | grease or oil |
| Base Number | 22224 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; taper bore roller bearing; adapter sleeve bearing; W33 roller bearing |
| Common Misspellings | 22224ESK C3; 2224ESKC3; 22224 ESKC3; FAG 22224 EKS C3; sperical roller bearing |
| Application Types | Conveyor head and tail shafts; gearboxes and reducers; crushers and vibrating screens; fans and blowers; paper machine and mill rolls |
| Bore Shaft Size | 120 mm (4.7244 in), tapered 1:12 |
| Mpn Variants | 22224ESK.C3; 22224ES.K.C3; 22224-ES-K-C3; 22224ESKC3; 22224-ES-K-M-C3-W33; 22224EASKC3; 22224K |
| Compatible With Replaces | Adapter sleeve FAG H324 (110 mm shaft seat), KM24 locknut, MB24 lock washer |
| Cage Type | Machined |
| Rolling Elements | Spherical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Relubrication Feature | W33 groove and three radial holes |
| Harmonization Code | 8482.30.00 |
| Part Number | 22224ESK.C3 |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | SKF 22224 EK/C3W33 |
|---|---|
| Cross Reference 2 | NSK 22224EAKE4C3 |
| Cross Reference 3 | Timken 22224KEJW33C3 |
| Cross Reference 4 | Koyo 22224RHKW33C3 |
| Cross Reference 6 | FAG 22224-E1-XL-K-C3 – current FAG design |
FAG 22224ESK.C3 double-row spherical roller bearing with a 1:12 tapered bore. Bore Diameter: 120 mm. Outside Diameter: 215 mm. Width: 58 mm. Number Of Rows: 2. Seal Type: Open.

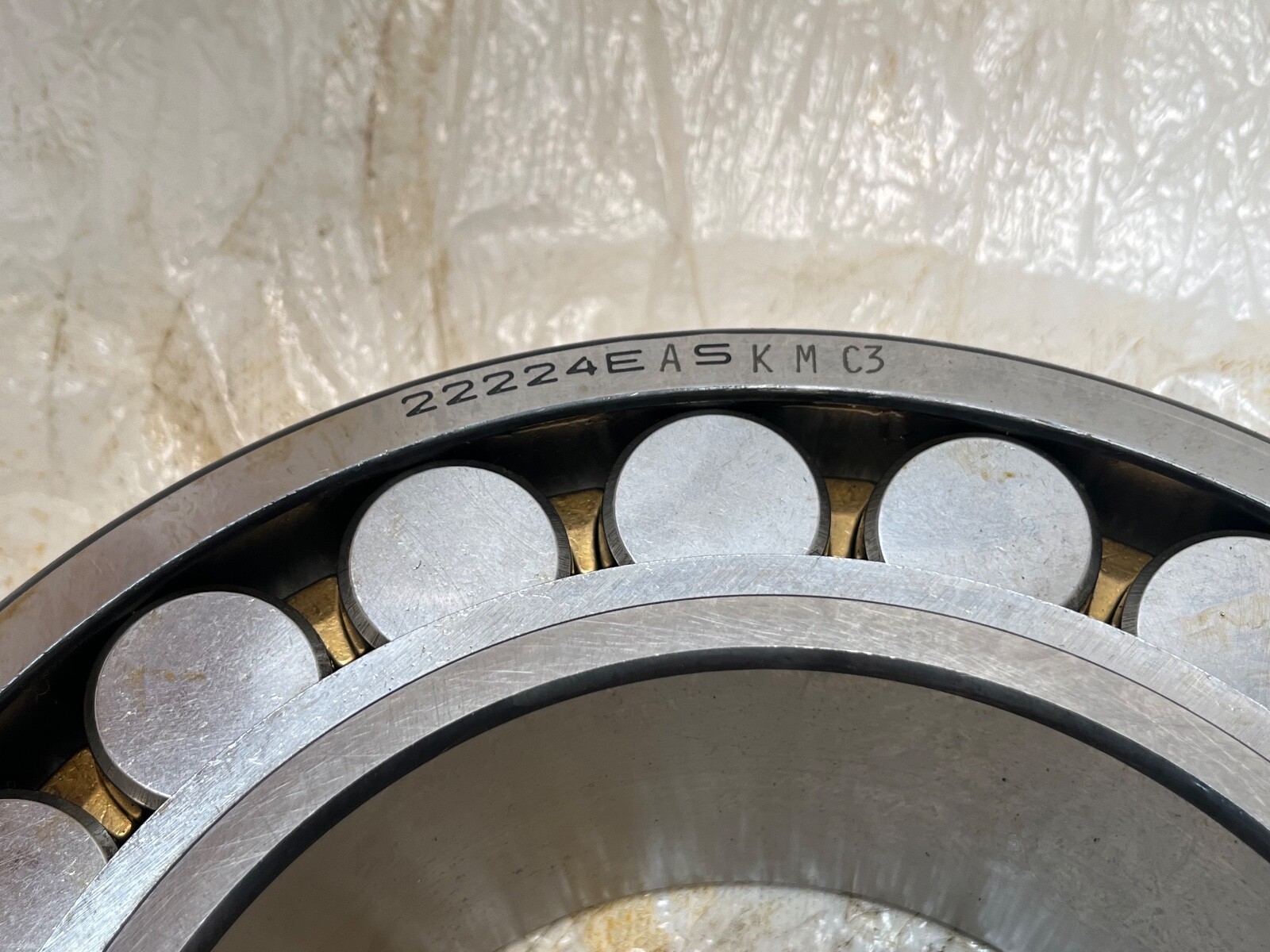

222 — double-row spherical roller bearing, 22 dimension series.
24 — bore code, 24 × 5 = 120 mm.
E — FAG reinforced E internal design.
S — lubrication groove and three radial holes in the outer ring, the W33 feature.
K — 1:12 tapered bore.

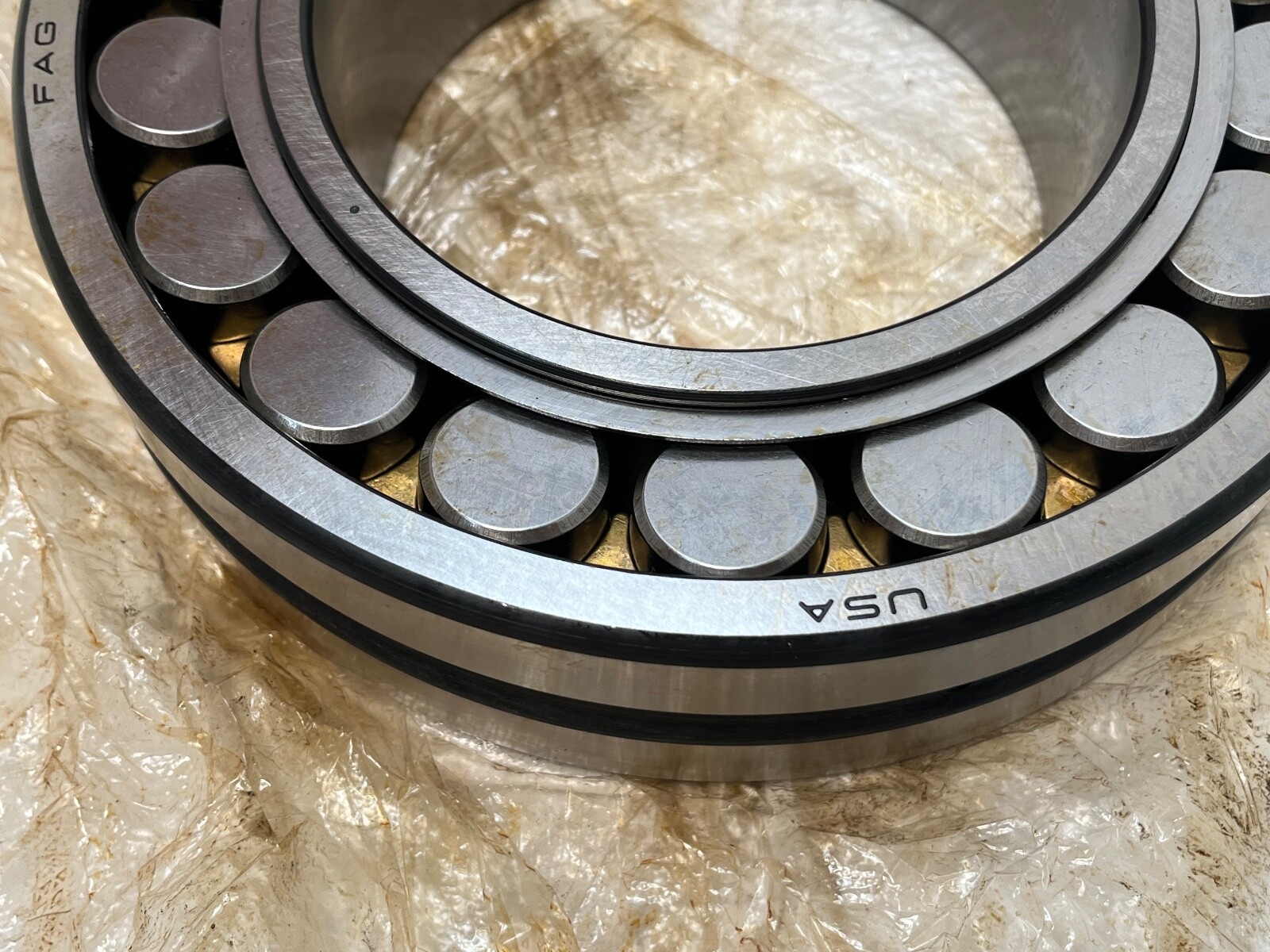

M — machined brass cage.
C3 — radial internal clearance greater than normal.
The spherical outer raceway lets the bearing align itself to shaft deflection and housing misalignment while carrying heavy radial load and thrust in both directions. Cage Material: Machined brass, a robust choice for shock load and high operating temperature. Internal Clearance: C3, for interference fits and shafts running warmer than the housing. Lubricant: grease or oil, fed through the outer-ring groove and holes.
Bore Type: Tapered 1:12. Adapter sleeve for a cylindrical shaft: FAG H324, 110 mm shaft seat, with KM24 locknut and MB24 lock washer.

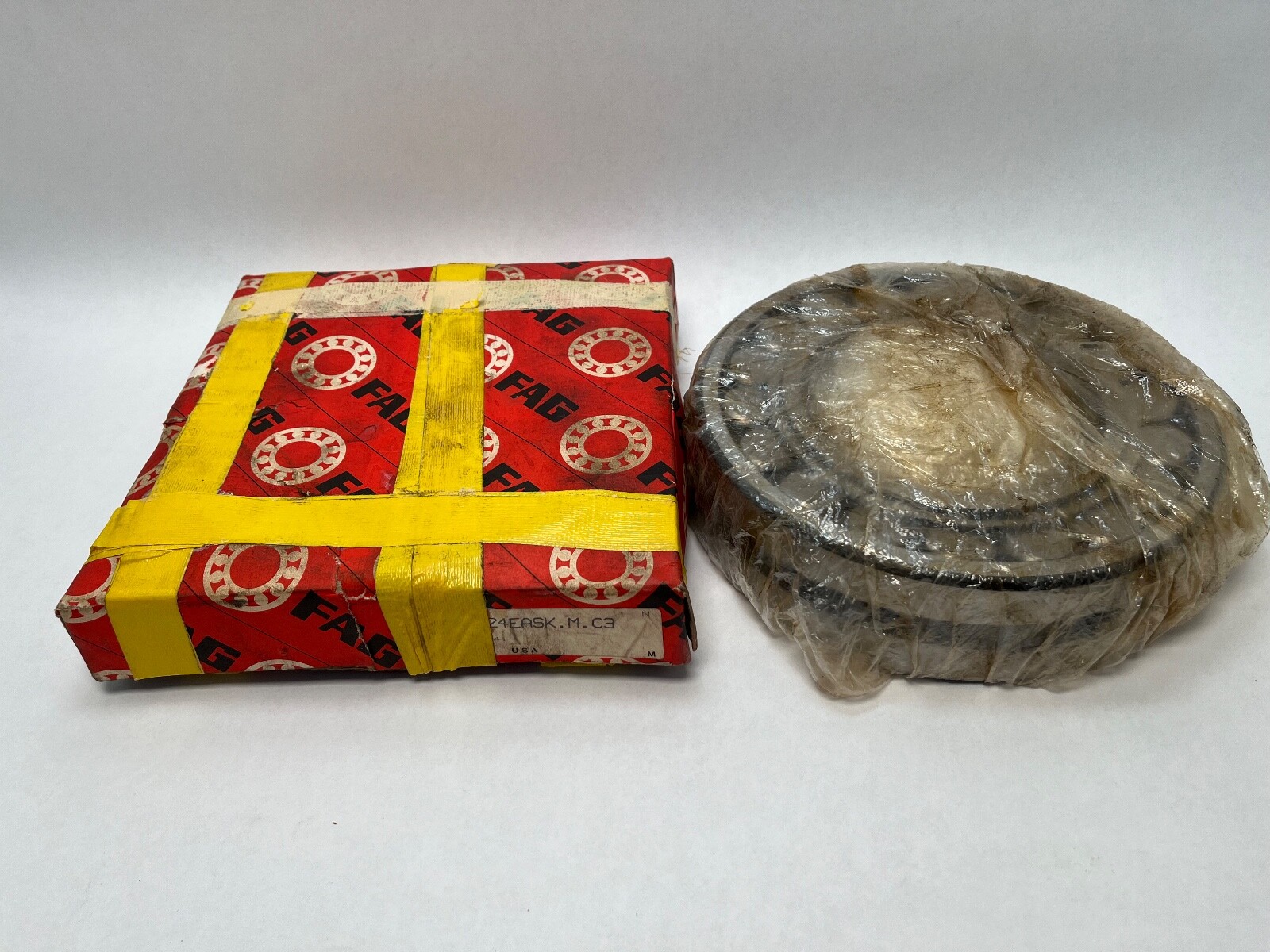

Unit Quantity: 1 Pc. Bearing only.
Cross-Reference: SKF 22224 EK/C3W33, NSK 22224EAKE4C3, Timken 22224KEJW33C3, Koyo 22224RHKW33C3 — same envelope, tapered bore and C3 clearance, with each maker’s own cage. Current FAG design of the same size: 22224-E1-XL-K-C3.
