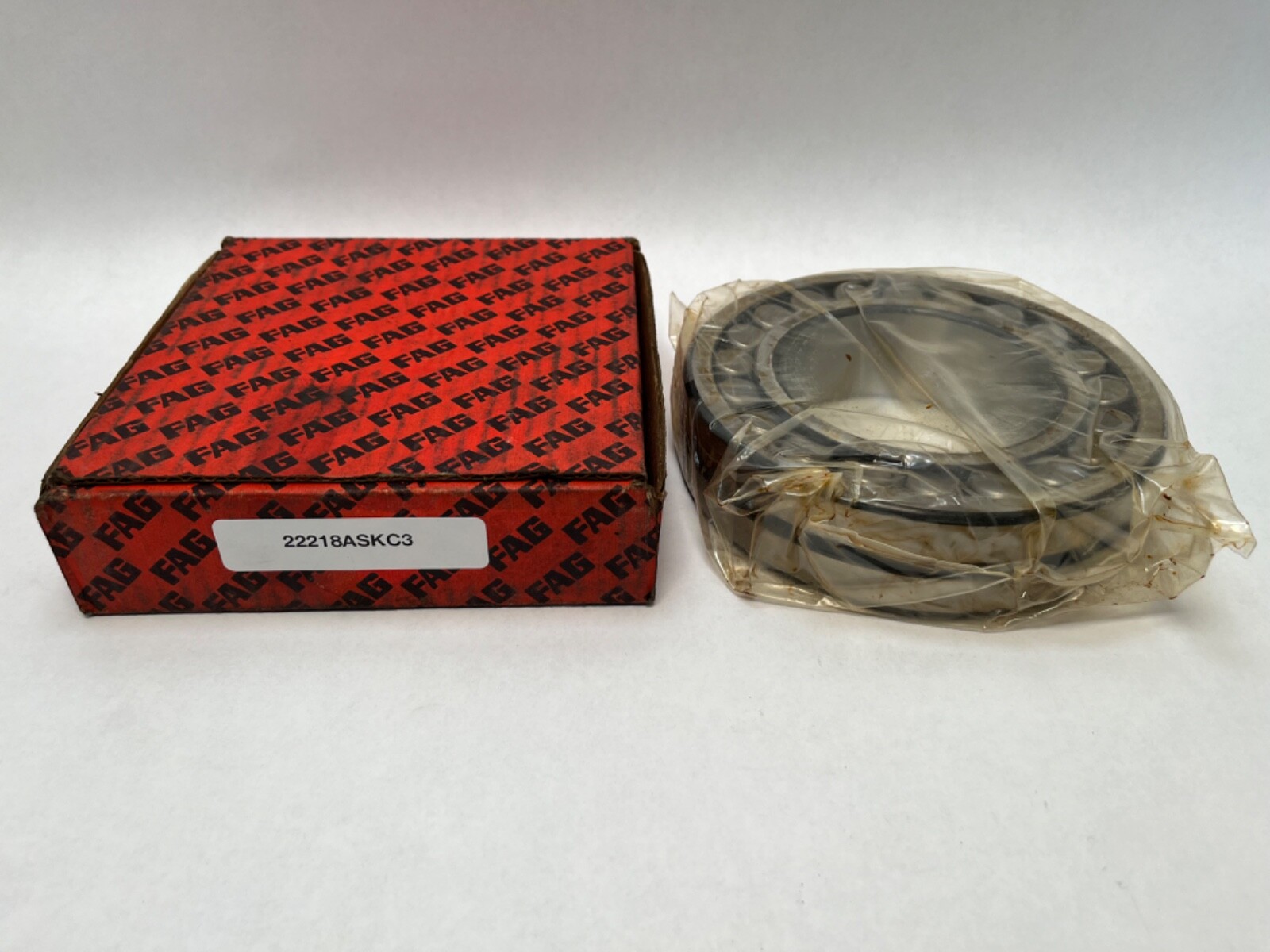

FAG22218ASKC3W33Spherical Roller Bearing 90x160x40 mm Double Row 1:12 Tapered Bore Lubrication Groove and Holes C3 Clearance

Product Description

What this part is

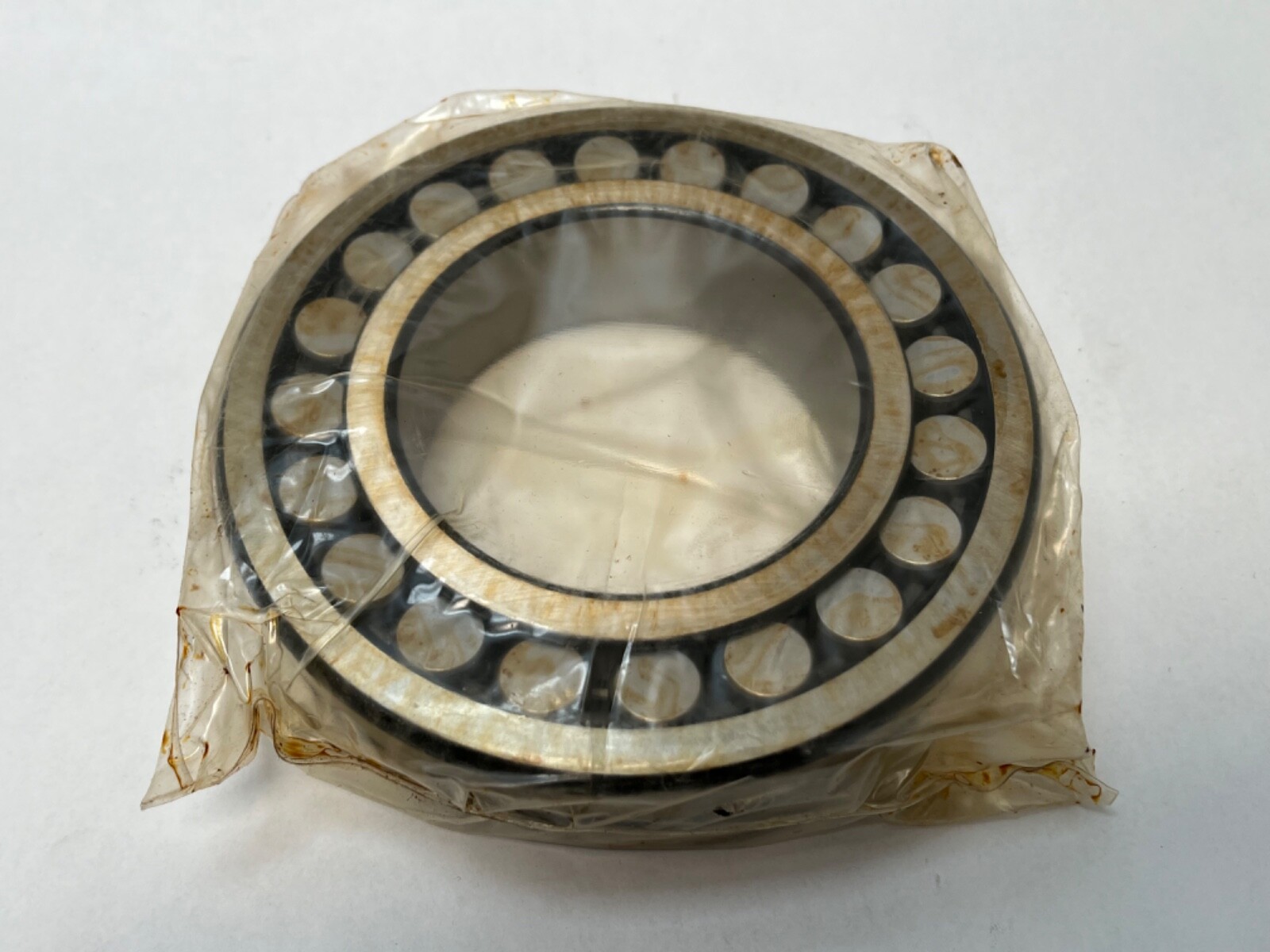

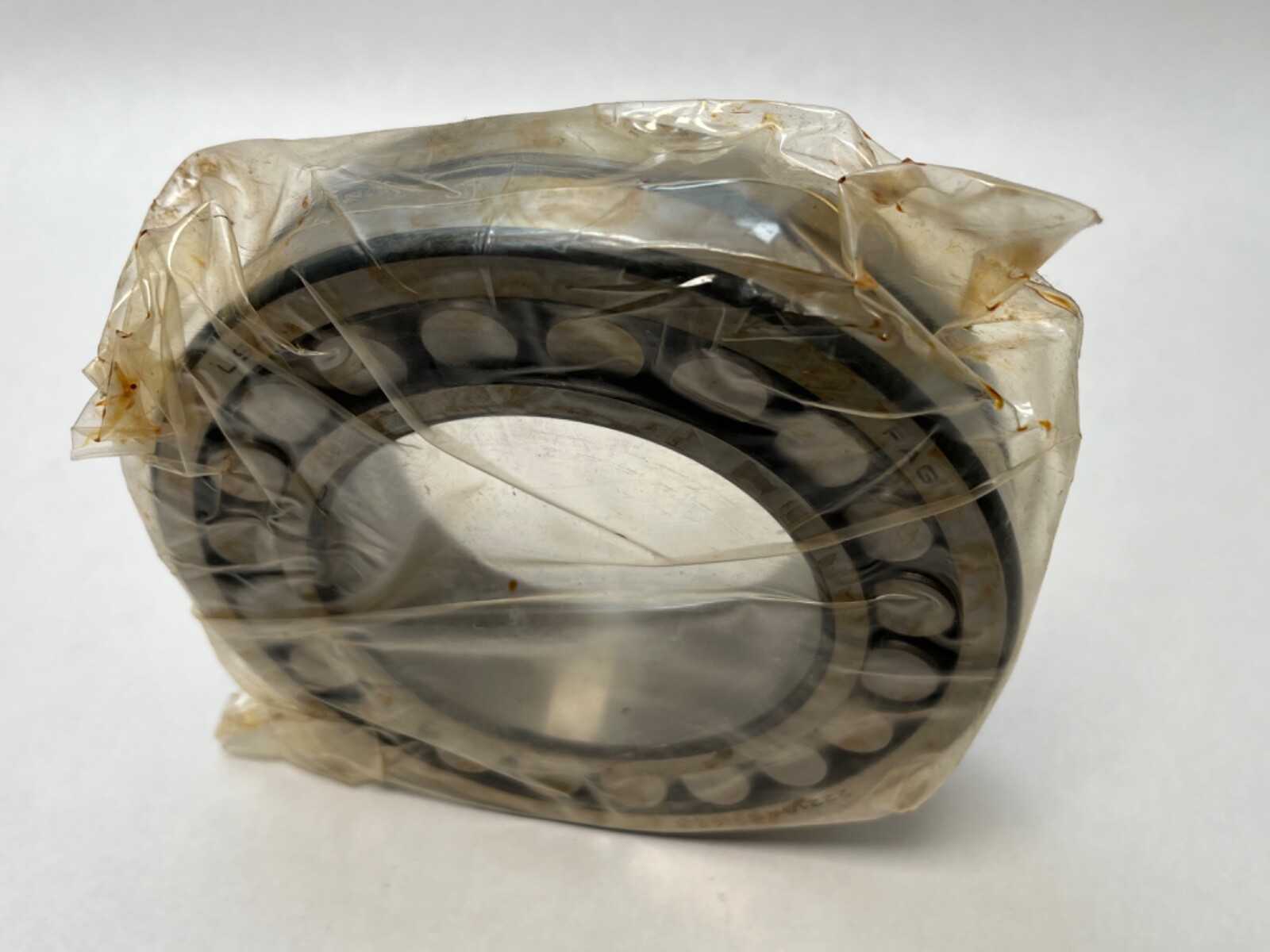

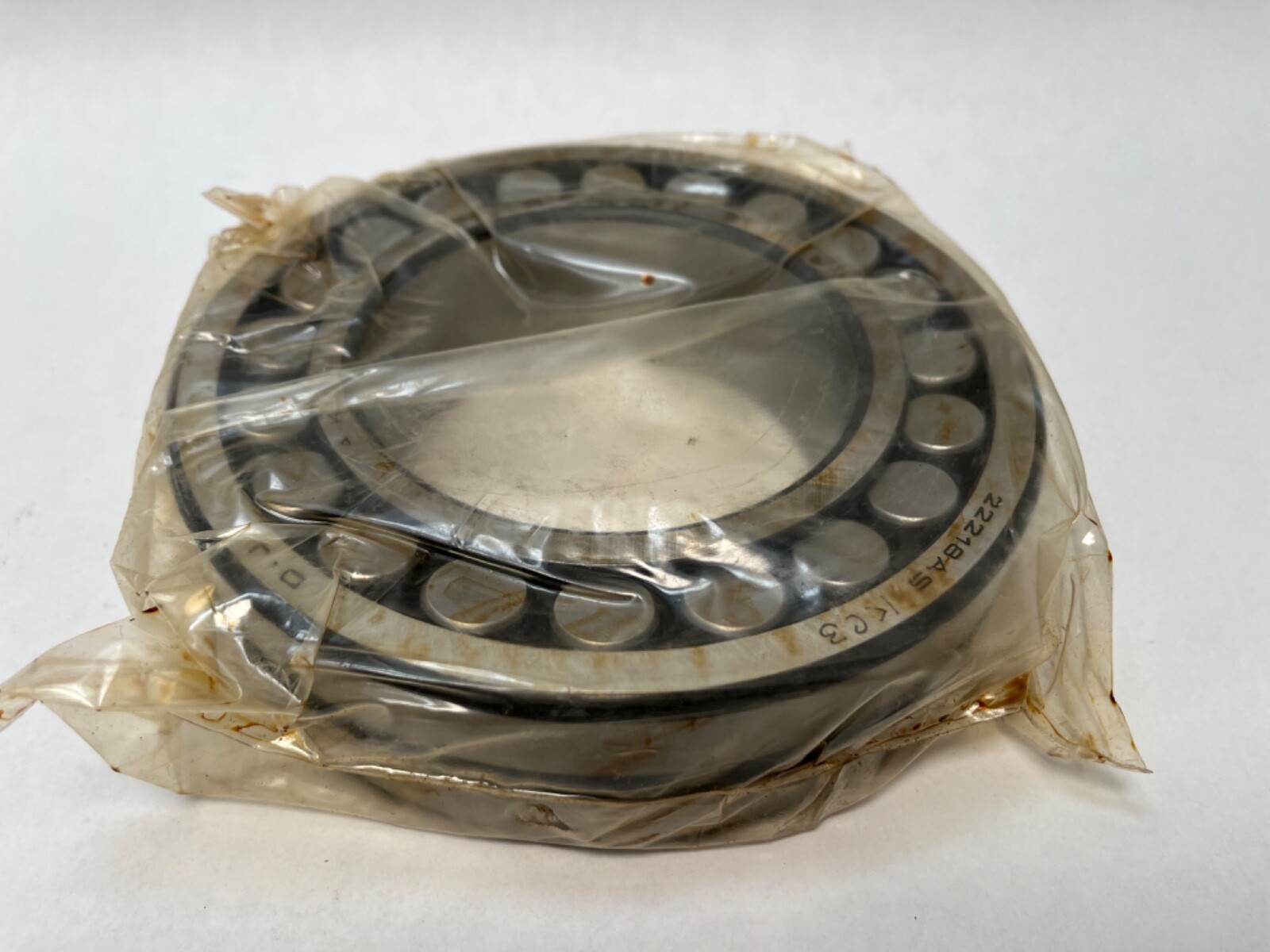

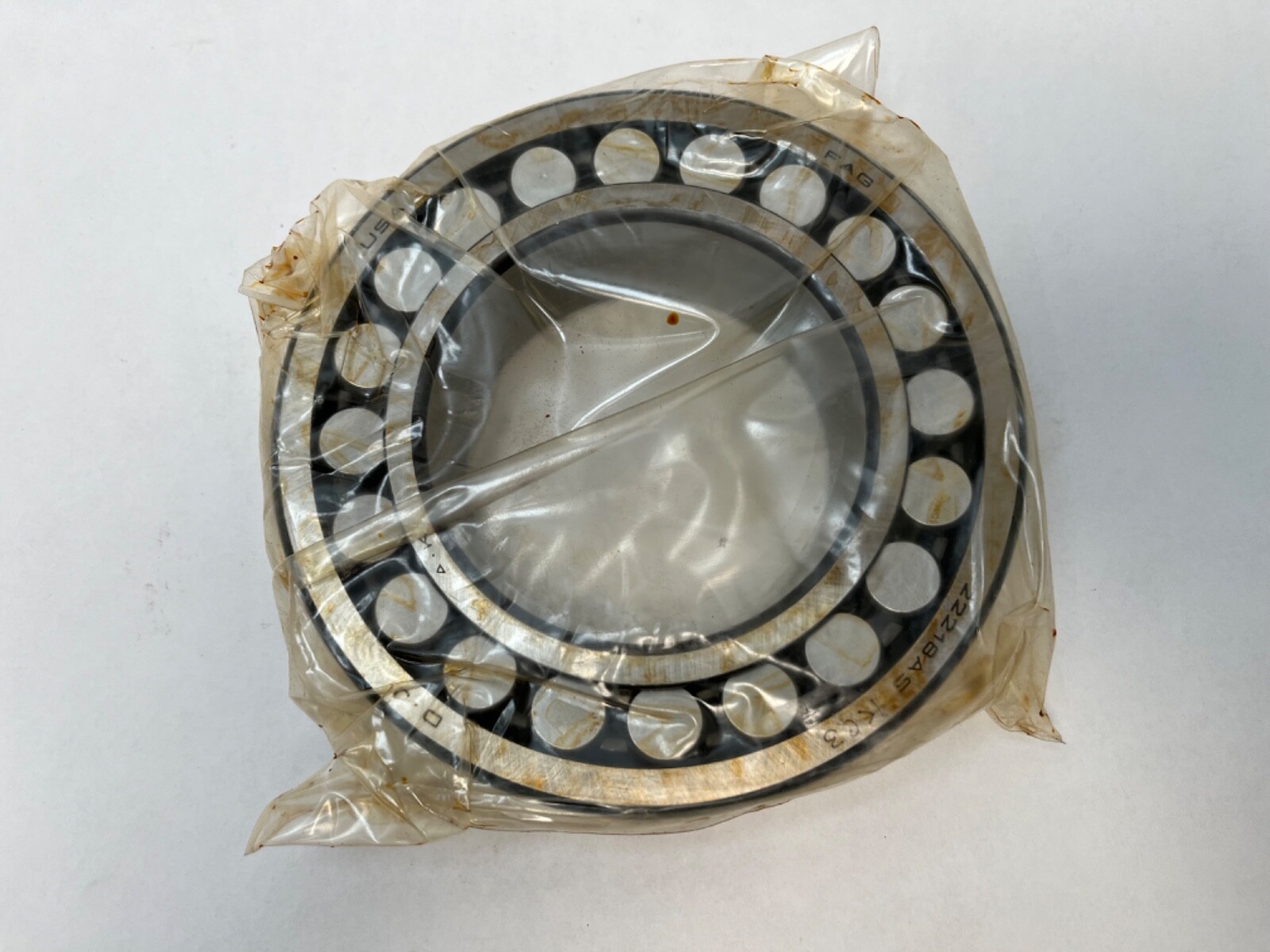

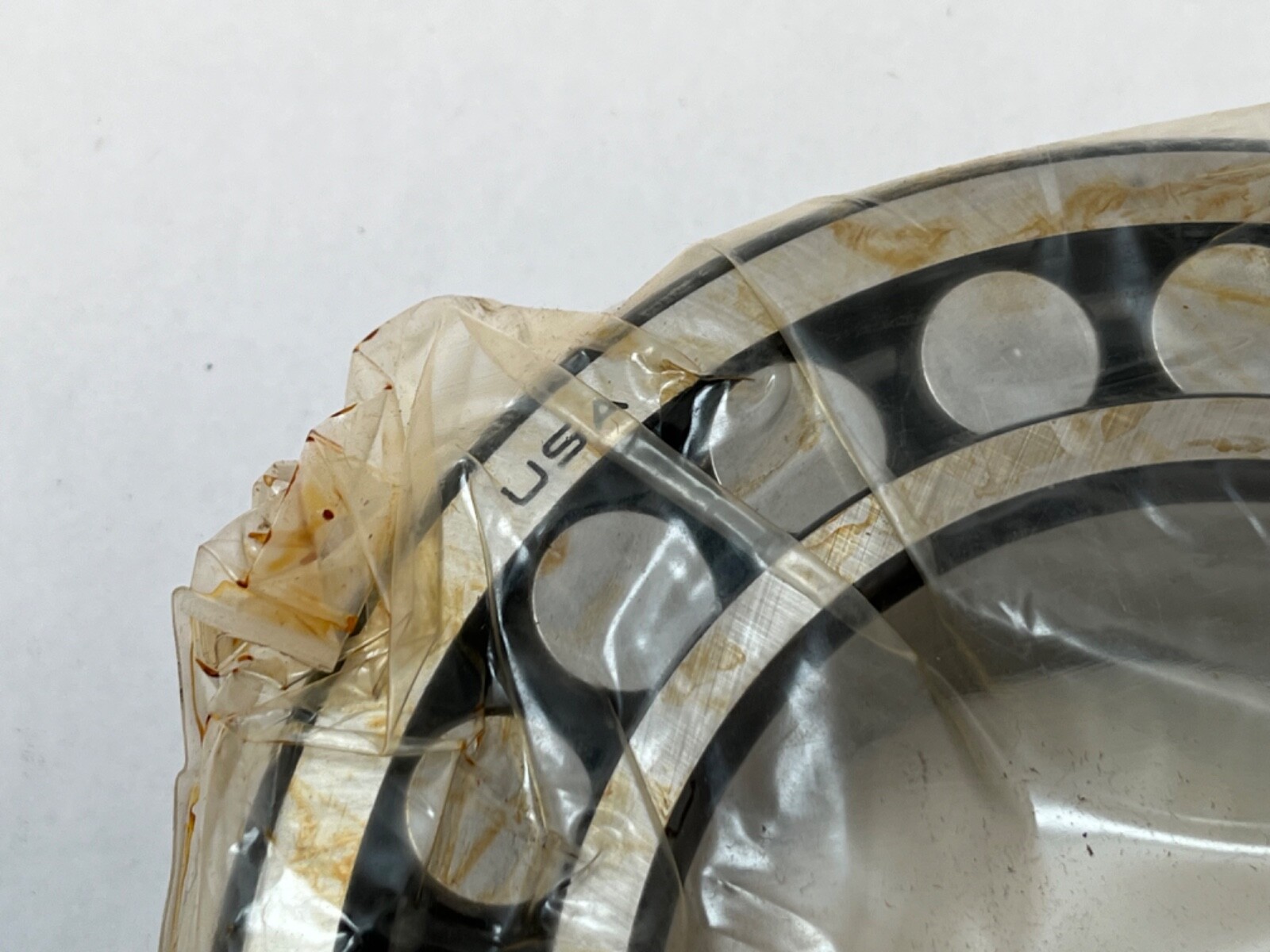

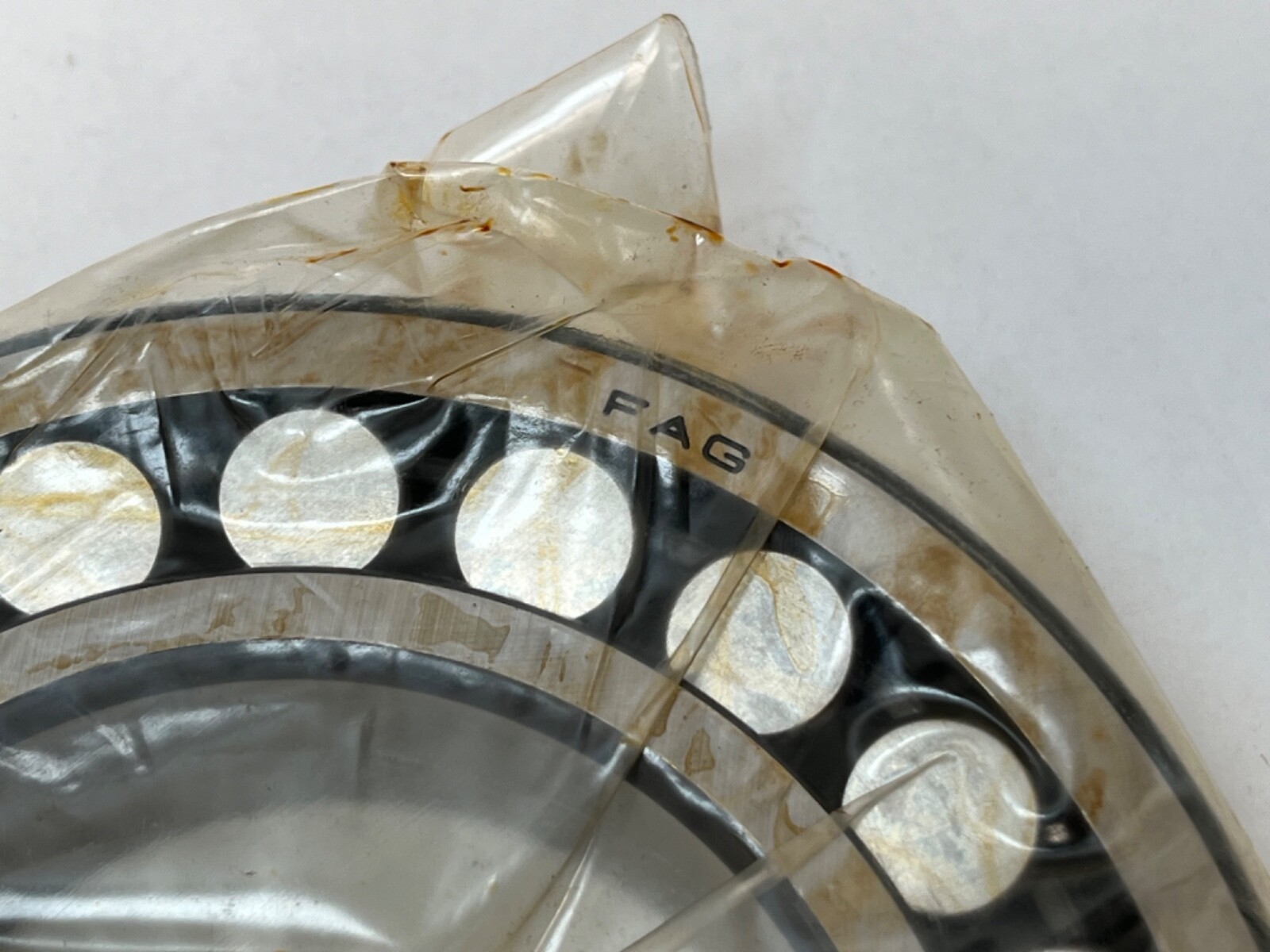

A double-row spherical roller bearing, 90 mm bore × 160 mm outside diameter × 40 mm width, main dimensions to DIN 635-2, with a tapered bore of 1:12 taper. Two rows of symmetrical barrel rollers run in a single concave spherical raceway in the outer ring, so the inner ring and roller set swivel inside the outer ring. The bearing is therefore self-aligning, and it carries very high radial load together with thrust in both axial directions.

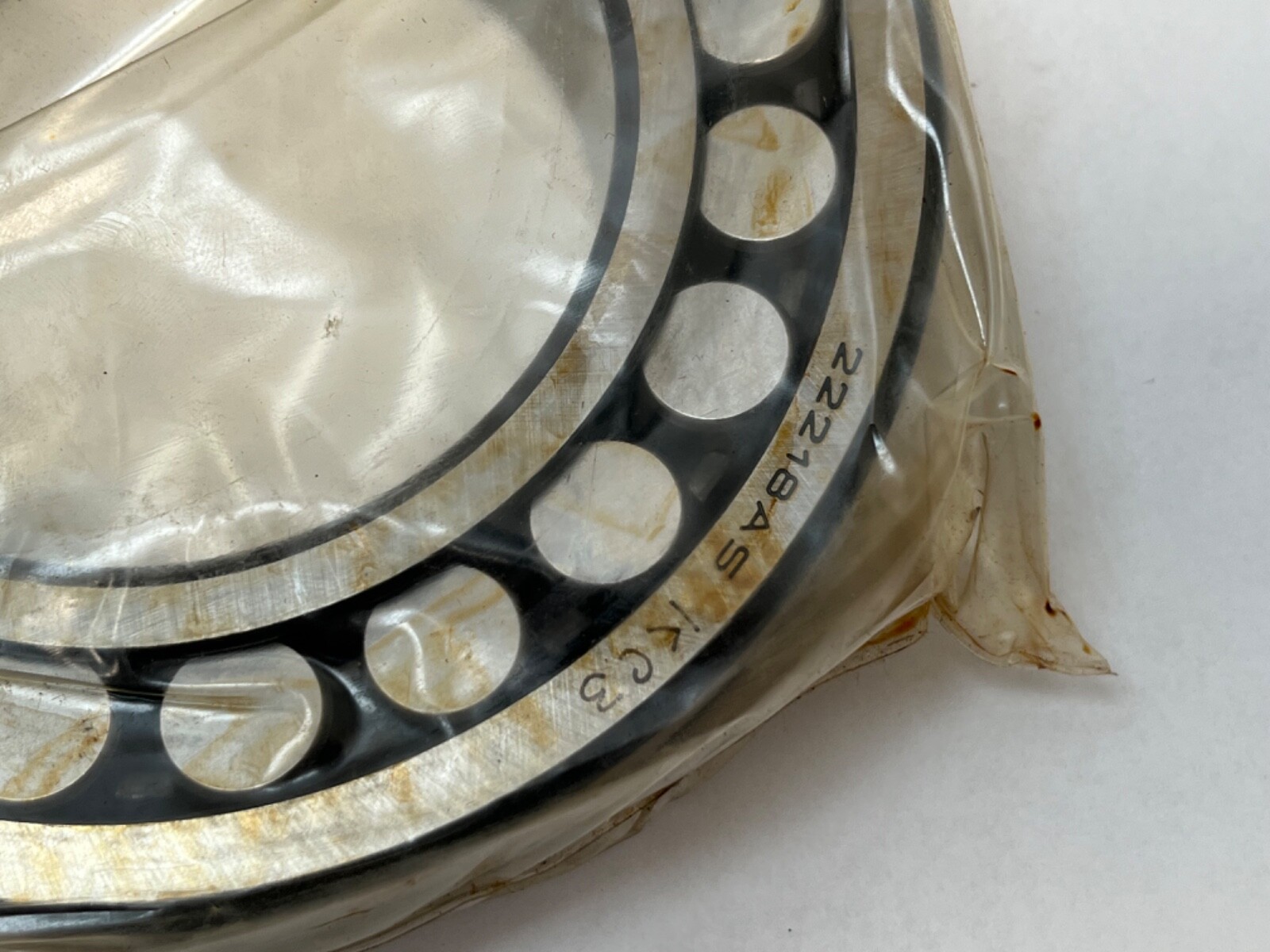

Decoding the designation

222 — spherical roller bearing, 222 dimension series: 40 mm width across a 35 mm radial section at this bore.
18 — bore code for a 90 mm bore.
AS — the FAG code for an annular lubrication groove in the outer ring outside diameter together with three radial lubrication holes, the feature other schemes label W33.
K — tapered bore, taper 1:12.
C3 — radial internal clearance greater than normal.

What these specs mean in practice

The lubrication groove and holes make the outer ring its own distribution gallery: lubricant entering through a housing port fills the groove and passes through the three holes directly into the roller path, so relubrication reaches the rolling contact of both rows rather than only the bearing faces. C3 clearance is greater than normal, and on a taper-bore bearing it also provides the working margin consumed when the bearing is driven up the taper — drive-up reduces internal clearance as the inner ring expands, so the starting clearance sets how far up the taper the bearing can go.

The 1:12 tapered bore is the mounting adjustment: axial position on the taper sets the radial clearance, so the fit is adjustable rather than fixed by tolerance stack. That is what suits taper-bore spherical rollers to long plain shafts and to positions where the bearing must be removed and refitted without a shaft shoulder.

Bore type and mating sleeve

Bearing only. The matching adapter sleeve is the H318, and the matching withdrawal sleeve is the AHX318.

Published dimensions and mounting data

Bore d: 90 mm, tapered 1:12 · outside diameter D: 160 mm · width B: 40 mm
Rows: 2 · rolling elements: symmetrical barrel rollers
Shaft shoulder diameter da: 101 mm minimum, 106 mm maximum
Housing shoulder diameter Da: 149 mm maximum
Minimum chamfer dimension r: 2 mm · maximum recess radius ra: 2 mm
Sleeve cavity diameter db: 96 mm minimum · sleeve cavity width Ba: 10 mm minimum
Operating temperature range: −30 °C to 200 °C

Quantity and configuration

One bearing, open on both faces, no seals, no shields, no snap ring.

Fitting notes

Two mounting routes exist for a 1:12 taper bore. On a tapered shaft journal the bearing seats directly on the taper, retained by a locknut. On a plain cylindrical shaft it seats on an H318 adapter sleeve, whose own bore takes an 80 mm shaft seat, one bore-code step below the bearing bore. In either case drive-up distance sets the residual radial internal clearance, measured across the roller rows with a feeler gauge before and after tightening. The housing lubrication port aligns with the outer ring groove; because the groove runs the full circumference, outer ring orientation is unconstrained.

Cross-references

Cross-references for the same specification: SKF 22218 EK/C3 (W33 groove standard), Timken 22218KEJW33C3, and the current Schaeffler form 22218-E1-XL-K-C3. 22218ASC3 is the same 90 × 160 × 40 mm size with a straight bore instead of the 1:12 taper; 22318K carries the 90 mm taper bore in a heavier 190 mm outside diameter series; 22218K without the AS or W33 suffix omits the lubrication groove and holes.
