FAG 22210HLK spherical roller bearing, 50 x 90 x 23 mm, 1:12 tapered bore, normal clearance. Mounts on an H310 adapter sleeve. Successor FAG 22210-E1-XL-K.
List Price
$45.71
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22210HLK |
| Model | 22210-HL-K |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 23 mm |
| Series | 222 |
|---|---|
| Dynamic Load Rating | 109,000 N |
| Static Load Rating | 107,000 N |
| Rolling Elements | Spherical Roller |
| Item Weight | 0.585 kg (1.29 lb) |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | CN |
| Limiting Speed | 9,800 rpm |
| Base Number | 22210 |
| Industry Terms | spherical roller bearing; tapered bore; K bore; 222 series |
| Common Misspellings | 22210-HLK, 2210HLK, 22210H-LK |
| Application Types | Plummer block housings, conveyor pulleys, fans, gearboxes |
| Overall Width | 23 mm |
| Mpn Variants | 22210-HL-K, 22210HLK, 22210 HL K, 22210K |
| Compatible With Replaces | Successor: FAG 22210-E1-XL-K; related adapter sleeve H310 |
| Additional Attributes | Reference speed 5,100 rpm (successor 22210-E1-XL-K data) |
| Closure Type | Open |
| Cross Reference 1 | SKF 22210 EK (E design, same envelope) |
|---|---|
| Cross Reference 2 | Timken 22210EJW33K (E design, same envelope) |
| Cross Reference 3 | NSK 22210EAKE4 (E design, same envelope) |
| Cross Reference 4 | NTN 22210EAKD1 (E design, same envelope) |
| Cross Reference 5 | Koyo 22210RHRK (same envelope) |

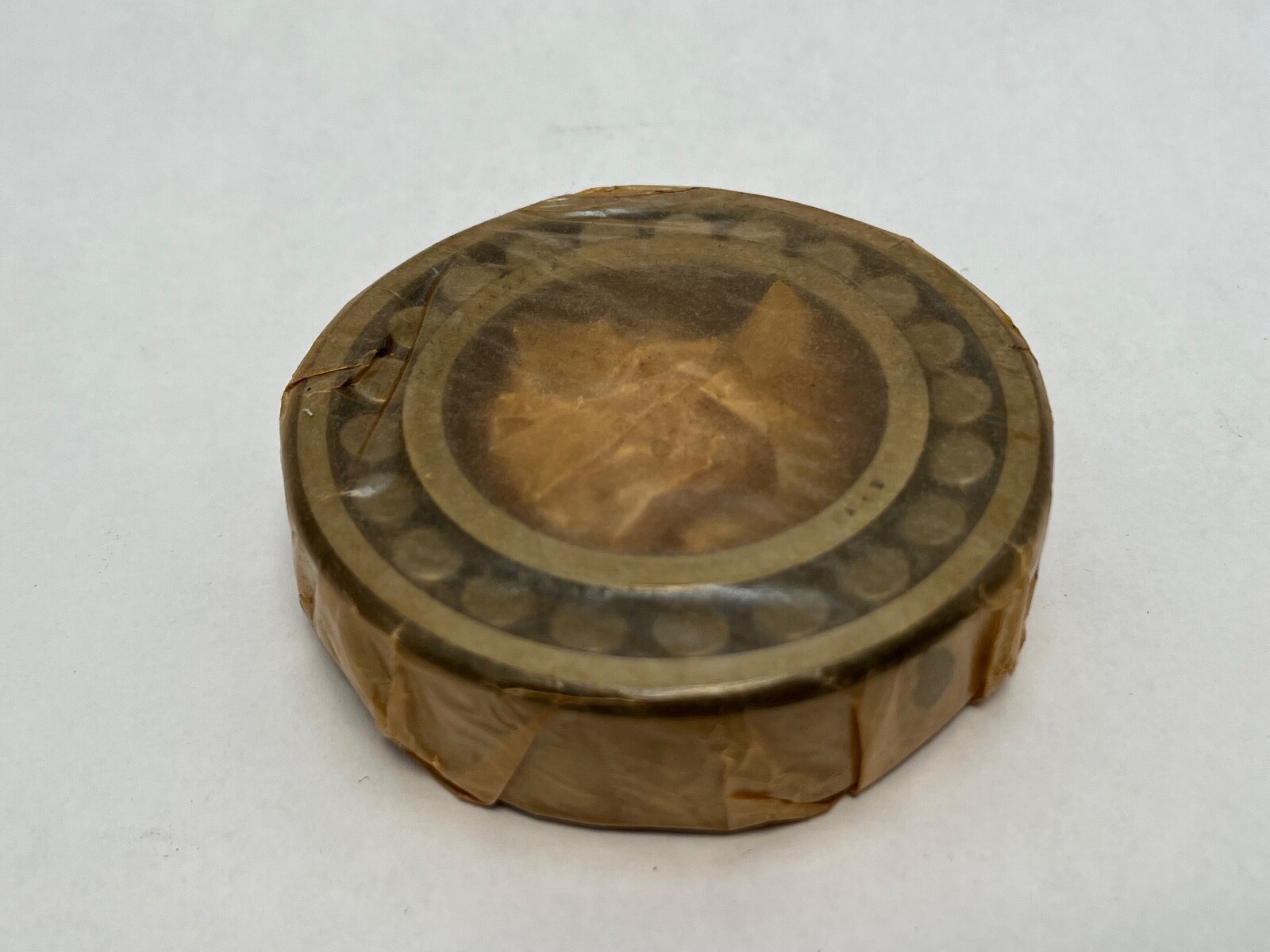

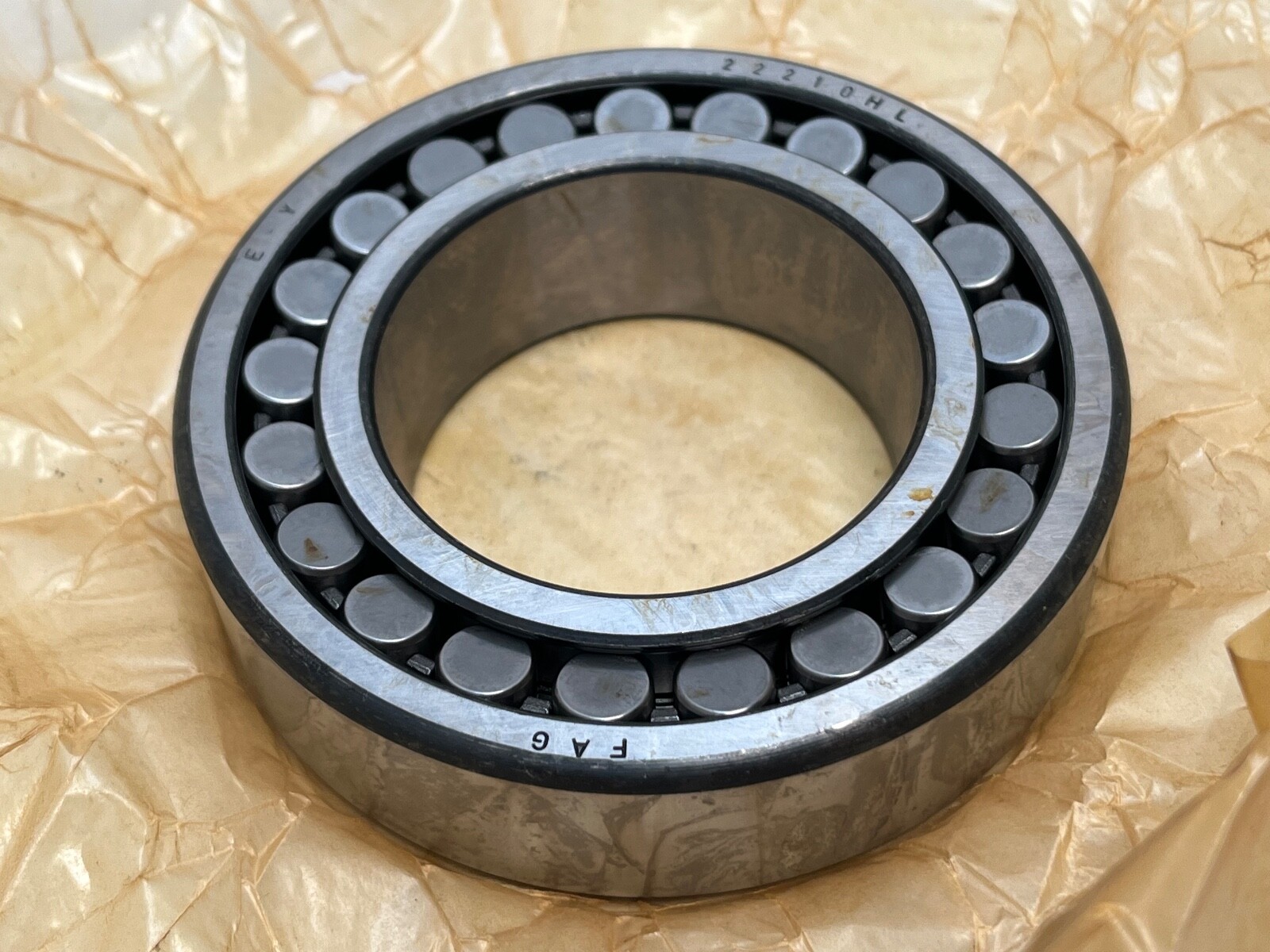

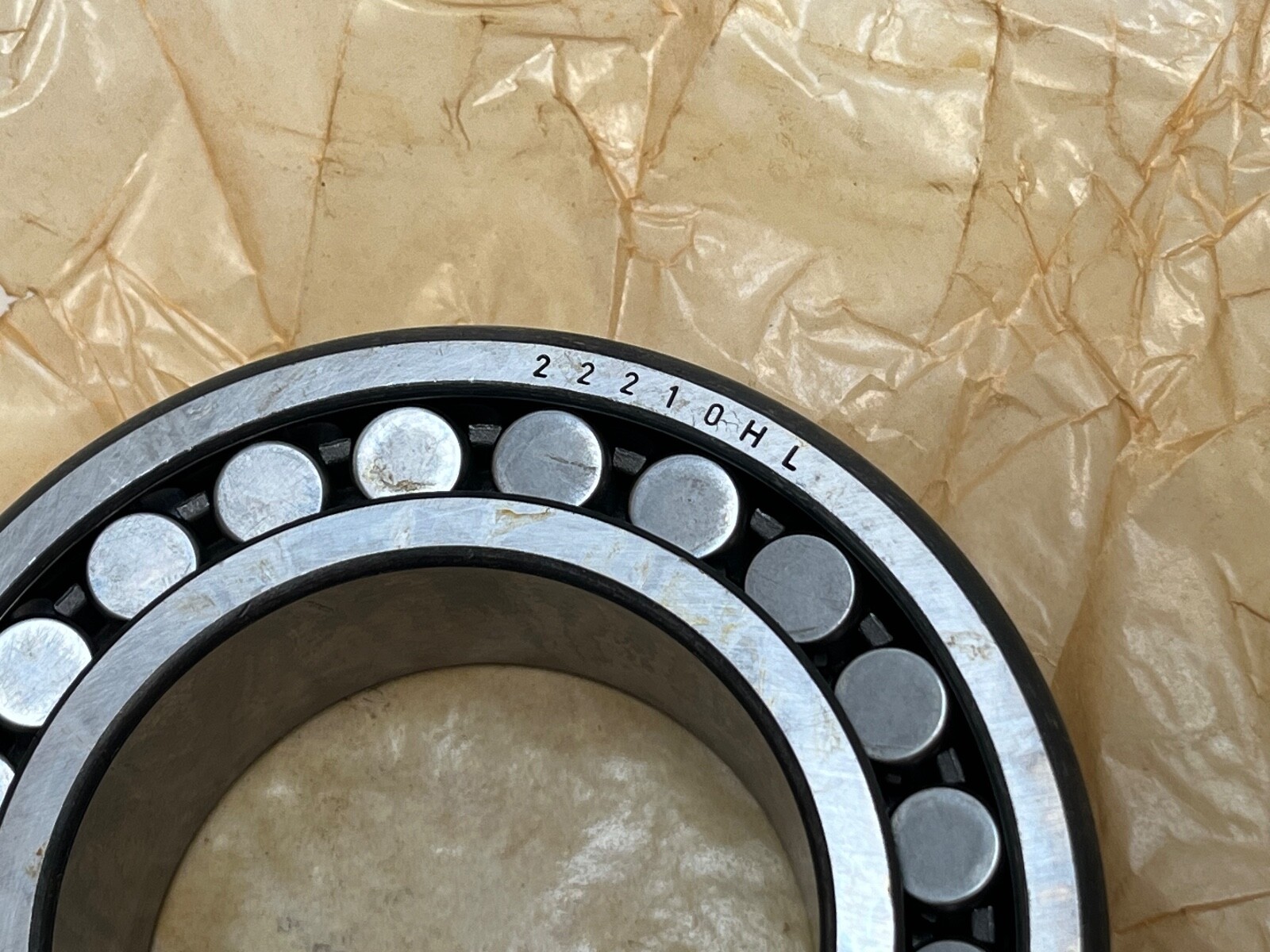

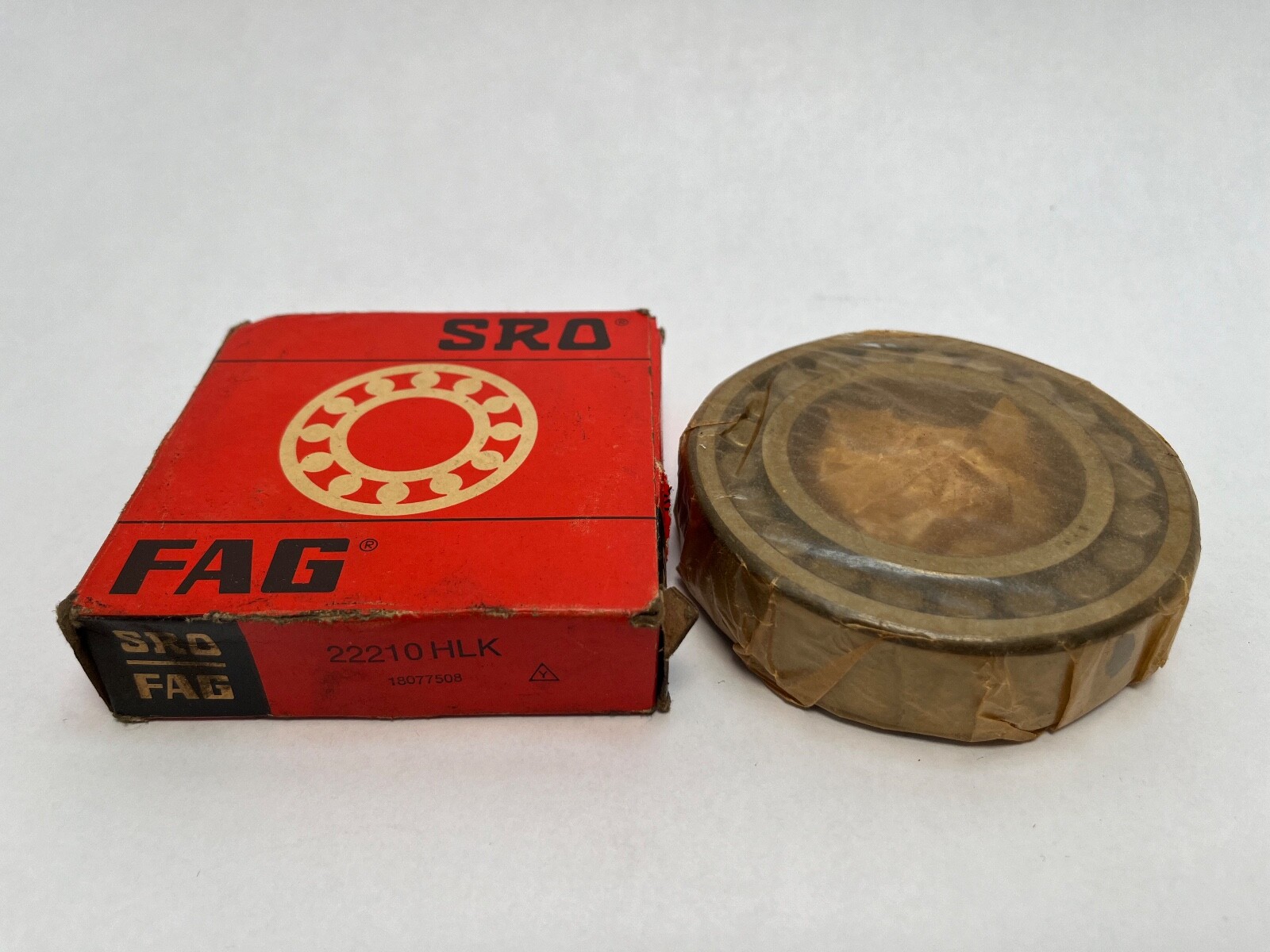

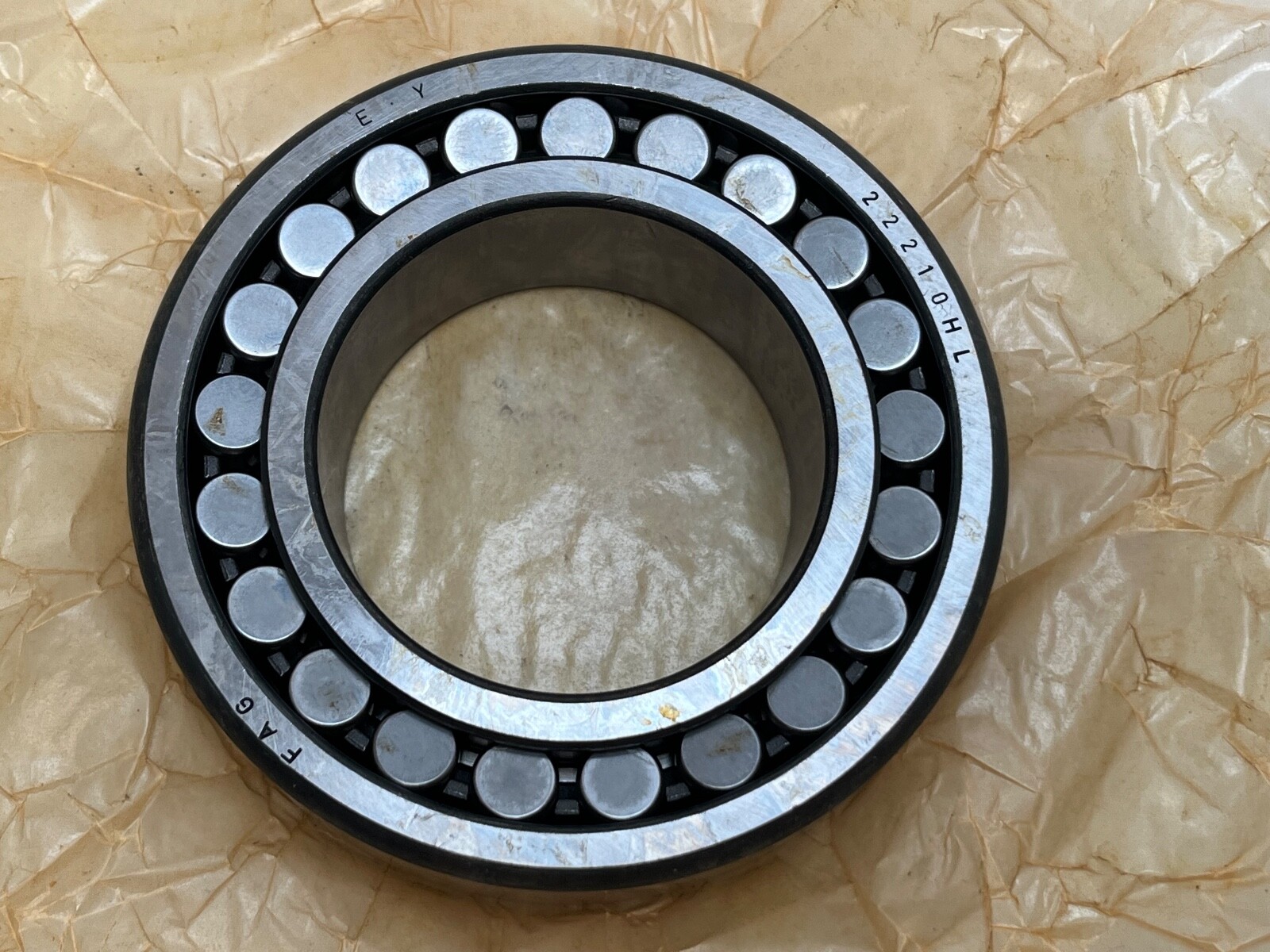

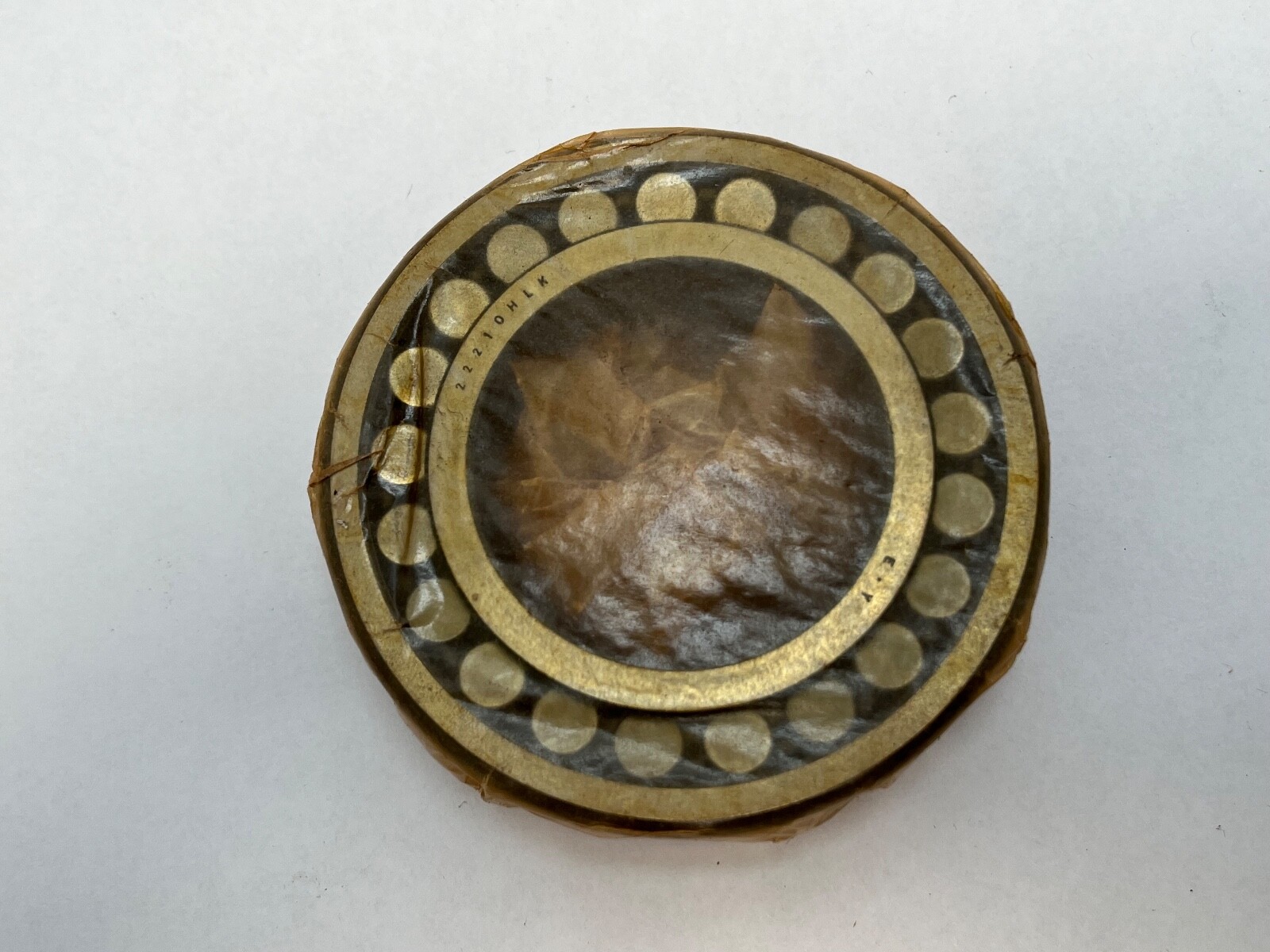

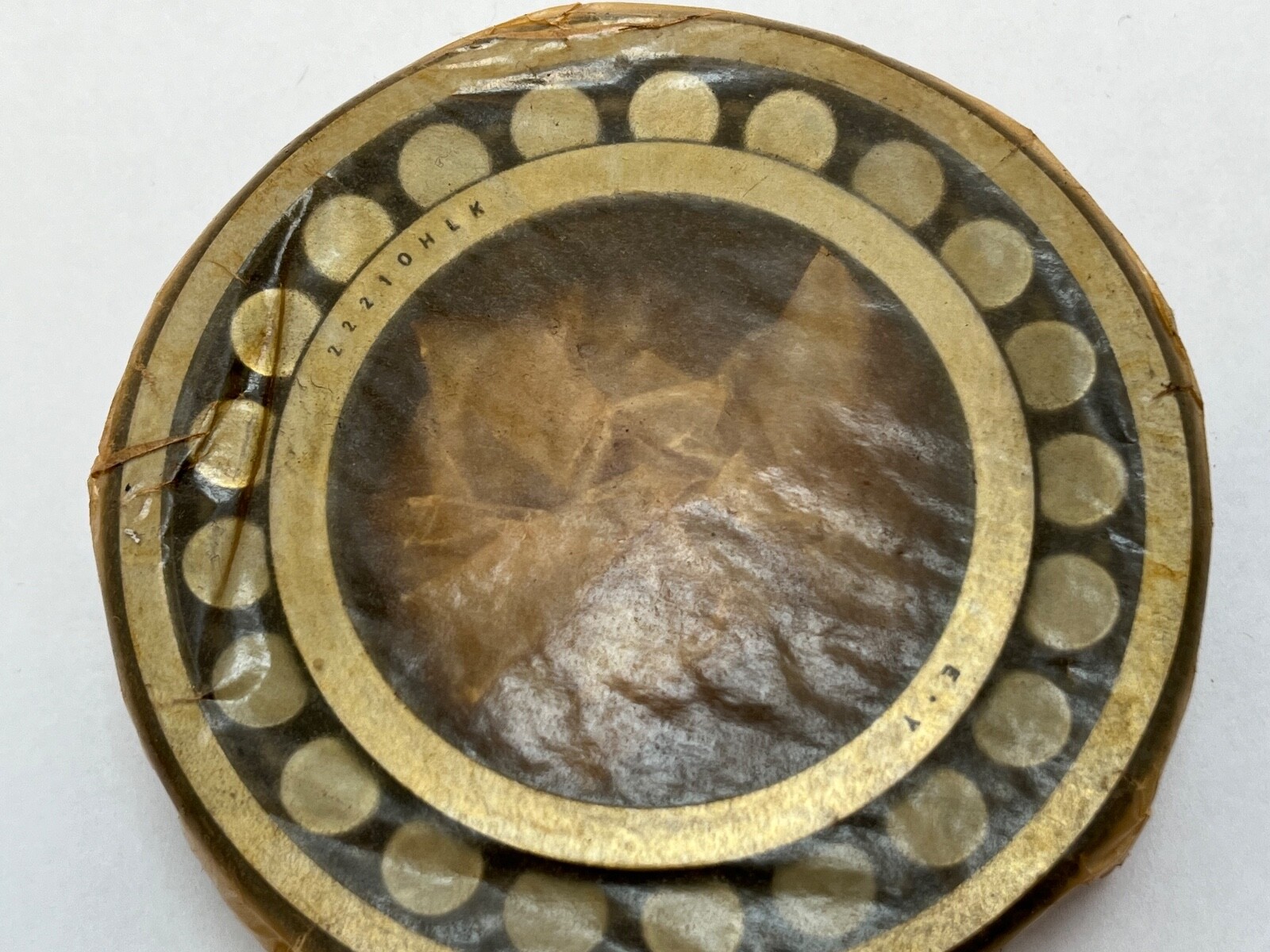

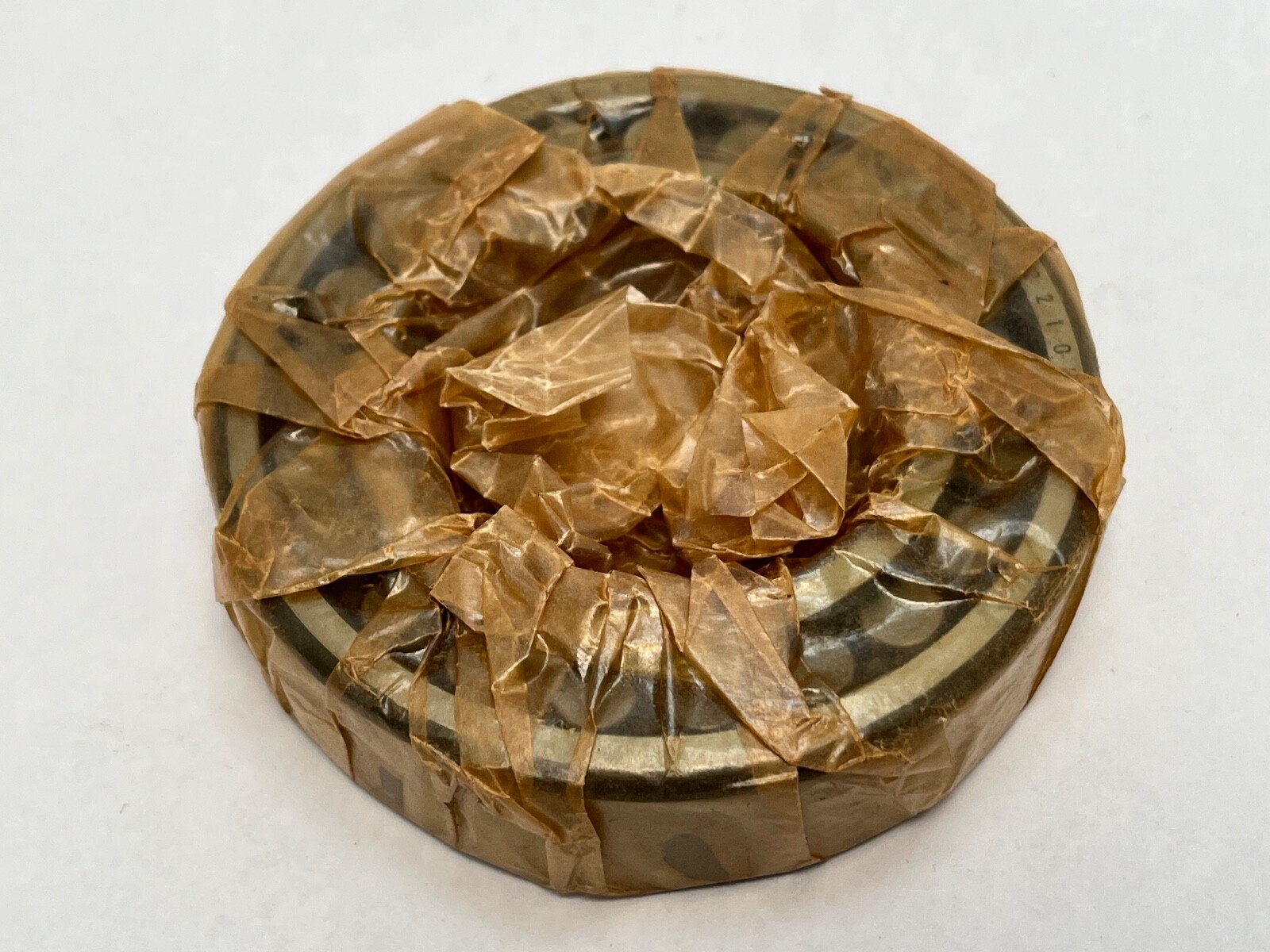

FAG 22210HLK (22210-HL-K) is a double-row spherical roller bearing with a 1:12 tapered bore. Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 23 mm. Series: 222. Bore Type: Tapered 1:12. Internal Clearance: CN. Number Of Rows: 2. The bearing is self-aligning and takes radial load plus axial load in both directions.
22210 — spherical roller bearing, dimension series 222, bore code 10 = 50 mm.
K — tapered bore, taper 1:12.
No clearance suffix — normal radial internal clearance (CN).
Successor 22210-E1-XL-K data: Dynamic Load Rating: 109,000 N. Static Load Rating: 107,000 N. Limiting Speed: 9,800 rpm. Reference Speed: 5,100 rpm. Item Weight: 0.585 kg (1.29 lb). Rolling Elements: Spherical Roller. Seal Type: Open. Unit Quantity: 1 Pc.
Bore Diameter: 50 mm, tapered 1:12. Outside Diameter: 90 mm. Overall Width: 23 mm. Successor 22210-E1-XL-K data: Minimum shaft shoulder diameter: 57 mm. Maximum shaft shoulder diameter: 59 mm. Maximum housing shoulder diameter: 83 mm. Maximum fillet radius: 1 mm. Minimum chamfer: 1.1 mm. Related adapter sleeve: H310 (45 mm shaft seat), with KM10 locknut and MB10 washer.
Current Schaeffler equivalent: FAG 22210-E1-XL-K. Same-envelope equivalents: SKF 22210 EK, Timken 22210EJW33K, NSK 22210EAKE4, NTN 22210EAKD1, Koyo 22210RHRK. All share the 50 x 90 x 23 mm envelope and 1:12 tapered bore.
Bore Diameter is 50 mm, Outside Diameter is 90 mm and Overall Width is 23 mm.
The bore is tapered 1:12 (K) and Internal Clearance is CN, normal radial clearance.
Successor 22210-E1-XL-K data: Dynamic Load Rating is 109,000 N, Static Load Rating is 107,000 N and Limiting Speed is 9,800 rpm.
