Single-row barrel roller bearing, 75 x 160 x 37 mm, cylindrical bore, machined brass cage, C3 clearance, radial load only. 1 Pc.
List Price
$221.03
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | 20315MBC3 |
| Model | 20315 MB C3 / 20315 M C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 75 mm |
| OD | 160 mm |
| Width | 37 mm |
| Material | Bearing Steel |
|---|---|
| Series | 20300 |
| Condition | New |
| Lubricant | Oil/Grease |
| Running Accuracy | P0 |
| Unspsc | 31171512 |
| Base Number | 20315 |
| Industry Terms | barrel roller bearing, single row barrel roller, self-aligning roller bearing, tonnenlager, radial roller bearing |
| Common Misspellings | FAG 20315MBC-3, 2O315MB, 20315 M.B. C3, FAG 20315NB, FAG 20315MB C3 spherical |
| Application Types | Rolling mills, crushers, vibrating screens, heavy gearboxes, paper machinery |
| Bore Shaft Size | 75 mm (2.9528 in) |
| Mpn Variants | 20315MB.C3, 20315MBC3, 20315-MB-C3, 20315 MB C3, 20315MB, 20315-MB, 20315M, 20315MC3, 20315 |
| Arrangement Configuration | Single bearing, cylindrical bore, radial load only |
| Min Temp | -30 °C |
| Cage Type | Machined Brass |
| Dynamic Load Rating | 216 kN / 48550 lbf |
| Static Load Rating | 255 kN / 57320 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Roller |
| Max Temp | 200 °C |
| Item Weight | 8.20 lbs |
| Cage Material | Brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.50.0000 |
| Design Units | Metric |
| Internal Clearance | C3 |
| Part Number | 20315-MB-C3 |
| Cross Reference 1 | SKF 20315 M |
|---|---|
| Cross Reference 2 | NSK 20315M |
| Cross Reference 3 | Schaeffler 20315-MB-C3 |

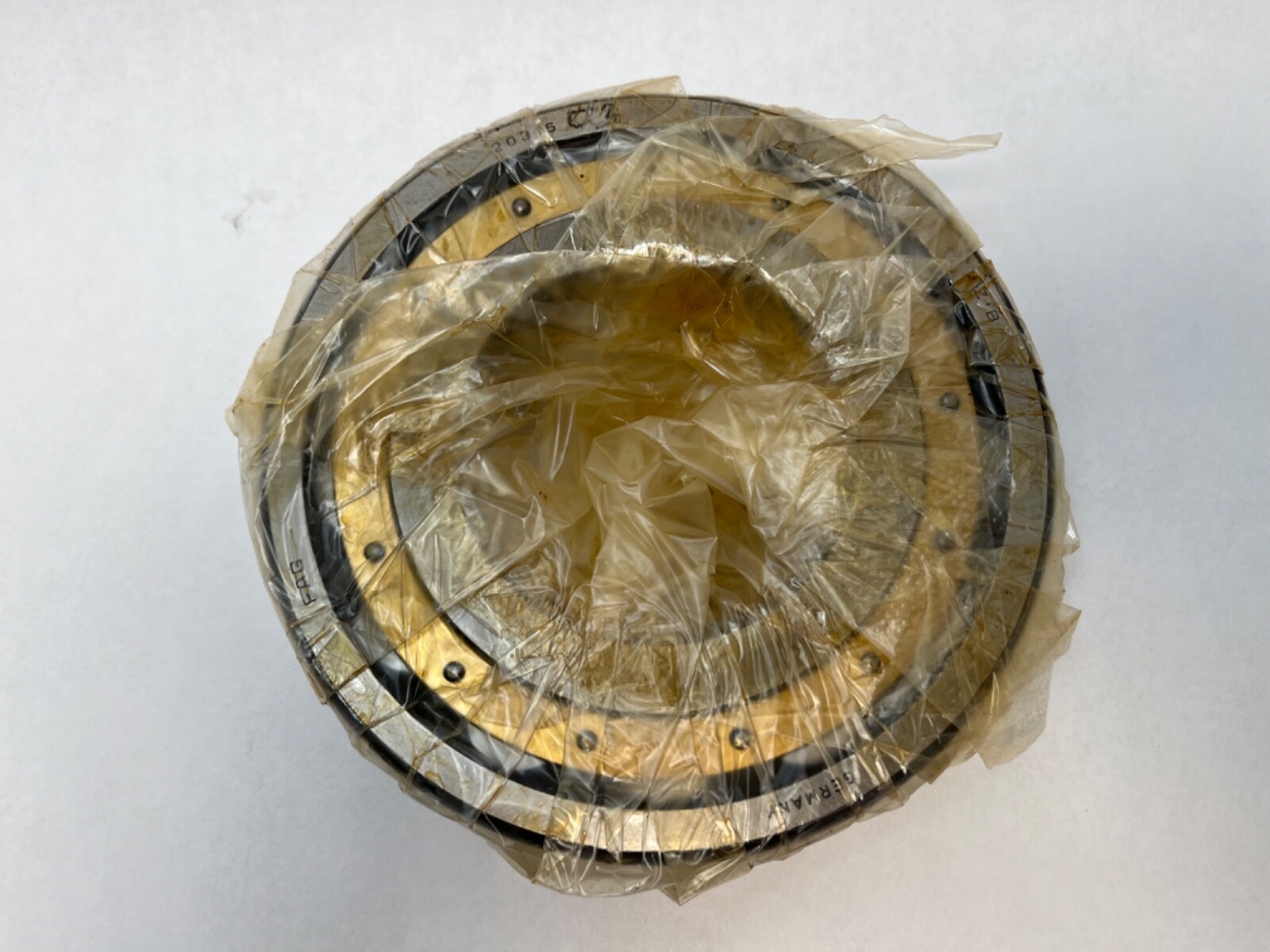

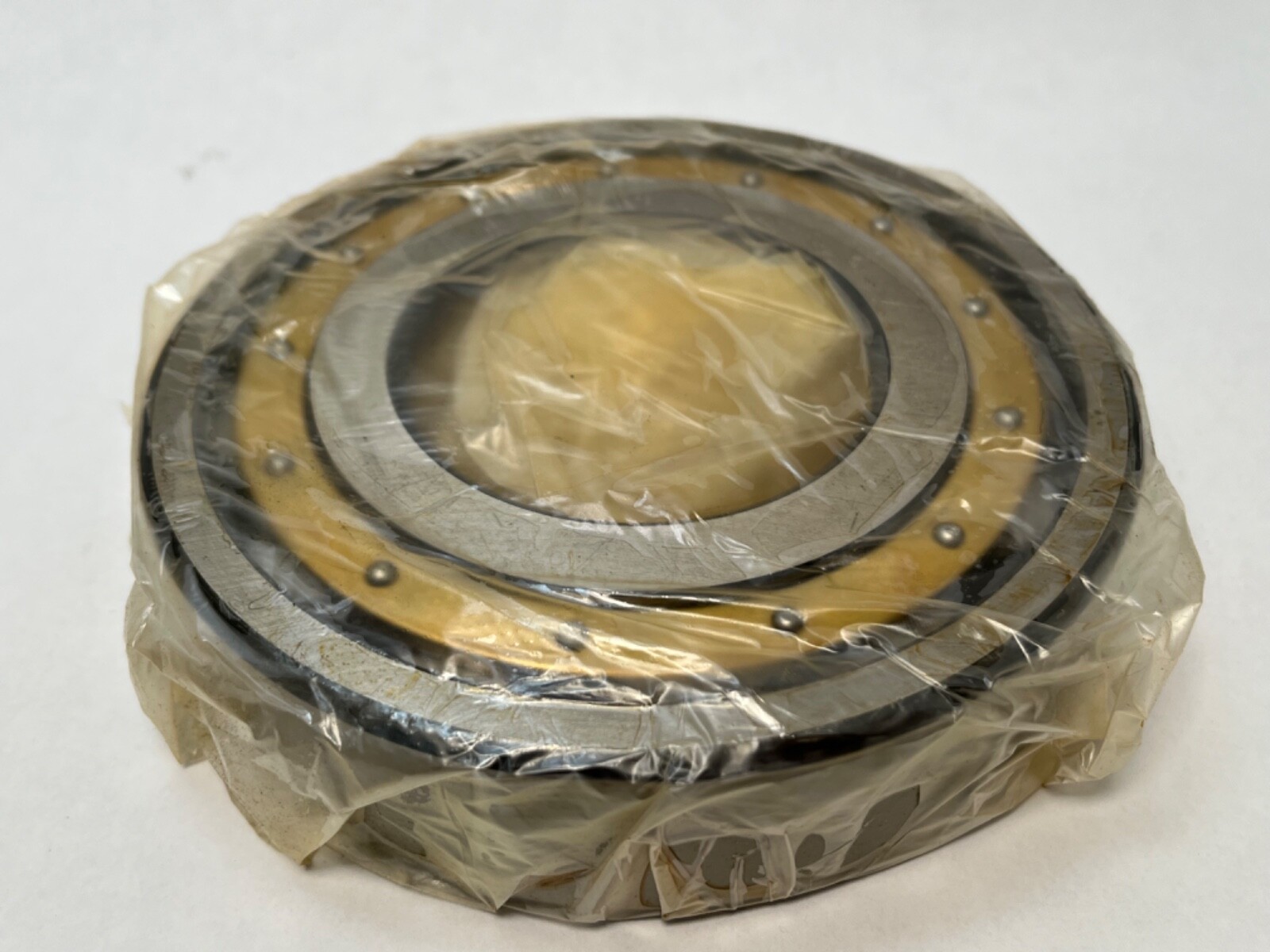

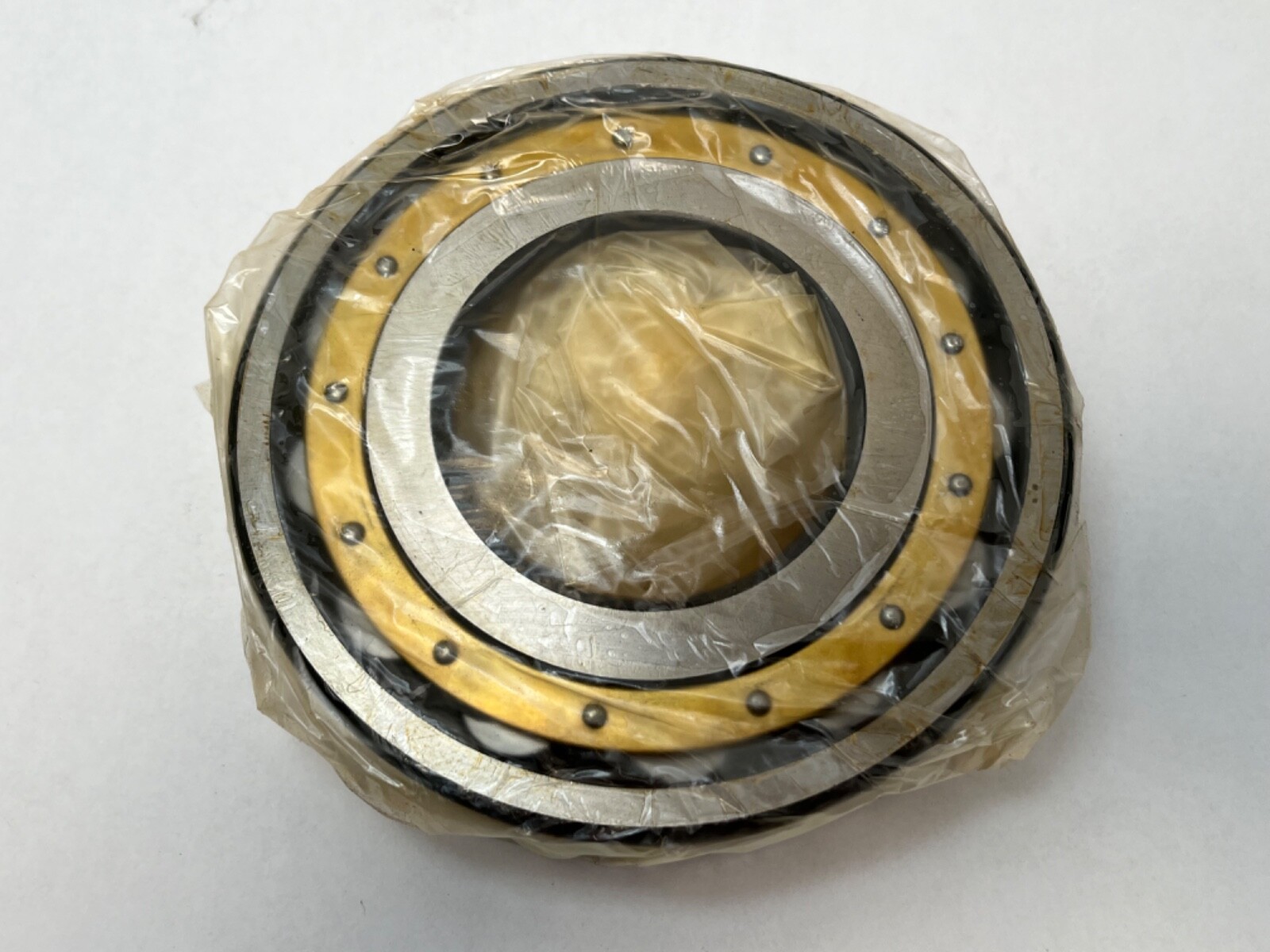

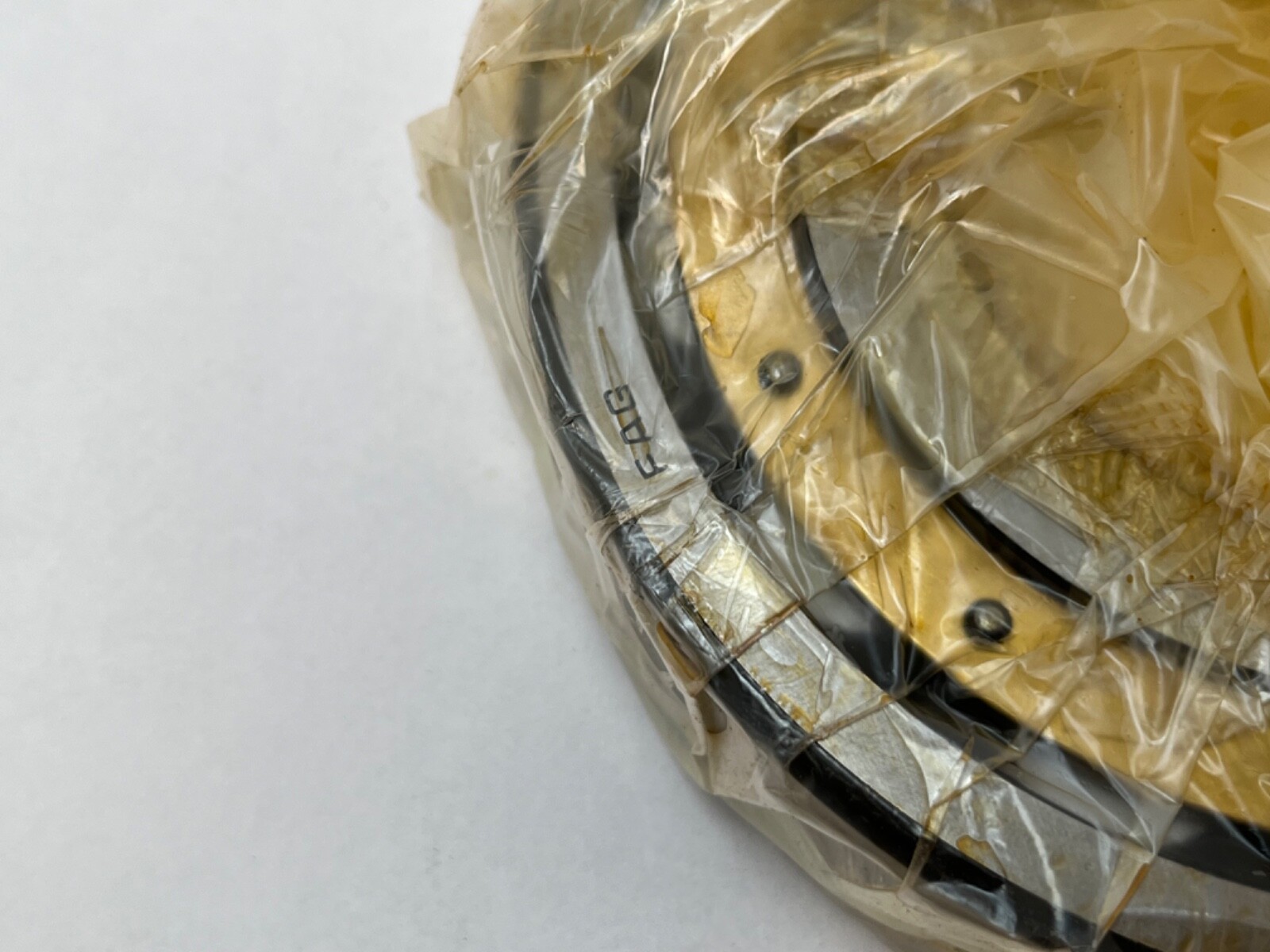

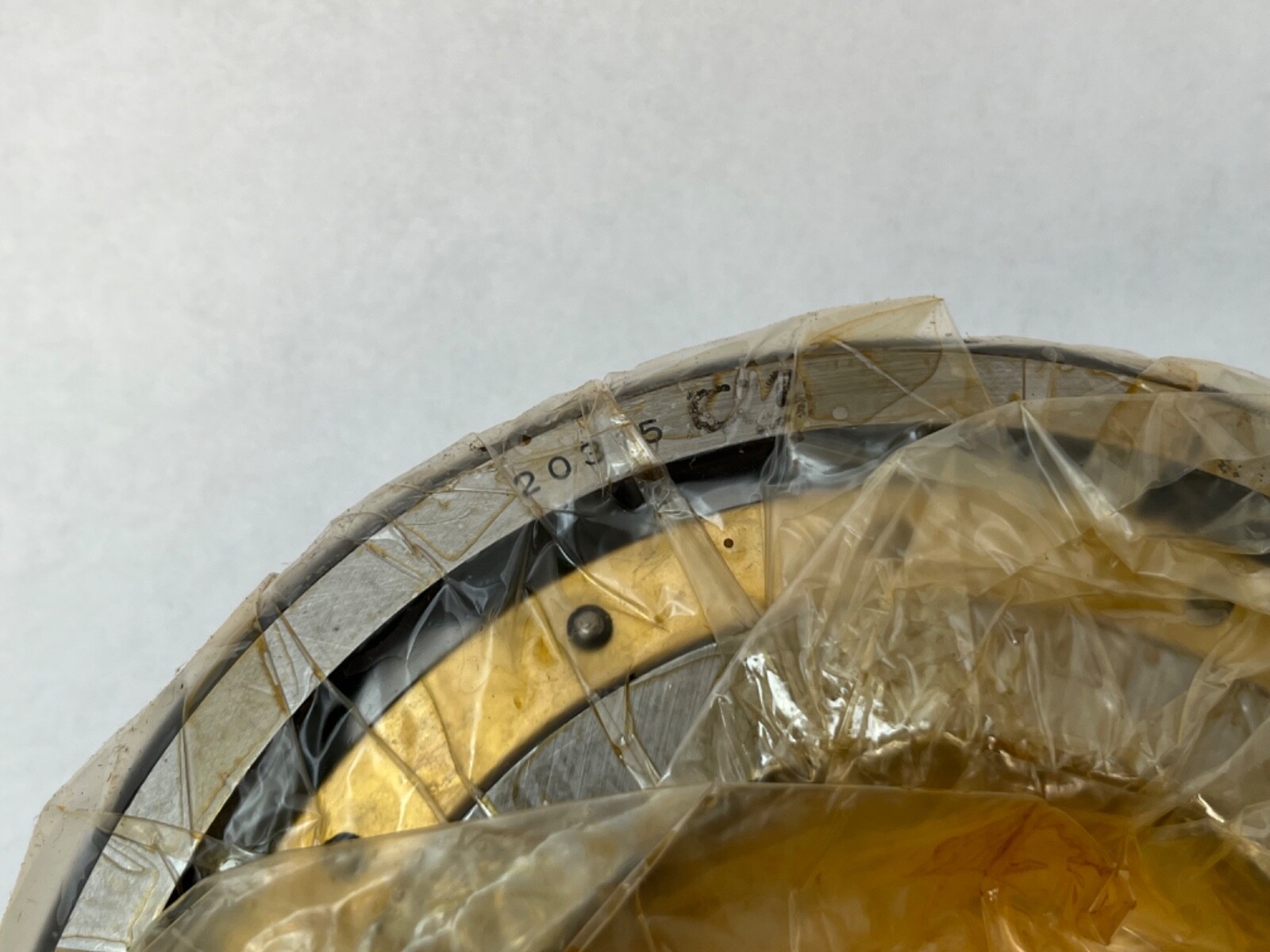

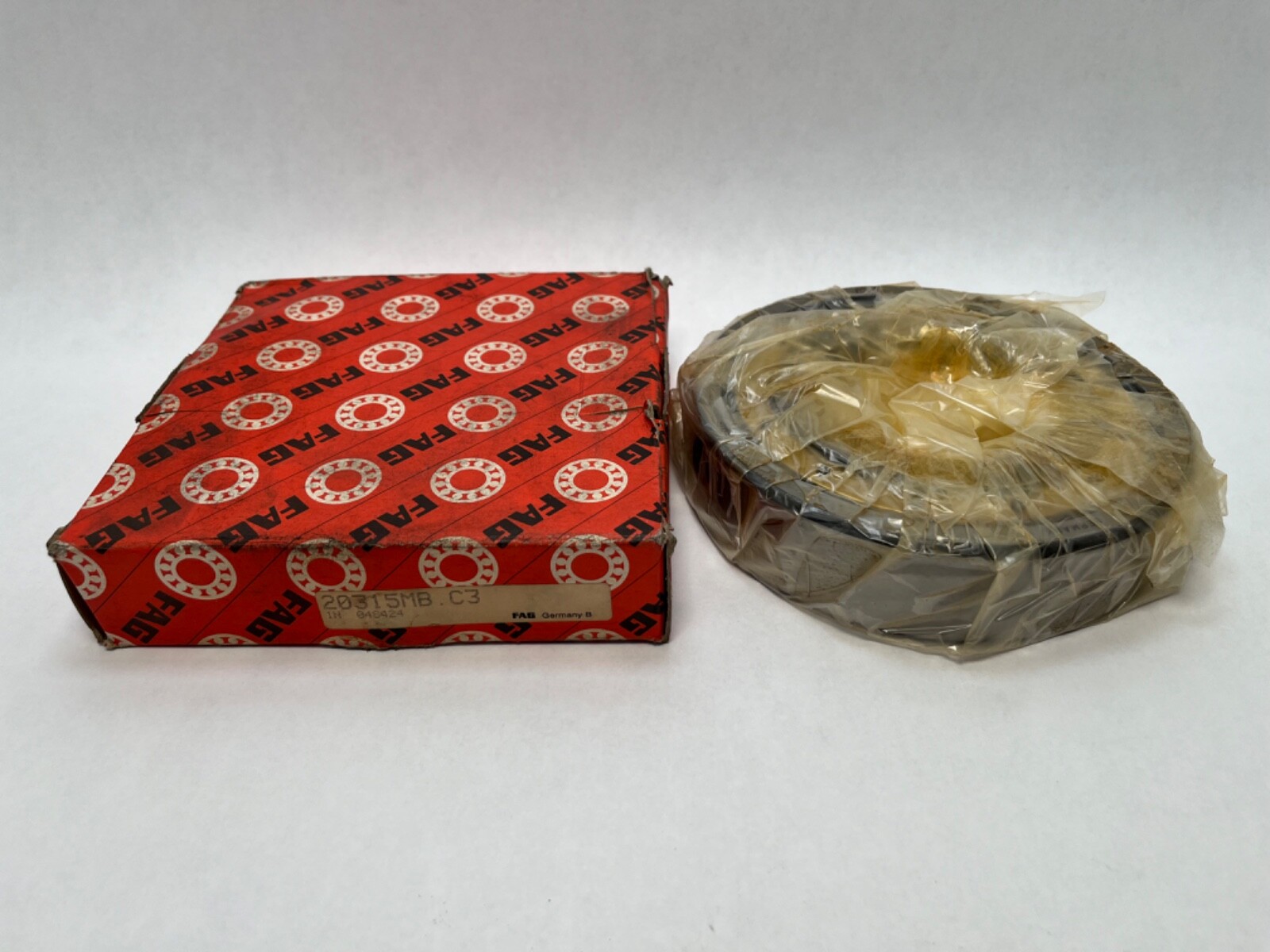

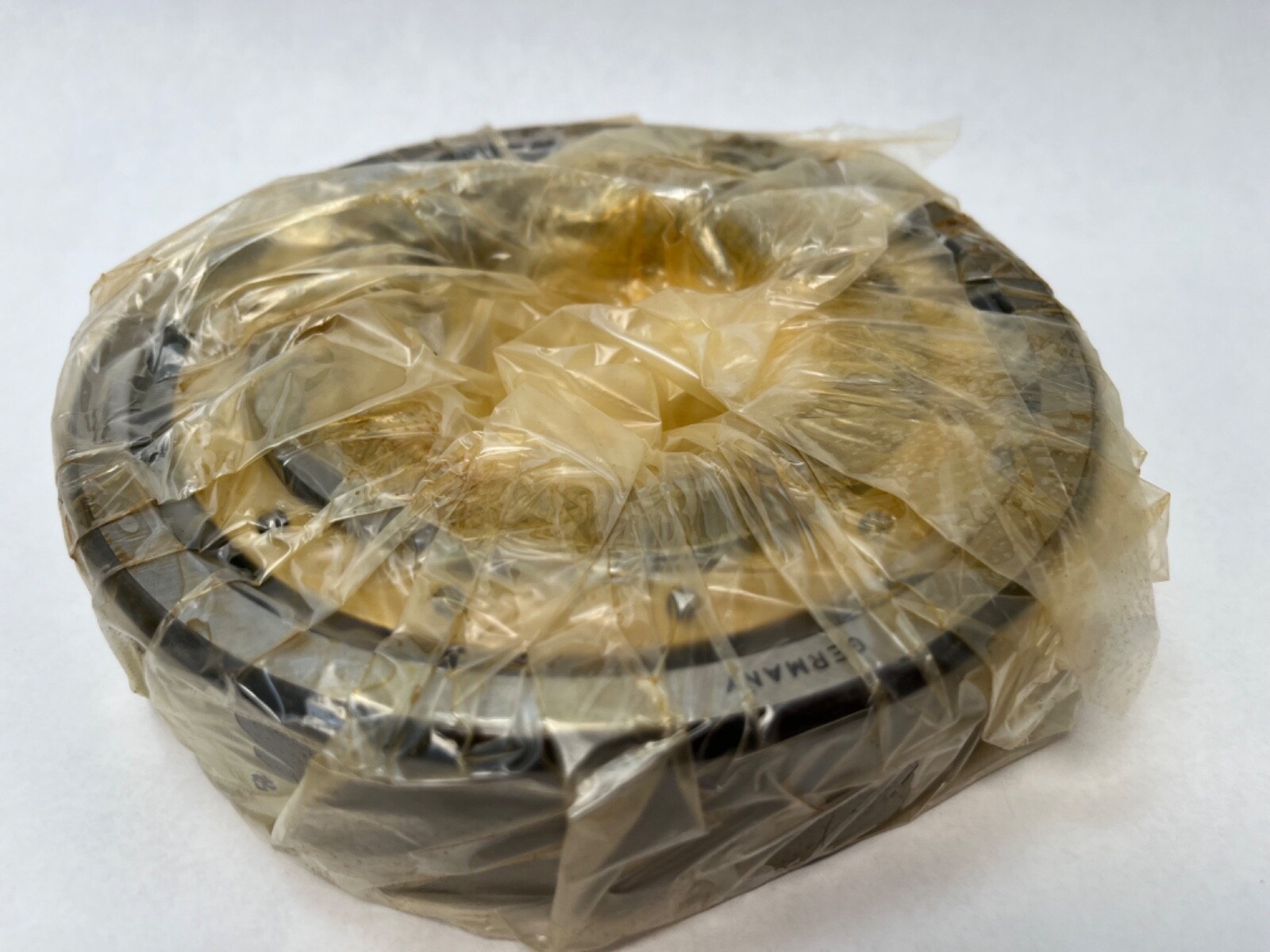

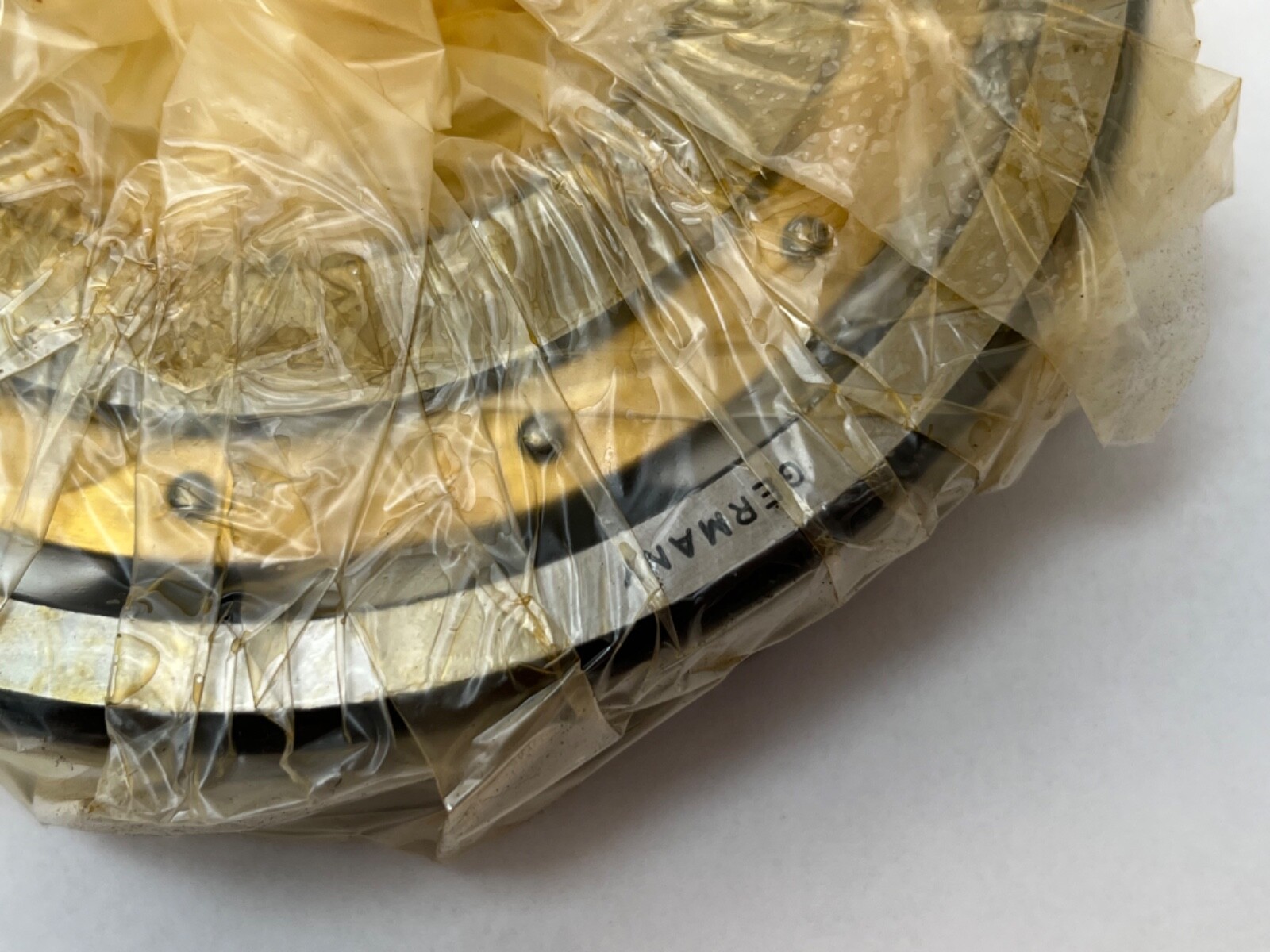

A single-row barrel roller bearing, 75 mm bore × 160 mm outside diameter × 37 mm width, with a cylindrical bore and a machined brass cage.
203 — single-row barrel roller bearing, 20300 dimension series.
15 — bore code, giving a 75 mm bore.
MB — machined brass cage.
C3 — radial internal clearance greater than normal.
A barrel roller runs one row of convex rollers against a concave outer raceway, which makes the bearing self-aligning and tolerant of shaft deflection and housing misalignment. That single-row geometry carries radial load only and has no axial capacity, so the axial location of the shaft is set elsewhere in the arrangement. A double-row spherical roller in a comparable envelope does take thrust in both directions, which is the practical difference between the two types.
A machined brass cage tolerates higher temperature and more shock and vibration than a pressed steel cage, and suits oil lubrication and heavier loads. C3 clearance leaves extra room for the thermal growth of an interference-fitted inner ring, so it is the usual choice where the inner ring runs hot relative to the housing.
Bore: 75 mm (2.9528 in)
Outside diameter: 160 mm (6.2992 in)
Width: 37 mm (1.4567 in)
Bearing type: single-row barrel roller
Rows: 1
Bore type: cylindrical
Cage: machined brass
Internal clearance: C3, greater than normal
Axial load capacity: none — radial load only
Closure: open, both faces
Single bearing, 1 Pc. Cylindrical bore, so no adapter sleeve or withdrawal sleeve is part of the assembly.
The cylindrical bore mounts directly on a ground shaft seat to an interference fit, and the outer ring seats in a housing bore sized to allow the self-aligning function to work. Because the bearing carries no thrust, the shaft is located axially by another bearing in the arrangement.
The equivalent in other schemes is the SKF 20315 M and the NSK 20315M, both single-row barrel rollers in the same envelope. The 20315-K variant has a 1:12 tapered bore and mounts on an adapter sleeve, and the 22315 is a double-row spherical roller with axial capacity — those are related sizes rather than interchanges.
