A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
3 in stock

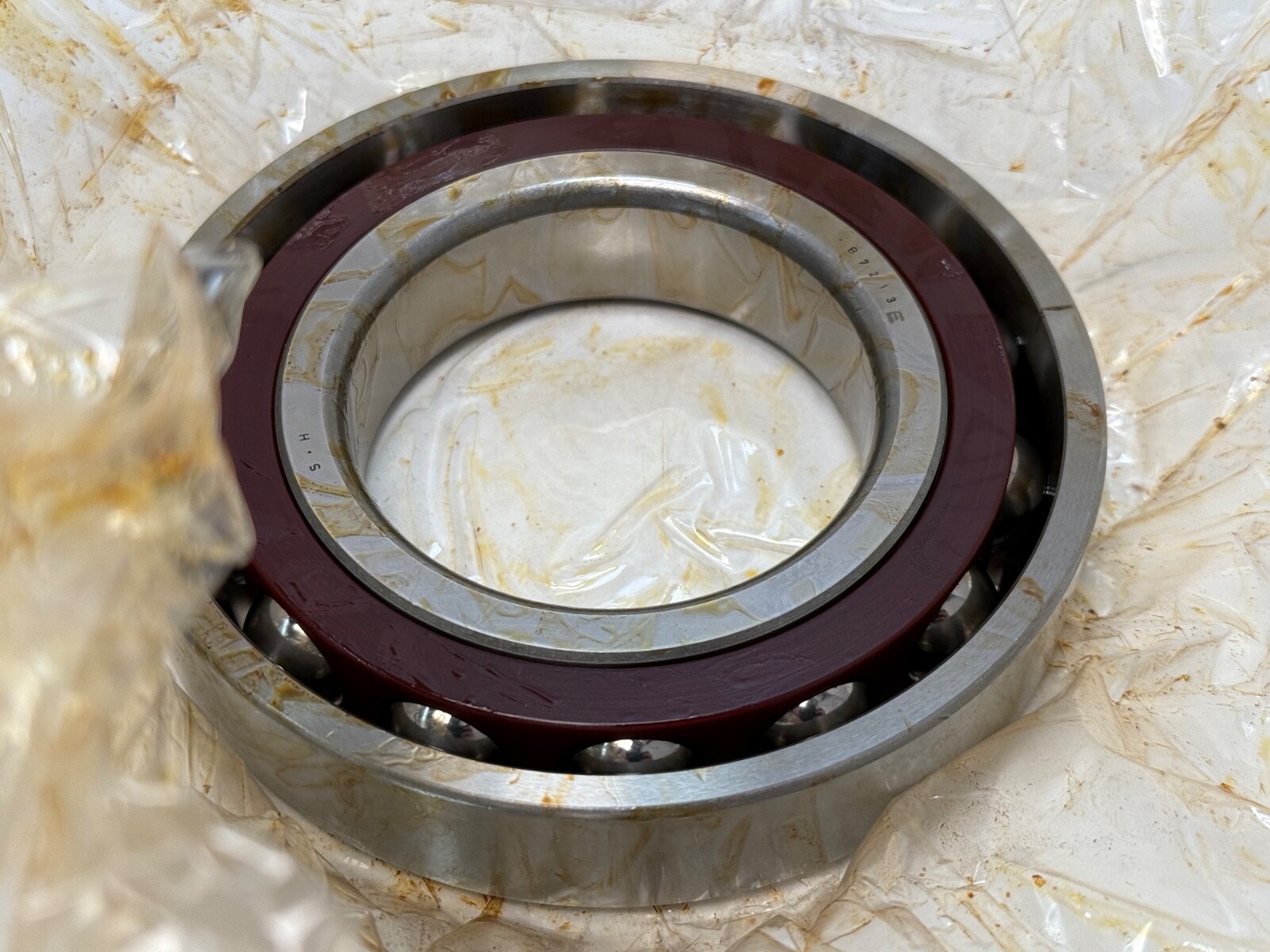

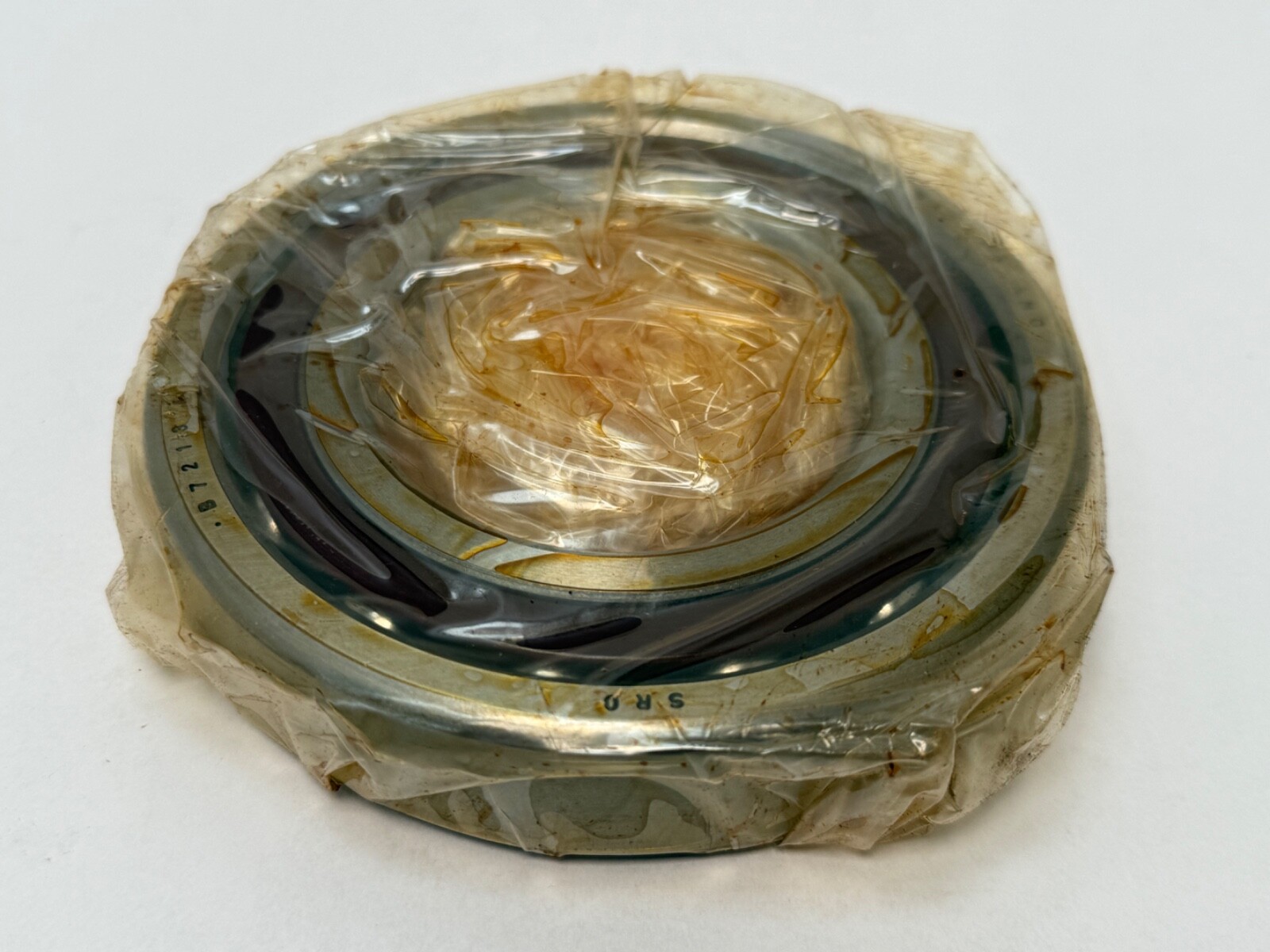

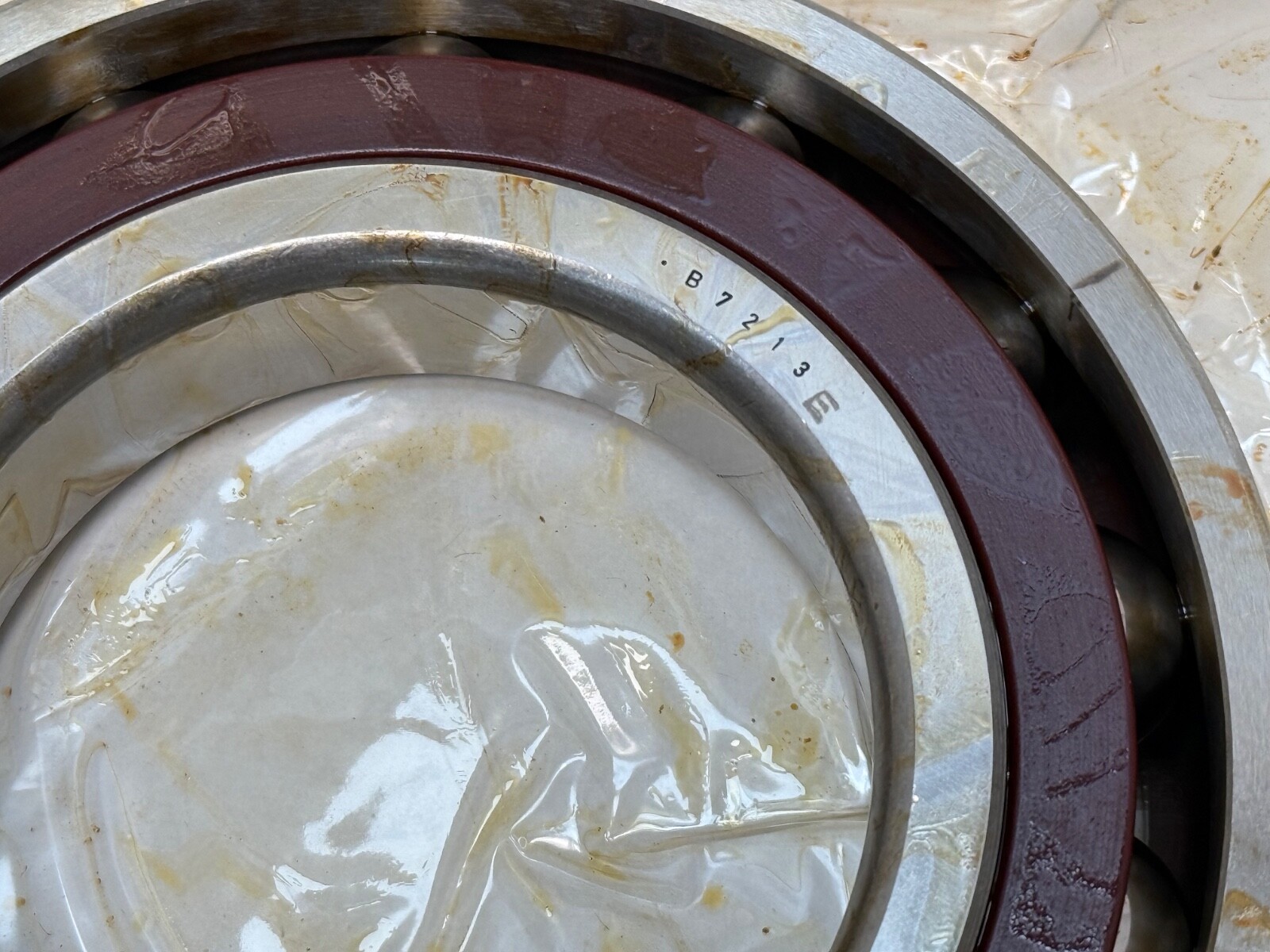

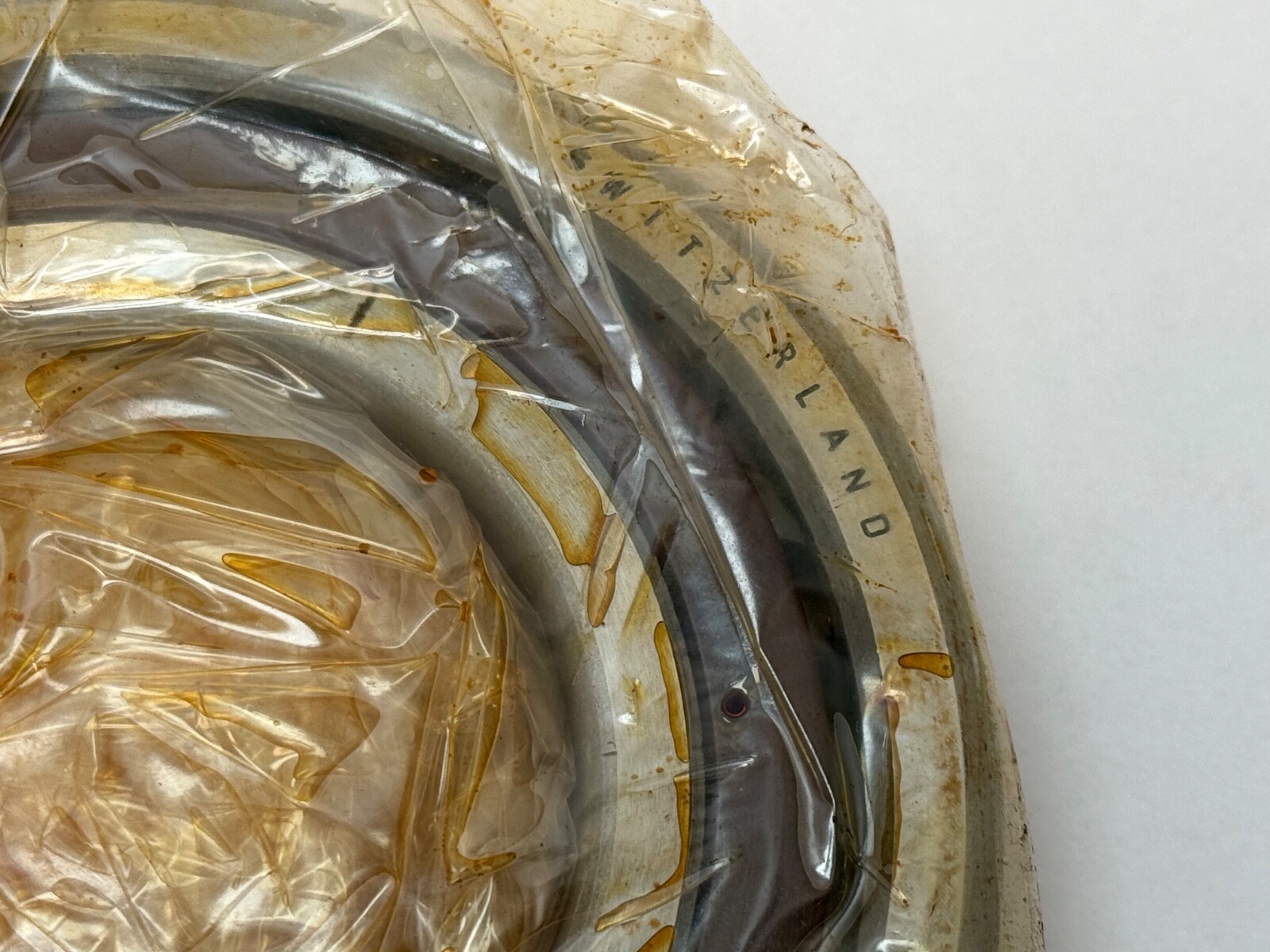

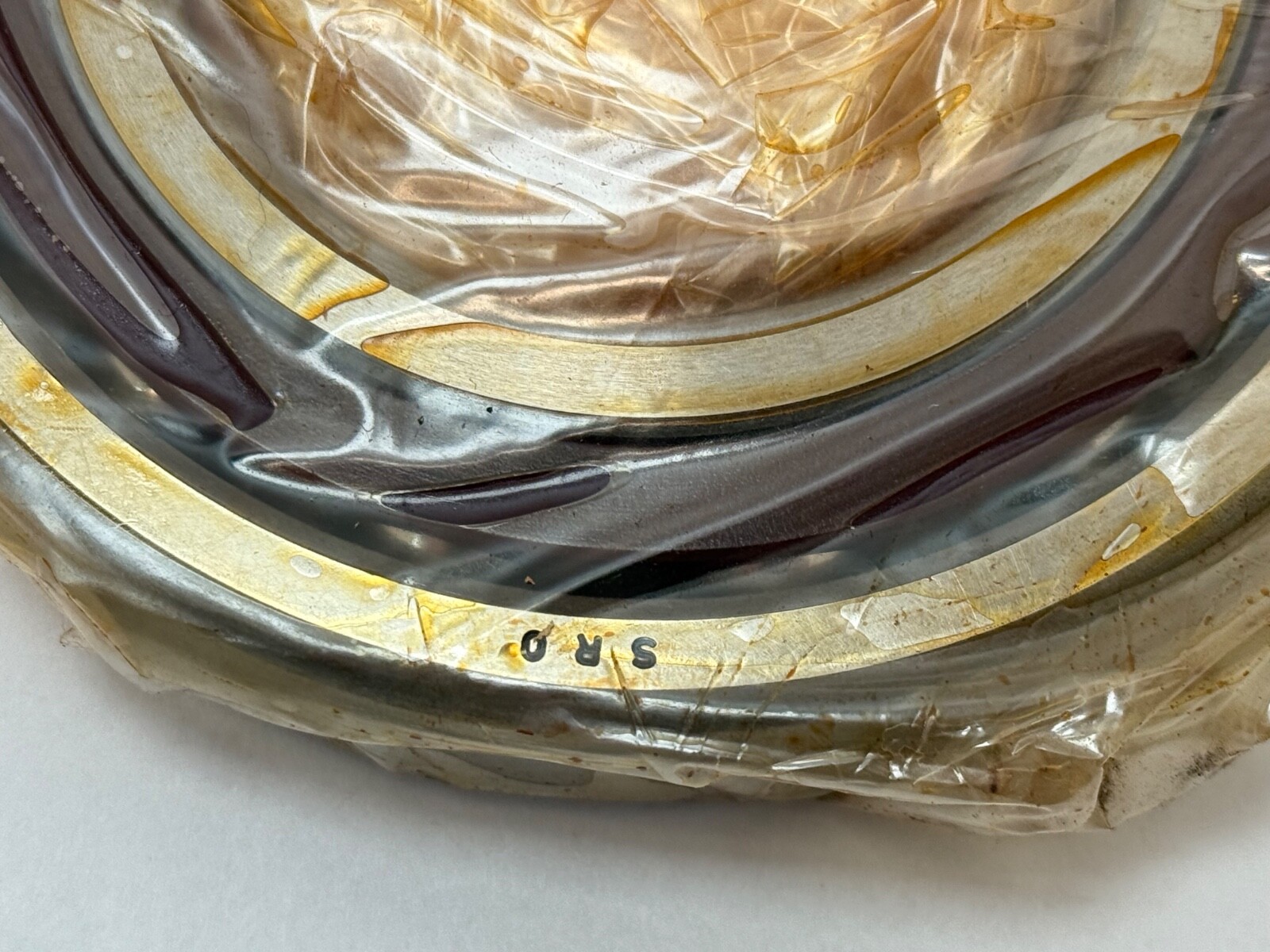

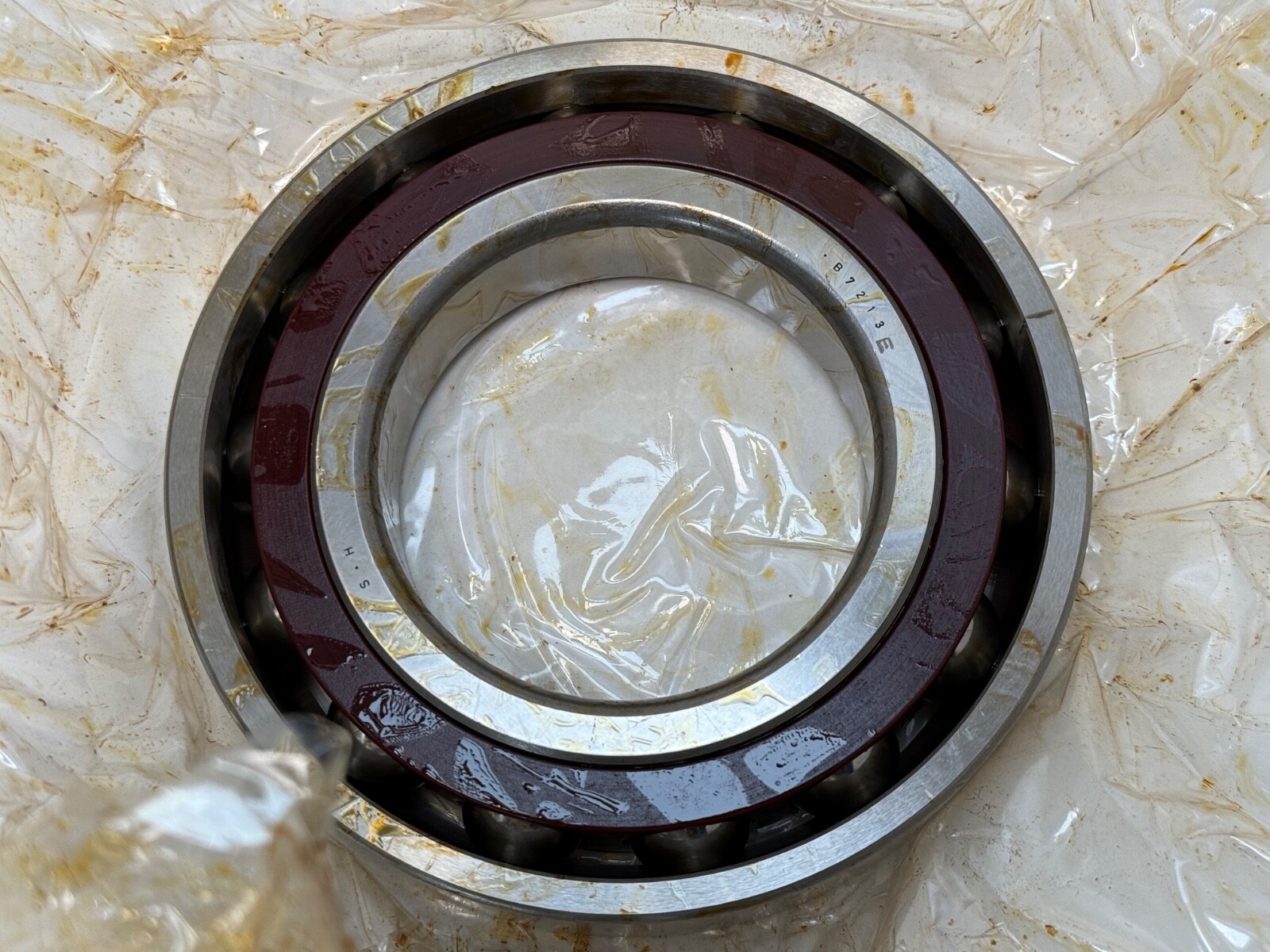

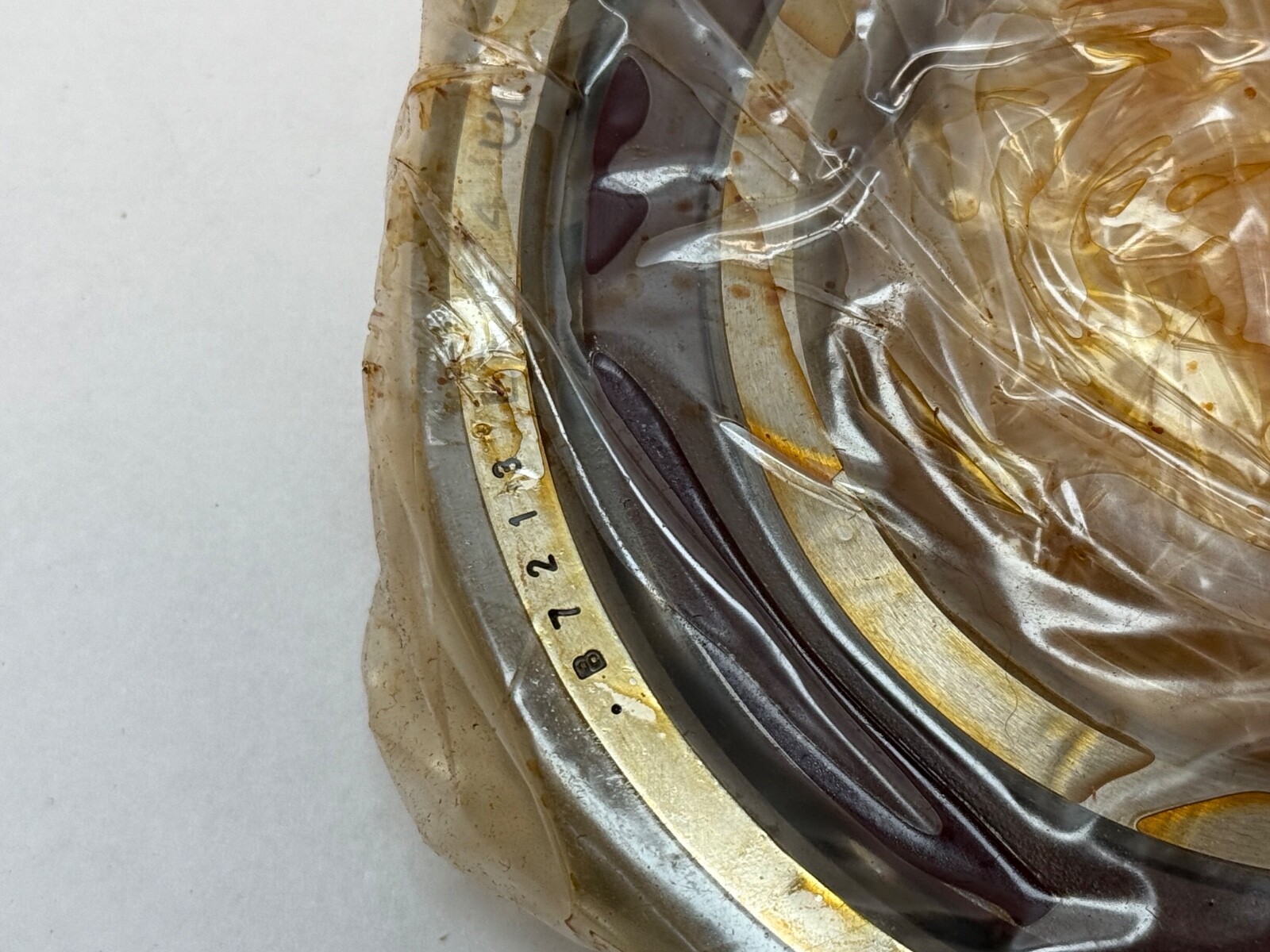

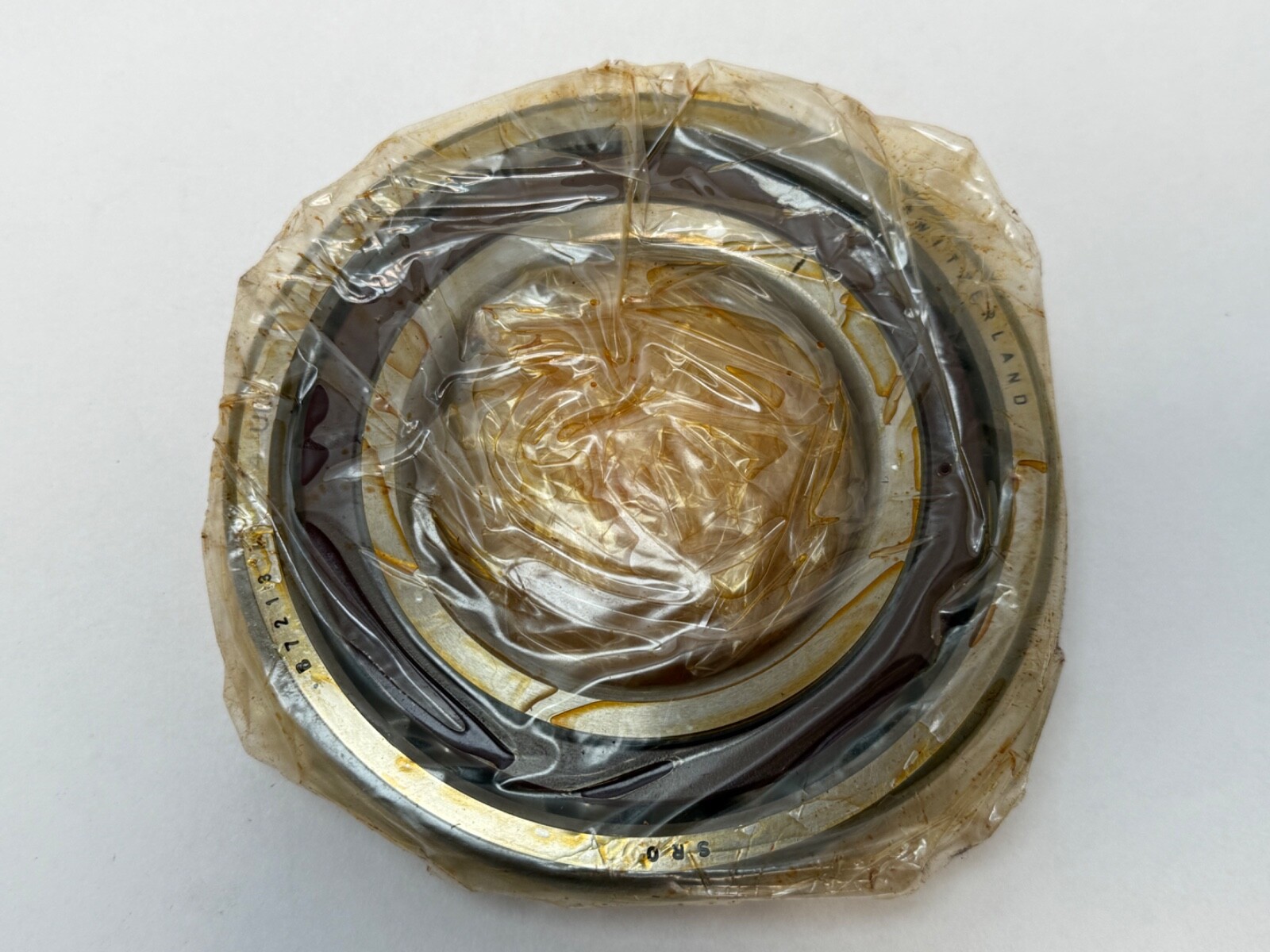

SRO 7213ETP4UL super precision angular contact ball bearing, 65 x 120 x 23 mm, 25°, P4 / ABEC 7, universal light preload, phenolic cage. ISO 7213 size.
List Price
$84.13
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SRO |
|---|---|
| Model | 7213 E T DUL P4 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Preload | Light |
|---|---|
| Closure Type | Open |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal (DB/DF/DT) |
| Base Number | 7213 |
| Industry Terms | super precision angular contact bearing, spindle bearing, universal matched bearing |
| Application Types | Machine tool spindles, precision shafts |
| Mpn Variants | 7213ETP4UL, 7213-E-T-P4-UL, 7213 E T P4 UL, 7213 E T DUL P4, 3MM213WI CR DUL |
| Precision Class | ABEC 7 / P4 |
| Cross Reference 1 | FAG B7213-E-T-P4S-UL |
|---|---|
| Cross Reference 2 | Fafnir 3MM213WI CR DUL |
| Cross Reference 3 | SKF 7213 ACD/P4ADGA - extra light preload |
The SRO 7213ETP4UL is a super precision single row angular contact ball bearing in the ISO 7213 size, universally ground for light preload. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4. Preload: Light.
7213 — single row angular contact, 02 series, 65 mm bore: 65 x 120 x 23 mm.
E — 25° contact angle.
T — phenolic cage.
P4 — ISO P4 precision, equivalent to ABEC 7.
UL — universal matching, light preload. Pairs in back-to-back, face-to-face or tandem.
Cage Material: Phenolic. Mounting Arrangement: Universal (DB/DF/DT). Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. A 25° angle carries more axial load than a 15° bearing of the same size.

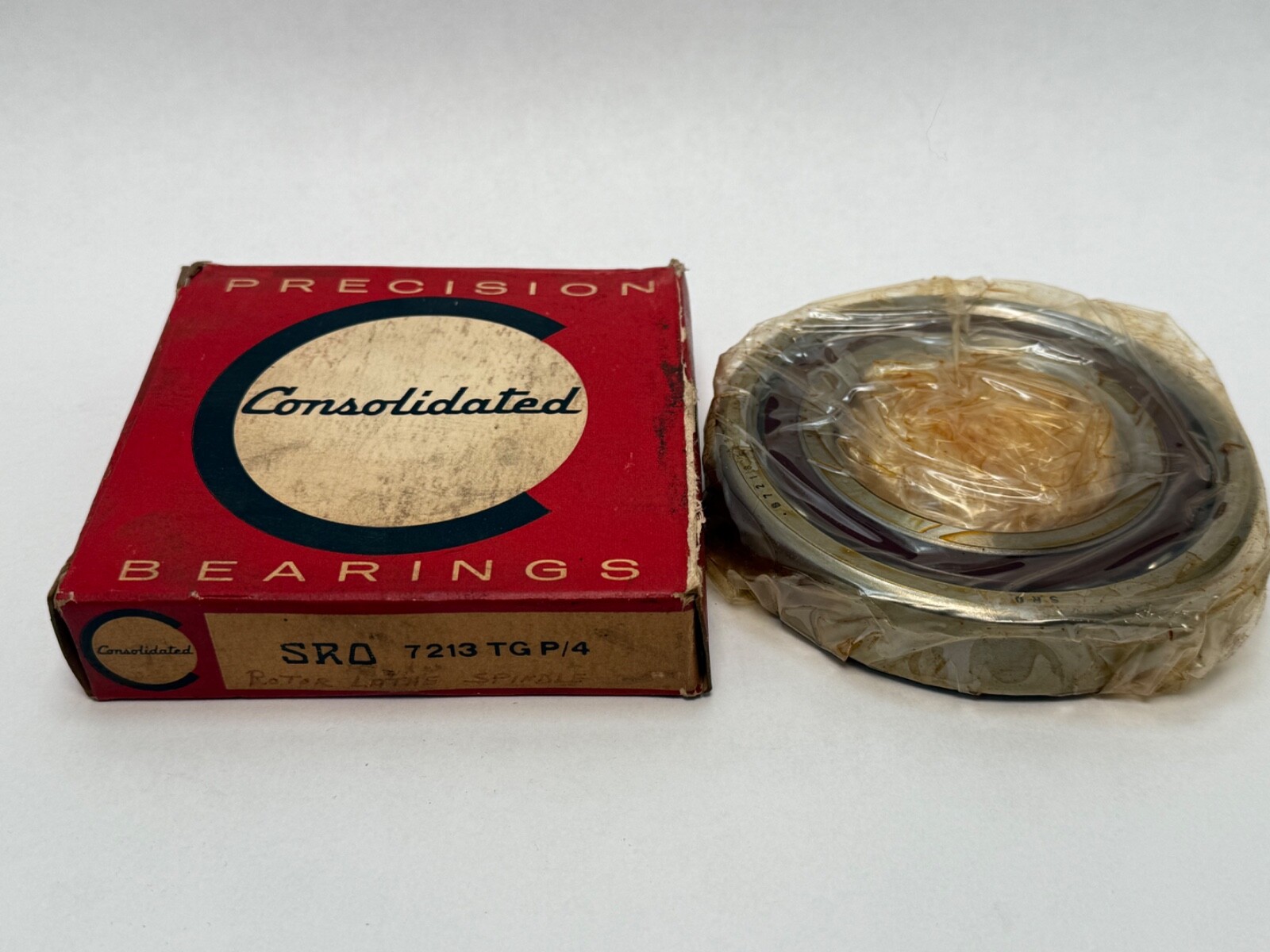

ISO 7213 envelope, 25°, P4, universal light preload. Carton cross-references: FAG 7213 E T DUL P4 and Fafnir 3MM213WI CR DUL. Also SKF 7213 ACD/P4ADGA (extra light preload).
Frequently asked questions
What is the SRO 7213ETP4UL?The SRO 7213ETP4UL is a 25° super precision angular contact ball bearing in the ISO 7213 size, P4 class, universally ground for light preload.
What size is it?Bore 65 mm, outside diameter 120 mm, width 23 mm.
What does UL mean?UL marks universal matching with light preload, so two bearings pair back-to-back, face-to-face or in tandem.
