Availability:
1 in stock

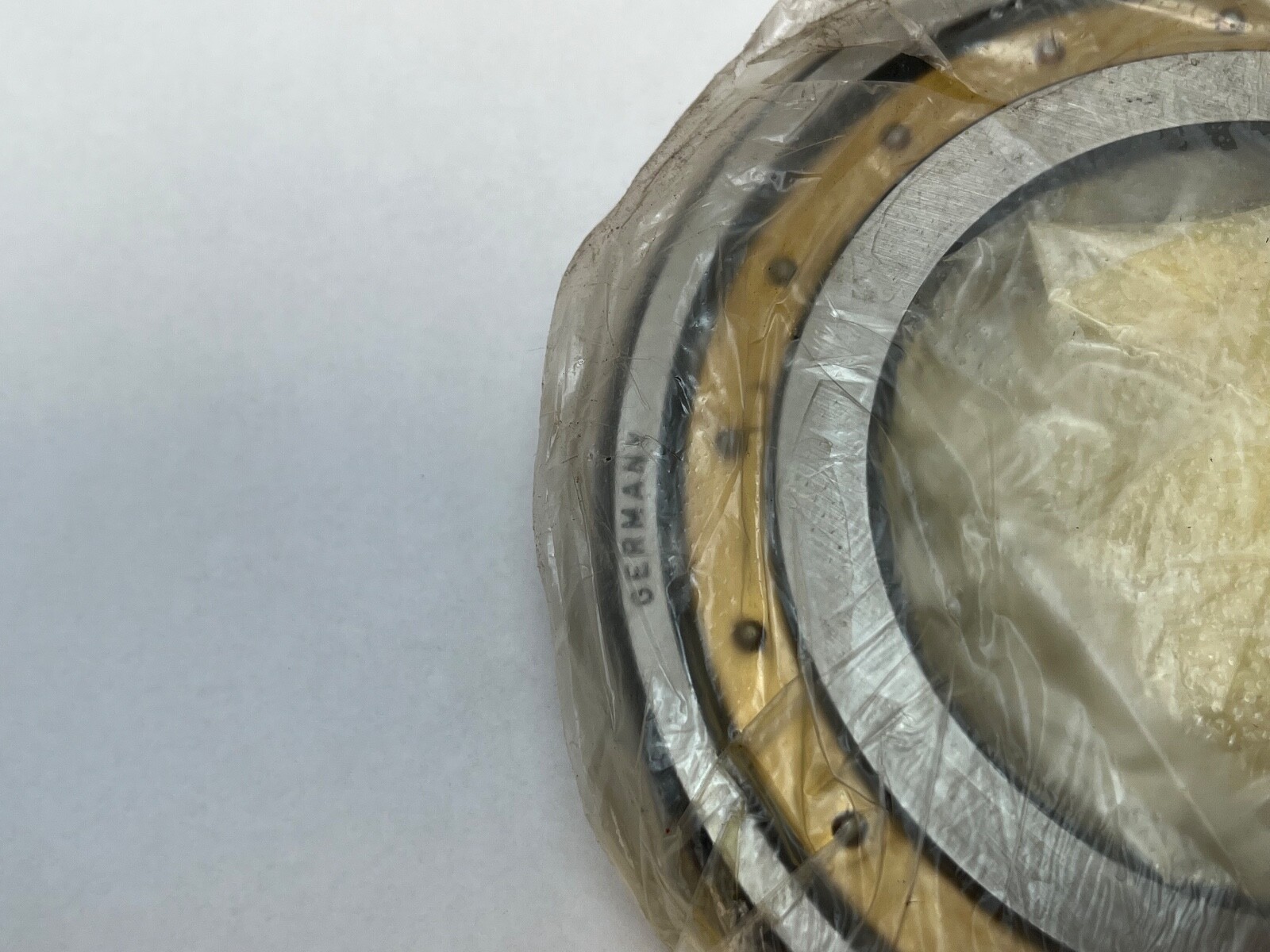

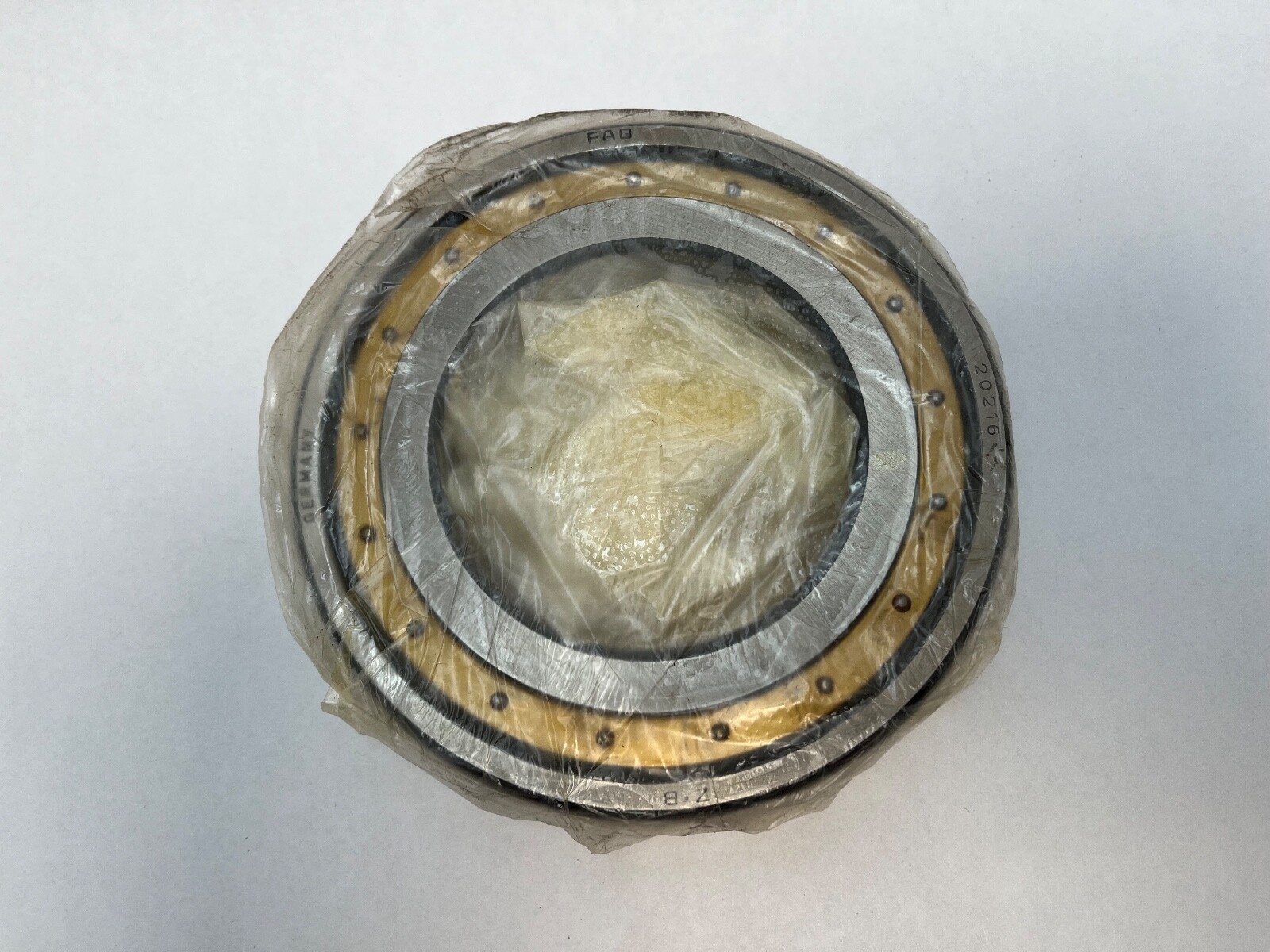

Single-row barrel roller bearing, 80 mm bore x 140 mm OD x 26 mm wide. 1:12 tapered bore, machined brass cage, C3 clearance, radial load with self-alignment. 1 Pc.
List Price
$191.23
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 20216KMBC3 |
| Model | 20216 K MB C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Material | Bearing Steel |
|---|---|
| Series | 20200 |
| Base Number | 20216 |
| Industry Terms | barrel roller bearing, self-aligning roller bearing, tapered bore roller bearing, 20200 series |
| Application Types | Paper machines, fans and blowers, crushers, long deflecting shafts, plummer block mountings |
| Bore Shaft Size | 80 mm (3.1496 in) |
| Locking Method | Tapered bore - tapered shaft seat or adapter sleeve required |
| Mpn Variants | 20216-K-MB-C3, 20216K.MB.C3, 20216KMBC3, 20216K |
| Manufacturer Status | FAG is part of Schaeffler; the same series appears in INA/FAG catalogues |
| Rolling Elements | Barrel Roller |
| Number Of Rows | 1 |
| Bore Type | Tapered |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Part Number | 20216 K MB C3 |

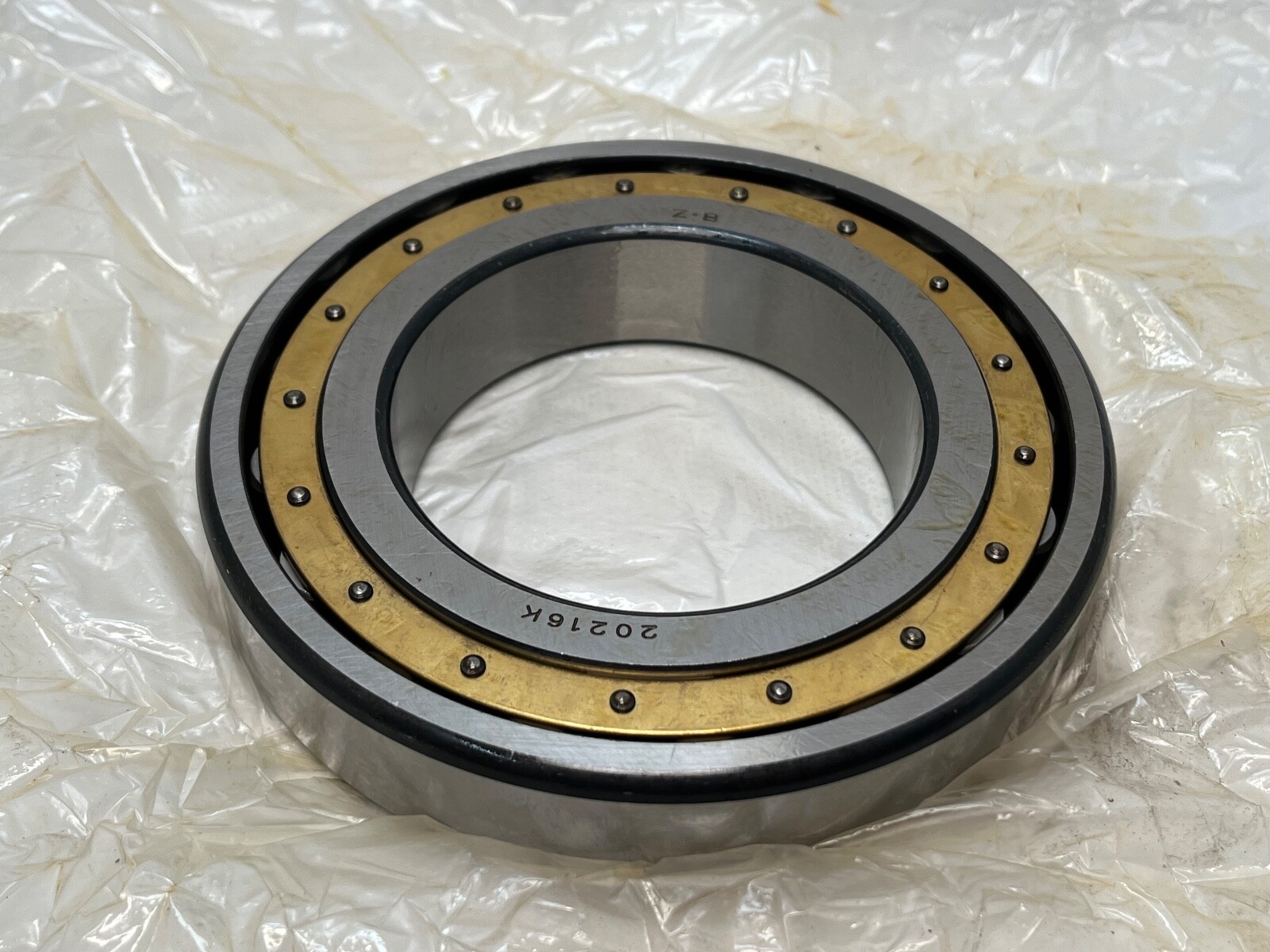

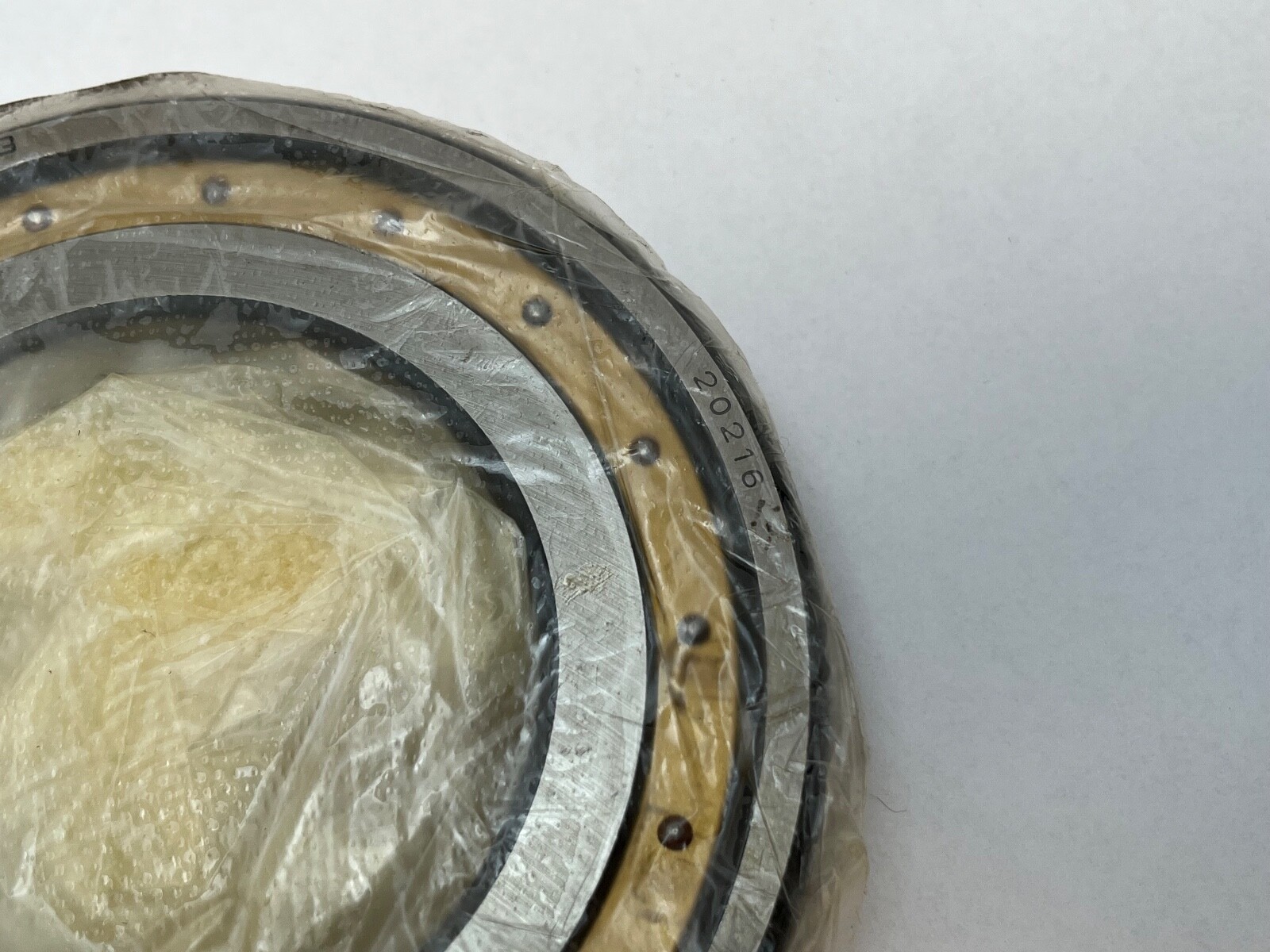

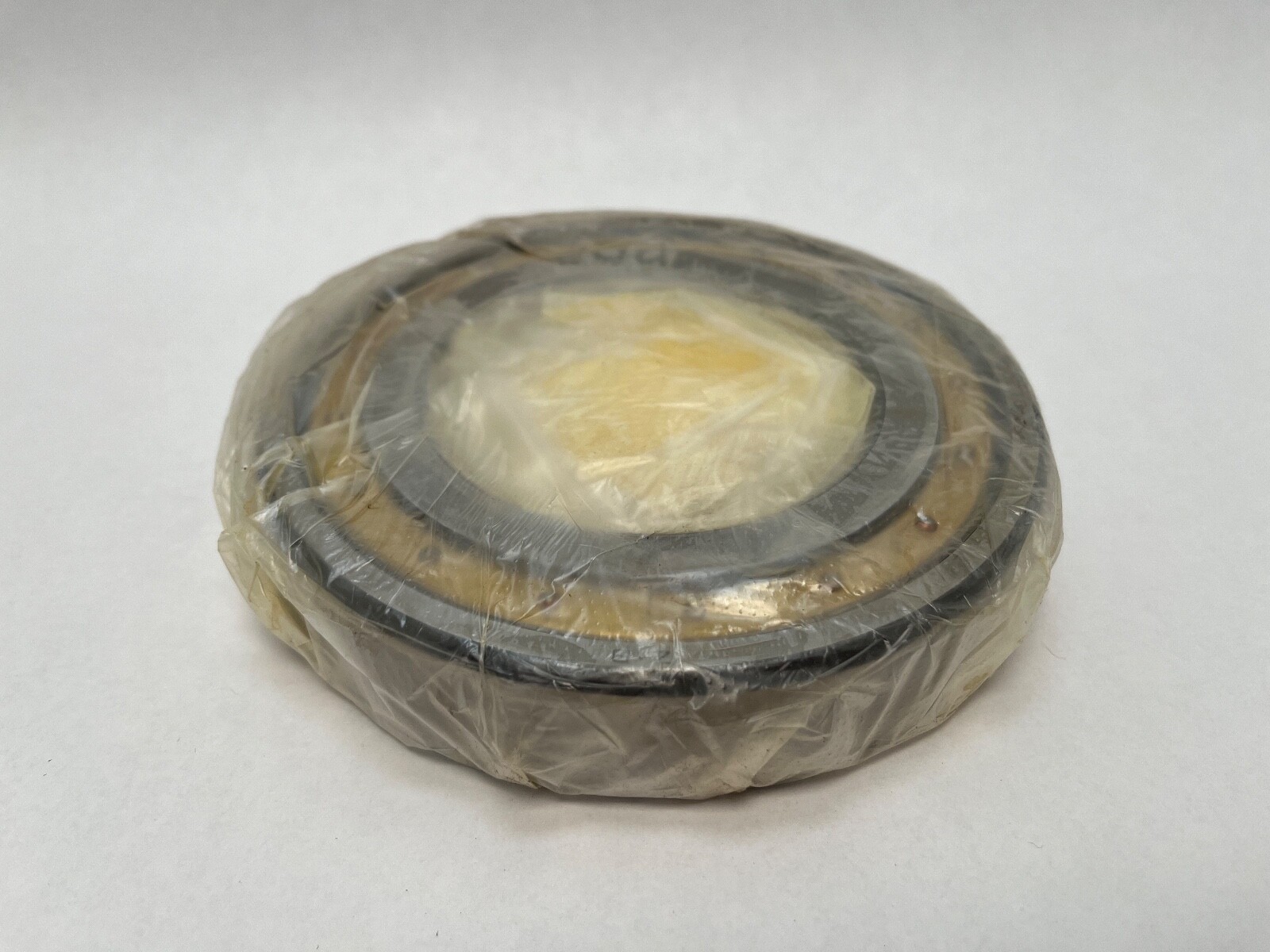

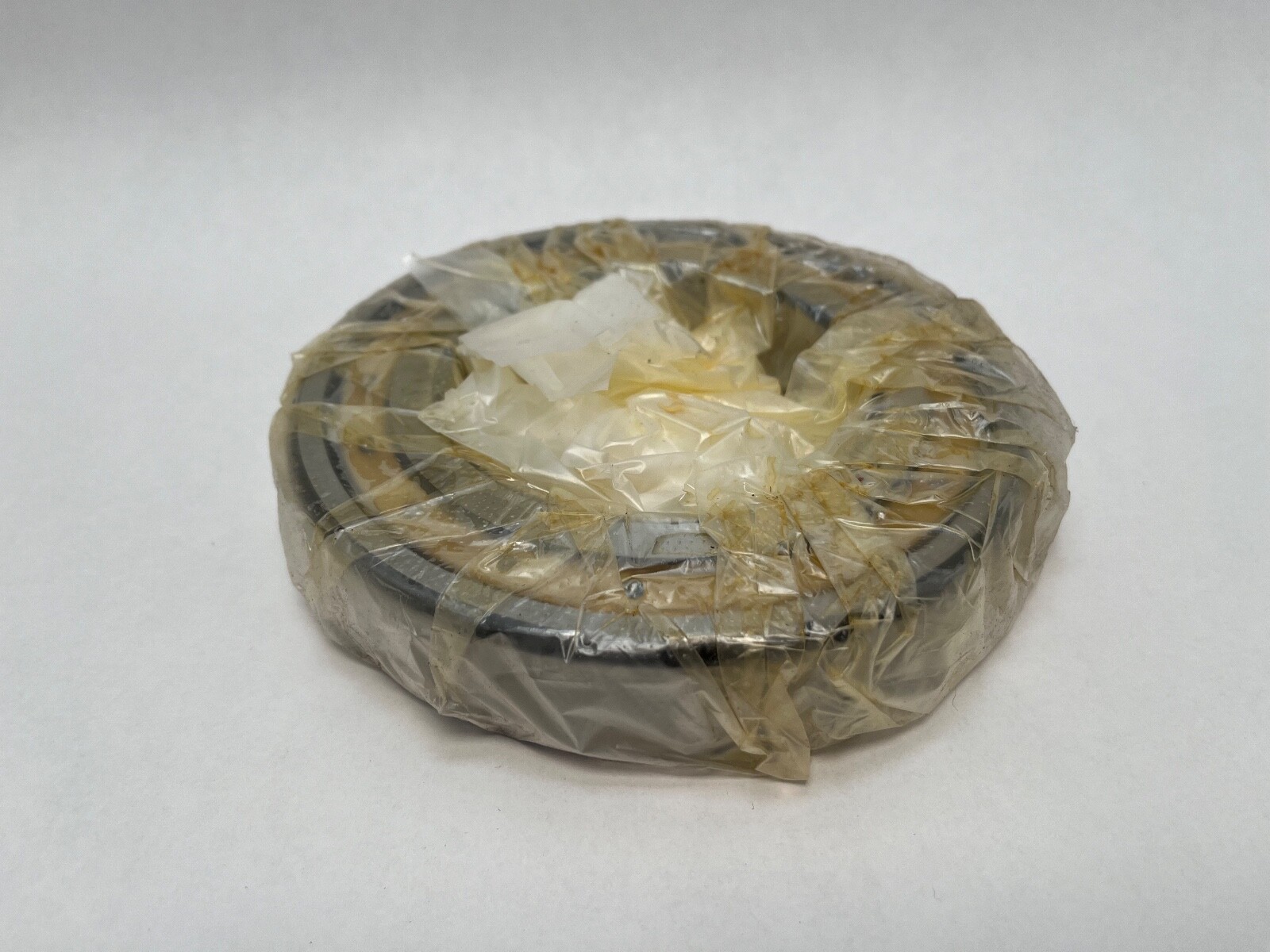

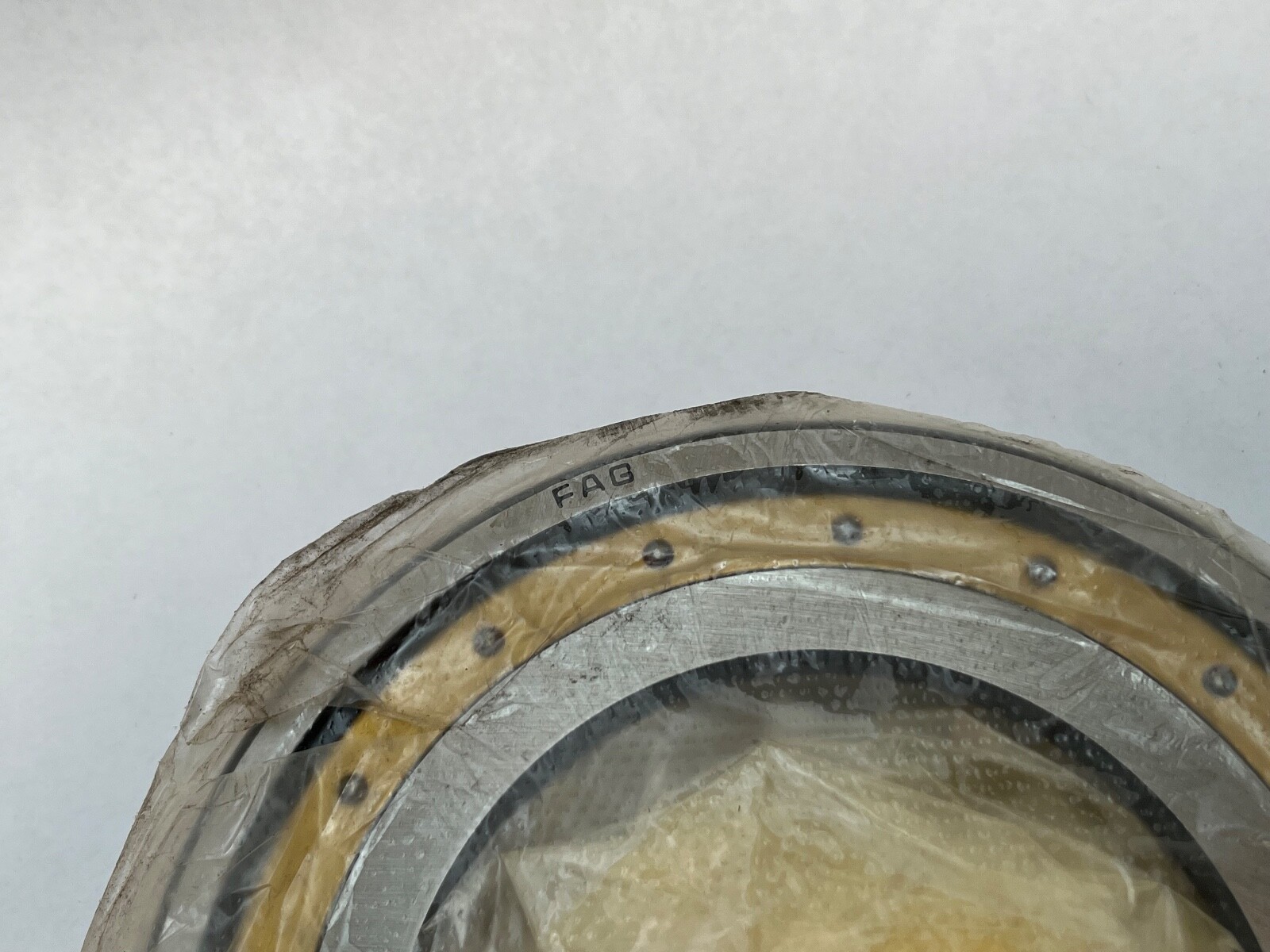

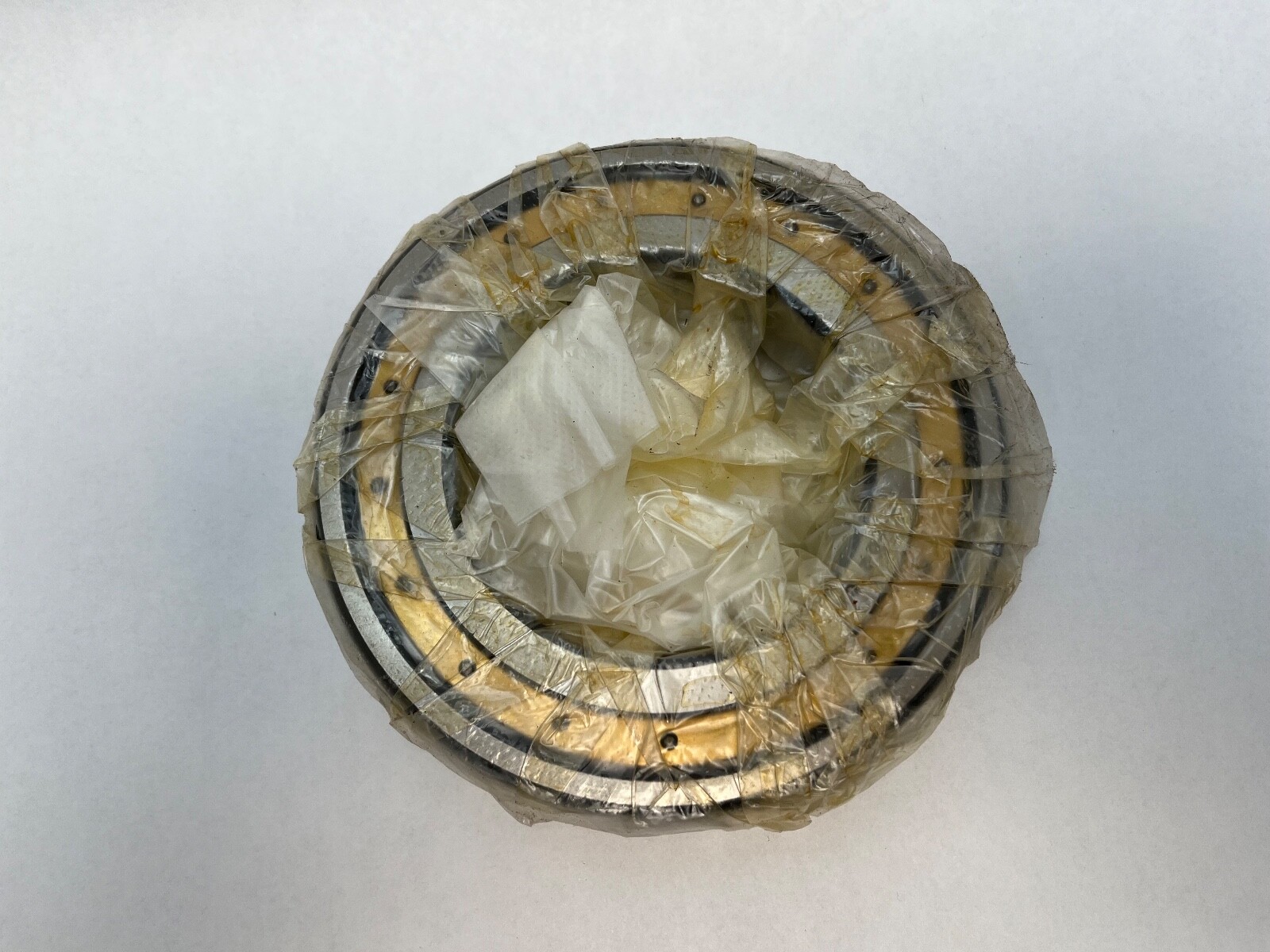

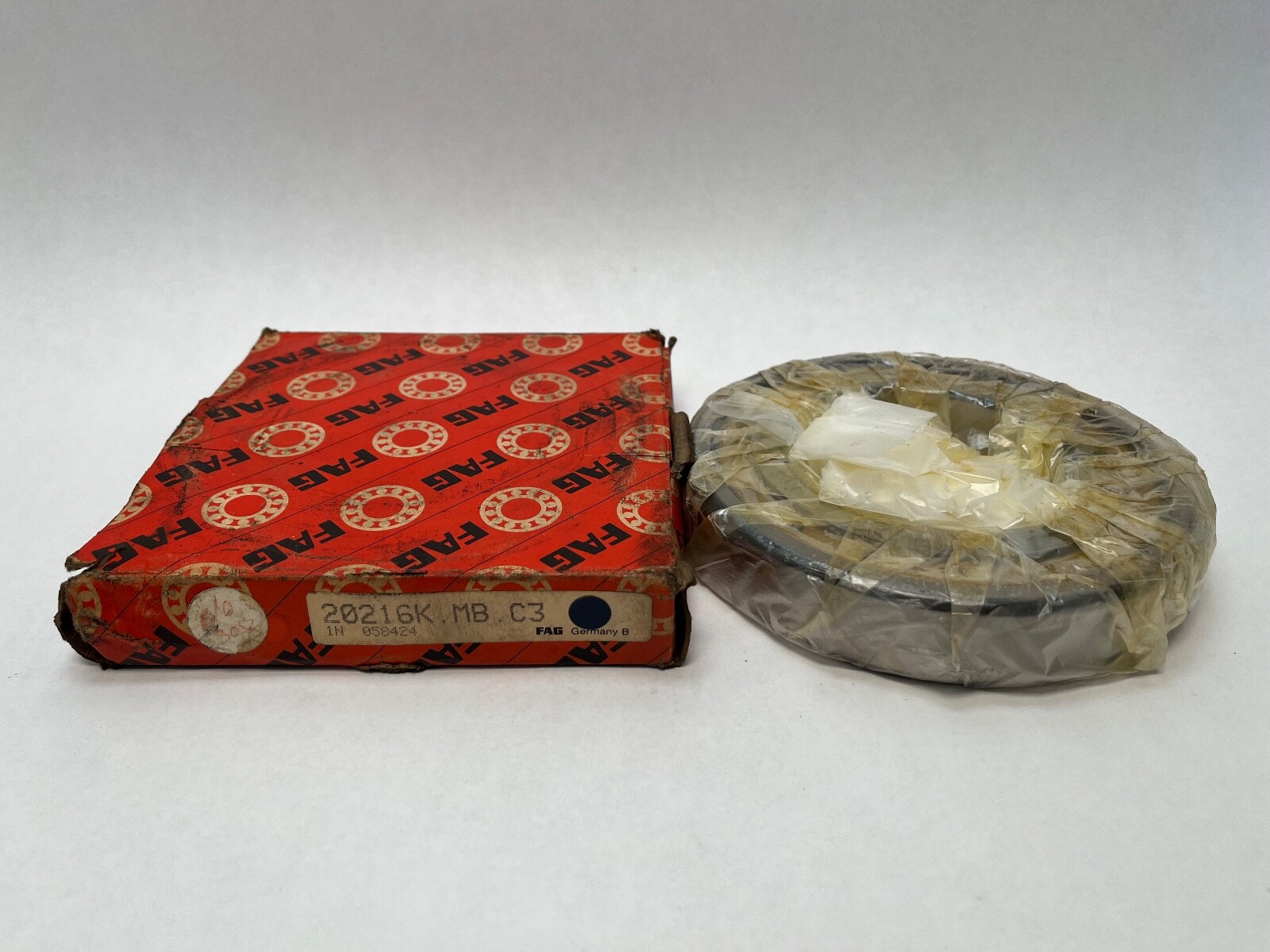

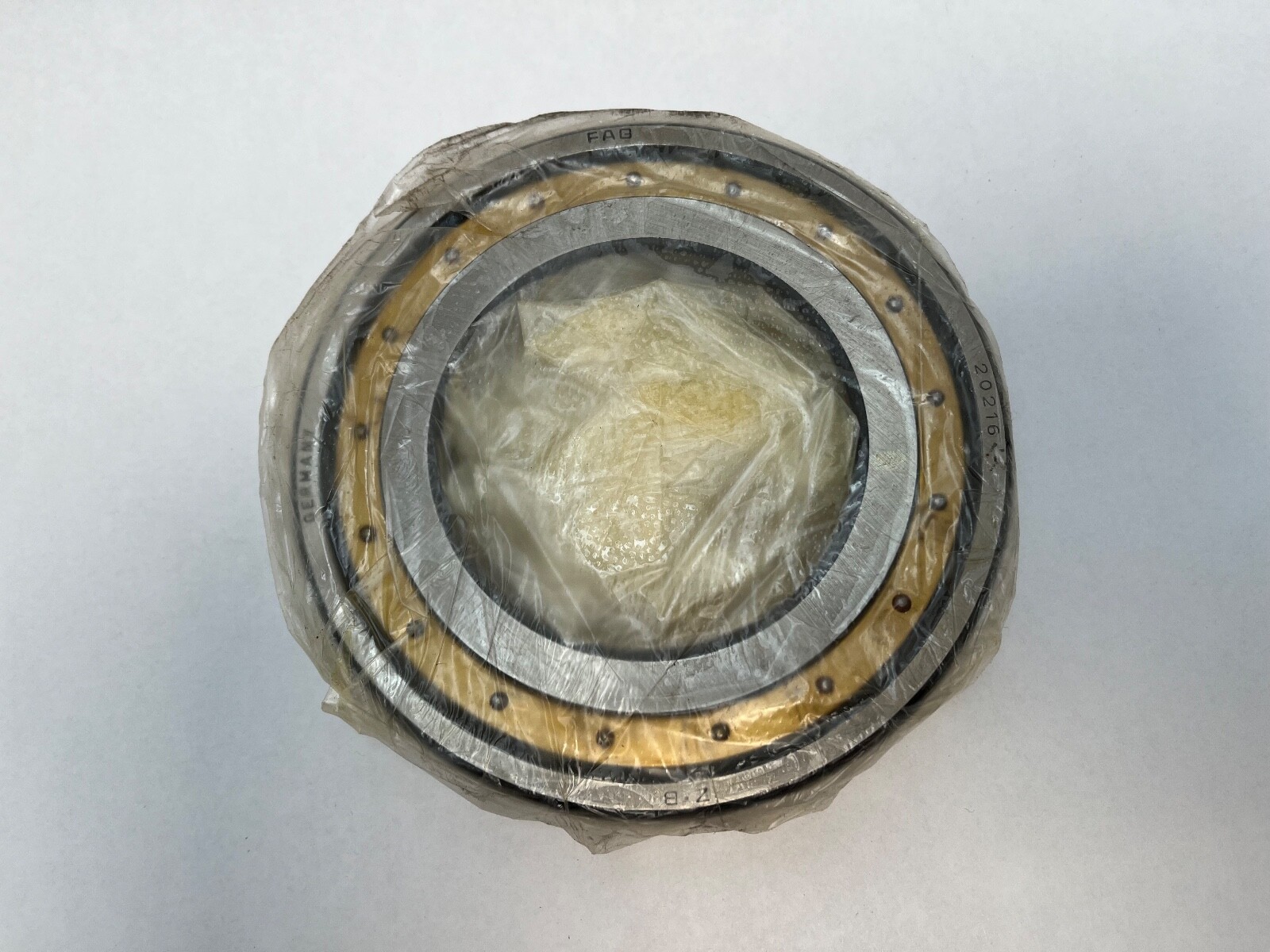

FAG 20216-K-MB-C3, a single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Boundary dimensions 80 mm bore × 140 mm outside diameter × 26 mm width. Tapered bore, 1:12.
20 – barrel roller, single row2 – ISO dimension series16 – bore code, 16 × 5 = 80 mm boreK – tapered bore, taper 1:12MB – machined brass cage, inner-ring guidedC3 – radial internal clearance greater than normal
The barrel roller carries radial load and self-aligns on its spherical outer raceway, taking shaft deflection and housing misalignment without edge loading the rollers. Load is radial only. Typical duty is long shafts in plummer blocks, fans, crushers and paper machinery. The machined brass cage tolerates higher temperature and shock load than a pressed steel cage and suits oil-mist and circulating-oil lubrication. C3 suits a hot inner ring or a tight interference fit, both of which consume clearance in service.
Bore: 80 mm (3.1496 in)Outside diameter: 140 mm (5.5118 in)Width: 26 mm (1.0236 in)Rows: 1Bore form: tapered, 1:12Cage: machined brass, MBInternal clearance: C3
1 Pc. Bearing only. Supplied without adapter sleeve.
The 1:12 bore seats either on a shaft machined to a matching taper or on an adapter sleeve; the sleeve for a 20216K is an H216, whose shaft seat is 75 mm, one bore-code step below the bearing bore. Drive-up distance on the taper sets the final radial clearance, working from the C3 starting clearance.
Alternate written forms of the same bearing: 20216-K-MB-C3, 20216K.MB.C3, 20216KMBC3. The cylindrical-bore 20216-MB is a related size with a different bore form. The 20216-TVP carries a polyamide cage with a lower temperature ceiling. FAG is part of Schaeffler and INA-branded catalogues cover the same series. The 22216K is a double-row spherical roller bearing, a different bearing type.
