ConsolidatedNN3006KMS.P5Double Row Cylindrical Roller Bearing – 30 mm ID, 55 mm OD, 19 mm Width, 1:12 Tapered Bore, Brass Cage, P5

Condition: New

Availability:

2 in stock

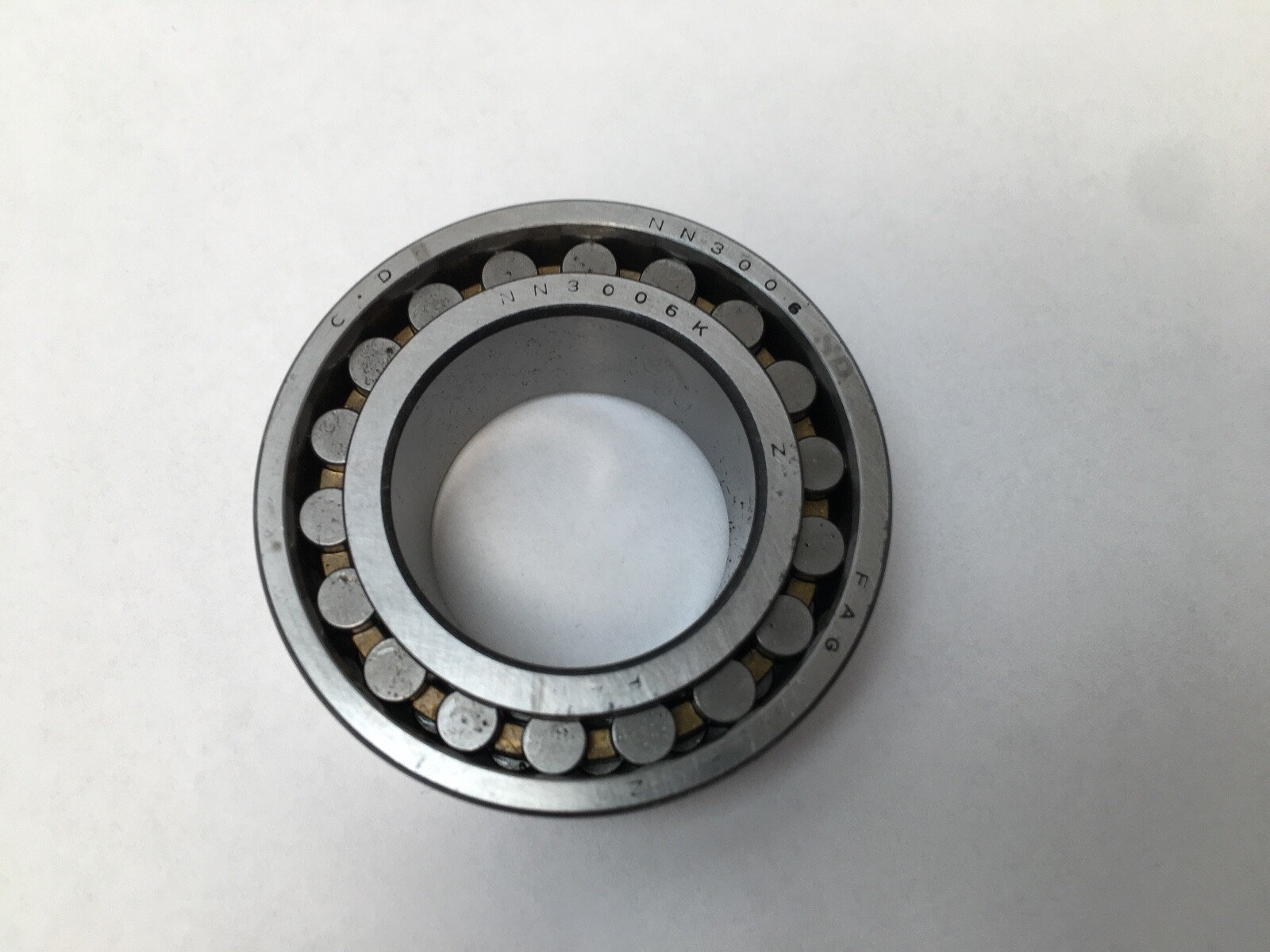

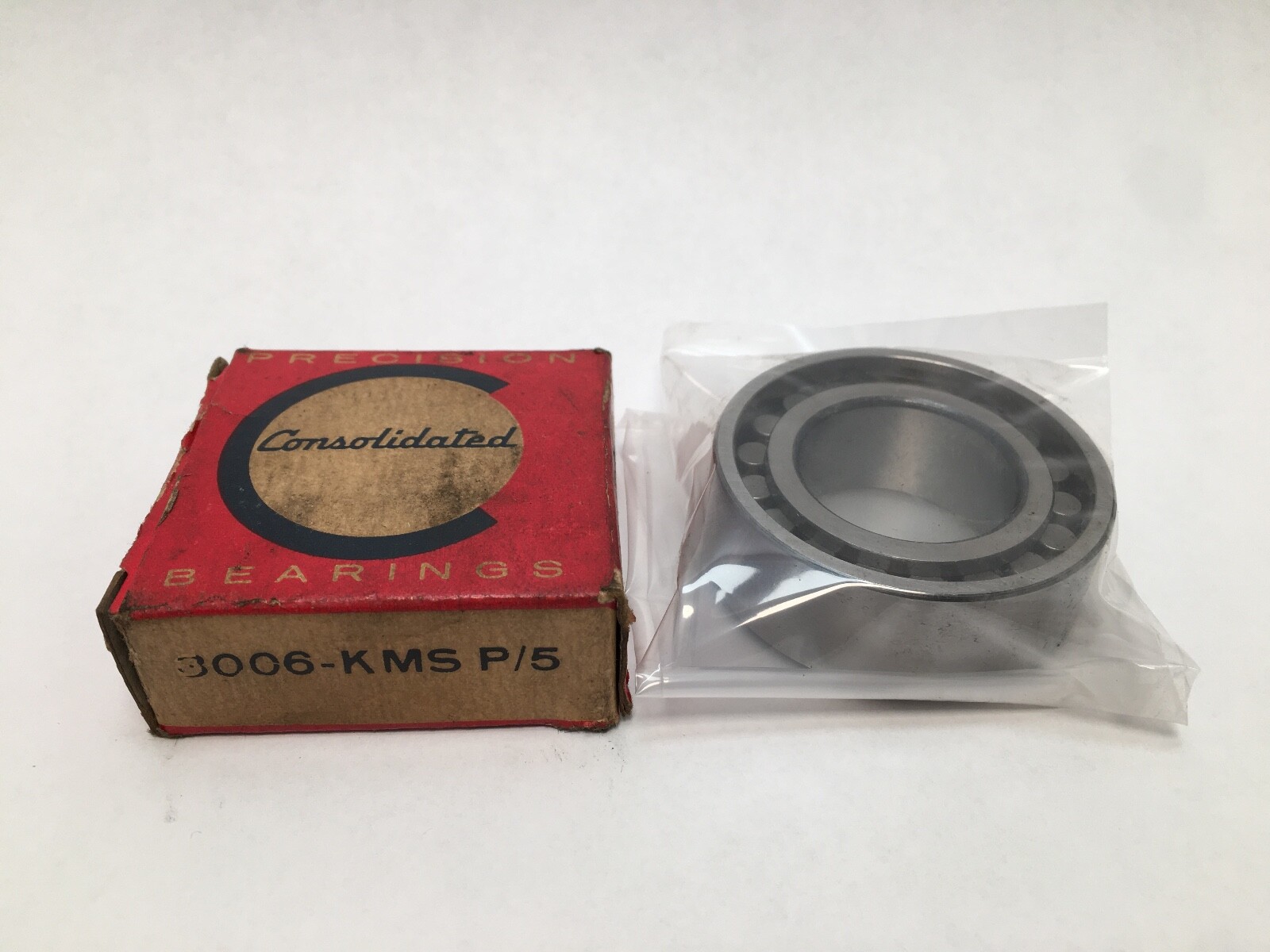

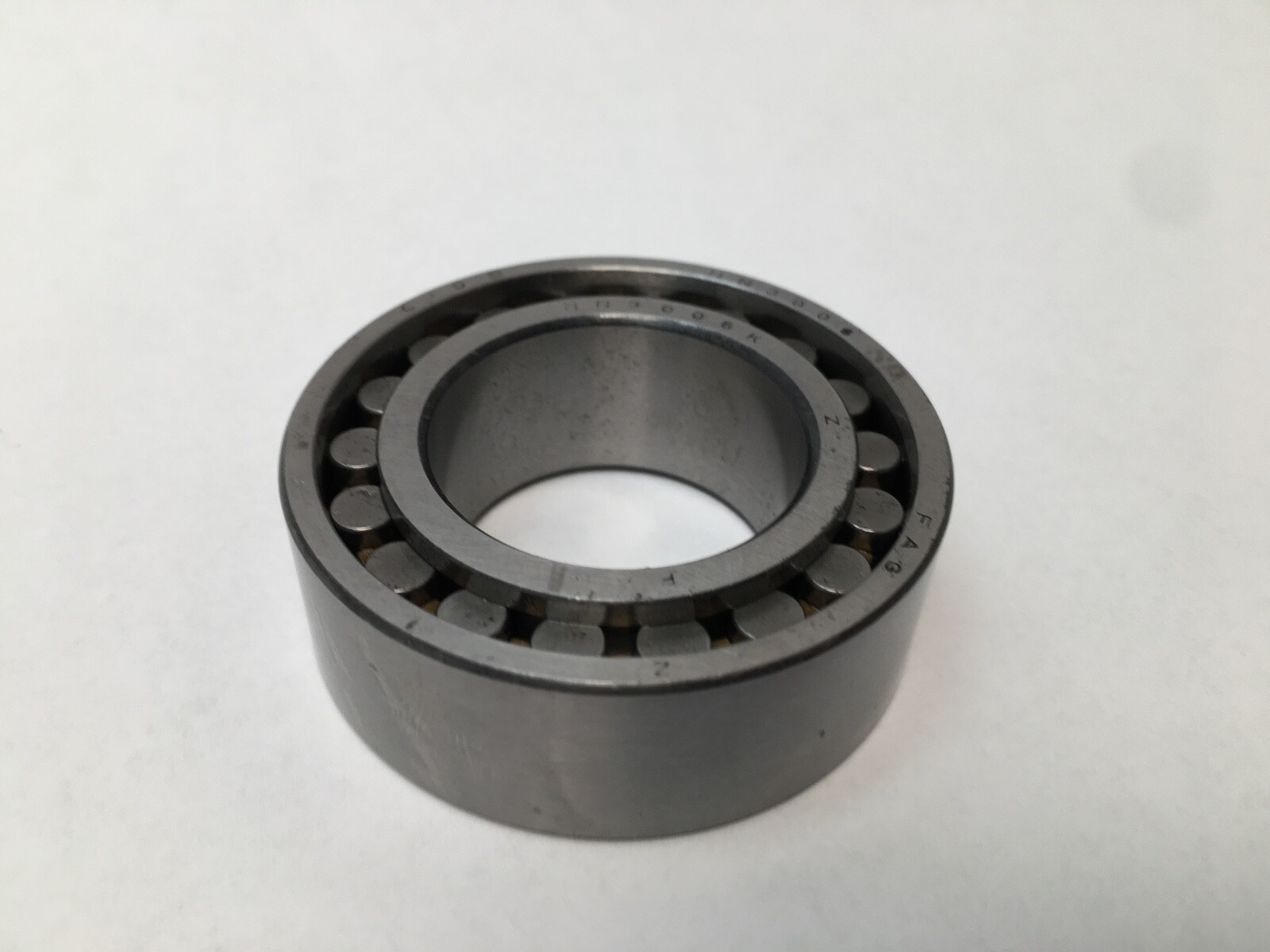

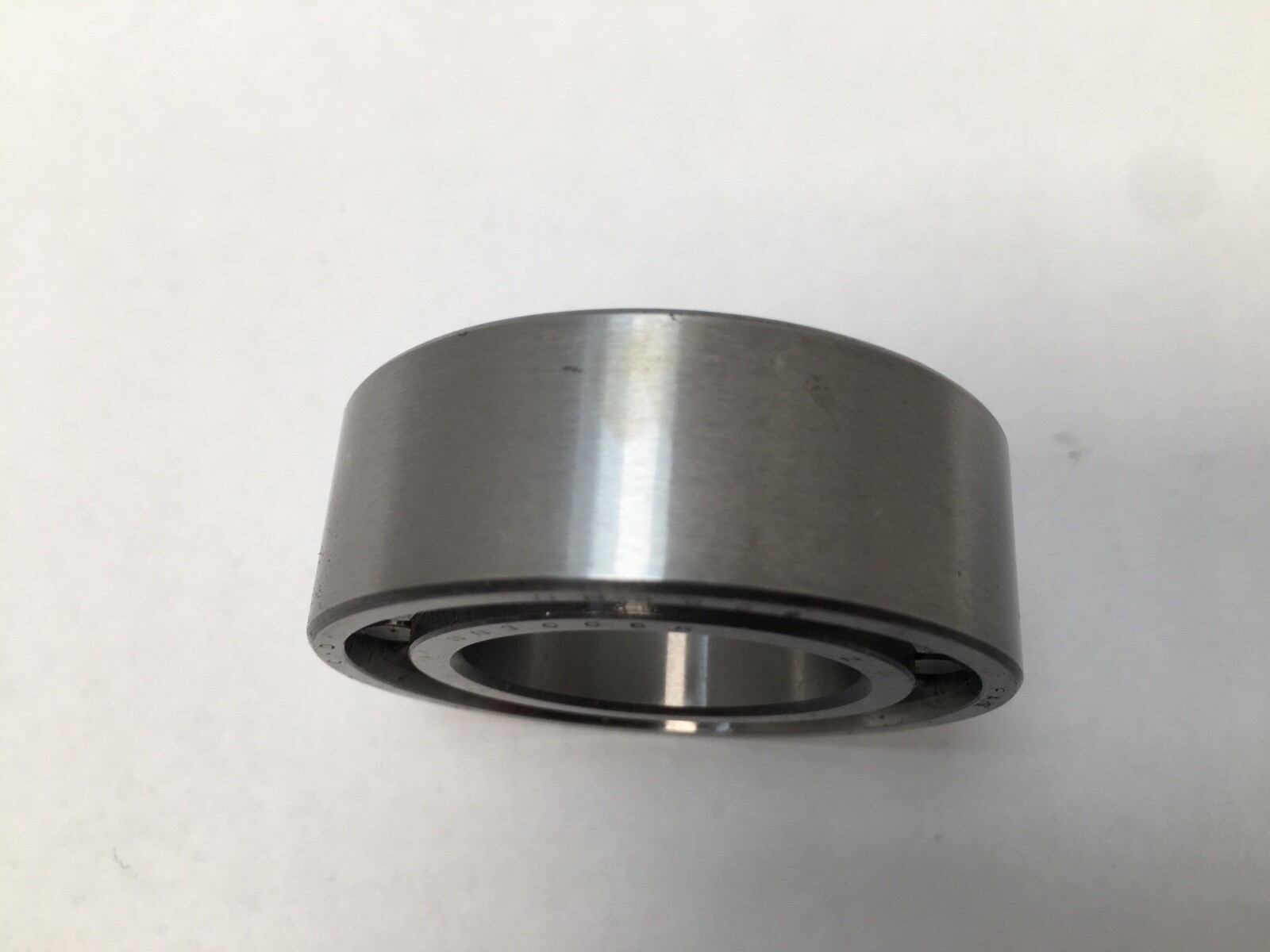

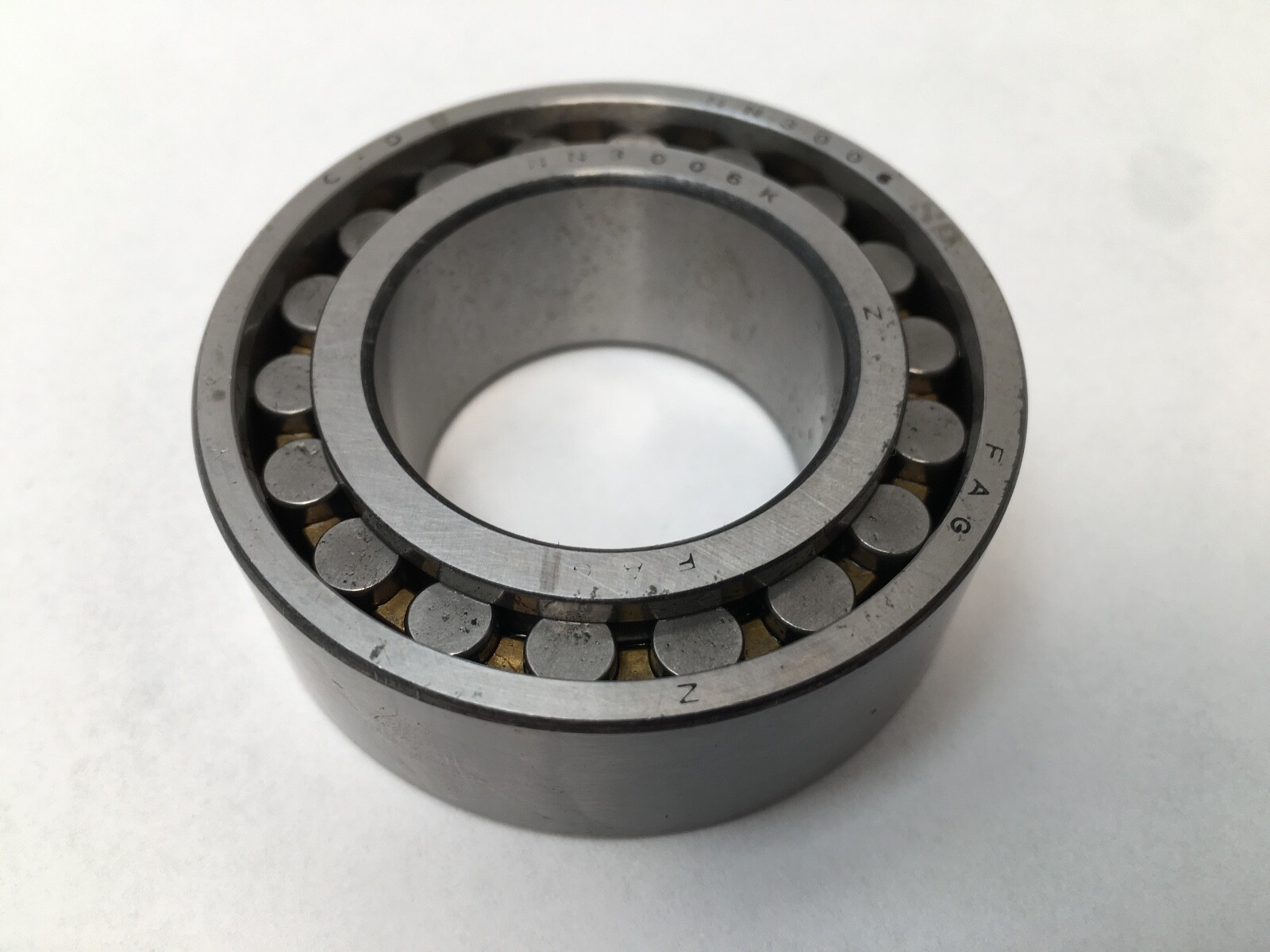

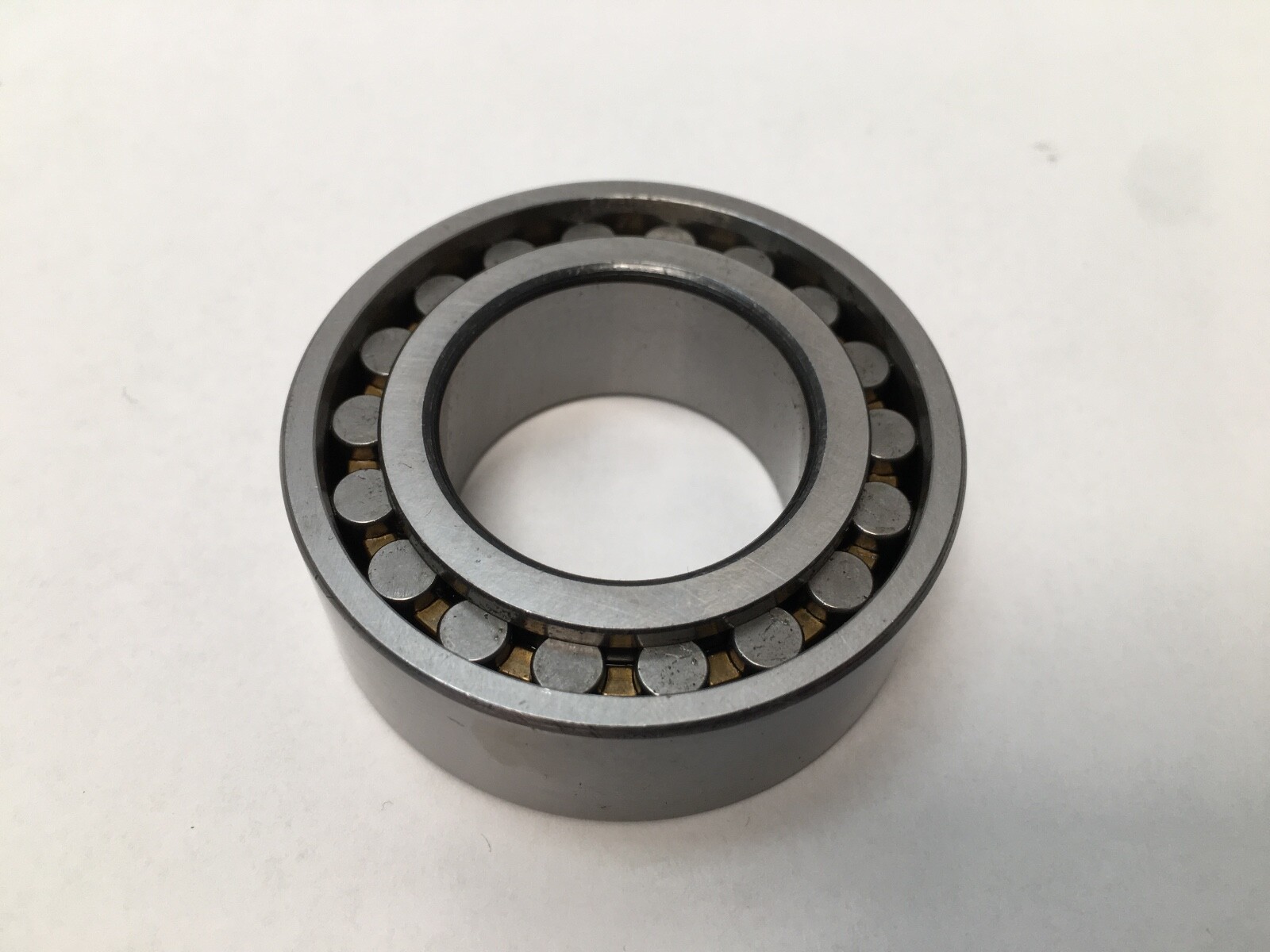

Double-row cylindrical roller bearing, 30 mm bore x 55 mm OD x 19 mm wide, 1:12 tapered bore, brass cage, P5 precision. Consolidated (FAG NN3006-K-M-SP).

Same day shipment

List Price

$282.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandConsolidated
MPNNN3006KMS.P5
ModelNN3006-AS-K-M-SP
Bearing TypeCylindrical Roller Bearing, Open
ID30 mm
OD55 mm
Width19 mm

Technical Specifications

MaterialChrome Steel
SeriesNN3000
LubricantGrease or oil
Overall Width19 mm
Mpn VariantsNN3006KMS.P5, NN3006KMSP5, NN 3006 K MS P5, NN-3006-K-MS-SP, NN3006-AS-K-M-SP, NN 3006 AS K M SP, NN3006K.M.SP, Consolidated NN3006KMS.P5
Precision ClassRBEC 5 / P5
Closure TypeOpen
Precision RatingRBEC 5 / P5
Rolling ElementsCylindrical Roller
Cage MaterialMachined brass
Number Of Rows2
Bore TypeTapered 1:12
Snap Ring IncludedNo
Relubrication FeatureLubrication groove and holes in outer ring (W33 equivalent)
Harmonization Code8482.50.00.00
Industry Termsdouble row cylindrical roller bearing; tapered bore NN bearing; machine tool spindle bearing; NN3006 K bearing; P5 spindle roller bearing
Common MisspellingsConsolidated NN 3006KMS P5; NN3006 KMS P5; Concolidated NN3006KMS.P5; Consolidtated NN3006KMS.P5
Application TypesMachine tool spindles

Cross-References

Cross Reference 1NSK NN3006MBKR
Cross Reference 2SKF NN 3006 KTN/SP – polyamide cage, not brass
Cross Reference 3FAG NN3006-D-K-TVP-SP-XL – polyamide cage, not brass
Seller Part Number: B-AR1B3#RLCFIO

Product Description

What this part is:

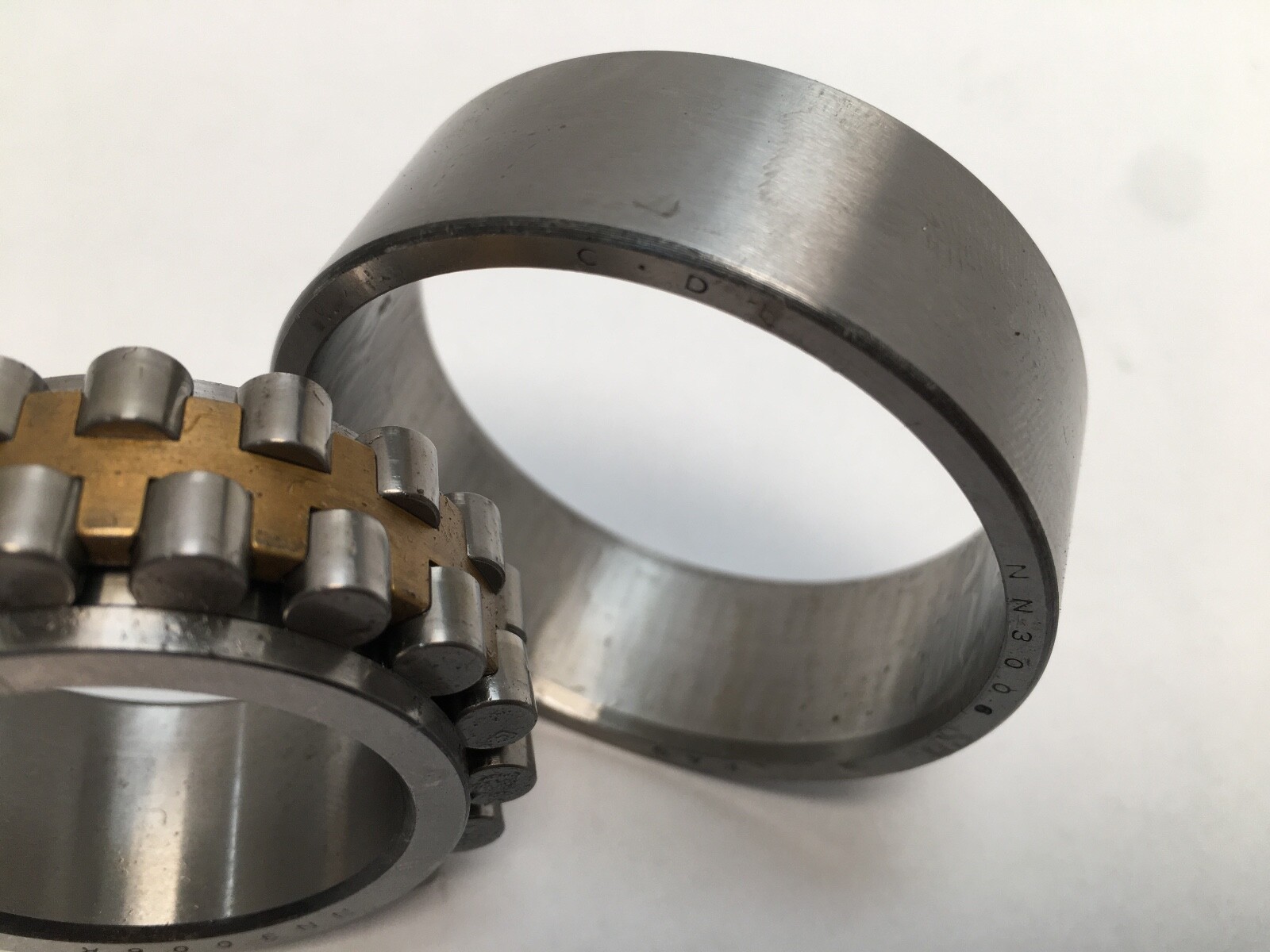

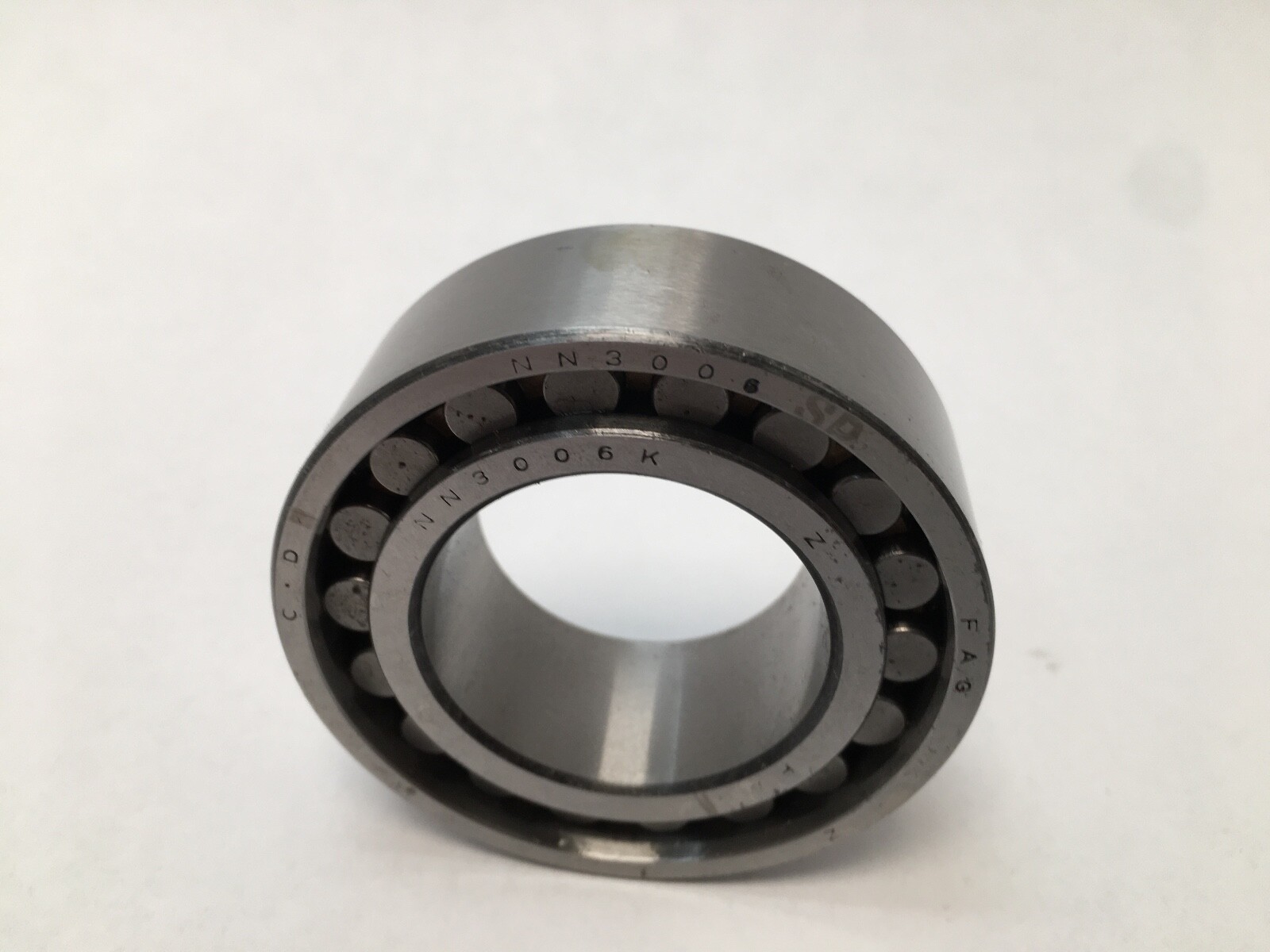

Consolidated NN3006KMS.P5 is a double-row cylindrical roller bearing for machine tool spindles, 30 mm bore x 55 mm OD x 19 mm wide, with a 1:12 tapered bore and a machined brass cage. Complete bearing: inner ring with roller and cage assembly, plus outer ring. Unit Quantity: 1 Pc.

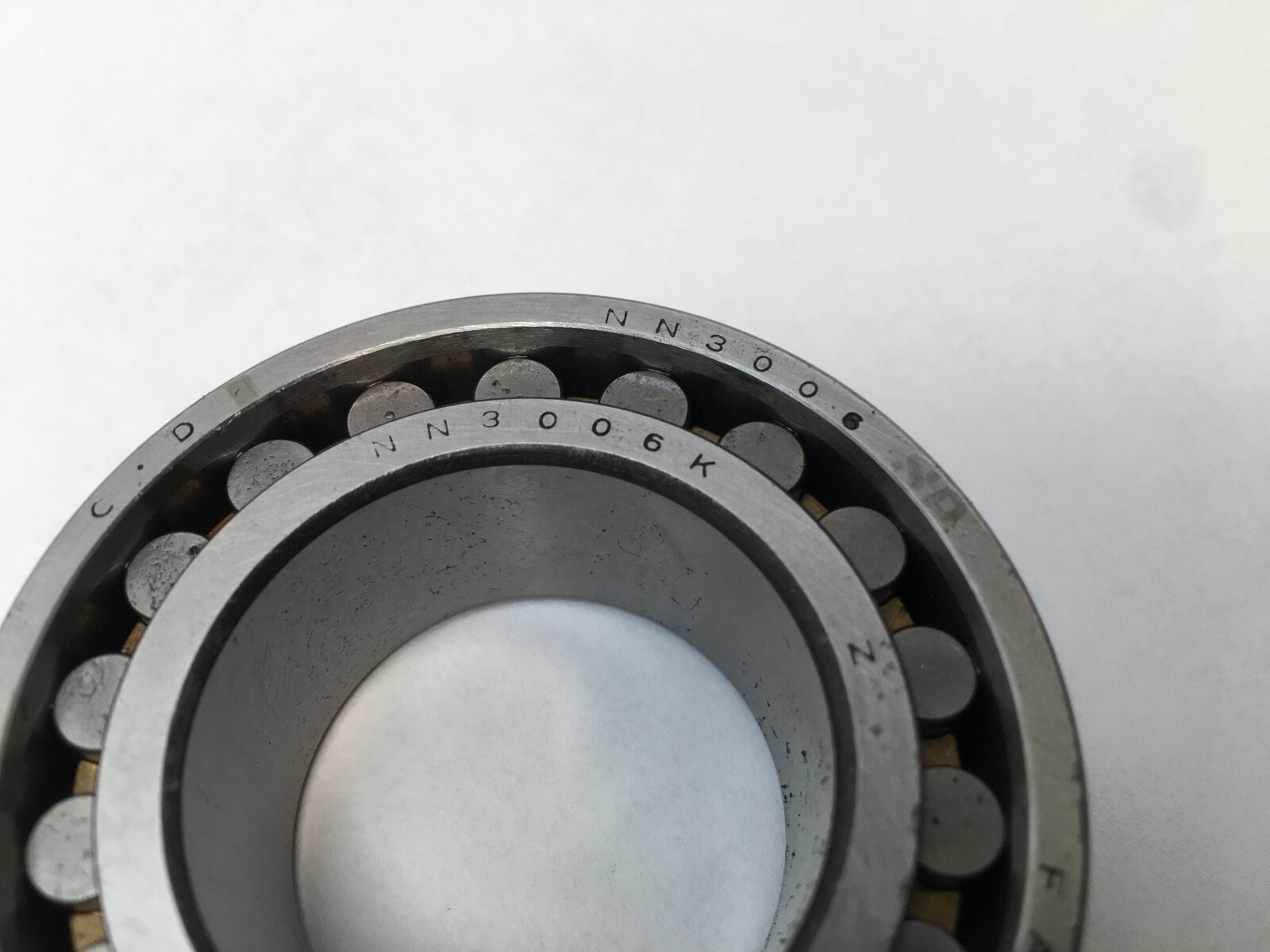

Decoding the designation:

NN — double-row cylindrical roller bearing, two ribs on the inner ring, rib-less separable outer ring.

30 — dimension series 30.

06 — bore code, 06 x 5 = 30 mm.

K — tapered bore, taper 1:12.

M — machined brass cage.

S — lubrication groove and holes in the outer ring.

P5 — tolerance class RBEC 5 / P5.

Specifications:

Bore Diameter: 30 mm. Outside Diameter: 55 mm. Width: 19 mm. Bore Type: Tapered 1:12. Cage Material: Machined brass. Precision Class: RBEC 5 / P5. Number Of Rows: 2. Rolling Elements: Cylindrical Roller. Closure Type: Open. Lubricant: grease or oil. Series: NN3000.

Dimensions and mounting:

Minimum Chamfer Dimension: 1 mm. Maximum Recess Radius: 1 mm. The tapered bore mounts directly on a tapered spindle journal. The outer ring separates, making this a non-locating bearing.

Compatibility and replacement:

Cross-references: NSK NN3006MBKR; SKF NN 3006 KTN/SP (polyamide cage, not brass); FAG NN3006-D-K-TVP-SP-XL (current FAG design, polyamide cage, not brass). Pairs with 234406 series double-direction axial angular contact thrust bearings.

Frequently asked questions:

What are the dimensions of the Consolidated NN3006KMS.P5?

Bore Diameter: 30 mm. Outside Diameter: 55 mm. Width: 19 mm, with a 1:12 tapered bore.

What does the NN3006KMS.P5 include?

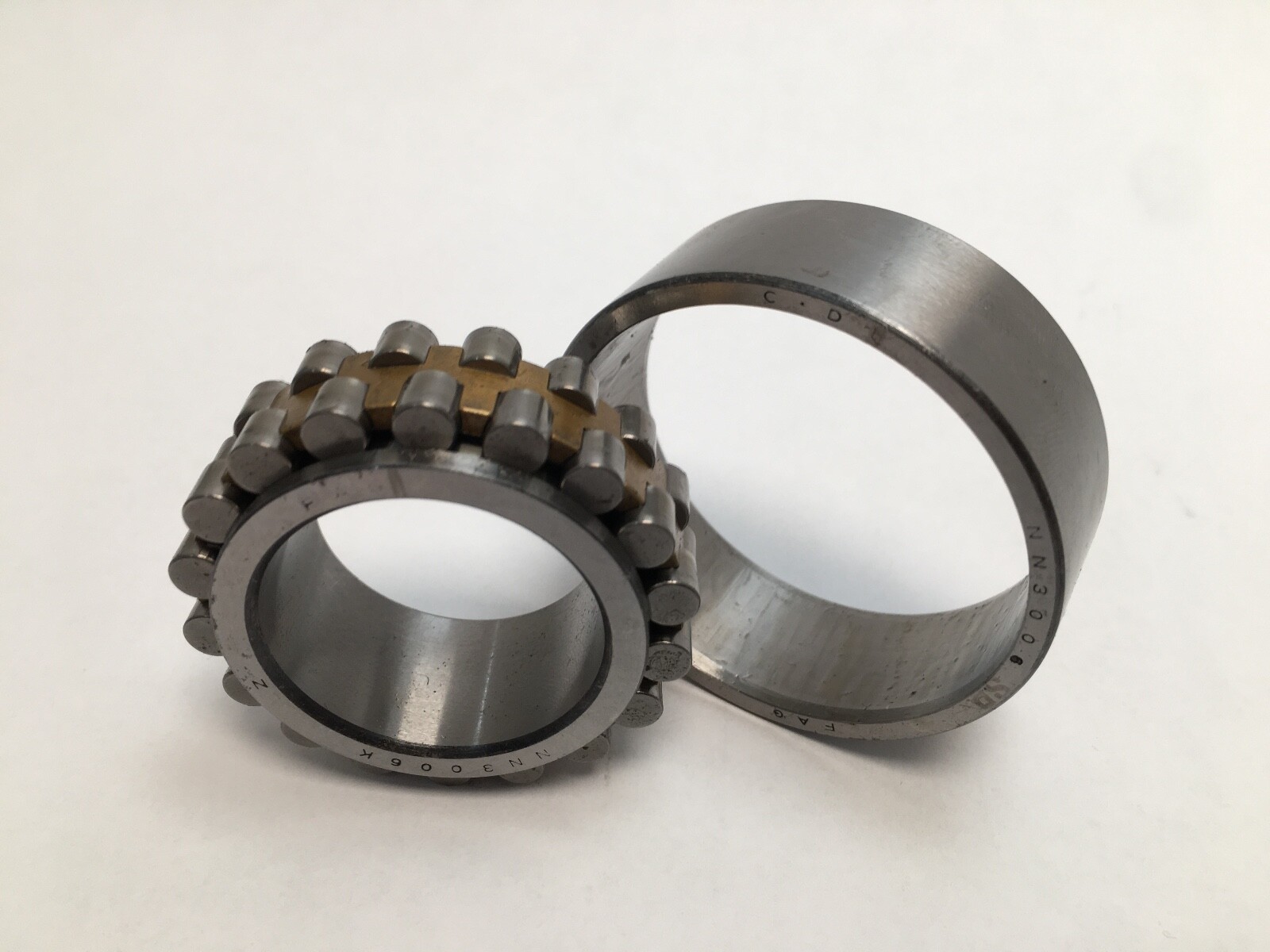

One complete bearing: inner ring with roller and cage assembly, plus outer ring.

What precision class and cage does it have?

Precision Class: RBEC 5 / P5. The cage is machined brass.
