Availability:
1 in stock

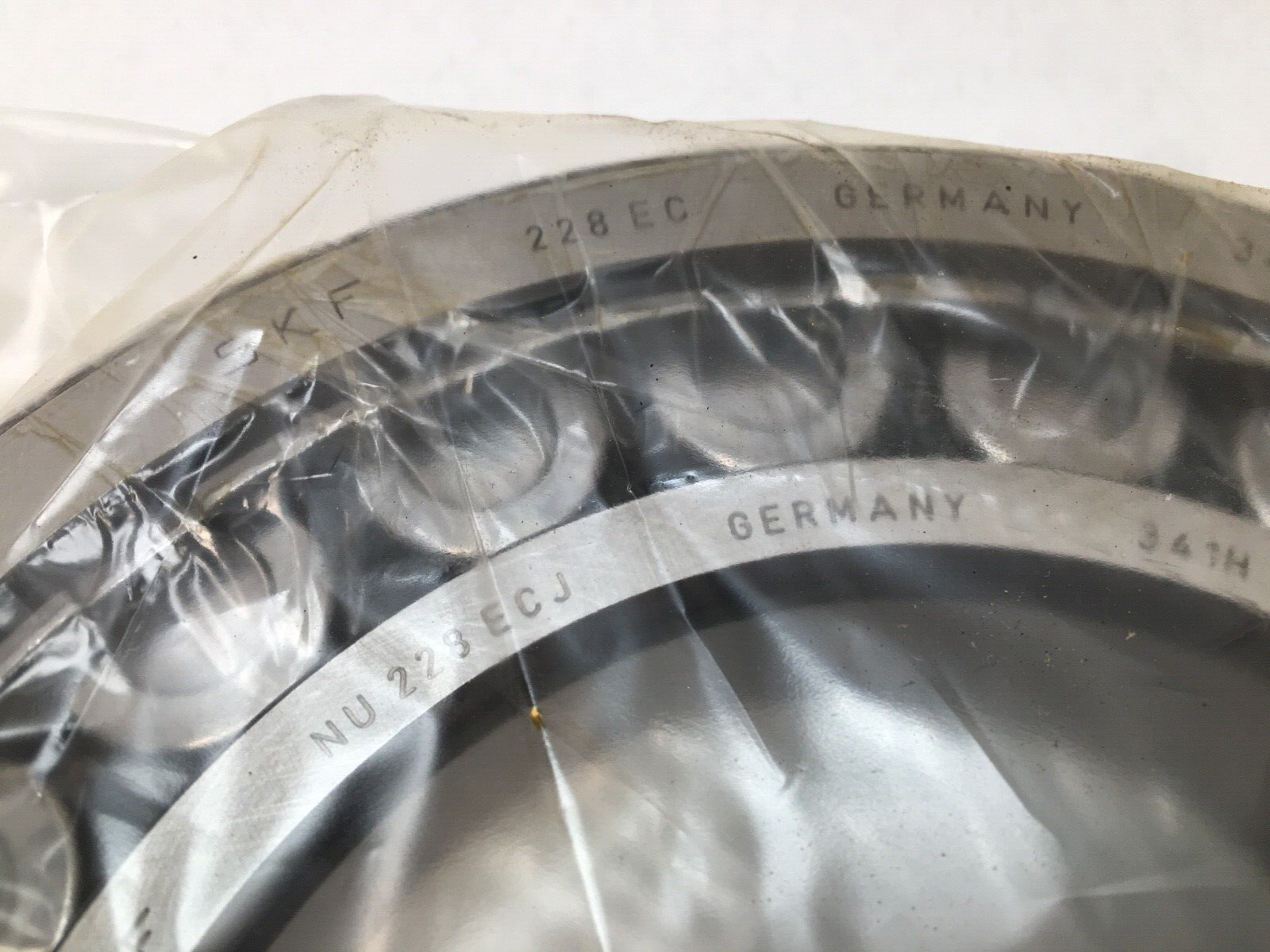

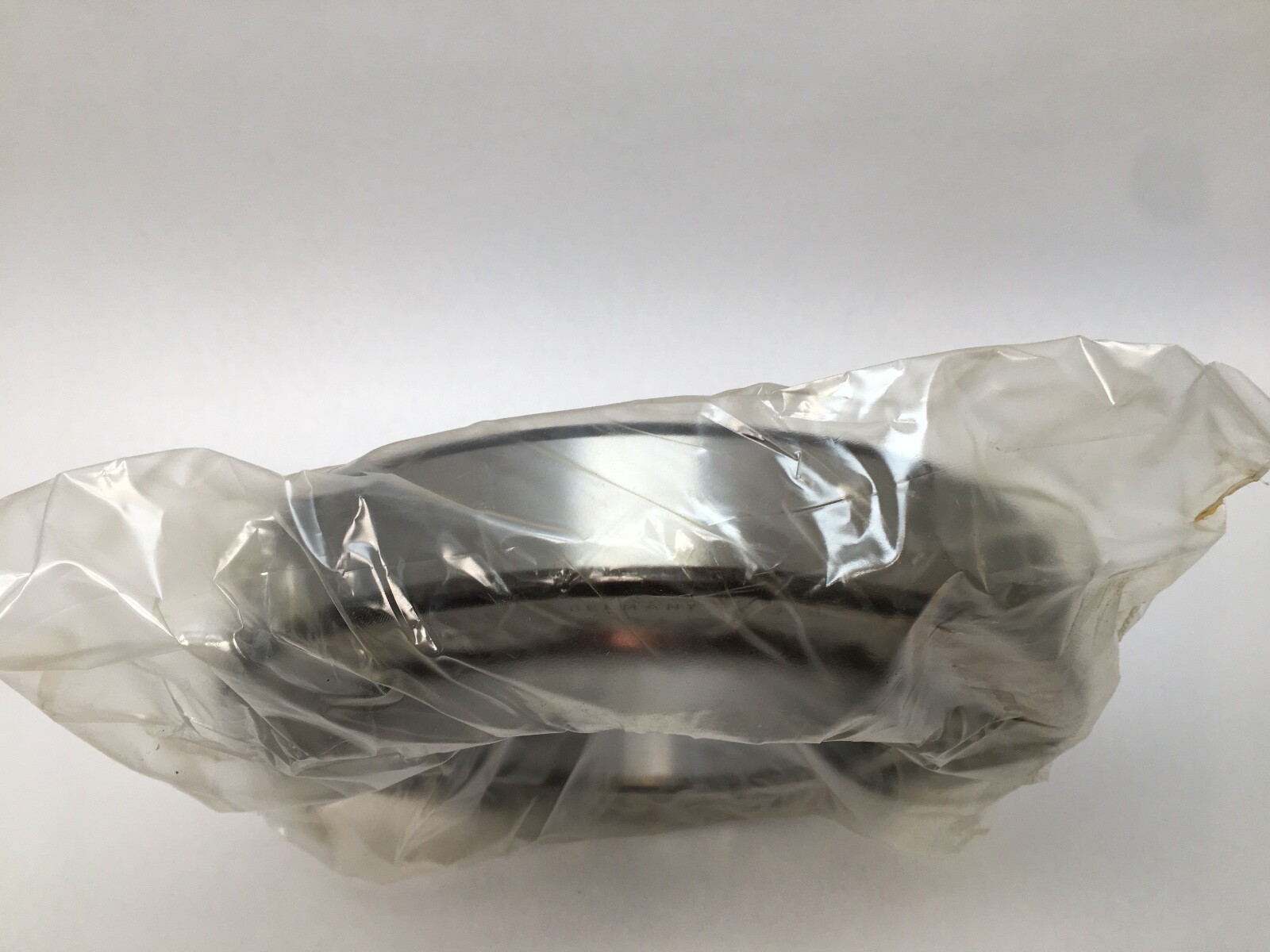

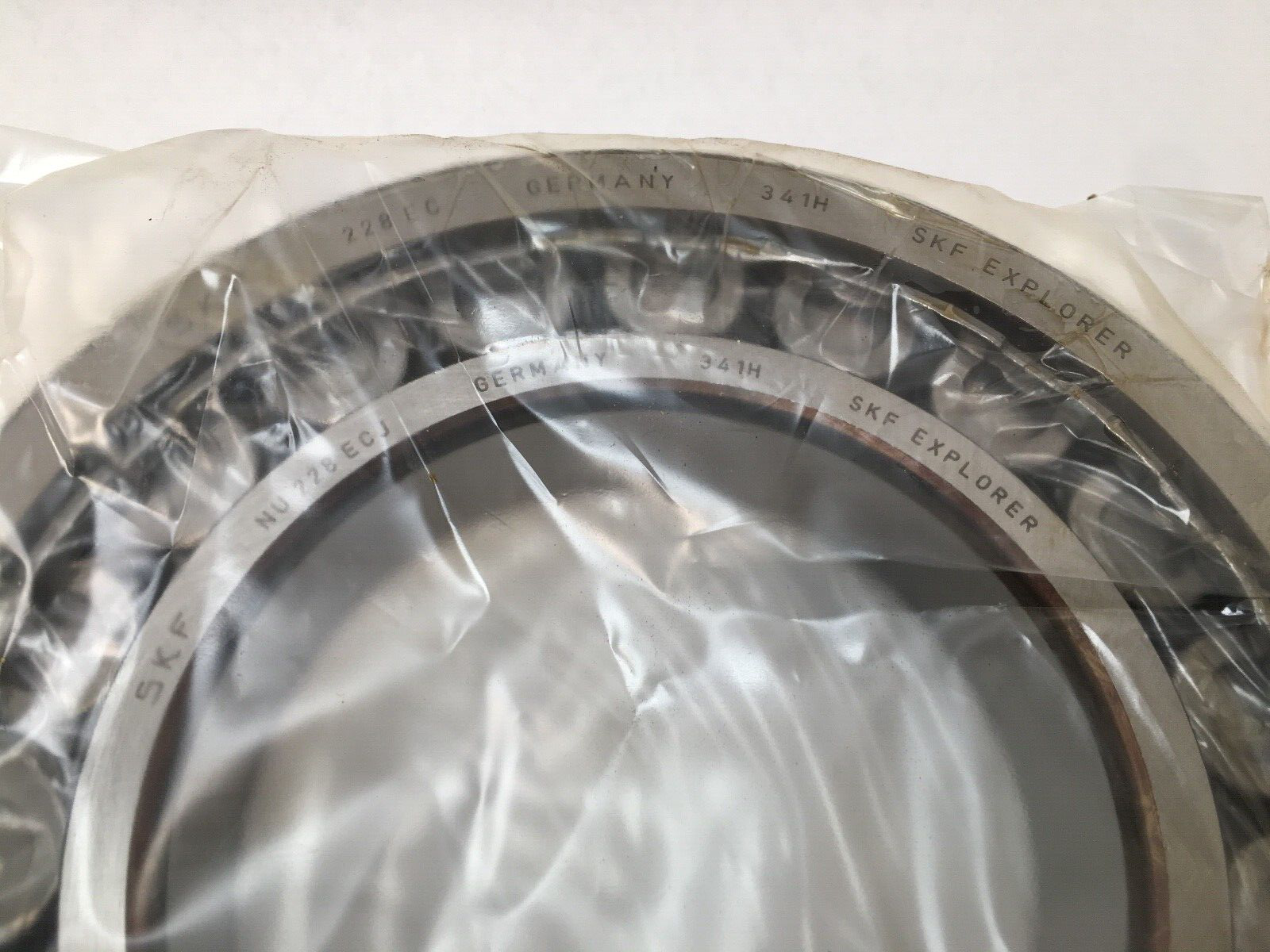

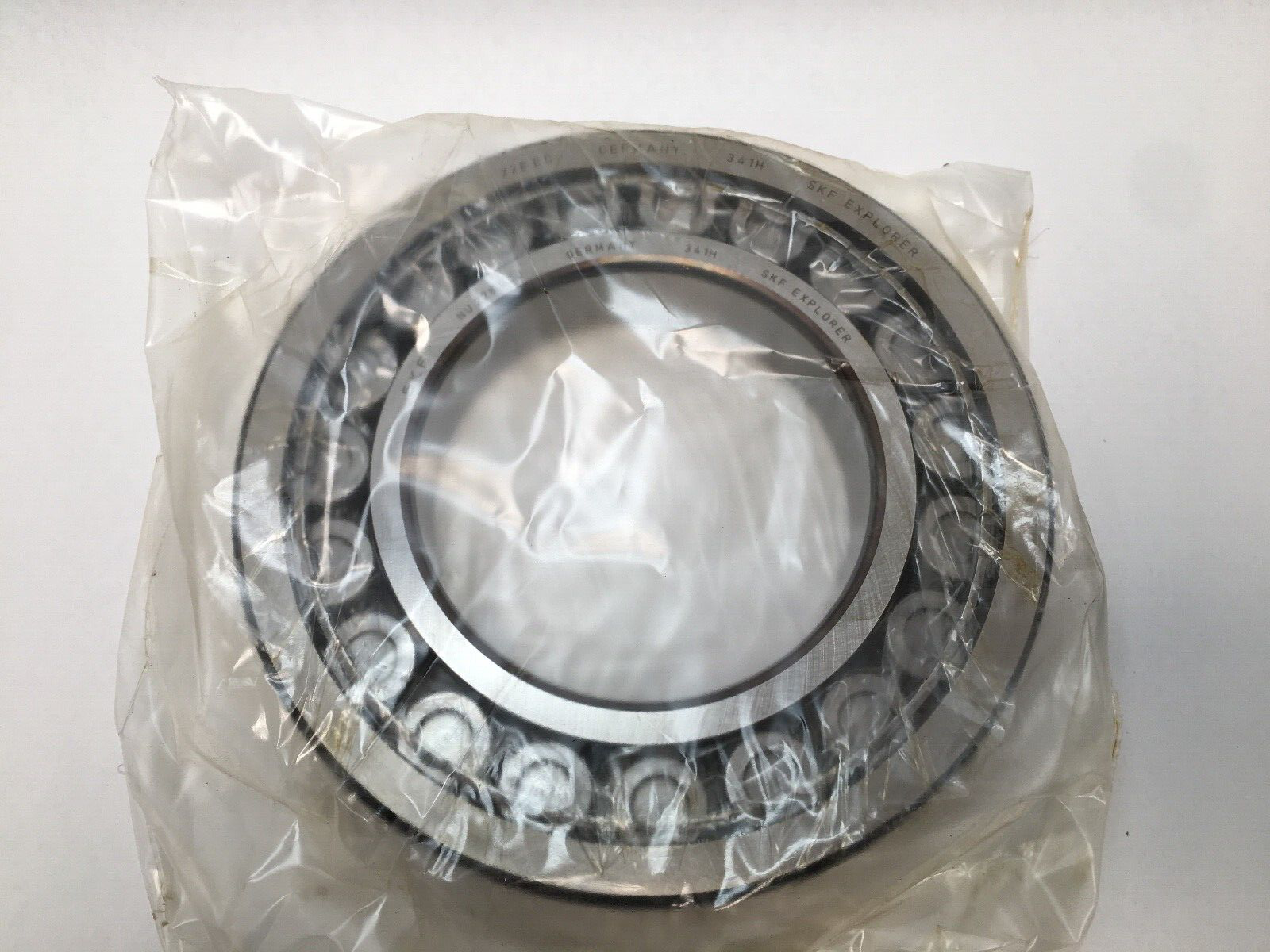

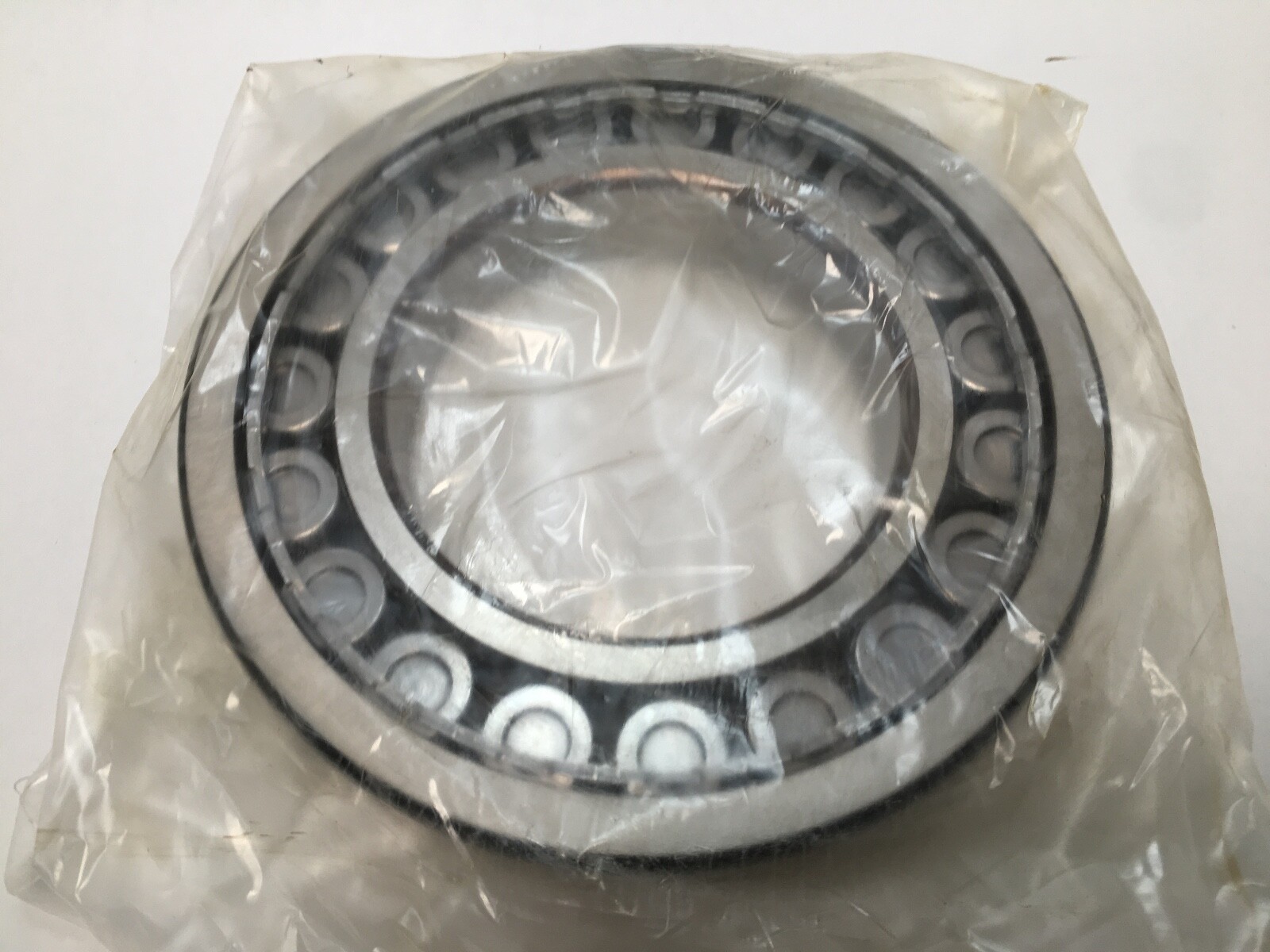

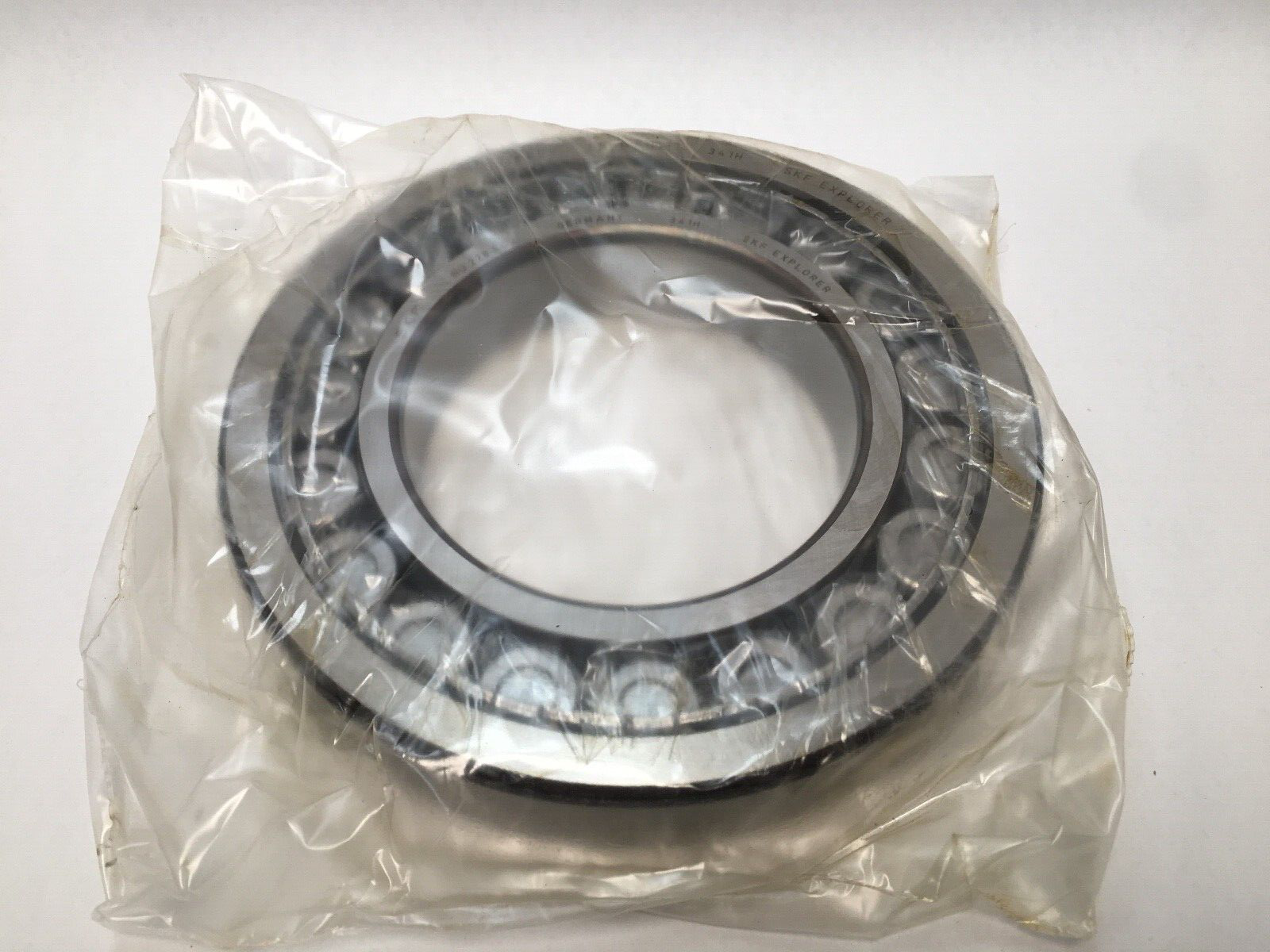

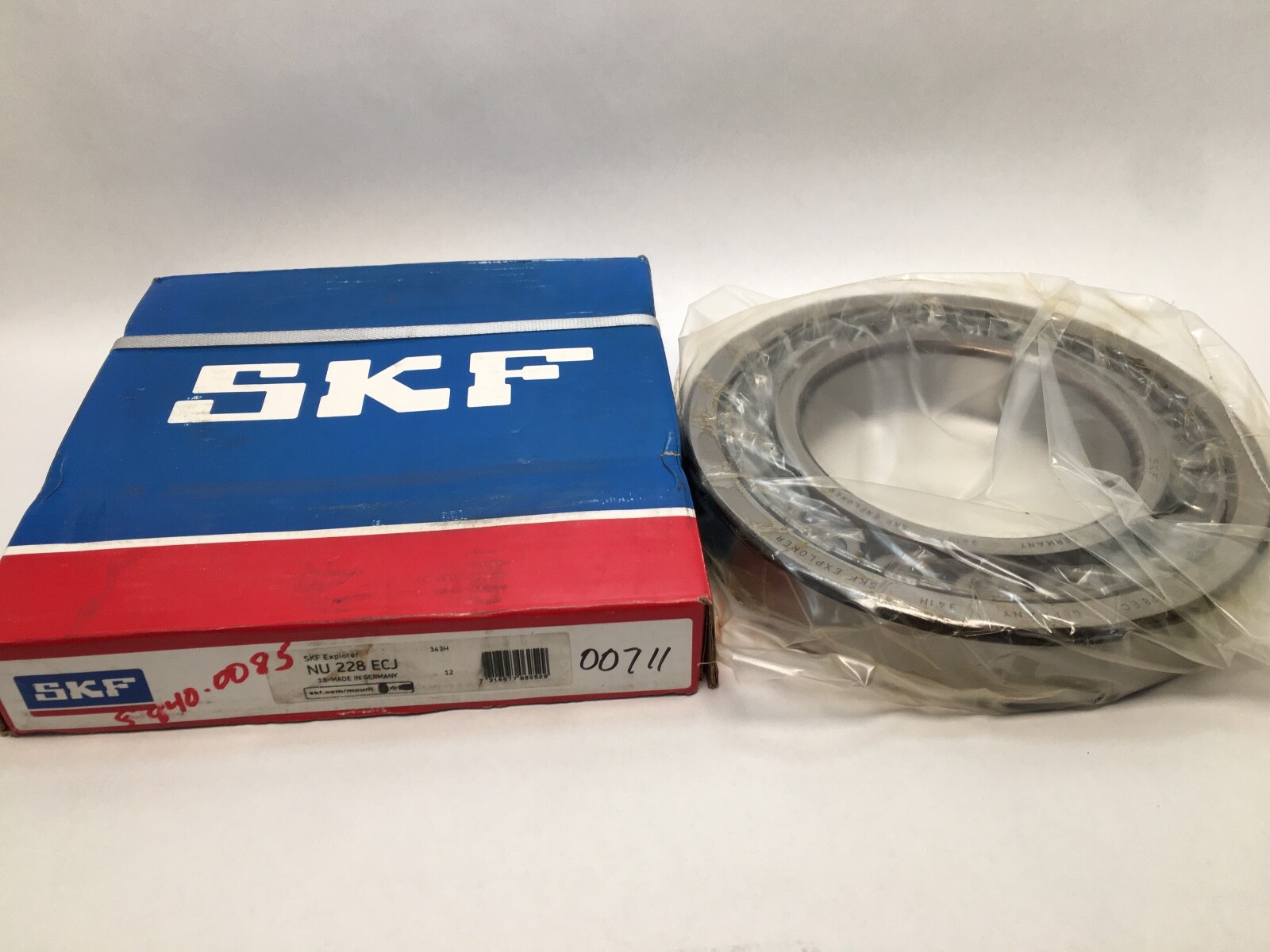

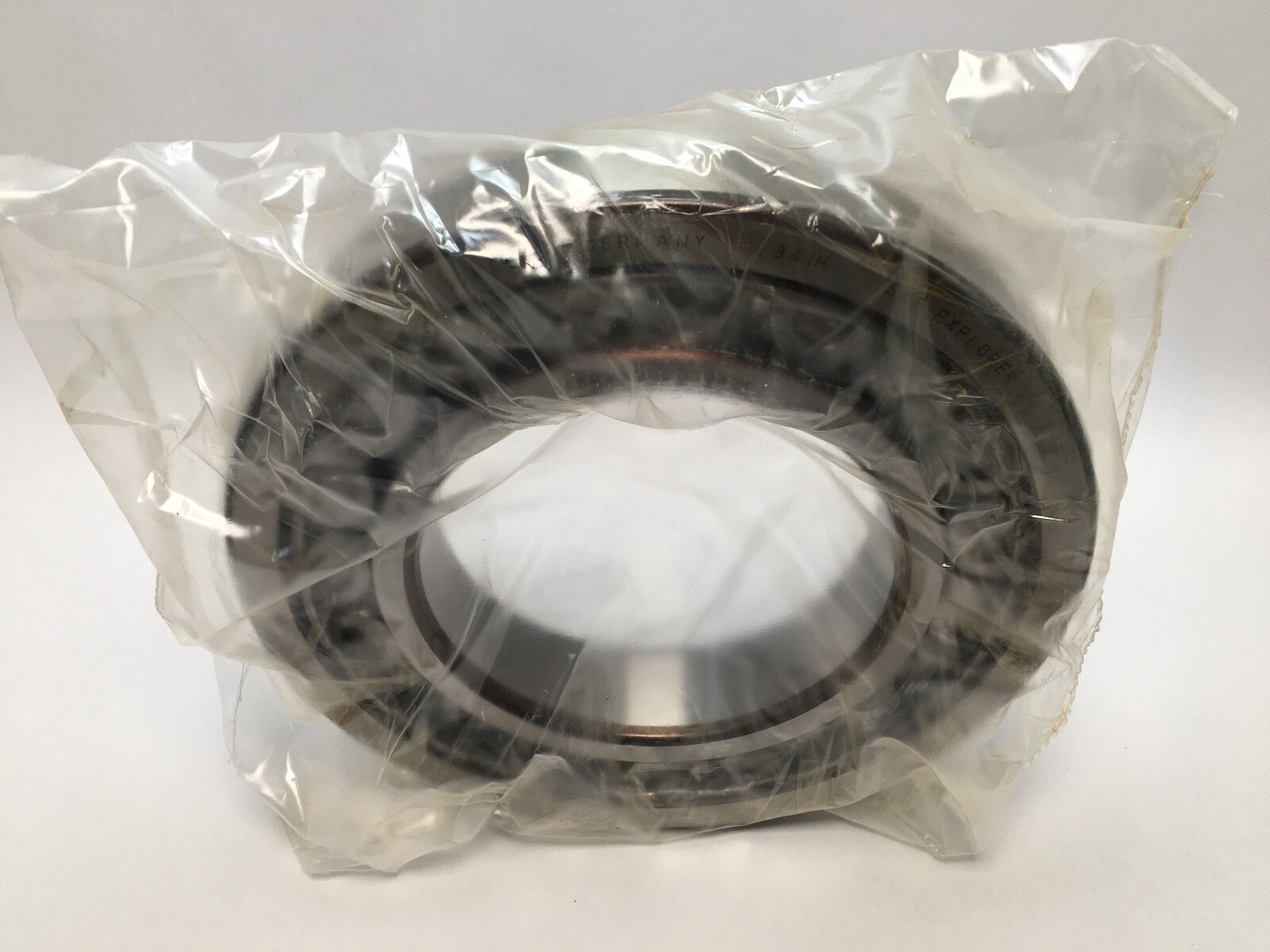

SKF NU 228 ECJ single row cylindrical roller bearing, NU design, 140 x 250 x 42 mm, pressed steel cage. Dynamic rating 450,000 N, limiting speed 3,200 rpm.
List Price
$519.02
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | NU-228-ECJ |
| Model | NU 228 ECJ |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 140 mm |
| OD | 250 mm |
| Width | 42 mm |
| Material | Bearing Steel |
|---|---|
| Series | NU2 |
| Lubricant | Oil/Grease |
| Mpn Variants | NU 228 ECJ, NU228ECJ, NU-228-ECJ, NU228 |
| Compatible With Replaces | Angle ring HJ 228 EC |
| Cage Type | Pressed |
| Dynamic Load Rating | 450,000 N |
| Static Load Rating | 510,000 N |
| Rolling Elements | Cylindrical Roller |
| Cage Material | Pressed steel |
| Limiting Speed | 3,200 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Harmonization Code | 8482.50.00.00 |
| Cross Reference 1 | NSK NU228EW |
|---|---|
| Cross Reference 2 | Timken NU228EJ |
| Cross Reference 3 | NTN NU228E |
| Cross Reference 4 | FAG NU228-E-XL-TVP2 - polyamide cage, not steel |
| Cross Reference 5 | Koyo NU228R |
SKF NU 228 ECJ is a single row cylindrical roller bearing of NU design with a pressed steel cage. The outer ring has two integral flanges; the inner ring has none, so the shaft can move axially in both directions. The inner ring is separable. It is the floating bearing in gearboxes, motors, pumps and rolling mill equipment.
NU — two flanges on the outer ring, no flanges on the inner ring. Non-locating bearing.
2 — dimension series 02, light section.
28 — bore code, 28 x 5 = 140 mm bore.
EC — SKF optimized internal design with increased load capacity.
J — pressed steel cage.
Bore Diameter: 140 mm. Outside Diameter: 250 mm. Width: 42 mm. Dynamic Load Rating: 450,000 N. Static Load Rating: 510,000 N. Fatigue Load Limit: 57,000 N. Reference Speed: 2,800 rpm. Limiting Speed: 3,200 rpm. Permissible Axial Displacement: 2.5 mm. Inner Ring Raceway Diameter F: 169 mm. Cage Material: Pressed steel. Rolling Elements: Cylindrical Roller. Number Of Rows: 1. Bore Type: Straight. Internal Clearance: CN. Closure Type: Open.
Chamfer r1,2 and r3,4: 3 mm min. Shaft abutment diameter: 172 mm min. Spacer sleeve diameter: 154 mm min, 165 mm max. Housing abutment diameter: 235 mm max. Fillet radius: 2.5 mm max. Matching angle ring: HJ 228 EC.
Unit Quantity: 1 Pc. Complete bearing: outer ring with rollers and cage, plus inner ring.
Same envelope and NU design: FAG NU228-E-XL-TVP2, NSK NU228EW, NTN NU228E, Timken NU228EJ, Koyo NU228R. MPN variants: NU 228 ECJ, NU228ECJ, NU-228-ECJ, NU228. Harmonization Code: 8482.50.00.
