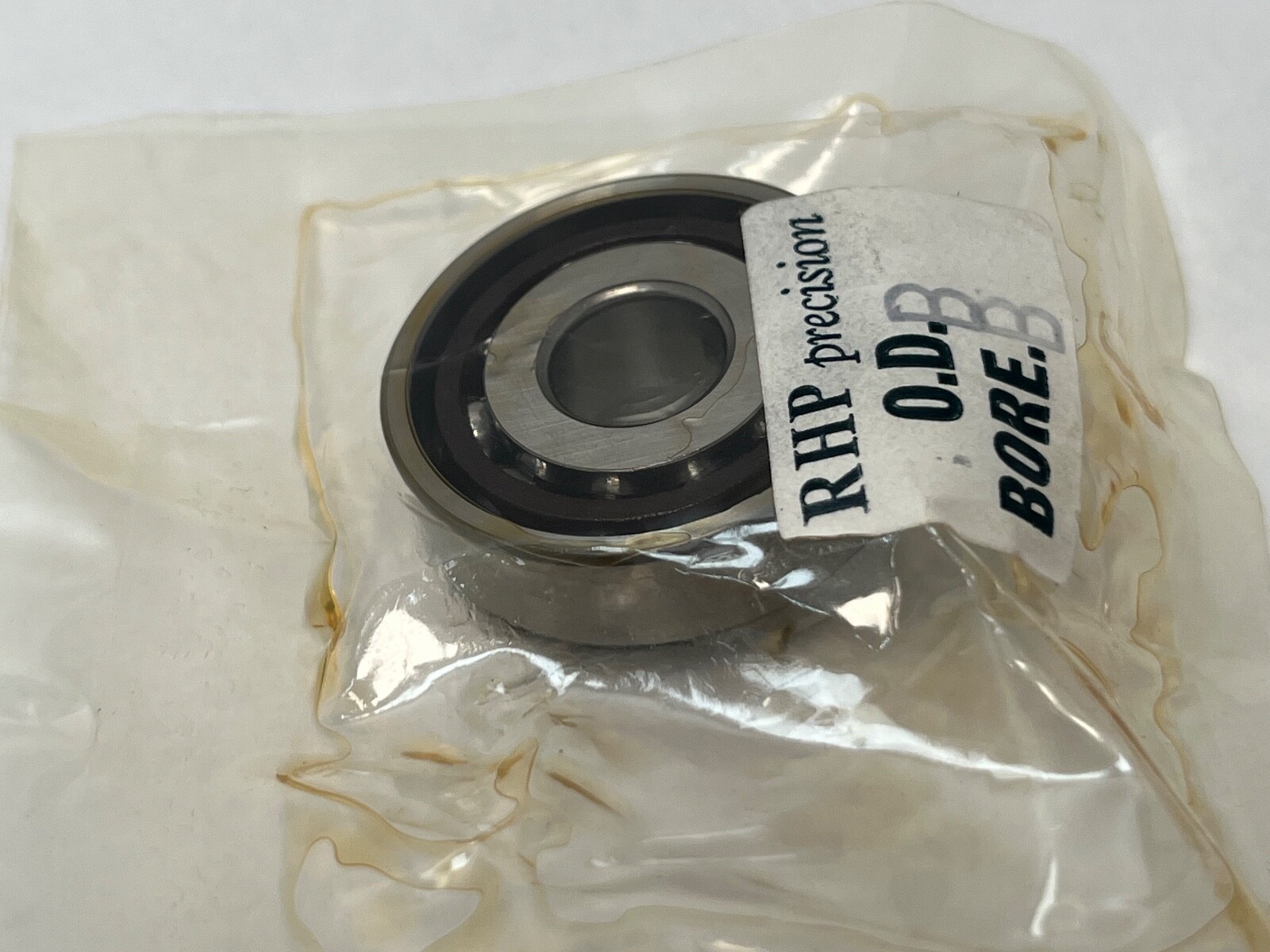

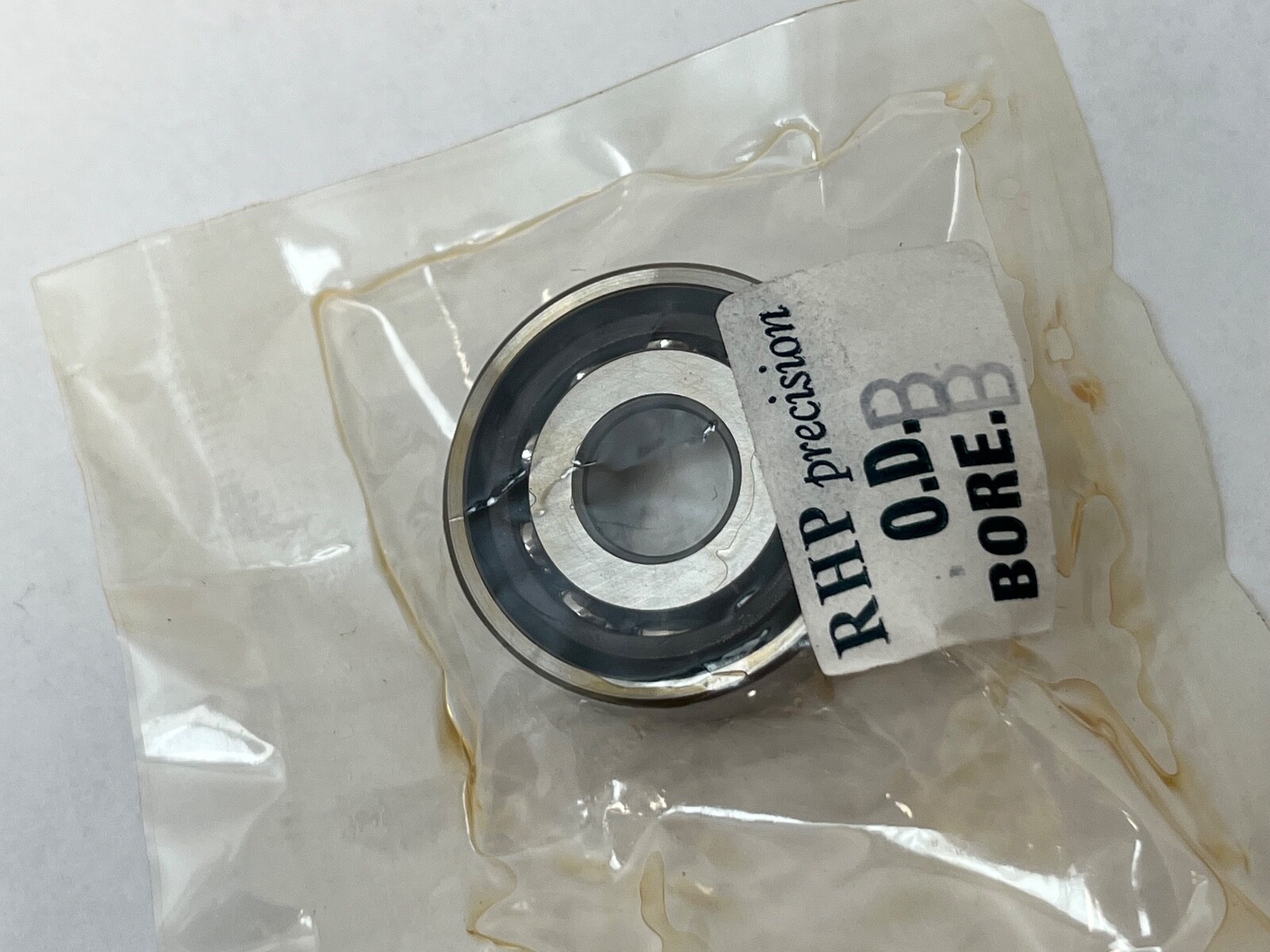

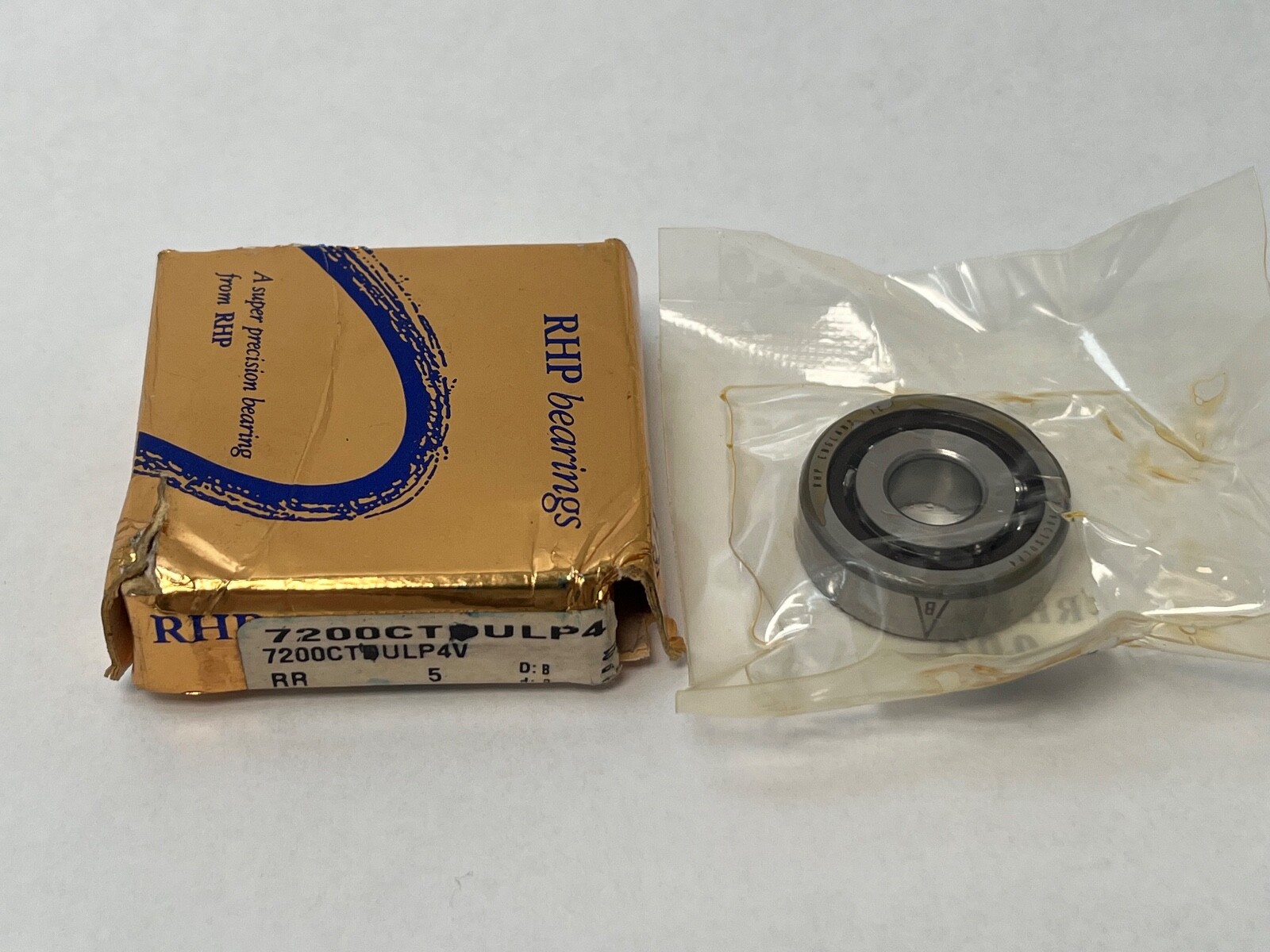

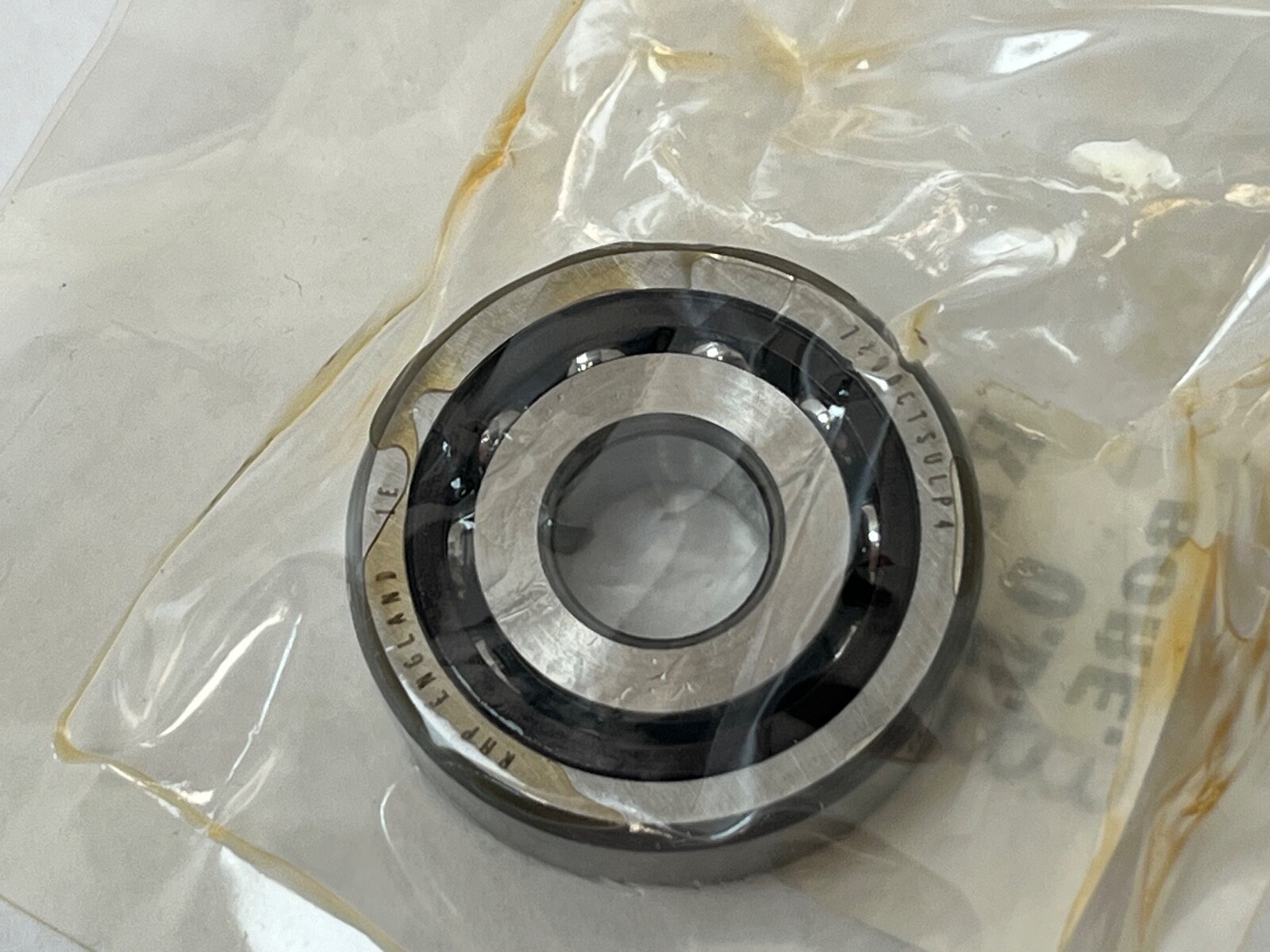

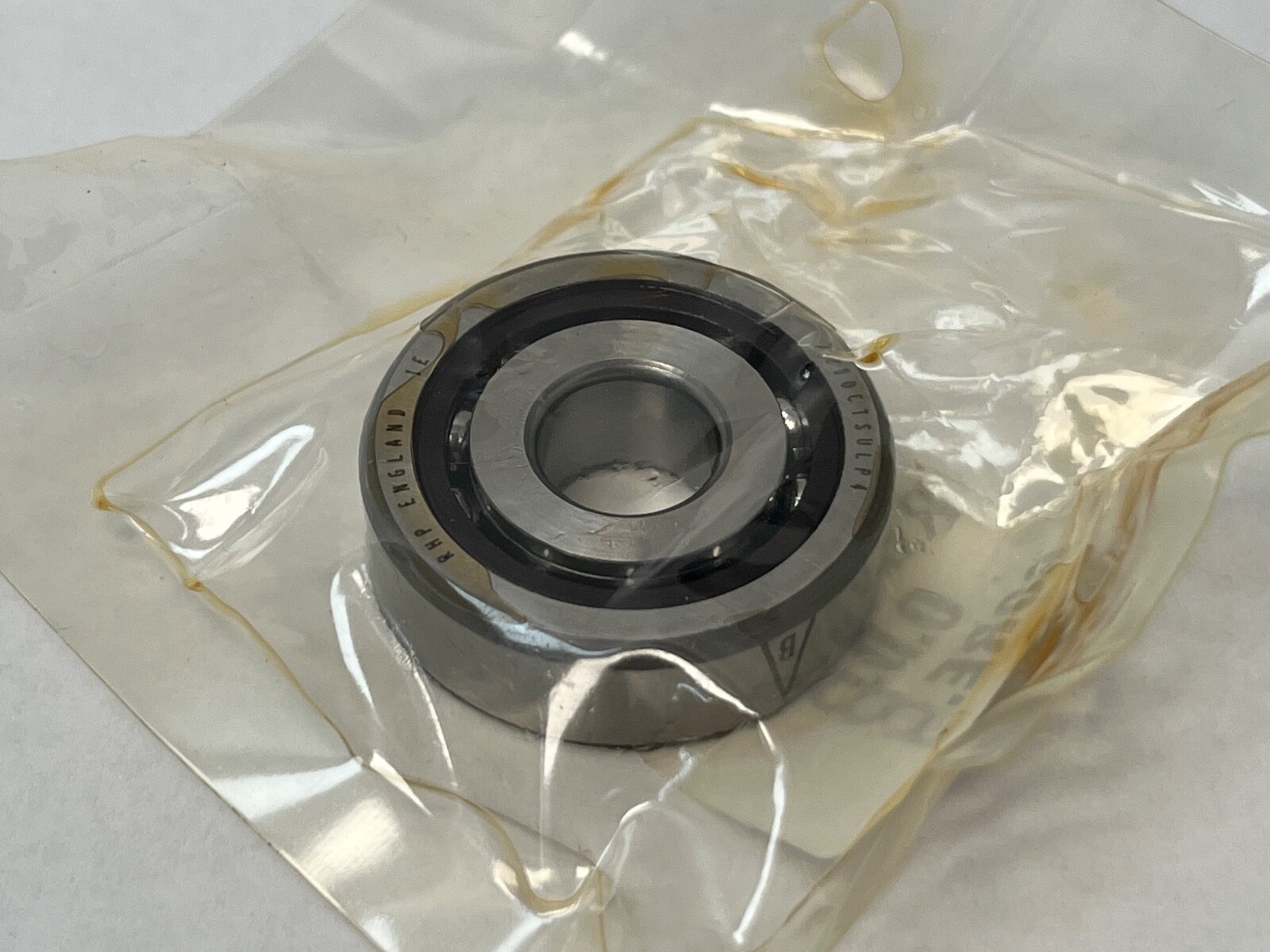

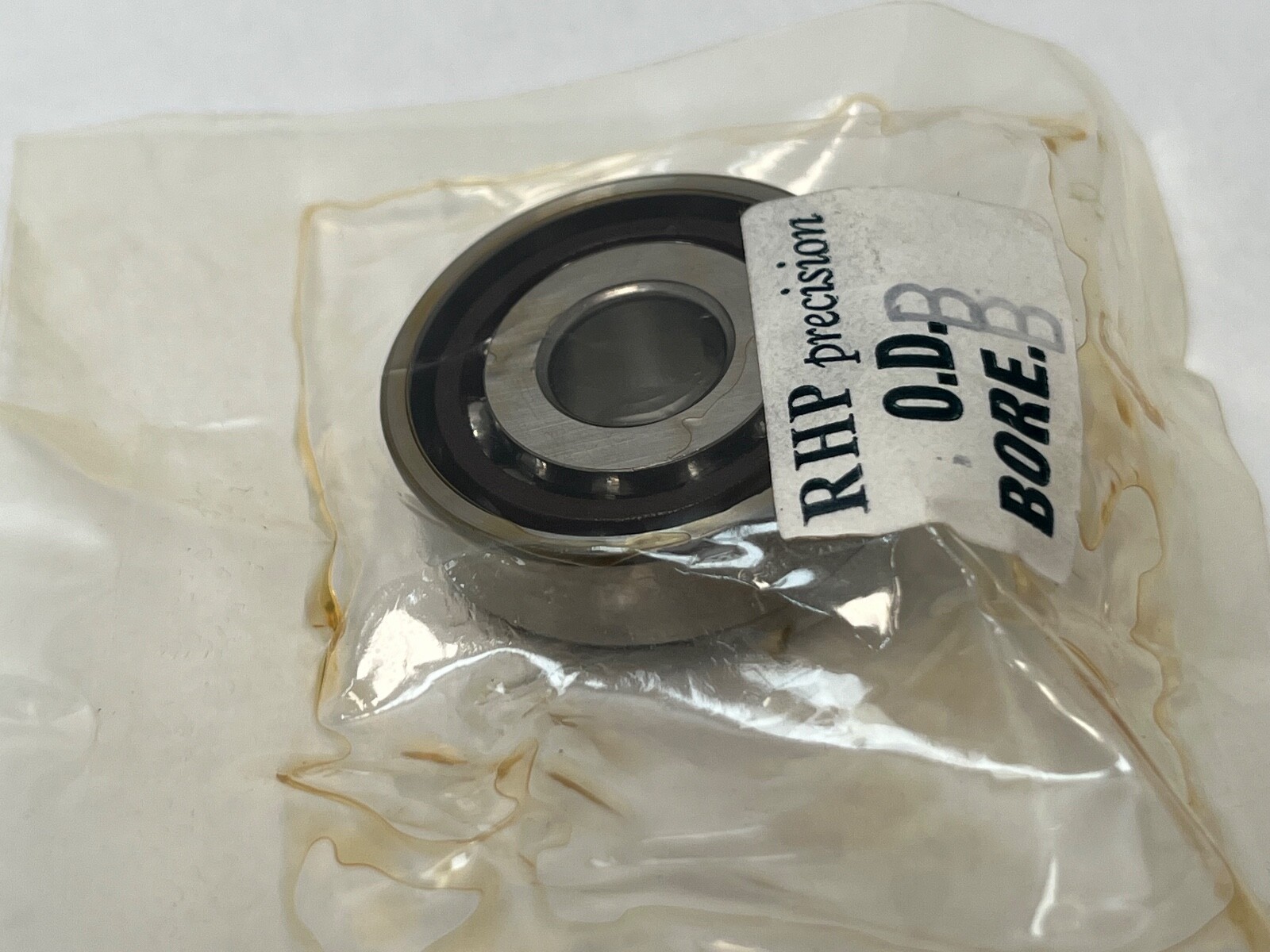

RHP7200CTSULP4Angular Contact Ball Bearing – 10 mm ID, 30 mm OD, 9 mm Width, 15° Contact Angle, Light Preload, ABEC 7 / P4, Phenolic Cage, Open.

Product Description

What this part is:

RHP 7200CTSULP4 super-precision single-row angular contact ball bearing, ISO dimension series 02, with a 15° contact angle, light preload, a phenolic cage and ABEC 7 / P4 precision. Bore Diameter: 10 mm. Outside Diameter: 30 mm. Overall Width: 9 mm.

Decoding the designation:

7 — single-row angular contact ball bearing.

2 — RHP dimension series 2, ISO series 02.

00 — bore code 00, 10 mm bore.

C — 15° contact angle.

T — laminated phenolic resin cage, outer-ring guided.

SU — single universal. Inner and outer rings are the same width and the faces are ground at manufacture, so two bearings mount back-to-back, face-to-face or in tandem at the designed preload with plain parallel spacers.

L — light preload. Mounted as a back-to-back pair this gives an axial preload of 29 N and an axial stiffness of 18 N/µm.

P4 — ISO Class 4, ABEC 7, British Standard EP7.

Specifications:

Bore Diameter: 10 mm. Outside Diameter: 30 mm. Overall Width: 9 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Bearing steel. Mounting Arrangement: Universal single. Dynamic Load Rating: 5,400 N. Static Load Rating: 2,610 N. Limiting Speed: 52,000 rpm grease; 84,000 rpm oil. Lubricant: grease or oil. Maximum Temperature (phenolic cage): 120 °C. Item Weight: 0.032 kg (0.07 lb) per bearing. Country of Origin: United Kingdom. Unit Quantity: 1 Pc.

Dimensions and mounting:

Inner ring abutment diameter d1 min: 15 mm. Outer ring abutment diameter D1 max: 25 mm. Outer ring seating diameter D2 max: 27.5 mm. Chamfer dimension r min: 0.6 mm. Chamfer dimension r1 min: 0.3 mm. Effective load centre a: 7.2 mm. Internal free volume: 1.2 cm³. PCD of lubrication jets: 18.1 mm.

Compatibility and replacement:

Same 10 x 30 x 9 mm envelope, same 15° angle, same light preload at super-precision class: SKF 7200 CD/P4ADGA, FAG B7200-C-T-P4S, NSK 7200CTRSULP4, NTN 7200CG/GNP4, Timken Fafnir 2MM200WI CR, Koyo 7200C, IBC 7200-C-T-P4S-UL.

Frequently asked questions:

What size is the RHP 7200CTSULP4?

10 mm bore, 30 mm outside diameter, 9 mm width.

What are the speed limits of the 7200CTSULP4?

52,000 rpm on grease and 84,000 rpm on oil.

What does SUL mean in 7200CTSULP4?

SU is single universal, with ground faces so two bearings mount in any arrangement at the designed preload. L is light preload.
