Availability:
2 in stock

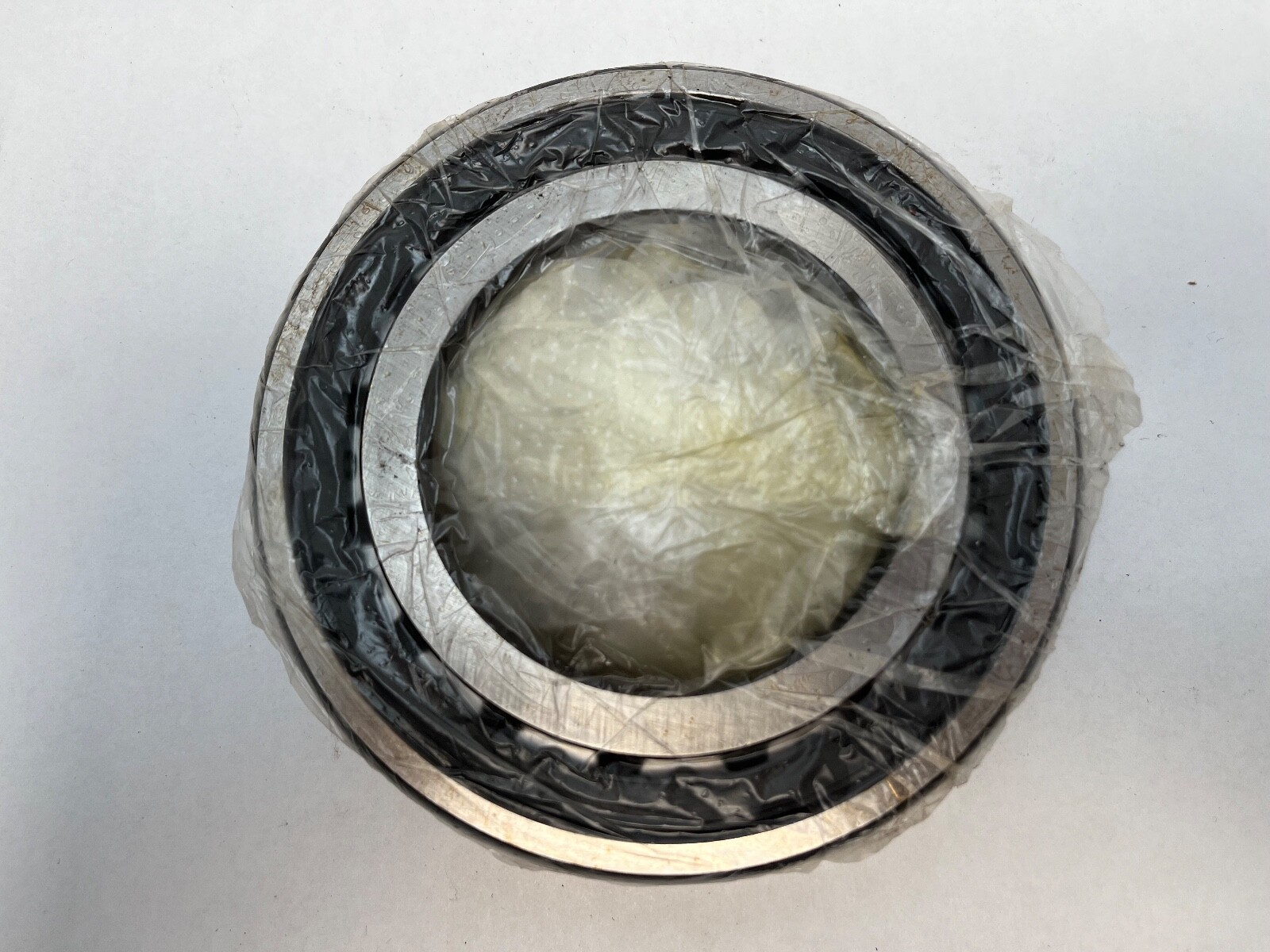

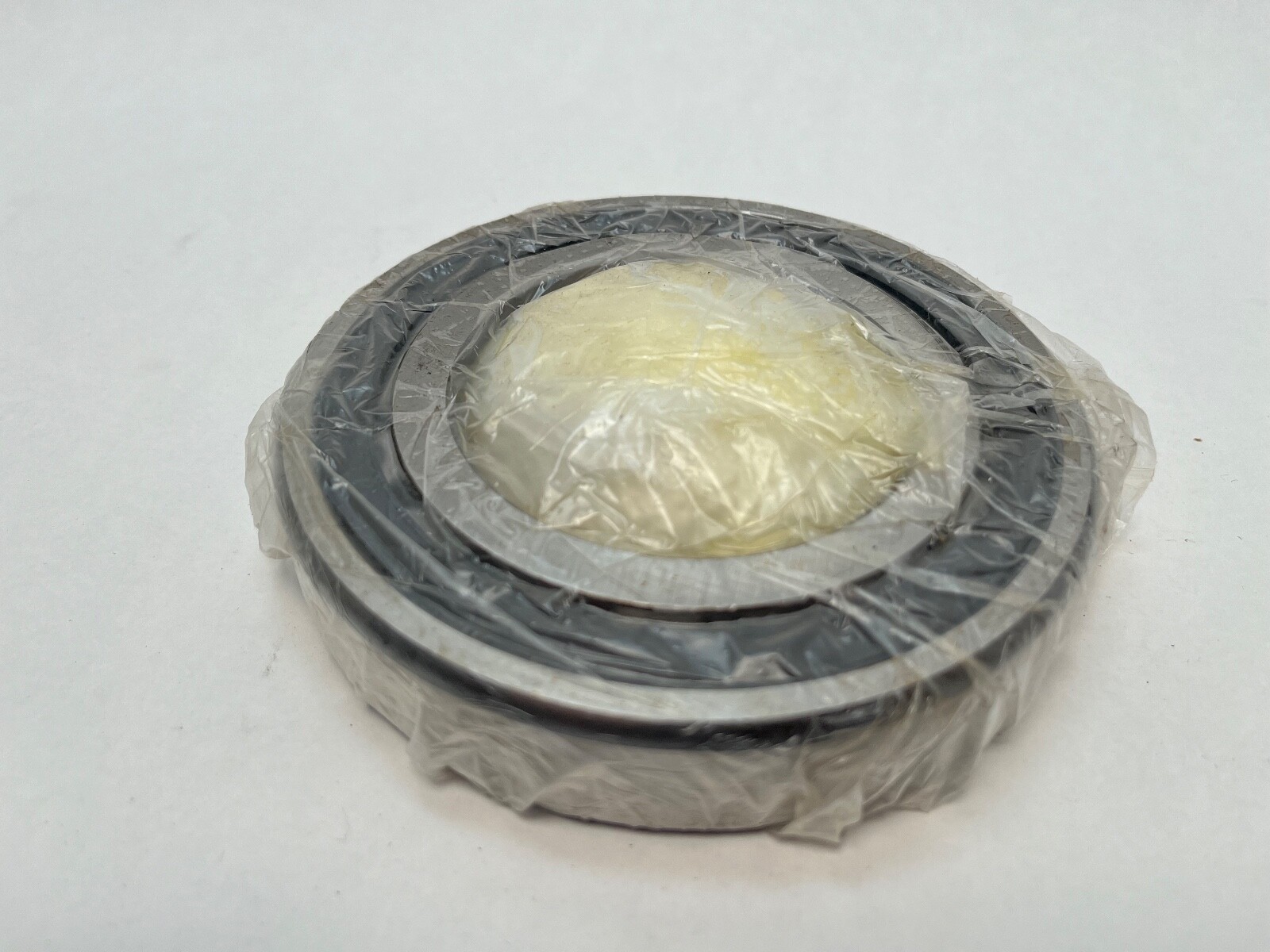

Single-row barrel roller bearing, 70 mm straight bore x 125 mm OD x 24 mm wide, laminated fabric cage, self-aligning and radial-load only. Bearing only, sold as 1 Pc.
List Price
$147.56
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| GTIN | 644075155694 |
| Model | 20214 T |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 20200 |
| Base Number | 20214 |
| Industry Terms | barrel roller bearing, spherical roller bearing single row, self aligning roller bearing, straight bore roller bearing |
| Common Misspellings | FAG 20214-T, 2O214T, FAG 20214 TVP, FAG 20241T, 20214TT |
| Application Types | Fans and blowers, conveyor pulleys, gear drives, paper machine rolls, agitators |
| Bore Shaft Size | 70 mm (2.7559 in), straight cylindrical |
| Mpn Variants | 20214T, 20214-T, 20214 T, 20214, 20214TVP |
| Manufacturer Status | FAG is part of Schaeffler |
| Rolling Elements | Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Part Number | 20214T |
| Cross Reference 1 | SKF 20214 T |
|---|---|

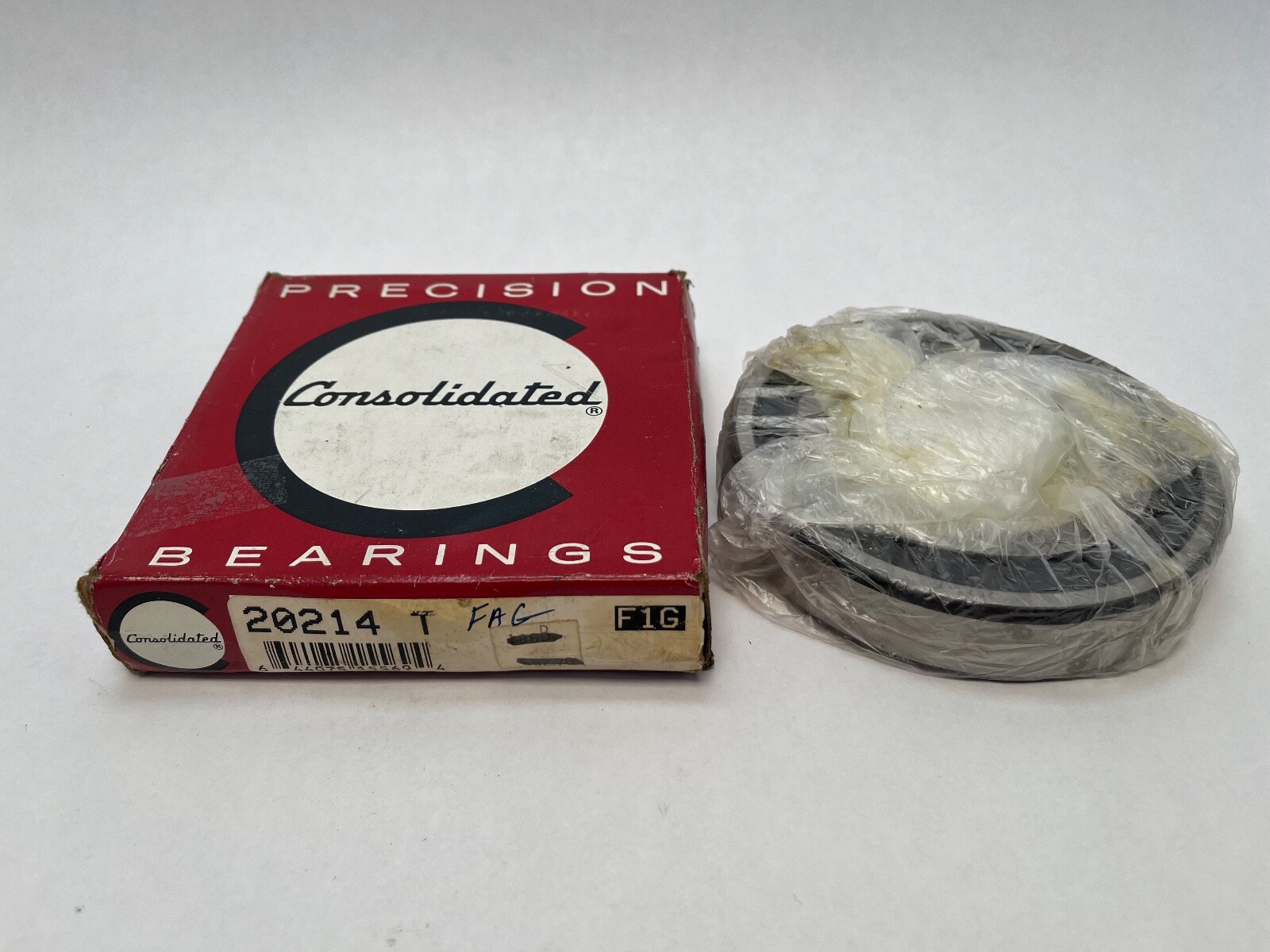

| Cross Reference 2 | Consolidated 20214 |
| Cross Reference 3 | FAG 20214-K-T (tapered bore, needs sleeve; not a swap) |

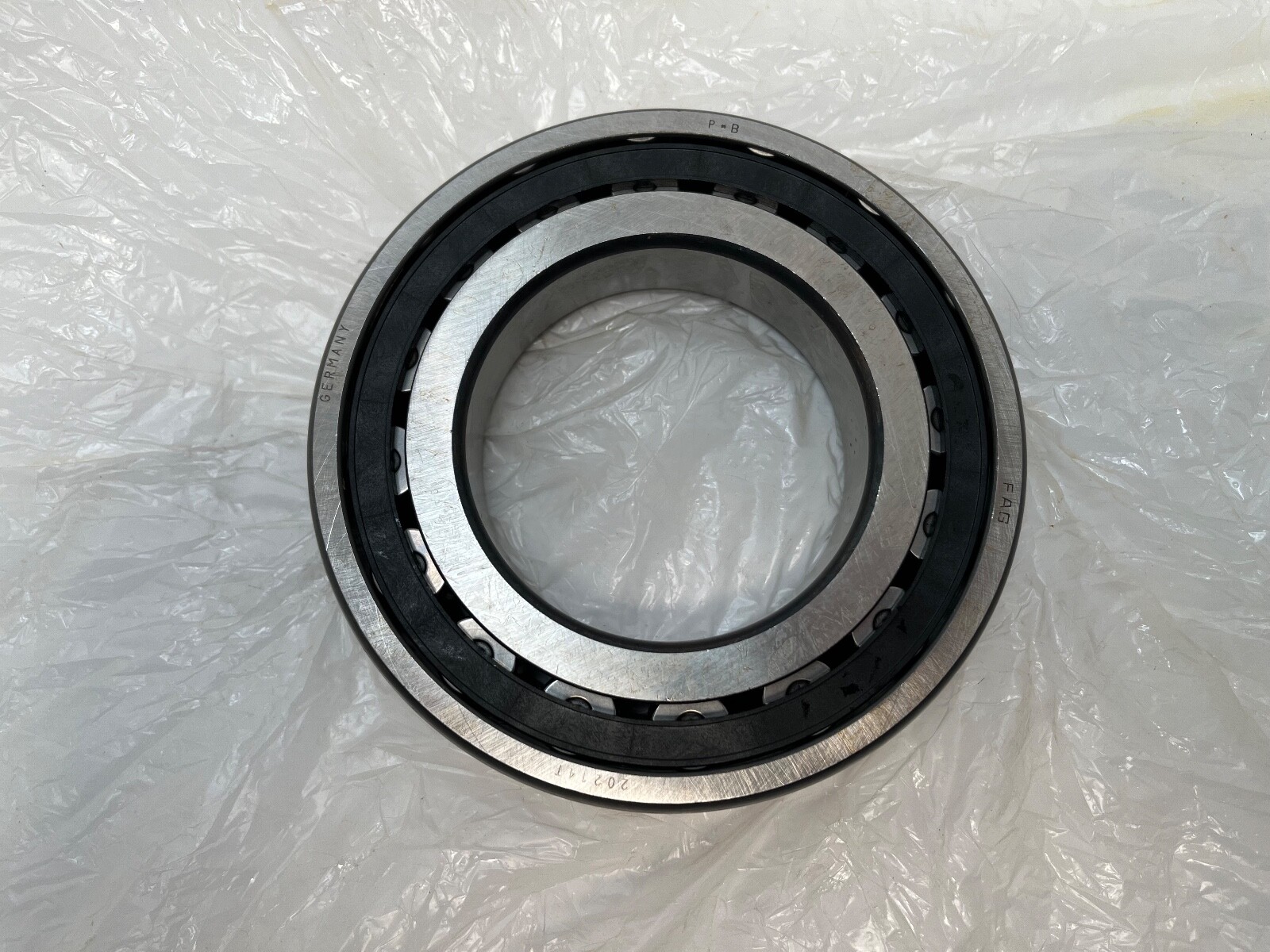

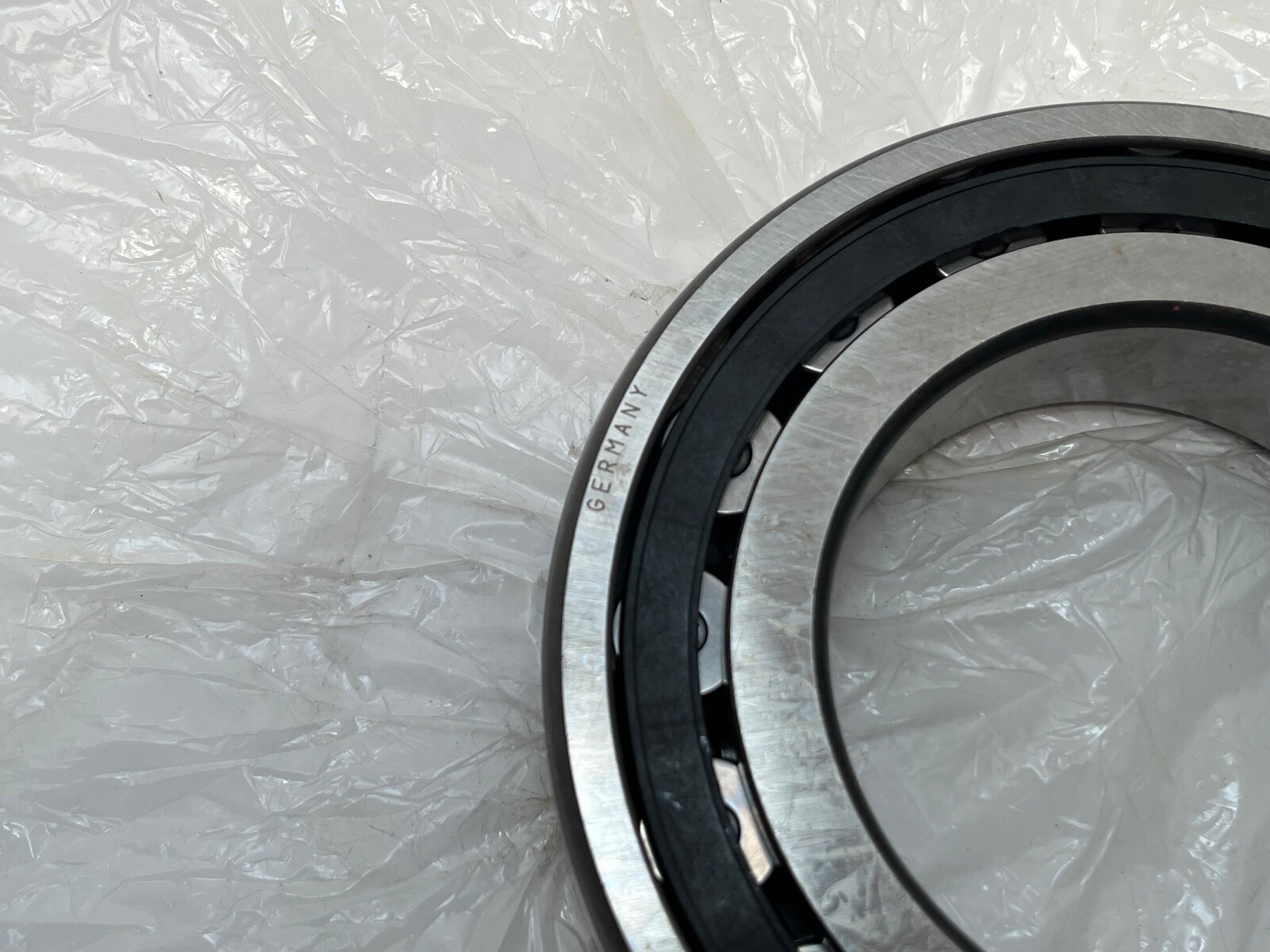

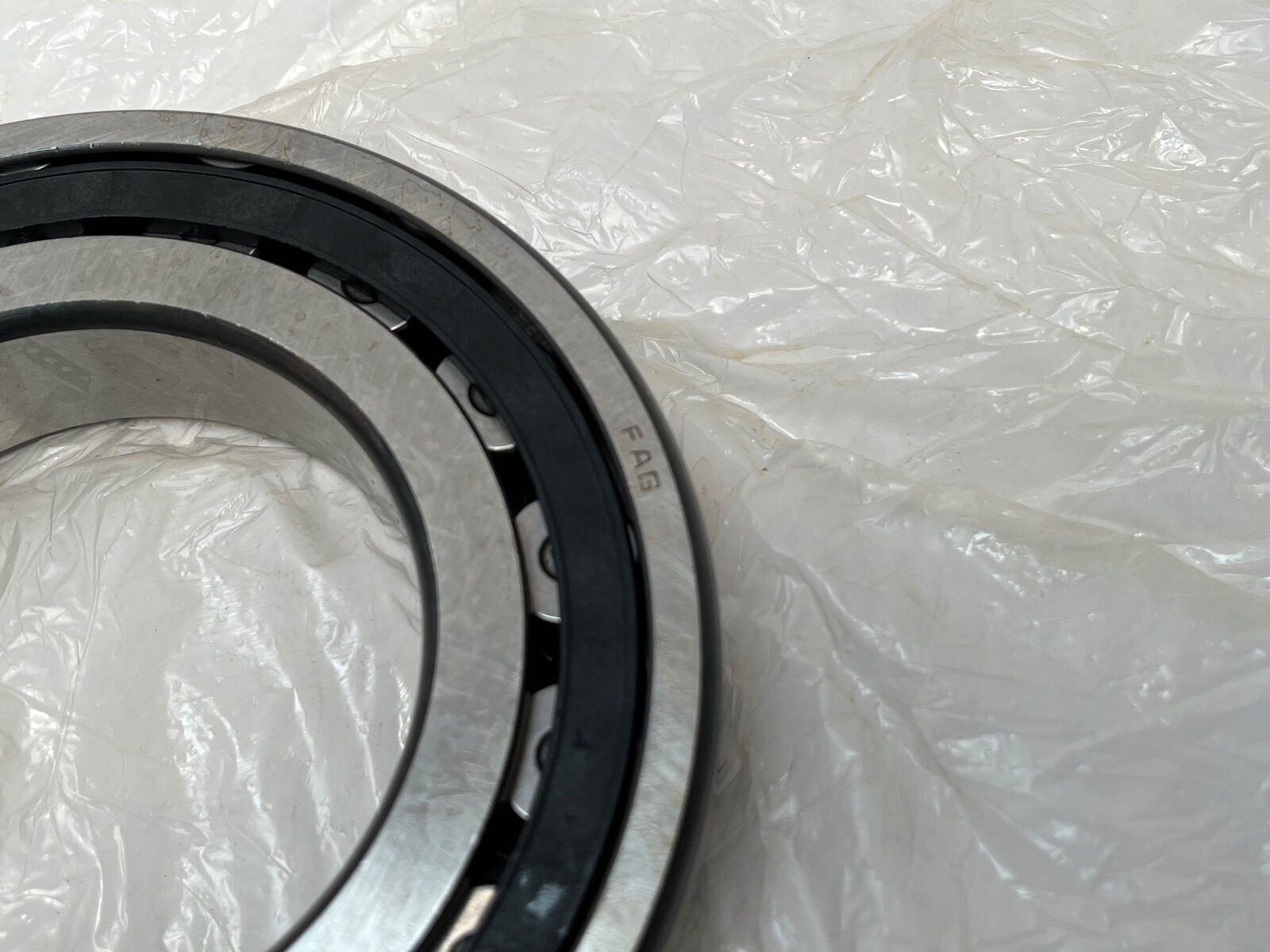

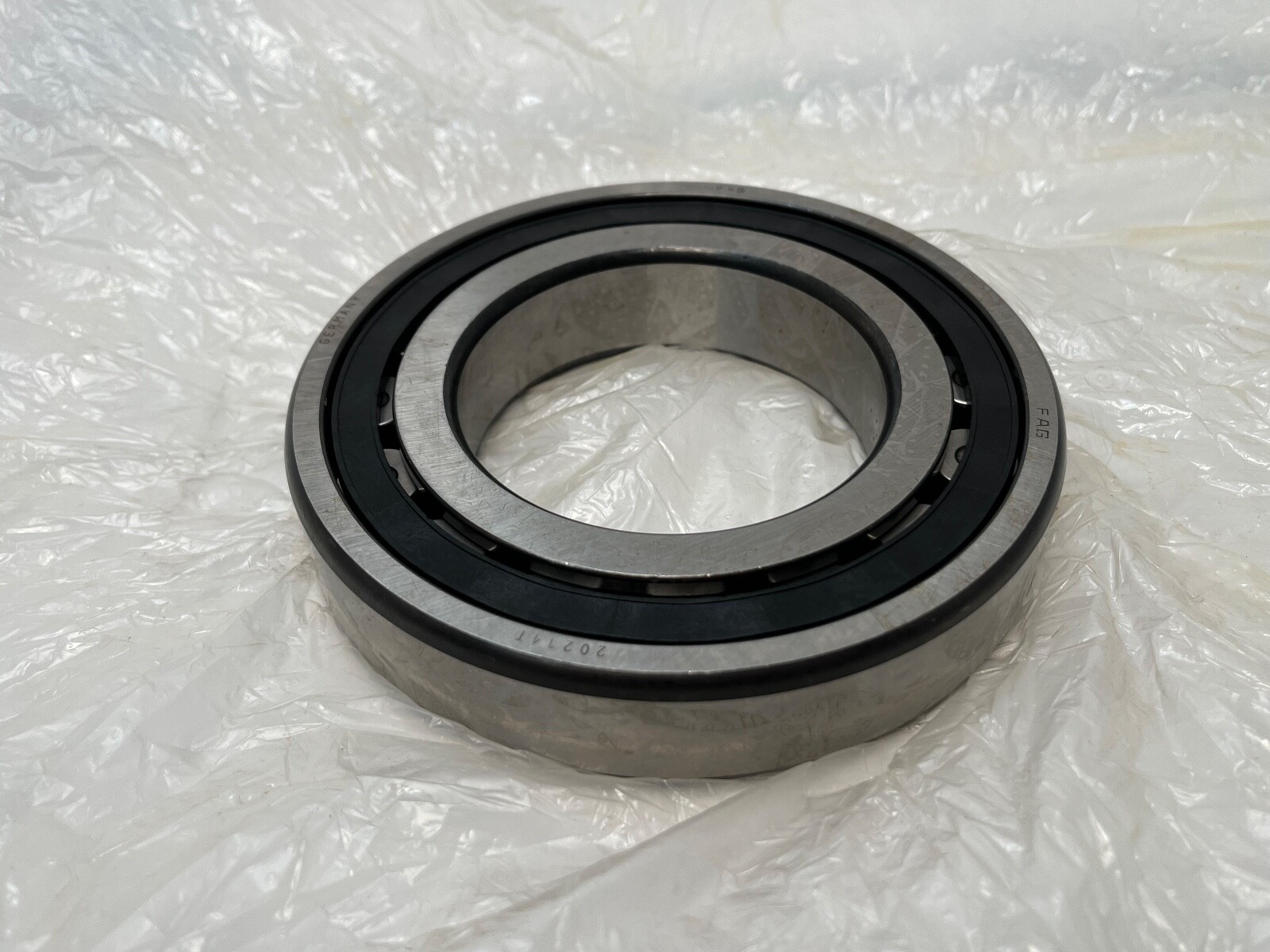

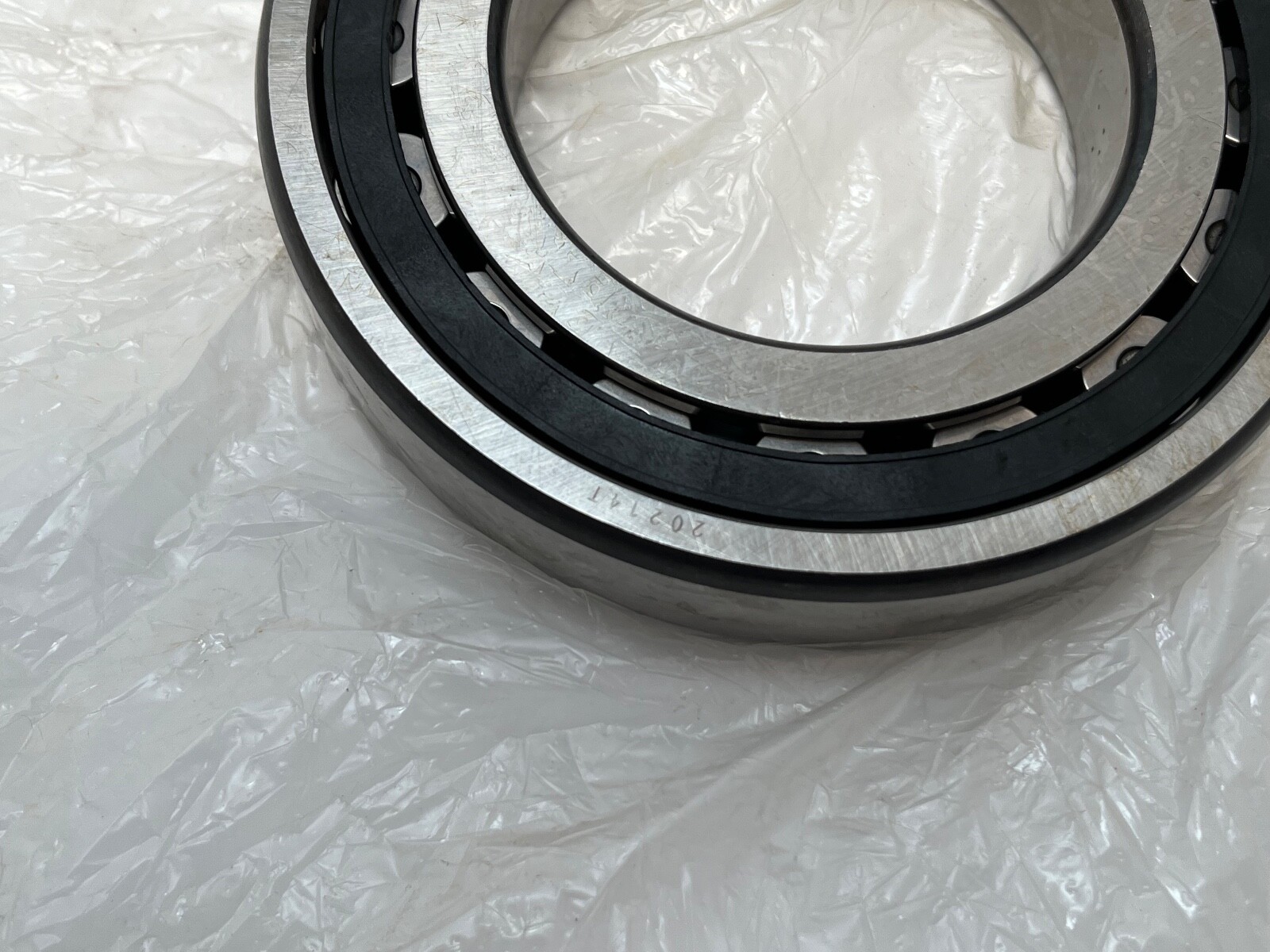

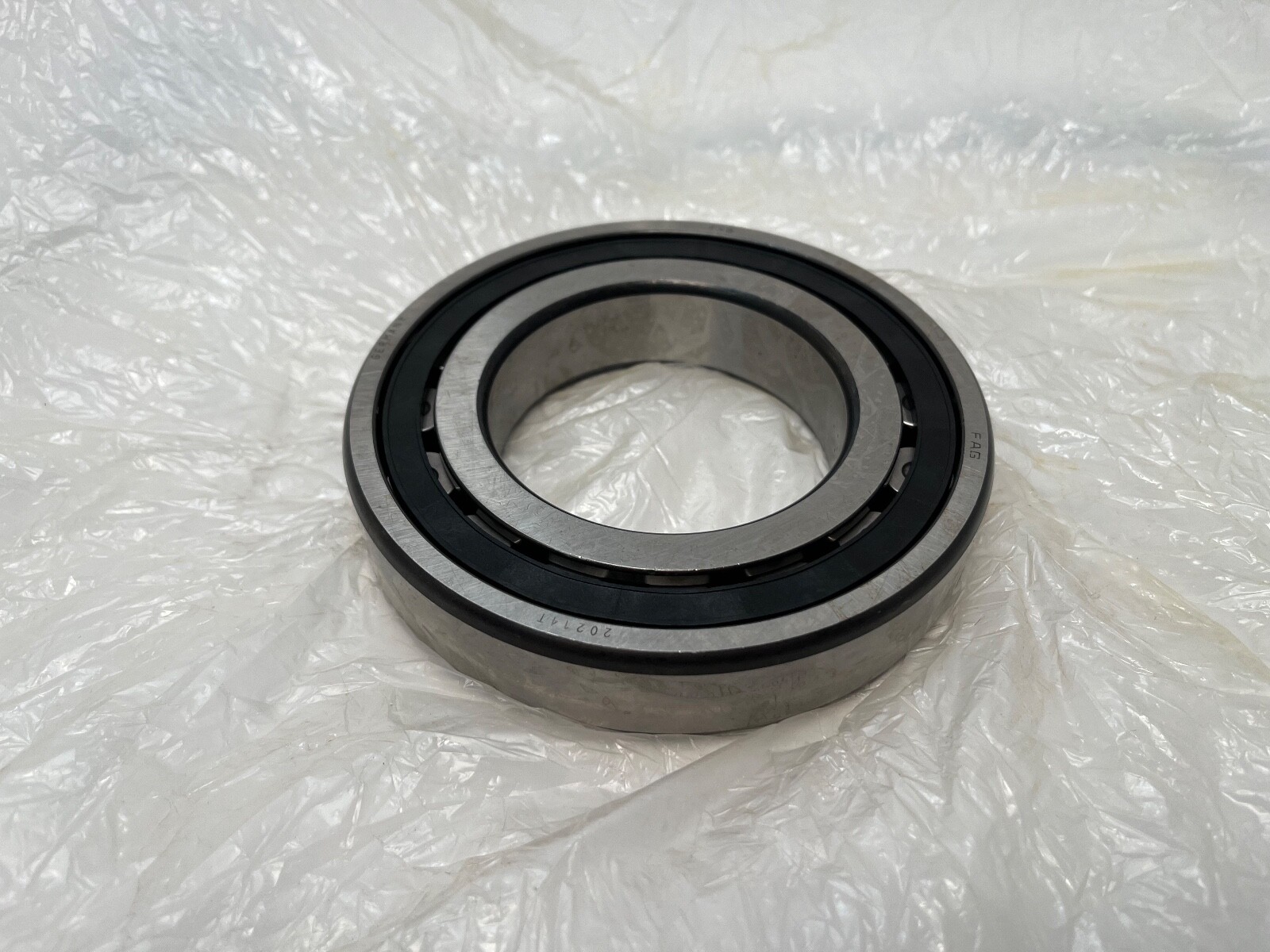

A FAG 20214-T single-row barrel roller bearing with a 70 mm straight bore, a 125 mm outside diameter and a 24 mm width. It has a laminated fabric cage and a self-aligning spherical outer raceway.
202: FAG single-row barrel roller series. 14: bore code 14, 70 mm bore, 125 mm OD, 24 mm width. T: laminated fabric cage. No K suffix: straight cylindrical bore. No clearance suffix: normal internal clearance, CN.
One row of short convex rollers running on a spherical outer raceway gives high radial capacity for the section and lets the inner ring swivel inside the outer ring, so the bearing accommodates shaft misalignment and housing deflection without edge loading. It carries radial load only: a single barrel row has no axial capacity, so thrust is taken by another bearing in the arrangement. A double-row 22xxx spherical roller bearing does carry thrust in both directions, which is why the two types are not substitutes for one another. The laminated fabric cage runs light and quiet and tolerates marginal lubrication, with a lower temperature ceiling than a brass cage.
Bore: 70 mm (2.7559 in), straight cylindrical. Outside diameter: 125 mm (4.9213 in). Width: 24 mm (0.9449 in). Number of rows: 1. Rolling elements: barrel rollers. Cage material: laminated fabric. Internal clearance: CN, normal. Axial load capacity: none, radial load only. Self-aligning: yes, spherical outer raceway. Closure: open.
One bearing, with no sleeve, lock nut or seals.
Supplied as 1 Pc.
The straight bore mounts directly on a plain 70 mm shaft seat with the fit chosen for the load and duty, and the bearing is located axially against a shaft shoulder or by a lock nut. No adapter sleeve is used with this bore, and the internal clearance is fixed by the CN specification rather than set at assembly.
Genuine equivalents are straight-bore single-row barrel roller bearings in the same 70x125x24 mm envelope: SKF 20214 T and Consolidated 20214. The tapered-bore 20214 K is a related size rather than an interchange, because it needs an adapter sleeve or a tapered journal. A 22214 double-row spherical roller is a different part, since it carries axial load.
