Availability:
35 in stock

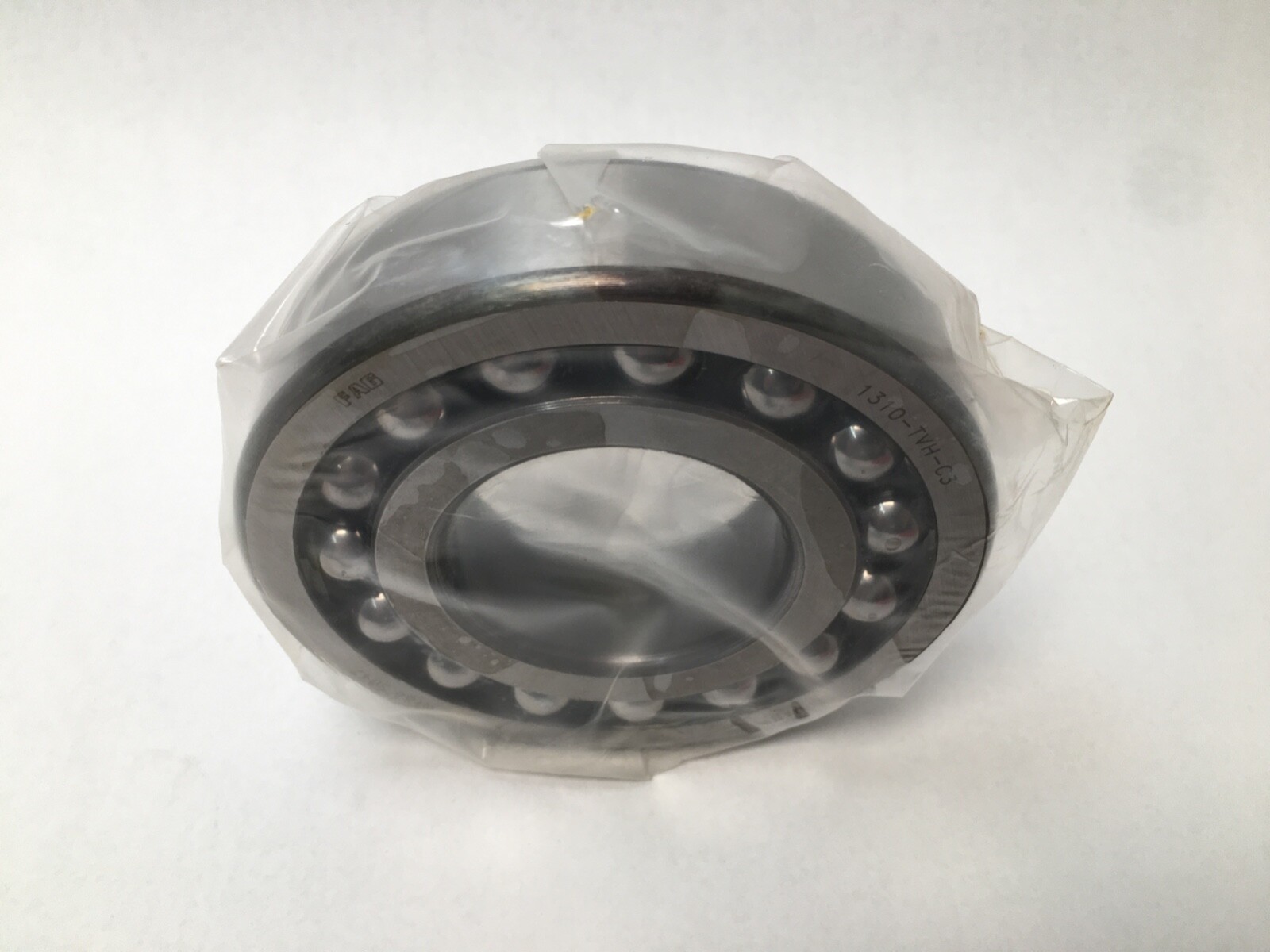

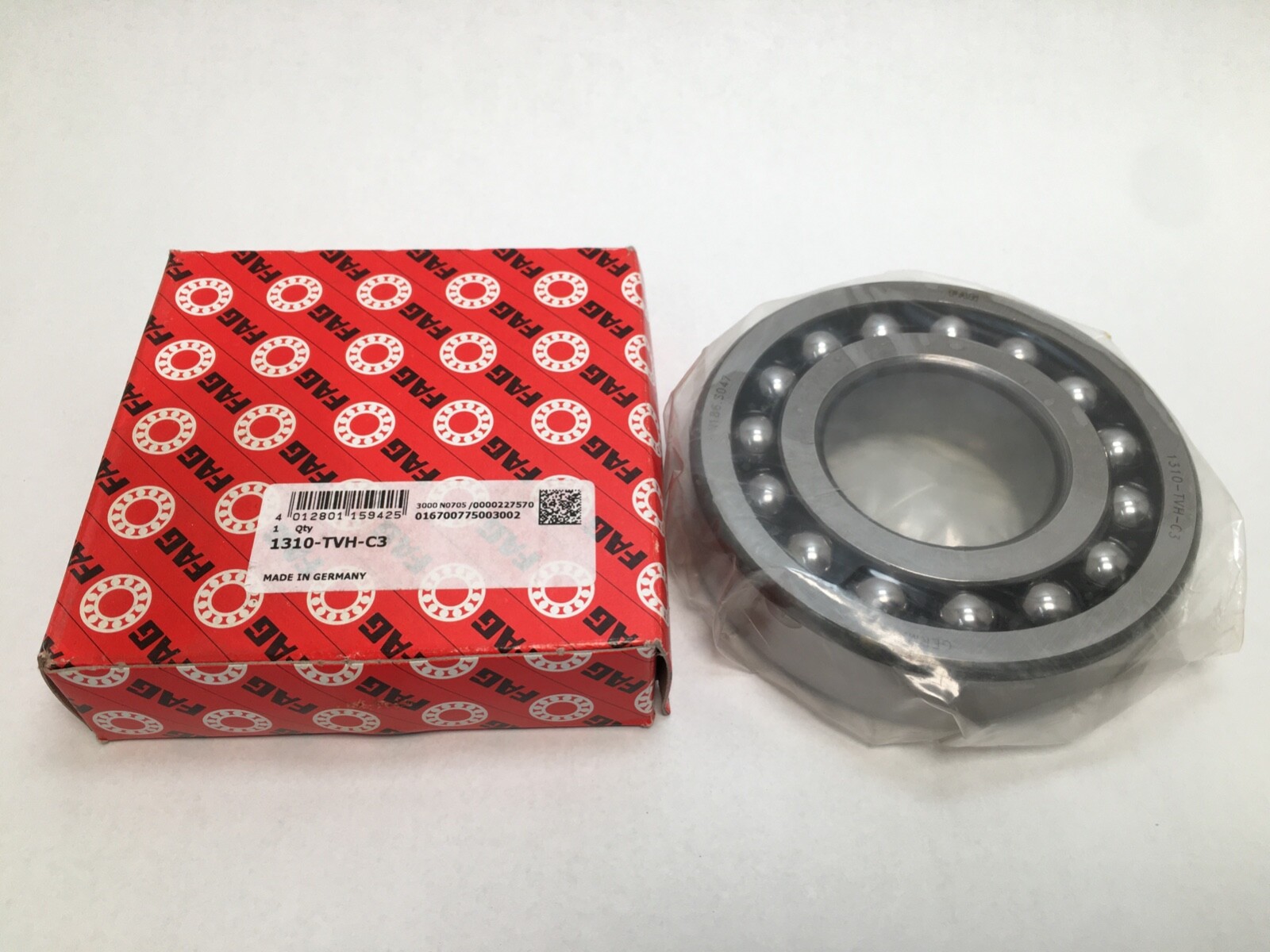

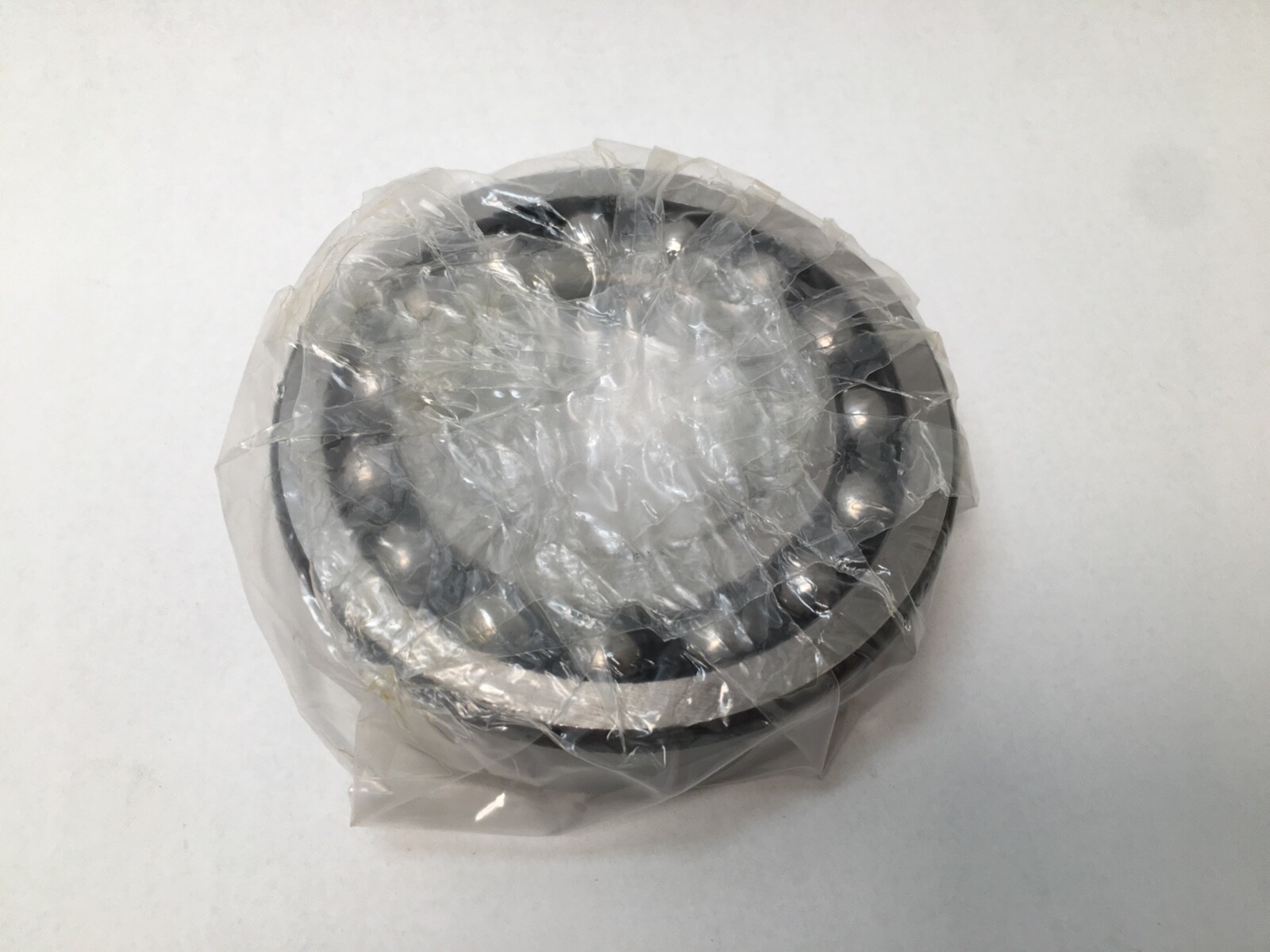

Double-row self-aligning ball bearing, 50 x 110 x 27 mm, straight bore, open, glass-fibre polyamide cage, C3 clearance, 42 kN dynamic rating.
List Price
$61.00
35 in stock
35 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:

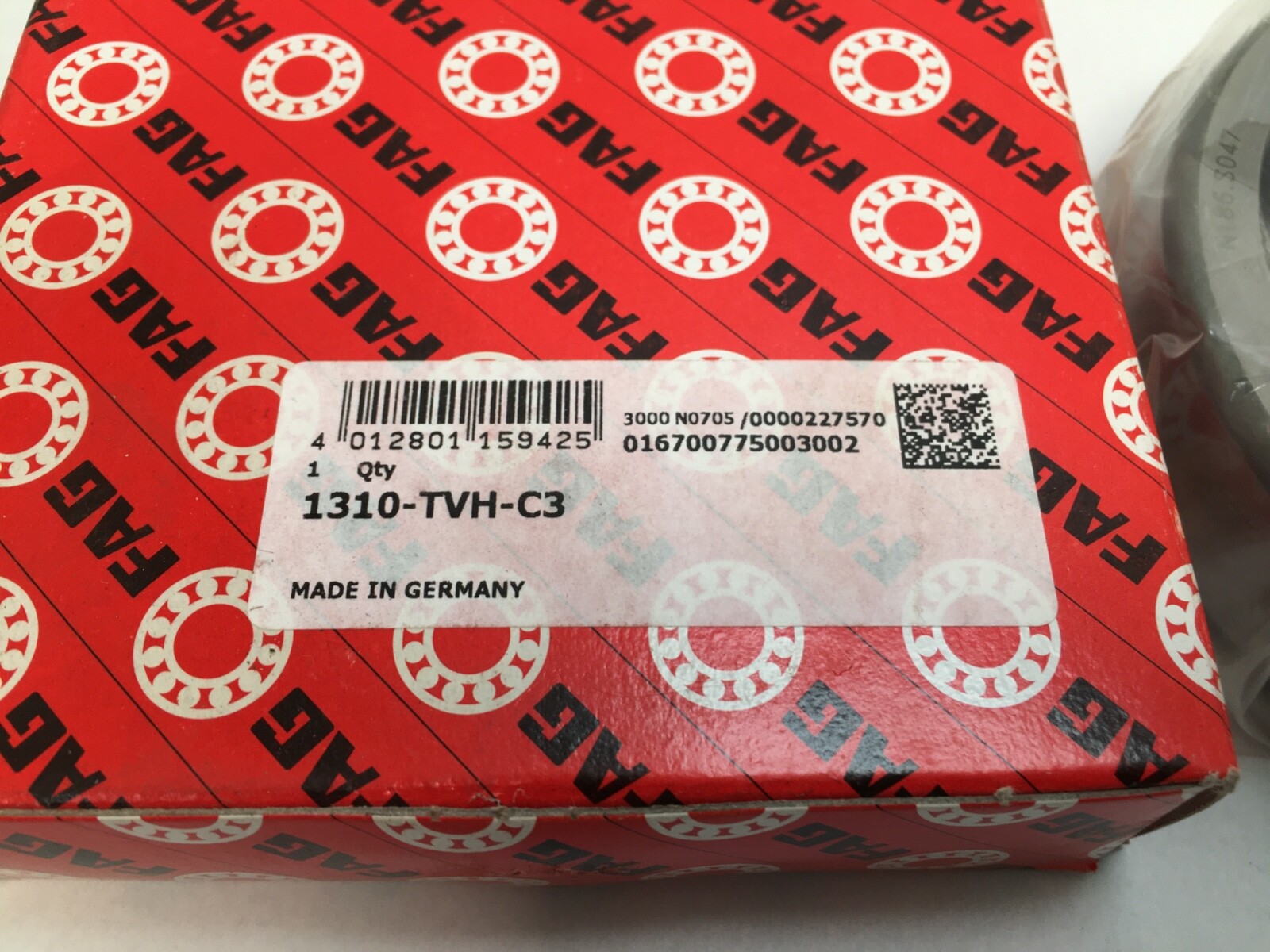

| MFR / Brand | FAG |
|---|---|
| MPN | 1310TVHC3 |
| GTIN | 4012801159425 |
| Model | 1310-TVH-C3 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 50 mm |
| OD | 110 mm |
| Width | 27 mm |
| Material | Bearing Steel |
|---|---|
| Series | 1300 |
| Condition | New |
| Base Number | 1310 |
| Common Misspellings | 1310TVCH3, 1310 TVHC3, 1310TCH C3, 1310 TVN C3 |
| Overall Width | 27 mm |
| Mpn Variants | 1310TVHC3, 1310-TVH-C3, 1310 TVH C3, 1310.TVH.C3, 1310TVH C3 |
| Precision Class | ABEC 1 / P0 |
| Cage Type | Solid, one-piece |
| Dynamic Load Rating | 42,000 N |
| Static Load Rating | 14,100 N |
| Rolling Elements | Ball |
| Item Weight | 1.54 kg (3.40 lb) |
| Cage Material | Polyamide |
| Limiting Speed | 6900 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Internal Clearance | C3 |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.90.30 |
| Bearing Material | Chrome steel |
| Cross Reference 1 | SKF 1310 ETN9/C3 |
|---|---|
| Cross Reference 2 | NSK 1310 TNC3 |
| Cross Reference 3 | NTN 1310 C3 |
| Cross Reference 4 | Koyo 1310 C3 |
| Cross Reference 5 | RHP 1310 C3 |
| Cross Reference 6 | SNR 1310 J30 |
| Cross Reference 7 | MRC 1310 C3 |
| Cross Reference 8 | Timken 1310 C3 |
| Cross Reference 9 | Nachi 1310 C3 |
FAG 1310.TVH.C3 double-row self-aligning ball bearing. Bore Diameter: 50 mm. Outside Diameter: 110 mm. Overall Width: 27 mm. Series: 13. Base Number: 1310. Number Of Rows: 2. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome steel. Item Weight: 1.54 kg (3.40 lb). GTIN: 4012801159425.
1310 — self-aligning ball bearing to DIN 630, dimension series 13, 50 mm bore.
TVH — one-piece solid cage in glass-fibre reinforced polyamide 66.
C3 — radial internal clearance greater than normal.
Dynamic Load Rating: 42,000 N. Static Load Rating: 14,100 N. Limiting Speed: 6,700 rpm. Reference Speed: 8,700 rpm. Internal Clearance: C3. Cage Material: Polyamide. Cage Type: Solid, one-piece. Precision Class: ABEC 1 / P0.

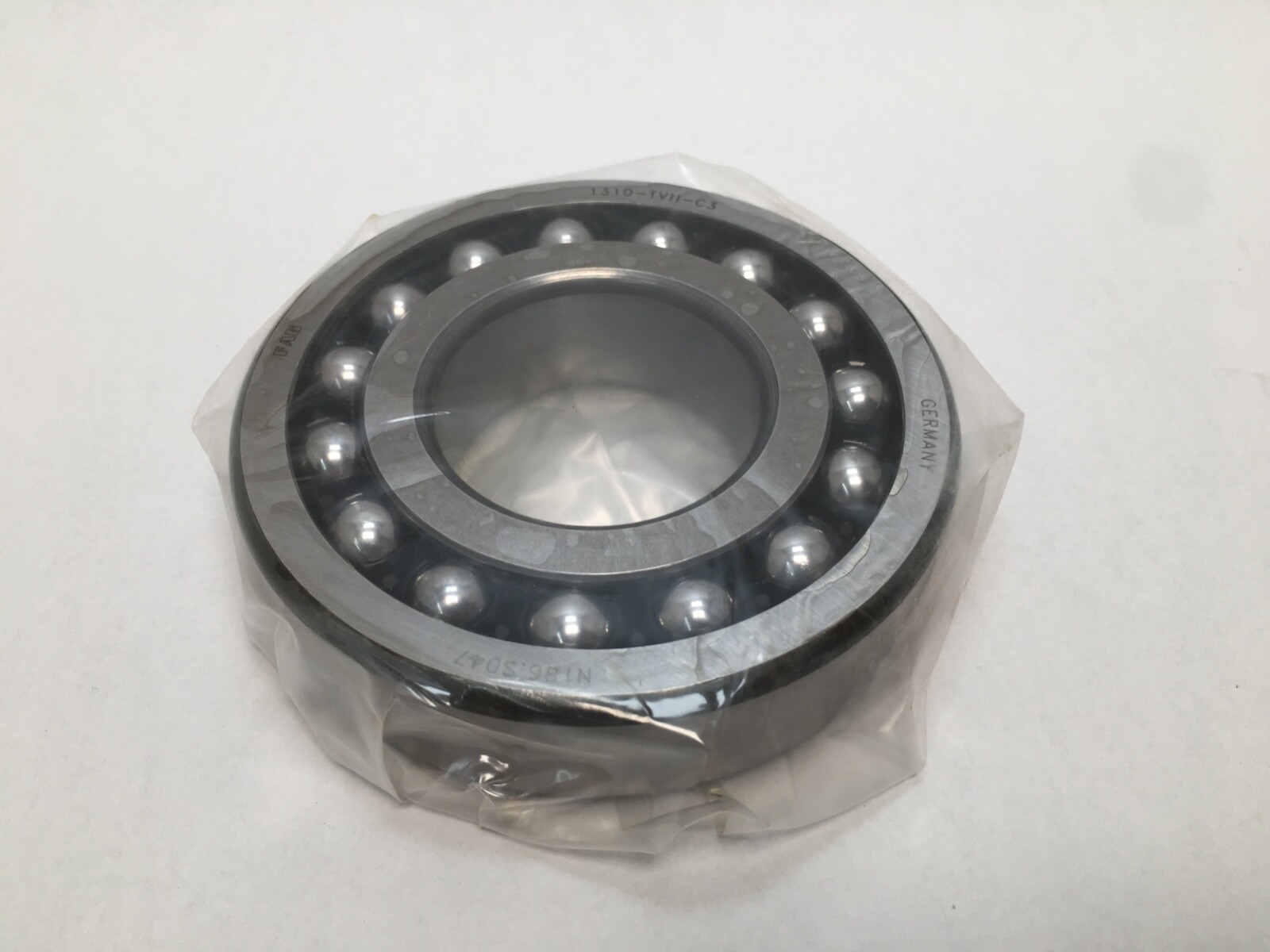

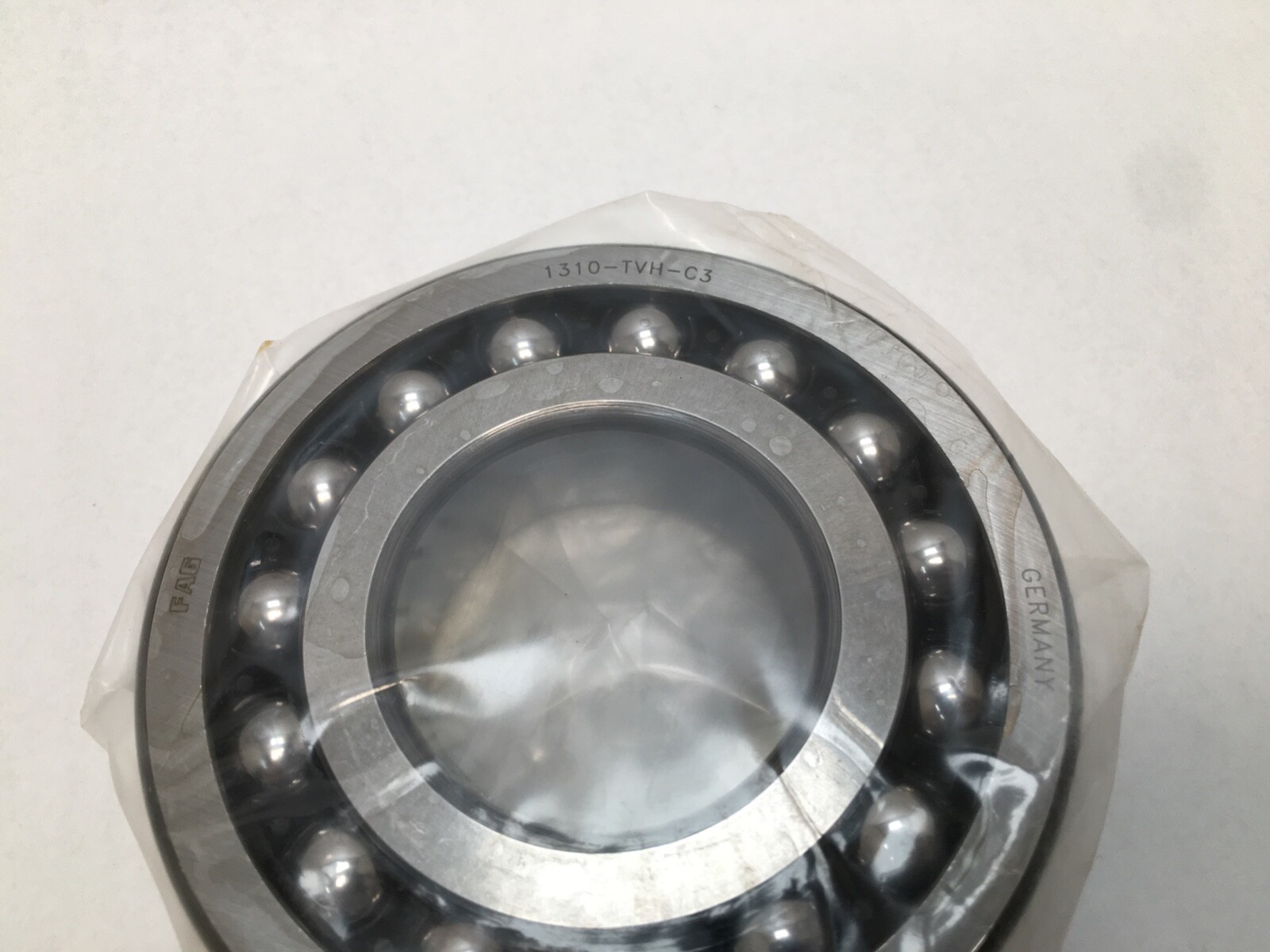

The outer raceway is a single sphere, so the inner ring, ball set and cage swivel bodily inside the outer ring. The bearing carries heavy radial load while absorbing static shaft misalignment and running shaft deflection, and it takes axial load in both directions to a smaller degree. C3 clearance leaves working room for the interference fit on the shaft and for thermal growth of the inner ring at speed.
Unit Quantity: 1 Pc. Single bearing, open on both faces, straight cylindrical bore for a direct shaft fit.

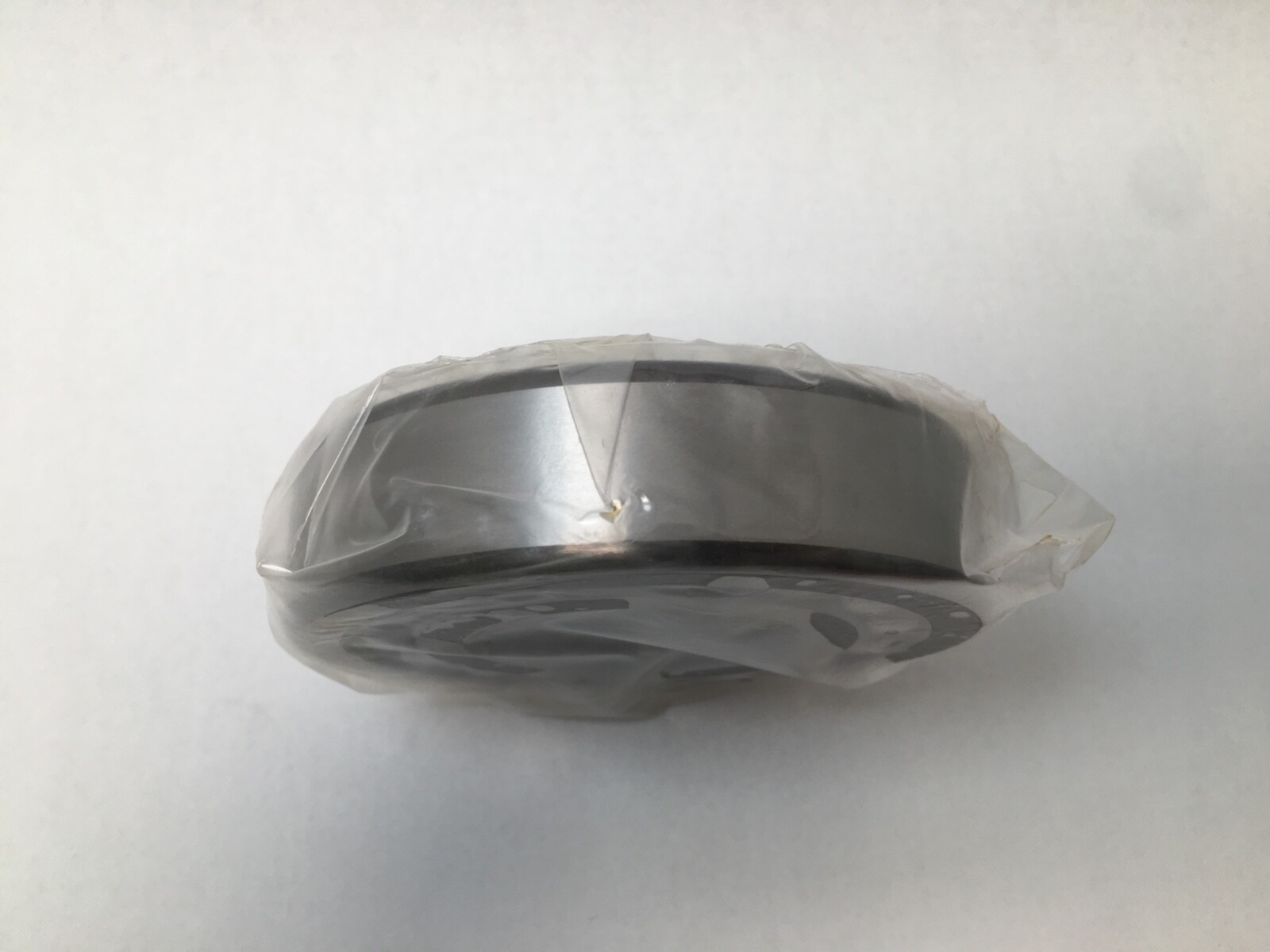

The 50 mm straight bore seats directly on the shaft. Open faces take lubricant from the housing cavity. The outer ring is a plain cylinder, 110 mm diameter over 27 mm of width.
50 x 110 x 27 mm is the ISO boundary size for a 1310, built to the same envelope by every major manufacturer. The cross-references below share that envelope, the double-row self-aligning ball construction and the stated clearance class.
