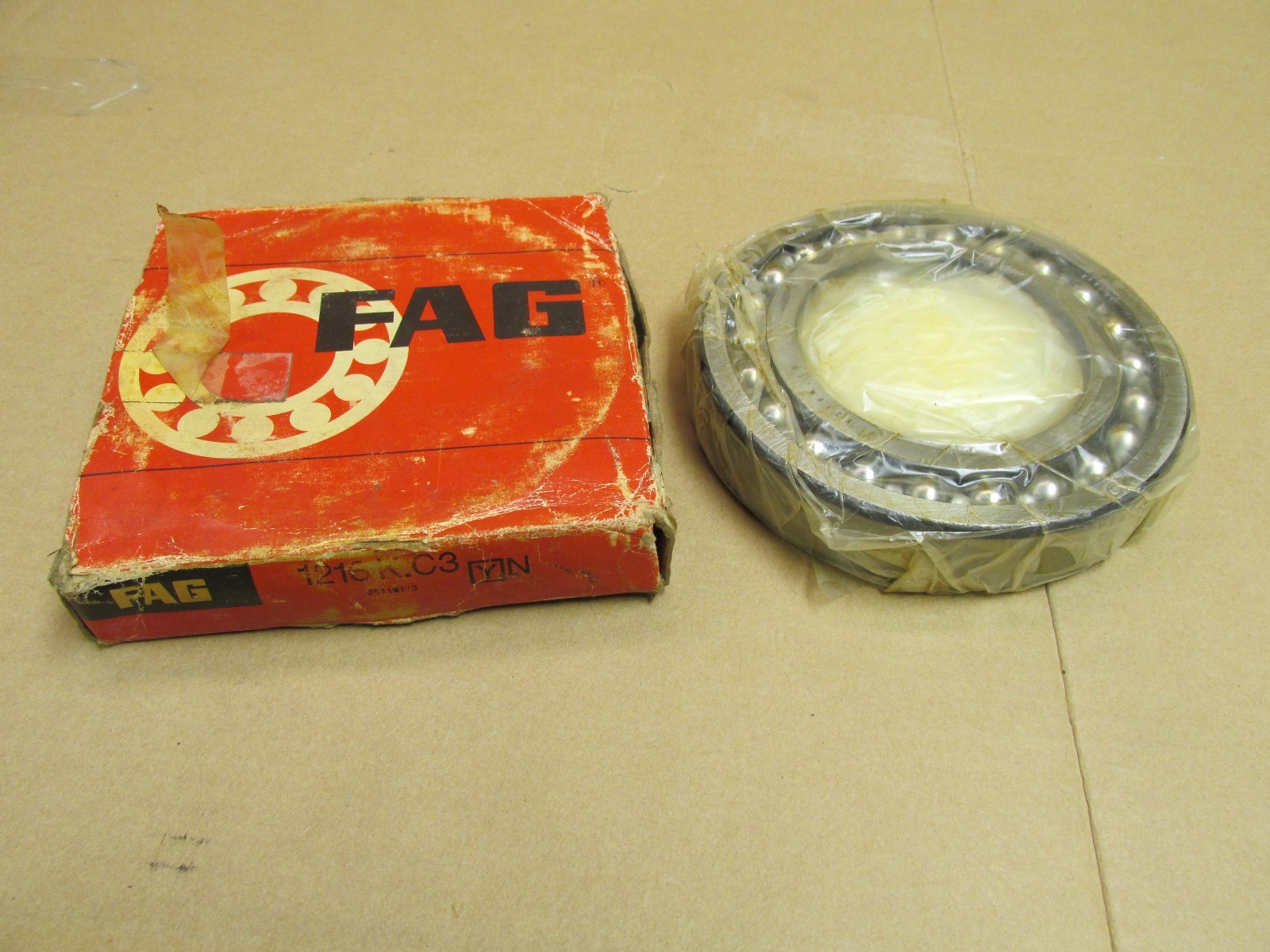

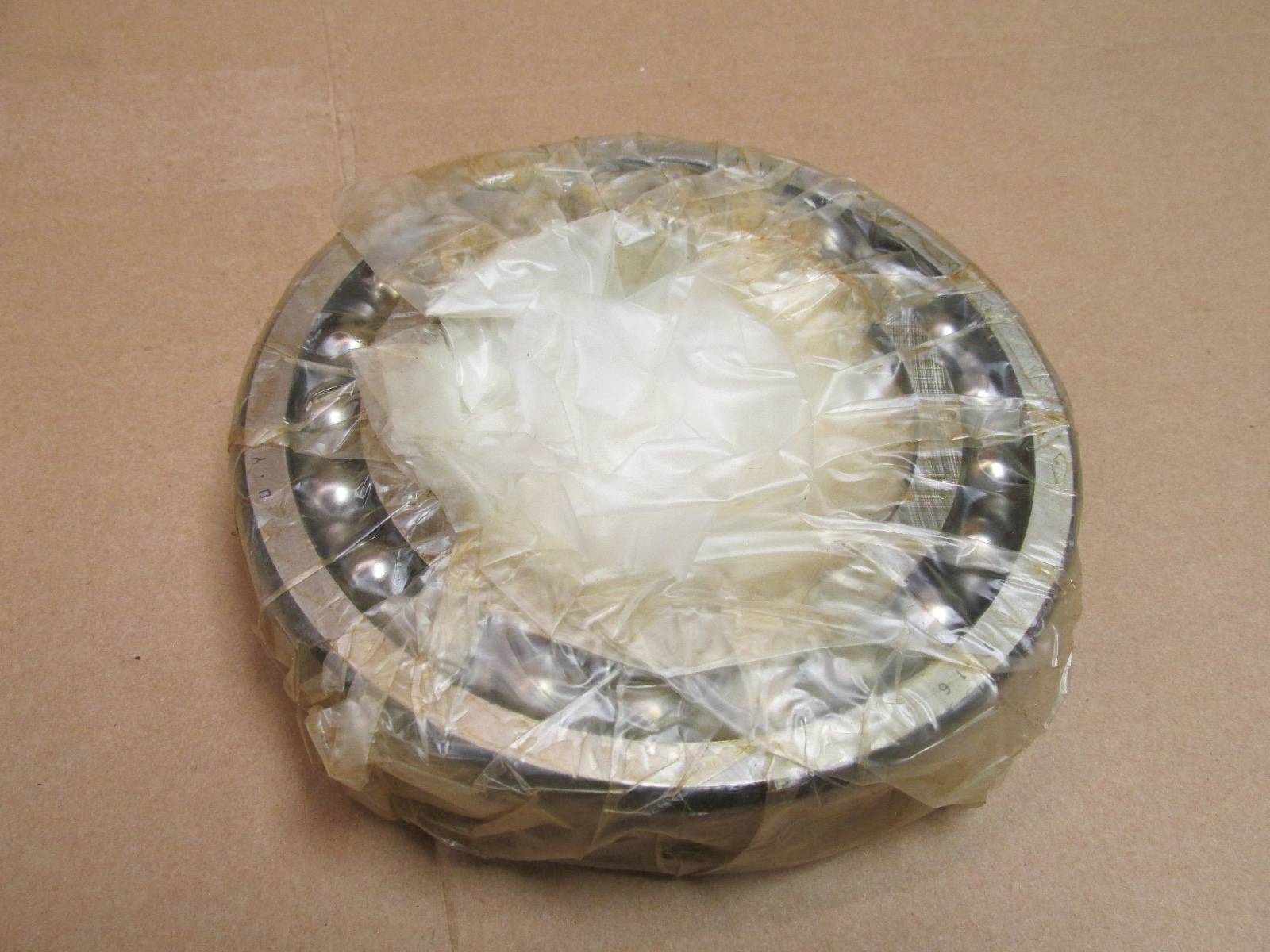

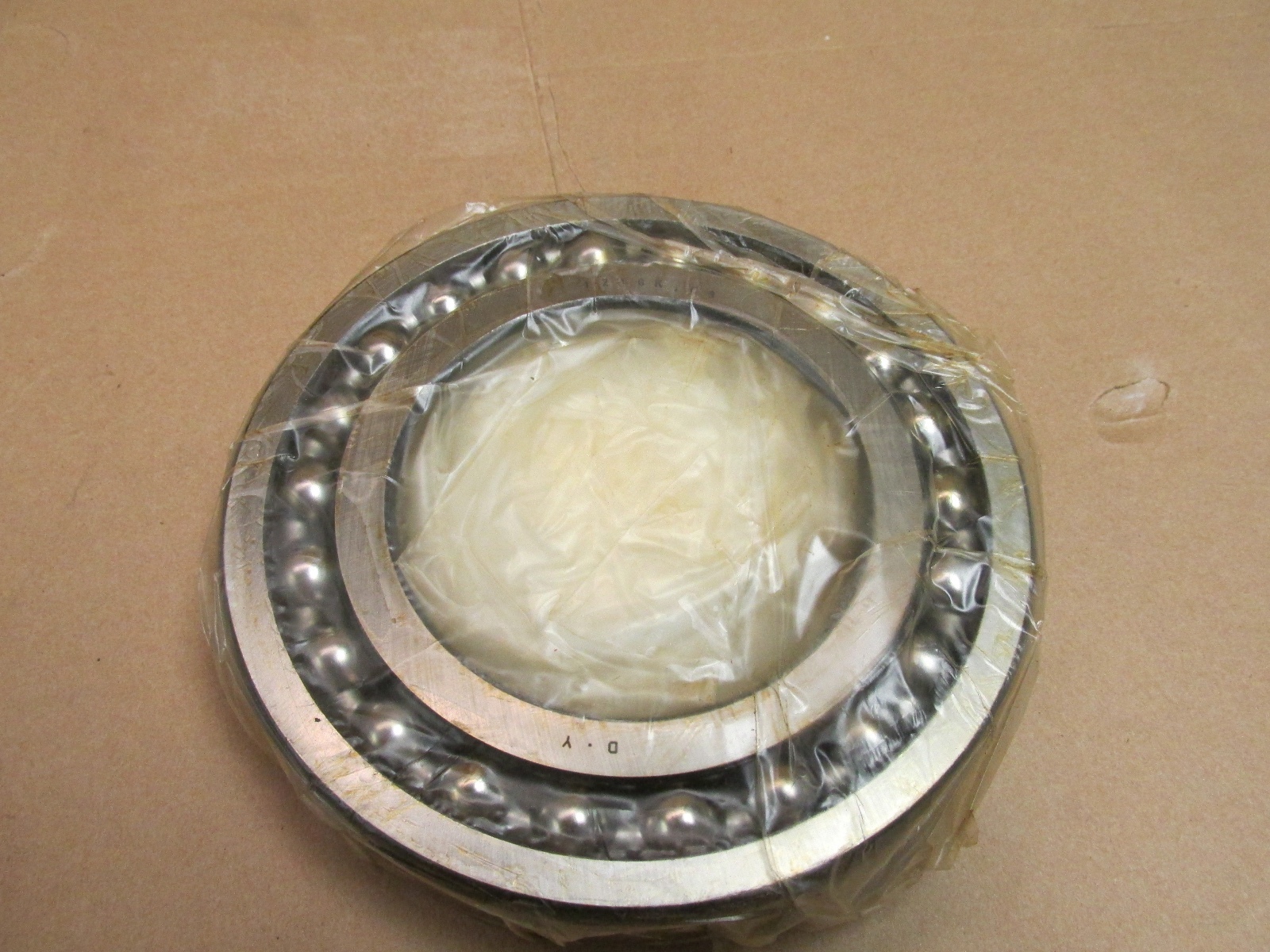

FAG 1216-K-C3 self-aligning ball bearing, 80 x 140 x 26 mm, 1:12 tapered bore, C3 clearance. Mounts on an H216 adapter sleeve. New old stock.
List Price
$44.77
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| Model | 1216KC3 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Material | Chrome Steel |
|---|---|
| Series | 1200 |
| Base Number | 1216 |
| Industry Terms | self-aligning ball bearing, double row ball bearing, tapered bore bearing, adapter sleeve bearing |
| Common Misspellings | 1216 KC3, 1216-KC3, 1216K-C3, 1216KC |
| Application Types | Plummer block housings, fans, conveyors, agricultural machinery, line shafts |
| Overall Width | 26 mm |
| Mpn Variants | 1216KC3, 1216-K-C3, 1216 K C3, 1216K, 1216-K-TVH-C3 (current execution) |
| Additional Attributes | Rolling Elements: Ball; Adapter sleeve: H216; Compatible With / Replaces: FAG 1216-K-TVH-C3 (current execution); Successor 1216-K-TVH-C3 data: Dynamic load rating 40,000 N; Static load rating 17,000 N; Limiting speed 5,300 rpm; Reference speed 5,100 rpm; Fatigue load limit 1,020 N; Mass 1.62 kg; Cage glass-fibre reinforced polyamide PA66; Tolerance class Normal (PN); e 0.16; Y1 3.93; Y2 6.08; Y0 4.12; Shaft shoulder 85-99 mm; Max housing shoulder 129 mm; Max fillet radius 2 mm; Min chamfer 2 mm; Operating temperature -30 °C to +120 °C |
| Closure Type | Open |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Lubricant | grease or oil |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | FAG 1216-K-TVH-C3 - current execution |
|---|---|
| Cross Reference 2 | SKF 1216 K/C3 |
| Cross Reference 3 | NSK 1216KC3 |
| Cross Reference 4 | NTN 1216KC3 |
FAG 1216-K-C3 (1216KC3) is a double-row self-aligning ball bearing in the 12 series with a tapered bore. Bearing type: Self-aligning ball bearing. Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 26 mm. Number Of Rows: 2.
12 — double-row self-aligning ball bearing, dimension series 02 (12 series).
16 — bore code, 16 x 5 = 80 mm.
K — tapered bore, taper 1:12.
C3 — radial internal clearance larger than CN.
Bore Type: Tapered 1:12. Internal Clearance: C3. Seal type: Open. Closure Type: Open. Lubricant: grease or oil. The spherical outer raceway accommodates shaft deflection and housing misalignment. The tapered bore mounts on an adapter sleeve; Schaeffler lists the H216 sleeve for this size.
Successor 1216-K-TVH-C3 data (Schaeffler medias): Dynamic load rating 40,000 N. Static load rating 17,000 N. Limiting speed 5,300 rpm. Reference speed 5,100 rpm. Fatigue load limit 1,020 N. Mass 1.62 kg. Glass-fibre reinforced polyamide PA66 cage. Tolerance class Normal (PN). Operating temperature −30 °C to +120 °C. Load factors e 0.16, Y1 3.93, Y2 6.08, Y0 4.12.
Adapter sleeve: H216. Successor 1216-K-TVH-C3 data: shaft shoulder diameter 85 to 99 mm, minimum shaft shoulder diameter with sleeve 91 mm, maximum housing shoulder diameter 129 mm, maximum fillet radius 2 mm, minimum chamfer 2 mm, minimum sleeve cavity width 6 mm.
Compatible With / Replaces: FAG 1216-K-TVH-C3 is the current Schaeffler execution. Cross-Reference: SKF 1216 K/C3, NSK 1216KC3, NTN 1216KC3. MPN Variants: 1216KC3, 1216-K-C3, 1216 K C3, 1216K.
