Availability:
2 in stock

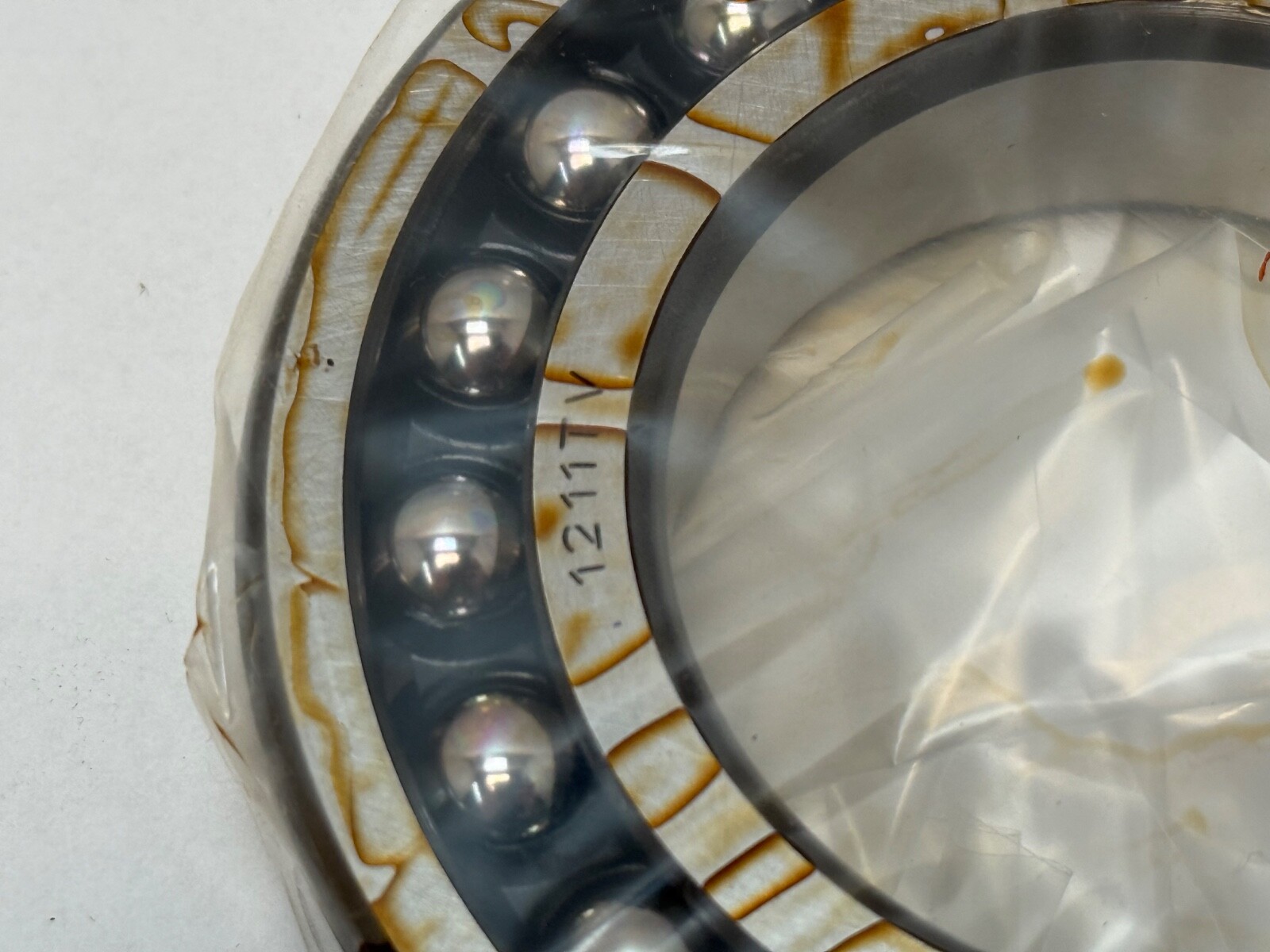

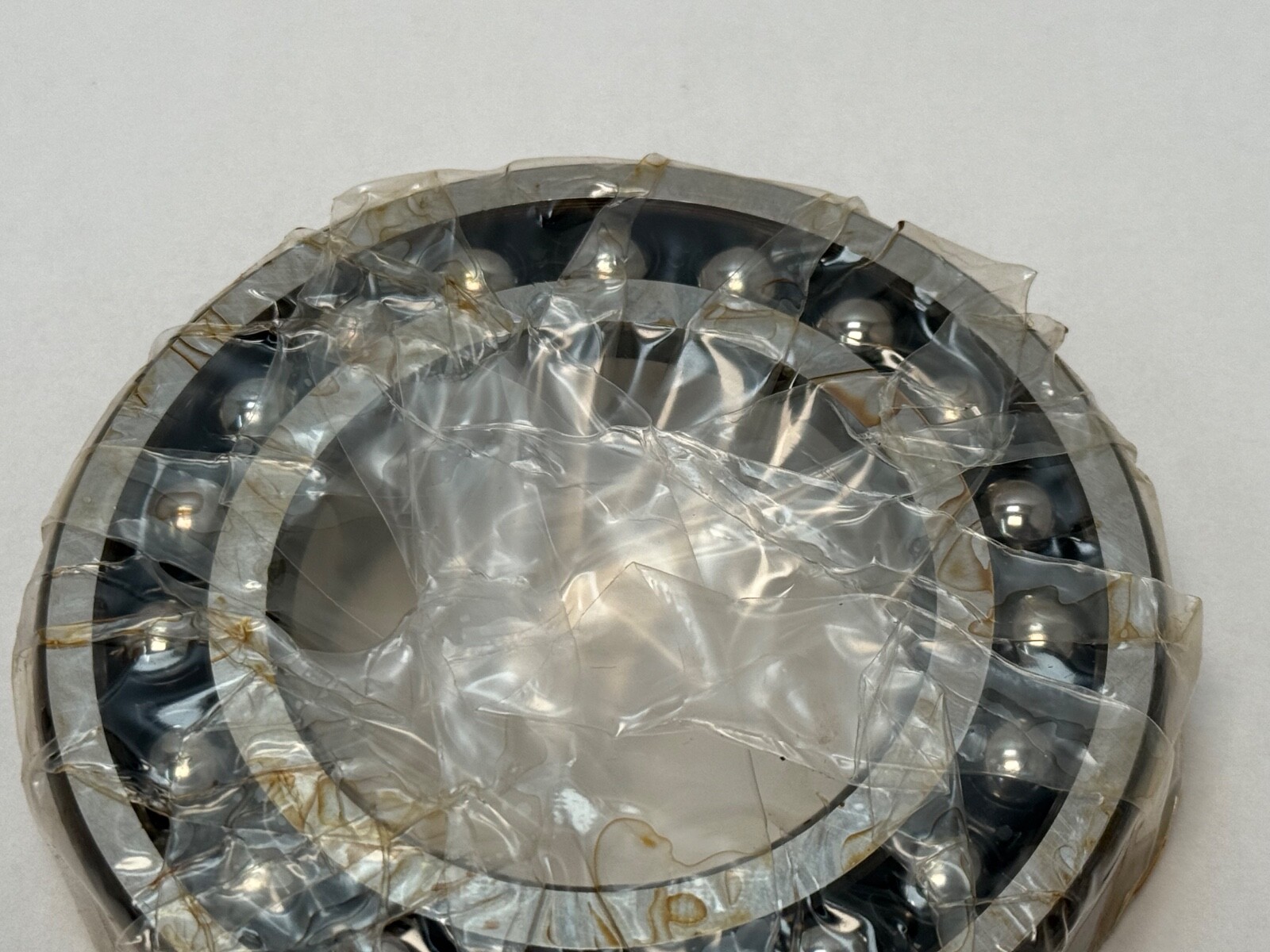

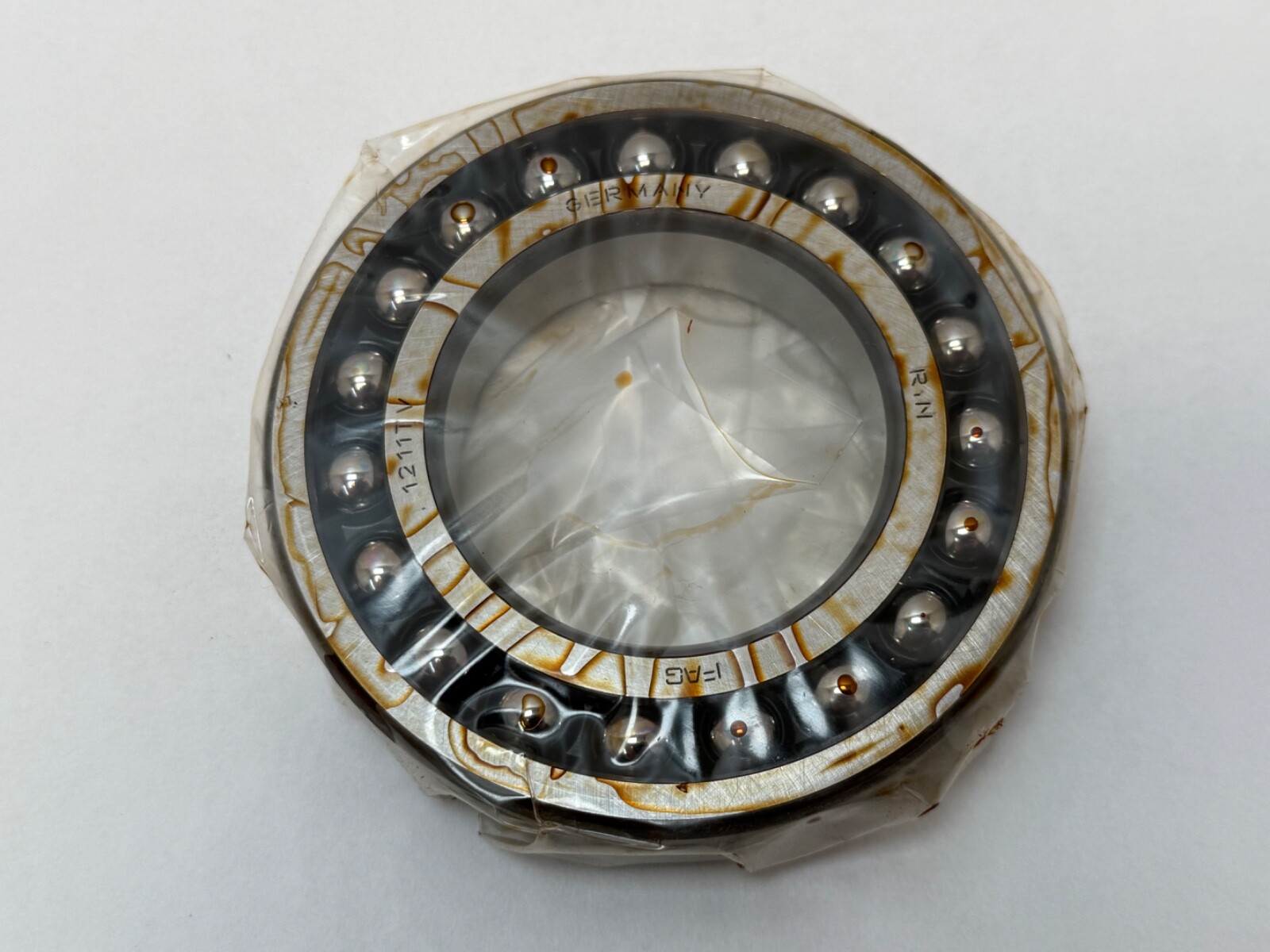

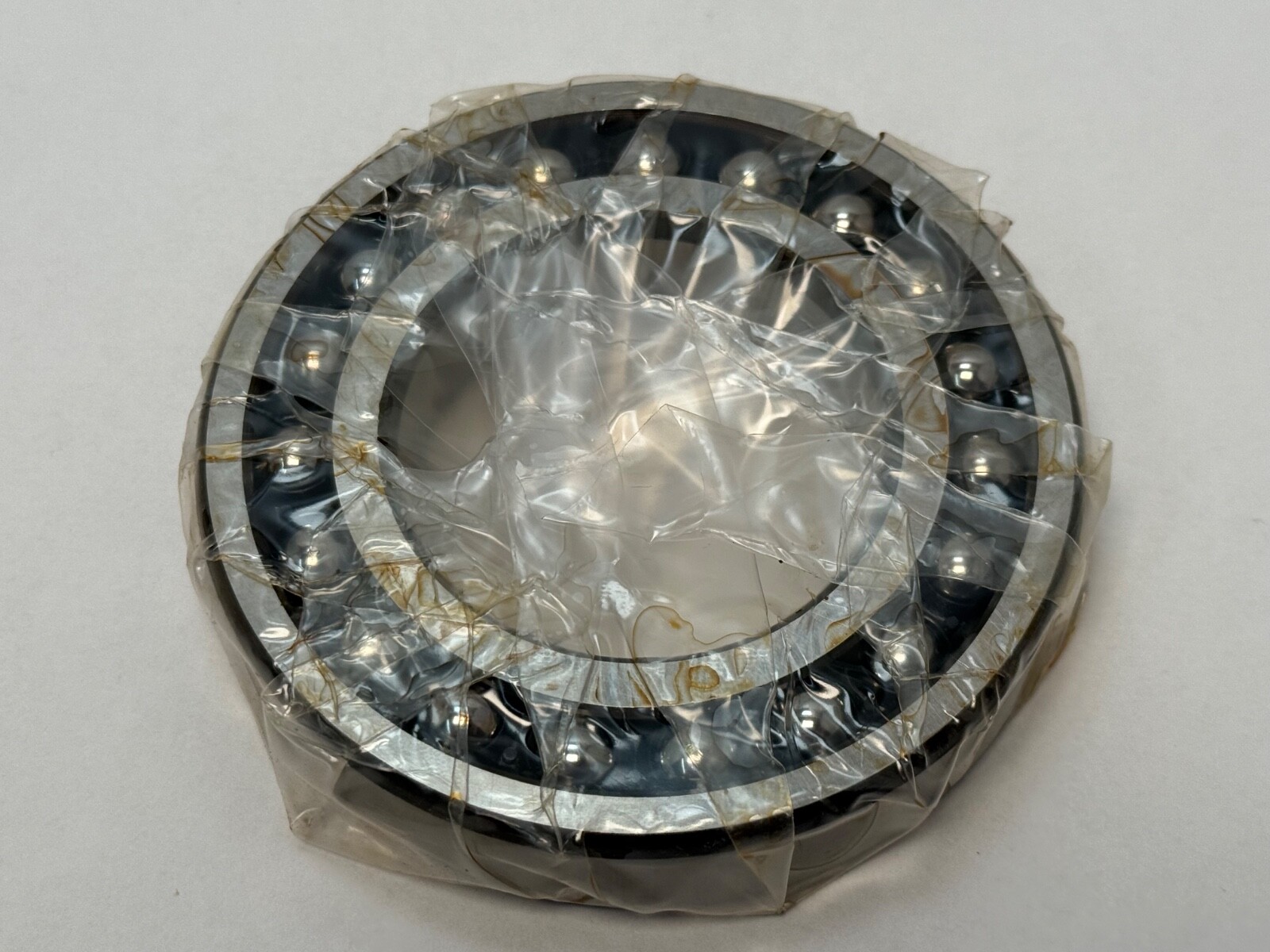

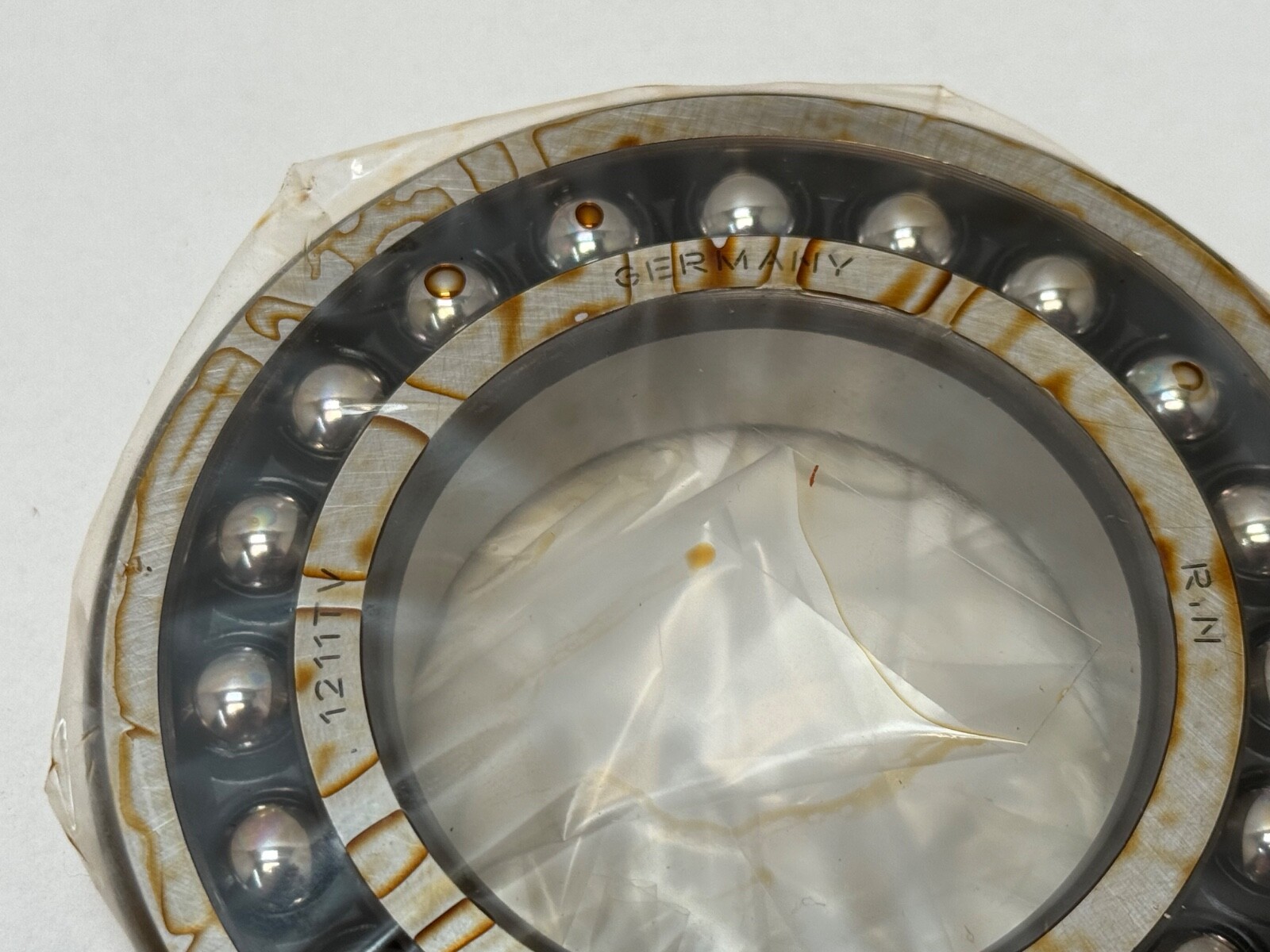

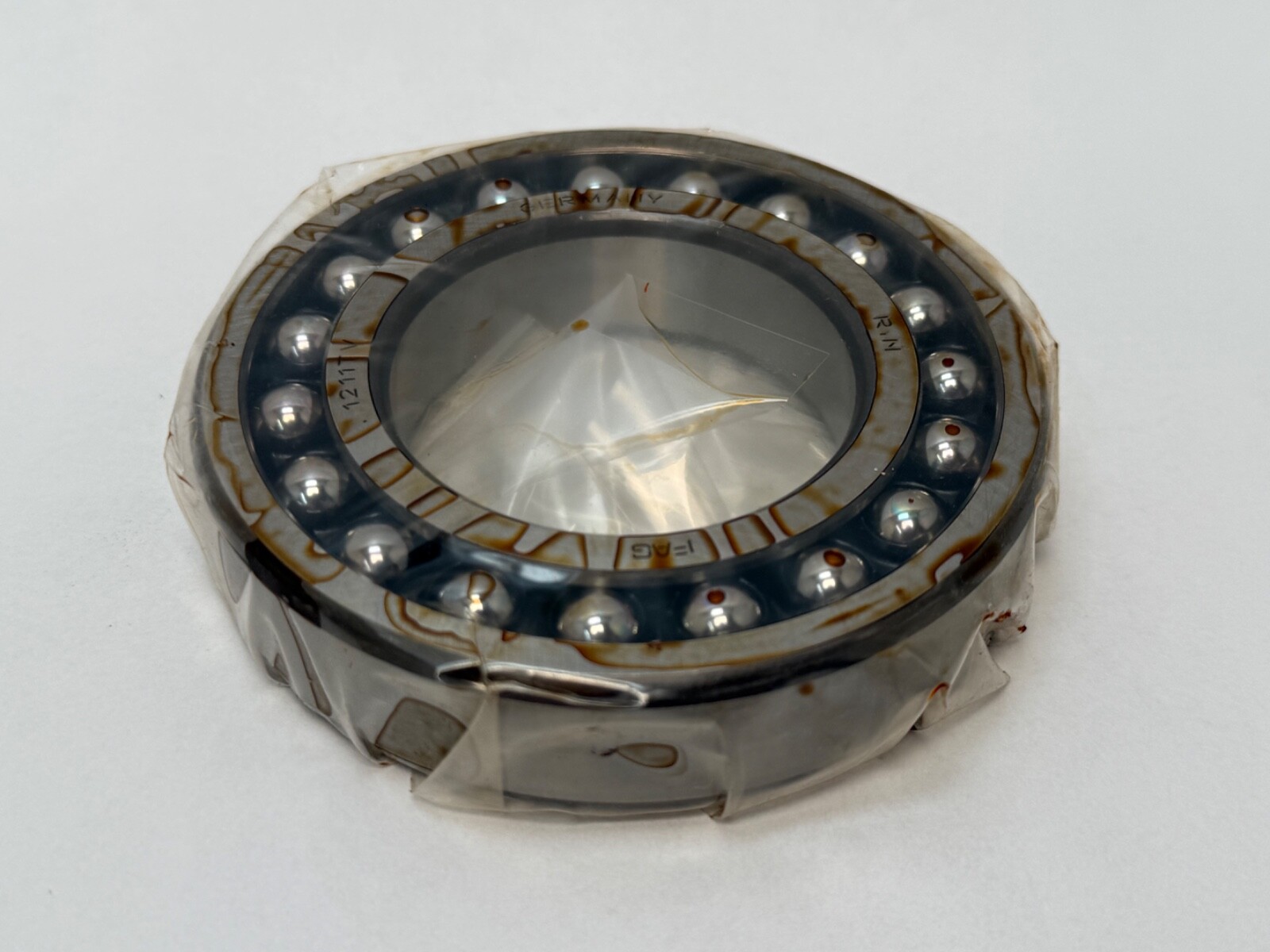

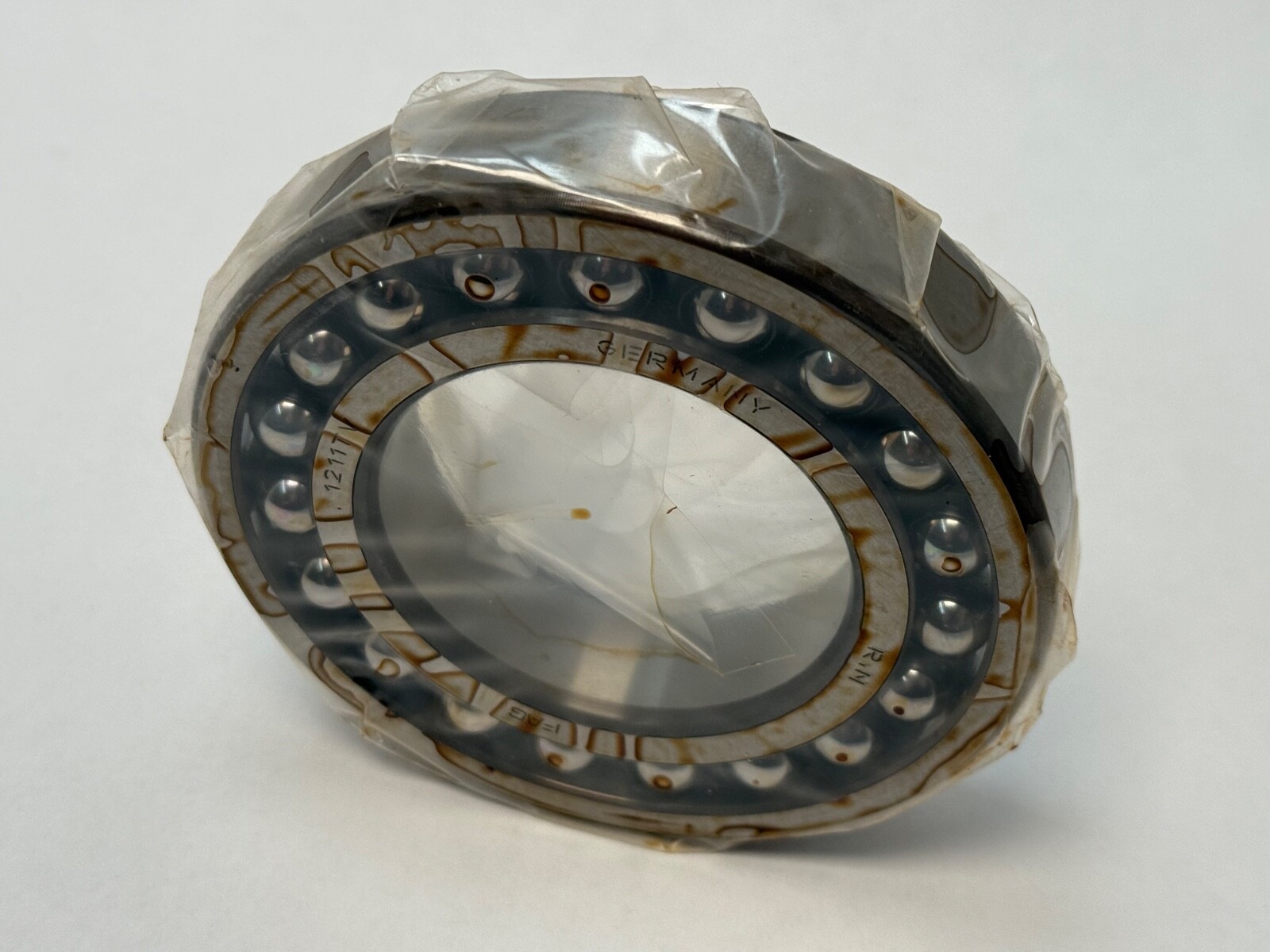

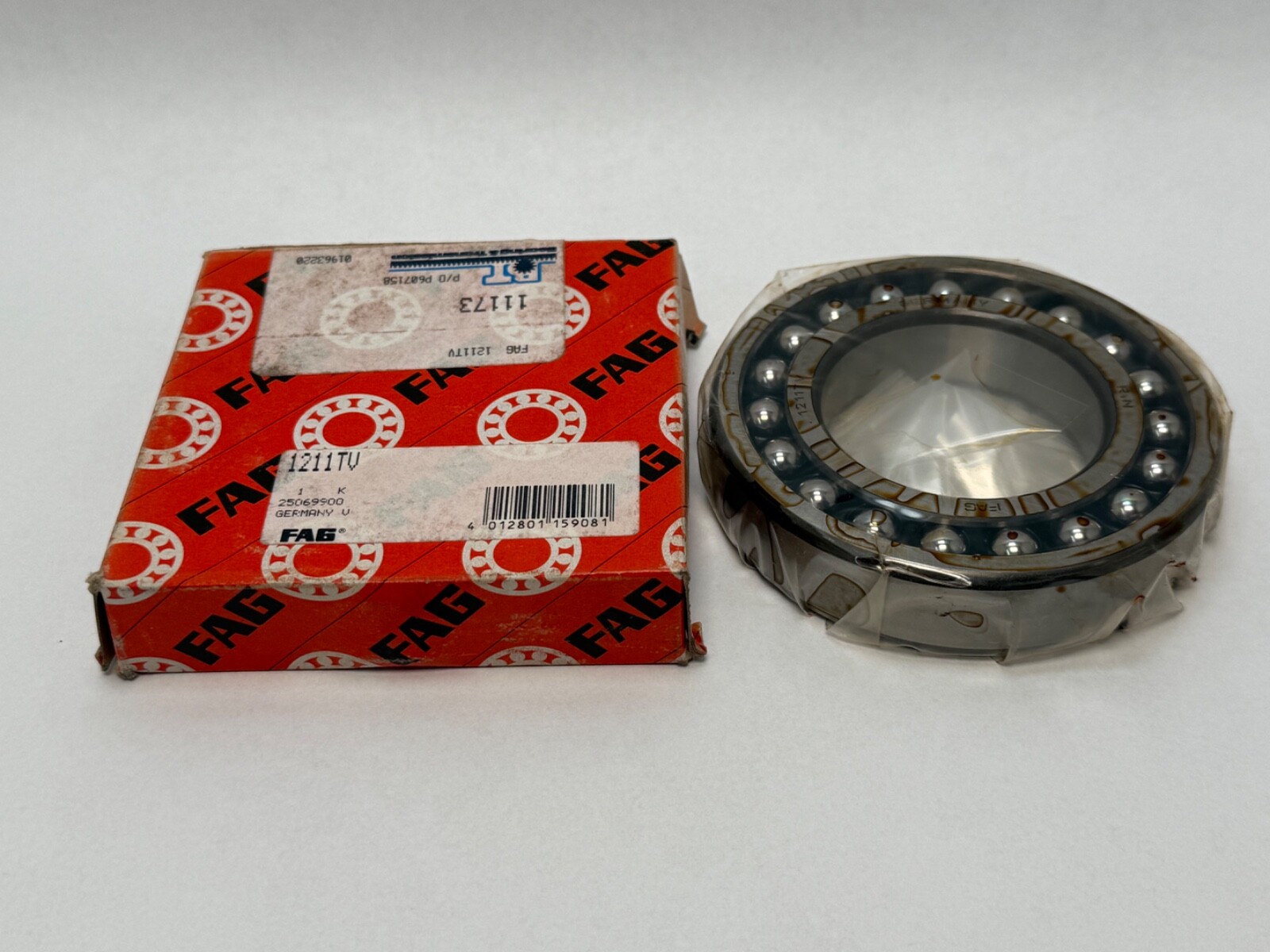

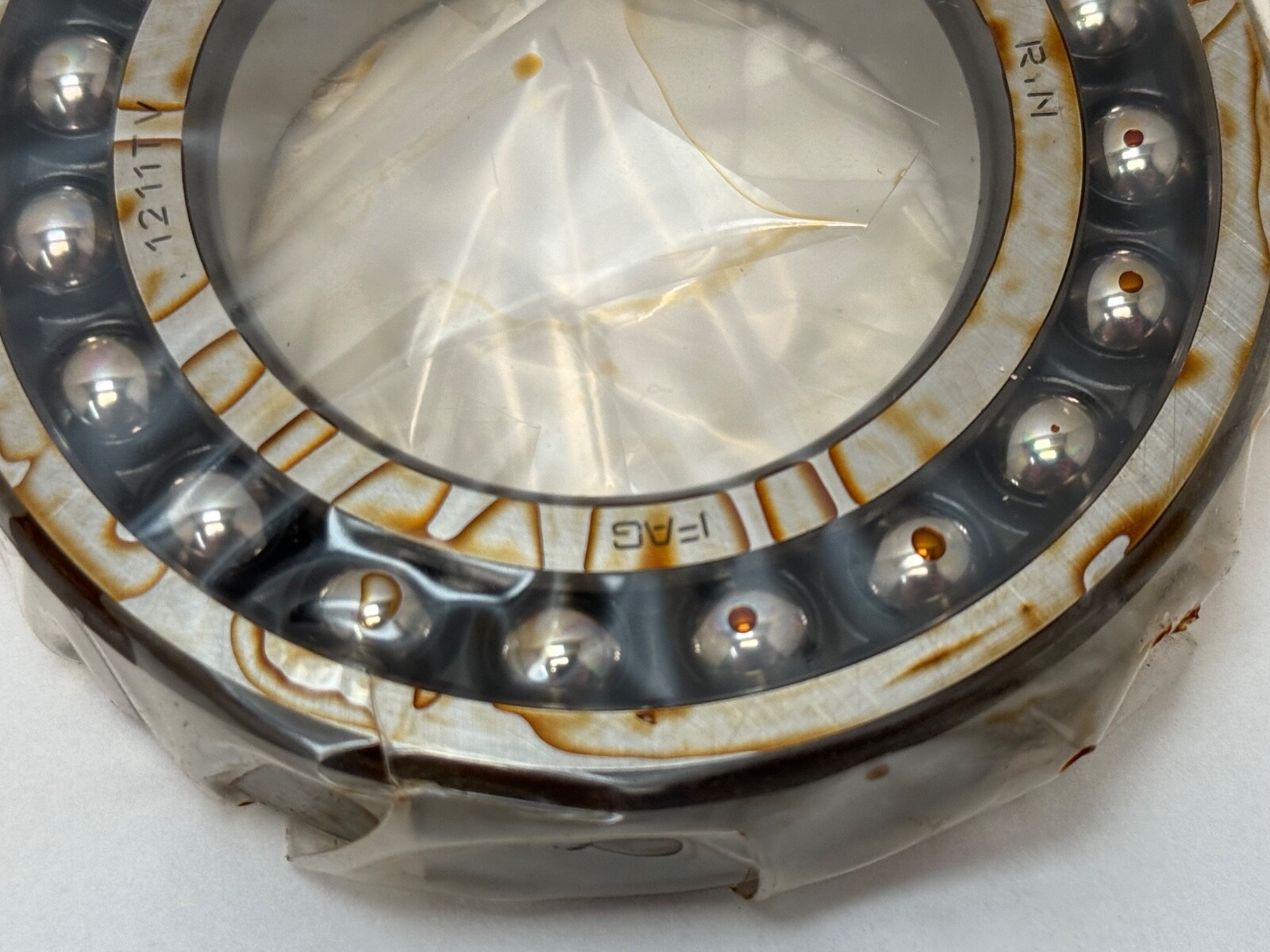

Self-aligning ball bearing, 55 mm bore, 100 mm OD, 21 mm wide, open, TVH polyamide cage, CN clearance. FAG 1211-TVH, old designation 1211TV.
List Price
$33.90
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 1211TV |
| GTIN | 4012801159081 |
| Model | 1211 TV |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 21 mm |
| Series | 1200 |
|---|---|
| Closure Type | Open |
| Min Temp | -30 °C |
| Cage Type | Solid polyamide cage (TVH) |
| Dynamic Load Rating | 27,000 N |
| Static Load Rating | 10,000 N |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.733 kg (1.616 lb) |
| Cage Material | Glass-fibre reinforced polyamide PA66 |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.80 |
| Limiting Speed | 7,700 rpm |
| Overall Width | 21 mm |
| Mpn Variants | 1211-TVH, 1211TV, 1211-TV, 1211 TV, 1211TVH |
| Compatible With Replaces | Replaces FAG 1211TV; SKF 1211 ETN9, NSK 1211, NTN 1211, Koyo 1211 |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | Reference Speed: 6,900 rpm; Fatigue Limit Load Cur: 630 N; da min: 64 mm; Da max: 91 mm; ra max: 1.5 mm; r min: 1.5 mm |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 1211 ETN9 |
|---|---|
| Cross Reference 2 | NSK 1211 |
| Cross Reference 3 | NTN 1211 |
| Cross Reference 4 | Koyo 1211 |
FAG 1211-TVH double-row self-aligning ball bearing, old designation 1211TV. Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 21 mm. Rolling Elements: Ball. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. The spherical outer raceway lets the inner ring, balls and cage swivel to accommodate shaft misalignment and deflection.
1211 — self-aligning ball bearing, 12 dimension series, bore code 11 = 55 mm bore, 55 x 100 x 21 mm.
TVH — solid cage of glass-fibre reinforced polyamide PA66, ball-guided. TV is the older form of the same cage code.
Dynamic Load Rating: 27,000 N. Static Load Rating: 10,000 N. Fatigue Limit Load (Cur): 630 N. Limiting Speed: 7,700 rpm. Reference Speed: 6,900 rpm. Precision Class: ABEC 1 / P0 (PN normal tolerance). Internal Clearance: CN. Cage Material: Glass-fibre reinforced polyamide PA66. Operating Temperature: -30 to +120 °C. Item Weight: 0.733 kg (1.616 lb). Snap Ring: No.
Shaft abutment diameter da min: 64 mm. Housing abutment diameter Da max: 91 mm. Abutment fillet radius ra max: 1.5 mm. Bearing chamfer r min: 1.5 mm.
Unit Quantity: 1 Pc. Single open bearing with cylindrical bore.
Equivalent 1211 self-aligning ball bearings: SKF 1211 ETN9, NSK 1211, NTN 1211, Koyo 1211. Same 55 x 100 x 21 mm envelope. GTIN: 4012801159081.
