Dodge SCHB-SXR-207 screw conveyor hanger bearing, 2-7/16 in shaft, 5-1/2 in outside diameter, eccentric clamp collar, 212 series, 11,791 lb dynamic rating.
List Price
$127.49
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | SCHB-SXR-207 |
| GTIN | 782475117888 |
| Model | 131335 / SCHB SXR 207 |
| ID | 2-7/16 in |
| OD | 5-1/2 in |
| Material | Cast Iron |
|---|---|
| Type | Screw Conveyor Hanger Bearing |
| Base Number | SCHB-SXR |
| Industry Terms | Screw conveyor hanger bearing, conveyor hanger bearing unit, SCHB hanger bearing, eccentric collar hanger bearing, auger hanger bearing, trough hanger bearing |
| Common Misspellings | SCHB SXR 207, SCHBSXR-207, SCHB-SXR207, Dodge 13133 5, SHCB-SXR-207 |
| Overall Width | 2.74 in |
| Bearing Insert Type | Ball |
| Bore Shaft Size | 2-7/16 in |
| Housing Style | Screw conveyor hanger unit |
| Locking Method | Eccentric clamp collar |
| Mpn Variants | SCHB-SXR-207, SCHBSXR207, SCHB SXR 207, 131335 |
| Additional Attributes | Wide inner ring; normal duty; seats in a Dodge screw conveyor hanger frame across the trough; supports the coupling shaft between screw sections |
| Dynamic Load Rating | 11,791 lb |
| Static Load Rating | 8,100 lb |
| Series | SCHB-SXR, 212 insert series |
| Rolling Elements | Steel balls |
| Bearing Type | Mounted ball bearing, screw conveyor hanger unit |
| Cage Material | Nylon |
| Limiting Speed | 3,500 rpm |
| Number Of Rows | 1 |
| Part Number | SCHB-SXR-207 |
| Application Types | Screw conveyors; auger conveyors |
| Cross Reference 1 | SCHB-SC-207 (setscrew locking, related) |
|---|---|
| Cross Reference 2 | SCHB-SXR-200 (2 in shaft, related) |

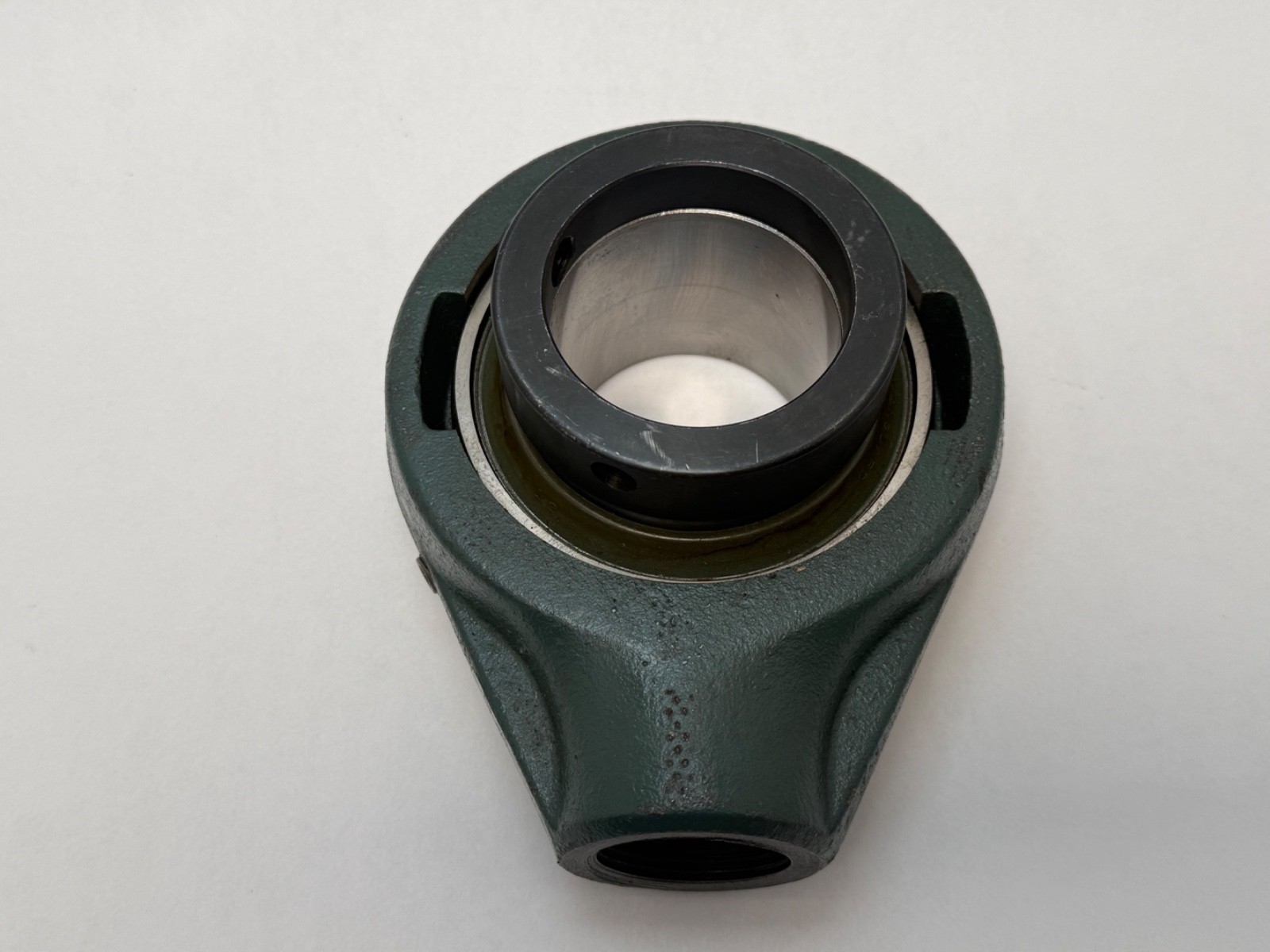

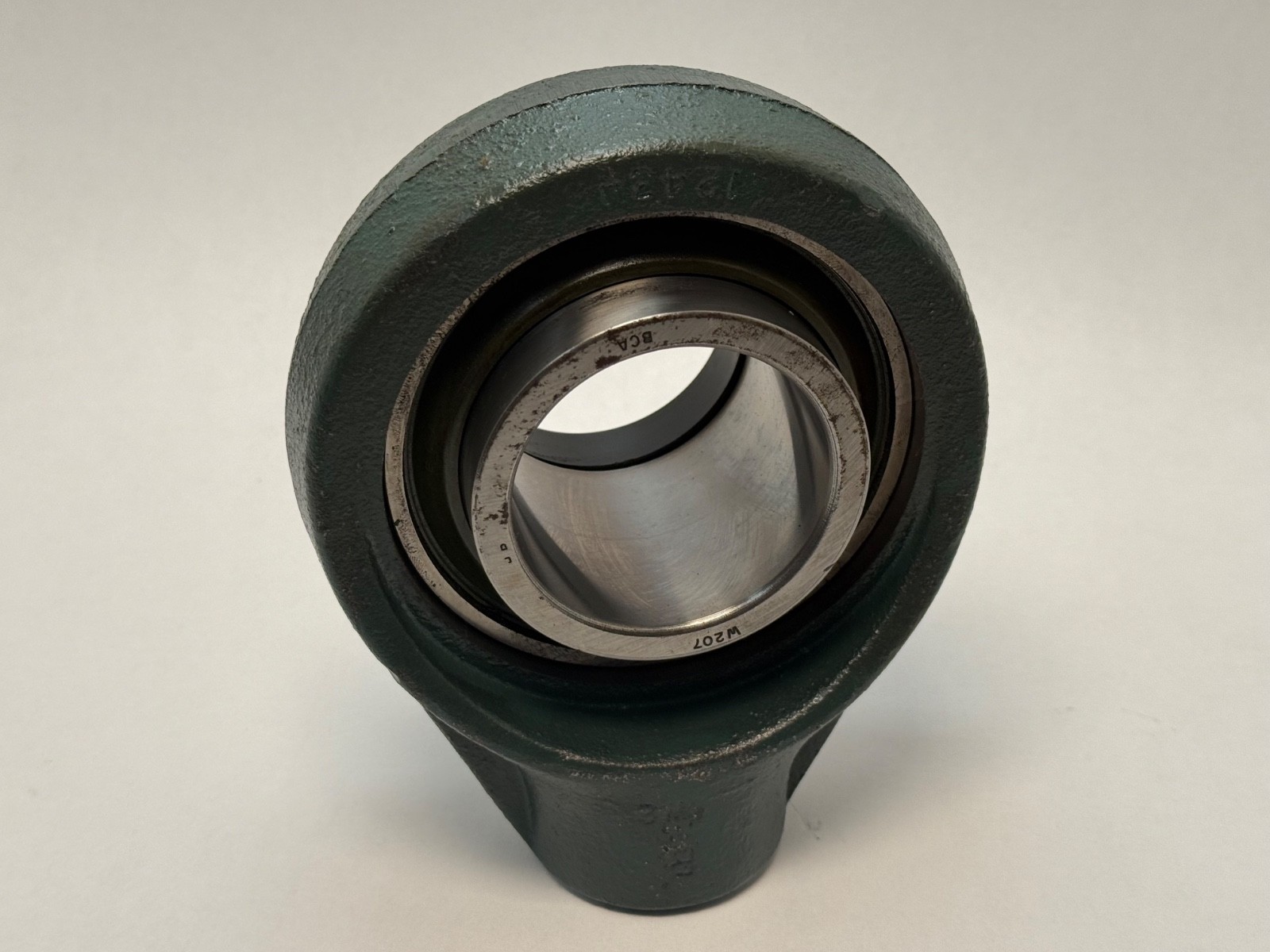

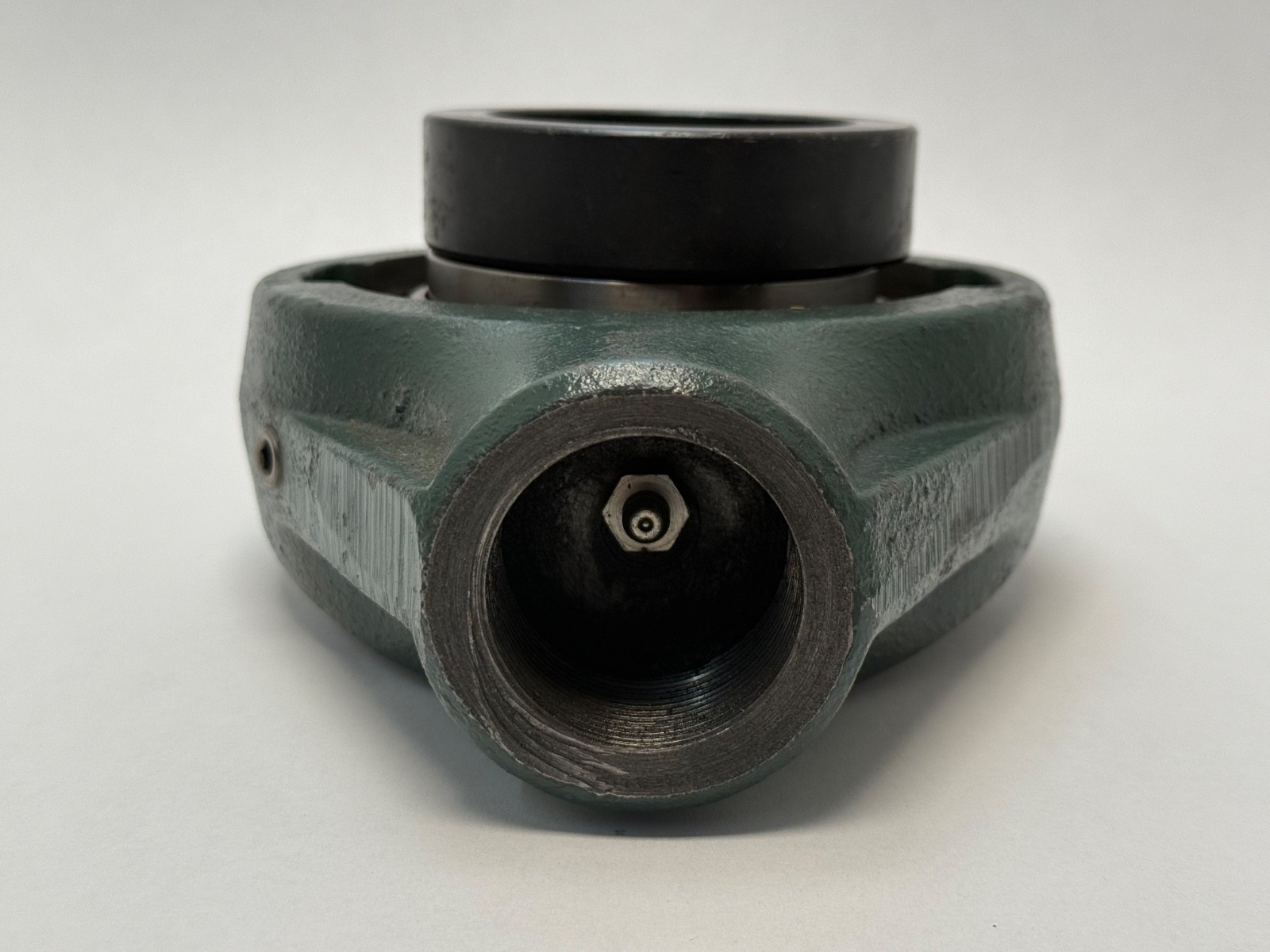

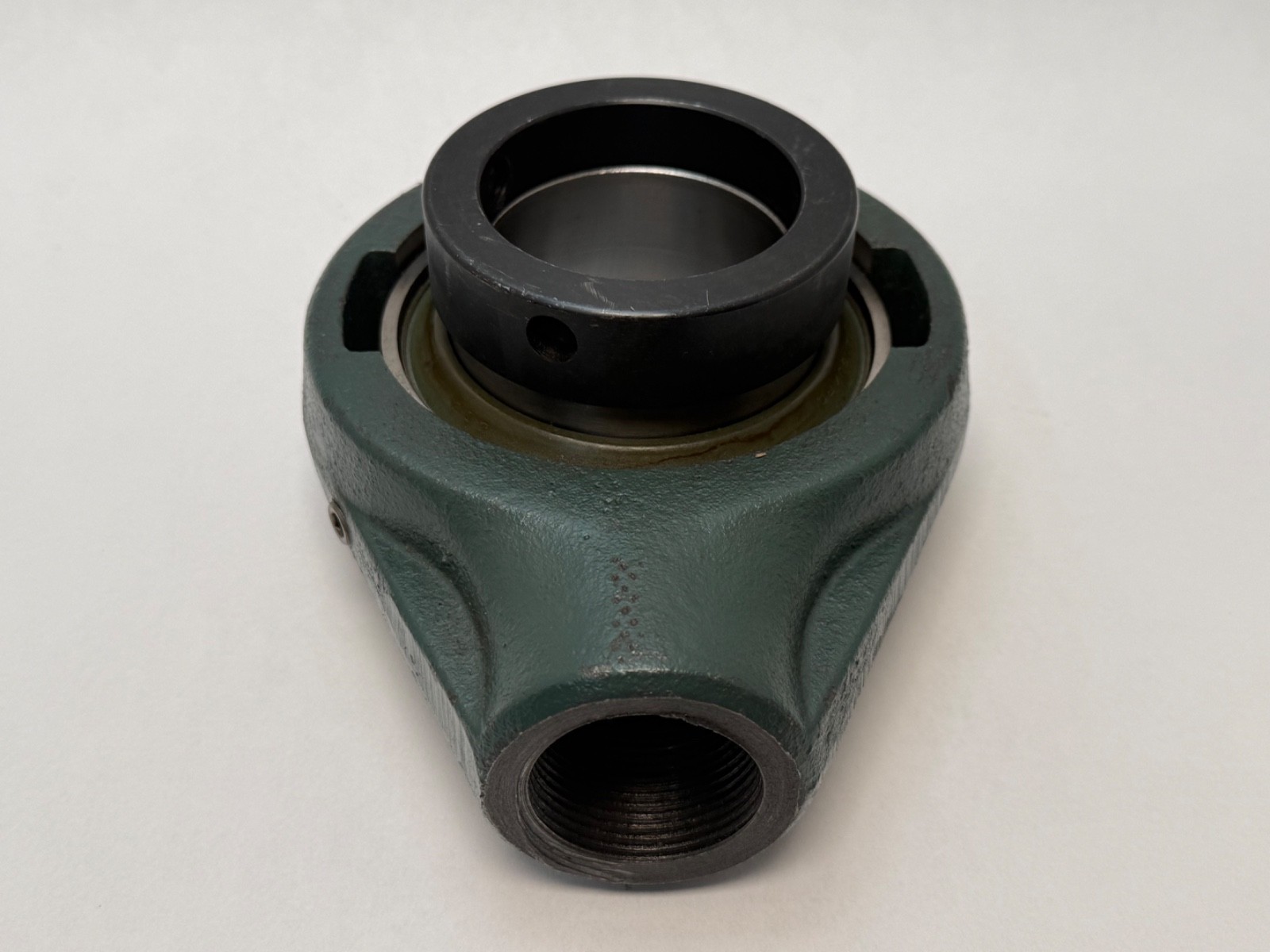

Dodge SCHB-SXR-207 screw conveyor hanger bearing unit, Dodge stock number 131335. Mounted ball bearing for a screw conveyor hanger frame. Bore / Shaft Size: 2-7/16 in. Outside Diameter: 5-1/2 in. Overall Width: 2.74 in. Locking Method: Eccentric clamp collar. Unit Quantity: 1 Pc.
SCHB — screw conveyor hanger bearing.
SXR — Dodge eccentric collar ball bearing, wide inner ring, normal duty.
207 — Dodge bore code, whole inches and sixteenths: 2-07/16 = 2-7/16 in shaft.

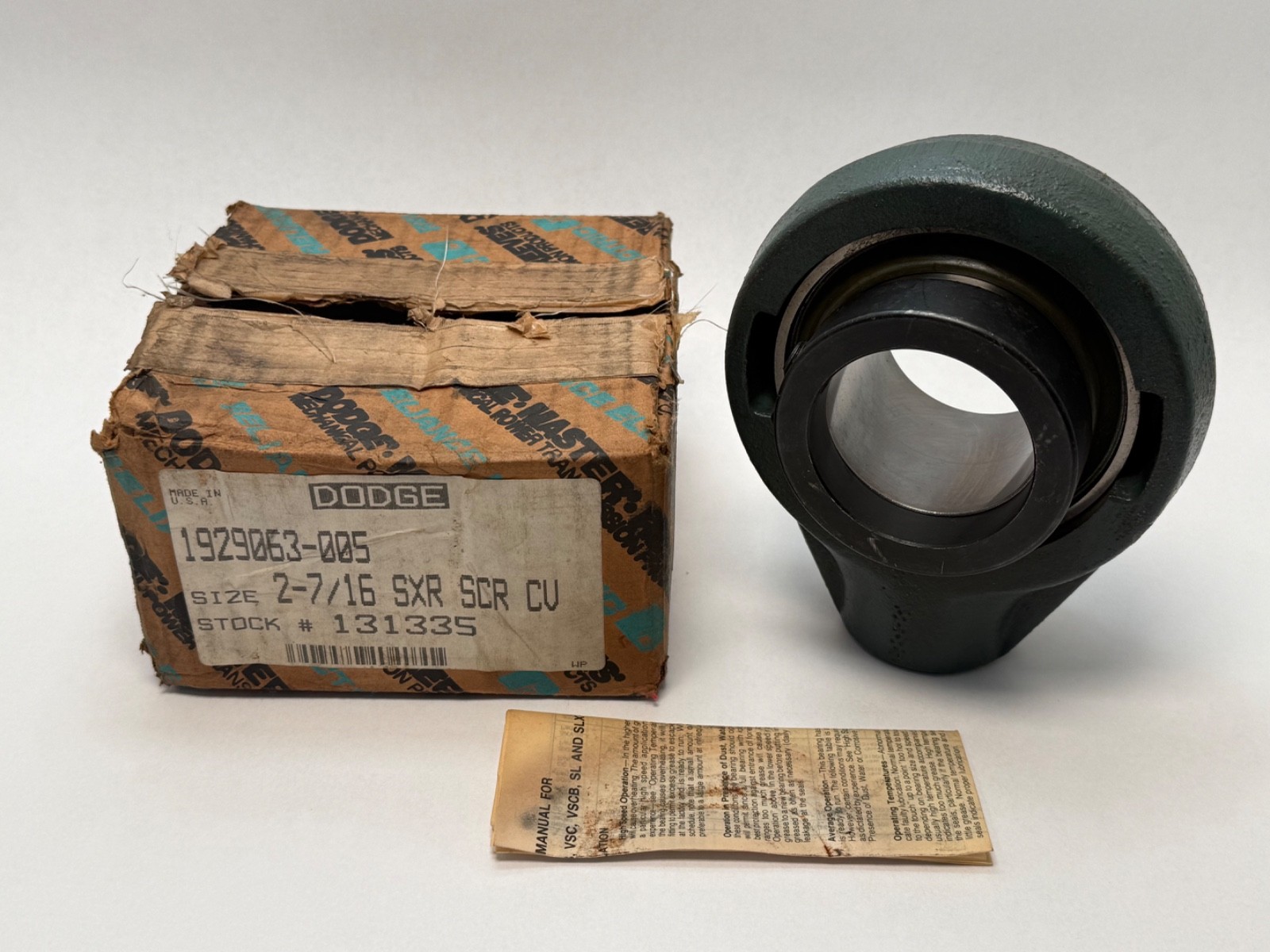

131335 — Dodge stock number for this build.
Housing Style: Screw conveyor hanger unit. Locking Method: Eccentric clamp collar. Insert Series: 212, wide inner ring, normal duty. Dynamic Load Rating: 11,791 lb. Static Load Rating: 8,100 lb. Limiting Speed: 3,500 rpm. Cage Material: Nylon. Rolling Elements: Steel balls. Number Of Rows: 1.
Bore / Shaft Size: 2-7/16 in. Outside Diameter: 5-1/2 in. Overall Width: 2.74 in. Housing: seats in a Dodge screw conveyor hanger frame across the trough, supporting the coupling shaft between two screw sections.
Related parts: SCHB-SC-207 (Dodge 124292), the same hanger unit at the same 2-7/16 in shaft with a setscrew-locking insert. SCHB-SXR-200 (Dodge 131327), the 2 in shaft version of this eccentric collar unit. Also written SCHBSXR207, SCHB SXR 207 and 131335.

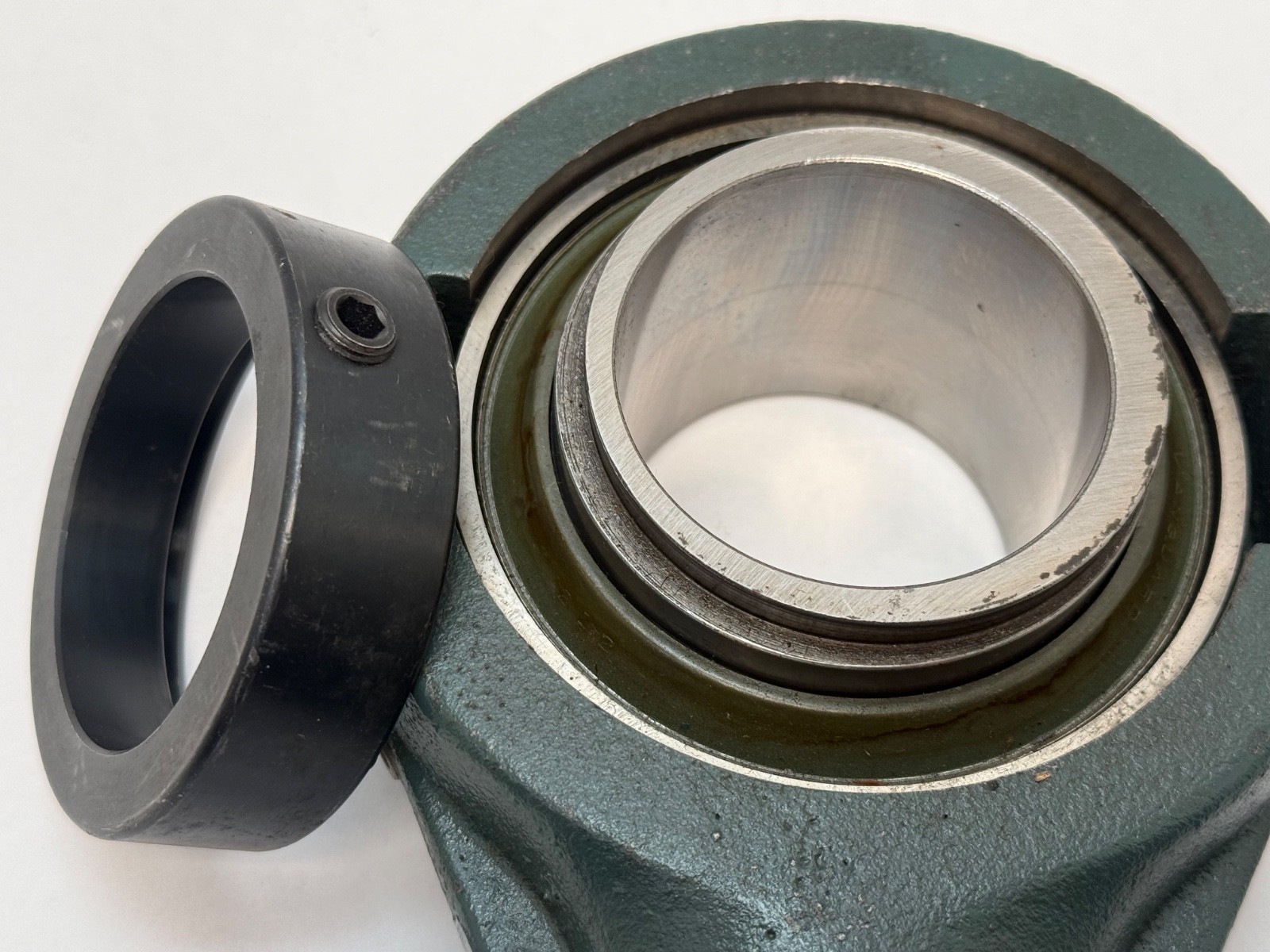

An eccentric clamp collar.
2-7/16 in.

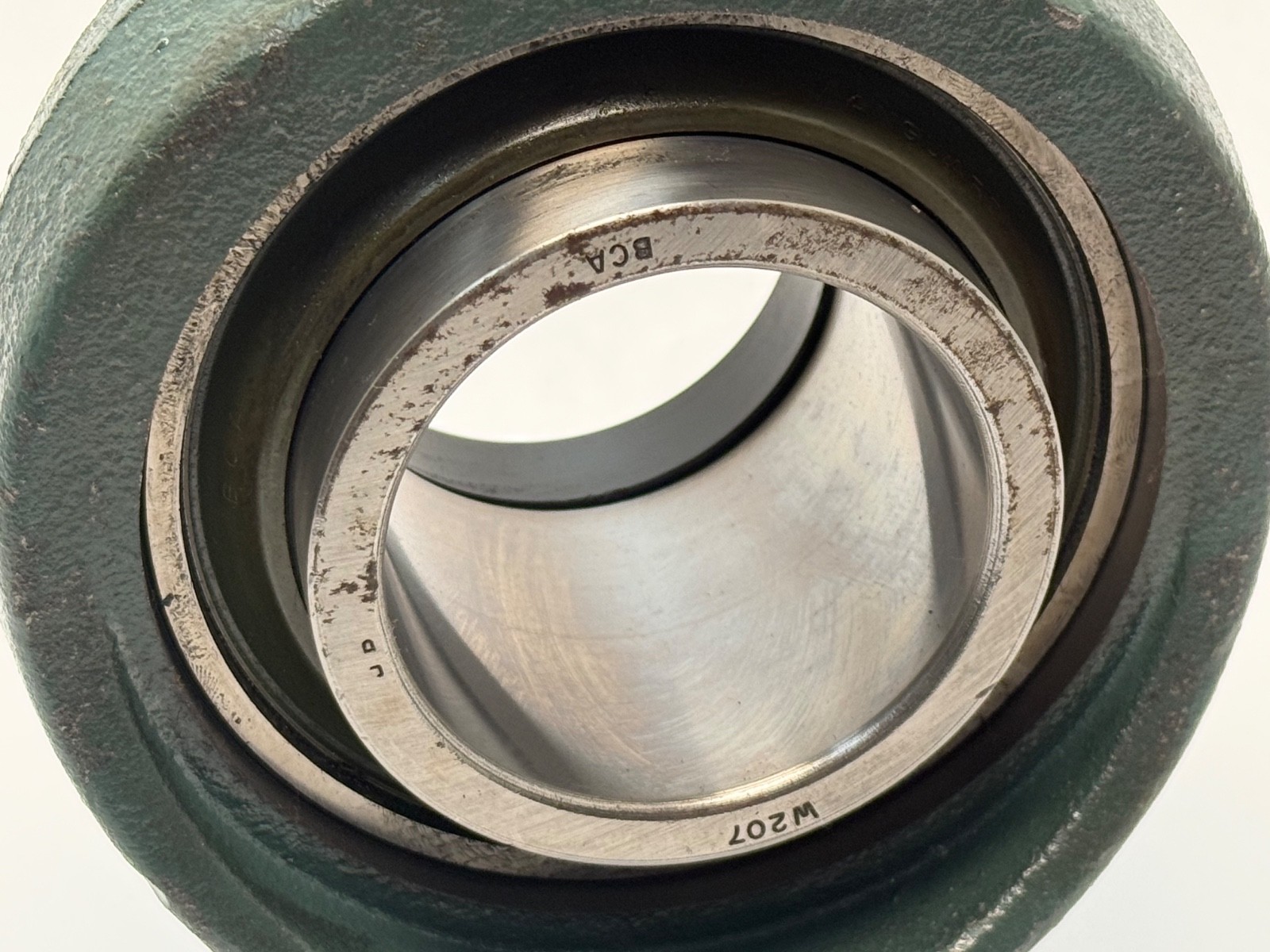

A screw conveyor hanger bearing unit with a 212 series wide inner ring ball bearing insert.
