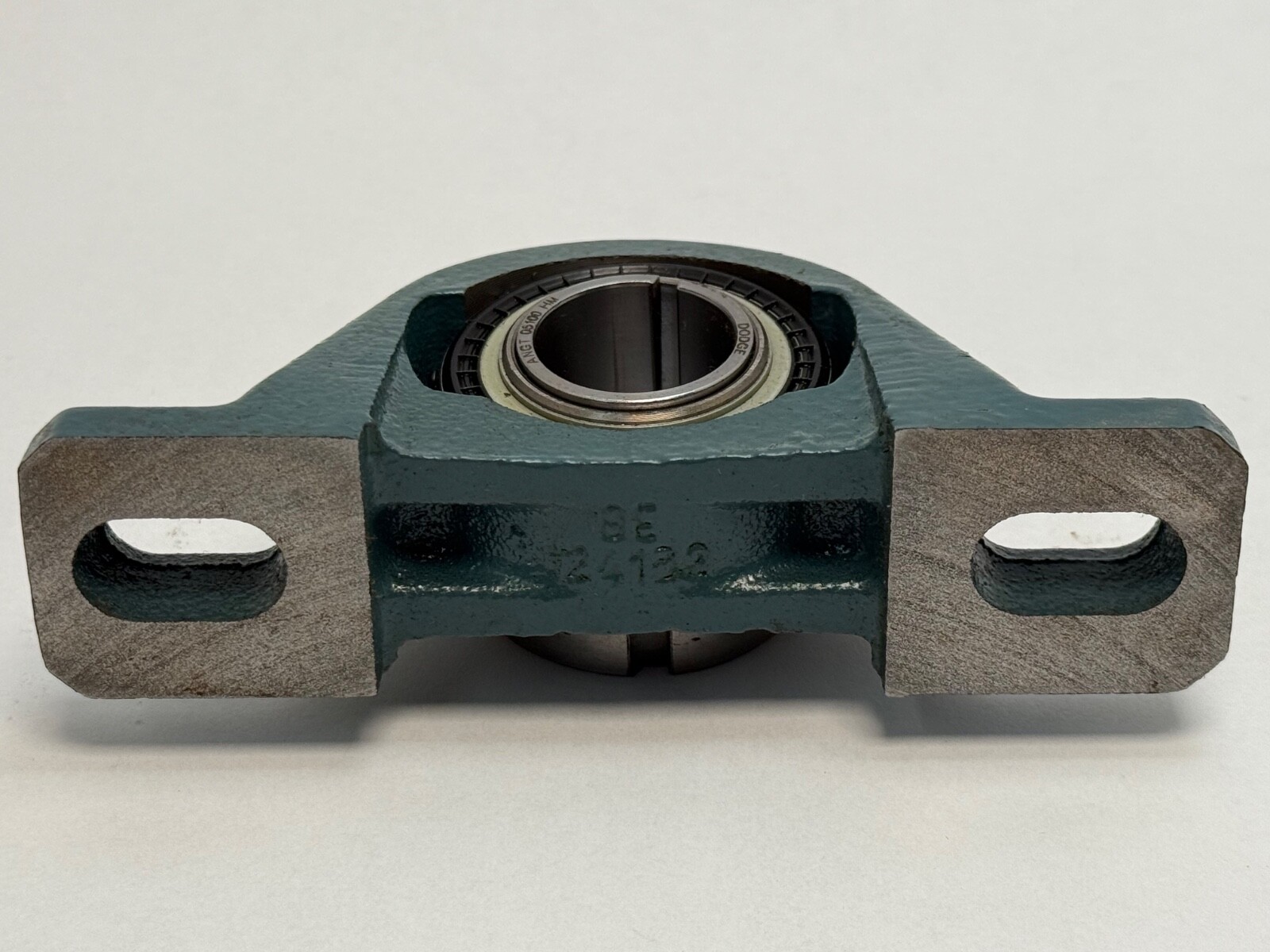

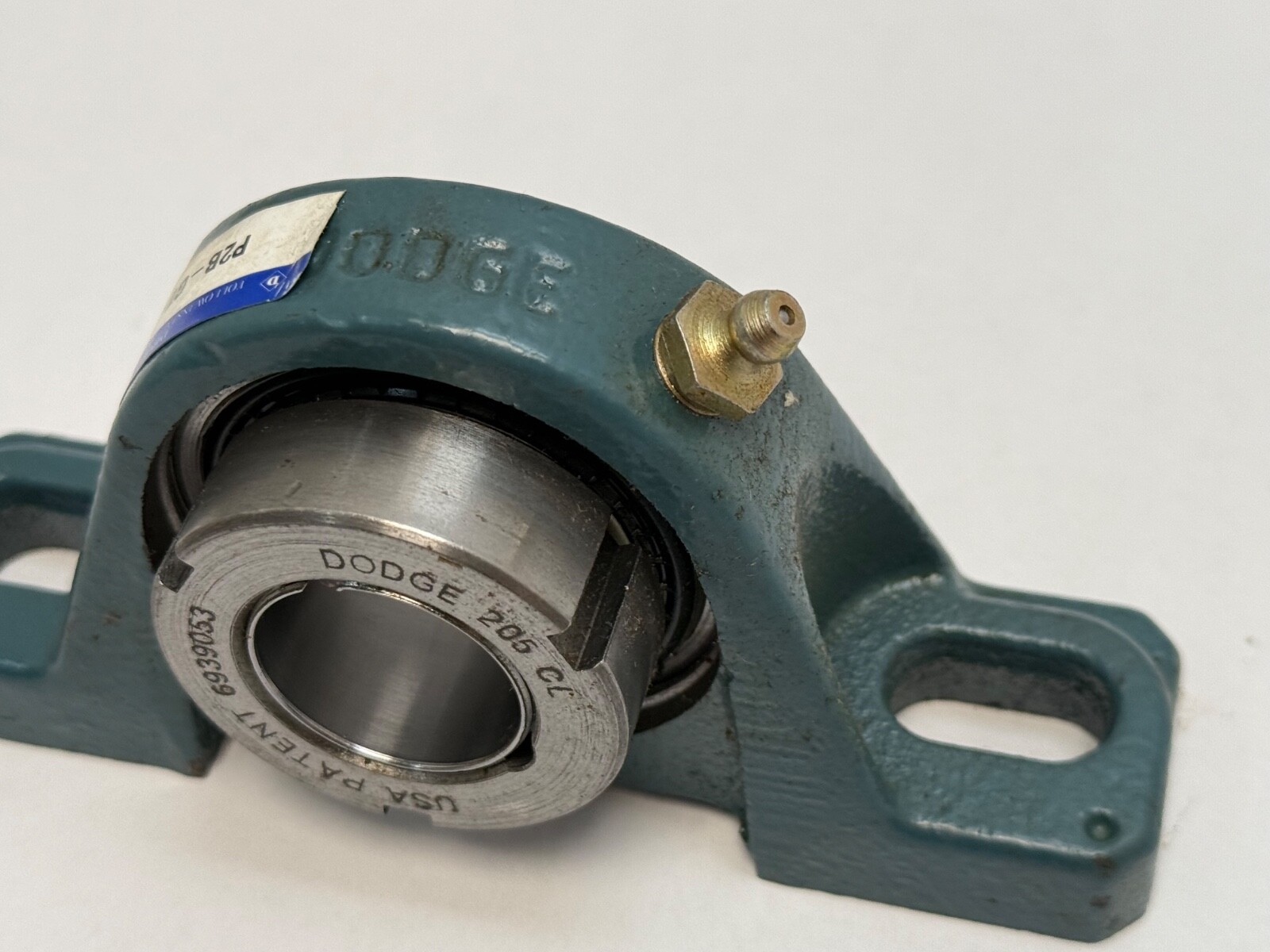

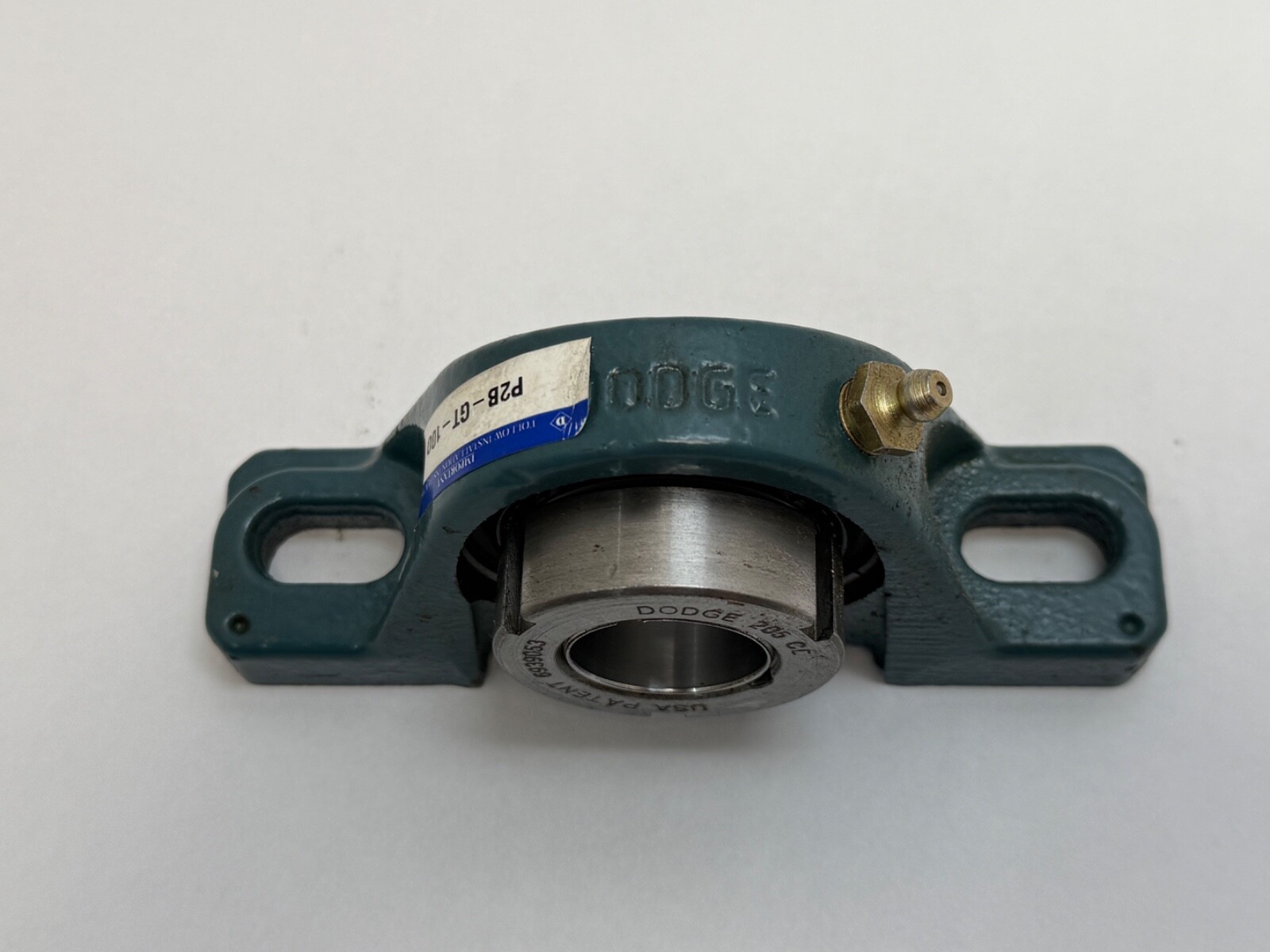

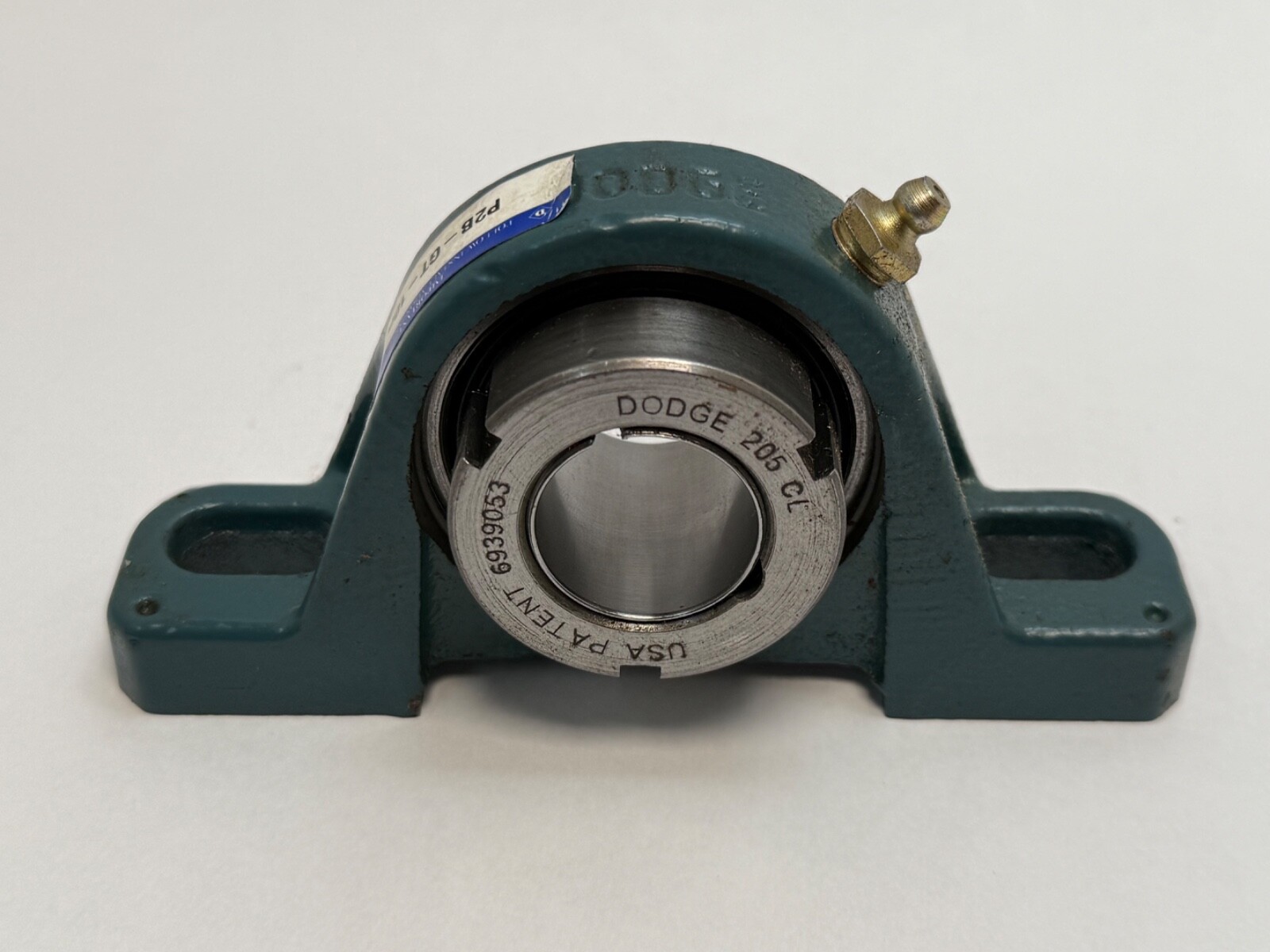

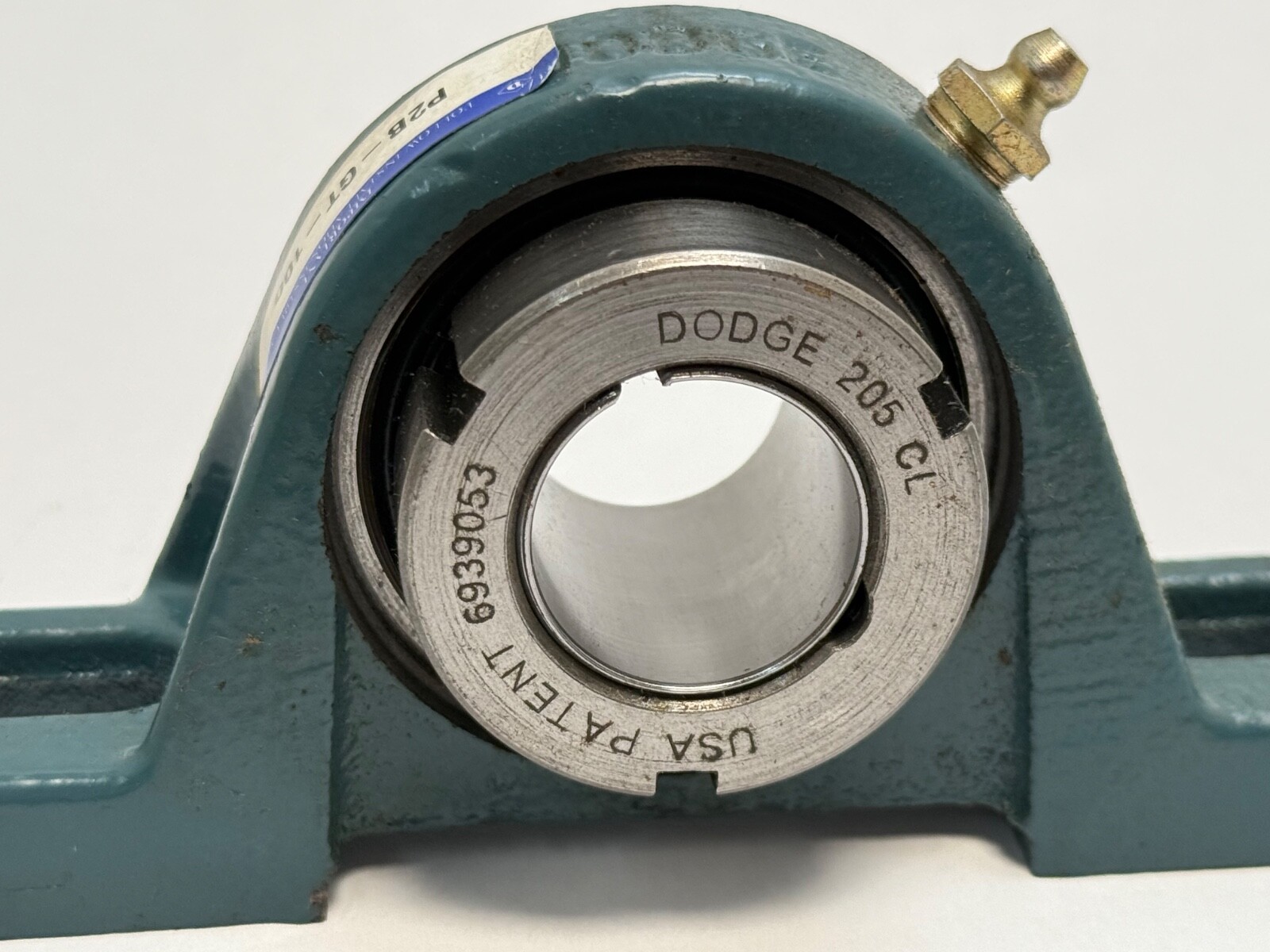

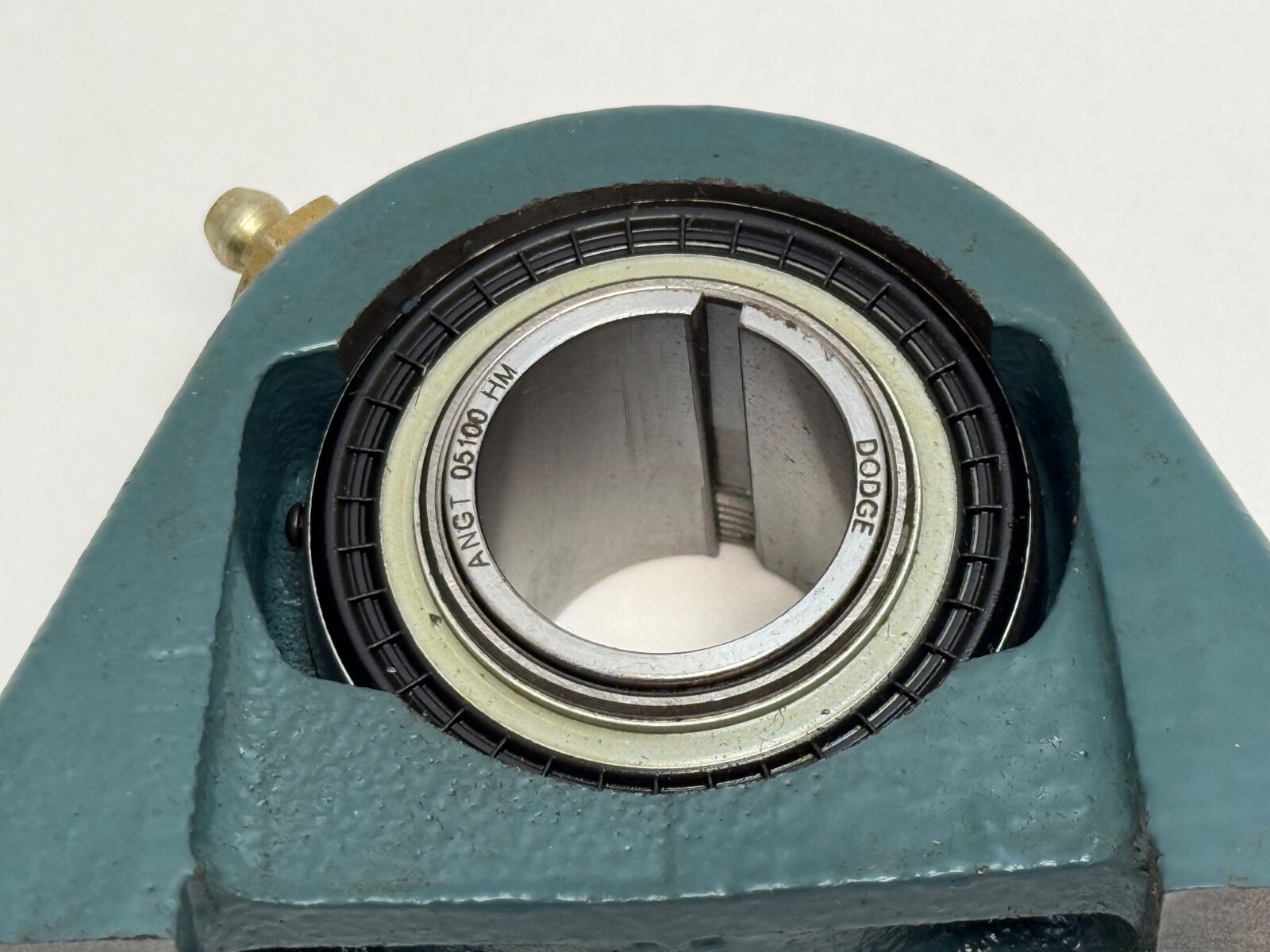

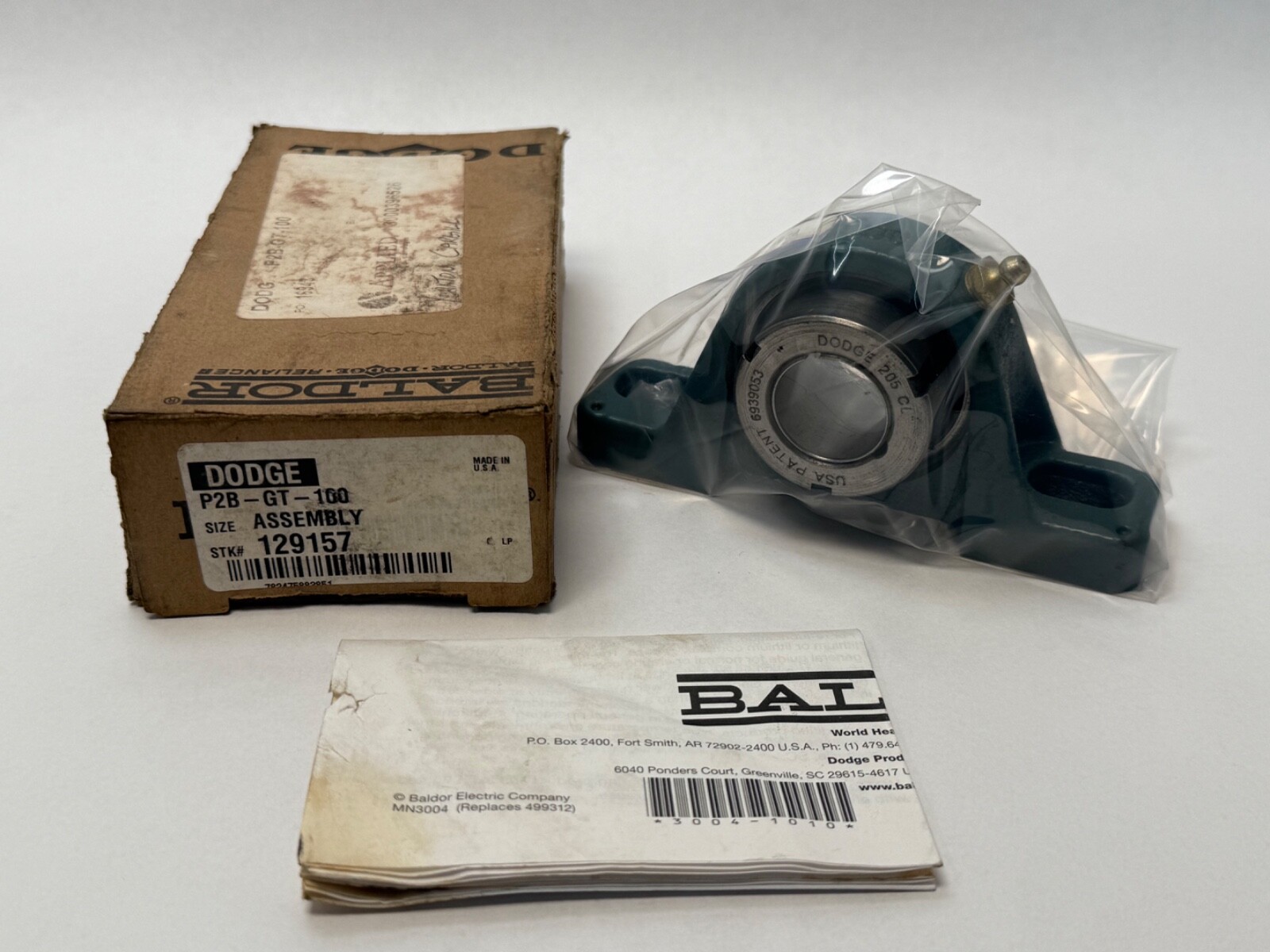

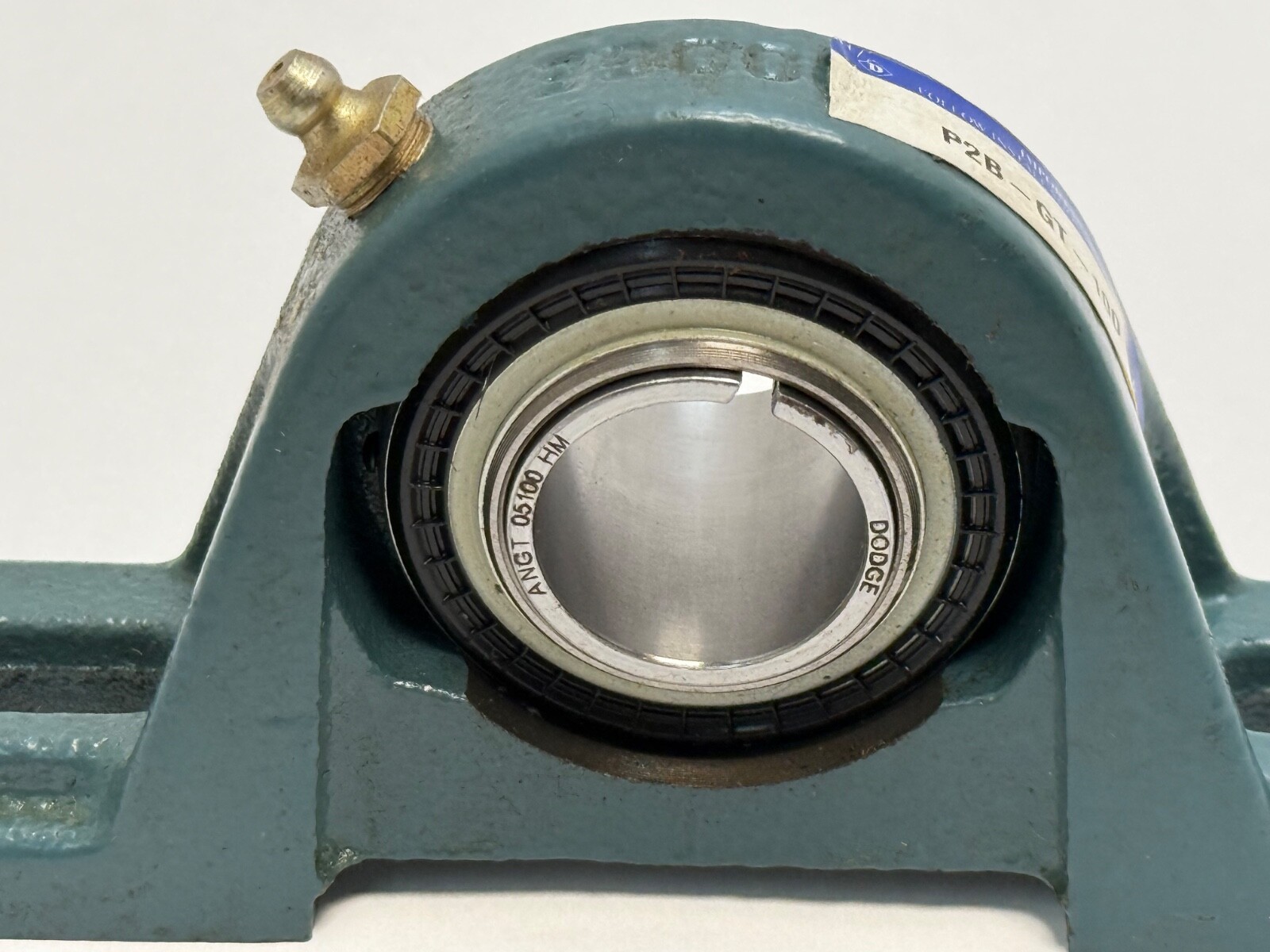

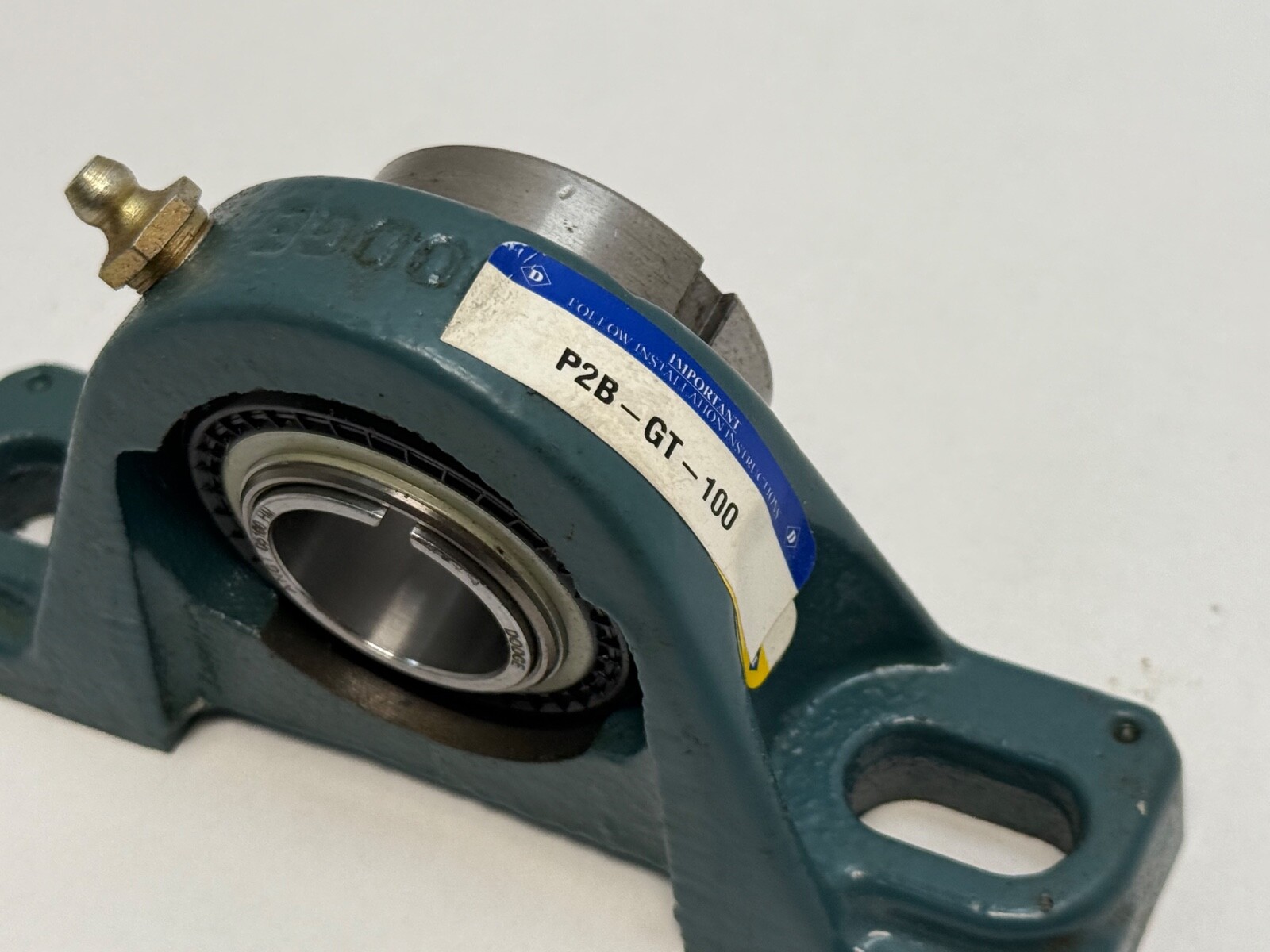

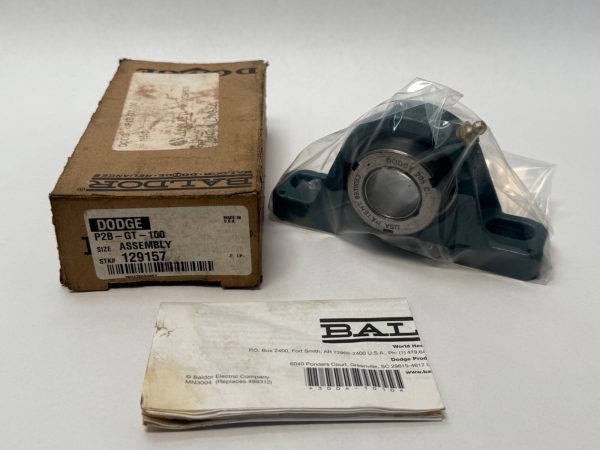

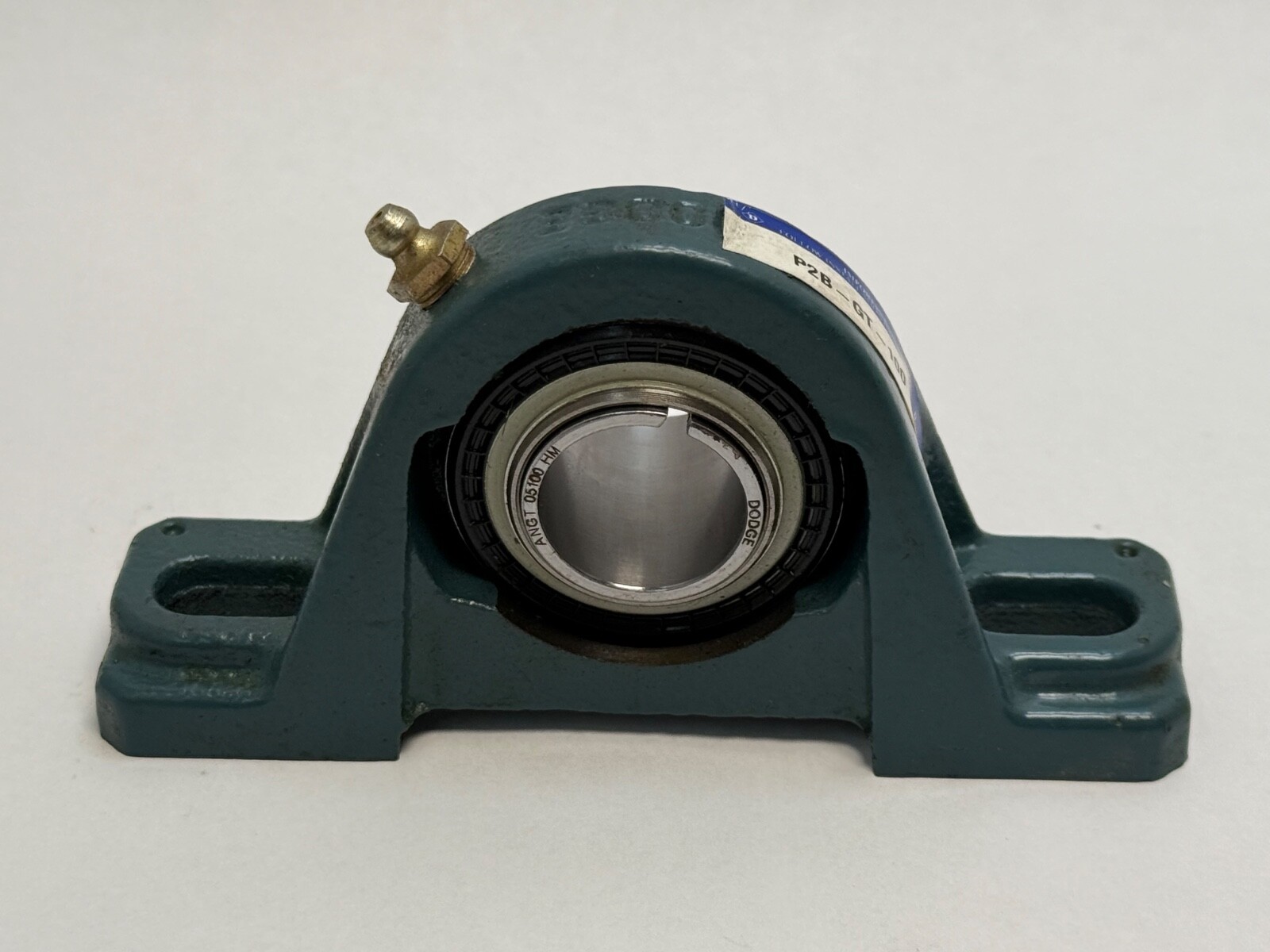

Dodge P2B-GT-100 two-bolt pillow block ball bearing, 1 in bore, Grip Tight adapter locking, 205 series insert, 1.44 in centre height. Dodge catalogue 129157.
List Price
$46.79
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | P2B-GT-100 |
| Model | P2B-GT-100 |
| ID | 1.0000 in |
| Material | Cast Iron |
|---|---|
| Series | 205 |
| Type | Pillow Block Bearing |
| Lubricant | Grease |
| Bolt Center To Center | 3.69 to 4.50 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 3.69 to 4.50 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Bearing Insert Type | Ball |
| Centre Height Pillow Block | 1.44 in |
| Centre Height | 1.44 in |
| Rolling Elements | Ball |
| Bearing Type | Two-bolt pillow block ball bearing unit |
| Item Weight | 0.86 kg (1.90 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Duty Type | Standard Duty |
| Locking Device | Grip Tight adapter |
| Harmonization Code | 84832040 |
| Housing Material | Cast iron |
| Expansion Type | Non-expansion (fixed) |
| Base Number | 205 |
| Industry Terms | pillow block bearing, 2-bolt pillow block, adapter mount bearing, mounted ball bearing |
| Bore Shaft Size | 1 in (25.4 mm) |
| Housing Style | Two-bolt base pillow block |
| Locking Method | Grip Tight adapter |
| Relubrication | Yes |
| Mpn Variants | 129157, P2BGT100, P2B GT 100, P2B-GT-100 |
| Common Misspellings | Dodge P2B GT 100, Doge P2B-GT-100, Dodge P2BGT-100, P2B-GT100 |
| Application Types | Conveyors, fans, blowers, general power transmission shafts |
The Dodge P2B-GT-100, catalogue number 129157, is a two-bolt pillow block ball bearing unit from the Dodge Grip Tight adapter line. Housing Style: Two-bolt base pillow block. Bore / Shaft Size: 1 in (25.4 mm). Housing Material: Cast iron. Unit Quantity: 1 Pc, a complete pillow block with factory-fitted Grip Tight insert and adapter.
P2B — pillow block, two-bolt base.
GT — Grip Tight adapter mounted ball bearing: a tapered adapter gives a concentric 360° grip on the shaft, with a built-in puller for removal.
100 — 1 in shaft size, carried on a 205 series insert.
Bearing Type: Ball bearing, 205 series. Duty Type: Standard Duty. Locking Method: Grip Tight adapter. Expansion Type: Non-expansion (fixed). Seal Type: DualGuard single lip seal with flinger. Relubrication: Yes. Item Weight: 0.86 kg (1.90 lb).
Centre Height (Pillow Block): 1.44 in. Bolt Center To Center Length: 3.69 to 4.50 in (slotted). Number Of Bolt Holes For Fasteners: 2. Overall Length: 5-1/2 in. Overall Height: 2.77 in. Bore Length: 1.46 in.
Dodge catalogue number 129157. Also written P2BGT100 and P2B GT 100. Base Number: 205.
Bore / Shaft Size: 1 in (25.4 mm), locked with a Grip Tight adapter.
Bolt Center To Center Length: 3.69 to 4.50 in (slotted), with 2 bolt holes.
129157.
