A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

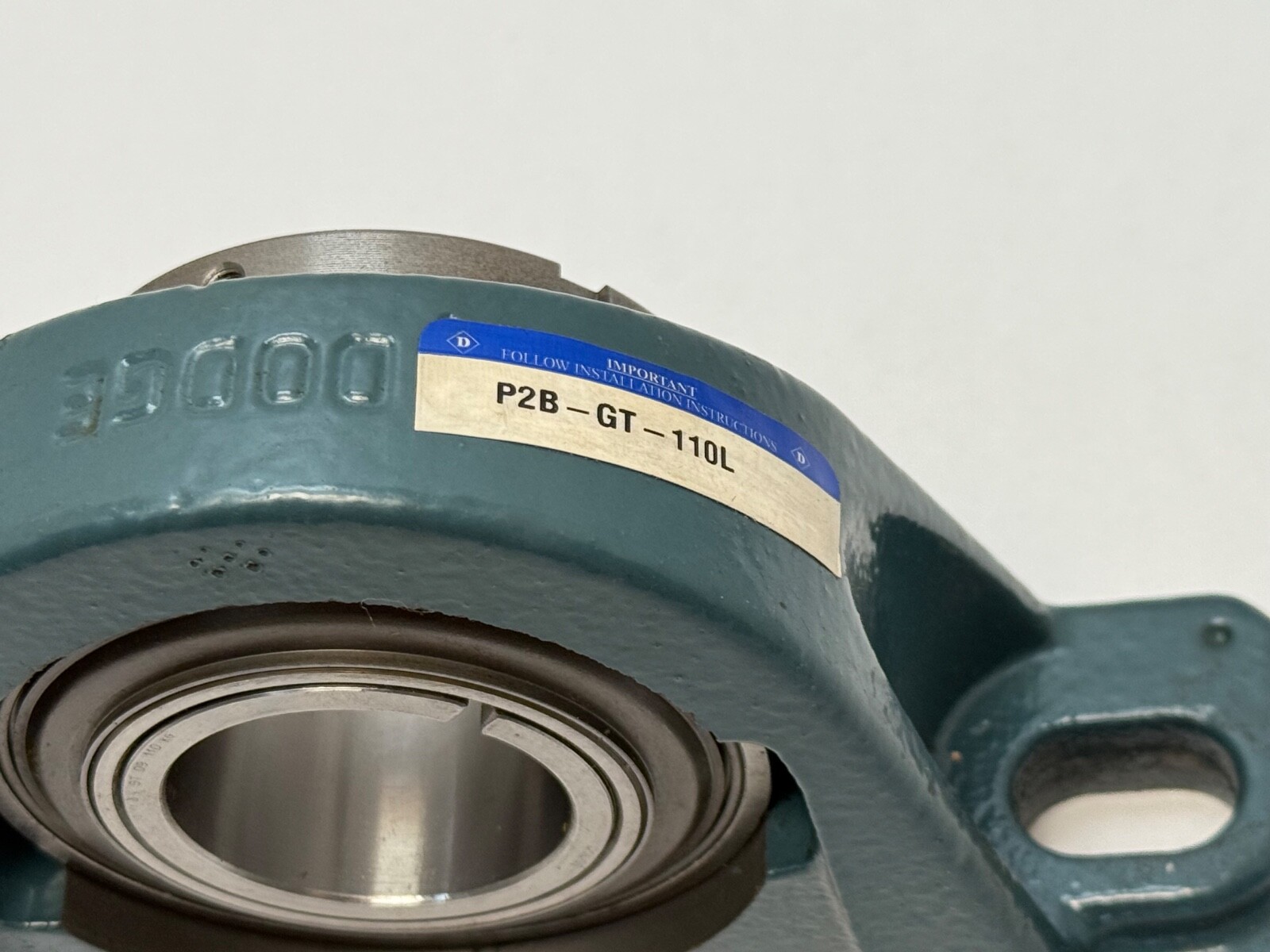

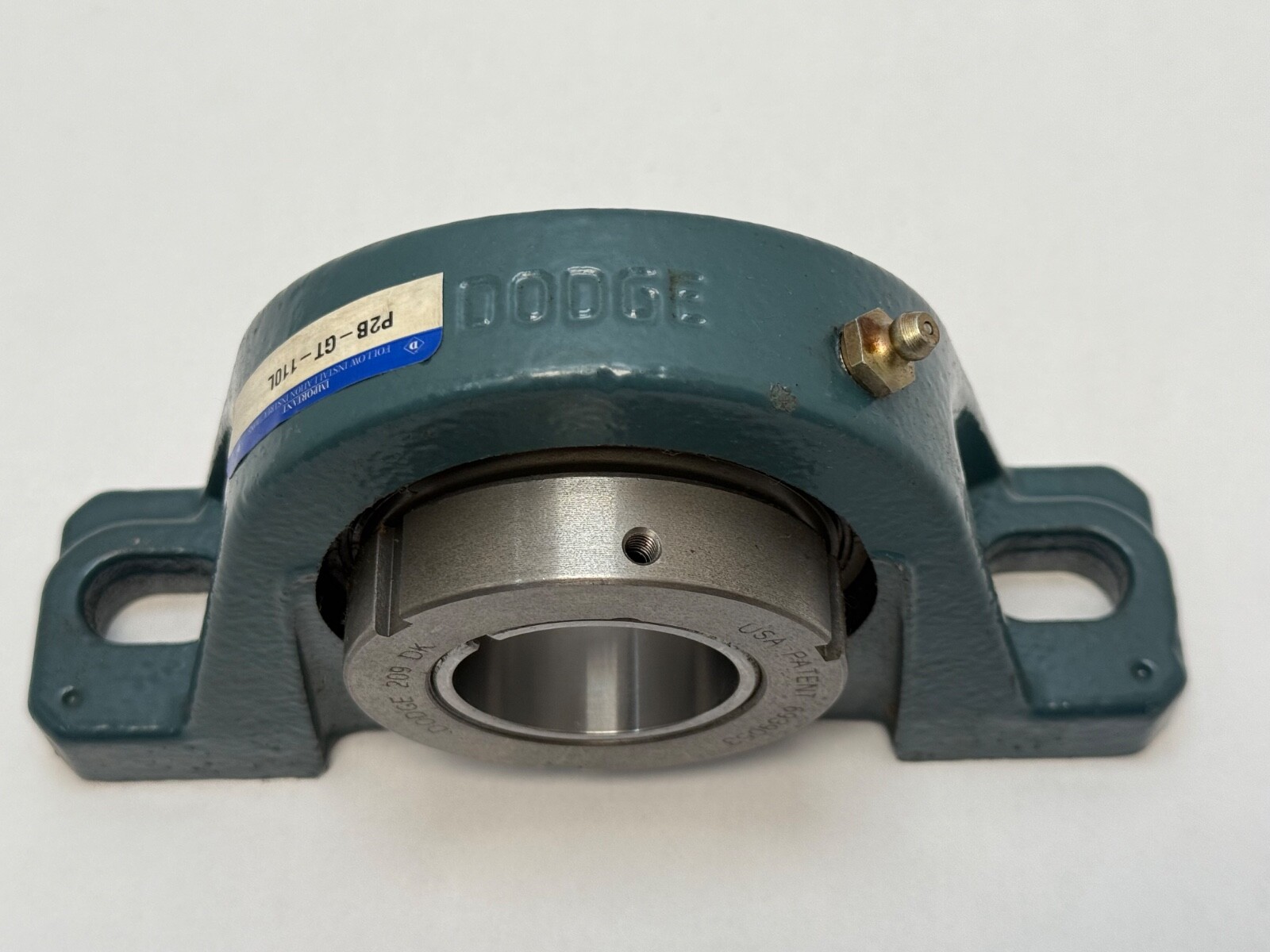

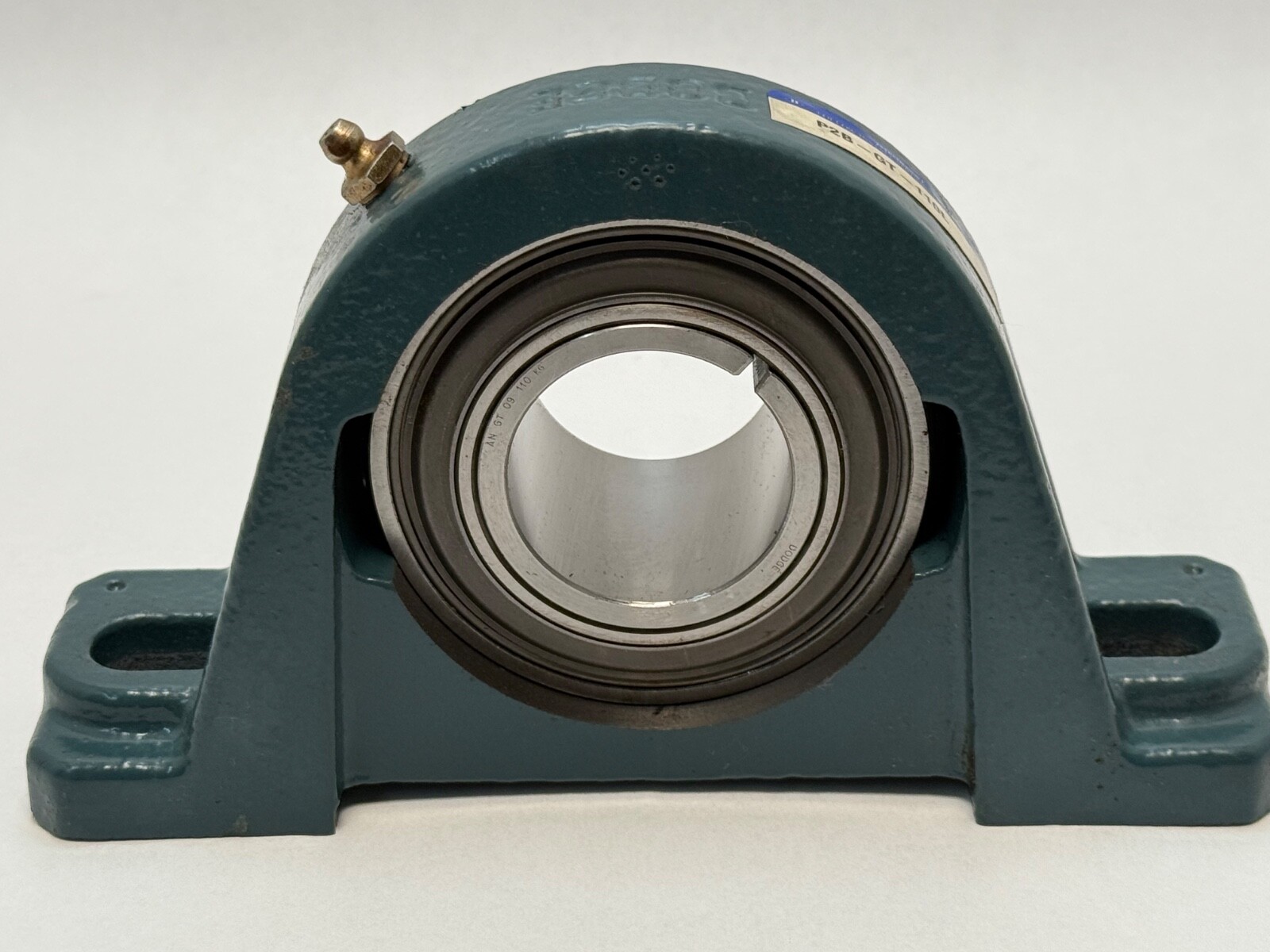

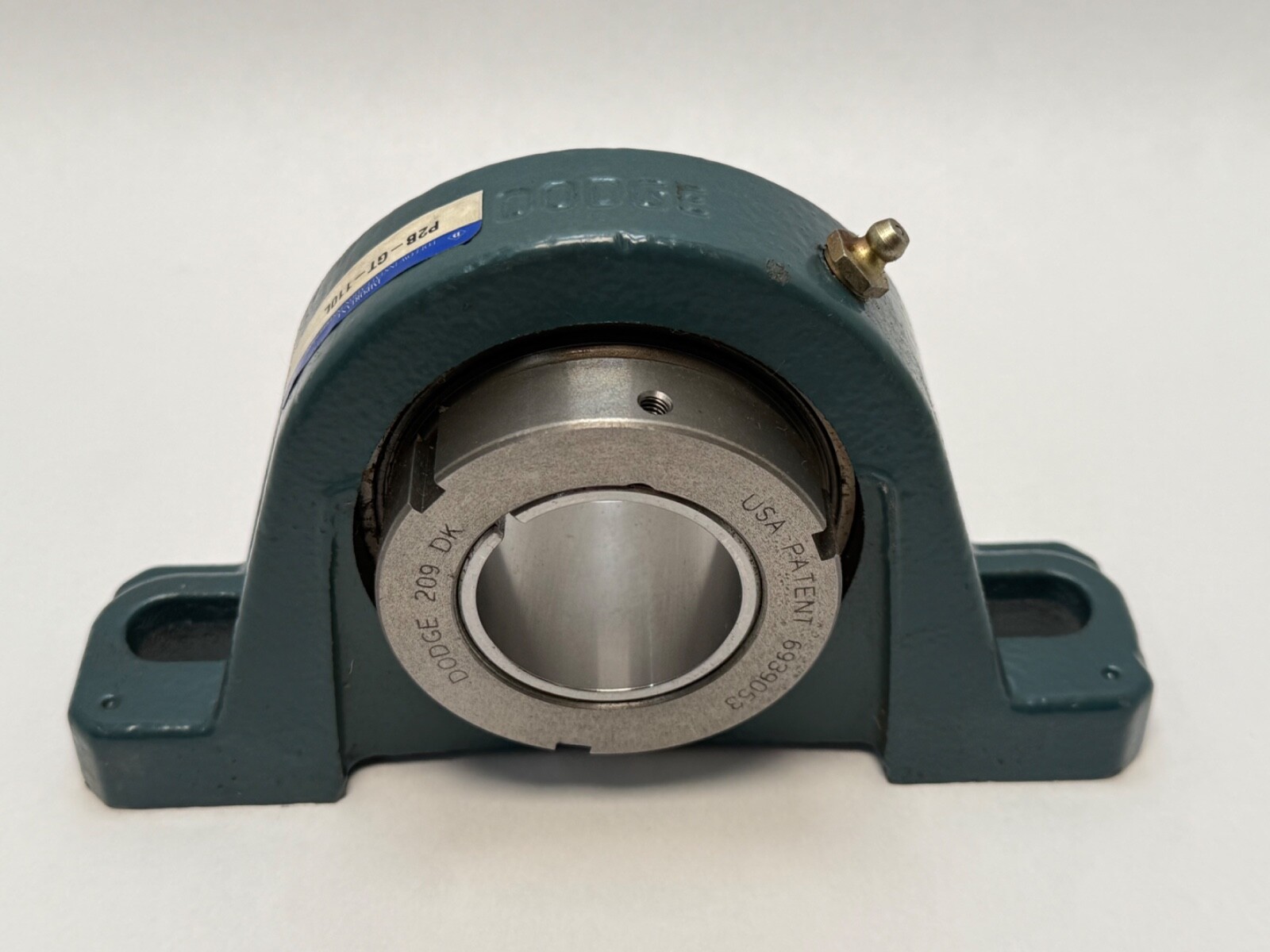

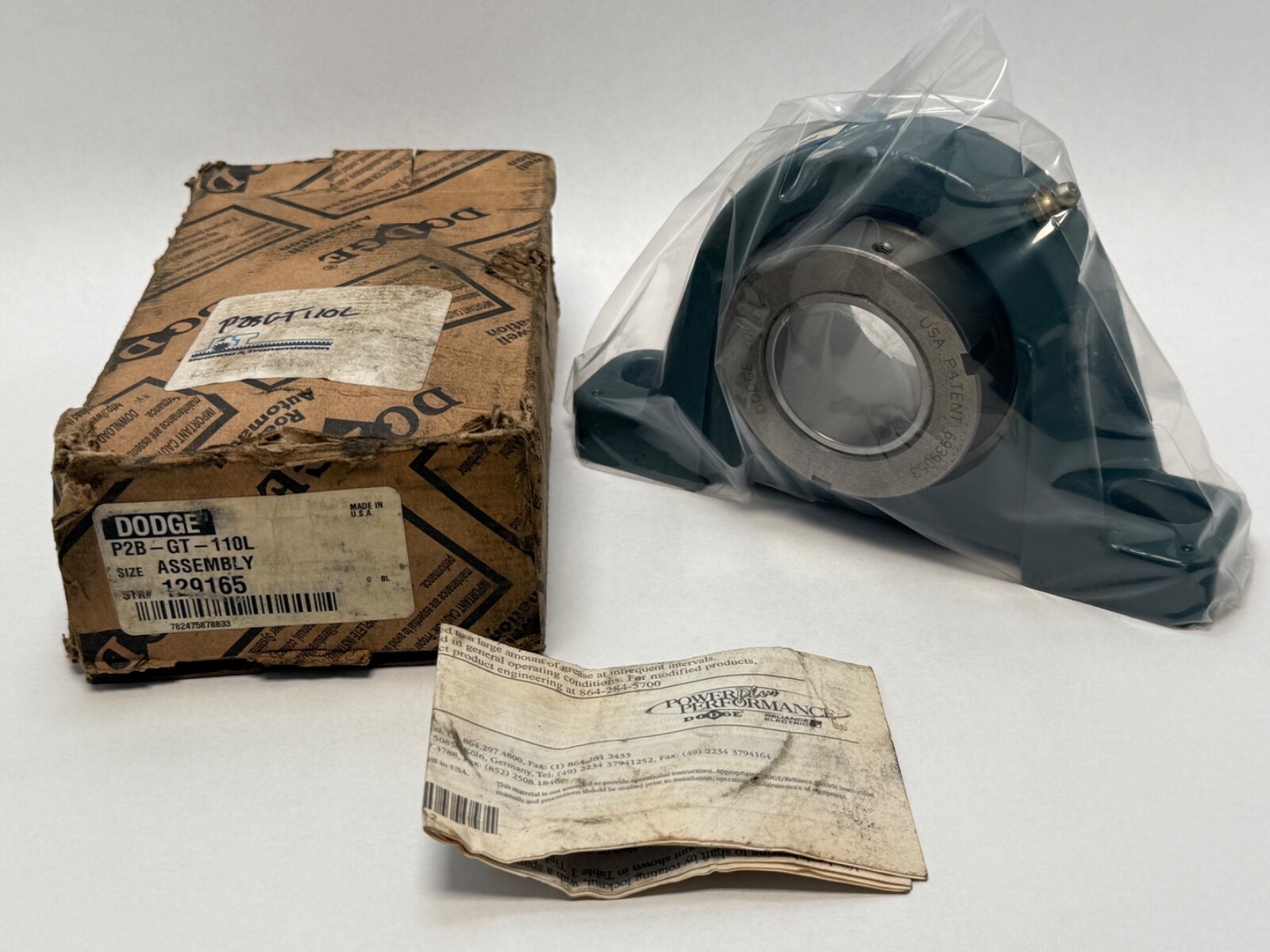

Dodge P2B-GT-110L two-bolt pillow block ball bearing, 1-5/8 in bore, Grip Tight adapter locking, 209 series insert, 2.13 in centre height. Catalogue 129165.
List Price
$59.87
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | P2B-GT-110L |
| Model | P2B-GT-110L |
| ID | 1.625 in |
| Material | Cast Iron |
|---|---|
| Series | 209 |
| Type | Pillow Block Bearing |
| Lubricant | Grease |
| Bolt Center To Center | 5.50 to 6.19 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 5.50 to 6.19 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Bearing Insert Type | Ball |
| Centre Height Pillow Block | 2.13 in |
| Centre Height | 2.13 in |
| Rolling Elements | Ball |
| Bearing Type | Two-bolt pillow block ball bearing unit |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 5,300 rpm |
| Duty Type | Standard Duty |
| Locking Device | Grip Tight adapter |
| Harmonization Code | 8483.2 |
| Housing Material | Cast iron |
| Expansion Type | Non-expansion (fixed) |
| Base Number | 209 |
| Industry Terms | pillow block bearing, 2-bolt pillow block, adapter mount bearing, mounted ball bearing |
| Bore Shaft Size | 1-5/8 in (41.28 mm) |
| Housing Style | Two-bolt base pillow block |
| Locking Method | Grip Tight adapter |

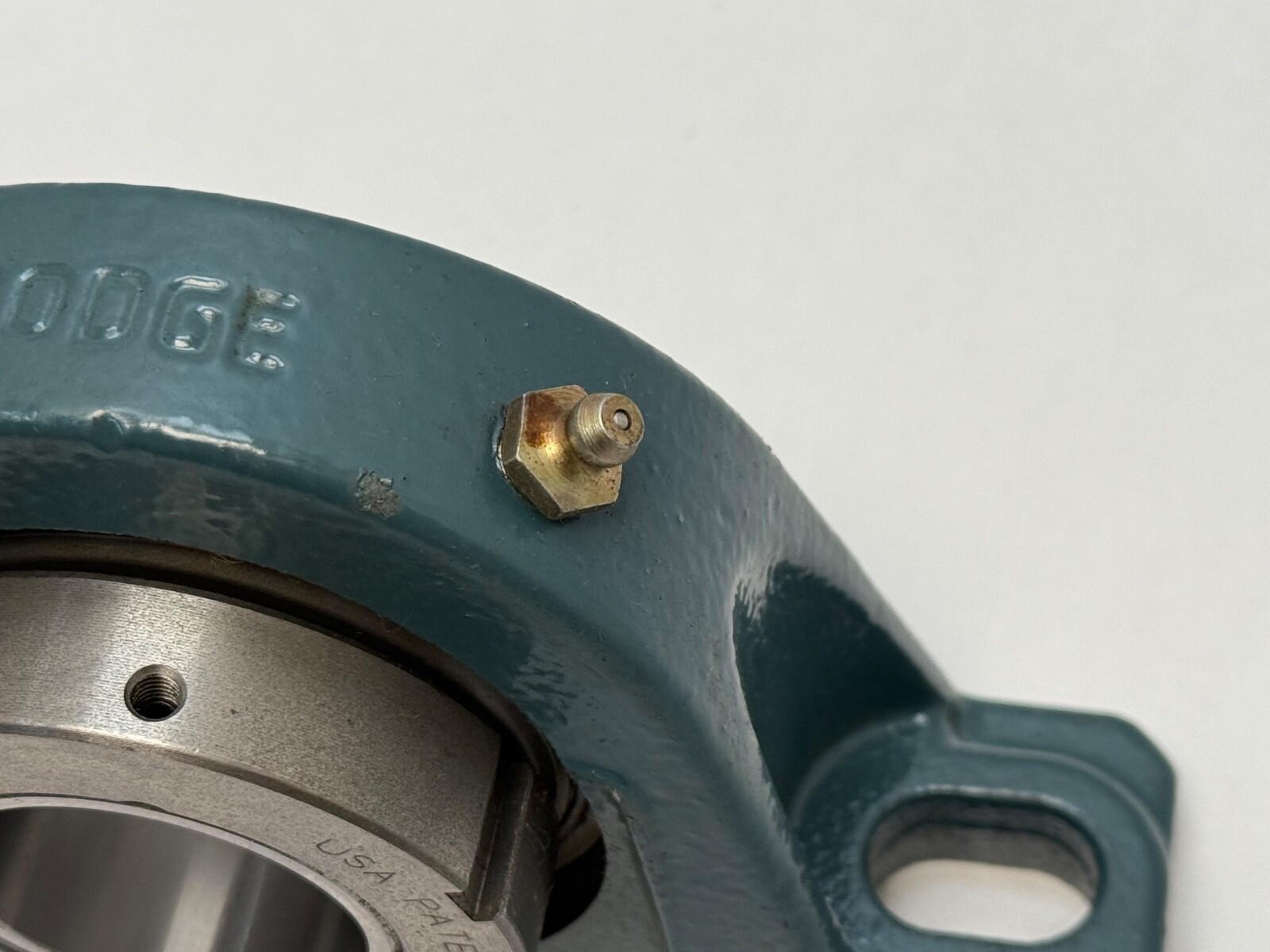

| Relubrication | Yes |
| Mpn Variants | 129165, P2BGT110L, P2B GT 110-L, P2B-GT-110L |
| Dynamic Load Rating | 35,100 N (7,891 lbf) |
| Common Misspellings | Dodge P2B GT 110L; Dodge P2BGT110L; Dodge P2B-GT-110-L; Dodg P2B-GT-110L; Dodge 129165 pillow block |
| Application Types | Conveyors; Fans and blowers; Pumps; Agricultural machinery; General industrial shafting |
The Dodge P2B-GT-110L, catalogue number 129165, is a two-bolt pillow block ball bearing unit from the Dodge Grip Tight adapter line. It is one complete unit: housing with factory-fitted Grip Tight insert and adapter.
P2B — pillow block, two-bolt base.

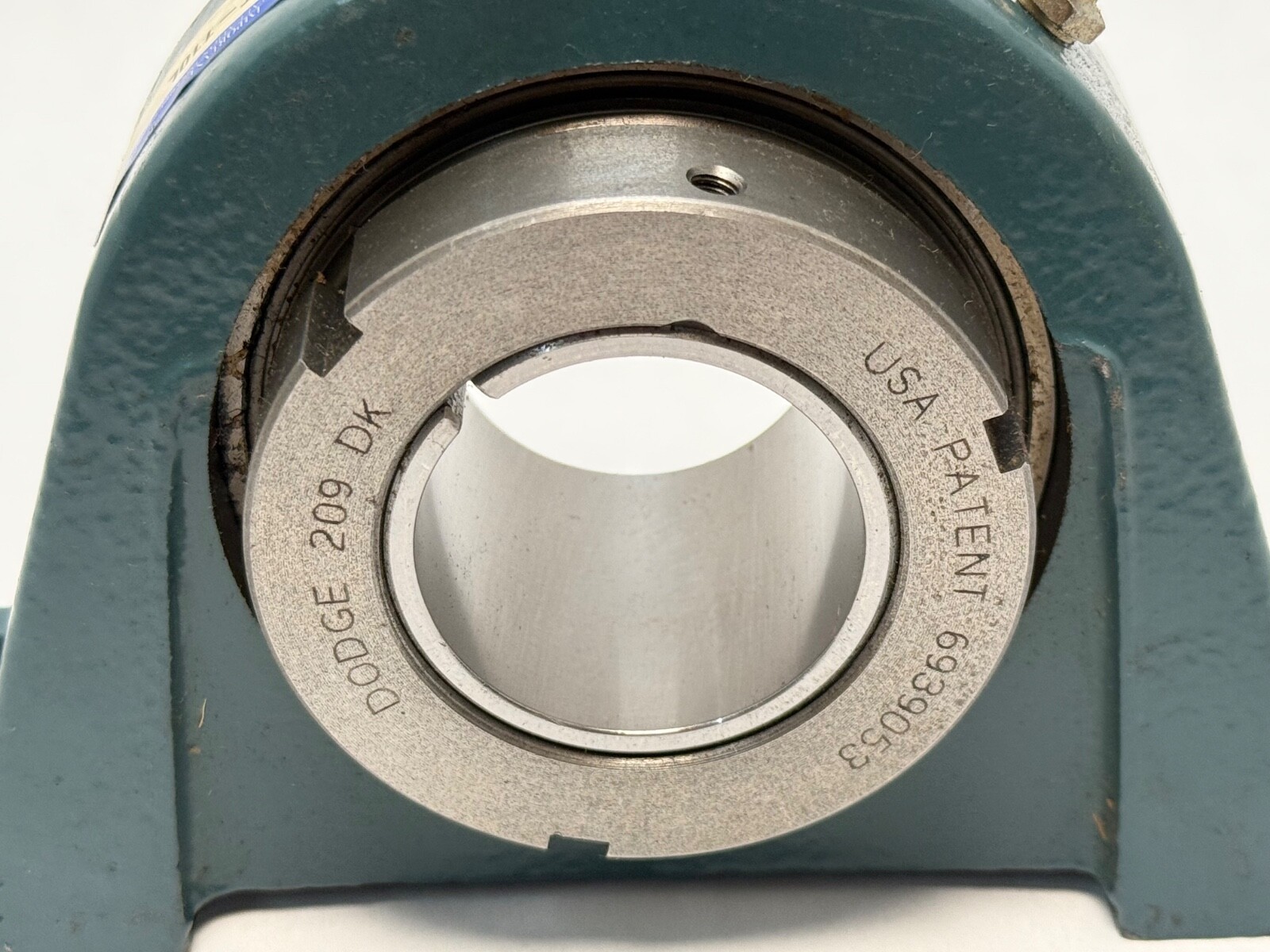

GT — Grip Tight adapter mounted normal duty ball bearing: a tapered adapter gives a concentric 360° grip on the shaft, with a built-in puller for removal.
110 — 1-5/8 in shaft size, carried on a 209 series insert.
Housing Style: Two-bolt base pillow block. Bore / Shaft Size: 1-5/8 in (41.28 mm). Housing Material: Cast iron. Bearing Type: Normal duty ball bearing, 209 series. Base Number: 209. Locking Method: Grip Tight adapter. Expansion Type: Non-expansion (fixed). Seal Type: Single lip seal. Relubrication: Yes. Dynamic Load Rating: 35,100 N (7,891 lbf). Limiting Speed: 5,300 rpm. Unit Quantity: 1 Pc.
Centre Height (Pillow Block): 2.13 in. Bolt Center To Center Length: 5.50 to 6.19 in (slotted). Number Of Bolt Holes For Fasteners: 2. Overall Length: 7.44 in. Overall Height: 4.28 in. Overall Width: 1.85 in. Base Width: 2 in.
Dodge catalogue number 129165, also written P2BGT110L and P2B GT 110-L. 209 series insert, 1-5/8 in shaft.
1-5/8 in (41.28 mm), locked with a Grip Tight adapter.

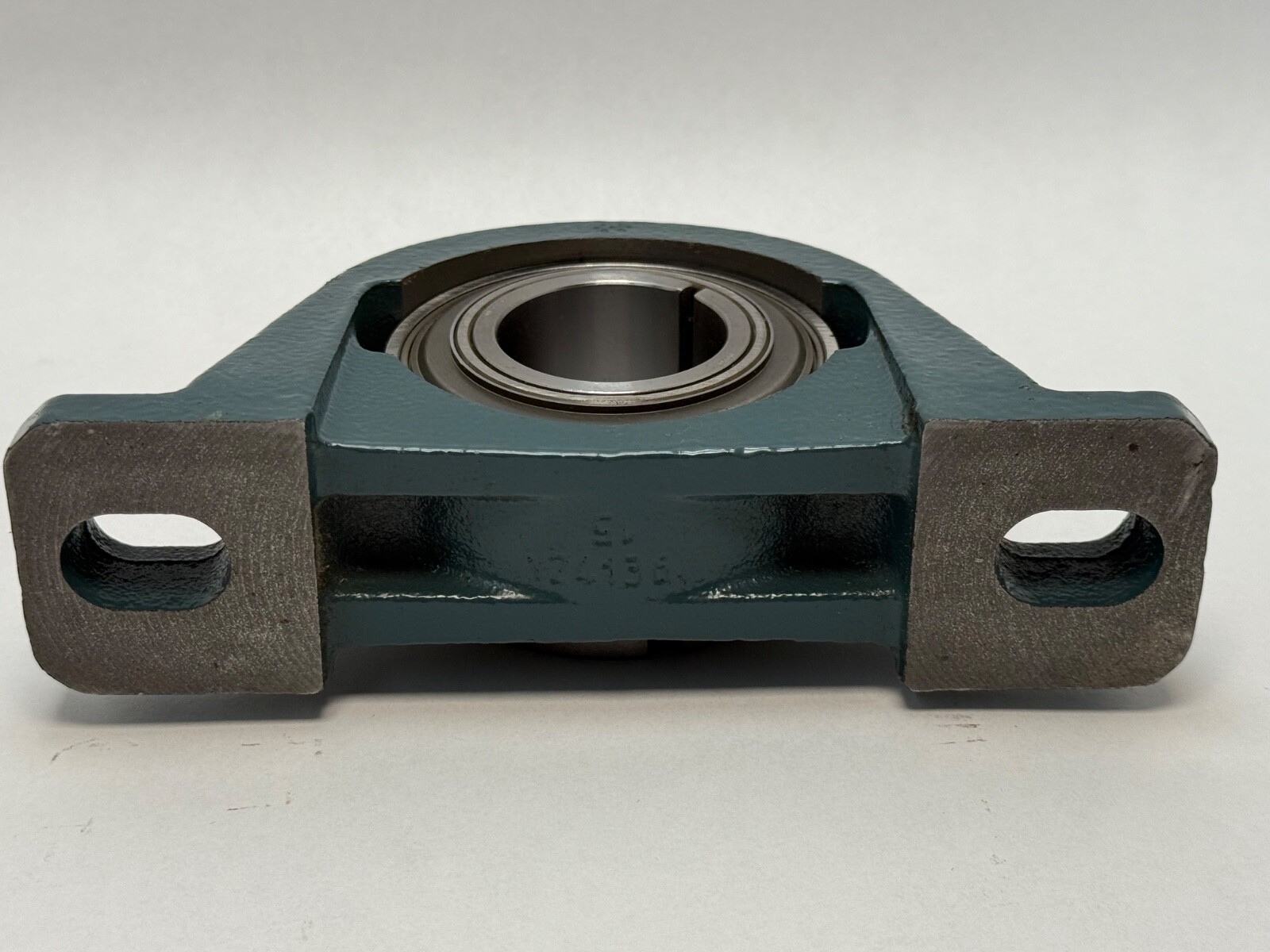

Two slotted bolt holes with 5.50 to 6.19 in bolt center to center length.

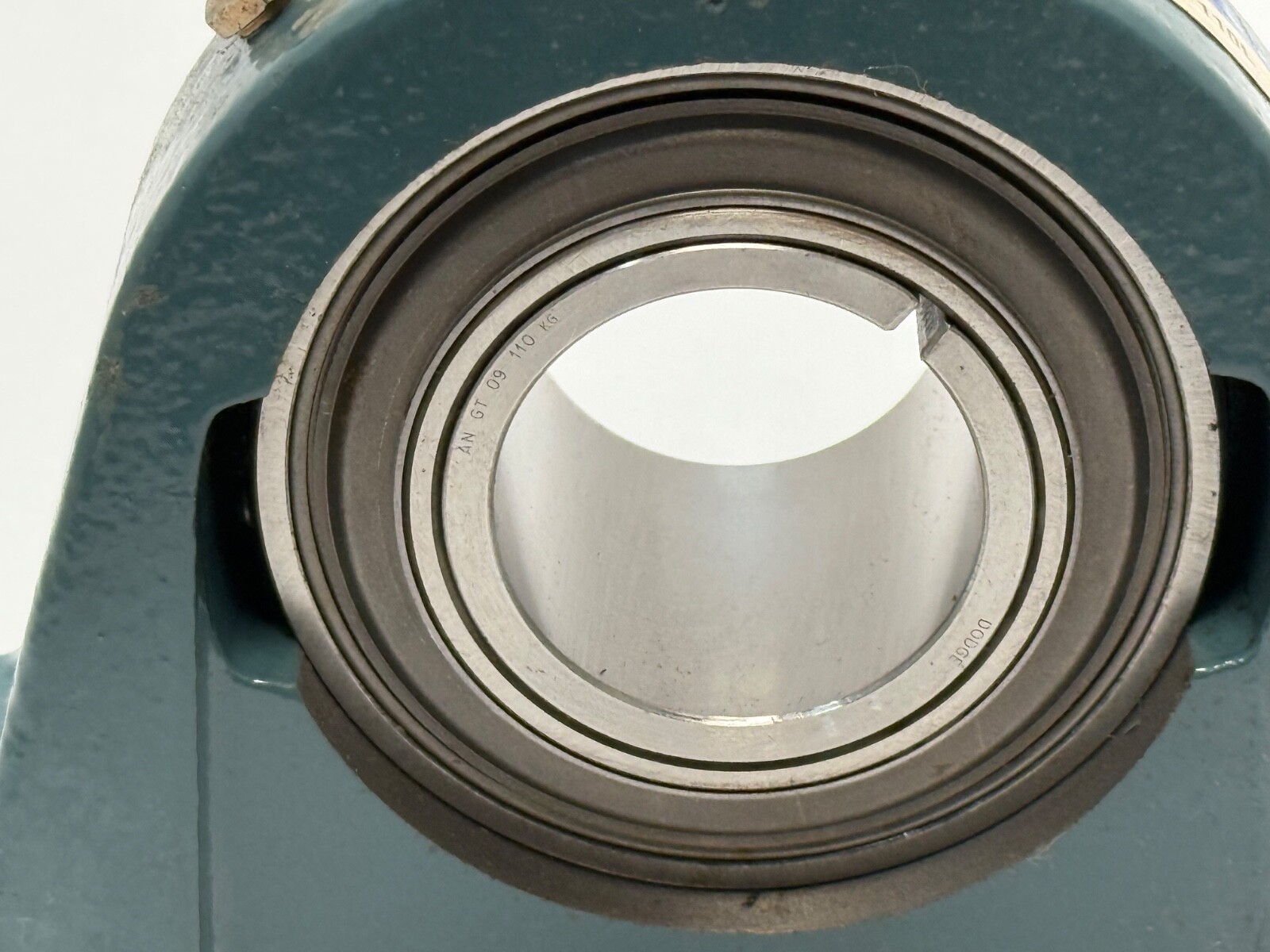

A 209 series normal duty ball bearing insert.
