Availability:
1 in stock

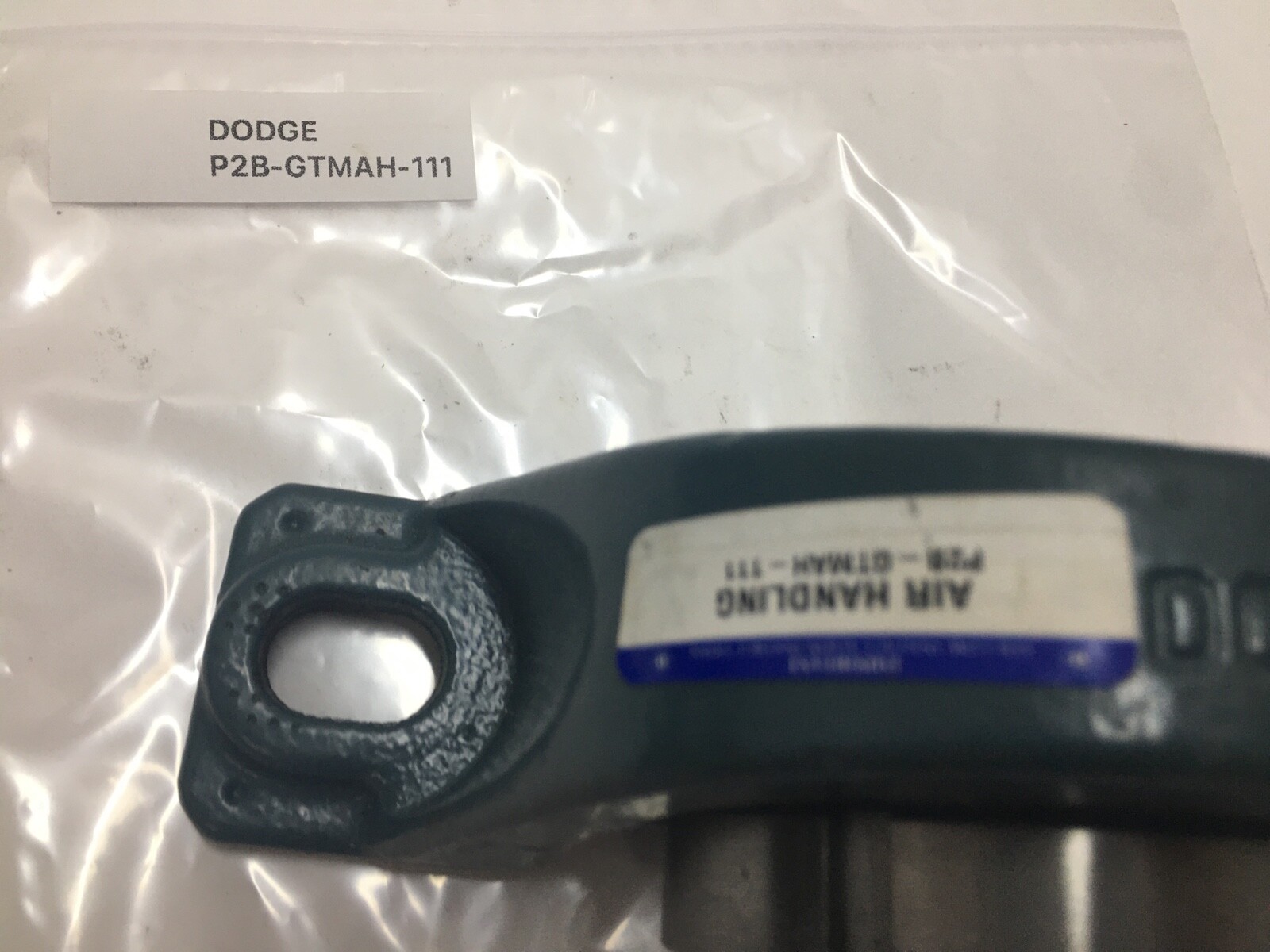

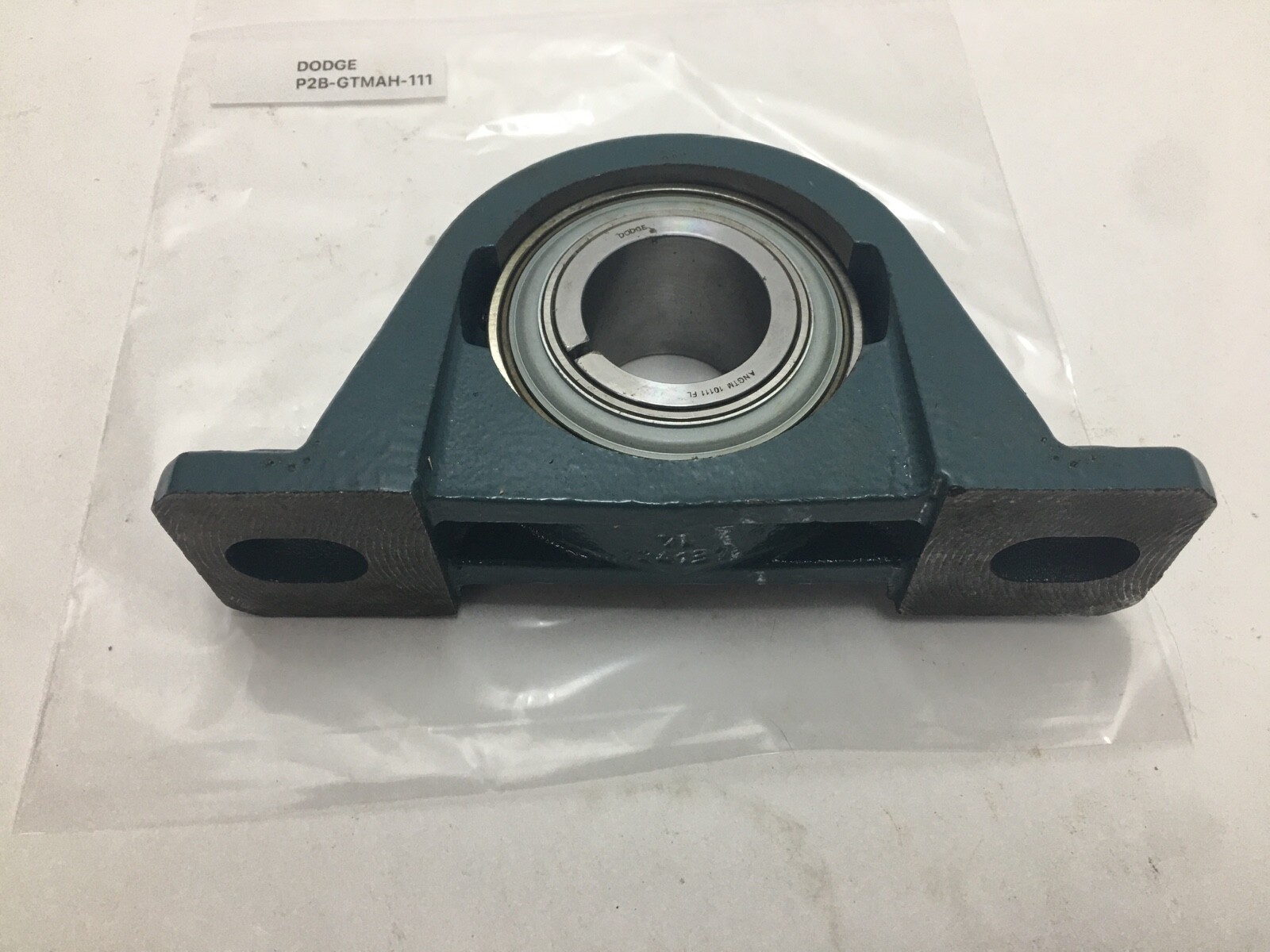

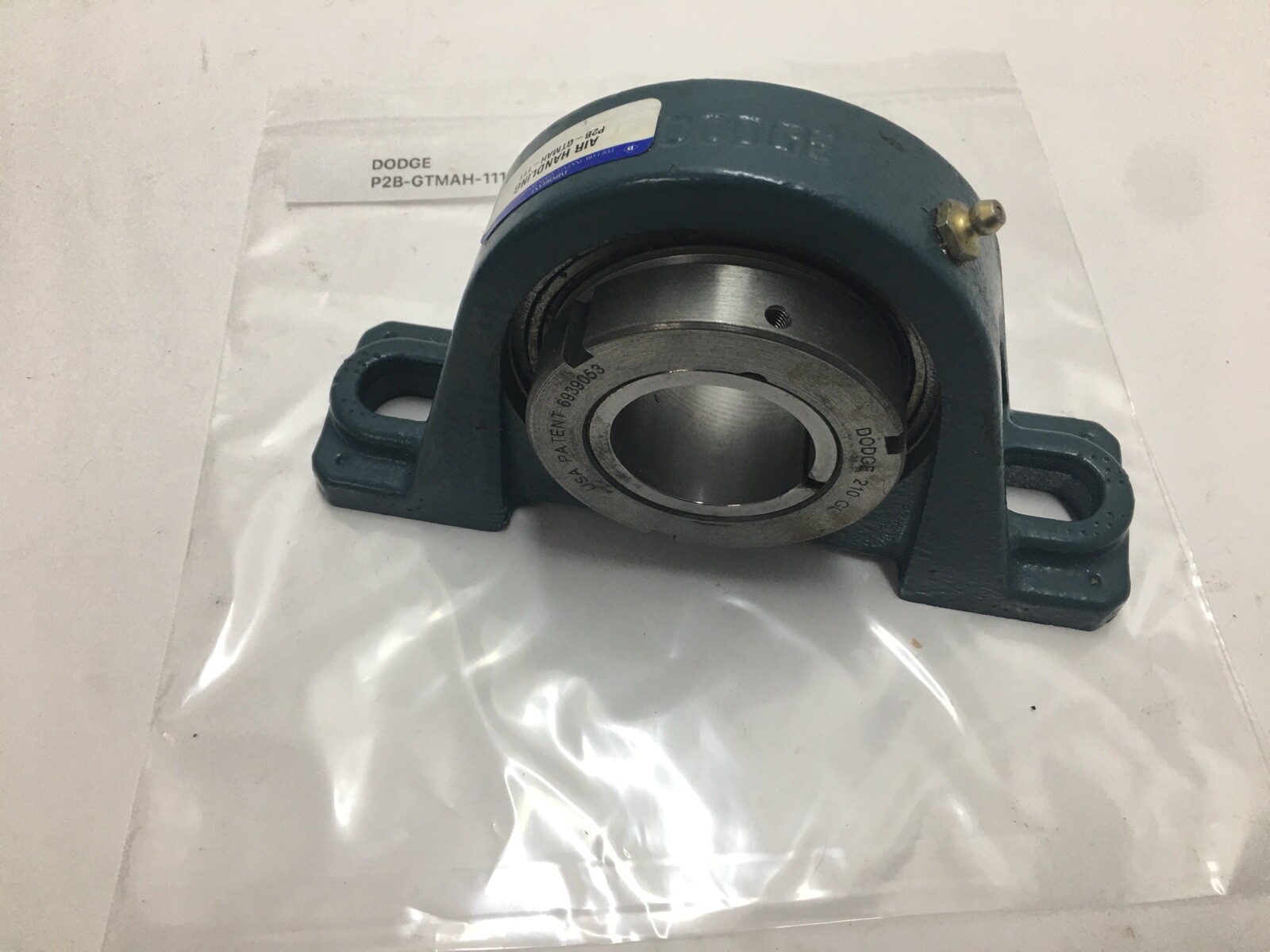

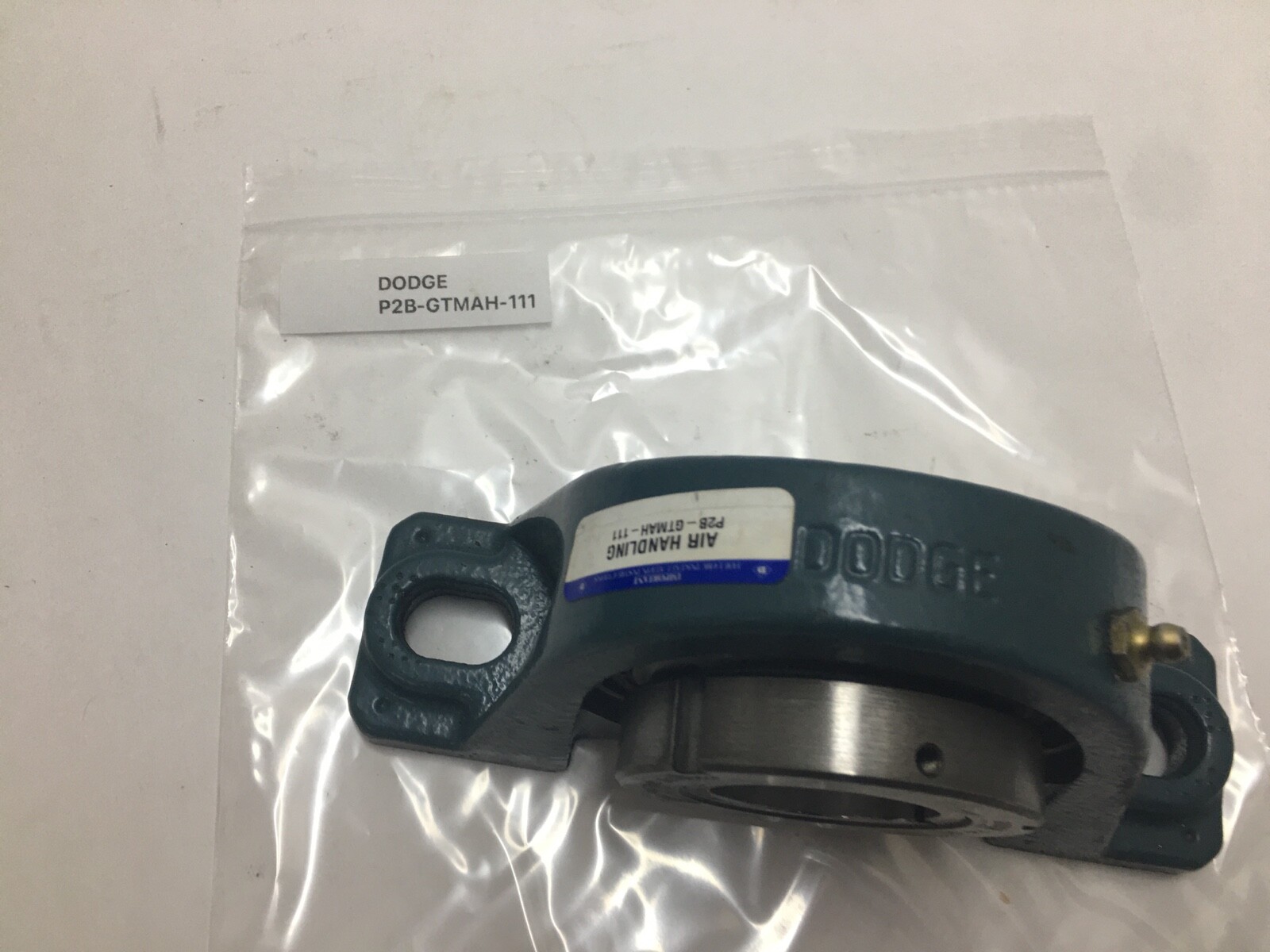

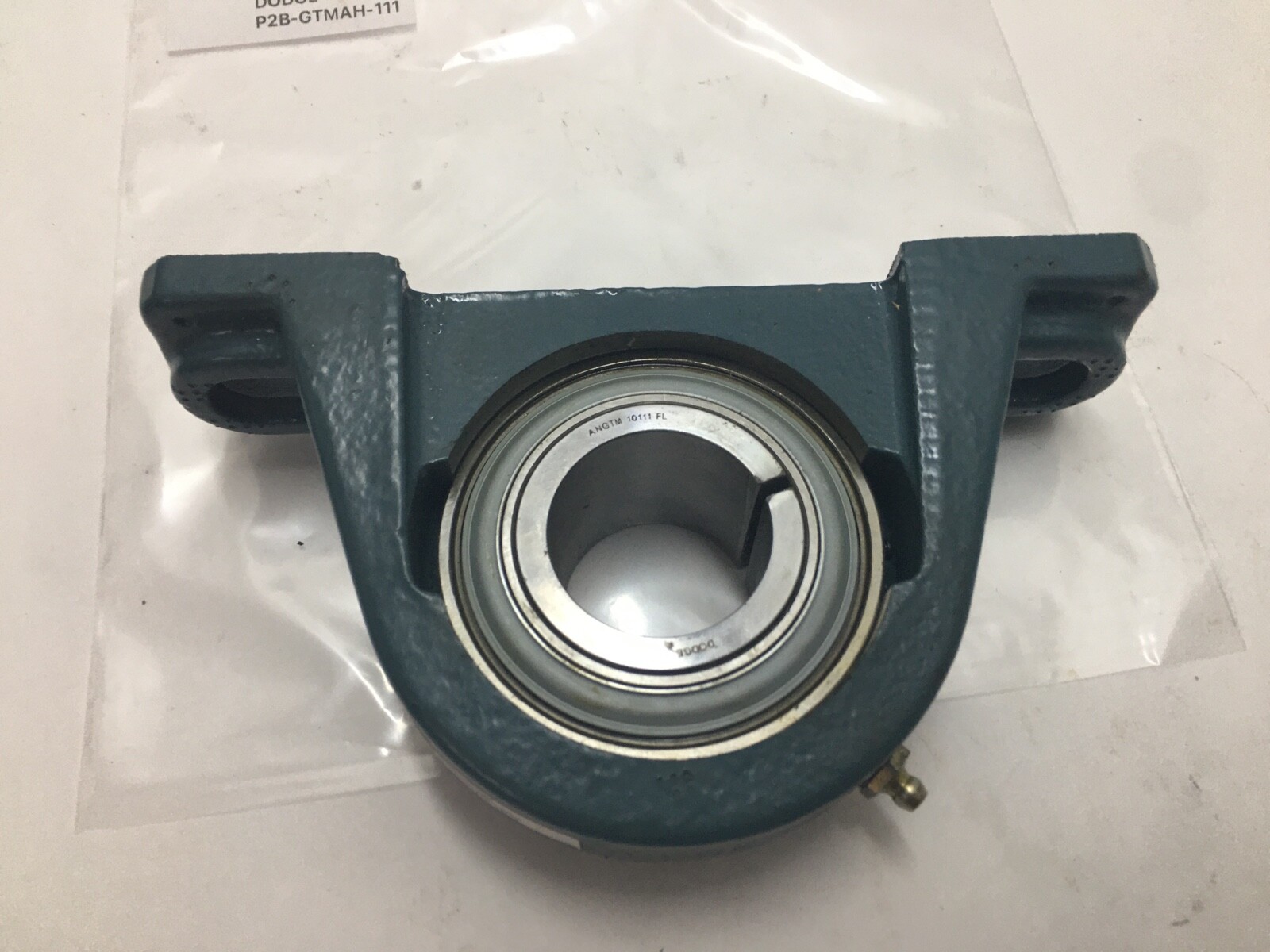

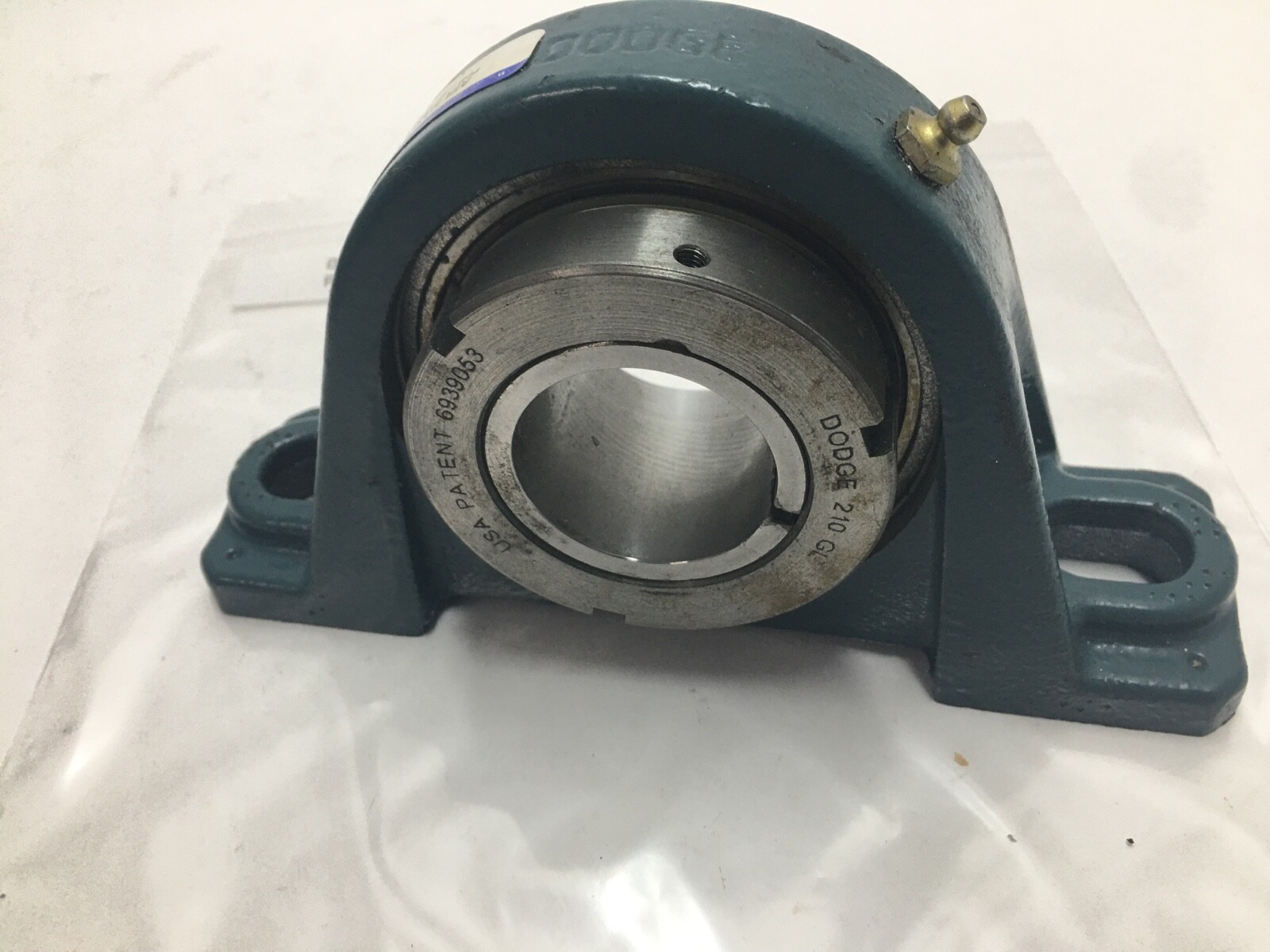

Dodge P2B-GTMAH-111 two-bolt pillow block, 1-11/16 in bore, Grip Tight adapter, medium duty 210 air handling insert, 2-1/4 in centre height. Part 129237.
List Price
$131.96
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | P2B-GTMAH-111 |
| Model | P2B-GTMAH-111 |
| ID | 1.6875 in |
| Material | Cast Iron |
|---|---|
| Series | 210 |
| Type | Pillow Block Bearing |
| Base Number | P2B-GTMAH |
| Industry Terms | pillow block bearing; mounted bearing; Grip Tight; adapter mount; air handling bearing |
| Common Misspellings | P2BGTMAH111; P2B GTMAH 111; P2B-GTMAH111 |
| Application Types | Air handling units; HVAC fans and blowers |
| Centre Height Base To Bore Centerline | 2-1/4 in (57.15 mm) |
| Bolt Center To Center | 6.00 - 6.68 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 6.00 - 6.68 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Centre Height Pillow Block | 2-1/4 in (57.15 mm) |
| Bore Shaft Size | 1-11/16 in (42.863 mm) |
| Housing Style | Two-bolt pillow block |
| Locking Method | Grip Tight adapter |
| Relubrication | Yes |
| Mpn Variants | P2B-GTMAH-111; P2BGTMAH111; P2BGTMAH-111; 129237 |
| Compatible With Replaces | Dodge 129237 |
| Additional Attributes | Dodge Part Number: 129237; Overall Length: 8.12 in; Overall Height: 4.53 in; Base Width: 2-1/4 in; Bore Length: 1.86 in; Take-Up Frame Size: LD-30, TS-300 |
| Dynamic Load Rating | 7,891 lbf (35,100 N) |
| Static Load Rating | 5,213 lbf (23,190 N) |
| Rolling Elements | Ball |
| Bearing Type | Pillow Block Bearing |
| Item Weight | 6.54 lb (2.97 kg) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 7,500 rpm |
| Duty Type | Medium |
| Locking Device | Grip Tight adapter |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Cast Iron |
| Expansion Type | Non-expansion (fixed) |
Dodge P2B-GTMAH-111, Dodge part number 129237. Two-bolt pillow block ball bearing unit for air handling service, medium duty, 210 series. Bore / Shaft Size: 1-11/16 in (42.863 mm). Housing Material: Cast iron. Locking Method: Grip Tight push-pull adapter. Expansion Type: Non-expansion (fixed).
P2B — two-bolt pillow block housing.
GT — Grip Tight adapter mounting, a concentric adapter that clamps the insert to the shaft.
MAH — medium duty air handling execution, 210 series ball insert.
111 — shaft size 1-11/16 in.
Dynamic Load Rating: 7,891 lbf (35,100 N). Static Load Rating: 5,213 lbf (23,190 N). Limiting Speed: 7,500 rpm. Seal Type: Single-lip seal with flingers. Relubrication: Yes. Lubricant: grease. The medium duty 210 insert carries a higher rating than the standard duty P2B-GTAH-111 on the same shaft size.
Centre Height (Pillow Block): 2-1/4 in (57.15 mm). Bolt Center To Center Length: 6.00 to 6.68 in. Number Of Bolt Holes For Fasteners: 2. Base Width: 2-1/4 in. Overall Length: 8.12 in. Overall Height: 4.53 in. Bore Length: 1.86 in. Item Weight: 6.54 lb.
Dodge catalogue number 129237 and engineering number P2B-GTMAH-111 identify the same unit. The standard duty sibling P2B-GTAH-111 (129179) shares the 1-11/16 in bore with a 209 insert, 2-1/8 in centre height and 5.50 to 6.19 in bolt spacing.
