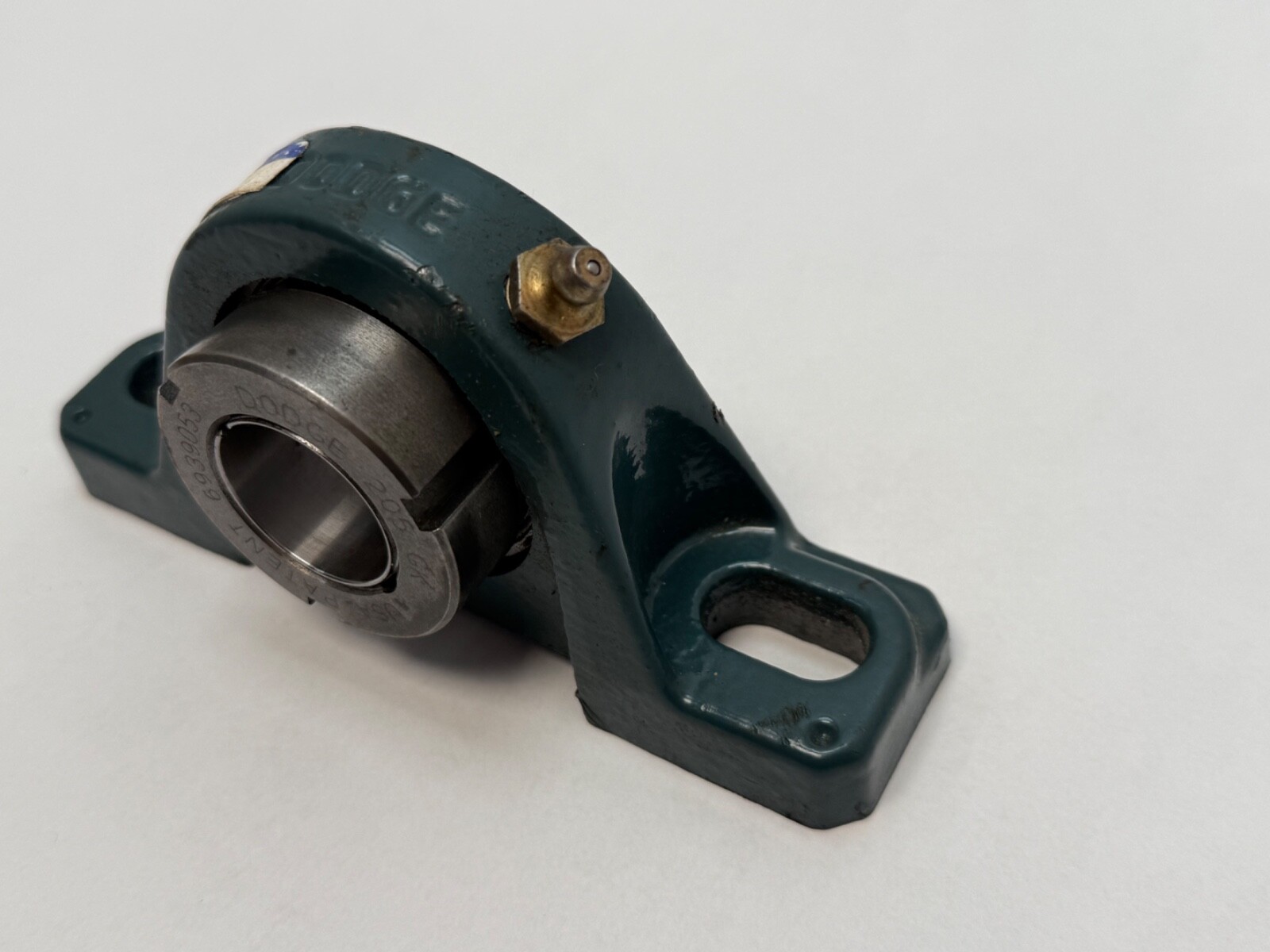

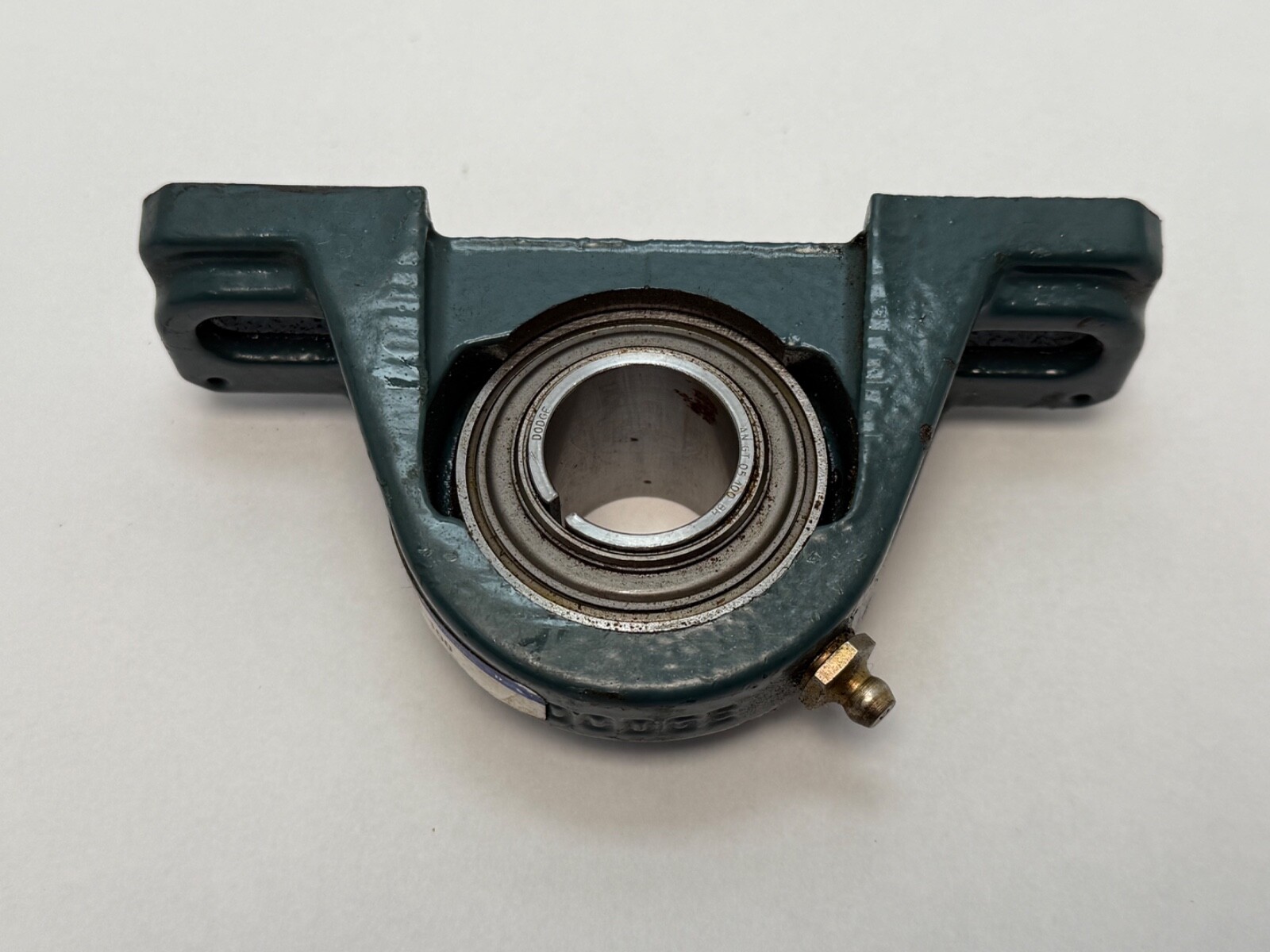

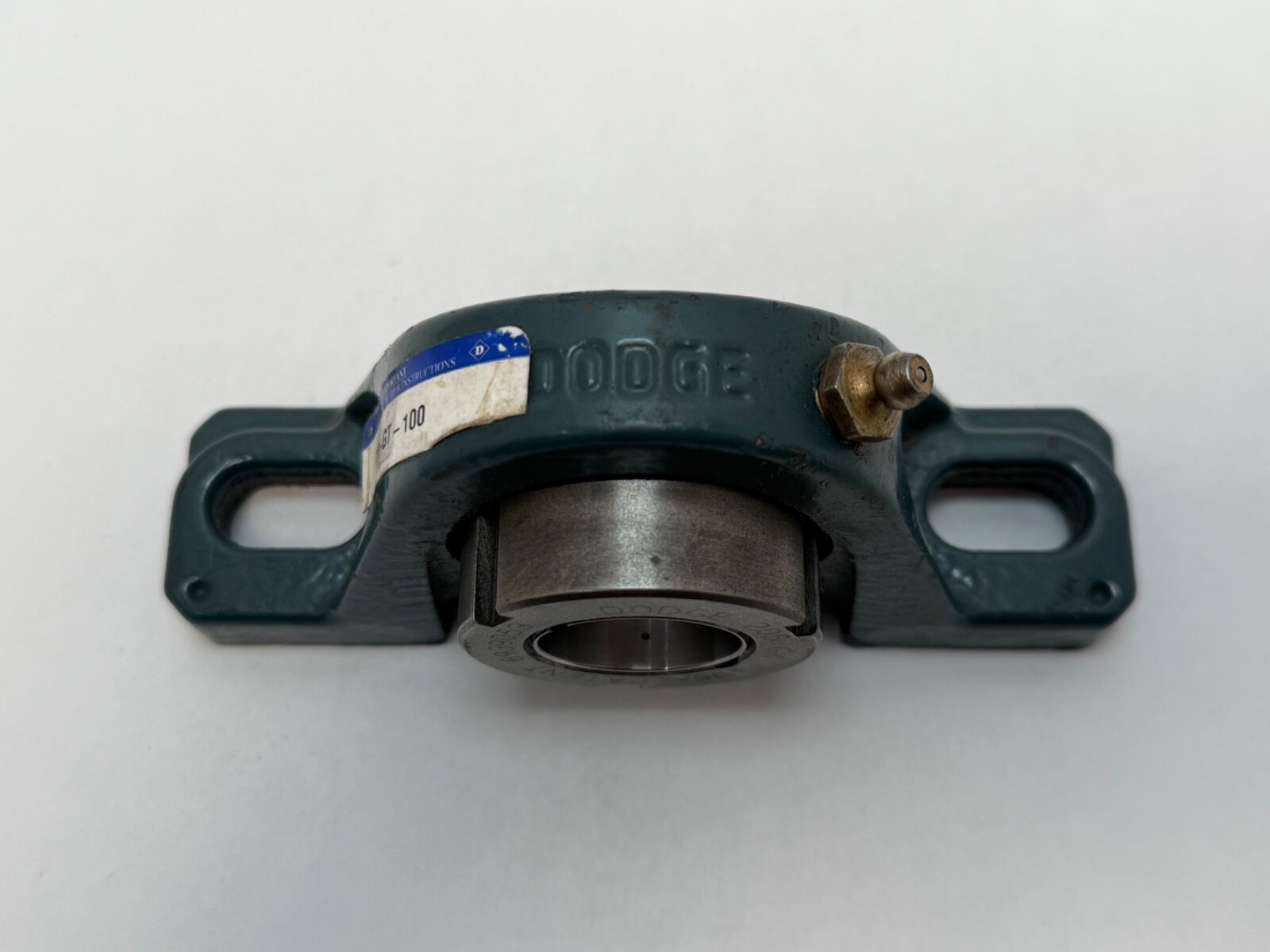

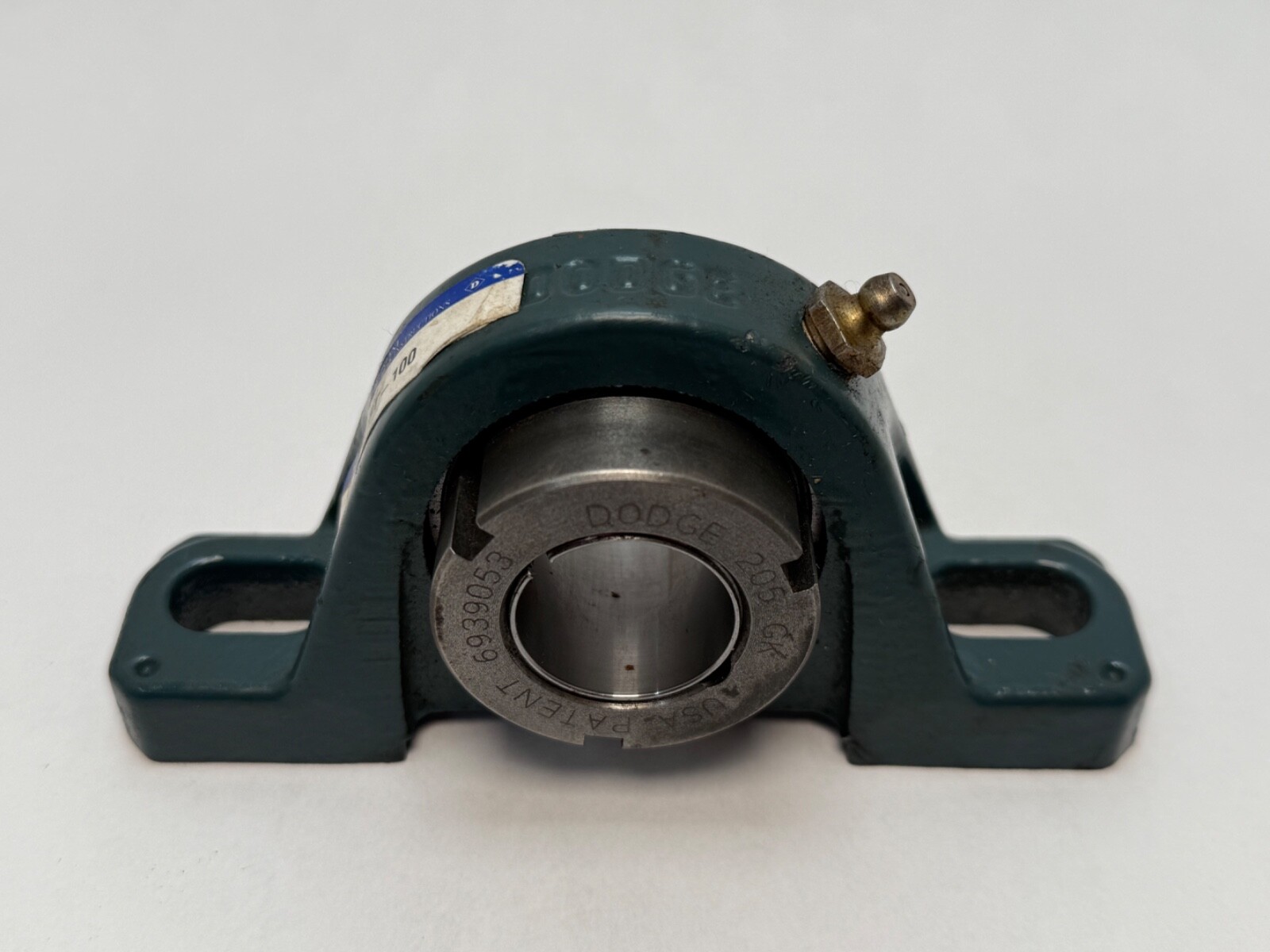

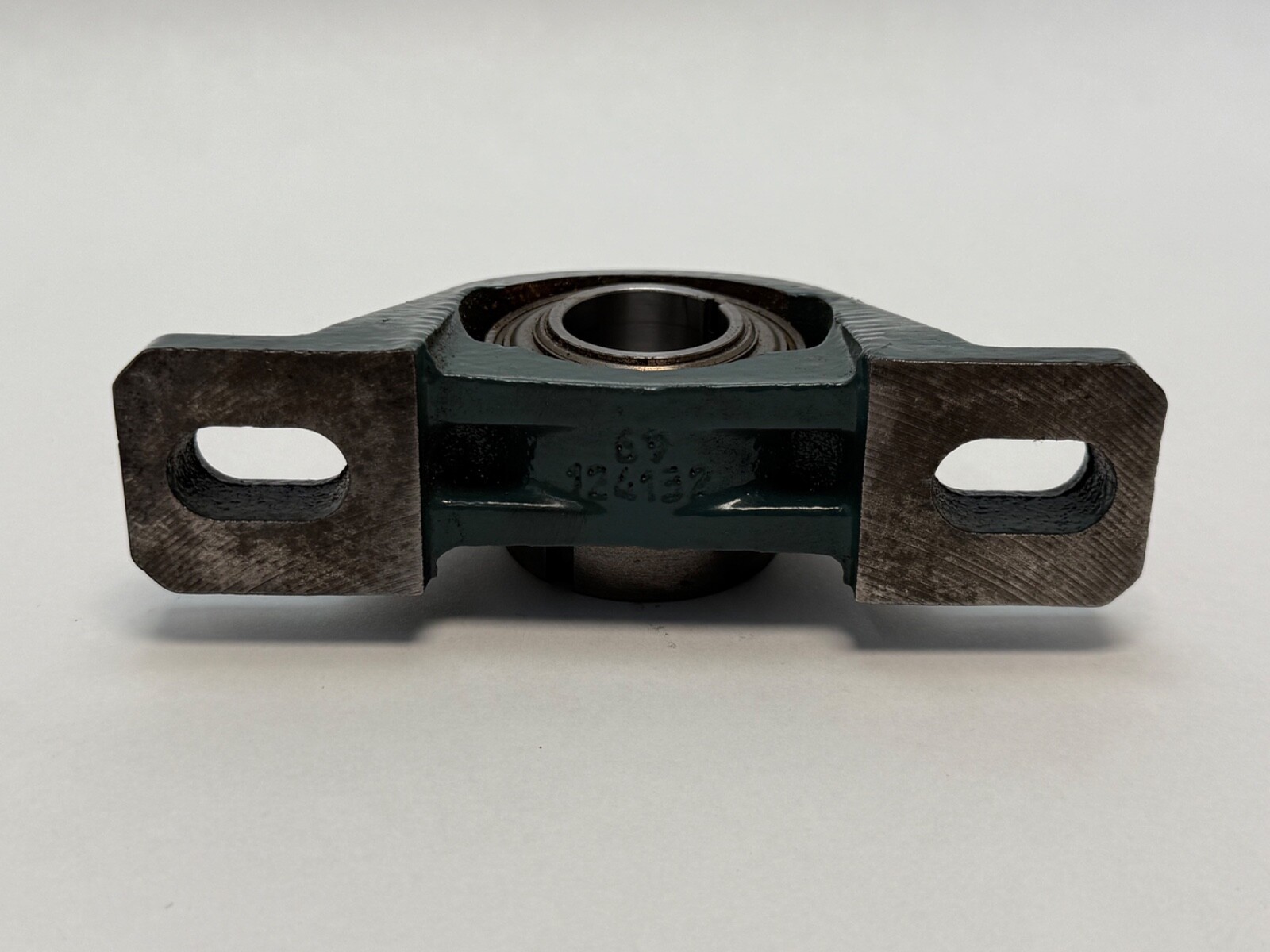

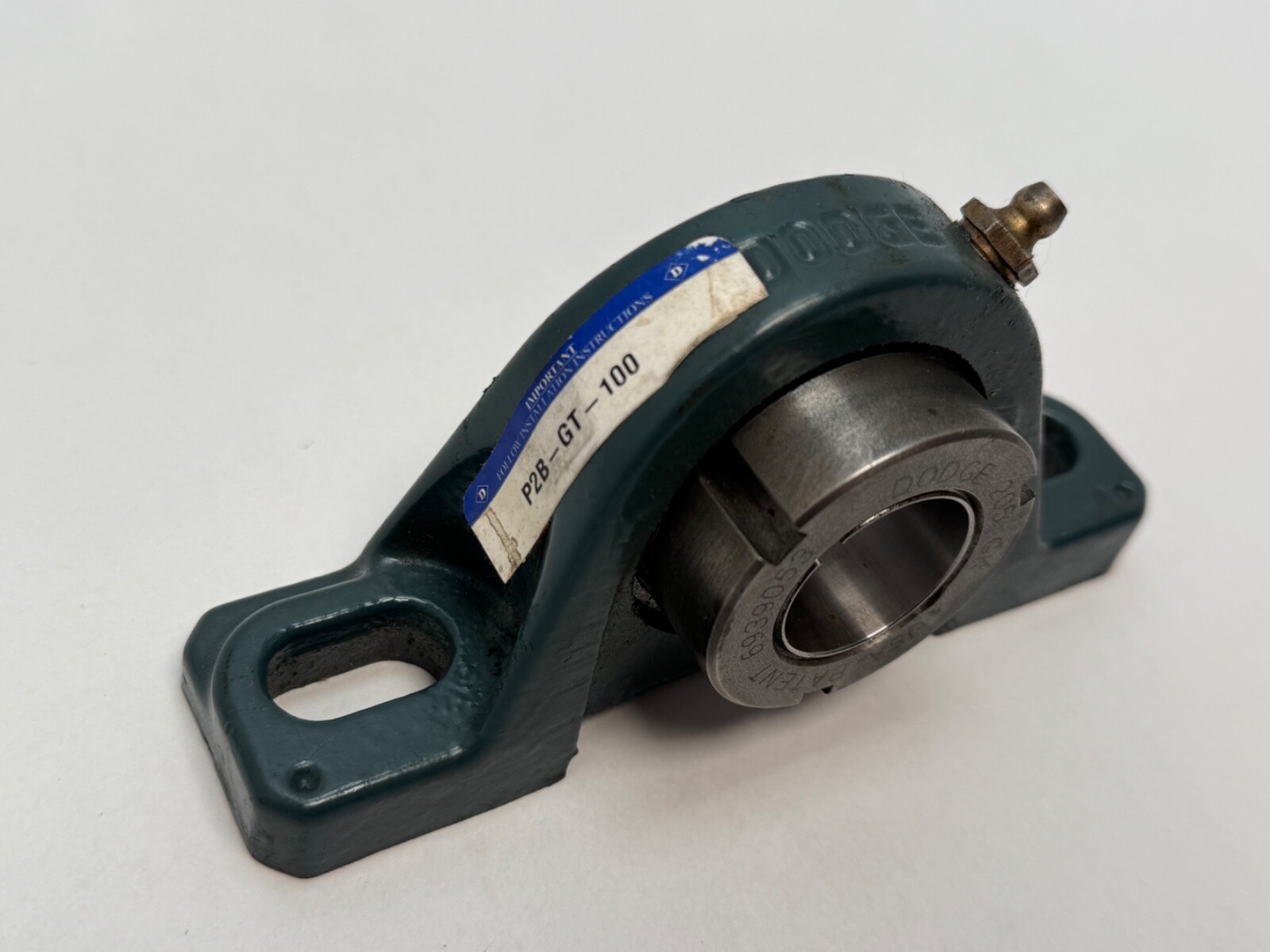

Dodge Grip Tight two-bolt pillow block, 1 in bore, normal-duty ball insert, adapter locking, 1.44 in centre height. 3,146 lb dynamic load, 12,000 rpm max, cast iron.
List Price
$35.84
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | P2B-GT-100 |
| Model | P2B-GT-100 |
| ID | 1.0 in |
| Material | Cast Iron |
|---|---|
| Series | Grip Tight (GT) |
| Type | Pillow Block Bearing |
| Lubricant | Grease |
| Base Number | P2B-GT |
| Industry Terms | mounted ball bearing; pillow block bearing; adapter mount bearing; concentric locking; Grip-Tight |
| Common Misspellings | P2BGT100; P2B-GT100; P2B GT100; Griptight |
| Application Types | fans; blowers; conveyors; air handling |
| Bore Width | 1.46 in |
| Centre Height Base To Bore Centerline | 1.44 in |
| Bolt Center To Center | 3.69 to 4.5 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 3.69 to 4.5 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Bearing Insert Type | Ball |
| Centre Height Pillow Block | 1.44 in |
| Bore Shaft Size | 1 in |
| Housing Style | Two-bolt pillow block |
| Locking Method | Grip Tight pull/push thin-wall adapter |
| Relubrication | Yes, grease |
| Mpn Variants | P2B-GT-100; P2BGT100; P2B GT 100; 129157 |
| Additional Attributes | Dodge Part Number: 129157; Overall Length: 5-1/2 in; Overall Height: 2.77 in; Length Through Bore: 1.46 in; Static Misalignment: +/-2 deg; Insert Series: 205 |
| Dynamic Load Rating | 3,146 lb |
| Static Load Rating | 1,769 lb |
| Rolling Elements | Ball |
| Bearing Type | Single-row ball, 205 series insert |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 12,000 rpm |
| Duty Type | Normal duty |
| Insert Outer Ring | Spherical |
| Harmonization Code | 8483.20.40 |
| Housing Material | Cast Iron |
| Expansion Type | Non-expansion |
Dodge P2B-GT-100 is a Grip Tight two-bolt pillow block with a normal-duty ball bearing insert for a 1 in shaft. Dodge part number: 129157. Housing Style: Two-bolt pillow block. Bore / Shaft Size: 1 in. Bearing Type: Single-row ball, 205 series insert. Housing Material: Cast iron.
P2B — pillow block, two-bolt base.
GT — Grip Tight: wide inner ring, normal duty, thin-wall adapter locking.
100 — 1 in shaft size.

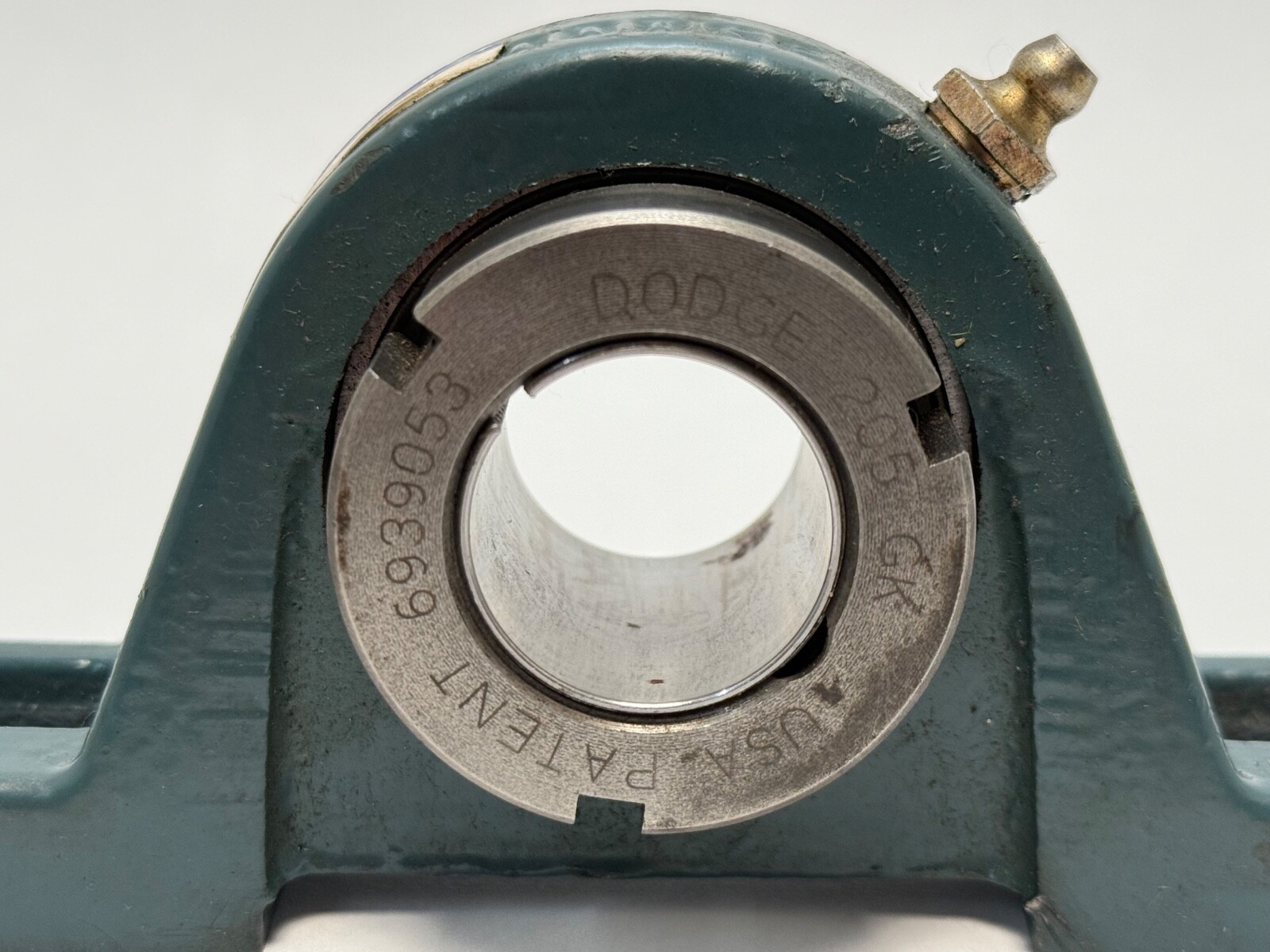

Locking Method: Grip Tight pull/push thin-wall adapter. The adapter grips the shaft through a full 360°, runs concentric, and leaves no set screw marks on the shaft. A built-in dismount feature pulls the bearing off the shaft. Seal Type: DualGuard single-lip contact seal with rubberized flinger. Expansion Type: Non-expansion. Dynamic Load Rating: 3,146 lb. Static Load Rating: 1,769 lb. Limiting Speed: 12,000 rpm. Static misalignment: ±2°.
Centre Height (Pillow Block): 1.44 in. Bolt Center To Center Length: 3.69 to 4.5 in. Number Of Bolt Holes: 2. Overall Length: 5-1/2 in. Overall Height: 2.77 in. Length Through Bore: 1.46 in. Relubrication: Yes, grease.
